AC-AVDM-AUHD
The AC-AVDM-AUHD is and audio down-mixer supporting Dolby® Digital/DTS® Stereo
Audio Decoding. This is used for bypassing bitstream audio over HDMI and down-mixing
to a secondary output for 2Ch audio systems. This unit can manage standard Dolby
Digital & DTS formats up to 6.1 and output the audio as stereo (LPCM 2.0) over HDMI,
S/PDIF (optical and coaxial). Audio can also be set to be managed from ARC.
Key benefits of using AC-AVDM-AUHD:
Down Scaling & Dual Output: The AC-AVDM-AUHD has a scaling circuit built into it.
The scaler can scale 4K (and HDR) --> 1080P. This is ideal for downscaling video for
legacy HDMI AVR's that cannot support high-bandwidth video and bypassing the full
video signal to the sink on the second .
Audio Down-mix: The ideal solution for down-mixing/extracting audio in various
formats - LPCM 7.1CH, DTS, DTS ES, AC3, DD+, Dolby True HD
EDID Management: Use an on-board 4K EDID, or mimic the down stream device.
ARC Management: With ARC (Audio Return Channel) Management you can down-
mix the audio coming back on the ARC Channel for distribution in a 2 Ch system or
legacy AVR.
Detection Indicators: Know it is working by using the simple to read indicator lights
on the front of the unit.
pg. 2
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]

AC-AVDM-AUHD
■Features
•HDMI 2.0(a/b)
•Beyond 18Gbps Bandwidth Support (Using ICT)
•Up to 4K60 4:4:4 Support
•Full HDR Support (HDR 10 & 12 Bit)
•HDR, HDR10+ and HLG Support
•Dolby Vision Support
•4K --> 1080P Down-scaling for mixed systems
•Supports PCM 2- Ch., LPCM 5.1 & 7.1, AC3, Dolby Digital, DD+
Dolby TrueHD, DTS, DTS ES
•Down-mix on L/R "RCA" Cables, Digital Coax, Toslink and
HDMI
•EDID Management and EDID emulate
•Toslink Multichannel Audio Extraction
•ARC Support (HDMI)
•HDCP 2.2 (and all earlier versions supported)
•CEC (ARC) Support
•3D Support
•HDCP 2.2 & Earlier
•LED Status, Link, ARC indication lights
•DIP Switches for simple EDID management, Down-mixing and
Scaling
•Easy to read indicator lights
•Micro USB ISP for field firmware updates
pg. 3
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
■What's Included
Whats in the box?
•AC-AVDM-AUHD
•5V 2A Power Supply
•Mounting Ears
•Operating Instructions

Notice
AVProConnect reserves all rights to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
Basic
6. Clean this device with
a dry cloth only.
1. Do not expose this device to
rain, moisture, dripping or
splashing and ensure that
objects filled with liquids are
not placed on or near the devices.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this device
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.
AC-AVDM-AUHD
pg. 4
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]

AC-AVDM-AUHD
■Specifications
pg. 5
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]

•Light Is On (Solid) = Sync w/ HDMI source is correct and solid.
•Light Is Flashing = The light flashes during the sync process. If it is flashing continuously, a picture may
not be present
•Light Is Off = No Sink or source is detected, please check the cable and check to ensure all connected
devices are powered on.
If the BLUE HDMI SIGNAL STATUS LIGHTS are flashing or are off AND you have no image check the following:
1. The source. Plug it directly into the display to be sure it's functioning properly.
2. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths.
3. Set the EDID to state #1 (See below).
4. Contact AVProEdge if these suggestions do not work.
pg. 6
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
AC-AVDM-AUHD

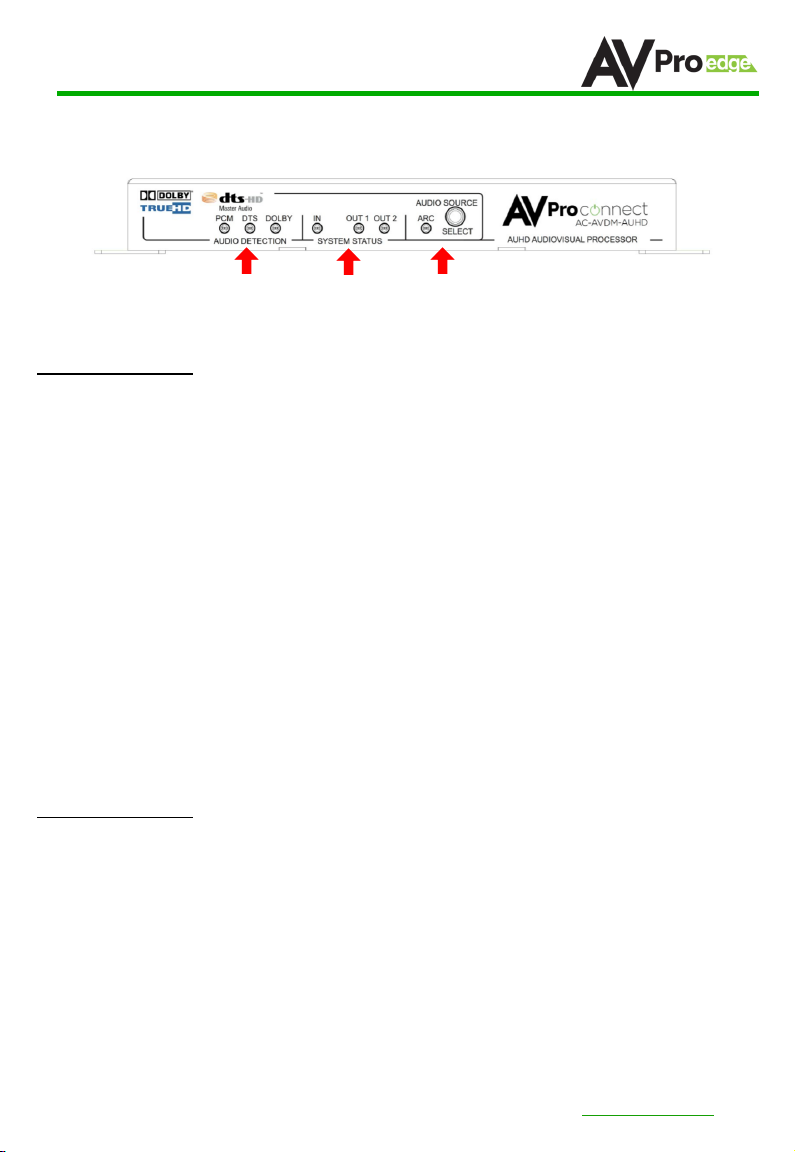

■Front Panel
ARC on/off and
indicator light
Audio IN
Indicator lights
Indicator Lights :
Audio Detection Area: (Blue) This area indicates the in incoming audio signal type. It will indicate the
format type based on your "Audio Source" setting. The lights are:
•PCM = PCM Audio is being detected/decoded.
•DTS = A DTS Bitstream is being detected and decoded.
•DOLBY = A Dolby Digital Bitstream is being detected and decoded.
System Status Area: (Blue) This indicator shows that the HDMI Source is connected and what
outputs are active/connected. The states are:
HDMI Status
Lights
Button Operation
Short (quick) press: Toggles between the two available states for audio outputs. There are two states:
•Blue Light On = Audio will be extracted/decoded from the Audio Return Channel on HDMI Output #2
•Light Off = Audio is extracted from the input source device (This is the default mode)
•*NOTE:
Long (3 Seconds) Press: *Temporary function for Dolby Certification only
1. Press and hold for 3-seconds toggle Dolby DRC (Dynamic Range Compression) - The ARC LED will
blink once indicating the DRC mode has been changed.
2. When you re-power the AC-AVDM-AUHD, Dolby DRC will be on

pg. 7
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
AC-AVDM-AUHD

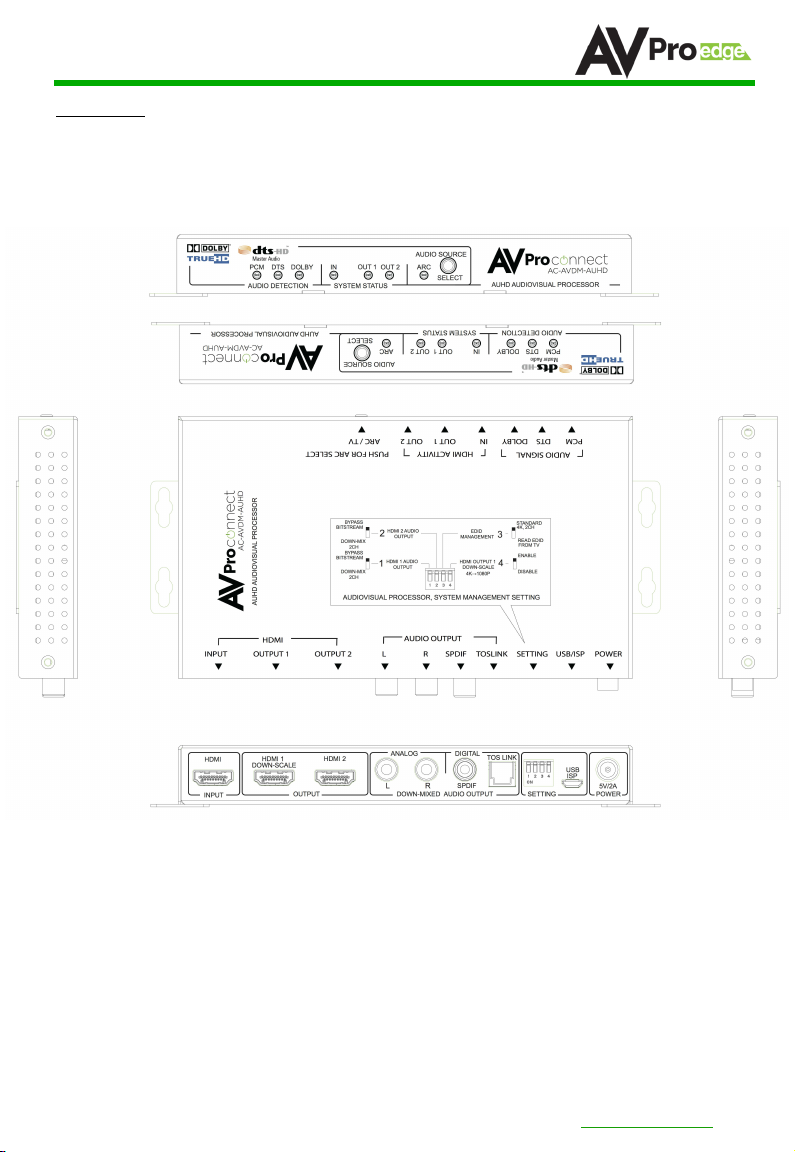

■Top & Rear Panel
HDMI Outputs:
•HDMI OUT 1 - Can down-scale, ARC not supported
•HDMI OUT 2 - No down-scale, ARC Supported
"Down-mixed Audio Output" ports
are always mirrored & always 2
channel.
DIP
Switch
Settings
Indicator lights
DIP Settings are listed on the "TOP"
Top
Rear

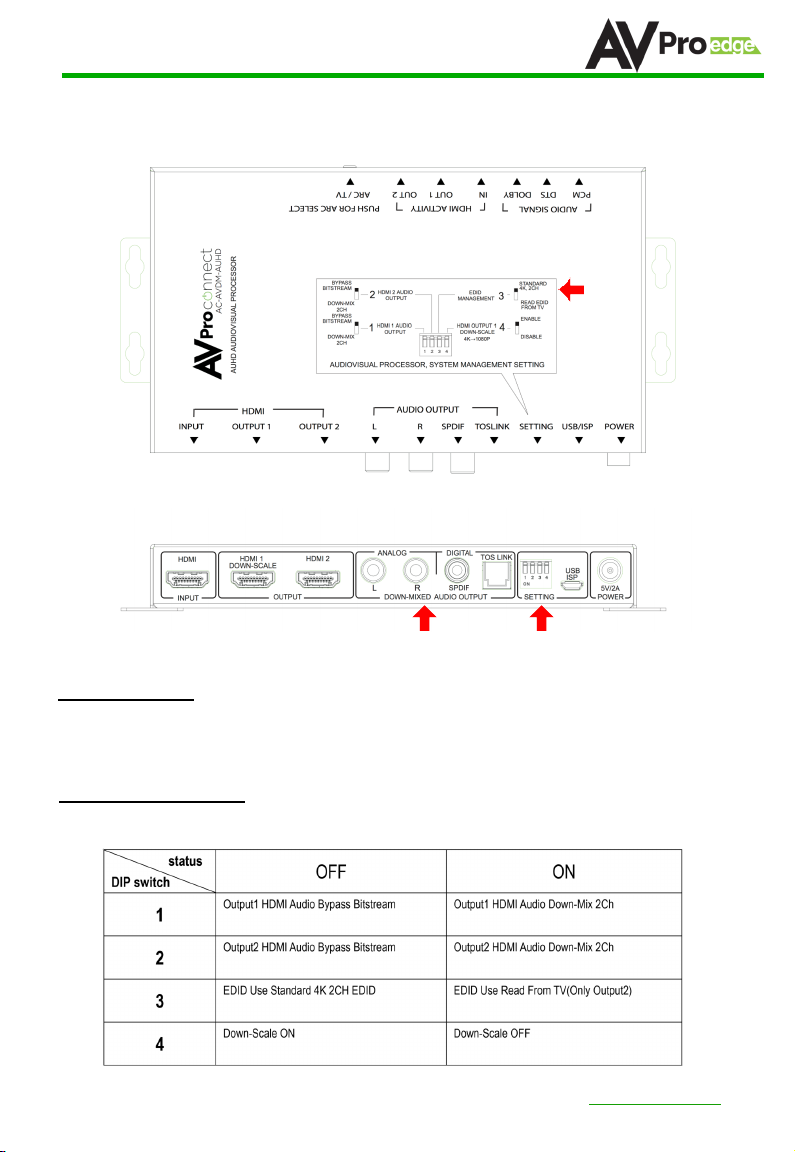

DIP Switch Settings:
Each switch controls one setting only. OFF=UP --- ON=DOWN

AC-AVDM-AUHD
■Serial Communication:
pg. 8
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
Serial Settings
To communicate with the AC-AVDM-AUHD you must use a MICRO USB connector. The Serial to USB is internal
and the driver should automatically install once plugged in. It is a universal CH340 driver. If you have trouble
and need this driver please contact us.
•Baud Rate - 57600
•Bit Number - 8
•Checksum/Flow Control/Parity - NONE
•Stop Bits - 1
Micro USB Port
Serial Commands:

Form Factor:
pg. 9
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
AC-AVDM-AUHD

pg. 10
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
AC-AVDM-AUHD

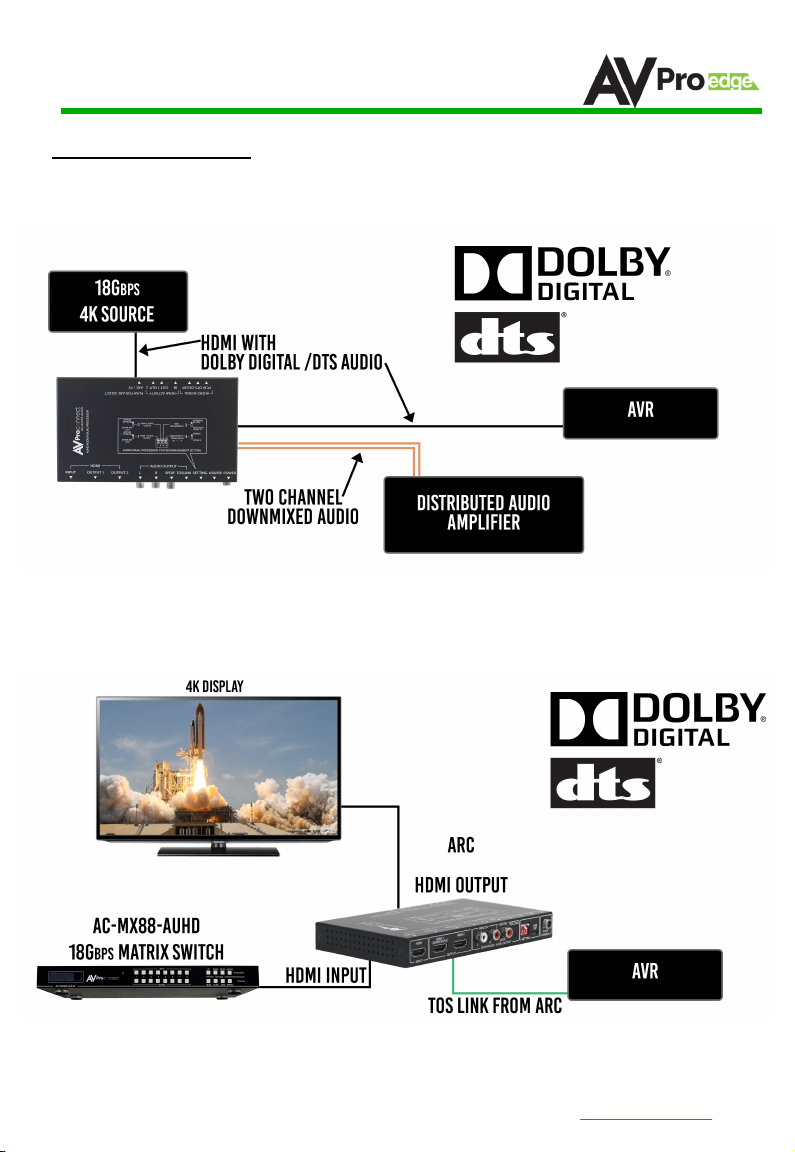

Application Diagrams:
Down-mix for a distributed system with uncompressed bypass:
ARC Example:

AC-AVDM-AUHD
pg. 11
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
THIS PAGE LEFT BLANK!

•Use the power supplies provided. If an alternate supply is required,
check voltage, polarity, and that it has sufficient power to supply the
device it is connected to.
•Do not operate these products outside the specified temperature and
humidity range given in the above specifications.
•Ensure there is adequate ventilation to allow this product to operate
efficiently.
•Repair of the equipment should only be carried out by qualified
professionals as these products contain sensitive components that
may be damaged by any mistreatment.
•Only use this product in a dry environment. Do not allow any liquids
or harmful chemicals to come into contact with these products.
•Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner
or benzene to clean this unit.
Maintenance
To ensure reliable operation of this product as well as protecting the
safety of any person using or handling this device while powered, please
observe the following instructions.
pg. 12
AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
•The DC power supply cord or AC adaptor has been damaged
•Objects or liquids have gotten into the unit
•The unit has been exposed to rain
•The unit does not operate normally or exhibits a marked change in
performance
•The unit has been dropped or the housing damaged
Damage Requiring Service
The unit should be serviced by qualified service personnel if:

Support
