BALAY Washing Machine User manual

1 2 3 4 5 6
End of programme when ...
... (Start/Reload)flashes and -¯-appears on th e display panel.
Note: If display panel light ing is switched off, press any button aEnergy
saving mode, page 5.
Interrupting the programme
Programmes at high temperatures:
– Cool washing: Select 2ü(Rinse)/c(Spin).
– Press( Start/Reload).
Programmes at lower temperatures:
– Select2ü(Rinse)/c(Spin) (deactivate extra ](Extra rinse) button)
or 4(Empty).
– Press( Start/Reload).
Changing the programme if ...
... you have selected the wrong progr amme by mistake:
– Reselect the programme.
– Press( Start/Reload). The new program me starts from the
beginning.
Reloading laundry if ... apage 5
... Press (Start/Reload); both the symbols §+,are displayed on
the display panel. If ǯis lit, the washing machine door canno tbe o pened.
Press (Start/Reload).
Correct installation according to the separate
installations actions.
Checking the machine
– Neveruse a dam aged machine!
– Contactcustomer service!
Connecting the mains plug
Make sure your hands are dry!
Handle the plug only!
Turning on the tap
Sorting and loading laundry
Follow the manufacturer's care in formation!
Sort laundry according to the label's indications.
And according to type, colour, soiling and temperature.
Do not exceed the max imum load aPage 7.
Observe important information! aPage 6
Wash laundry of different sizes in the same wash programme.
Close the door.
Take care not to trap items of laundry between the washing ma chine door and seal.
Add detergent and care products
Measure detergent according:
amount of laundry, soiling, water hardness (ask your water s upply company) and
manufacturer's instructions.
For models without insert for liq uid detergent:
Pour liquid detergent into the appropriate d ispenser and place in the drum.
Your washing machine
Congratulations on having opted for a mo dern, high-quality domestic appliance
manufactured by Balay. This washing machine is distinguished by its economical
energy consumption.
Each machine that leaves our factory has been i nspected thoroughly to ensure that it
functions properly and is in perfect condition.
For further information o n our products, accessories, spares and services, cons ult our
website www.balay.es or contact any of our customer serv icecen tres.
The contact details for al l countries can be found in the enclosed a fter-sales service
directory.
Environmentally friendly waste disposa l All packaging must be disposed of in acc ordance with environmental guidelines.
This appliance is certified in acco rdance with European Directive 2002/96/CE on the
waste electrical and electronic eq uipment (WEEE).
This directive provides the framework for t he EU-wide collection and reuse of used
appliances.

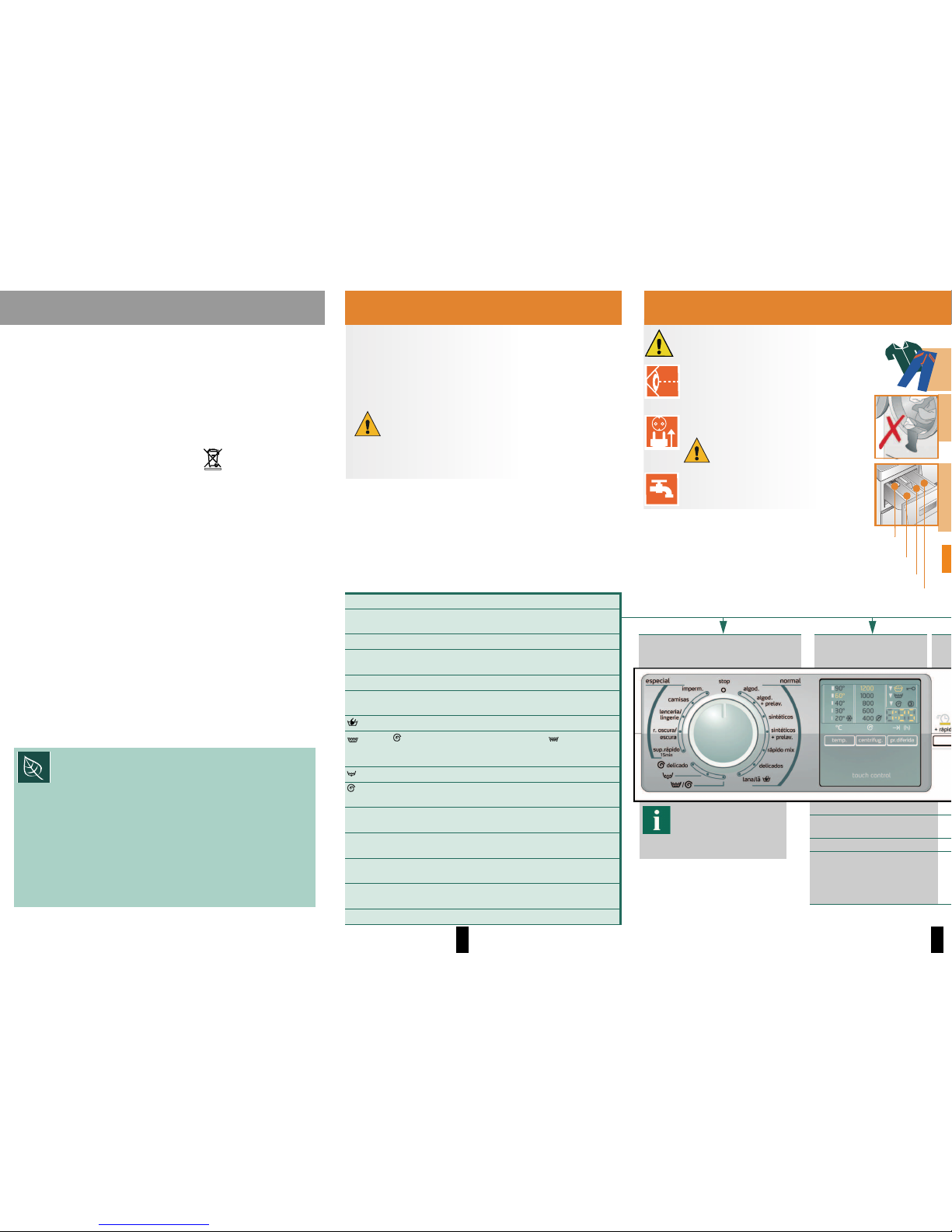

Intended use
Contents Page
ʋIntended use ................................................... ....................................1
ʋProgrammes ........................................................................................ 1
ʋSetting and adjusting the programme ........................................... 3
ʋWashing ........................................................................................... 3/4
ʋAfter washing ..................................................................................... .4
ʋIndividual settings .................................... ......................................5/6
ʋImportant information ........................ ............................................... 6
ʋOverview of programmes ........................................ ........................7
ʋSafety instructions ..... ........................................................................ 8
ʋConsumption values ......................................................................... 8
ʋCare and cleaning ................................................................ .............9
ʋInformation on the display panel .................................................... 9
ʋMaintenance ............... ..................................................................... 10
ʋWhat to do if ... ......................................... ....................................... 11
Protection of the environment/Conservation tips
– Always fill the washing machine w ith a maximum amoun t of
laundry for the relevant pr ogramme.
– Wash no rmally soiled laundry without a p re-wash.
– Instead of algod. (Cottons)90 °C, choose the progr amme
algod. (Cottons) 60 °C w ith the additional function + eco 1.
Comparable cleaning result was significantly lower e nergy
consumption.
– Measure th e detergent according to the manufacturer's
instructions and water hardness .
– If the laundry is th en dried in the tumble drye r, select spin speed
according to instructions of dryer manufacturer.
Preparation Before the first wash,
run a wash cycle with no laun dry in the machine aP age 9.
Setting** and adjusting programmes
Programmes
Detailed overview of programmes apage 7.
Temperature and spin speed c an be selected individually,
irrespective of the selecte d programme and programm e
progress.
algod. (Cottons) hard-wearing fabrics
algod. + prelav.
(Prewash)
hard-wearing fabrics, prewash
sintéticos (Easy-Care) syn thetic fabrics
sintéticos + prelav.
(Prewash)
synthetic fabrics, prewash
rápido mix (Quick Mix) Different types of laundry
delicados
(Delicate/Silk)
Delicate washable fabrics
ÿlana/lã (Wool) Hand/machine washable wool
2ü(Rinse)/ c(Spin) Laundry was hed by hand, extra ](Extra rinse)
button activated; if only using the spin cycle, deacti-
vate the button
4ü(Empty) Drain rinsing w ater with c(without final spin)
cdelicado
(Gentle Spin)
sup. rápido 15 min
(Super Quick)
Short programme
r. oscura/r. escura
(Dark Laundry)
dark laundry
lencería/lingerie
(Lingery)
Lingery programme
camisas
(Shirts/Business)
No-iron shirts
imperm. (Outdoor) All-weather, sports and outdoor fabrics apag e 6
Washing
1
2
Removing the washing
Open the washing machine door and remove the washing.
If (without final spin) is act ive: turn the programme selector to
4(Empty) or select the spin speed.
Choose (Start/Reload).
– Remove any foreign objects. Ri sk of rusting.
– Leave the washing machine doo r and detergent door open
so that any resid ual water can evaporate.
Turn the tap off
Not required for Aqua-Stop models aRefer to In stallation instructions.
Switching off
Turn the programme selector to o(s top).
Washing
ʋfor domestic use only,
ʋfor washing machine-washable fa brics and
hand-washable wool in dete rgent solution,
ʋto be operated with cold or c old and hot (max. 60 ºC)
drinking water, depending on model, and com mercially
available detergents and care products which a re suit-
able for use in washing ma chines.
.
– Do not leave children u nattended near the
washing machine.
– The washing machine is not to be used by
children or persons n ot familiar with the
operating instructions.
– Keep pets away from t he washing machine.
Dilute viscous fabric softener and fabric conditioner with water.
This prevents blockages.
Individual settings
ʑOption buttons
You can change the spin speed and the temperature b efore the selected programme starts and while it is running. The
effects depend on the progra mme progress.
ʑ°C(Temperature )
You can change the displayed washing temperature. The maximum selectable temperature depends o n the current
programme.
ʑ(spin speed in rpm/ (without final spin))
You can change the displayed sp insp eed. The maximum selectable spin speed depends on the mode la nd which
programme is currently selected.
ʑb(h) (Ready in)
When you select the programme, the relev ant programme duration is displayed. You can delay the en d of the
programme before it begins. The ready i n-time can be set in increments of one hour up to a ma ximum of 24 hours.
Press the b(h) (Ready in )button un til the required number of hour s is displayed (h = hour). Ch oose (Start/Reload).
ʑAdditional functions aOverview of progra mmes, page 7
+ rápido 2For washing in a shorter time with a washi ngo utcome comparable to that of the
standard programme. Maximum load aOverview of programmes, page 7.
+ eco 1For saving energy with a w ashing performance comparable to that of the standard
programme.
menos S(Reduced Ironing) Special spin sequence with subsequent fluffing. Gentle final spin: residual moisture in
the laundry slightly increased.
extra ](Extra rinse) Additional rinse cycle. Fo r areas with very soft water o r for further enhancing the spin
result.
ʑChildproof lock
#in the display panel You can lock the washing mach ine to prevent the functions you have set from being
changed inadvertently.
ON/OFF:after the start/end of the programme, press th e( Start/Reload)button for
five seconds.
Note: the childproof lock can r emain activated until you wish to start the next
programme, even after switching off th e machine.
Then you can deactivate the child proof lock before the start of the programme and
activate it again as necessary once the programme has started.
If you wish to turn off the childproof loc k during a programme, turn the programme
selector to the positio n in which the machine is loc ked (the symbol #remains lit).
Turning it off in any other pos ition will cancel the programme in progress.
ʑReloading
§+o,in the display panel Press (Start/Reload) if you w ant to add additional items of laundry after the
programme has started. The mac hine checks whether reloading is possible.
§+,lit: reloading is poss ible.
ǯflashes: wait until §+,lig hts.
Note: do not open the door until both the §+,symbols are lit.
ǯ: it is not possible to relo ad.
Note: for safety reasons, the wash ing machine door remains locked when the water
level and/or temperature is h igh, or during spinning.
To continue the programme, p ress the (Start/Reload)button.
ʑEnergy saving mode
The display panel lighting goes out after a few minutes, (Start/Reload) flashes. Press any button to switch on the
lighting.
ʑ(Start/Reload)
To start the programme or to subsequent ly load additional laundry, and to activate/deactivate the ch ildproof lock.
Individual settings z
ʑSignal
Important information
Protecting the laundr y and the machine
– When determi ning the dosage of all washing powders, additives and cleaning agents, you must foll owthe
manufacturer's instructions.
– Empty all p ockets
– Check for metal items (paper-clips, etc.).
– Wash delicates in a laundry bag (tights, curtains , underwired bras).
– Fasten zips, do up a ny buttons.
– Brush s and out of pockets and collars.
– Remove c urtain fittings or place in the laundry bag.
Laundry with varying degrees of soiling
Wash new items of clothing separately.
light Do not prewash. If requi red, choose the additional function + rápido 2.
Pre-treat any stains as necessary.
intense wash Load less laundry. Choose a programme with a prewash.
Soaking Load laund ry of the same colour .
Pour soaking agent/deter gent into compartment II in accordance with the manufacturer's instructions. Turn the
programme selector to algod. (Cottons)30 ° C and press (Start/Reload). After approx. 10 minutes, press (Sta rt/
Reload) to pause the programme. Once the req uired soaking time has elapsed, press (Start/Reload)again to continue
the programme, or select a differen t programme.
Starch Laundry should n ot be treated with fab ric softener.
Starching is possible in all wash programmes if liq uid starch is used. Pour the starch in accordance with the man ufacturer's
instructions into fab ric softener compartment ~(rinse firs t if necessary).
Dyeing / Bleaching
Dye should only be use d in normal household quantities. Sa ltm ay damage stainless steel. Alway s follow the dye
manufacturer's instructions. D o not use the washing machine for bleaching clothes.
imperm. (Outdoor) Laundry must not be treated with fabric softener.
Special detergent is available for machine wash ing, particularly in sports shops. Dosage according to the manufacturer's
instructions. Place the special deterg ent for outdoor clothing in compartment II.
Turn the programme s elector to imperm. (Outdoor). P ress Temperature and (Start/Reload).
Insert for liquid detergent depending on model
Position the insert for dispensing liquid dete rgent:
– Remove the detergent drawe r completely apage 9
– Slide the insert forwards and click into place.
Do not use the insert (slide upward s): for gel detergents and washing powder,
for programmes with + prela v. (Prewash) and end time opti on.
Set to o1 step, the display
panel lights up
press and
hold +1 step, release
set to o
setting the volume*setting the volume* 1 step
* if necessary, select the
function several times
1. Activating the mode
for setting the signal
volume
2. Setting the volume
for...
direct
Button signals Information signals jj
3
Detergent drawer with
compartments I,II,~Door
Drum
Control panel
Service door
:- 90 ºC ºC (temp.) Select the temperature (:= cold)
- 1400* c(rpm) Select the spin speed (* depending on th e model) or c(without final
spin, laundry soaks in the last rinsing water ,d isplayp anel - - - )
1 - 24 h b(h) (Ready in) End of progr amme after ...
Status displays Programme sequence displays:
1üü2üücü-¯-Wash, rinse, spin, prog ramme duration or end (-0-)
#Childproof lock apage 5
,Open the washing machine door, reload laundry apage s 4, 5
Display panel /
option buttons
Additional functions Start /
Reload
Programme selector for
switching the machine on
and off and for selecting the
programme. Can be turned
in either direction.
**If the #symbol flashes in the
display panel, the childproof lock is
active aDeactivate childproof lock ,
page 5.
Additional functions and option
buttons aIndividual settings,
page 5.
Press (Start/Reload)
All buttons are sensitive and need
only to be touched lightly. Press and
hold the b(h)(Ready in) option
button for an aut omatic run through
all setting options.
Programme selector
1 2 3 4 5 6
Compartment II: detergent for th e main wash, water softener,
bleach, stain remover
Compartment ~: Fabric softener, bleach
Compartment I: Detergent for prewash
Insert for liquid detergent (depending on model) apage 6
1 2 3 4 5 6

7
Overview of programmes aRefer to the table of consumption values on page 8, and advice and warnings on page 6.
Programmes °C max. Type of laundry Additional functions; Information
algod. (Cottons) :- 90 °C 7 kg/
4 kg*
hard-wearing fabrics, cottons or linen that can be washed at 90°C + rápido 2*, + eco 1, men os w, extra + prelav. (Prewash)
sintéticos (Easy-Care) :-6 0 °C
3.5 kg
easy-care cotton, linen, synthetic or blended fabrics + rápido 2, + eco 1, menos w, extra + prelav. (Prewash)
rápido mix (Quick Mix) :- 40 °C cotton or synthetic fabrics + rápido 2, + eco 1, menos w, extra ;
different types of laundry can be washed together
r. oscura/r. escura (Dark Laundry) :- 40 °C dark cotton and d ark synthetic fabrics + rápido 2, + eco 1, menos w, extra ;
reduced rinse and final spin cycle
camisas (Shirts/Business)
:- 60 °C
2 kg
non-iron shirts made of cotton, lin en,s ynthetic fibres or blended fabrics
+ rápido 2, + eco 1, menos w, extra ;
menos w: spin only, hang up dripping wet
delicados (Delicate/Silk) :- 40 °C for delicate fabrics, e.g., silk, satin, synthetic fibres or
blended fabrics (e.g. curtains)
+ rápido 2, + eco 1, menos w, extra :
no spin between rinse cycles
ÿlana/lã (Wool) :-4 0 °C hand/machine washable wool particularly delicate wash programme to avoid shrinkage of laundry;
longer programme breaks (fabrics r est in the detergent solution)
sup. rápido 15 min (Super Quick) :- 40 °C synthetic cotton, linen, syn thetic fibres or blended
fabrics
short programme of approx. 15 minutes, suitable for lightly soiled laund ry
imperm. (Outdoor) :-4 0 °C all-weather, sports and outdoor fabrics including fabrics
with weatherproof membrane
+ rápido 2, + eco 1, extra ;
reduced final spin i n intervals
lencería/lingerie (Lingery) :- 40 °C 1kg lingery + rápido 2, + eco 1, menos w, extra Additional programmes 2ü(Rinse)/c(Spin), 4ü(Empty), cdelicado (Gentle Spin)
*reduced load with additional functi on+ rá pido 2.
As a short programme r ápido mix (Quick Mix) 40 °C with a maximum spi n speed, is ideal.
For programmes without prewash, add detergent to c ompartment II. For prewash programmes, distribute the detergent between compartments Iand II.
9010 / 9000554022
9000554022 3TS74120A /...
Balay Electrogeräte GmbH
CarläWery Str. 34
81739 Munich / Germany
8
Safety instructions
– Carefully read the instruction manual and th ei nformation enclosed, and act accordingly.
– Keep the machine's documentati on for future reference.
Risk of electric shoc k! – Never pull the cable to disconnect the mains plug!
– Never insert/disconnect th e mains plug with damp hands.
Danger to life! For worn-out appliances:
– Disconnect the mains plug.
– Sever the mains cable an d discard along with the plug.
– Destroy the lock on th e washing machine door. This will prevent children from
locking themselves in and risking their lives.
Danger of suffocation! – Keep packaging, film and p ackaging parts out of the reach of children.
Risk of poisoning! – Keep detergen ts and care products out of the reac ho f children.
Risk of explosion! – Items of laundry pretreated with cleaning agents co ntaining solvents, e.g. stain
remover/cleaning solvent may lead to an explosion af ter being loaded into the
washing machine.
Rinse items of laundry thoroughly by hand beforehand.
Risk of injury! – The wa shing machine door may become very hot.
– Be careful when draining hot detergent solution.
– Do not climb onto the washing machi ne.
– Do not lean on the o pen washing machine door.
– Do not reach into the drum if it i s still rotating.
– Be careful when opening th e detergent drawer while the machine is in operation.
Consumption values depending on mod el
Programme Additional
function Load Water***
Electricity***
Programme
duration***
Water inlet temperature
cold 40 °C
algod. (Cottons) :](cold) 7 kg 60 l 0.24 kWh 0.24 kWh 145 min
algod. (Cottons)30 °C** 7 kg 59 l 0.37 kWh 0.37 kWh 145 min
algod. (Cottons)40 °C** 7 kg 59 l 0.98 kWh 0.64 kWh 155 min
algod. (Cottons)60 °C** 7 kg 59 l 1.15 kWh 0.88 kWh 165 min
algod. (Cottons)90 °C 7 kg 69 l 2.10 kWh 1.66 kWh 155 min
algod. (Cottons)60 °C + eco 1*7 kg 42 l 1.05 kWh 0.85 kWh 180 min
sintéticos 40 °C** 3.5 kg 53 l 0.62 kWh 0.43 kWh 87 min
rápido mix 40 °C** 3.5 kg 47 l 0.54 kWh 0.41 kWh 60 min
delicados 30 °C 2 kg 34 l 0.19 kWh 0.19 kW h 41 min
delicados :](cold) 2 kg 35 l 0.05 kWh 0.05 kWh 4 1 min
lana/lã 30 °C 2 kg 39 l 0.17 kWh 0.17 kWh 40 min
lana/lã :](cold) 2 kg 39 l 0.03 kWh 0.03 kWh 40 min
* Programmes etting for testing and energy labelling in accordance with EU directive 92/75/EEC.
** Programme setting for testing in accordance with valid standard EN6 0456.
Note on comparative tests: For testing the test programmes, wash the specified load using the maximum spin sp eed.
As a short programme for coloureds, se lect the programme rápido mix (Quick Mix) 4 0 °C with the maximum spin
speed.
*** The values deviate from the indicated values d epending on water pressure, hardness, and inlet temperature, a mbient tem-
perature, type, amount and soiling o f the laundry, detergent used, fluctuations in the powe r supply and selected additional
functions.
8
9

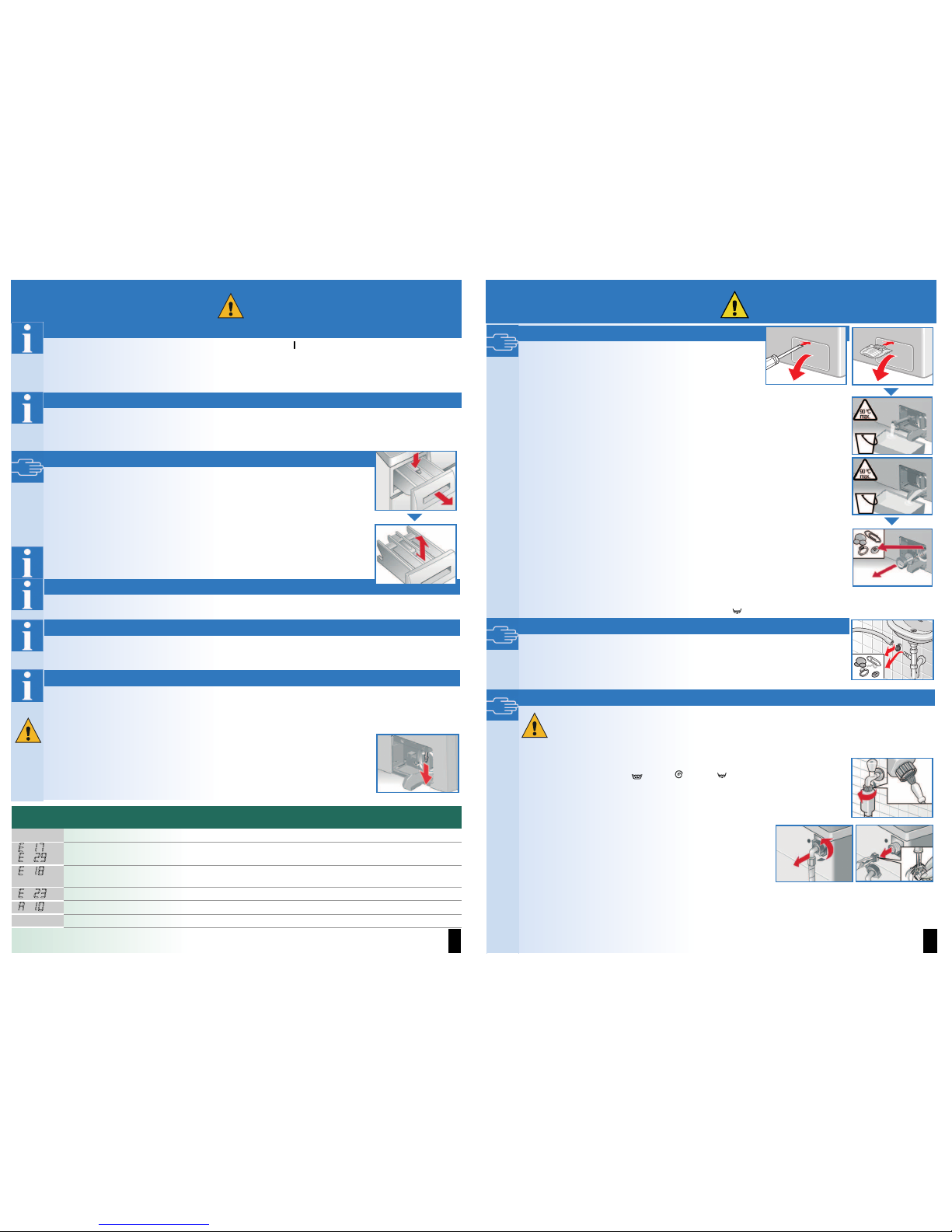

Care and cleaning
Before the first wash
Do not put laun dry in the machine! Turn on the tap. Put i nto compartment II:
– approx. 2 litres of water
– detergen t(m easure according to the manufacturer's instru ctions for lightly soiled laundry and water hardness)
Turn the programme sel ector to sintéticos (Easy-C are) 60 °C and press (Start/R eload). At the end o f the programme,
turn the programme se lector to o(stop).
Machine housing, control panel
– Wipe with a soft, damp cloth.
– Do not use any ab rasive cloths, scourers or cleaning agents (stainless steel cleaners).
– Remove detergent and cleaning agent residue.
– Do not wash the machine with a jet of water!
Cleaning the detergent drawer ...
... if it contains detergent or fabric softener residues.
1. Pull out, press insert down and remove draw er completely.
2. To remove the insert: press upwa rds from below with your fin ger.
3. For models with insert fo rl iquid detergent:Slide the insert upwards and remove it fr omt he back.
4. Clean the detergent d ispenser tray and inserts with water and a brush and dry them.
5. Attach the insert and engage (conne ct the cylinder to the guide pin).
6. Push in th e detergent drawer.
Leave the detergent drawer open so that any residual water can ev aporate.
Drum
Leave the washing machine door open so thatthe drum can dry out.
Forrust stains, usechlorine-freecleaning agent,not steelwool.
Descaling Ens ure there is no laundry in the machine!
This will not be necessary if the correctdosage of detergent is used. If it is, descale the appliance according to the
manufacturer's instructions. Descaling products can beacqu ired onthe website or from customer services aInstallation
instructions.
Emergency release (e.g. i n the event of a power cut)
The programme continues to run when the power has been restored. However, if the laundry has to be removed, t he
washing machine door can be opened as follo ws:
Risk of scalding!
The detergent solution and laundry may be hot. Let it cool.
Do not reach into the drum if it is still rotating.
Do not open the washing machine door if water can be seen through the glass.
1. Turn the progr amme selector to o(stop) and disconn ect the mains plug.
2. Drain the detergent solution apage 10.
3. Pull the emerge ncy release downwards with a tool and rel ease.
The washing ma chine door can then be opened.
Information on the display panel depending on model
,flashes Close the washing machine door properly; laundry may be caught.
§:³Å,
§:ÉTurn on the tap fully, supply hose kinked or trapped;
Clean the filter apage 10, water pressure too low.
§:³µDetergent solution pump blocked; Clean the detergents olution pump apage 10.
Drainage hose / waste pipe blocked; Clean the drainage hos e at the siphon apage 10.
§:´Water in the b ase tub, appliance leaking. Call customer services!
©:³¯Not af ault.Ent ryof unused hot water. Check hot water tap.
#Childproof lock activated: to d eactivate apage 5.
–Risk of electric shock! Disconnect the mains plug.
–Risk of explosion! Do not use solvents.
9
10
Maintenance
Detergent solution pump
Turn the programme selector to o(stop) an d disconnect
the mains plug.
1. Using a screwdriver or the insert f orli quidd etergent
(depending on model), open and r emove the service flap.
2. Remove the folding gutte r and place a large enough container underneath.
3. For models with a drainage hose: Remove the dr ainage hose from the retainer an d pull it
from the housing.
Remove the sealing c ap, allow the detergent solution to flow out into the container. Replace
the sealing cap and place the drainage hose in the retainer.
3* For models without a drainage hose: Carefully unscrew the pump cove r 180° oru ntil the
detergent solution begi ns to flow out on the folding gutter. When the con tainer is full, close
the pump cover and empty the c ontainer. Repeat the above steps until all the detergent
solution has completely drained out.
4. Carefully unscrew the pump c over (there may be residual water).
5. Clean the interior, pump cover threa d and pump housing (the impeller in the detergent
solution pump must r otate).
6. Replace the pump co vera nd screw it tightly.
7. Return the dra inage hose (depending on model) and the folding gutter to their start positio n.
8. Place the service flap back on and close.
To prevent unused detergent from flowing straight into the drain during the next wash:
Pour 2 litres of water into compartment II and then sta rt the 4ü(Empty) programme.
Drainage hose at the siphon
Turn the programme selector to o(stop) an d disconnect the mains plug.
1. Loosen the hose clam p, carefully remove the drainage hose (residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainag e hose and secure the connection with the hose cla mp.
Filter in the water supply
Risk of electric shock!
Do not immerse the A qua-Stop safety device in water (c ontains an electric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme ( except 2ü(Rinse)/c(Spin) // 4(Empty)).
3. Choose (Start/Reload). Let th e programme run for approximately 40 seconds.
4. Turn the programm e selector to o(stop). Disconnect the mains plug.
Clean the filter:
5. Disconnect the hose from th e tap.
Clean the filter using a small b rush.
and/or for Standard and Aqua-Secur e models:
Remove the hose on the rear of the appliance.
Remove the filter with pliers an d clean.
6. Connect the hose an d check for leaks.
–Risk of burning!
Allow the detergent s olution to cool.
– T urn off the tap.
11
What to do if...
ʑWater is leaking out – Attach /replace the drainage hose correctly.
– Tighten the screw connection of the supply hose.
ʑNo water supply.
Detergent not dispensed.
–(Start/Reload) not selected?
– Tap not turned on?
– Filter blocked? Clean the filter apage 10.
– Supply hose kinked or trapped?
ʑThe appliance door will not
open.
– Safety function active. Prog ramme stopped? apage 4.
–(without final spin) s elected? apage 3, 4.
– Can be opened by emergenc y release only? apage 9.
– Door locked after the wash ing machine is switched off: Switch on the washing
machine and wait for 5 seconds .
ʑThe selected programme does
not start.
–(Start/Reload)or b(h) (Ready in) time selected?
– Washing machine door close d?
– Childproof lock active? Dea ctivate apage 5.
ʑDetergent solution is not
drained.
–(without final spin) s elected? apage 3, 4.
– Clean the detergent solution pump apage 10.
– Clean the waste pipe and/or dr ainage hose.
ʑNo water can be seen in the
drum.
– Not a fault. Water remains inside below th e visible area.
ʑSpin result not satisfactory.
Laundry wet/too damp.
– Not a fault. Spin control system has stopped th es pinc ycle. Uneven distribution of
laundry.
Distribute large and small items of la undry evenly in the drum.
–menos S(Reduced Ironing) selected ? apage 5.
– Selected speed too low? apage 5.
ʑProgramme duration changes
suddenly during operation.
– Not a fault. The program timeca n vary according to the distribution o f laundry, with
it therefore being possible for the di splay panel to show adjustments in the
duration.
ʑSpin cycle performed several
times.
– Not a fault. The balance control system has detected an i mbalance and is
attempting to redress this by repeating the spin.
ʑResidual water in the
compartment for care products.
– Not a fault: the action of th e care product is not affected.
– Clean the compartment if necessa ry apage 9.
ʑOdour formation in the washing
machine.
– Run programme algod. (Cottons)90 °C without la undry. Use standard detergent.
ʑStatus display 1flashing.
Appliance has detected a
detergent overload.
– Too much detergent used?
If foam is escaping f rom the detergent drawer: mix 1 tablespoon of f abric softener
with ½ litre of water and pour into compartment II (not with outdoor or down
fabrics).
– Reduce the detergent dosage for the next wash cycle.
ʑIntense noise formation,
vibrations and "wandering"
during the spin cycle.
– Are the appliance feet fixed?
Secure the appliance feet aIn stallation instructions.
– Transportation safety dev ices removed?
Remove transportation safety devices aInstallation instructions.
ʑDisplay panel/indicator lamps
remain turned off while the
machine is working.
– Energy-saving mode apage 5 .
– Power cut?
– Fuses triggered? Reset/chang e the fuse.
– If the fault occurs repeatedl y, call customer services.
ʑProgramme sequence longer
than usual.
– Not a fault. Unbalanced loa d detection system adjusts imbalance by repeatedly
distributing the laundry.
– Not a fault: foam detection s ystem active; adds an additional rinse cycle.
ʑDetergent residues on t he
laundry.
– Occasionally, phosphate-free deterg ents contain water-insoluble residues.
– Select 2ü(Rinse)/c(Spin) or brush out the laundry after washing.
If you cannot correct a fa ult yourself or if a repair is necessary:
– Turn the programme selector to o(stop) and remove the mains plug from t he socket.
– Turn off the water supply and c all customer services aInstallation instructions.
Instructions for use en
Washing
Machine
Observe the safety instruc tions on
page 8!
Read these instructions and the separate
installation instructions before opera ting
the washing machine.

1 2 ¯a2üc2üc]4a§,ǯCorrect installation according to the separate
installations actions.
Checking the machine
– Never use a damaged machine!
– Contact customer service!
Connecting the mains plug
Make sure your hands are dry!
Handle the plug only!
Turning on the tap
aa
Your washing machine
Congratulations on having opted for a modern, high-quality domestic appliance
manufactured by Balay. This washing machine is distinguished by its economical
energy consumption.
Each machine that leaves our factory has been inspected thoroughly to ensure that it
functions properly and is in perfect condition.
For further information on our products, accessories, spares and services, consult our
website www.balay.es or contact any of our customer service centres.
The contact details for all countries can be found in the enclosed after-sales service
directory.
Environmentally friendly waste disposal All packaging must be disposed of in accordance with environmental guidelines.
This appliance is certified in accordance with European Directive 2002/96/CE on the
waste electrical and electronic equipment (WEEE).
This directive provides the framework for the EU-wide collection and reuse of used
appliances.
Intended use
Contents Page
ʋIntended use .......................................................................................1
ʋProgrammes ........................................................................................1
ʋSetting and adjusting the programme ...........................................3
ʋWashing ...........................................................................................3/4
ʋAfter washing ......................................................................................4
ʋIndividual settings ..........................................................................5/6
ʋImportant information ....................................................................... 6
ʋOverview of programmes ................................................................7
ʋSafety instructions .............................................................................8
ʋConsumption values .........................................................................8
ʋCare and cleaning .............................................................................9
ʋInformation on the display panel ....................................................9
ʋMaintenance .................................................................................... 10
ʋWhat to do if ... ................................................................................ 11
Protection of the environment/Conservation tips
– Always fill the washing machine with a maximum amount of
laundry for the relevant programme.
– Wash normally soiled laundry without a pre-wash.
– Instead of algod. (Cottons)90 °C, choose the programme
algod. (Cottons) 60 °C with the additional function + eco 1.
Comparable cleaning result was significantly lower energy
consumption.
– Measure the detergent according to the manufacturer's
instructions and water hardness.
– If the laundry is then dried in the tumble dryer, select spin speed
according to instructions of dryer manufacturer.
Preparation a
Programmes
Detailed overview of programmes apage 7.
Temperature and spin speed can be selected individually,
irrespective of the selected programme and programme
progress.
algod. (Cottons) hard-wearing fabrics
algod. + prelav.
(Prewash)
hard-wearing fabrics, prewash
sintéticos (Easy-Care) synthetic fabrics
sintéticos + prelav.
(Prewash)
synthetic fabrics, prewash
rápido mix (Quick Mix) Different types of laundry
delicados
(Delicate/Silk)
Delicate washable fabrics
ÿlana/lã (Wool) Hand/machine washable wool
2ü(Rinse)/ c(Spin) Laundry washed by hand, extra ](Extra rinse)
button activated; if only using the spin cycle, deacti-
vate the button
4ü(Empty) Drain rinsing water with c(without final spin)
cdelicado
(Gentle Spin)
sup. rápido 15 min
(Super Quick)
Short programme
r. oscura/r. escura
(Dark Laundry)
dark laundry
lencería/lingerie
(Lingery)
Lingery programme
camisas
(Shirts/Business)
No-iron shirts
imperm. (Outdoor) All-weather, sports and outdoor fabrics apage 6
4a
ʋfor domestic use only,
ʋfor washing machine-washable fabrics and
hand-washable wool in detergent solution,
ʋto be operated with cold or cold and hot (max. 60 ºC)
drinking water, depending on model, and commercially
available detergents and care products which are suit-
able for use in washing machines.
.
– Do not leave children unattended near the
washing machine.
– The washing machine is not to be used by
children or persons not familiar with the
operating instructions.
– Keep pets away from the washing machine.
ʑʑʑʑbbʑa2a1S]ʑ##ʑ§o,§,ǯ§,§,ǯʑʑ
z
ʑ2~a
jj
~:- 90 ºC ºC (temp.) Select the temperature (:- 1400* c(rpm) Select the spin speed (* depending on the mod cspin, laundry soaks in the last rinsing water, display
1 - 24 h b(h) (Ready in) End of programme after ...
Status displays Programme sequence displays:
1üü2üücü-¯-Wash, rinse, spin, programme duration or end (-0-)
#Childproof lock a,Open the washing machine door, reload laundry aDisplay panel /
option buttons
Additional functions
Programme selector for
switching the machine on
and off and for selecting the
programme. Can be turned
in either direction. #aabProgramme selector
1 2
Compartment II: detergent for the main wash, water softener,
bleach, stain remover
Compartment ~: Fabric softener, bleach
Compartment I: Detergent for prewash
Insert for liquid detergent (depending on model) apage 6
1 2

3 4
End of programme when ...
... (Start/Reload)flashes and -¯-appears on the display panel.
Note: If display panel lighting is switched off, press any button aEnergy
saving mode, page 5.
Interrupting the programme
Programmes at high temperatures:
– Cool washing: Select 2ü(Rinse)/c(Spin).
– Press (Start/Reload).
Programmes at lower temperatures:
– Select 2ü(Rinse)/c(Spin) (deactivate extra ](Extra rinse) button)
or 4(Empty).
– Press (Start/Reload).
Changing the programme if ...
... you have selected the wrong programme by mistake:
– Reselect the programme.
– Press (Start/Reload). The new programme starts from the
beginning.
Reloading laundry if ... apage 5
... Press (Start/Reload); both the symbols §+,are displayed on
the display panel. If ǯis lit, the washing machine door cannot be opened.
Press (Start/Reload).
Sorting and loading laundry
Follow the manufacturer's care information!
Sort laundry according to the label's indications.
And according to type, colour, soiling and temperature.
Do not exceed the maximum load aPage 7.
Observe important information! aPage 6
Wash laundry of different sizes in the same wash programme.
Close the door.
Take care not to trap items of laundry between the washing machine door and seal.
Add detergent and care products
Measure detergent according:
amount of laundry, soiling, water hardness (ask your water supply company) and
manufacturer's instructions.
For models without insert for liquid detergent:
Pour liquid detergent into the appropriate dispenser and place in the drum.
ʋʋʋʋʋʋʋʋʋʋʋʋʋʋ1Before the first wash,
run a wash cycle with no laundry in the machine aPage 9.
Setting** and adjusting programmes
aÿ2üc]4üccaWashing
1
2
Removing the washing
Open the washing machine door and remove the washing.
If (without final spin) is active: turn the programme selector to
4(Empty) or select the spin speed.
Choose (Start/Reload).
– Remove any foreign objects. Risk of rusting.
– Leave the washing machine door and detergent door open
so that any residual water can evaporate.
Turn the tap off
Not required for Aqua-Stop models aRefer to Installation instructions.
Switching off
Turn the programme selector to o(stop).
Washing
ʋʋʋ
Dilute viscous fabric softener and fabric conditioner with water.
This prevents blockages.
ʑʑʑʑbbʑa2a1S]ʑ##ʑ§o,§,ǯ§,§,ǯʑʑ
z
ʑ2~a
jj
3
Detergent drawer with
compartments I,II,~Door
Drum
Control panel
Service door
:ºC (temp.) Select the temperature (:= cold)
c(rpm) Select the spin speed (* depending on the model) or c(without final
spin, laundry soaks in the last rinsing water, display panel - - - )
b(h) (Ready in) End of programme after ...
Status displays Programme sequence displays:
1üü2üücü¯Wash, rinse, spin, programme duration or end (-0-)
#Childproof lock apage 5
,Open the washing machine door, reload laundry apages 4, 5
Additional functions Start /
Reload
**If the #symbol flashes in the
display panel, the childproof lock is
active aDeactivate childproof lock,
page 5.
Additional functions and option
buttons aIndividual settings,
page 5.
Press (Start/Reload)
All buttons are sensitive and need
only to be touched lightly. Press and
hold the b(h)(Ready in) option
button for an automatic run through
all setting options.
3 4
~a
3 4

56
¯aEnergy
2üc2üc]button)
4a§,are displayed on
ǯis lit, the washing machine door cannot be opened.
aa
ʋʋʋʋʋʋʋʋʋʋʋʋʋʋ1aaÿ2üc]4ücca 4a
ʋʋʋIndividual settings
ʑOption buttons
You can change the spin speed and the temperature before the selected programme starts and while it is running. The
effects depend on the programme progress.
ʑ°C(Temperature )
You can change the displayed washing temperature. The maximum selectable temperature depends on the current
programme.
ʑ(spin speed in rpm/ (without final spin))
You can change the displayed spin speed. The maximum selectable spin speed depends on the model and which
programme is currently selected.
ʑb(h) (Ready in)
When you select the programme, the relevant programme duration is displayed. You can delay the end of the
programme before it begins. The ready in-time can be set in increments of one hour up to a maximum of 24 hours.
Press the b(h) (Ready in) button until the required number of hours is displayed (h = hour). Choose (Start/Reload).
ʑAdditional functions aOverview of programmes, page 7
+ rápido 2For washing in a shorter time with a washing outcome comparable to that of the
standard programme. Maximum load aOverview of programmes, page 7.
+ eco 1For saving energy with a washing performance comparable to that of the standard
programme.
menos S(Reduced Ironing) Special spin sequence with subsequent fluffing. Gentle final spin: residual moisture in
the laundry slightly increased.
extra ](Extra rinse) Additional rinse cycle. For areas with very soft water or for further enhancing the spin
result.
ʑChildproof lock
#in the display panel You can lock the washing machine to prevent the functions you have set from being
changed inadvertently.
ON/OFF:after the start/end of the programme, press the (Start/Reload)button for
five seconds.
Note: the childproof lock can remain activated until you wish to start the next
programme, even after switching off the machine.
Then you can deactivate the childproof lock before the start of the programme and
activate it again as necessary once the programme has started.
If you wish to turn off the childproof lock during a programme, turn the programme
selector to the position in which the machine is locked (the symbol #remains lit).
Turning it off in any other position will cancel the programme in progress.
ʑReloading
§+o,in the display panel Press (Start/Reload) if you want to add additional items of laundry after the
programme has started. The machine checks whether reloading is possible.
§+,lit: reloading is possible.
ǯflashes: wait until §+,lights.
Note: do not open the door until both the §+,symbols are lit.
ǯ: it is not possible to reload.
Note: for safety reasons, the washing machine door remains locked when the water
level and/or temperature is high, or during spinning.
To continue the programme, press the (Start/Reload)button.
ʑEnergy saving mode
The display panel lighting goes out after a few minutes, (Start/Reload) flashes. Press any button to switch on the
lighting.
ʑ(Start/Reload)
To start the programme or to subsequently load additional laundry, and to activate/deactivate the childproof lock.
Individual settings z
ʑSignal
Important information
Protecting the laundry and the machine
– When determining the dosage of all washing powders, additives and cleaning agents, you must follow the
manufacturer's instructions.
– Empty all pockets
– Check for metal items (paper-clips, etc.).
– Wash delicates in a laundry bag (tights, curtains, underwired bras).
– Fasten zips, do up any buttons.
– Brush sand out of pockets and collars.
– Remove curtain fittings or place in the laundry bag.
Laundry with varying degrees of soiling
Wash new items of clothing separately.
light Do not prewash. If required, choose the additional function + rápido 2.
Pre-treat any stains as necessary.
intense wash Load less laundry. Choose a programme with a prewash.
Soaking Load laundry of the same colour.
Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions. Turn the
programme selector to algod. (Cottons)30 °C and press (Start/Reload). After approx. 10 minutes, press (Start/
Reload) to pause the programme. Once the required soaking time has elapsed, press (Start/Reload)again to continue
the programme, or select a different programme.
Starch Laundry should not be treated with fabric softener.
Starching is possible in all wash programmes if liquid starch is used. Pour the starch in accordance with the manufacturer's
instructions into fabric softener compartment ~(rinse first if necessary).
Dyeing / Bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel. Always follow the dye
manufacturer's instructions. Do not use the washing machine for bleaching clothes.
imperm. (Outdoor) Laundry must not be treated with fabric softener.
Special detergent is available for machine washing, particularly in sports shops. Dosage according to the manufacturer's
instructions. Place the special detergent for outdoor clothing in compartment II.
Turn the programme selector to imperm. (Outdoor). Press Temperature and (Start/Reload).
Insert for liquid detergent depending on model
Position the insert for dispensing liquid detergent:
– Remove the detergent drawer completely apage 9
– Slide the insert forwards and click into place.
Do not use the insert (slide upwards): for gel detergents and washing powder,
for programmes with + prelav. (Prewash) and end time option.
Set to o1 step, the display
panel lights up
press and
hold +1 step, release
set to o
setting the volume*setting the volume* 1 step
* if necessary, select the
function several times
1. Activating the mode
for setting the signal
volume
2. Setting the volume
for...
direct
Button signals Information signals jj
~::ccb1üü2üücü¯#a,a#aab56
~a
56

7
Overview of programmes aRefer to the table of consumption values on page 8, and advice and warnings on page 6.
Programmes °C max. Type of laundry Additional functions; Information
algod. (Cottons) :- 90 °C 7 kg/
4 kg*
hard-wearing fabrics, cottons or linen that can be washed at 90°C + rápido 2*, + eco 1, menos w, extra + prelav. (Prewash)
sintéticos (Easy-Care) :- 60 °C
3.5 kg
easy-care cotton, linen, synthetic or blended fabrics + rápido 2, + eco 1, menos w, extra + prelav. (Prewash)
rápido mix (Quick Mix) :- 40 °C cotton or synthetic fabrics + rápido 2, + eco 1, menos w, extra ;
different types of laundry can be washed together
r. oscura/r. escura (Dark Laundry) :- 40 °C dark cotton and dark synthetic fabrics + rápido 2, + eco 1, menos w, extra ;
reduced rinse and final spin cycle
camisas (Shirts/Business)
:- 60 °C
2 kg
non-iron shirts made of cotton, linen, synthetic fibres or blended fabrics
+ rápido 2, + eco 1, menos w, extra ; menos w: spin only, hang up dripping wet
delicados (Delicate/Silk) :- 40 °C for delicate fabrics, e.g., silk, satin, synthetic fibres or
blended fabrics (e.g. curtains)
+ rápido 2, + eco 1, menos w, extra : no spin between rinse cycles
ÿlana/lã (Wool) :- 40 °C hand/machine washable wool particularly delicate wash programme to avoid shrinkage of laundry;
longer programme breaks (fabrics rest in the detergent solution)
sup. rápido 15 min (Super Quick) :- 40 °C synthetic cotton, linen, synthetic fibres or blended
fabrics
short programme of approx. 15 minutes, suitable for lightly soiled laundry
imperm. (Outdoor) :- 40 °C all-weather, sports and outdoor fabrics including fabrics
with weatherproof membrane
+ rápido 2, + eco 1, extra ; reduced final spin in intervals
lencería/lingerie (Lingery) :- 40 °C 1 kg lingery + rápido 2, + eco 1, menos w, extra Additional programmes 2ü(Rinse)/c(Spin), 4ü(Empty), cdelicado (Gentle Spin)
*reduced load with additional function + rápido 2. As a short programme rápido mix (Quick Mix) 40 °C with a maximum spin speed, is ideal.
For programmes without prewash, add detergent to compartment II. For prewash programmes, distribute the detergent between compartments Iand II.
9010 / 9000554022
9000554022 3TS74120A /...
Balay Electrogeräte GmbH
CarläWery Str. 34
81739 Munich / Germany
8
Safety instructions
– Carefully read the instruction manual and the information enclosed, and act accordingly.
– Keep the machine's documentation for future reference.
Risk of electric shock! – Never pull the cable to disconnect the mains plug!
– Never insert/disconnect the mains plug with damp hands.
Danger to life! For worn-out appliances:
– Disconnect the mains plug.
– Sever the mains cable and discard along with the plug.
– Destroy the lock on the washing machine door. This will prevent children from
locking themselves in and risking their lives.
Danger of suffocation! – Keep packaging, film and packaging parts out of the reach of children.
Risk of poisoning! – Keep detergents and care products out of the reach of children.
Risk of explosion! – Items of laundry pretreated with cleaning agents containing solvents, e.g. stain
remover/cleaning solvent may lead to an explosion after being loaded into the
washing machine.
Rinse items of laundry thoroughly by hand beforehand.
Risk of injury! – The washing machine door may become very hot.
– Be careful when draining hot detergent solution.
– Do not climb onto the washing machine.
– Do not lean on the open washing machine door.
– Do not reach into the drum if it is still rotating.
– Be careful when opening the detergent drawer while the machine is in operation.
Consumption values depending on model
Programme Additional
function Load Water***
Electricity***
Programme
duration***
Water inlet temperature
cold 40 °C
algod. (Cottons) :](cold) 7 kg 60 l 0.24 kWh 0.24 kWh 145 min
algod. (Cottons)30 °C** 7 kg 59 l 0.37 kWh 0.37 kWh 145 min
algod. (Cottons)40 °C** 7 kg 59 l 0.98 kWh 0.64 kWh 155 min
algod. (Cottons)60 °C** 7 kg 59 l 1.15 kWh 0.88 kWh 165 min
algod. (Cottons)90 °C 7 kg 69 l 2.10 kWh 1.66 kWh 155 min
algod. (Cottons)60 °C + eco 1*7 kg 42 l 1.05 kWh 0.85 kWh 180 min
sintéticos 40 °C** 3.5 kg 53 l 0.62 kWh 0.43 kWh 87 min
rápido mix 40 °C** 3.5 kg 47 l 0.54 kWh 0.41 kWh 60 min
delicados 30 °C 2 kg 34 l 0.19 kWh 0.19 kWh 41 min
delicados :](cold) 2 kg 35 l 0.05 kWh 0.05 kWh 41 min
lana/lã 30 °C 2 kg 39 l 0.17 kWh 0.17 kWh 40 min
lana/lã :](cold) 2 kg 39 l 0.03 kWh 0.03 kWh 40 min
* Programme setting for testing and energy labelling in accordance with EU directive 92/75/EEC.
** Programme setting for testing in accordance with valid standard EN60456.
Note on comparative tests: For testing the test programmes, wash the specified load using the maximum spin speed.
As a short programme for coloureds, select the programme rápido mix (Quick Mix) 40 °C with the maximum spin
speed.
*** The values deviate from the indicated values depending on water pressure, hardness, and inlet temperature, ambient tem-
perature, type, amount and soiling of the laundry, detergent used, fluctuations in the power supply and selected additional
functions.
8
aa,§³Å§Éa§³µaa§´©³¯#a
4ü2üc4ʑʑaʑaaaʑbaʑaaʑʑSaaʑʑʑaʑʑ1ʑaaʑaʑʑ2üca

a:21w:21w:21w:21w:21ww:21wÿ:::21:21w2üc4üc2ä
:]1:]:]
9
Care and cleaning
Before the first wash
Do not put laundry in the machine! Turn on the tap. Put into compartment II:
– approx. 2 litres of water
– detergent (measure according to the manufacturer's instructions for lightly soiled laundry and water hardness)
Turn the programme selector to sintéticos (Easy-Care) 60 °C and press (Start/Reload). At the end of the programme,
turn the programme selector to o(stop).
Machine housing, control panel
– Wipe with a soft, damp cloth.
– Do not use any abrasive cloths, scourers or cleaning agents (stainless steel cleaners).
– Remove detergent and cleaning agent residue.
– Do not wash the machine with a jet of water!
Cleaning the detergent drawer ...
... if it contains detergent or fabric softener residues.
1. Pull out, press insert down and remove drawer completely.
2. To remove the insert: press upwards from below with your finger.
3. For models with insert for liquid detergent:Slide the insert upwards and remove it from the back.
4. Clean the detergent dispenser tray and inserts with water and a brush and dry them.
5. Attach the insert and engage (connect the cylinder to the guide pin).
6. Push in the detergent drawer.
Leave the detergent drawer open so that any residual water can evaporate.
Drum
Leave the washing machine door open so that the drum can dry out.
For rust stains, use chlorine-free cleaning agent, not steel wool.
Descaling Ensure there is no laundry in the machine!
This will not be necessary if the correct dosage of detergent is used. If it is, descale the appliance according to the
manufacturer's instructions. Descaling products can be acquired on the website or from customer services aInstallation
instructions.
Emergency release (e.g. in the event of a power cut)
The programme continues to run when the power has been restored. However, if the laundry has to be removed, the
washing machine door can be opened as follows:
Risk of scalding!
The detergent solution and laundry may be hot. Let it cool.
Do not reach into the drum if it is still rotating.
Do not open the washing machine door if water can be seen through the glass.
1. Turn the programme selector to o(stop) and disconnect the mains plug.
2. Drain the detergent solution apage 10.
3. Pull the emergency release downwards with a tool and release.
The washing machine door can then be opened.
Information on the display panel depending on model
,flashes Close the washing machine door properly; laundry may be caught.
§:³Å,
§:ÉTurn on the tap fully, supply hose kinked or trapped;
Clean the filter apage 10, water pressure too low.
§:³µDetergent solution pump blocked; Clean the detergent solution pump apage 10.
Drainage hose / waste pipe blocked; Clean the drainage hose at the siphon apage 10.
§:´Water in the base tub, appliance leaking. Call customer services!
©:³¯Not a fault. Entry of unused hot water. Check hot water tap.
#Childproof lock activated: to deactivate apage 5.
–Risk of electric shock! Disconnect the mains plug.
–Risk of explosion! Do not use solvents.
9
10
Maintenance
Detergent solution pump
Turn the programme selector to o(stop) and disconnect
the mains plug.
1. Using a screwdriver or the insert for liquid detergent
(depending on model), open and remove the service flap.
2. Remove the folding gutter and place a large enough container underneath.
3. For models with a drainage hose: Remove the drainage hose from the retainer and pull it
from the housing.
Remove the sealing cap, allow the detergent solution to flow out into the container. Replace
the sealing cap and place the drainage hose in the retainer.
3* For models without a drainage hose: Carefully unscrew the pump cover 180° or until the
detergent solution begins to flow out on the folding gutter. When the container is full, close
the pump cover and empty the container. Repeat the above steps until all the detergent
solution has completely drained out.
4. Carefully unscrew the pump cover (there may be residual water).
5. Clean the interior, pump cover thread and pump housing (the impeller in the detergent
solution pump must rotate).
6. Replace the pump cover and screw it tightly.
7. Return the drainage hose (depending on model) and the folding gutter to their start position.
8. Place the service flap back on and close.
To prevent unused detergent from flowing straight into the drain during the next wash:
Pour 2 litres of water into compartment II and then start the 4ü(Empty) programme.
Drainage hose at the siphon
Turn the programme selector to o(stop) and disconnect the mains plug.
1. Loosen the hose clamp, carefully remove the drainage hose (residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage hose and secure the connection with the hose clamp.
Filter in the water supply
Risk of electric shock!
Do not immerse the Aqua-Stop safety device in water (contains an electric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme (except 2ü(Rinse)/c(Spin) // 4(Empty)).
3. Choose (Start/Reload). Let the programme run for approximately 40 seconds.
4. Turn the programme selector to o(stop). Disconnect the mains plug.
Clean the filter:
5. Disconnect the hose from the tap.
Clean the filter using a small brush.
and/or for Standard and Aqua-Secure models:
Remove the hose on the rear of the appliance.
Remove the filter with pliers and clean.
6. Connect the hose and check for leaks.
–Risk of burning!
Allow the detergent solution to cool.
– Turn off the tap.
ʑʑaʑaaaʑbaʑaaʑʑSaaʑʑʑaʑʑ1ʑaaʑaʑʑ2üca

a:21w:21w:21w:21w:21ww:21wÿ:::21:21w2üc4üc2ä
:]1:]:]aa,§³Å§Éa§³µaa§´©³¯#a4ü2üc4
11
What to do if...
ʑWater is leaking out – Attach/replace the drainage hose correctly.
– Tighten the screw connection of the supply hose.
ʑNo water supply.
Detergent not dispensed.
–(Start/Reload) not selected?
– Tap not turned on?
– Filter blocked? Clean the filter apage 10.
– Supply hose kinked or trapped?
ʑThe appliance door will not
open.
– Safety function active. Programme stopped? apage 4.
–(without final spin) selected? apage 3, 4.
– Can be opened by emergency release only? apage 9.
– Door locked after the washing machine is switched off: Switch on the washing
machine and wait for 5 seconds.
ʑThe selected programme does
not start.
–(Start/Reload)or b(h) (Ready in) time selected?
– Washing machine door closed?
– Childproof lock active? Deactivate apage 5.
ʑDetergent solution is not
drained.
–(without final spin) selected? apage 3, 4.
– Clean the detergent solution pump apage 10.
– Clean the waste pipe and/or drainage hose.
ʑNo water can be seen in the
drum.
– Not a fault. Water remains inside below the visible area.
ʑSpin result not satisfactory.
Laundry wet/too damp.
– Not a fault. Spin control system has stopped the spin cycle. Uneven distribution of
laundry.
Distribute large and small items of laundry evenly in the drum.
–menos S(Reduced Ironing) selected? apage 5.
– Selected speed too low? apage 5.
ʑProgramme duration changes
suddenly during operation.
– Not a fault. The program time can vary according to the distribution of laundry, with
it therefore being possible for the display panel to show adjustments in the
duration.
ʑSpin cycle performed several
times.
– Not a fault. The balance control system has detected an imbalance and is
attempting to redress this by repeating the spin.
ʑResidual water in the
compartment for care products.
– Not a fault: the action of the care product is not affected.
– Clean the compartment if necessary apage 9.
ʑOdour formation in the washing
machine.
– Run programme algod. (Cottons)90 °C without laundry. Use standard detergent.
ʑStatus display 1flashing.
Appliance has detected a
detergent overload.
– Too much detergent used?
If foam is escaping from the detergent drawer: mix 1 tablespoon of fabric softener
with ½ litre of water and pour into compartment II (not with outdoor or down
fabrics).
– Reduce the detergent dosage for the next wash cycle.
ʑIntense noise formation,
vibrations and "wandering"
during the spin cycle.
– Are the appliance feet fixed?
Secure the appliance feet aInstallation instructions.
– Transportation safety devices removed?
Remove transportation safety devices aInstallation instructions.
ʑDisplay panel/indicator lamps
remain turned off while the
machine is working.
– Energy-saving mode apage 5.
– Power cut?
– Fuses triggered? Reset/change the fuse.
– If the fault occurs repeatedly, call customer services.
ʑProgramme sequence longer
than usual.
– Not a fault. Unbalanced load detection system adjusts imbalance by repeatedly
distributing the laundry.
– Not a fault: foam detection system active; adds an additional rinse cycle.
ʑDetergent residues on the
laundry.
– Occasionally, phosphate-free detergents contain water-insoluble residues.
– Select 2ü(Rinse)/c(Spin) or brush out the laundry after washing.
If you cannot correct a fault yourself or if a repair is necessary:
– Turn the programme selector to o(stop) and remove the mains plug from the socket.
– Turn off the water supply and call customer services aInstallation instructions.
Instructions for use en
Washing
Machine
Observe the safety instructions on
page 8!
Read these instructions and the separate
installation instructions before operating
the washing machine.
