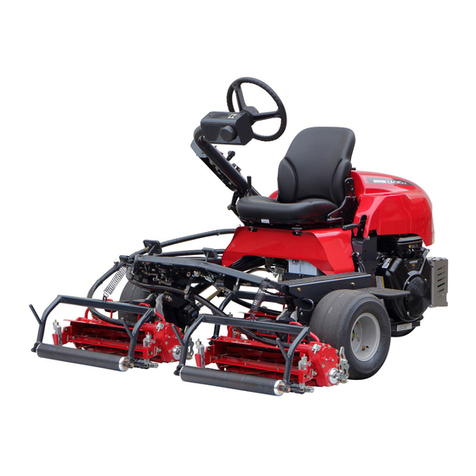

Baroness LM315GC Manual

Baroness

Baroness LM315GC Manual

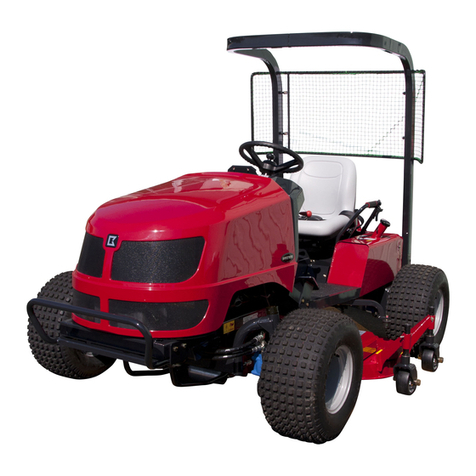

Baroness GM1700 User manual

Baroness

Baroness GM1700 User manual

Baroness LM551 User manual

Baroness

Baroness LM551 User manual

Baroness LM2700 User manual

Baroness

Baroness LM2700 User manual

Baroness LM18G Series User manual

Baroness

Baroness LM18G Series User manual

Baroness LM180C Operation manual

Baroness

Baroness LM180C Operation manual

Baroness LM184 User manual

Baroness

Baroness LM184 User manual

Baroness GM2810A Operation manual

Baroness

Baroness GM2810A Operation manual

Baroness LM551 Operation manual

Baroness

Baroness LM551 Operation manual

Baroness LM331 User manual

Baroness

Baroness LM331 User manual

Baroness LM54GA-R User manual

Baroness

Baroness LM54GA-R User manual

Baroness LM2700 Operation manual

Baroness

Baroness LM2700 Operation manual

Baroness LM2400 Operation manual

Baroness

Baroness LM2400 Operation manual

Baroness GM2800B Operation manual

Baroness

Baroness GM2800B Operation manual

Baroness LM551A Operation manual

Baroness

Baroness LM551A Operation manual

Baroness LM180C Operation manual

Baroness

Baroness LM180C Operation manual

Baroness LM18G Series User manual

Baroness

Baroness LM18G Series User manual

Baroness LM3210A Operation manual

Baroness

Baroness LM3210A Operation manual

Baroness SP05 User manual

Baroness

Baroness SP05 User manual

Popular Lawn Mower manuals by other brands

Toro 20047 Operator's manual

Toro

Toro 20047 Operator's manual

Toro Greensmaster TriFlex 3300 Operator's manual

Toro

Toro Greensmaster TriFlex 3300 Operator's manual

Global garden products 72 Workshop manual

Global garden products

Global garden products 72 Workshop manual

EINHELL 01045 operating instructions

EINHELL

EINHELL 01045 operating instructions

Toro Greensmaster 3120 Operator's manual

Toro

Toro Greensmaster 3120 Operator's manual

GreenWorks Tools 25157 user manual

GreenWorks Tools

GreenWorks Tools 25157 user manual

Etesia MVEHH user manual

Etesia

Etesia MVEHH user manual

Husqvarna LTH125 owner's manual

Husqvarna

Husqvarna LTH125 owner's manual

Gravely 915034 - ZT1640 Owner's/operator's manual

Gravely

Gravely 915034 - ZT1640 Owner's/operator's manual

Jacobsen 63281 Technical manual

Jacobsen

Jacobsen 63281 Technical manual

GreenWorks Pro MO802524 Operator's manual

GreenWorks Pro

GreenWorks Pro MO802524 Operator's manual

Toro TimeMaster 20976 Operator's manual

Toro

Toro TimeMaster 20976 Operator's manual

Deutz-Allis 3000 Series parts manual

Deutz-Allis

Deutz-Allis 3000 Series parts manual

Craftsman 917.9998C owner's manual

Craftsman

Craftsman 917.9998C owner's manual

jobmate YT9108 user manual

jobmate

jobmate YT9108 user manual

Yard force GM R40A instructions

Yard force

Yard force GM R40A instructions

Husqvarna R 419TsX AWD Operator's manual

Husqvarna

Husqvarna R 419TsX AWD Operator's manual

STERWINS ELM2-36P-3W.4 Assemby - Use - Maintenance Manual

STERWINS

STERWINS ELM2-36P-3W.4 Assemby - Use - Maintenance Manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Technical Information Leaflet
TIL: 002
LM2700 Blade Adjustment
BARONESS LM2700 BLADE/CUT ADJUSTMENT
Before attempting to adjust the blades in order to put the machine ‘on cut’ please make sure that:
Finally, before commencing adjustment it is very important to make sure that the cutting units are
clean, especially behind the cutting cylinder between the bottom blade carrier and the cutting
cylinder. If there is build up on top of this blade carrier then this can restrict the cutting cylinder from
lowering onto the bottom blade. If necessary open up the rear grass deflector and clean the area.
The rear cutting cylinder pivot pins
must be free rotating and that this
bolt/nut is not over-tightened or
seized due to corrosion.
If it is seized: remove the bolt and
clean all surfaces (bolt and drilling)
with emery cloth. Then coat the bolt
in an anti-seize compound (Copper
Slip etc) before reinserting the bolt.
Do not tighten the nut tight. Pinch it
up and then slacken it off just a little
in order to allow the bolt to rotate.
Make sure that this spring is
sufficiently tensioned but without it
being ‘coil bound’ through over
tightened. There must be some
visible gap between each spring coil.
To adjust the spring tension, rotate
this spring pressure screw. Rotate it
anti-clockwise to add tension and
clockwise to decrease tension.
Make sure that this bolt is free
rotating and not clamping the
aluminium casting to the mower
frame. To adjust this bolt correctly,
tighten it fully and then slacken it off
a little until it rotates.
Adjusting Blade Contact
Important: Baroness blades are designed to cut with minimal contact. Never adjust them so that
they are in anything more than very light contact as this will cause friction, heat and wear to the
blades.
Whilst other manufacturers run their blades with hard contact, they are made from a softer material
which is not as durable as the Baroness. If the Baroness blades are adjusted correctly then they will
last up to 5 times longer between regrinding than other makes of blades.
To adjust the contact between cutting cylinder
and bottom blade adjust the nut.
Turning it anti-clockwise will lower the cutting
cylinder onto the bottom blade and therefore
increase contact.
Turning clockwise will raise the cutting cylinder
away from the bottom blade and decrease
contact.
To adjust blade contact you do not need to
slacken any other nuts or bolts. When you
finish adjustments do not tighten this or any
other nut. The only nut that you need to turn
during this process is the top adjustment nut.
To check that the blades are cutting
correctly use a strip of paper (as
shown).
With the strip of paper held square to
the bottom blade rotate the cutting
cylinder and see if the blades will cut
the paper. Never rotate the cutting
cylinder using your hand as the
blades are very sharp and can cause
serious injury. Use a short wooden
pole (small length of broom handle
etc) to rotate the cylinder.
If the paper is not cut you will need to lower the
cutting cylinder in order to increase blade
contact.
To do this, rotate the cylinder adjustment nut
anti-clockwise as shown.
There are two cylinder adjustment nuts, one
either side of each unit. Initially make sure you
adjust both of them by the same amount at the
same time in order to keep the cylinder parallel
to the bottom blade.
Only ever adjust them by small amounts at any
one time.
Check the cut again by using a strip of paper as
previously explained. Once again please
remember to never put your hand into the
cutting cylinder.
If the paper is still not cut correctly repeat the
above process of lowering the cutting cylinder
until the paper does cut.
If one side cuts paper but the other side does
not, lower the cutting cylinder further but only
on the side that it is not cutting.
If you are unable to achieve an acceptable cut with just a light contact by performing the above
adjustments then the blades have become a little blunt and will need back-lapping.
Once the blade is cutting paper on both sides
you need to check that you do not have
excessive blade contact.
To do this you need to use another strip of paper
but this time hold it flat along the surface of the
bottom blade as shown.
When you rotate the cutting cylinder the paper
should not be cut but should just leave an
indentation line in it. If it does this it is set ok. If
it cuts the paper then the contact is too great
and the cutting cylinder will need to be raised by
rotating the adjusting nuts clockwise.
Repeat these exercises until the paper is cut
across the full width of the unit when held
square to the bottom blade, but just leaves an
indentation line in the paper when it is held flat
along the bottom blade.
Once this is achieved the blades are correctly
adjusted.
