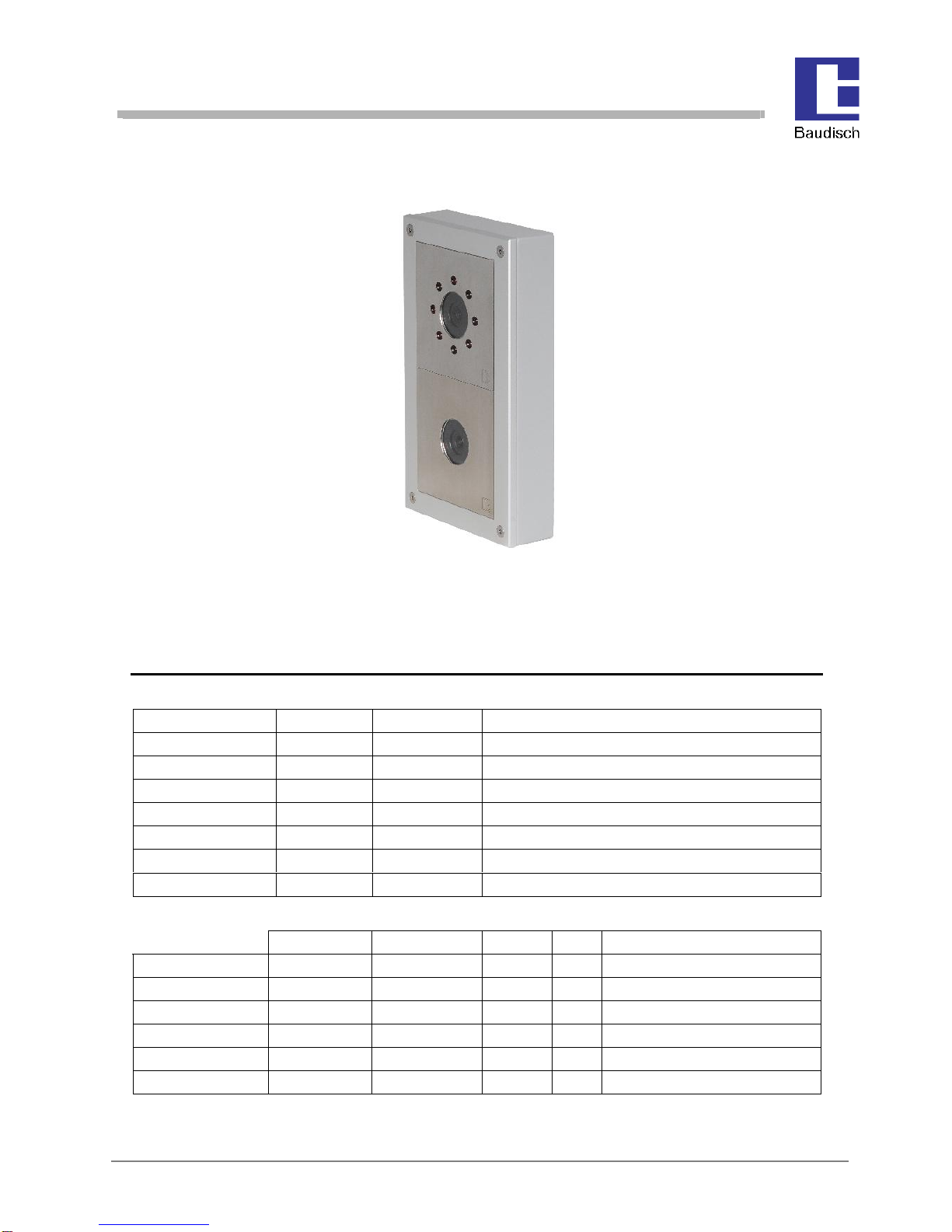

Baudisch CP-CAM-AHD ECO / MAX User manual

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
1 / 1
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Manual
History:
Version
Date
Name
Modification
1.0
30.10.2013
M.Schmidt
First draft
1.1
19.11.2013
M.Schmidt
Modification of the factory default values
Released last version:
Date
Name
Unit
KZZ
Signature
geprüft
TT.MM.JJJJ
DEV
geprüft
PF
geprüft
VT
geprüft
Kunde
gesehen
FE
freigegeben
GL

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
2 / 2
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
1. Table of Contents
1. Table of Contents ........................................................................................................................2
2. General........................................................................................................................................3
2.1. Symbols and Highlighting............................................................................................................3
2.2. Softwarehistory............................................................................................................................3
2.3. Hardware versions.......................................................................................................................3
3. Product description......................................................................................................................4
3.1. General........................................................................................................................................4
3.2. System overview..........................................................................................................................5
3.3. Products compared......................................................................................................................5
3.4. Scope of delivery.........................................................................................................................6
3.5. Optional Accessories...................................................................................................................7
4. Commissioning............................................................................................................................9
4.1. Preparing the Service PC............................................................................................................9
4.2. Connect the Baudisch.CP-CAM-AHD .......................................................................................10
4.2.1. Operating at a SIP door module MAXI / PLUS or TouchMe MAXI .............................................10
4.2.2. Stand-alone operation .................................................................................................................10
5. Configuration .............................................................................................................................11
5.1. Log in to the Web Interface .......................................................................................................11
5.1.1. IP Settings ...................................................................................................................................12
5.1.2. Video Stream Settings.................................................................................................................12
5.1.3. User Management.......................................................................................................................13
5.2. Accessing the video stream.......................................................................................................13
5.3. Accessing the video stream with a SNOM IP-Phone................................................................15
5.3.1. Example Configuration of a Snom IP Telephone with Image Transmission...............................15
5.4. Firmwareupdate.........................................................................................................................17
5.5. Reset to factory default..............................................................................................................17
6. Product Details ..........................................................................................................................18
6.1. Specifications.............................................................................................................................18
6.2. Connector description................................................................................................................21
6.3. Technical drawings....................................................................................................................22
6.3.1. Baudisch.CP-CAM-AHD-Steel ECO............................................................................................22
6.3.2. Baudisch.CP-CAM-AHD-Steel MAXI...........................................................................................23
6.4. Declaration of Conformity.....................................................Fehler! Textmarke nicht definiert.
7. Support ......................................................................................................................................24

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
3 / 3
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
2. General
2.1. Symbols and Highlighting
Warning of hazardous electrical voltage.
This symbol indicates important instructions that you should follow in any case, to avoid injury or
damage to or malfunction of the product.
This symbol indicates helpful hints.
.
2.2. Softwarehistory
Date
Firmware
Version
Description / Modification
08.07.2013
5.40.5
First Release
2.3. Hardware versions
Date
HW Version
Description / Modification
25.10.2013
0.1
Prototyps / Pre-series

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
4 / 4
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
3. Product description
3.1. General
The Baudisch.CP-CAM-AHD is a compact network camera with a ¼“ image sensor and 720p
HD resolution.
It allows the parallel streaming of H.264 and MJPG to several users in the network, eg VoIP
phones, the Baudisch.CP-CAM Viewer or the Baudisch.TouchMe.
The MAXI version also has a built-in infrared illumination with which people and objects are well
illuminated in total darkness.
The connection done comfortably at the AUX port of the Baudisch.SIP door module MAXI /
PLUS or the Baudisch.TouchMe MAXI.
For stand-alone operation the Baudisch.CP-CAM Supply Interface is available.
Features:
•¼“ image sensor (Progressive scan RGB)
•Maximum resolution of 1280 x 800 Pixel
•Maximum framerate of 30 pictures / second MPEG-4 Part 2
•Motion- / sabotagedetection with optional alert events
•Direct recording to network storage (NAS or File Server)
•File upload via FTP, HTTP and E-Mail
•Solid front panel made of V4A stainless steel
ú
úThe descriptions in this manual include only information which enable smooth operation of
normal size. Would you like to receive more information about the camera module please visit
www.axis.com/techsup and download the user manual for the network camera M1004W.

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
5 / 5
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013

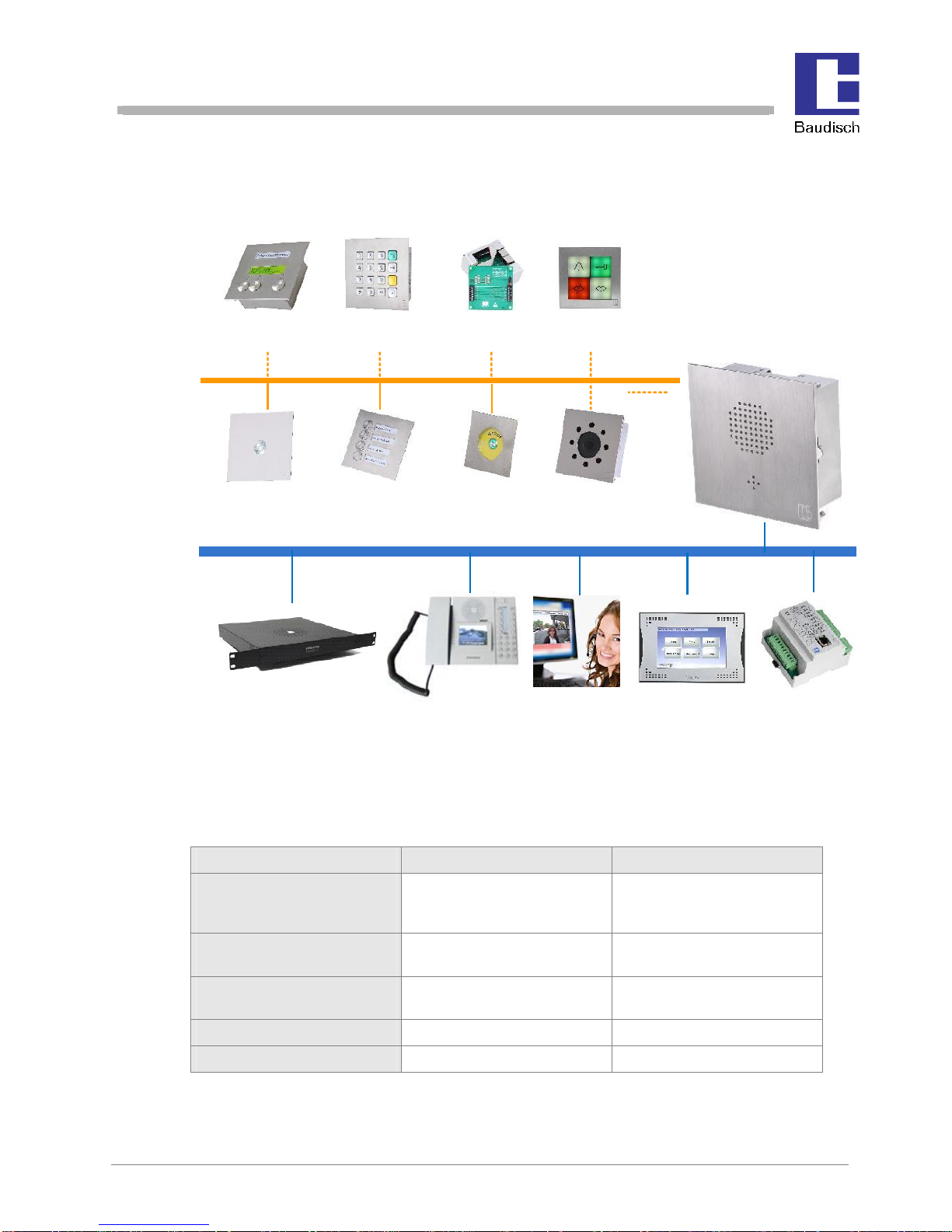

3.2. System overview
SIP PBX
Baudisch.SIP DoorModule
MAXI / ECO
IP Network / LAN
Baudisch.
CP-CAM
Viewer Baudisch.
TouchMe
Stentofon.IP-Video
DesktopStation
only MAXI
Baudisch.
SIP
DisplayModule
Baudisch.
SIP
KeypadModule 16B
Baudisch.
Diode
MatrixModule
Baudisch.
Central call
ButtonModule
Baudisch.
ButtonModule Baudisch.
Emergency
Module
Baudisch.
CP-CAM
Baudisch.
ASB_8Out_
8InSPS_IP
Baudisch.
LED-Module
3.3. Products compared
Feature
CP-CAM-AHD ECO
CP-CAM-AHD MAXI
Direct connection to a
Baudisch.SIP-Türmodul MAXI
/ PLUS
ü
ü
Direct connection to a
Baudisch.TouchMe MAXI
ü
ü
Connection via Baudisch.CP-
CAM Supply Interface
ü
ü
IR ready lense
-
ü
IR illumination
-
ü

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
6 / 6
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
3.4. Scope of delivery

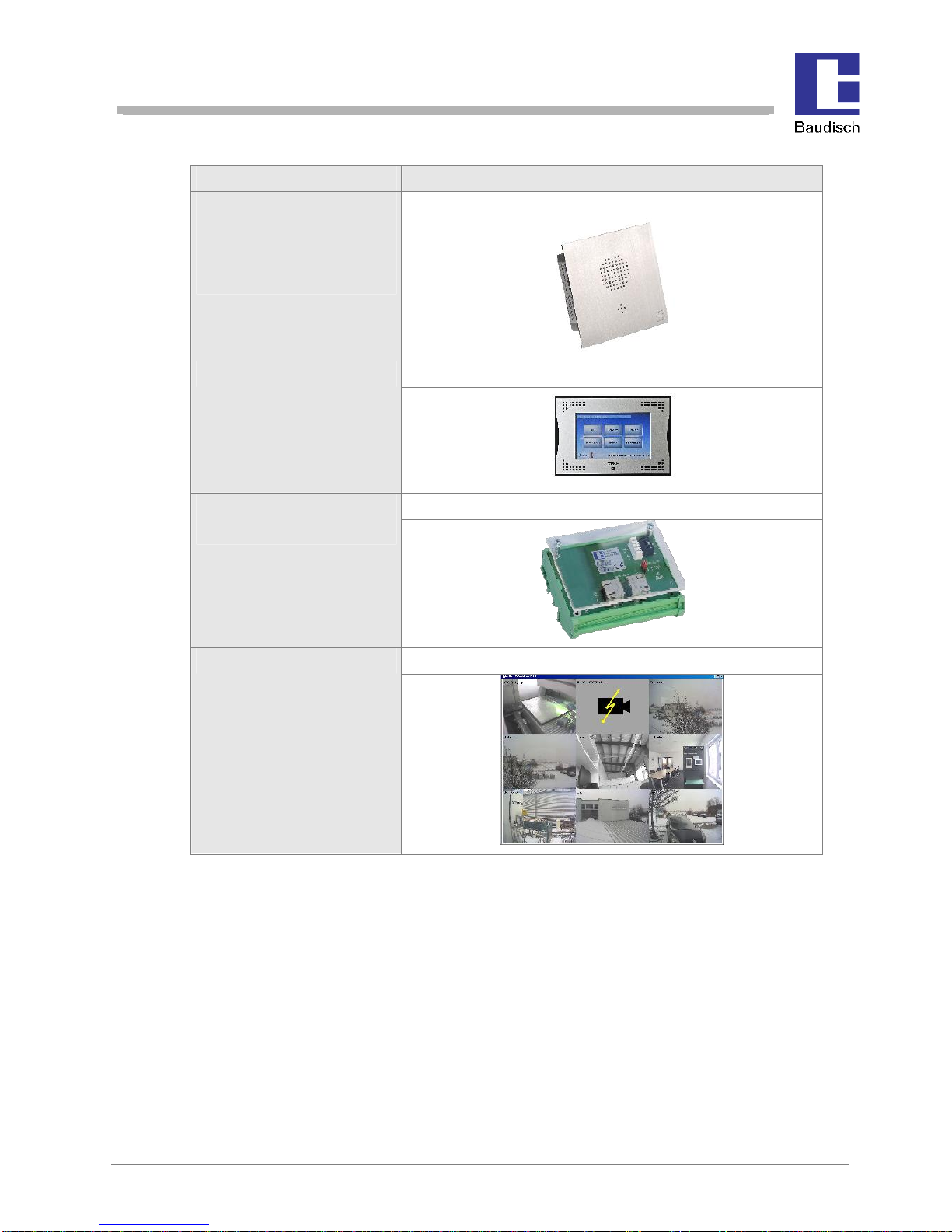

Article-No.
Name / Description
Baudisch.CP-CAM-AHD-ECO
Complete module with V4A front panel and IP camera
36-0243
Baudisch.CP-CAM-AHD-MAXI
Complete module with V4A front panel, IP camera and infrared
illumination
36-0242

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
7 / 7
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013

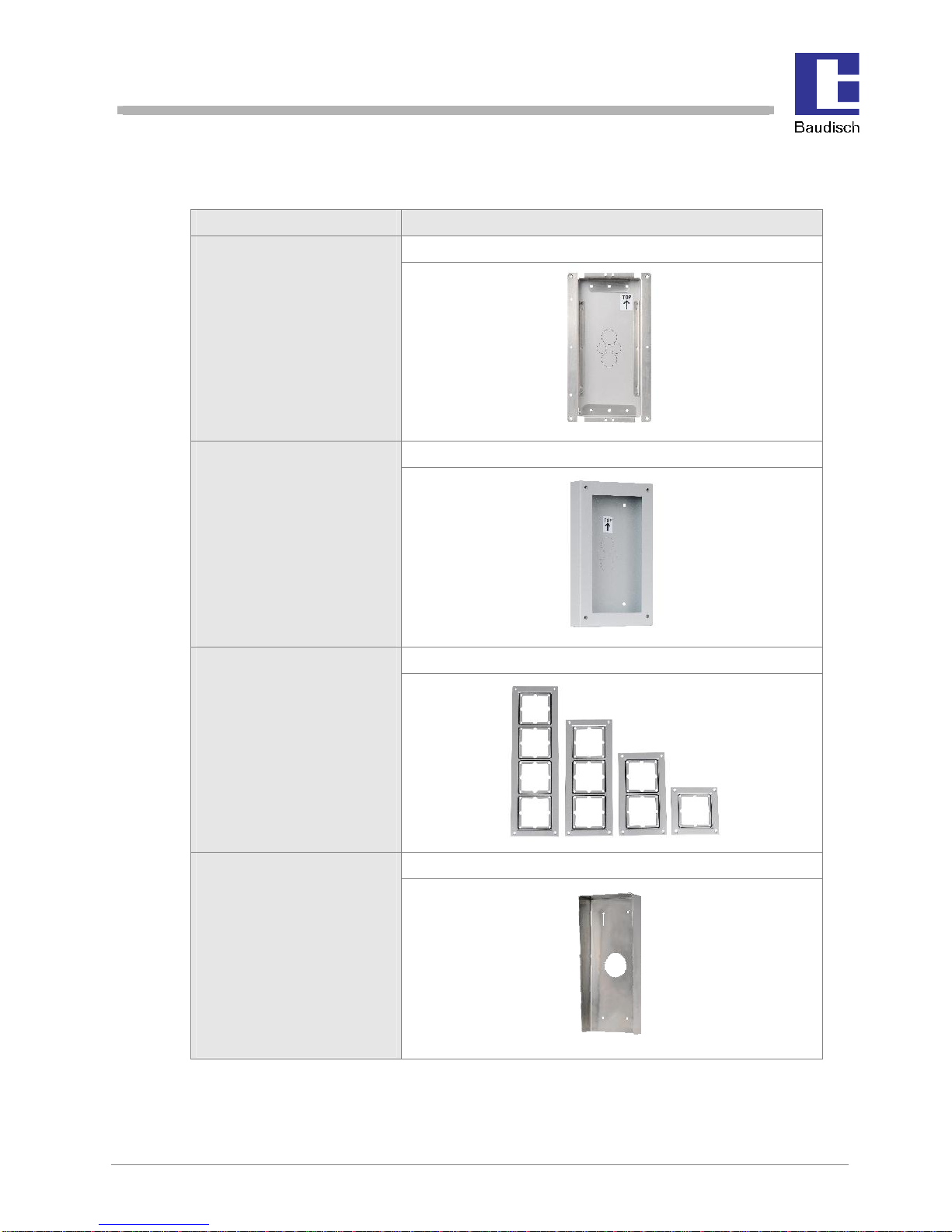

3.5. Optional Accessories
Article-No.
Name / Description
Flush-mounting box
33-1507A (1-fold, 1x1)
33-1507B (2-fold, 2x1)
33-1507C (3-fold, 3x1)
33-1507D (4-fold, 4x1)
33-1507H (5-fold, 5x1)
33-1507E (4-fold, 2x2)
33-1507F (6-fold, 3x2)
33-1507G (8-fold, 4x2)
On-wall box
33-1454A (1-fold, 1x1)
33-1454B (2-fold, 2x1)
33-1454C (3-fold, 3x1)
33-1454D (4-fold, 4x1)
33-1454H (5-fold, 5x1)
33-1454E (4-fold, 2x2)
33-1454F (6-fold, 3x2)
33-1454G (8-fold, 4x2)
Module frame FB
27-0281A (1-fold, 1x1)
27-0281B (2-fold, 2x1)
27-0281C (3-fold, 3x1)
27-0281D (4-fold, 4x1)
27-0281H (5-fold, 5x1)
27-0281E (4-fold, 2x2)
27-0281F (6-fold, 3x2)
27-0281G (8-fold, 4x2)
Weather protection cover
33-1520A (1-fold, 1x1)
33-1520B (2-fold, 2x1)
33-1520C (3-fold, 3x1)
33-1520D (4-fold, 4x1)
33-1520H (5-fold, 5x1)
33-1520E (4-fold, 2x2)
33-1520F (6-fold, 3x2)
33-1520G (8-fold, 4x2)

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
8 / 8
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
Article-No.
Name / Description
Baudisch.SIP door module MAXI / PLUS
33-1000 (MAXI)
33-1384 (PLUS)
33-1119 (V4A front panel)
Baudisch.TouchMe MAXI
33-1310
Baudisch.CP-CAM Supply Interface
33-0901E
Baudisch.CP-CAM Viewer
36-0213

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
9 / 9
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
4. Commissioning

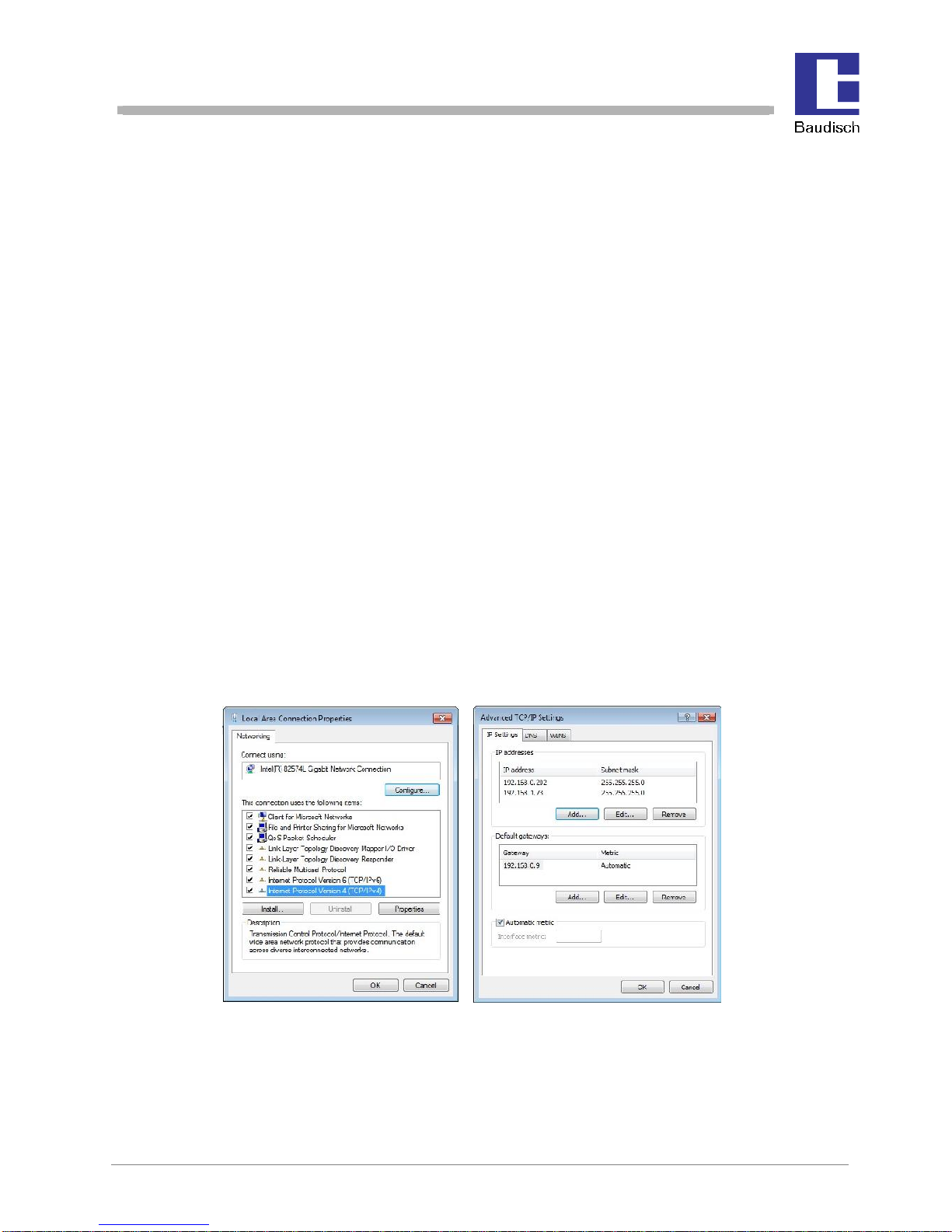

4.1. Preparing the Service PC
ú
úFor the CP-CAM can be accessed after installation, an IP address in the address range of your
network must be assigned to this. This setting can be made with a directly to the TouchMe
connected PC / laptop and an external 24V power supply for the TouchMe.
!
!To establish a connection with the CP-CAM, it is necessary that the PC / laptop use is
temporarily set to an IP adresse in the range of the CP-CAM. On delivery, the 192.168.1.xxx
address range is defined.
ú
úThe Baudisch.CP-CAM-AHD is set to the address 192.168.1.220 by factory.
To prepare your service PC, proceed as follows:
•IP address and address range of the PC / laptop to temporarily change
oÖpen the properties of your LAN connection
oOpen the properties of the Internet Protocol (TCP/IP)
oInclude your LAN connection an IP address in the range 192.168.1.xxx . Note
the default IP address of the CP-CAM.

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
10 / 10
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
4.2. Connect the Baudisch.CP-CAM-AHD
4.2.1. Operating at a SIP door module MAXI / PLUS or TouchMe MAXI
Baudisch.CP-CAM-AHD
(CP-CAM) Output
Baudisch.SIP Door module
MAXI / PLUS
Baudisch.CP-CAM-AHD
(CP-CAM) Output
Baudisch.TouchMe MAXI
•Connect the CP-CAM-AHD with the supplied cable with the ethernet output / CP-CAM
Out of the Baudisch.SIP door module MAXI / PLUS or the Baudisch.TouchMe MAXI.
•Connect the SIP door module MAXI / PLUS either with a PowerOverEthernet (PoE)
switch or with a 24V DC power supply and a ethernet switch or connect the
Baudisch.TouchMe MAXI with a 24V DC power supply and a ethernet switch.
4.2.2. Stand-alone operation
24V DC / 0.2A
IP Network / LAN
Baudisch.CP-CAM-AHD Baudisch.CP-CAM Supply interface
CP-CAM
•Connect the CP-CAM-AHD with the supplied cable with the CP-CAM port of the
Baudisch.CP-CAM Supply Interface.
•Connect the IP Network port of the Supply Interface with a ethernet switch and the
connections 24V and GND with a 24V DC power supply.

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
11 / 11
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
5. Configuration
5.1. Log in to the Web Interface
The IP camera has an integrated web server which allows users to log in via a standard web
browser.
In order to login on an IP Camera for the first time with its default settings, proceed as follows:
•Make sure that the camera is connected to the network.
•Make sure that the camera is powerd.
•Open a web browser.
•Enter the default IP 192.168.1.220 in the address bar.
§Type in admin as username and 1234 as password and click on OK.
§At the following window choose your power line frequency and click on OK (only at the
first use).

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
12 / 12
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
5.1.1. IP Settings
§Click on Setup at the menubar.
§Click on Basic Setup -> 3 TCP/IP in the left browser menu.
oIPv4 Address Configuration - Ethernet:
§„Obtain IP address via DHCP”: automatic configuration via DHCP
server.
§“Use the following IP address”: manual configuration.
•„IP address“: Enter the IP address of the camera
•„Netmask“: Enter the Subnet mask of the camera, default is the
value 255.255.255.0
•„Gateway“: Etner the IP address of your gateway / router
§Click on Save to apply the settings
5.1.2. Video Stream Settings
§Click on Setup at the menubar.
§Click on Basic Setup -> Video Stream in the left browser menu.
oImage Appearance:
§„Resolution“: Setting of the camera resolution. QVGA (320x240 pixel)
is recommended for an image transmission to IP telephone.
§„Compression“: Value of the Imagecompression affects the quality,
bandwith and the file size of an image.
§“Mirror image“: If required the image can be transmit mirrored.
§„Rotate image“: If required the image can be transmit rotated.
oVideo Stream:
§“Maximum frame rate”: If required to fix bandwith problems the frame
rate per viewer can be limited.
oOverlay Settings:
§„Include date” and „Include time“: Select this settings to display date
and time in the video image.
§„Include text“: Select this setting to display a text in the video image.
Enter any text and select the text and background color („Text color“
and „Text background color“)
§„Place text/date/time at“: Select the desired display position.
§Click on Save to apply the settings.

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
13 / 13
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
5.1.3. User Management
§Click on Setup at the menubar.
•Click on Basic Setup -> Users in the left browser menu.
•To create a new user, proceed as follows:
oClick on Add under the User List.
oIn the new window type in the user name and a password.
oSelect the required user group.
•„Administrator“ has unrestricted access to all functions
•„Operator“ has access to the video stream and the System
Options.
•„Viewer“ has access to the video stream.
§Click on OK.
•To change the password of a user, proceed as follows:
oSelect the user you want to change in the User List.
oClick on Modify.
oAssign the new user password.
oClick on Change User Settings.
•To delete a user, proceed as follows:
oSelect the user you want to delete.
oClick on Remove.
•User Settings
o„Enable anonymous viewer login“: Select this setting if no user name and
password will be required to access the video stream.
5.2. Accessing the video stream
There are a few ways to access the video stream:
•For a single JPG picture (Live Snapshot) use the following URL:
ohttp://<ip-address>/axis-cgi/jpg/image.cgi
•For a Motion JPEG Stream use the following URL:
ohttp://<ip-address>/axis-cgi/mjpg/video.cgi
•For a H.264 Stream use the following URLs
ohttp://<ip-address>/axis-media/media.amp
ohttp://<ip-address>/axis-media/media.3gp

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
14 / 14
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
ú
úWith the specification of parameters in the URL, it is possible to bypass the default settings that
are defined in chapter 5.1.2
The following parameters can be specified directly in the URL:
•resolution=320x240
o320x240, 480x360, 640x480, 800x600 à4:3
o640x360, 1280x720 à16:9
o640x400, 1024x640, 1280x800à16:10
•clock=0
o0=off, 1=on àDisplays the time in the video image
•date=0
o0=off, 1=on àDisplays the date in the video image
•rotation=0
o0, 90, 180, 270
•compression=0
o0….100 àValue of the image compression
•fps=0
o0=unlimited àframerate (only at Motion JPEG)
To specify the parameters enter a ?after the filename followed by the parameters. If several
parameters are specified, they are separated by an &.
ú
úTo access the camera username and password is required by default. The following users are
created by factory:
•User admin with password 1234 at group Administrator
•User viewer with password 1234 at group Viewer
The username and password are specified in the following format: http://user:password@ip-
address
Example:
http://viewer:1234@192.168.1.220/axis-
cgi/mjpg/video.cgi?resolution=800x600&clock=1&date=1&fps=10

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
15 / 15
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
5.3. Accessing the video stream with a SNOM IP-Phone
To access the video stream with a SNOM 760, 820 or 821 IP-Phone it is necessary to build a
xml file on the IP camera.
•Create a new textfile on your windows desktop and rename it to snomaxis.xml.
•Open the file with a text editor e.g. Notepad
•Copy the following lines to the snomaxis.xml
<?xml version="1.0" encoding="UTF-8"?>
<SnomIPPhoneImageFile state="relevant" track="no" dtmf="on" >
<LocationX>00</LocationX>
<LocationY>00</LocationY>
<url>http://<ip-address>/axis-cgi/jpg/image.cgi?resolution=320x240</url>
<fetch mil="100">http://<ip-address>/local/viewer/snomaxis.xml</fetch>
</SnomIPPhoneImageFile>
•Replace the two <ip-address> Tags with the IP address of your camera.
•Save the file.
•Etablish a FTP connection to the IP camera. Use the same username and password as
the login on the webinterface.
•Navigate to the following folder: /mnt/flash/etc/httpd/html/viewer
•Copy the snomaxis.xml into the folder.
•Close the FTP connection.
5.3.1. Example Configuration of a Snom IP Telephone with Image Transmission
The image of the IP Camera can be shown on the display of a Snom IP telephone.
Requirement for displaying the camera image by incoming door call:
•Compatible Snom telephone (820, 821, 760) with firmware version 8.7.4.5 or later.
Snom firmware download:
http://wiki.snom.com/Firmware/V8/beta
For additional information see Snom Update Guide: http://wiki.snom.com/Category:Firmware
§Click on Settings on the web interface of the Snom -> Select Configuration Identity 1
The following settings are required:
o„Identity aktive“: on
o„Displayname“: any name of the SIP server (e.g. Pulse Server)
o„Account“: SIP ID / Login name (e.g. 101)
o„Password“: Login name (e.g. 1234)
o„Registrar“: IP address of the SIP server (e.g. 192.168.10.197)

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
16 / 16
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
§Click on „Apply“ followed by „Save“ at the top of the window to apply and save the
configuration identity..
In the next step the settings for the automatic image transmission from the integrated IP
Camera are made.
§Click on Operation -> Directory to make the following settings:
o„Number“: SIP ID of the VideoDoorStation (e.g. 100)
o„Title“: free to choose (e.g. IP-VideoDoorStation)
o„Action-Url“: IP address of the IP camera in the following format:
§http://<IP address of the camera>/local/viewer/snomaxis.xml
§e.g. http://192.168.0.90/local/viewer/snomaxis.xml
o„Nickname“: free to choose (e.g. IP-VideoDoorStation)
§Click on Add/Edit to save the entries

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
17 / 17
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
5.4. Firmwareupdate
The latest firmware for the camera module can be downloaded directly from AXIS
Please visit http://www.axis.com/techsup/ and download the firmware for the M1004-W network
camera.
5.5. Reset to factory default
To restore the factory settings, proceed as follows:
•Disconnect the camera from the power supply and ethernet.
•Remove the four screws securing the rear cover and remove it.
•Keep the Control button pressed while you restore the power supply.
•Hold down the button for about 15 seconds until the status LED is yellow flashing.
•Release the Control Button. The process is complete when the status LEDs light up
green.
ú
úIf no DHCP server is active on your network the new default IP is 192.168.0.90.
The new default user is root with password pass
Controlbutton

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
18 / 18
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
6. Product Details
6.1. Specifications
Ports and Interfaces
Male connector 4 pin X1
10 / 100 MBit Ethernet
Male connector 5 pin X2
Power 24V DC / GPIO
Male connector 3 pin X6
Connector Infrared illumination
Ethernet:
Supportet protocols
Ipv4/6, HTTP, HTTPS*, QoS Layer 3 DiffServ, FTP, CIFS/SMB,
SMTP, Bonjour, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP,
RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
*This function is based on software that was developed by the
OpenSSL Project for use in the OpenSSL ToolKit(www.openssl.org)
API’s
Open API for software integration
ONVIF specification www.onvif.org
VAPIX from AXIS Communications
AXIS Video Hosting System (AVHS)
AXIS Camera Application Platform
Web Interface
Configuration
Camera Live View
Videorecording to file (ASF)
Customizable HTML Pages
Compatible with Windows XP, Vista, Windows 7, Server 2003 and
Server 2008 with DirectX 9c or newer.
Video functions
Video based motion detection
Manipulations alert
Alarmfunktionen
Fileupload via FTP, HTTP and Email
Notification via Email, HTTP and TCP
Video buffer before and after an alert event
Turning on / off the infrared illumination (only MAXI version)

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
19 / 19
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
Features
Camera model
AXIS M1004-W
Image sensor
¼“ CMOS (progressive scan RGB)
ECO: 2.8mm, F2.0, 80° horizontal viewing angle, IR Filter
Lense
MAXI: 2,5mm, F2.0, 83° horizontal viewing angle
Light sensitivity
1.2 – 10000 lux, F2.0
Shutter speed
1/8000s bis 1/6s
Image compression
H.264 (MPEG-4 Part 10/AVC, Main Profile)
Motion JPEG
Resolutions
4:3 à320x240, 480x360, 640x480, 800x600
16:9 à640x360, 1280x720
16:10 à640x400, 1024x640, 1280x800
Frame rate
30 fps with all resolutions in H.264 and Motion JPEG
Image settings
Compression, color, brightness, sharpness, contrast, white
balance
Image rotation: 0°, 90°, 180°, 270°
Image mirroring
Text and image overlays
Memory
256 MB RAM
128 MB Flash
ECO:
(W x H x D): 109,5 x 109,5 x 42 mm
Dimensions
MAXI:
(W x H x D): 109,5 x 109,5 x 43,6 mm
Power supply
24V DC +/- 20%
ECO: about 2.1 W
Power consumption
MAXI: about 2.8 W
Environmental conditions
0°C to 40°C
ECO: about 340g
Weight
MAXI: about 360g
Protection
IP 65 to front panel

20131030SC_HB-EN_CP-CAM-AHD-Steel.doc
20 / 20
s/15.05.2014
Baudisch.CP-CAM-AHD ECO / MAXI
Version 1.1 - Stand: 19.11.2013
CE conformity
DIN EN 55022 2011-12
Information technology equipment- Radio disturbance
characteristics- Limits and methods of measurement
DIN EN 61000-6-2
2006-03
Generics standards – Immunity for industrial environments
DIN EN 61000-6-3
2011-09
Generic standards – Emission standard for residential,
commercial and light-industrial environments
Operating displays
LED network: green
100MBit Connection, flashes at data transfer
LED network: yellow
10MBit Connection, flashes at data transfer
LED status: green
Normal operation
LED status: yellow
Bootsequence, Loading dactory defaults
LED power: green
Normal operation
LED power: yellow
Flashing green / yellow during firmware update
Power LED
Power LED & Network LED
Status LED: Yellow
Status LED: Green
