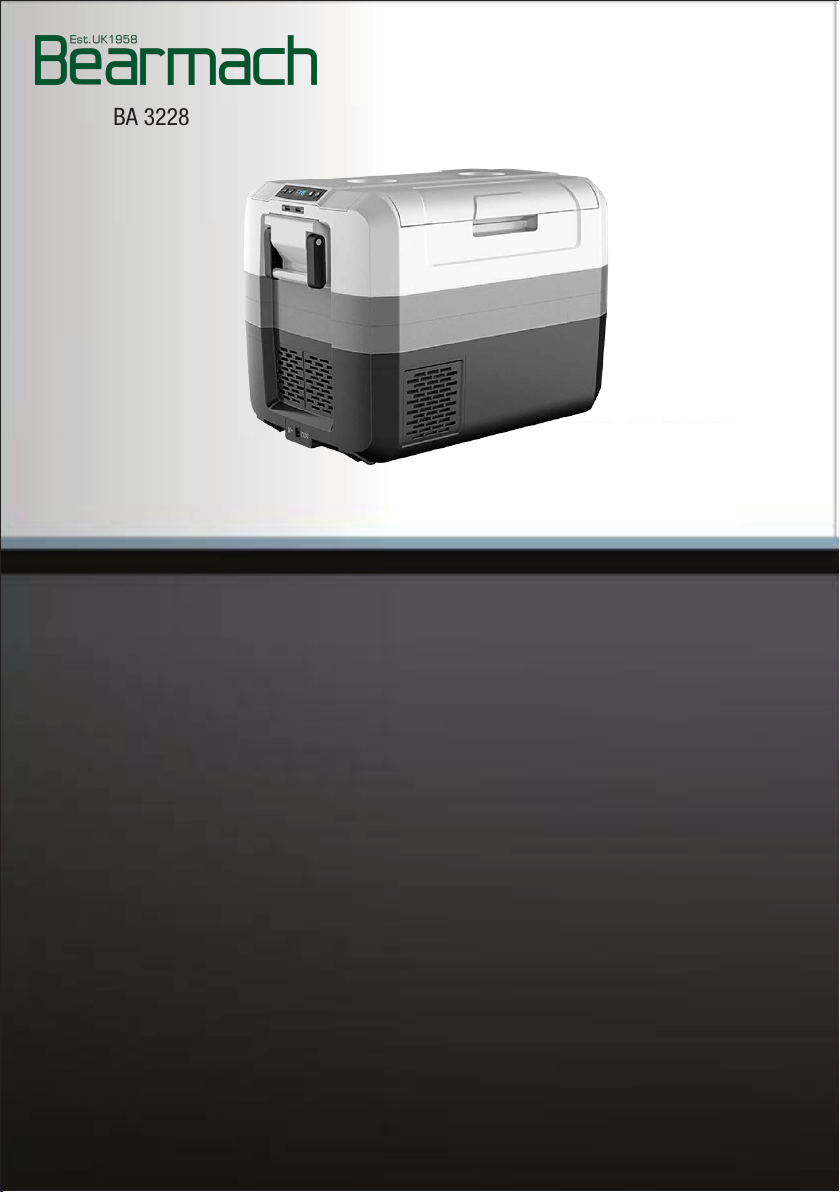

BEARMACH BA 3228 User manual

Car Refrigerator
Instruction Manual
Please read this manual carefully before use.
And keep it safe for future use.
MODEL: BA 3228

1. --------------------------Product Features ----------------Page2
Instruction Manual Directory
2. Use Attention-------------------------------------------Page2-3
3. Function Description And Operation Method--Page 3-4
4. Simple Fault Analysis --------------------------------Page4-5
5. Cleaning And Maintenance -------------------------Page5-6
6. Technical Parameters-----------------------------------Page6

2.Use Attention:
Warning Do not touch the damaged power line directly with your hands. ：
Place smoothly:
1.Product Features:
▐
Adopting high-efficiency energy-saving DC compressor and conversion
module, high reliability, long service life, fast
refrigeration speed, and it
▐
Adopting fluorine-free environmentalprotection insulation layer,
insulation performance and low energy consumption
▐
High-quality engineering plastics are used around the outer box,
which
▐
Dual-use car and home, car 12/24V DC or household 220V AC with
power adapter for work;
▐
The temperature control range is -26 °C ~ +10 °C.（In 25℃ work
environment）
good
It is dangerous !
Warning: Do not touch the power plug of the refrigerator when your
are wet or your feet are in contact with water. This is dangerous
When the product is used in cars and ships, it must be ensured that
the power supply has fuses and ground protection devices.
Well ventilated: the car fridge is well ventilated and easy to heat
dissipation. There should be some space around the car fridge.
back 》200mm and the side of the car fridge 》100mm.
Avoid heat sources: Car fridge should be kept in well-ventilated
away from heat sources, soldiers should avoid direct sunlight.
can be refrigerated and deep frozen;
looks beautiful and generous;
hands
The
places,
The plane of the car fridge must be flat and firm. When
the car fridge is placed on the car, it should be fixed with a pull belt.
The installation of 12/24V DC power supply on board must have
professional electrical operation.
When charging batteries, it is necessary to ensure that car fridge have
been disconnected frompower supply.
To ensure that the voltage of the power supply connected to the product
is correct at any time, the voltage parameters are verified on the
parameter label at the bottom of the product.
Do not use electrical products inside the car fridge.


3
11.7±0.3V
10.7±0.3V
10.2±0.3V
12.7±0.3V
11.7±0.3V
11.2±0.3V
24.6±0.3V
22.6±0.3V
21.6±0.3V
26.0±0.3V
24.0±0.3V
23.0±0.3V
LCD display
+
<
>
<
>
<
-
°
C
MAX
—
Parameter Function：
ECO、
```
℃: Celsius degree
;
: Fahrenheit degree;
ECO:Energy saving mode(compressor speed 2000R/min);
MAX:
<
-
-
-
<
-
-
<
-
℉
<
-
<
-
-
<
-
-
-
<
-
<
-
-
<
-
-
-
▐
▐
▐
▐
Avoid moisture: Car fridge should avoid excessive moisture, reduce the
chance of rusting metal parts, water shower, will cause poor insulation,
lead to leakage, malfunction.

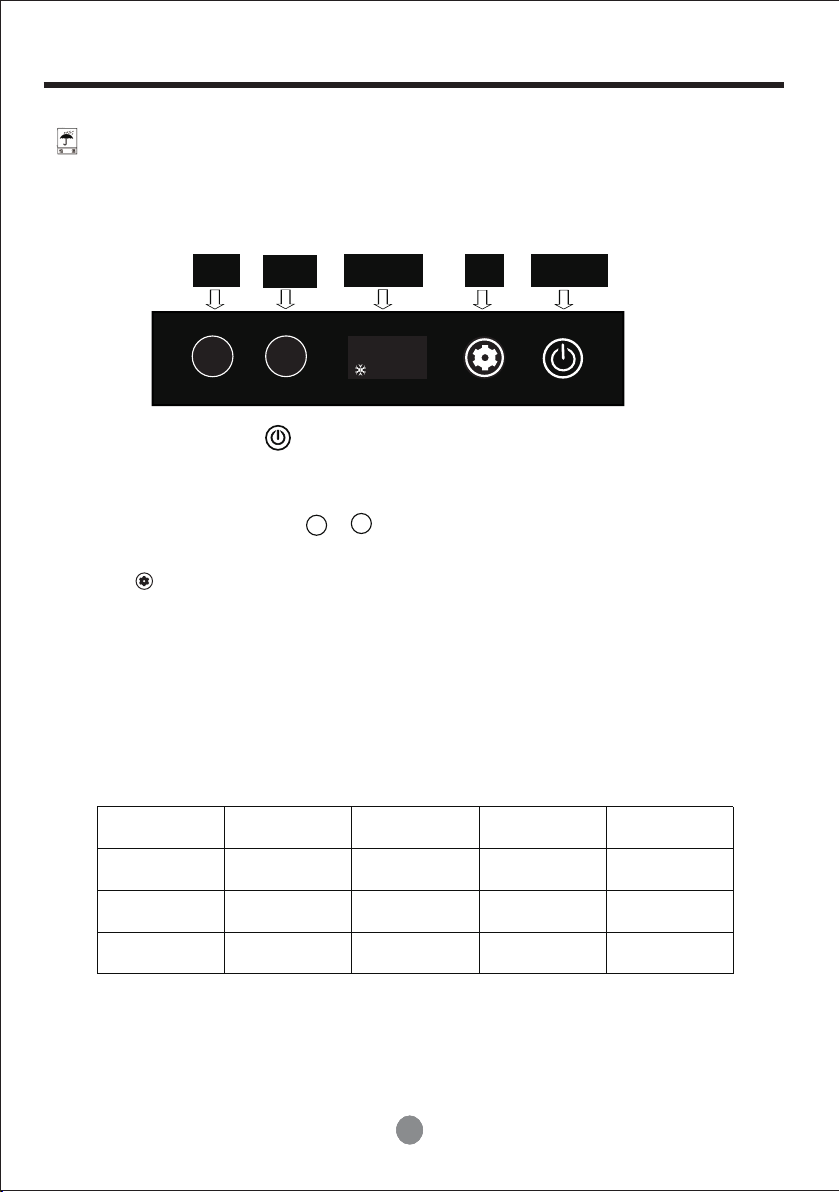

3.Function Description And Operation Method
Increase Decrease Set Power ON/OFF
ON/OFF
：
Keep press for 3 seconds,the car fridge enters into on/stand by
mode
Note: When power cut off and turned on again,there are 3 minutes time delay
for the compressor start to work.
Temperature control:Press or to set temperature you want;stop operation,
the panel will flash for 5 seconds and display the temperature inside the fridge
Press and display℃,repeat press the button,display ℃,℉,
MAXin turn.When the corresponding parameter flashes, stop pressing to
confirm the parameter setting.
Fast cooling mode(compressor speed 3000R/min)
: Battery voltage protection-Low
: Battery voltage protection-Mid
Battery voltage protection-High
Battery voltage
protection 12V cut out 12V cut in 24V cut out 24V cut in
Note:The voltage level is testing the voltage value of input terminal of the
compressor,NOT the output terminal of the car battery.
:
-20

▐
▐
▐
▌
—
—
—
—
▌
—
—
—
▌
—
▌
—
—
—
—
—
—
—
—
There are 3 minutes time delay to protect the compressor,which means after
the car fridge turned on,the compressor will not work at once, it will start to
work after 3 minutes.And at this time,the cabinet temperature in the fridge
> the setting temperature(+3C),and turned on.When the cabinet temperature
in the fridge = the setting temperature,compressor stop working.
To protect the compressor,it will restart to work again after at least 3 minutes.
Power memory function:After restart,the temperature set will be as same same
the one you set before power off.
4.Simple Fault Analysis
The refrigerator does not work
Check if the power supply is connected correctly (whether the plug is loose,
whether the positive and negative poles are connected incorrectly)
Check if the ventilation and ventilation conditions are normal.
Check if the fuse is blown
Check if the power switch on the control panel is turned on.
Abnormal noise in the refrigerator
The car refrigerator is not placed smoothly
Hit the wall or other items
internal parts loose or fall off
Condensation on the surface of the refrigerator
When the ambient air humidity is >75%, the surface of thecabinet may be
slightly condensed. The higher the humidity, the greater the probability of
occurrence, which is normal.
Refrigerator cooling is not good
The food storage is too large, placed crowded, cold air flow isnot smooth
The door is not closed
The door cover sealing strip is damaged or deformed, and the sealing property
is deteriorated;
Poor ventilation in the radiator of the car
Put too much hot food
Improper working mode of the refrigeratorrefrigerator
Sunlight or near heat source
improper temperature setting

▌
—
—
▌
▌
▌
▌
▌
▌
▌
▌
▌
▌
Similar to the sound of running water in the refrigerator
This is the flow sound of the refrigerant, which is normal.
There will be a loud sound when the compressor starts up
When the compressor starts, the sound will be slightly larger, and the
sound will decrease after the speed is stable, which is normal.
LED display ER0
—Temperature sensor short circuit
LED display ER1
Input under-voltage protection, not enough voltage for module
—
LED display ER2
—DC fan over-current protection
LED display ER3
—Compressor abnormal start protection
LED display ER4
—Rotational speed of compressor is abnormal
—The temperature of module is abnormal
LED display ER5
LED display ER9
Temperature sensor open circuit
—
5.Cleaning And Maintenance
Cleaning method:
Clean the appliance inside and out with a clean damp cloth every two weeks.
If it is dirty, wipe it with a
neutral detergent and then wipe it drywith a damp
cloth. If there is too much water, you can use the drainagepipe at the bottom
of the tank to drain
Maintenance of plastic parts:
To properly protect the seals, clean the plastic parts frequently and try to avoid
heavy impact during use. If oil(Animal or vegetable oil)is attachedplastic parts
for a long time, the plastic will easily deteriorate and crack,and smells bad.

T,ST,N,SN
III
DC12V/24V
15A
60W
4.8A/2.4A
▐
35g 45g 55g 65g
Precautions:
It is forbidden to wash the refrigerator directly with water in order to avoid the
decrease of electrical insulation and the rust of sheet metal. The following
things
will damage the coated surface, plastic parts, can not be used for
cleaning. alkaline detergent, soap, grinding powder, hot water,brushes,Toluene
water, gasoline, alcohol
6.Technical Parameters:
Model
Classification of Climate
Shock protection classification
Rated Voltage
DC fuse
Input Power
Rated current
Refrigerant(g)
Foam Vesicant C5H10/C-pentane
Note: The parameters changed due to product improvement are subject
to actual product without prior notice.
BA 3228
