Beha-Amprobe IR-110-EUR User manual

IRC-110-EUR
Infrared Camera
User Manual
EN DE FR
IT ES NL
FI SE PL
PT CZ


IRC-110-EUR
Infrared Camera
User Manual
7/2017, Rev A
©2017 Beha-Amprobe
All rights reserved. Printed in Taiwan
English

Limited Warranty and Limitation of Liability
Your Beha-Amprobe product will be free from defects in material and workmanship for
two years from the date of purchase unless local laws require otherwise. This warranty does
not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation or handling. Resellers are not
authorized to extend any other warranty on the behalf of Beha-Amprobe. To obtain service
during the warranty period, return the product with proof of purchase to an authorized
Beha-Amprobe Service Center or to an Beha-Amprobe dealer or distributor. See Repair
Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES
- WHETHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED.
MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or limitation of an implied warranty or of
incidental or consequential damages, this limitation of liability may not apply to you.
Repair
All Beha-Amprobe tools returned for warranty or non-warranty repair or for calibration
should be accompanied by the following: your name, company’s name, address, telephone
number, and proof of purchase. Additionally, please include a brief description of the
problem or the service requested and include the test leads with the meter. Non-warranty
repair or replacement charges should be remitted in the form of a check, a money order,
credit card with expiration date, or a purchase order made payable to Beha-Amprobe.
In-warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before requesting repair.
During the warranty period, any defective test tool can be returned to your Beha-Amprobe
distributor for an exchange for the same or like product. Please check the “Where to Buy”
section on beha-amprobe.com for a list of distributors near you.
Non-warranty Repairs and Replacement – Europe
European non-warranty units can be replaced by your Beha-Amprobe distributor for a
nominal charge. Please check the “Where to Buy” section on beha-amprobe.com for a list
of distributors near you.
Beha-Amprobe
Division and reg. trademark of Fluke Corp. (USA)
Germany* United Kingdom The Netherlands - Headquarters**
In den Engematten 14 52 Hurricane Way Science Park Eindhoven 5110
79286 Glottertal Norwich, Norfolk 5692 EC Son
Germany NR6 6JB United Kingdom The Netherlands
Phone: +49 (0) 7684 8009 - 0 Phone: +44 (0) 1603 25 6662 Phone: +31 (0) 40 267 51 00
beha-amprobe.de beha-amprobe.com beha-amprobe.com
*(Correspondence only – no repair or replacement available from this address. European customers please
contact your distributor.)
**single contact address in EEA Fluke Europe BV

1
IRC-110-EUR Infrared Camera
CONTENTS
SYMBOLS............................................................................................3
SAFETY INFORMATION ......................................................................3
UNPACKING AND INSPECTION ..........................................................4
FEATURES AND APPLICATIONS..........................................................4
BASIC NAVIGATION............................................................................5
MEASUREMENT MODE......................................................................6
MENU MODE ......................................................................................7
SPECIFICATIONS..................................................................................10
MAINTENANCE AND BATTERY REPLACEMENT ................................12

2

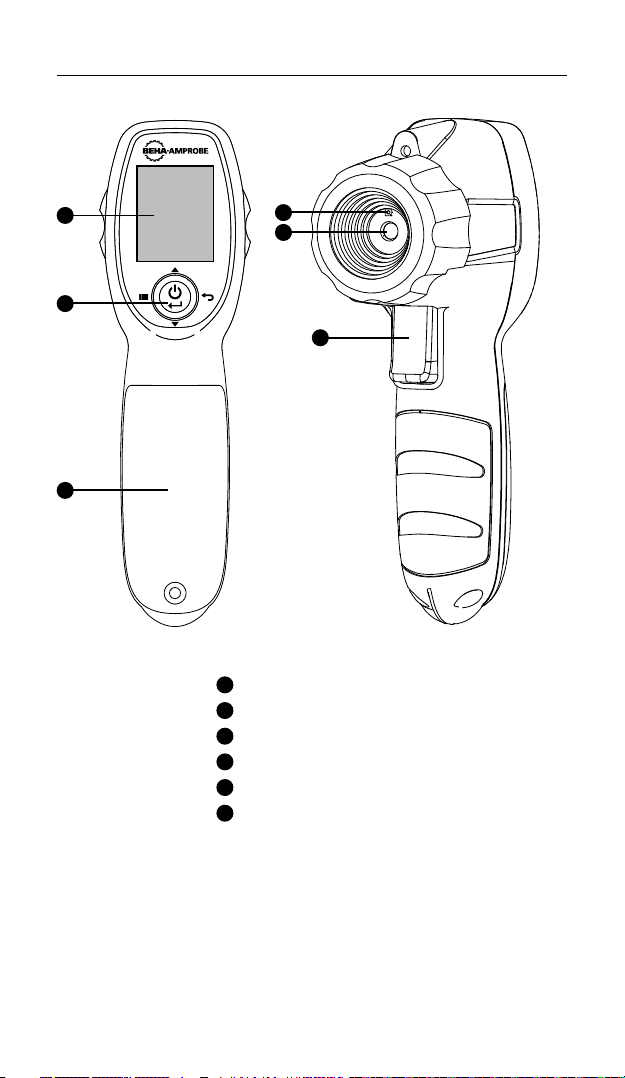

1LC Display
2Power ON/OFF and Menu
3Battery cover
4Visual camera
5Infrared lens
6Trigger for image HOLD
IRC-110-EUR Infrared Camera
1
6
3
2
4
5

3
SYMBOLS
WCaution! Refer to the explanation in this manual.
PComplies with European Directives.
Conforms to relevant South Korean EMC Standards.
Conforms to relevant Australian standards
Battery
=
This product complies with the WEEE Directive marking
requirements. The affixed label indicates that you must not discard
this electrical/electronic product in domestic household waste.
Product Category: With reference to the equipment types in
the WEEE Directive Annex I, this product is classed as category 9
“Monitoring and Control Instrumentation” product. Do not dispose
of this product as unsorted municipal waste.
SAFETY INFORMATION
A Warning identifies hazardous conditions and procedures that are
dangerous to the user. A Caution identifies conditions and procedures that
can cause damage to the product or the equipment under test.
WWarning
To prevent possible electrical shock, fire, or personal injury:
• Read all safety information before you use the product.
• Carefully read all instructions.
• Use the product only as specified, or the protection supplied by the
product can be compromised.
• Do not use the product around explosive gas, vapor, or in damp or wet
environments.
• Verify the product’s operation by measuring on a known temperature
source. Do not use the product if it operates incorrectly or abnormally.
• Do not use the product if it is damaged.
• See emissivity information for actual temperatures. Reflective objects
result in lower than actual temperature measurements. These objects
pose a burn hazard.
• Remove the batteries if the product is not used for an extended period
of time, or if stored in temperatures above 50 °C. If the batteries are not
removed, battery leakage can damage the product.
• Replace the batteries when the low battery indicator shows to prevent
incorrect measurements.
• Use only AA alkaline batteries and follow all battery care from the
manufacturer.
• Do not leave the product on or near objects of high temperature.
• For use by competent persons only.

4
WCaution
To prevent personal injury and for safe operation and maintenance of the
product:
• Batteries contain hazardous chemicals that can cause burns or explode. If
exposure to chemicals occurs, clean with water and get medical aid.
• Be sure that the battery polarity is correct to prevent battery leakage.
• Do not short the battery terminals together.
• Keep batteries clean and dry.
To avoid damaging the product under measurement, protect it from the
following:
• EMF (electro-magnetic fields) from arc welders and induction heaters.
• Static electricity.
• Thermal shock (caused by large or abrupt ambient temperature changes
— allow 30 minutes for the product to stabilize before use).
• Do not leave the product on or near objects of high temperature.
UNPACKING AND INSPECTION
Your shipping carton should include:
1 IRC-110-EUR Infrared Camera
3 1.5 V AA batteries
1 User manual
1 Wrist Strap
If any of the items are damaged or missing, return the complete package to
the place of purchase for an exchange.
Note: Batteries do not come pre-installed. Please refer to the Maintenance
and Battery Replacement section for further instruction.
FEATURES AND APPLICATIONS
Features
• Infrared heat map image blending at 0%, 25%, 50%, 75%, and 100%
with a joystick button
• Three selectable color palettes (grayscale, hot iron and rainbow)
• Center-point temperature measurement and focus free
• IR measurement 20:1 Distance to Spot ratio
• Adjustable emissivity from 0.10 to 1.00
• Auto off function
• Selectable ° F and ° C
• Intuitive joystick navigation to on-screen menu and settings
• Hot and cold markers instantly identify hottest and coldest spots

5
Applications
• Electrical, HVAC, mechanical, and automotive
• Lower energy costs by finding areas of heat loss and draft
• Locate electrical problems at appliances, machines and installations.
• Quickly verify HVAC functionality and performance
• Portable, ergonomic and easy to operate

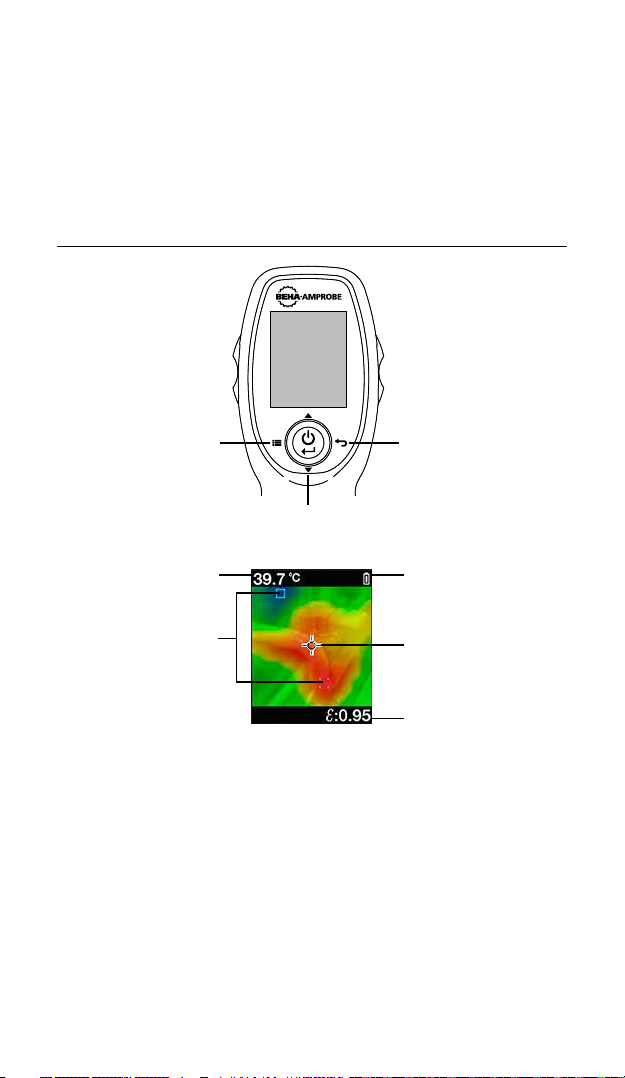

BASIC NAVIGATION
Menu Return to measurement
Image blending (measurement mode)
Setting selection (menu mode)
Temperature
(selectable units)
Battery level
Emissivity
Center point
Hot / cold markers

6
MEASUREMENT MODE
Taking Measurements
Press and hold the power button for at least 2 seconds to turn the product
on or off (Figure 1.1).
The product will be in measurement mode upon power on. Press down on the
trigger to hold an image. Press again to return to live image (Figure 1.2). Hold the
product 12 inches (30 cm) from the target (>59 OF / 15 OC) and 2.4 inches (6 cm)
from the target (<59 OF / 15 OC) for best temperature accuracy.
Note: Higher Distance to Spot ratios require smaller target areas to make
accurate measurements. The Distance to Spot ratio of this product is 20:1.
Power ON / OFF HOLD
Figure 1.1
> 2 Sec.
Figure 1.2
Image Blending
Figure 1.3
UP UP UP UP UP
Blending may be adjusted for an easier interpretation between infrared
and visible images. To change the level of blending between 0 - 100%, press
down or up on the power button while in measurement mode.

7
MENU MODE
Changing Settings in the Menu
Once the product is powered on, reach the menu by clicking left on the
power button. Settings that can be manipulated include hot and cold
markers, color palette, emissivity, center point marker, selectable °F/°C, and

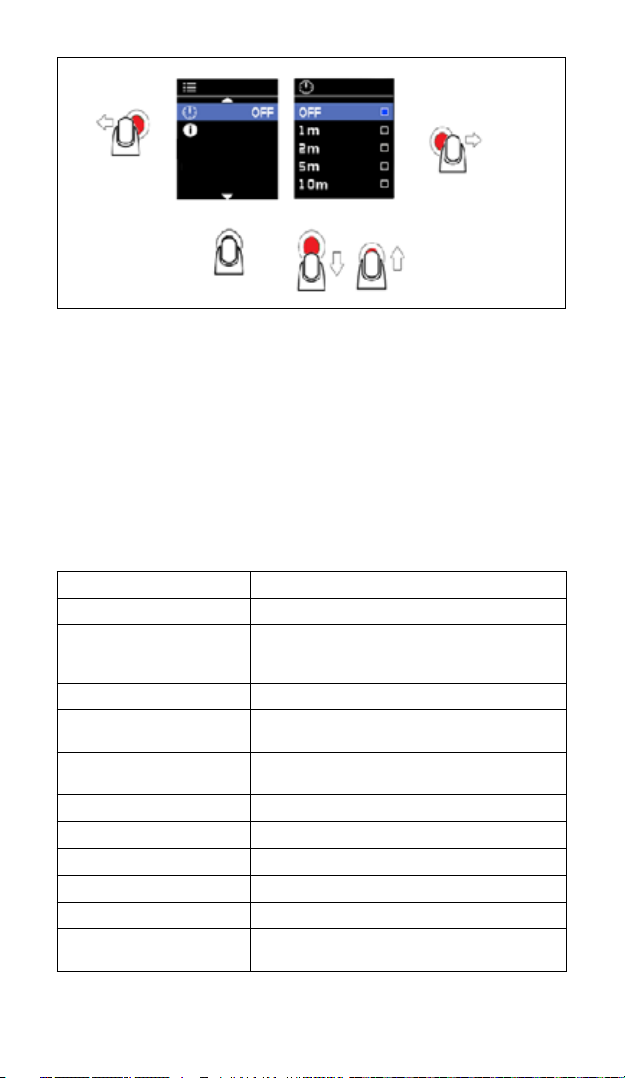

timed auto power off. Enabled options will appear as blue squares while
disabled options will appear as black squares.

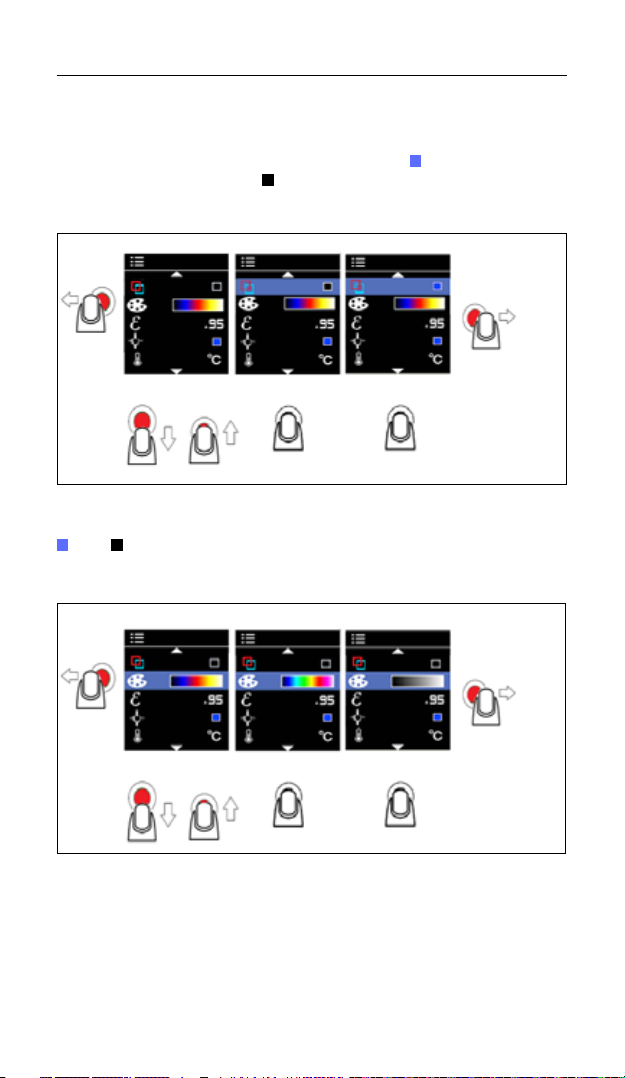

Hot and Cold Markers
Figure 2.1
BACK TO
MEASUREMENT
DOWN ENTER ENTERUP
MENU
Hot (red square outline) and cold (blue square outline) markers indicate the
locations of hottest and coldest areas within a target area. Turn this function
on or off in the menu.
Color Palette
BACK TO
MEASUREMENT
MENU
DOWN
Hot Iron Rainbow Grayscale
ENTER ENTERUP
Figure 2.2
The color palette can be changed depending on the specific application of
the measurement. This option allows for different viewings of an infrared
image by changing the false-color presentation. Grayscale shows a more
equal and linear presentation of colors to enhance detail, while Hot Iron and
Rainbow combine high contrast with Grayscale.

8
Emissivity
Figure 2.3
BACK TO
MEASUREMENT
MENU
DOWNENTER UP
The emissivity of the surface of a material describes its effectiveness in
emitting energy as thermal radiation. Quantitatively, emissivity is the ratio
of the thermal radiation from a surface to the radiation from an ideal black
surface at the same temperature as given by the Stefan–Boltzmann law. Refer
to Table 1 for the emissivity adjustment.
In measurement mode, emissivity level is shown on the bottom right of the
screen. Emissivity can be changed to values between 0.10-1.00 in menu.
Note: Surfaces with an emissivity <0.60 make reliable and consistent
determination of actual temperatures problematic. The lower the emissivity,
the more potential error is associated with the temperature measurement
calculations of the product, even when emissivity and reflected background
adjustments are attempted and performed properly.
Table 1. Nominal surface emissivity for an accurate non-contact infrared
temperature measurement.
Material Value Material Value
Default**** 0.95 Glass (plate) 0.85
Aluminum* 0.30 Iron* 0.70
Asbestos 0.95 Lead* 0.50
Asphalt 0.95 Oil 0.94
Brass* 0.50 Paint 0.93
Ceramic 0.95 Plastic** 0.95
Concrete 0.95 Rubber 0.95
Copper* 0.60 Sand 0.90
Food-frozen 0.90 Steel* 0.80
Food-hot 0.93 Water 0.93
Wood*** 0.94
*Oxidized
**Opaque, over 20 mils
***Natural
****Factory Setting

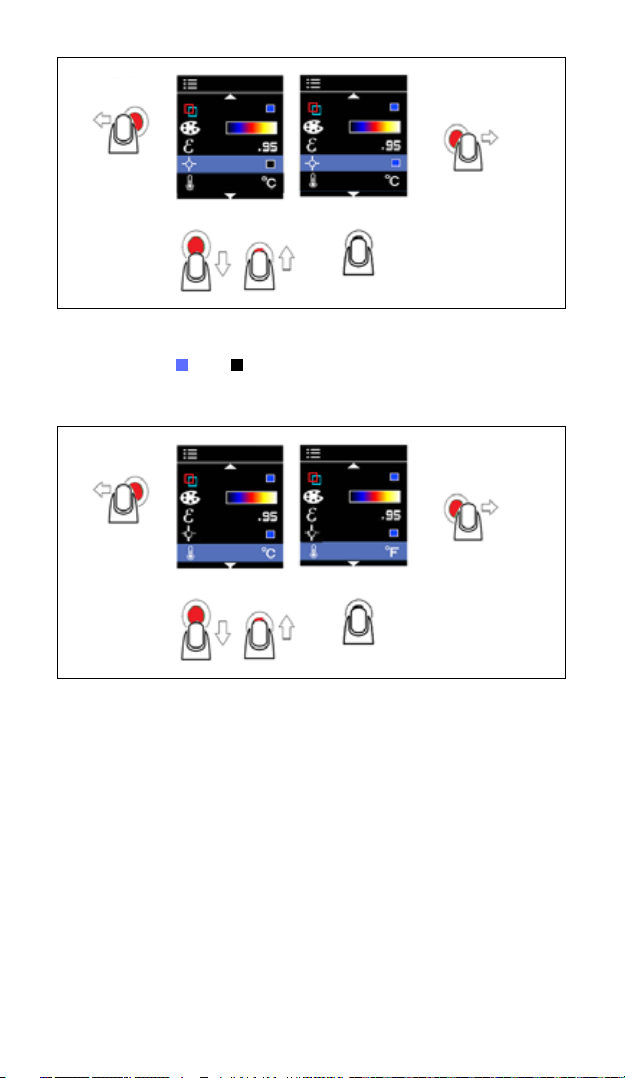

Center Point Marker

9
BACK TO
MEASUREMENT
MENU
DOWN ENTERUP
Figure 2.4
The center point marker indicates the center of the infrared thermometer
measurement spot and appears in the center of the measurement screen.
Turn this function on or off in the menu.
°F / °C
BACK TO
MEASUREMENT
MENU
DOWN ENTERUP
Figure 2.5
Change the temperature units in the menu by selecting °F or °C.
Auto Power OFF

10
BACK TO
MEASUREMENT
MENU
DOWNENTER UP
Figure 2.6
By default, the product will automatically power off after 1 minute. To
choose when the product will power off after a period of inactivity, change
the settings in the menu.
Available options for the Auto Power Off setting:
• OFF (the camera will not turn off automatically)
• 1 m (1 minute)
• 2 m (2 minutes)
• 5 m (5 minutes)
• 10 m (10 minutes)
SPECIFICATIONS
Temperature measurement Yes, center point
Temperature range 14 °F to 932 °F (-10 °C to 500 °C)
IR accuracy (calibration
geometry with ambient
temperature 23°C ± 2°C)
≥ 32 °F (≥ 0 °C): ± 4 °F (± 2 °C) or ± 2 % of the
reading, whichever is greater
< 32 °F (< 0 °C): ± 6 °F (± 3 °C)
Display resolution 0.2 °F / 0.1 °C
IR Repeatability ± 8 % of the reading or ± 2 °F (± 1 °C), whichever
is greater
Temperature Coefficient 0.1 °C/°C or ± 0.1 %/°C of the reading,
whichever is greater
Distance to spot 20:1
Minimum spot size 8 mm
Response time (95 %) < 125 ms
Spectral response 8 μm to 14 μm
Emissivity Digitally adjustable from 0.10 to 1.00 by 0.01
Visual image with infrared
heat map overlay Five blending modes (0%, 25%, 50%, 75%
and 100%)

11
Image resolution 16,384 pixels (128 x 128 pixels)
(Interpolation pixels)
Field of view 33 ° x 33 °
Thermal sensitivity 150 mK
Focus system Focus free
Image palettes Grayscale (white hot), Hot Iron and Rainbow
Hot and cold marker Yes
Display 1.77 in color TFT with 128 x 160 pixels
Operating temperature
and humidity
32 °F to 122 °F (0 °C to 50 °C)
10 % to 90 % RH non-condensing at 86 °F
(30 °C)
Storage temperature -4 °F to 140 °F (-20 °C to 60 °C) without
batteries
Visual to IR effective image
alignment ≥ 10 inches (25.4 cm), optimal of 1 meter
Operating and storage
altitude < 6561 ft (< 2000 m)
Drop proof 4-feet (1.2 m)
Vibration and shock IEC 60068-2-6, 2.5g, 10 to 200 Hz, IEC 60068-2-
27, 50g 11ms
Power supply Three (3) 1.5 V AA IEC LR6 alkaline batteries
Battery life 8 hours with display ON (Typical)
Power consumption: 150 mA (Typical)
Auto power off Selectable modes: OFF, 1 minute, 2 minutes, 5
minutes and 10 minutes
Agency approvals P
Electromagnetic
Compatibility
EN 61326-1
Korea (KCC): Class A Equipment (Industrial
Broadcasting & Communication Equipment) [1]
[1] This product meets requirements for
industrial (Class A) electromagnetic wave
equipment and the seller or user should take
notice of it. This equipment is intended for
use in business environments and is not to be
used in homes.
Size (H x W x L) Approx. 7.3 x 2.1 x 4.1 in (185 x 54 x 104 mm)
Weight Approx. 0.57 lb (0.26 kg)
MAINTENANCE AND BATTERY REPLACEMENT
Do not use abrasives, isopropyl alcohol, or solvents to clean the case or lens/

12
window. If used and stored properly, the infrared lens on the product should
require only occasional cleaning (Figure 3.1).
When necessary, to clean the lens:
1. Use a hand-squeeze air pump to gently blow off any dust or debris from
the lens surface.
2. If the lens surface requires additional cleaning, use a clean, fine-fiber
cloth, micro-fiber cloth, or cotton swab dampened with a mild, soapy
water solution. Gently wipe surface of lens to remove smudges and
debris.
3. Dry with an absorbent, clean fine-fiber or micro-fiber cloth.
Note: Minor smudges and dirt should not significantly affect the performance
of the product. However, large scratches or the removal of the protective
coating on the infrared lens can affect both image quality and the
temperature measurement accuracy.
To avoid incorrect measurements, replace the batteries when the battery
indicator is low. Use only AA alkaline batteries and follow all battery care
guidelines from the manufacturer. To remove the batteries, first ensure the
product is in OFF position, then unscrew the battery cover. When installing
the batteries, be sure that the battery polarity is correct to prevent battery
leakage. Secure the batteries by screwing the battery cover back in place
(Figure 3.2).

13
Figure 3.1
Clean
Figure 3.2
Battery Replacement
3 x AA batteries


IRC-110-EUR
Infrarotkamera
Bedienungsanleitung
7/2017, Rev. A
©2017 Beha-Amprobe
Alle Rechte vorbehalten. In Taiwan gedruckt
Deutsch

Eingeschränkte Garantie und Haftungseinschränkungen
Innerhalb von zwei Jahren ab Kaufdatum oder innerhalb des gesetzlich vorgeschriebenen
Mindestzeitraums garantieren wir, dass Ihr Beha-Amprobe-Produkt keinerlei Material-
und Herstellungsfehler aufweist. Sicherungen, Trockenbatterien sowie Schäden durch
Unfall, Fahrlässigkeit, Missbrauch, Manipulation, Kontamination sowie anomale Nutzung
und Einsatzbedingungen werden nicht durch die Garantie abgedeckt. Händler sind
nicht berechtigt, jegliche Erweiterungen der Garantie im Namen von Beha-Amprobe
in Aussicht zu stellen. Um Serviceleistungen während der Garantiezeit in Anspruch zu
nehmen, übergeben Sie das Produkt mitsamt Kaufbeleg einem autorisierten Beha-
Amprobe-Servicecenter oder einem Beha-Amprobe-Händler oder -Distributor. Details
dazu finden Sie im Reparatur-Abschnitt. Sämtliche Ansprüche Ihrerseits ergeben sich aus
dieser Garantie. Sämtliche sonstigen Gewährleistungen oder Garantien, ob ausdrücklich,
implizit oder satzungsgemäß, sowie Gewährleistungen der Eignung für einen bestimmten
Zweck oder Marktgängigkeit werden hiermit abgelehnt. Der Hersteller haftet nicht für
spezielle, indirekte, beiläufige oder Folgeschäden sowie für Verluste, die auf andere Weise
eintreten. In bestimmten Staaten oder Ländern sind Ausschlüsse oder Einschränkungen
impliziter Gewährleistungen, beiläufiger oder Folgeschäden nicht zulässig; daher müssen
diese Haftungseinschränkungen nicht zwingend auf Sie zutreffen.
Reparatur
Sämtliche innerhalb oder außerhalb der Garantiezeit zur Reparatur oder Kalibrierung
eingereichten Beha-Amprobe-Werkzeuge sollten mit folgenden Angaben begleitet
werden:Ihr Name, Name Ihres Unternehmens, Anschrift, Telefonnummer und Kaufbeleg.
Zusätzlich fügen Sie bitte eine Kurzbeschreibung des Problems oder der gewünschten
Dienstleistung bei, vergessen Sie auch die Messleitungen des Gerätes nicht. Gebühren für
Reparaturen oder Austausch außerhalb der Garantiezeit sollten per Scheck, Überweisung,
Kreditkarte (mit Angabe des Ablaufdatums) oder per Auftrag zugunsten von Beha-
Amprobe beglichen werden.
Reparatur und Austausch innerhalb der Garantiezeit – Alle Länder
Bitte lesen Sie die Garantiebedingungen, prüfen Sie den Zustand der Batterie, bevor Sie
Reparaturleistungen in Anspruch nehmen. Innerhalb der Garantiezeit können sämtliche
defekten Prüfwerkzeuge zum Austausch gegen ein gleiches oder gleichartiges Produkt an
Ihren Beha-Amprobe-Distributor zurückgegeben werden. Eine Liste mit Distributoren in
Ihrer Nähe finden Sie im Bereich Vertriebspartner unter beha-amprobe.com.
Reparatur und Austausch außerhalb der Garantiezeit – Europa
In Europa können Geräte außerhalb der Garantiezeit gegen eine geringe Gebühr von
Ihrem Beha-Amprobe-Distributor ausgetauscht werden. Eine Liste mit Distributoren in
Ihrer Nähe finden Sie im Bereich Vertriebspartner unter beha-amprobe.com.
Beha-Amprobe
Abteilung und registrierte Marke von Fluke Corp. (USA)
Deutschland* Vereinigtes Königreich Niederlande – Hauptsitz**
In den Engematten 14 52 Hurricane Way Science Park Eindhoven 5110
79286 Glottertal Norwich, Norfolk 5692 EC Son
Deutschland NR6 6JB United Kingdom The Netherlands
Telefon: +49 (0) 7684 8009 - 0 Telefon: +44 (0) 1603 25 6662 Telefon: +31 (0) 40 267 51 00
beha-amprobe.de beha-amprobe.com beha-amprobe.com
*(Nur Korrespondenz – weder Reparatur noch Austausch über diese Adresse. Europäische Kunden wenden
sich bitte an ihren Distributor.)
**Einzelne Kontaktadresse in EEA Fluke Europe BV
This manual suits for next models
1
Table of contents
Languages:
Other Beha-Amprobe Thermographic Camera manuals
Popular Thermographic Camera manuals by other brands

Bush-whacker
Bush-whacker BIG EYE D3 user guide

Berger + Schröter
Berger + Schröter 31647 operating instructions

PCE Health and Fitness
PCE Health and Fitness PCE-TC 30 manual

ICI
ICI IR-PAD Series user manual

ALIBI
ALIBI ALI-BC1080PVF Quick installation and user guide

Risco
Risco eyeWAVE RWT95043300A installation instructions
