Beko WDA 105614 User manual

Document Number 2820524451 / 19-12-14.(9:29)
WDA 105614
Washer-Dryer
User’s Manual

This product was manufactured using the latest technology in environmentally friendly conditions.

User’s Manual 3/ EN
1 Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions
shall void any warranty.
1.1 General safety
A
CAUTION
¾This product can be used by children at and above 8 years old and by persons whose physical, sensory or
mental capabilities were not fully developed or who lack experience and knowledge provided that they are
supervised or trained on the safe usage of the product and the risks it brings out. Children must not play
with the product. Cleaning and maintenance works which can be done by users should not be performed by
children unless they are supervised by someone.
A
CAUTION
¾Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause
electrical parts to overheat. This will cause problems with your product.
C
NOTE
¾Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not
be held liable for damages that may arise from procedures carried out by unauthorized persons.
1.1.1 Electrical safety
B
DANGER
¾If the product has a failure, it should not be operated unless it is repaired by the Authorized Service
Agent. There is the risk of electric shock!
¾Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!
A
CAUTION
¾If the power cable is damaged, it must be replaced by the manufacturer, after-sales service or a similarly
qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible
risks.
A
CAUTION
¾Unplug the product when not in use.
¾Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
¾Unplug the product during installation, maintenance, cleaning and repairing procedures.
¾Do not make connections via extension cables or multi-plugs.
C
NOTE
¾This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel
the programme, see "Cancelling the programme" section.

4/ EN Washer-Dryer
Important instructions for safety and environment
1.1.2 Product safety
A
DANGER
¾Never open the loading door or remove the filter while there is still water in the drum. Otherwise, risk of
flooding and scalds from hot water will occur.
A
CAUTION
¾The water supply and draining hoses must be securely fastened and remain undamaged. Otherwise, there is
the risk of water leakage.
C
NOTE
¾Do not force open the locked loading door. The loading door will be ready to open just a few minutes after the washing
cycle is completed. The loading door will not open if the machine is not cooled down enough after the programme. You
can ensure a faster cool down of the machine by running a 10-minute drying programme, or wait until it cools down by
itself. Do not force the loading door open. The door and the lock mechanism can get damaged.
¾There should not be any lockable, sliding or hinged door that may restrain the loading door to open fully in the installation
place of this product.
¾Follow the instructions on the textile tags and on the detergent package.
¾Only detergents, softeners and supplements suitable for washing machines should be used.
¾Do not install or leave this product in places where it will be exposed to weather conditions.
¾Controls should not be tampered with.
1.1.3 Warnings for dryer
DANGER
¾As the laundry which had been cleaned, washed, soiled or stained with benzine/diesel oil, dry cleaning
solvents or other combustible and explosive materials before will emit flammable or explosive vapour,
they should not be dried in the machine. This may cause risk of fire.
¾Clothes soiled with liquid cooking oil, acetone, alcohol, benzine, gas oil, stain remover, turpentine,
waxes or wax removers must be washed with hot water and plenty of detergent before they are dried.
This may cause risk of fire.
¾Clothes or pillows supported by rubber foam (latex foam), shower caps, water-repellent textile
products, rubber supported materials and rubber foam pads should not be dried in the machine. This
may cause risk of fire.
¾If you use Washing Balls, Detergent Scales, Laundry Cages or Balls while washing in your appliance,
these may melt while drying. Do not use these products if drying will be selected. This may cause risk
of fire.
¾Never run the drying function when you are using industrial chemicals for cleaning. This may cause
risk of fire.
A
DANGER
¾Do not touch the door glass with bare hands after drying. This may cause risk of burn.
¾To keep the laundry under a temperature at which they will not be damaged, a cooling step is carried
out as the last stage. If you open the loading door before cooling step is completed, you may be exposed
to hot vapour. This may cause risk of scalding.
¾When drying programmes are interrupted (cancelling the programme or power cut), laundry in the
machine may be hot. Be careful.
A
CAUTION
¾Do not stop the machine before the drying programme is completed. If you have to stop it, take out all laundry
promptly and spread them on somewhere appropriate where they can cool down.
¾Do not dry tulle curtains, rugs and blankets in the machine.
¾Your product is suitable to operate under ambient temperatures between 0°C and +35°C.
¾Ambient temperatures between 15°C and +25°C are the ideal operating temperatures for your product.
¾Pay care that pets do not enter into the product. Check inside of the product prior to use.
¾Do not perform drying by overloading the machine. Follow the maximum load amounts specified for drying.

User’s Manual 5/ EN
Important instructions for safety and environment
A
CAUTION
¾Drying should not be performed on leather garments or garments containing leather (e.g. leather jeans tags, etc.).
Leather piece may colour.
¾Turn off the machine in failures that cannot be eliminated by applying the information given in the safety instructions,
then unplug it and call the Authorized Service Agent.
¾It is possible only to wash the laundry or only to dry the laundry or perform both washing and drying in the washer-
dryer. Machine should not be used for drying for a long time only with damp load. If the machine is used only for
drying, any of the short washing programmes should be run without putting in laundry after every 15 cycles.
¾Control all clothes before loading the machine to make sure that no belongings such as lighter, coins, metal pieces,
pins, etc have been left in the pockets or among them.
¾Underwear with metal supports should not be dried in the machine. Metal supports may get loose and broken
during drying process, thus cause damage on the cloth.
¾Do not dry voluminous laundry such as duvet and alike in the machine. Otherwise, your laundry may get damaged.
C
NOTE
¾Do not dry the unwashed laundry in the machine.
¾Do not use fabric softeners or antistatic products in the machine unless these are recommended by their manufacturers.
¾Fabric softeners and products alike should be used in accordance with the instructions of their producers.
¾Do not dry delicate clothes such as silk, woollen, etc. in the machine. Otherwise, woollen clothes may shrink and become
smaller and other delicate clothes may get damaged.
¾Check the symbols on the product label on the garment prior to Drying and Washing processes.
1.2 Intended use
C
NOTE
¾This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of
its intended use.
¾Use the product only for washing, rinsing and drying of textile products that are marked accordingly.
¾The manufacturer waives any responsibility arisen from incorrect usage or transportation.
¾The service life of your product is 10 years. During this period, original spare parts will be available to operate the
appliance properly.
1.3 Children's safety
A
CAUTION
¾Keep children under 3 years of age away from the appliance unless they are supervised.
¾Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of
the children.
¾Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do
not let them to tamper with the product. Use child lock to prevent children from intervening with the product.
¾Do not forget to close the loading door when leaving the room where the product is located.
¾Store all detergents and additives in a safe place away from the reach of the children by closing the cover of
the detergent container or sealing the detergent package.
1.4 Compliance with WEEE Directive
¾This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol
for waste electrical and electronic equipment (WEEE).
¾This product has been manufactured with high quality parts and materials which can be reused and
are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes
at the end of its service life. Take it to the collection center for the recycling of electrical and electronic
equipment. Please consult your local authorities to learn about these collection centers.
1.5 Package information
• Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.
Do not dispose of waste package together with domestic or other wastes. Dispose them at package collection points specified by the
local authorities.

6/ EN Washer-Dryer
WDA 105614
10.5
6
84
60
63
86
230 V / 50 Hz
10
2200
1400
2 Technical specifications
C
NOTE
¾Technical specifications may be changed without prior notice to improve the quality of the product.
¾Figures in this manual are schematic and may not match the product exactly.
¾Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in
accordance with the relevant standards. Depending on operational and environmental conditions of the product, these
values may vary.
Models
Maximum dry laundry capacity (kg) _Washing
Maximum dry laundry capacity (kg)_Drying
Height (cm)
Width (cm)
Depth (cm)
Net weight (±4 kg.)
Electrical input (V/Hz)
Total current (A)
Total power (W)
Spin speed (rpm max.)

User’s Manual 7/ EN
3 Installation
Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the
user manual and take care that the electricity, tap water supply and water drainage systems are appropriate before calling the Authorized Service
Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.
B
DANGER
¾Have the installation and electrical connections of the product made by the Authorized Service Agent.
Manufacturer shall not be held liable for damages that may arise from procedures carried out by
unauthorized persons.
DANGER
¾Product The weight of your product is not suitable to be carried by one person.
A
CAUTION
¾Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged
products cause risks for your safety.
A
CAUTION
¾Preparation of the location and electrical, tap water and waste water installations at the place of installation are
under customer’s responsibility.
¾Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed
while pushing the product into its place after installation or cleaning procedures.
3.1 Appropriate installation location
• Place the machine on a rigid floor. Do not place it on a long pile rug or similar surfaces.
• Do not place the product on the power cable.
• Do not install the product at places where temperature may fall below 0ºC. (See, Warnings for drying)
• Place the product at least 1.5 cm away from the edges of other furniture.
• There should not be any lockable, sliding or hinged door that may restrain the loading door to open fully in the installation place of this
product.
• Operate the product in a well-ventilated and dust-free environment.

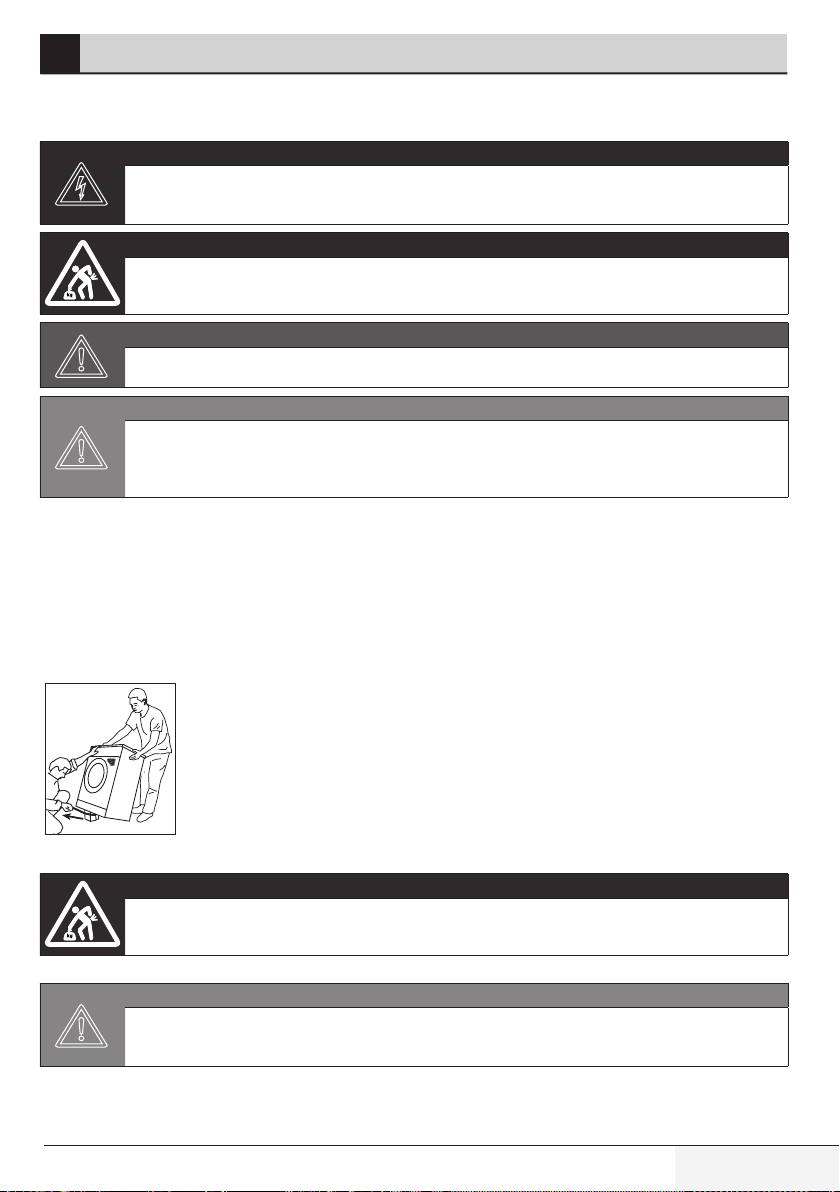

3.2 Removing packaging reinforcement
Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon.
DANGER
¾The product is heavy. Remove the packaging reinforcement as illustrated.
¾Pay attention not to squeeze your hand under the machine during this procedure.

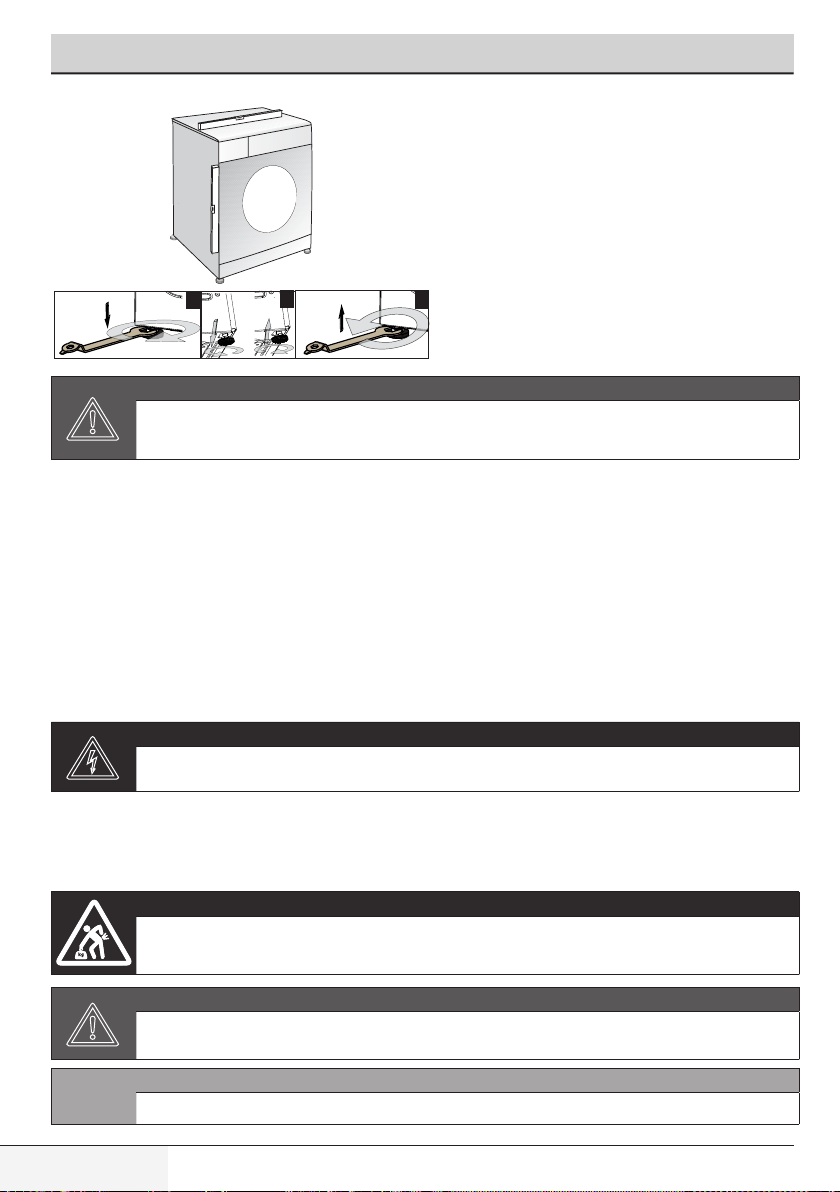

3.3 Removing the transportation locks
A
CAUTION
¾Do not remove the transportation locks before taking out the packaging reinforcement.
¾Remove the transportation safety bolts before operating the washing machine! Otherwise, the product will be
damaged.

8/ EN Washer-Dryer
Installation
1 2 3
1 Loosen all bolts with the tool supplied in the User Manual bag until they turn freely. (C)
2 Remove transportation safety bolts by turning them gently.
3 Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. (P)
C
NOTE
¾Keep the transportation safety bolts in a safe place to reuse when the machine needs to be moved again in the future.
¾Never move the product without the transportation safety bolts properly fixed in place!

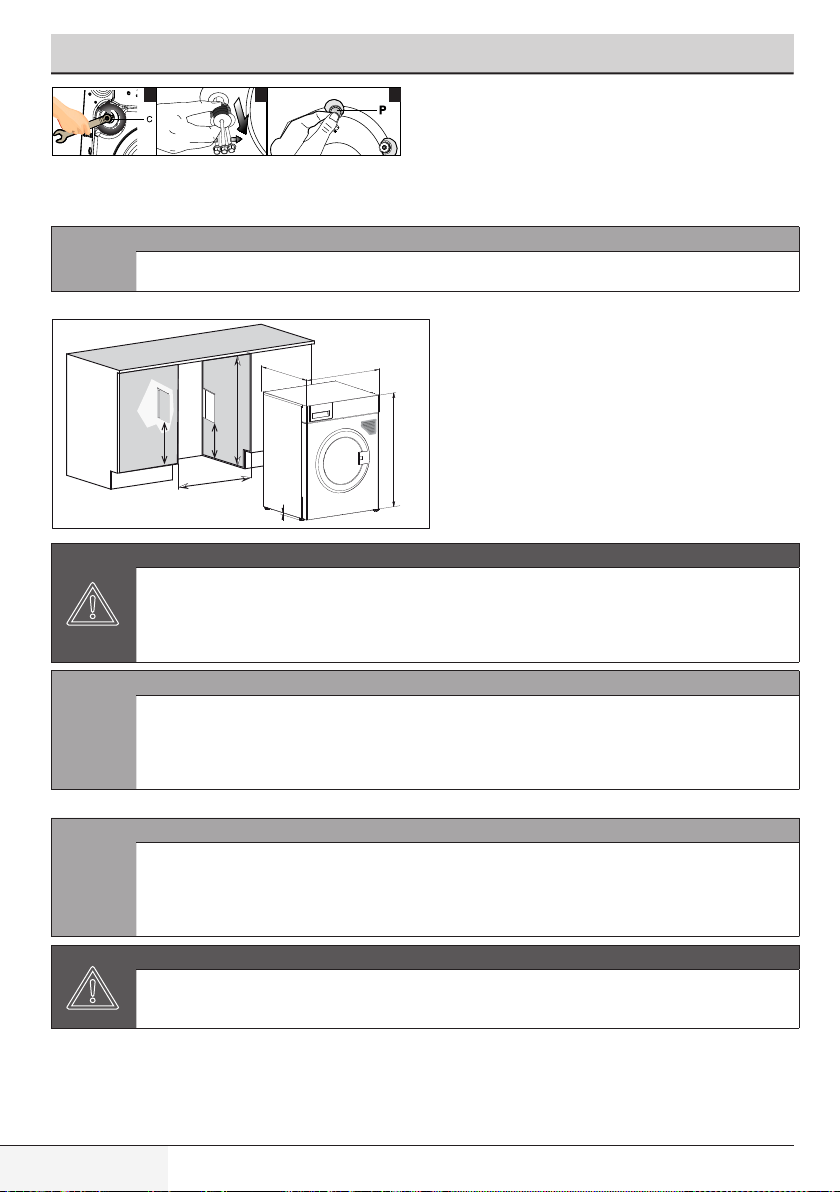

3.4 Flush usage with the bench
59,5 cm
84,0 cm
1,4 cm
66cm
86 cm
60 cm
65,5 cm
20 cm
15 cm
20 cm
15 cm
60 cm
A
CAUTION
¾Your machine should never be operated without the top plate.
¾When the Washer-Dryer is placed under the bench, front of the machine should never be blocked by the
cupboard door.
¾When the Washer-Dryer is placed under the bench, air vents must be bored into the left and right sides of the
cupboard.
C
NOTE
¾Follow the above dimensions when installing the product under the bench. These dimensions are indispensable to avoid
any change in the performance of your machine.
¾Drying washing machine can be used under a bench if the height of the bench allows.
¾At least 3 cm clearance must be left between the sides and the back of the product and the wall when it is installed under
the bench or in a cupboard.
3.5 Connecting water supply
C
NOTE
¾The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have
10 – 80 litres of water flowing from the fully open tap in one minute to have your machine run smoothly.Attach a pressure
reducing valve if water pressure is higher.
¾If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied blind
stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)
A
CAUTION
¾Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will
get damaged or the product will switch to protection mode and will not operate.
¾Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry.

User’s Manual 9/ EN
Installation
1 2 3
1 Connect the special hoses supplied with the product to the water inlets on the product. Red hose (left) (max. 90 ºC) is for hot water inlet,
blue hose (right) (max. 25 ºC) is for cold water inlet.
A
CAUTION
¾Ensure that the cold and hot water connections are made correctly when installing the product. Otherwise, your
laundry will come out hot at the end of the washing process and wear out.
2 Tighten all hose nuts by hand. Never use a tool when tightening the nuts.
3 Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off
the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent possible water leakages, keep the taps closed
when the machine is not in use.
3.6 Connecting to the drain
• Connect the end of the drain hose directly to the wastewater drain, sink or to the washbasin.
A
CAUTION
¾Your house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is risk
of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water intake
and discharge of the machine, fix the end of the discharge hose tightly so that it cannot come out.
90 cm
40
90
40
90 cm
• The distance to the wall so that the machine be placed up to 30 cm.
• Attach the hose at a height of at least 40 cm, and 90 cm at most.
• In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge
becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure.
• To prevent flowing of waste water back into the machine and to allow for easy discharge, do not immerse the hose end into the waste
water or do not drive it in the drain more than 15 cm. If it is too long, cut it short.
• Pay care not to bend the end of the hose, step on it or pinch the hose between the drain and the machine.
• If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m.
To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an
appropriate clamp as not to come off and leak.

10 / EN Washer-Dryer
Installation
3.7 Adjusting the feet
123
A
CAUTION
¾In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced
on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and
cause crushing and vibration problems.
1 Loosen the nuts on the feet in the direction of arrow with the tool supplied in the User Manual bag.
2 Adjust the feet until the product stands level and balanced. You can move the feet downwards by turning them counterclockwise or
upwards by turning clockwise.
3 Tighten all lock nuts again in the direction of arrow by the tool supplied.You can move the nuts upwards by turning them counterclockwise
or downwards by turning clockwise.
3.8 Electrical connection
Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the
product is used without grounding in accordance with the local regulations.
• Connection must comply with national regulations.
• Power cable plug must be within easy reach after installation.
• If the current fuse or circuit breaker is less than 16 Amperes, please have a qualified electrician install a 16 Ampere fuse or circuit
breaker.
• The voltage specified in the "Technical specifications" section must be equal to your mains voltage.
B
DANGER
¾Damaged power cables must be replaced by the Authorized Service Agents.
3.9 Transportation of the product
1 Unplug the product before transporting it.
2 Remove water drain and water supply connections.
3 Drain all water that has remained in the product. See. 6.6
4 Install transportation safety bolts in the reverse order of removal procedure; see 3.3.
DANGER
¾The weight of your product is not suitable to be carried by one person.
¾The product is heavy; it should be carried by two persons very carefully on the stairs. Falling of your
product on you may cause disabilities.
A
CAUTION
¾Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of
the children.
C
NOTE
¾Never move the product without the transportation safety bolts properly fixed in place!

User’s Manual 11 / EN
4.1 Sorting the laundry
• Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature.
• Always obey the instructions given on the garment tags.
4.2 Preparing laundry for washing
• Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. Remove the
metal pieces or wash the clothes by putting them in a cotton laundry bag or cotton pillow case. Moreover, such clothes may warm up
excessively during drying and get damaged. For this reason, do not dry such laundry in the machine.
• Put small size clothes such as infant's socks and nylon stockings in a cotton laundry bag or cotton pillow case.
• Place curtains in without compressing them. Remove curtain attachment items. Do not dry tulle curtains in the machine.
• Fasten zippers, sew loose buttons and mend rips and tears.
• Wash “machine washable” or “hand washable” labeled products only with an appropriate programme. Do not dry such clothes in the
machine; either hang or spread them to dry.
• Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately.
• Use only dyes/colour changers and limescale removers suitable for machine wash. Always follow the instructions on the package.
C
NOTE
¾Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken off before
placing into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine in time
and can cause damage.
¾Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce pilling.
¾Wash trousers and delicate laundry turned inside out.
¾Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.
¾Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such
objects may damage the product or cause noise problem.
4.3 Things to be done for energy saving
Following information will help you use the product in an ecological and energy-efficient manner.
• Operate the product in the highest capacity allowed by the programme you have selected, but do not overload. See, “Programme and
consumption table”.
• Always follow the instructions on the detergent packaging.
• Wash slightly soiled laundry at low temperatures.
• Use faster programmes for small quantities of lightly soiled laundry.
• Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.
• If you plan to dry your laundry, select the highest spin speed recommended during washing process.
• Do not use detergent in excess of the amount recommended on the detergent package.
4.4 First use
Before starting to use the product, make sure that all preparations are completed in accordance with the instructions in sections "Important safety
and environment instructions" and "Installation".
To prepare the product for washing laundry, perform first operation in Drum Cleaning programme. If your machine is not featured with this
program, apply the method described in 6.2.
C
NOTE
¾Use an anti-limescale suitable for the washing machines.
¾Some water might have remained in the product due to the quality control processes in the production. It is not harmful
for the product.
4 Preparation

12 / EN Washer-Dryer
Preparation
4.5 Correct load capacity
The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.
The machine automatically adjusts the amount of water according to the weight of the loaded laundry.
B
DANGER
¾Follow the information in the “Programme and consumption table”. When overloaded, machine's
washing performance will drop. Moreover, noise and vibration problems may occur. For a good drying
performance, do not dry laundry more than the amounts specified.
Laundry type Weight (g) Laundry type Weight (g)
Bathrobe 1200 Hand towel 100
Napkin 100 Evening gown 200
Duvet cover 700 Underclothing 100
Bed Sheet 500 Men’s overalls 600
Pillowcase 200 Men’s shirt 200
Tablecloth 250 Men’s pajamas 500
Towel 200 Blouses 100
4.6 Loading the laundry
1 Open the loading door.
2 Place laundry items loosely into the machine.
3 Push the loading door to close until you hear a locking sound. Ensure that no items are caught in the door.
C
NOTE
¾The loading door is locked while a programme is running. The door can only be opened a while after the programme
comes to an end. The loading door will not open until the temperature drops if the inside of the machine is very hot at the
end of the programme.
A
CAUTION
¾In case of misplacing the laundry, noise and vibration problems may occur in the machine.
4.7 Using detergent and softener
C
NOTE
¾When using detergent, softener, starch, fabric dye, bleach or limescale remover read the manufacturer's instructions on
the package carefully and follow the suggested dosage values. Use measuring cup if available.

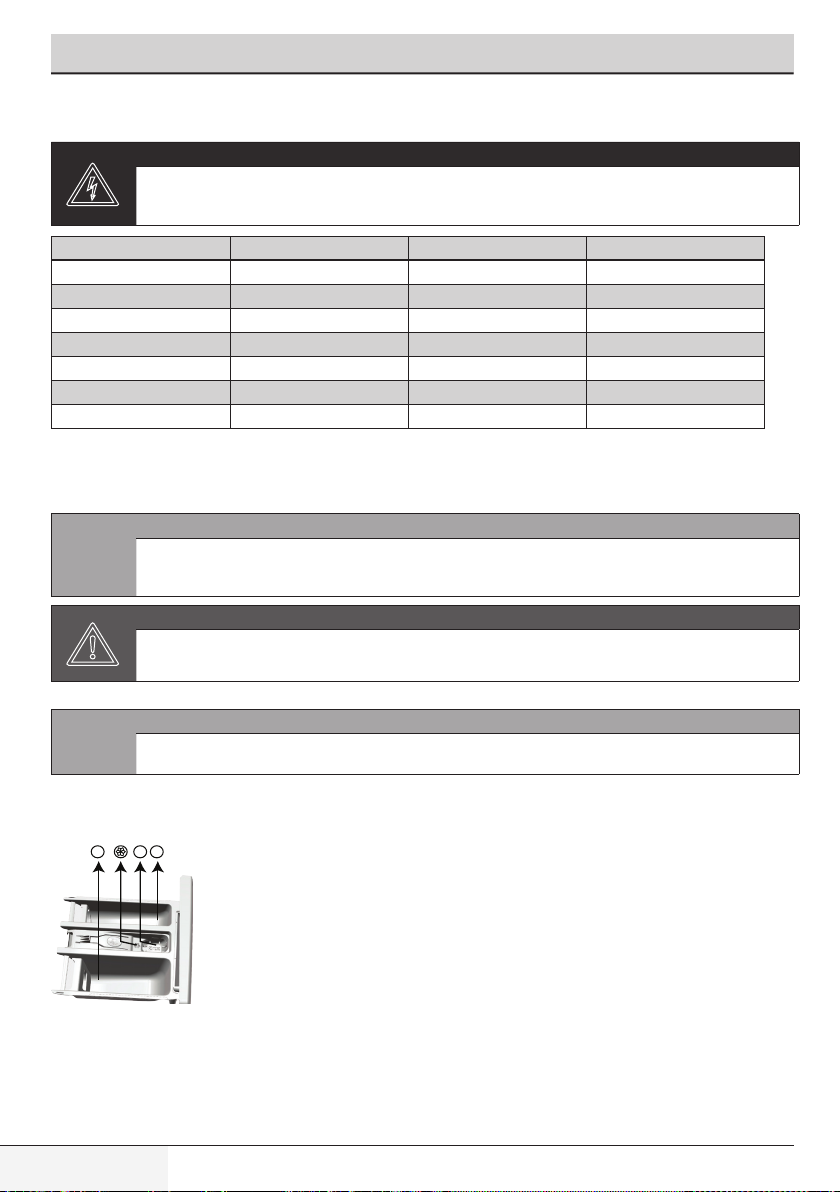

4.7.1 Detergent drawer
The detergent drawer is composed of three compartments:
1
3
2
– (1) for prewash
– (2) for main wash
– (3) for softener
– (*) in addition, there is siphon piece in the softener compartment.

User’s Manual 13 / EN
Preparation

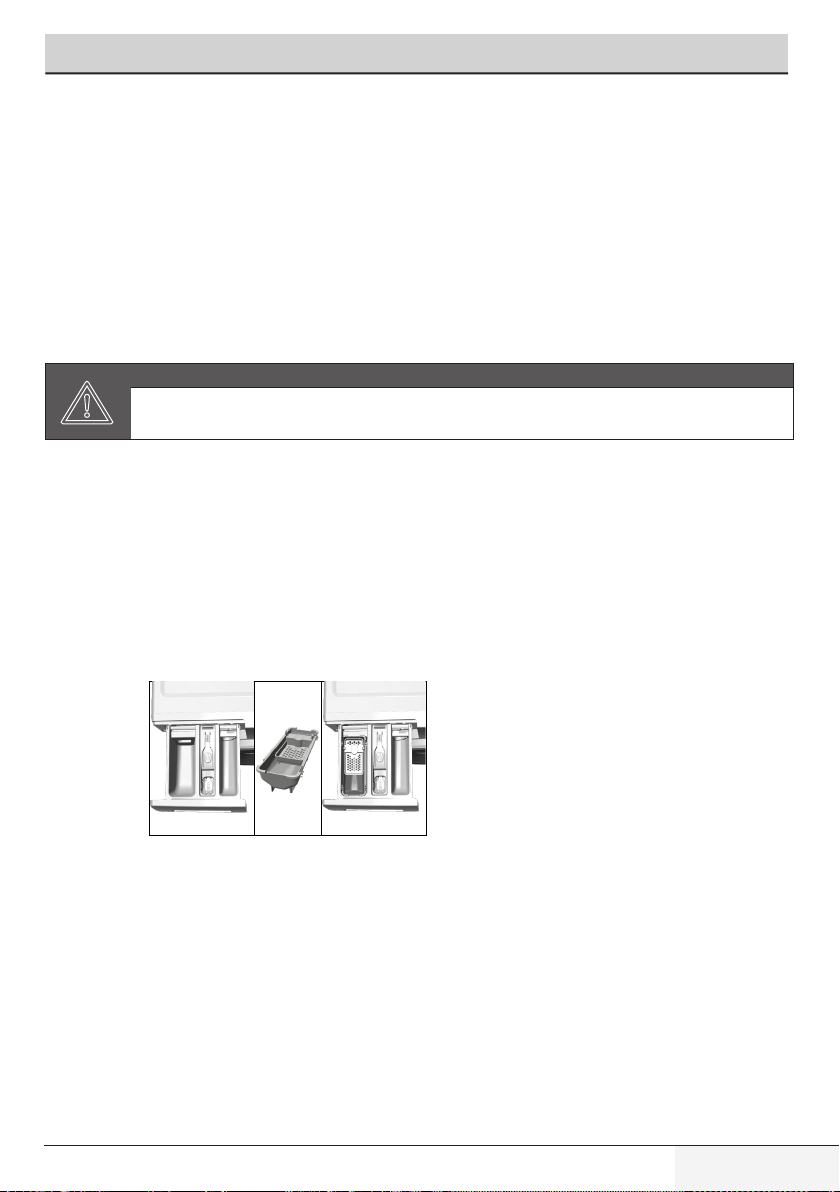

4.7.2 Detergent, softener and other cleaning agents
• Add detergent and softener before starting the washing programme.
• Never leave the detergent drawer open while the washing programme is running!
• When using a programme without prewash, do not put any detergent into the prewash compartment (compartment nr. "1").
• In a programme with prewash, do not put liquid detergent into the prewash compartment (compartment nr. "1").
• Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place the detergent bag or the dispensing
ball directly among the laundry in the machine.
• If you are using liquid detergent, do not forget to place the liquid detergent cup into the main wash compartment (compartment nr. "2").
• Do not add any washing chemicals (liquid detergent, softener, etc.) when the machine is in drying step.
4.7.3 Choosing the detergent type
The type of detergent to be used depends on the type and colour of the fabric.
• Use different detergents for coloured and white laundry.
• Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes.
• When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.
• Wash woolens with special detergent made specifically for woolens.
A
CAUTION
¾Use only detergents manufactured specifically for washing machines.
¾Do not use soap powder.
4.7.4 Adjusting detergent amount
The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness.
• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam,
poor rinsing, financial savings and finally, environmental protection.
• Use lesser detergent for small amounts or lightly soiled clothes.
4.7.5 Using softeners
Pour the softener into the softener compartment of the detergent drawer.
• Do not exceed the (>max<) level marking in the softener compartment.
• If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer.
4.7.6 Using liquid detergents
4.7.6.1 If the product has a liquid detergent cup
• Place the liquid detergent cup in compartment nr. "2".
• If the liquid detergent has lost its fluidity, dilute it with water before putting in the detergent cup.
4.7.6.2 If the product does not have a liquid detergent cup
• Do not use liquid detergent for the prewash in a programme with prewash.
• Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use
liquid detergent.
4.7.7 Using gel and tablet detergent
• If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the
main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this
cup before starting the programme.
• If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.
• Put tablet detergents into the main wash compartment (compartment nr. "2") or directly into the drum before washing.

14 / EN Washer-Dryer
Preparation
C
NOTE
¾Tablet detergents may leave residues in the detergent compartment. If you encounter such a case, place the tablet
detergent between the laundry, close to the lower part of the drum in future washings.
¾Use the tablet or gel detergent without selecting the prewash function.
4.7.8 Using starch
• Add liquid starch, powder starch or the fabric dye into the softener compartment.
• Do not use softener and starch together in a washing cycle.
• Wipe the inside of the machine with a damp and clean cloth after using starch.
4.7.9 Using bleaches
• Select a programme with prewash and add the bleaching agent at the beginning of the prewash. Do not put detergent in the prewash
compartment. As an alternative application, select a programme with extra rinse and add the bleaching agent through an empty
compartment of the detergent drawer as soon as the first rinsing step appears on the display, and add 1 glass of water in the same
compartment.
• Do not use bleaching agent and detergent by mixing them.
• Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes very well as it causes skin irritation. Do not pour the
bleaching agent onto the clothes and do not use it for coloured clothes.
• When using oxygen based bleaches, select a programme that washes at a lower temperature.
• Oxygen based bleaches can be used together with detergents; however, if its thickness is not the same with the detergent, put the
detergent first into the compartment nr. "2" in the detergent drawer and wait until the detergent flows while the machine is taking in
water. Add the bleaching agent from the same compartment while the machine is still taking in water.
4.7.10 Using limescale remover
• When required, use limescale removers manufactured specifically for washing machines only.
4.8 Tips for efficient washing
Clothes
Light colours
and whites Colours Dark colors Delicates/ Woolens/Silks
(Recommended temperature
range based on soiling level:
40-90 oC)
(Recommended temperature
range based on soiling level:
cold -40 oC)
(Recommended
temperature range
based on soiling level:
cold -40 oC)
(Recommended
temperature range
based on soiling level:
cold -30 oC)
Soiling Level
Heavily Soiled
(difficult stains such as
grass, coffee, fruits and
blood.)
It may be necessary to pre-
treat the stains or perform
prewash. Powder and liquid
detergents recommended
for whites can be used at
dosages recommended for
heavily soiled clothes. It is
recommended to use powder
detergents to clean clay and
soil stains and the stains that
are sensitive to bleaches.
Powder and liquid
detergents recommended
for colours can be used at
dosages recommended for
heavily soiled clothes. It is
recommended to use powder
detergents to clean clay and
soil stains and the stains that
are sensitive to bleaches. Use
detergents without bleach.
Liquid detergents
suitable for colours
and dark colours can
be used at dosages
recommended for
heavily soiled clothes.
Prefer liquid detergents
produced for delicate
clothes. Woolen and
silk clothes must be
washed with special
woolen detergents.
Normally Soiled
(For example, stains
caused by body on collars
and cuffs)
Powder and liquid detergents
recommended for whites
can be used at dosages
recommended for normally
soiled clothes.
Powder and liquid detergents
recommended for colours
can be used at dosages
recommended for normally
soiled clothes. Use detergents
without bleach.
Liquid detergents
suitable for colours
and dark colours can
be used at dosages
recommended for
normally soiled clothes.
Prefer liquid detergents
produced for delicate
clothes. Woolen and
silk clothes must be
washed with special
woolen detergents.
Lightly Soiled
(No visible stains exist.)
Powder and liquid detergents
recommended for whites
can be used at dosages
recommended for lightly
soiled clothes.
Powder and liquid detergents
recommended for colours
can be used at dosages
recommended for lightly soiled
clothes. Use detergents without
bleach.
Liquid detergents
suitable for colours
and dark colours can
be used at dosages
recommended for
lightly soiled clothes.
Prefer liquid detergents
produced for delicate
clothes. Woolen and
silk clothes must be
washed with special
woolen detergents.

User’s Manual 15 / EN
Preparation
4.9 Tips for efficient drying
Programs
Cottons Drying Synthetics
Drying Babyprotect + Wash&Dry Wash&Wear
Cloth Types
Durable Cotton Blend
Clothes
Bed sheets, duvet
covers, baby
clothes, t-shirts,
sweatshirts,
knitwear, blue jeans,
canvas trousers,
shirts, cotton socks,
and alike
Not recommended!
Washes and dries
directly! Bed sheets,
duvet covers, baby
clothes, t-shirts,
sweatshirts,
knitwear, blue jeans,
canvas trousers,
shirts, cotton socks,
and alike
Washes and dries
directly! Bed sheets,
duvet covers, baby
clothes, t-shirts,
sweatshirts,
knitwear, blue jeans,
canvas trousers,
shirts, cotton socks,
and alike
Lightly soiled and
unstained shirt,
t-shirt, sweatshirt,
etc. The amount of
the laundry should
be very little.
Synthetics (Polyester,
nylon etc.): Not recommended!
Recommended for
polyester, polyamide
(nylon), polyacetate,
acrylic blended
clothes. Drying is
not recommended
for viscose blend
clothes. Drying
instructions found
on the maintenance
tag should be
observed.
Considering the
washing and drying
warnings found on
the maintenance
tag, lower
temperatures are
recommended for
polyester, polyamide
(nylon), polyacetate,
acrylic blended
clothes.
Considering the
washing and drying
warnings found on
the maintenance
tag, lower
temperatures are
recommended for
polyester, polyamide
(nylon), polyacetate,
acrylic blended
clothes.
Synthetic blend
clothes such as
lightly soiled and
unstained shirt,
t-shirt etc. The
amount of the
laundry should be
very little.
Delicate (Silk, Woolen,
Cashmire, Angora etc.)
Clothes
Not recommended! Not recommended! Not recommended! Not recommended! Not recommended!
Duvet, jacket, curtain, etc.
voluminous laundry
Not recommended!
Drying voluminous
laundry in the
machine is not
appropriate. Dry
them by hanging or
spreading.
Not recommended!
Drying voluminous
laundry in the
machine is not
appropriate. Dry
them by hanging or
spreading.
Not recommended!
Drying voluminous
laundry in the
machine is not
appropriate. Dry
them by hanging or
spreading.
Not recommended!
Drying voluminous
laundry in the
machine is not
appropriate. Dry
them by hanging or
spreading.
Not recommended!
Drying voluminous
laundry in the
machine is not
appropriate. Dry
them by hanging or
spreading.

16 / EN Washer-Dryer
5 Operating the product
5.1 Control panel
1
6789
2 3 4 5
1 - Programme Selection knob
2 - Temperature Adjustment button
3 - Display
4 - Drying Selection knob
5 - On / Off button
6 - End Time Adjustment button
7 - Start / Pause button
8 - Auxiliary Function buttons
9 - Spin Speed Adjustment button
5.2 Display symbols
88
o
C
1880 88:88
180’
extra
a b c d
efgh
a. - Temperature indicator (0C)
b - Information line
c - Drying Levels indicator
d - Drying Time indicator (minutes)
e - Time indicator (hours:minutes)
f - End Time indicator
g - Lock indicator
h - Spin Speed indicator (rpm)

User’s Manual 17 / EN
Operating the product
5.3 Preparing the machine
1. Check if the hoses are connected tightly.
2. Plug in your machine.
3. Turn the tap on completely.
4. Place the laundry in the machine.
5. Add detergent and fabric softener.
5.4 Wash programme selection
1. Select the programme suitable for the type, quantity and soiling level of the laundry in accordance with the "Programme and consumption
table" and the temperature table below.
90˚C Heavily soiled white cottons and linens. (coffee table covers, tablecloths, towels, bed sheets, etc.)
60˚C Normally soiled, coloured, fade proof linens, cottons or synthetic clothes (shirt, nightgown, pajamas, etc.) and lightly
soiled white linens (underwear, etc.)
40˚C- 30˚C- Cold Blended laundry including delicate textile (veil curtains, etc.), synthetics and woolens.
2. Select the desired programme with the Programme Selection knob.
C
NOTE
¾Programmes are limited with the highest spin speed appropriate for that particular type of fabric.
¾When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water
temperature.
¾Always select the lowest required temperature. Higher temperature means higher power consumption.
5.5 Washing programs
Depending on the type of fabric, use the following main programmes.
C
NOTE
¾You can make drying directly after washing by pressing the Drying button after selecting the programme you want to
wash your laundry with. The step in which the drying will be made will be displayed on the information line every time you
press the button, and the related symbol lights. If you like, you can make drying for maximum allowed time by keeping
on pressing the button.
¾Figures and inscriptions included in the programme steps are schematic and may not match the product exactly. .
¾Name of the programme you have selected by the programme selection knob will appear on the display of the machine.
¾If you do not want to have drying made after the programme you selected, press the Drying button until "Drying cancelled"
is displayed.
¾Load maximum 6kg laundry when you are going to make washing and drying by using the Drying function of the
machine. If it is overloaded, the laundry will not dry and the machine will run for a longer time and consume extra power.
• Cottons
40
o
C
1200 88:88
Step. 3 Step. 2
Step.1
COTTONS
Use this programme for your cotton laundry (such as bed sheets, duvet and pillowcase sets, towels, bathrobes, underwear, etc.). Your laundry
will be washed with vigorous washing action for a longer washing cycle.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
• Synthetics
40
o
C
1200 88:88
extra
Step. 3 Step. 2
Step. 1
SYNTHETICS
Use this programme to wash your synthetic clothes (shirts, blouses, synthetic/cotton blends, etc.). It washes with a gentle action and has a
shorter washing cycle compared to the Cotton programme.

18 / EN Washer-Dryer
Operating the product
For curtains and tulle, use the Synthetic 40˚C programme with prewash and anti-creasing functions selected. As their meshed texture causes
excessive foaming, wash the veils/tulle by putting little amount of detergent into the main wash compartment. Do not put detergent in the
prewash compartment.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
• Woollens
30 o
C
800 00:58
Step.1
Step. 2
W O O L L E N S
Use this programme to wash your woolen clothes. Select the appropriate temperature complying with the tags of your clothes. Use appropriate
detergents for woolens.
C
NOTE
¾Drying function cannot be selected in the washing programme for woollens.
¾“The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machine
washable wool products provided that the products are washed according to the instructions on the garment label and
those issued by the manufacturer of this washing machine. M14054.”
¾“In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.”
• Cottons Eco
40
o
C
1000 88:88
Step. 3 Step. 2
Step.1
COTTON ECO
Use this programme to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other programmes, it
provides high energy and water savings. Actual water temperature may be different from the stated wash temperature. When you load the
machine with less laundry (e.g. ½ capacity or less), programme time may automatically get shorter. In this case, energy and water consumption
will decrease more, providing a more economic wash. This programme is available in the models with the remaining time indicator.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
• Delicates
Use this programme to wash your delicate clothes. It washes with a gentler action compared to the Synthetics programme.
• Hand Wash
60 o
C
800 88:88
100’
Step.1
Step.3 Step. 2
HANDWASH
Use this programme to wash your woollen/delicate clothes that bear “not machine-washable” tags and for which hand wash is recommended.
It washes laundry with a very gentle washing action to not to damage clothes.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
• Daily Xpress
30 o
C
1200 88:88
Step. 3 Step. 2
Step.1
DAILY XPRESS

User’s Manual 19 / EN
Operating the product
Use this programme to wash your lightly soiled and unspotted cotton laundry in a short time.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
• Xpress Super Short
30 o
C
1200 88:88
60’
Step.1
Step. 2
Step. 3
XPRESSSUPERSHORT
Use this programme to wash your small amounts of lightly soiled cotton laundry in a short time. It washes your laundry in 14 minutes.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
¾When drying function is selected, additional drying time will be displayed at the end of washing.
• Shirts
40 o
C
1000 88:88
Step.1
Step. 3 Step. 2
SHIRTS
Use this programme to wash the cotton, synthetic and synthetic blended shirts together.
C
NOTE
¾You can dry your laundry immediately after washing them (Automatic or scheduled drying can be made after washing).
For this, you have to select the drying function too before starting the washing programme.
• Rinse
Use this programme when you want to rinse or starch separately.
• Spin+Drain
Use this programme to drain the water in the machine.
5.6 Temperature selection
60 o
C
1200 88:88
110’
Whenever a new programme is selected, the recommended temperature for the programme appears on the temperature indicator. It is possible
that the recommended temperature value is not the maximum temperature that can be selected for the current programme.
Press the Temperature Adjustment button to change the temperature. Temperature will decrease by steps of 10 °C.
C
NOTE
¾Temperature Adjustment button works backwards only. For example, if you wish to select 60°C when 40°C is displayed
on the screen, you need to press the button in a row to go back from 40°C until you reach 60°C.
¾The light of temperature indicator is off in the programmes that do not allow temperature adjustment.
¾If you scroll to cold wash option and press Temperature Adjustment button again, the recommended maximum
temperature for the selected programme appears on the display. Press the Temperature Adjustment button again to
decrease the temperature.
Finally, “-” symbol indicating the cold option appears on the display. "Cold Wash" appears on the display.
You can also change the temperature after the washing starts. If the Temperature indicator's light is on after the wash cycle has started, you
can select the desired temperature. If the wash cycle has reached a point where you cannot change the temperature, the light of temperature
indicator goes off.

20 / EN Washer-Dryer
Operating the product
5.7 Selecting the spin speed
70 o
C
1000 88:88
50’
Whenever a new programme is selected, the recommended spin speed for the selected programme is displayed on the Spin Speed indicator.
C
NOTE
¾It is possible that the recommended spin speed value is not the maximum spin speed that can be selected for the current
programme.
Press the Spin Speed Adjustment button to change the spin speed. Spin speed decreases gradually.
Then, depending on the model of the product, "Rinse Hold" and "No Spin" options appear on the display.
C
NOTE
¾Spin Speed Adjustment button works backwards only. For example, if you wish to select 1000 rpm when 800 rpm is
displayed on the screen, you need to press the button in a row to go back from 800 rpm until you reach 1000 rpm.
¾Rinse Hold option is indicated with “ı_ı” symbol and No Spin option is indicated with “_” symbol.
5.7.1 If you want to spin your laundry after the Rinse Hold function:
70 o
C
-88:88
50’
- Adjust the Spin Speed.
- Press Start / Pause / Cancel button. Program resumes. Machine discharges the water and spins the laundry.
If you want to discharge the water at the end of the programme without spinning, use No Spin function.
C
NOTE
¾Light of the Spin Speed indicator is off in the programmes that do not allow the adjustment of spin speed. When you press
the Spin Speed Adjustment button, "Not adjustable" appears on the display.
You can also change the Spin Speed after the washing starts. If the Spin Speed indicator's light is on after the wash cycle has started, you can
select the desired spin speed. If the wash cycle has reached a point where you cannot change the spin speed, the light of spin speed indicator
goes off.
5.8 Drying Programmes
A
CAUTION
¾Piles coming from the clothes during drying are automatically cleaned by the machine. Water is automatically
taken in to perform cleaning. For this reason, water tap of the machine should also be open during drying
programmes.
C
NOTE
¾Spinning step already exists in the drying programmes. Your machine carries out this process to shorten the drying time.
When drying is selected, spin speed setting is in the 1200 - Maximum rpm range.
• Synthetic Dry
02:16
Step.1
Step. 2
SYNTHETIC DRY
Use this programme to dry humid or damp synthetic clothes whose dry weight corresponds to 4 kg. This programme performs drying only.
C
NOTE
¾For dry weights of laundry, see Section 4, Step 4.5
• Cotton Dry
Use this programme to dry humid or damp cotton clothes whose dry weight corresponds to 6 kg. This programme performs drying only.
