BePro RM-580 User manual

http://www.Bepro.tv
1
User’s manual
Features:
1.Equipped with a USB interface that allows the singer to record his/her own voice
(Note 2). Suitable for a conference system to record a long time as well.
2.Featured the tuning of treble / middle / bass to the musical quality control of
microphone and characterized with the functions of Low-cut, feedback termination
and expansion.
3.Included the Delay / Repeat / Echo / Reverb effects to tune the effectiveness of
microphone.
4.Characterized with five performances to the Reverb of microphone that can be
selected individually.
5.Available for external 5.1 input/output, adjustable level and By-passable signals.
6.Characterized with the functions of partner singing/multiple sounds/vocal removal.
7.Introduced the high-quality IC for YAMAHA (Note 1) DSP stereo pitch tuning.
8.Featured a remote-control function.
Digital echo USB record & playback mixer

1
http://www.Bepro.tv
Panel details
Front Pane
1POWER SWITCH
2VOCAL REDUCER button
4MIC EFFECT button
5EFFECT MODE indicator light
6USB indicator light
11 MIC Exicter Level Control( Tune / Hi )
13 Music Expander Level Control
14 Input Selector Control( LINE / 5.1 )
15 Music Volume Control
17 MIC Volume Control( Mic1/Mic2/Mic3 )
3Multi Audio Buttons
8KEY State indicator light
7KEY Control Buttons
9ECHO / REVERB Volume Control
10 MIC Exciter Control( ON / OFF )
12 Music Expander Control( ON / OFF )
18 LOW CUT Control
16 MIC INPUT Jacks
( Mic1/Mic2/Mic3 )
1POWER SWITCH
Press this switch to turn the power ON/OFF.
2VOCAL REDUCER button
Enables the reduction of the vocal volume from Hi-Fi
signal such as a tape or a CD and so to accompany
the signer better
3Multi Audio Buttons
The input signal has to be Karaoke format and
functioned with Vocal auto switch to enable love
song and practice.
4MIC EFFECT button
5 types of selection for the sound effect of microphone.
5EFFECT MODE indicator light
Effect mode indicator light, Show the effect mode in use.
6USB indicator light
USB indicator light.
Off:PC off line ; On:PC on line ; flash:USB active
7KEY Control Buttons
Allowing change the key of music at a range of 10
steps, 1/4 pitch of each step.
8KEY State indicator light
KEY State indicator light.
9ECHO / REVERB Volume Control
Volume adjustment knob to adjust the volume of
echo / reverberation.
10 MIC Exciter Control( ON / OFF )
MIC exciter control switch.
Making the signal clearer.
11 MIC Exicter Level Control( Tune / Hi )
MIC exicter level control.
Tune : Frequency Adjustment. (1KHz-8KHz)
High : High Frequency Adjustment .
12 Music Expander Control( ON / OFF )
Music expander control.
Making the signal brighter.
13 Music Expander Level Control
Music Expander Level Control.
14 Input Selector Control( LINE / 5.1 )
Audio input select,can switch line in or 5.1 in.
15 Music Volume Control
Adjustment knob to adjust the output volume of music.
16 MIC INPUT Jacks( Mic1/Mic2/Mic3 )
MIC INPUT Jacks
17 MIC Volume Control( Mic1/Mic2/Mic3 )
Adjustment knob to adjust the output volume of microphone.
18 LOW CUT Control
Adjustment knob to adjust the Low-Frequency filter cut of microphone.

4MIC TONE( BASS / FREQ / MID /TREBLE CONTROL )
6AUDIO INPUT Jacks( LINE / 5.1CH )
7FRONT OUTPUT Level Control
8FRONT OUTPUT Jacks
9RECORD OUTPUT Jacks
10 MIC Surround Level Control
11 Surround OUTPUT Jacks
12 CENTER / SUBWOOFER OUTPUT Jacks
13 MIC Center Level Control
1
2
VIDEO INPUT Jacks( LINE / 5.1CH )
VIDEO OUTPUT Jacks
3MIC ECHO EFFECT( REPEAT / DELAY Control )
5USB Connect Port
14 MIC Record Level Control
15 AC Power Cord
1VIDEO INPUT Jacks( LINE / 5.1CH )
Video source from input LINE or 5.1 signals.
2VIDEO OUTPUT Jacks
Output the video signals to the video devices and
equipments for thereof application.
3MIC ECHO EFFECT( REPEAT / DELAY Control )
To tune the echo effect for microphone.
DELAY: To control the time span for echo.
REPEAT: To control the pitch of echo and reverberation.
4MIC TONE( BASS / FREQ / MID /TREBLE CONTROL )
These four controllers are to be used for enhancing
or weakening the responding ability at high-frequency
or low frequency for the microphone;
BASS is to tune the bass volume.
TREBLE is to tune the treble volume.
MID is to tune the middle of sound volume and FREQ is to tune the
middle point of mid-frequency band that can prevent the feedback.
5USB Connect Port USB
To be connected to link with the computer for playing
the computer sound effect or recording contents into
the computer for application.
6AUDIO INPUT Jacks( LINE / 5.1CH )
Input jacks for stereo sound and 5.1 sound signals
that can be linked to a CD/DVD/Karaoke player and
an input terminal for linear AUDIO OUT signals.
7FRONT OUTPUT Level Control
To control the output level of sound from the front
channel.
8FRONT OUTPUT Jacks
To output the sound-mixed signals to a synthetic
amplifier for application.
9RECORD OUTPUT Jacks
To output the signals output from the microphone with
music mixed to the recording deck or video playback
for audio recording.
10 MIC Surround Level Control
To control the volume level of surround channels output
from the microphone.
11 Surround OUTPUT Jacks
To output the mix-down signals to a synthetic amplifier for
application.
12 CENTER / SUBWOOFER OUTPUT Jacks
To output the mix-down signals to a synthetic amplifier
for application.
13 MIC Center Level Control
To control the volume level of center channels output
from the microphone.
14 MIC Record Level Control
To tune the volume level when recording the sound from
the microphone.
15 AC Power Cord
The socket of AC power supply cord is the same as the
socket for the power supply cord of computer.
Panel details

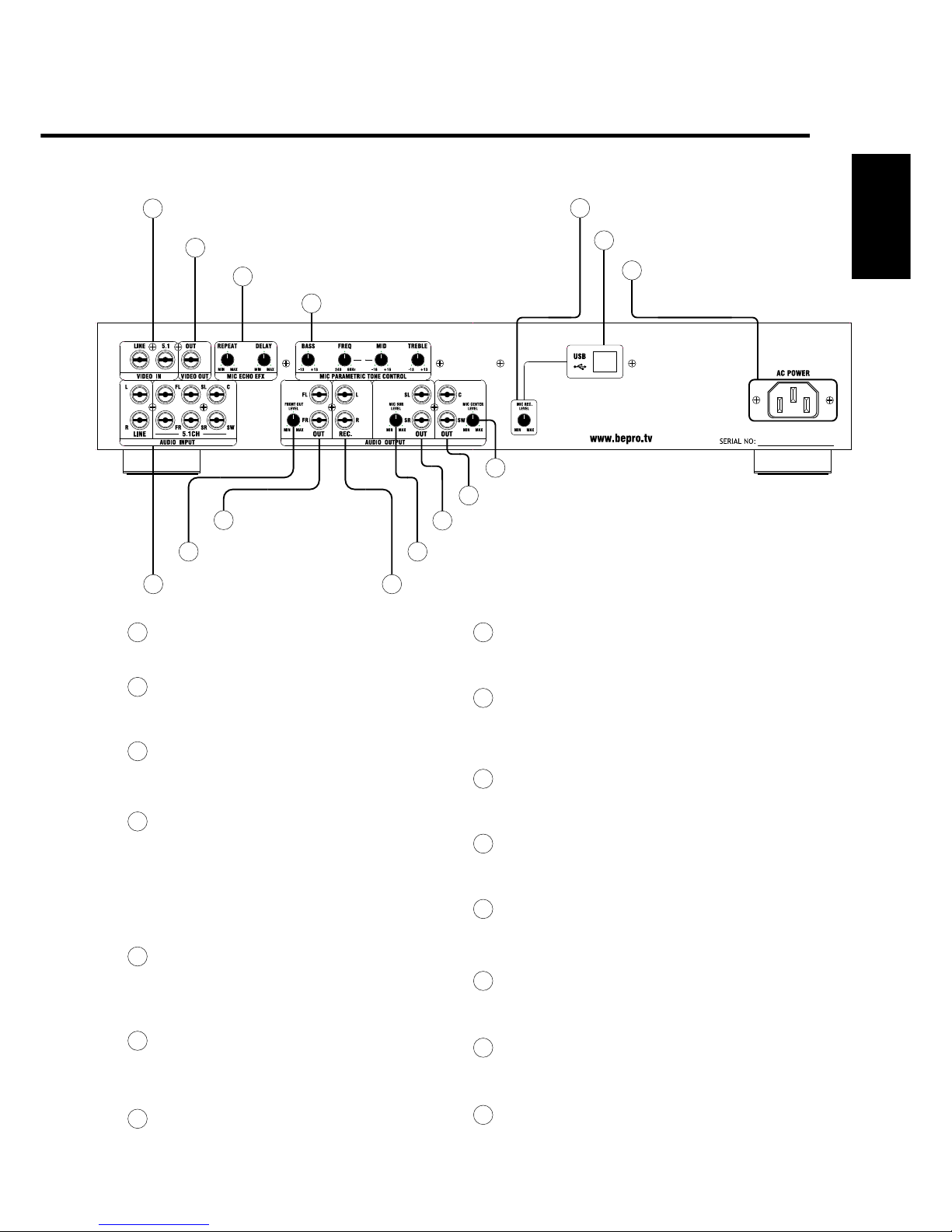

Rear Panel

Supplementary descriptions
http://www.Bepro.tv
Applicaion
Speak
Options (P) Description (H)
USB Audio
Level:
All Mute(M)
Blance:
Speak
Level:
Mute(M)
Blance:
Wave
Level:
Mute(M)
Blance:
Level:
Mute(M)
Blance:
Level:
Mute(M)
Blance:
SW Mixer CD PLayer Line
Singing is relax and joyful.How wonderful it will be if it is possible to record the song that
you are singing by digitizing and archiving it for record; such a record will last forever
without damage; and when hearing the singing voice once again after several
years later, it is definitely to remind you of your casual and elegant manner back to the
moment when singing the song; you can share this great moment with your friends as
well.
Therefore, BePro has integrated a new originality once again to go with the tide of the
current generation by taking the USB interface from the PC to transmit the data for
audio recording; thus the peoples who are fond of singing can record their won
singing sound,keep it forever and archive it for sharing to let it become an eternal
remembrance.
The product is introduced a DSP processing method to deal with the sound effect of
human voices; also, a basic ECHO effect plus a Reverb sound effect are featured
to singing as well that demonstrates an outstanding sound effect of human voices
and makes the singer sing like a super star.
Applicable scope：
Cautionary points for audio recording：
1. Home KARAOKE
2. Conference system
3. Multimedia system
4. KTV system

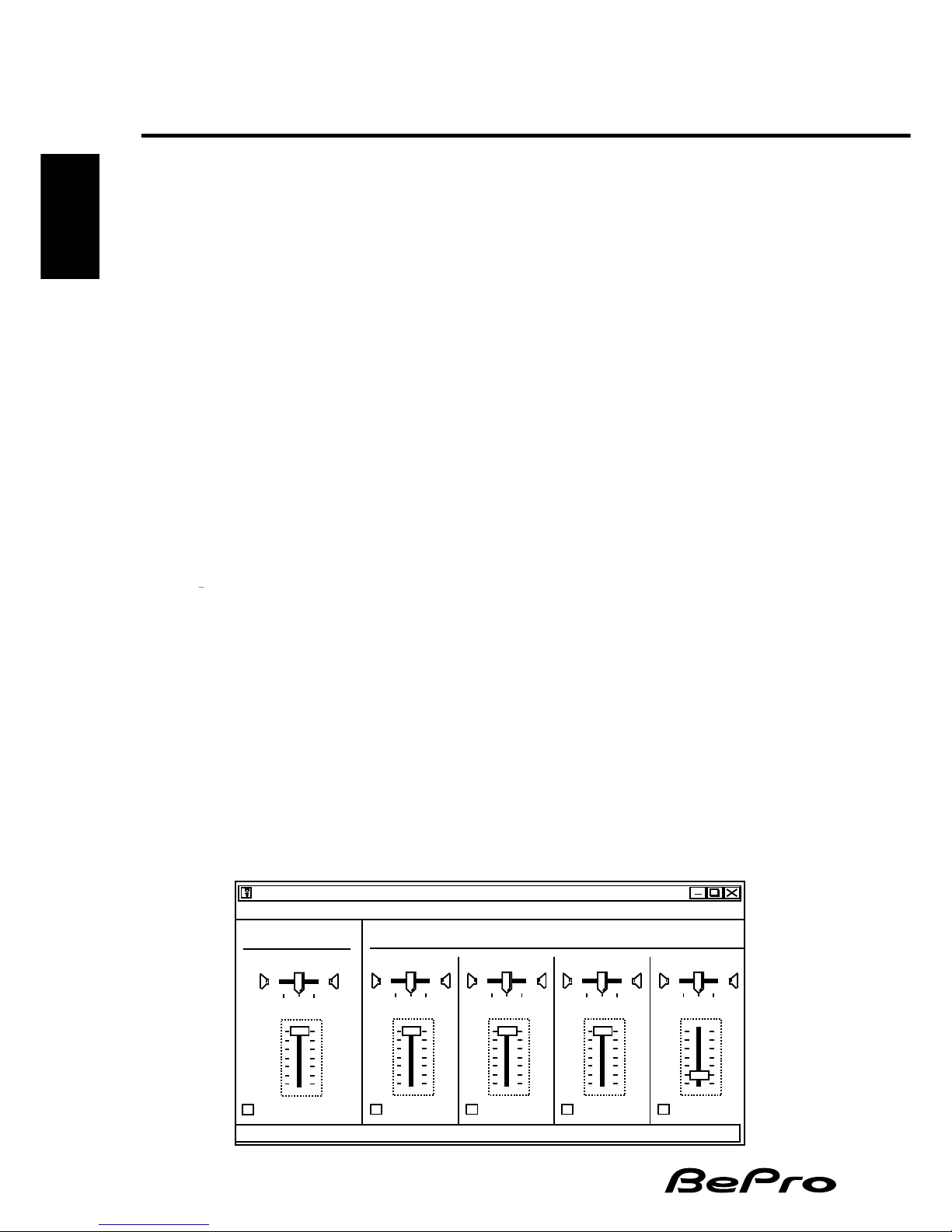

1. Use a USB cord to connect to link the RM-580 with the computer.
2. The computer will search to find a USB Audio sound effect device (USB driver
is needed for WIN98 and unneeded for ME/2000/XP).
3. Turn on the sound effect device, the view of control panel will be the same as
the figure shown below with the “USB Audio” shown at the left lower corner;
and then tune the volume in accordance the setups from the figure.

Supplementary descriptions
recording
Remarks：:
1. YAMAHA trademark is owned by the YAMAHA CORPORATION.
2. Recommended set values for sound effect of recording: Sample rate: 44100Hz /
Bitrate: 192 / AGC: off (auto gain).
3. When recording is desired, the record level for audio recording shall be repeatedly
set for several times beforehand together with the tuning for the PC recording level
and the vocal output level until there is no vocal fold.
4. It is compatible to any audio recording program.
Recommended software: super mp3 recorder, Aare MP3 Sound Recorder 3.0
4.The setup of volume level that is to be input to the computer really setting
matters a lot to the sound quality of recording; since the microphone will be
input a little bit wider dynamic range of sound when singing a song; therefore,
a higher volume may lead to a distortion phenomenon; it is recommended
that Sum should be used for recording when inputting a sound to the
microphone so that the bass and the treble can be tuned to shift to a
minimum value.
5.There is no recording software specified; however, when applying a
compression format for recording (For example: MP3), it is advised that the
sampling frequency and the compression ratio should be watched; a too-low
sampling frequency and a too-high compression may result in fading the
sound quality; therefore, 192Kbps is recommended as a suitable compression
ratio.
Wave In
Options (P) Description (H)
USB Audio
Level:
Mute(M)
Balance:
Level:
Mute(M)
Balance:
Level:
Mute(M)
Balance:
Line Microphone Sum
Advance(A) Advance(A)
Tone control
These setups are able to fine-tune the audio signals
Advanced control of Sum
These setups are to control the tone of audio signals.
Bass (B)
Treble (T)
Low High
Low High
Exit

http://www.Bepro.tv
Specifications
Specifications
Input Sensitivity / Impedance(AUDIO OUT : 1 Vrms)
MIC 1.0 mv / 10k ohm
LINE/5.1 CH 150mv / 47k ohm
Output Level / Impedance (Input Level : 150mv)
FL/FR/SL/SR/C/SW 150mv / 1k ohm ( Variable )
REC OUT 150mv / 1k ohm ( Variable )
Tone Control Charteristic
Mic Bass(Boost/Cut) 13/-13 dB (50Hz )
Mid (Boost/Cut) +16 / -16 ( 240Hz~6KHz Variable )
Treble(Boost/Cut) +13/-13dB ( 10kHz )
Exciter Control Charteristic
Music Bass(Boost) +12dB(70Hz )
Treble(Boost) +10dB(12kHz )
Mic Bass(Boost) +6 dB (100Hz )
Treble(Boost/Cut) +8 dB (10kHz )
Stereo Pitch-Shift (DSP) +5/-5Key
Mic Effects (EFX)
Reverb Time 1~6 Sec ( 5 Fix mode )
LPF Filter 12KHz
Delay Time 250 ms ( Max )
USB Type
Compliant with USB 2.0 Full Speed Operation
Compliant with USB Audio Device Class Specification v1.0
Video Input Level / Inpedance
Line / 5.1 Ch 1 Vp-p / 75 ohm
Video Output Level / Inpedance
Output 1 Vp-p / 75 ohm
POWER
Power Supply (U Model) AC110V-AC120V 60Hz
Power Consumption (U Model) 15 W
Dimensins ( W X H X D ) 420 x 88 x 356mm
Weight 3.9Kg
Audio
Vedio
Other
