Bharat Bijlee BP-HLA-981 Instruction Manual

BP-HLA-981
JET HAND DRYER
Installation & User Manual
where sensors mean‘India’
Please read instruction in conjunction with the illustrations
Please save these instructions.
RELIABLE • RESPONSIVE • RESPONSIBILE

Product Features, Technical Specications
& Package Contents
Package Contents:
• Hand dryer
• Wall mounting bracket
• Fixtures and ttings
• User manual and installation guide
Product Features:
•
www.bharatphoton.com
BP-HLA-981
Installation & User Manual
The outer casing is made from an impact resistant, ame
resistant ABS plastic with antimicrobial coating.
An intelligent heating system will detect the ambient
temperature of your washroom, automatically adjust the
airow temperature to keep running costs right down.
An LED display helps deliver the perfect dry by instructing
the user on how fast to draw the hands through the airow.
It has a smooth sound output and is engineered to minimalise
noise transfer from one area to another.
The modern design and futuristic LED lighting make this a
very popular addition to the most contemporary of
washrooms.
•
•
•
•
•
Saves Electricity and costs less to run - dries Hand in less
than 5-7 seconds using 80% less energy than normal warm
hand dryer.
Carbon footprint - the best hand drying alternative for
environment with 70% smaller carbon footprint than paper
towels.
Labor cost - further expanses related to paper towels include
having employees ll dispensers, pick up litter, empty trash bins.
•
•
•
JET HAND DRYER
Technical Specication
Body Material
Voltage
Frequency
Polycarbonate ABS
220-240V
50/60Hz
Input Power
Heating Power
1900W
1000W
RPM
Hot & Cold Switch
21000
Intelligent heating system
Air Speed
Auto Cutoff
Operation
Drying Time
Motor
90 m/s
20sec.
Infrared automatic “No Touch”
5~7 Seconds
Brushless Motor
Dimensions(mm) WxHxD
Warranty on Motor
Net Weight
300x685x220
5*Years
7.5kgs
Color
Induction Method
Noise Output
White
IPX4
<77dB
685mm
220mm
300mm

Troubleshooting
Before Installing the Jet Hand Dryer
www.bharatphoton.com
BP-HLA-981
Installation & User Manual
JET HAND DRYER
Install the hand dryer in a location where it will be easy to use, and ensure that there is adequate space around the dryer for
cleaning and maintenance.
If the unit is installed too low, water may splash onto the dryer when the oor is being cleaned. (The bottom of the hand dryer
must be mounted at least 350mm above the oor).
The left hand side of the hand dryer must be at least 150mm away from any walls, to allow access to the power switch, speed
& heat setting switches.
We recommend that the right hand side of the dryer should be at least 100mm from any wall/objects.
Avoid installing the hand dryer in locations where people or doors might bump into the dryer.
Choose a completely at surface on the wall to install the dryer.
•
•
•
•
•
•
Hand Dryer Troubleshooting
If the following problems occur, please perform checks as follows.
PROBLEM CHECK ACTION
No air blows even if hands
are inserted
Do any of the display
indicators light up?
Is the power switch on?
Are you putting your hands in
all the way?
Turn the circuit breaker on.
Turn the power switch on.
Put hands in all the way.
The unit does not stop
blowing
Is the sensor being blocked
by dust or dirt?
Turn the power switch off, and
then, after all the lamps in the
display have gone off, clean
the sensor.
Indicator light is ashing If the power supply problems
occur, the indicator lights up
and is ashing.
Turn the power switch off.
Check all the indicators in the
display area have gone off
(takes around 40 seconds),
then turn on the power switch
again.
If the above actions do not work, turn off the power supply, isolate the dryer, them call a service engineer.
It makes a heavy noise and
strange sounds
The wall, on which the product is
put, is week, or whether it is
unstably set up.
Some things are at the back of
product or its upper side.
A xing bar touches a wall.
Set up it on a strong and
straight wall.
Remove such things
Fix the bar rmly.

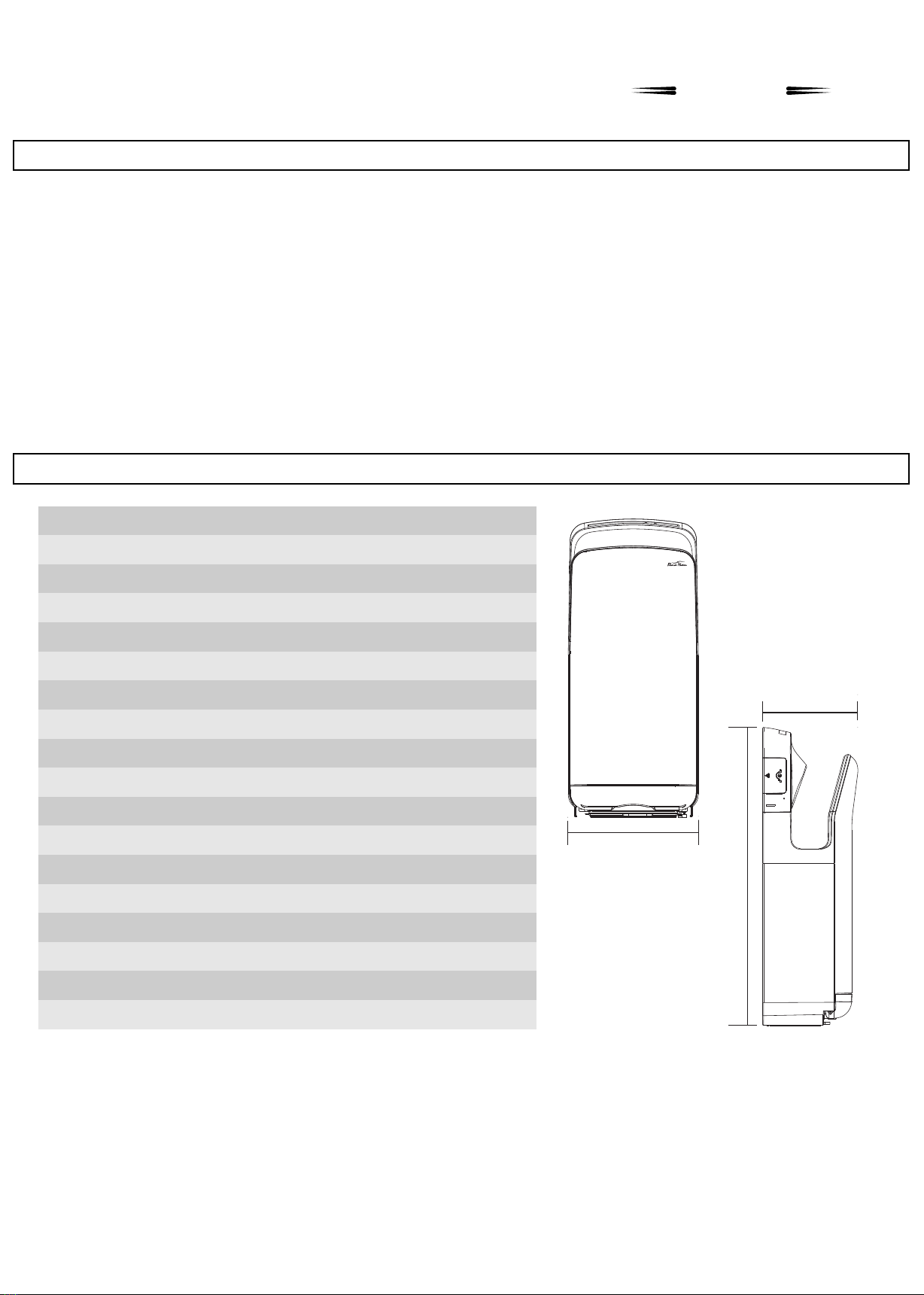

Dimensions

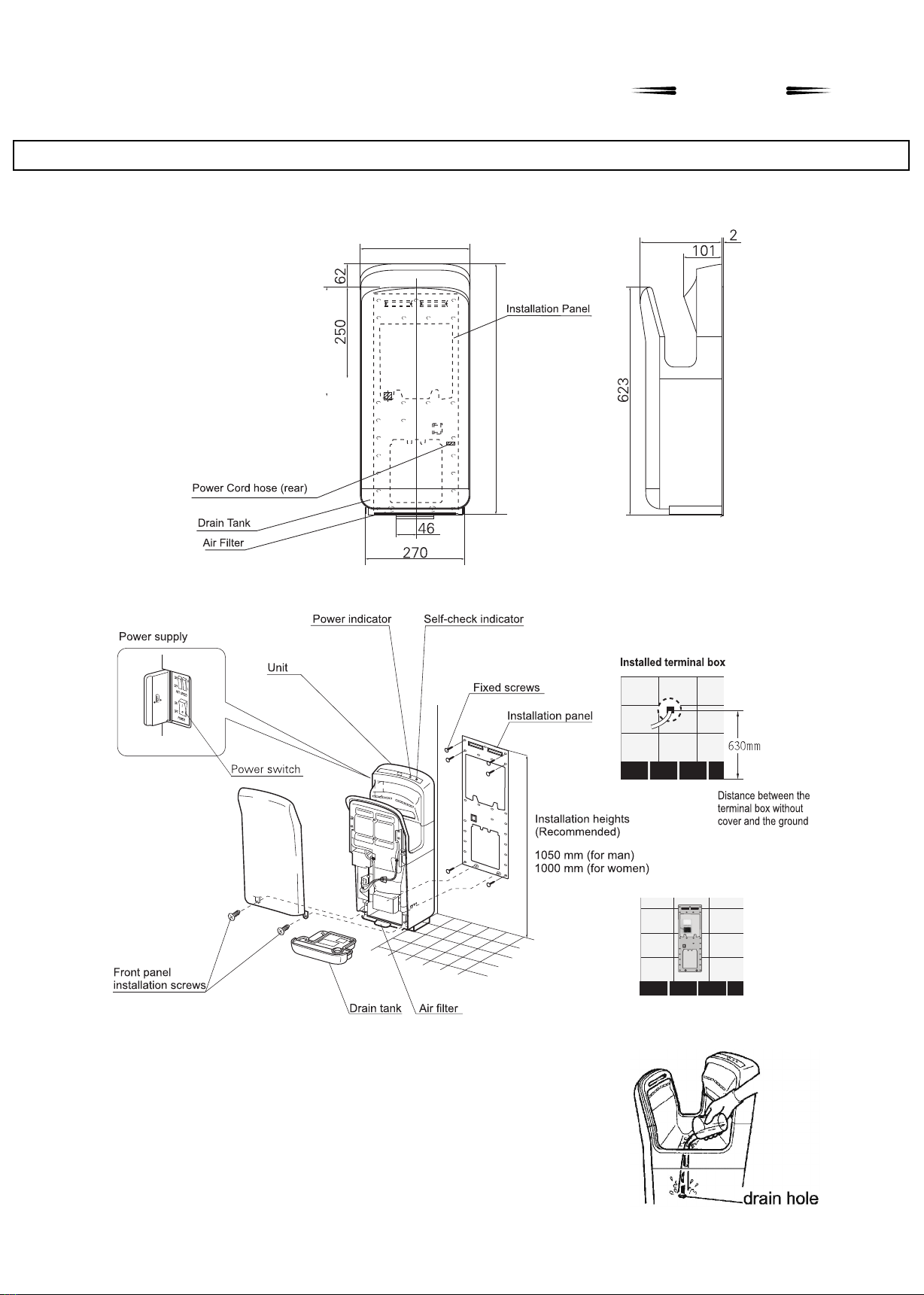

Jet Hand Dryer Dimensions
www.bharatphoton.com
BP-HLA-981
Installation & User Manual
JET HAND DRYER
685
300 220
At regular intervals (at least once a week) carefully pour 200cc
(around a cup) of water through the drain hole.
(to prevent it from getting clogged up).

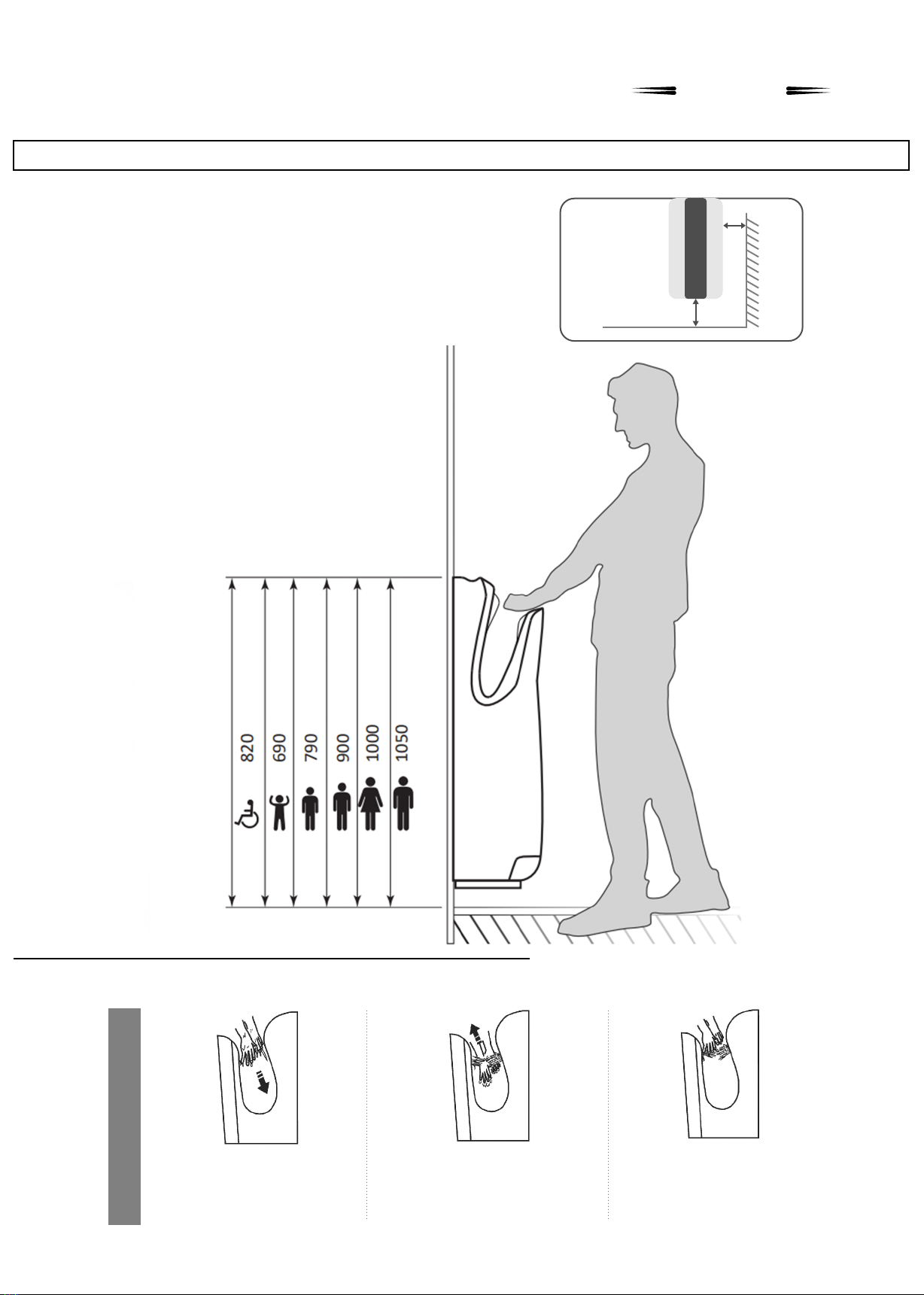

Recommended Mounting Height
Recommended Mounting Height
BP-HLA-981
Installation & User Manual
JET HAND DRYER
Position it 350mm at least from the oor.
Position it 10mm at least from a wall.
Position it on a straight and balanced wall.
Keep it away from a door or a place easy to bump to men.
Where to position.
Floor
350mm
100mm Wall
•
•
•
•
All dimensions are in mm
Shake off excess water at
the sink and insert both hands
into the dryer. The unit starts
to run automatically
Pull your hands out slowly, letting
the air blow the water off.
Pull your hands out completely,
repeat process until dry
USING THE HAND DRYER
www.bharatphoton.com

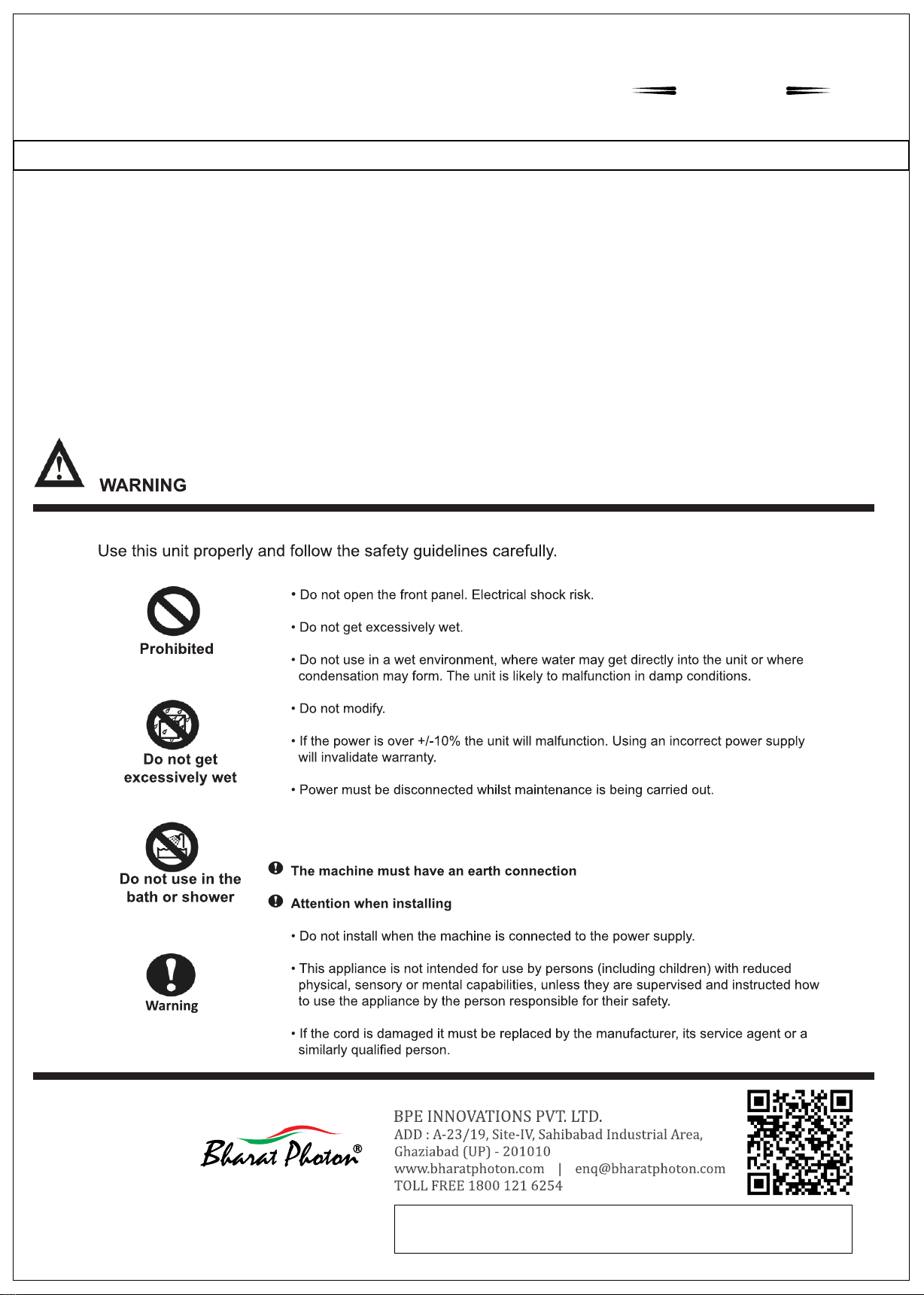

Safety Guidelines
Safety Guidelines
BP-HLA-981
Installation & User Manual
JET HAND DRYER
All electrical installation and repair work should be carried out by a qualied electrician in accordance with current locals codes
or regulations.
Do not attempt any disassembly or modication of the unit that is not expressly stated in this manual.
Do not install when the product (power cable) is electried.
Install securely in a location strong enough to support the weight of the unit.
Install the hand dryer on a smooth surface and in an area where people are not likely to collide with the object once installed.
Do not scratch, damage, process, excessively bend, pull, twist or bundle the power cable, and do not place heavy objects onto it
or trap it.
Do not use in a hot location such as a shower room, where condensation may form on the unit, or where water may splash directly
at the unit.
Do not install this hand dryer above sources of water such as sinks or taps.
Do not install in locations where salt damage may occur, or where corrosive, neutral, or reductive gases are present
•
•
•
•
•
•
•
•
•
where sensors mean ‘India’
All information is based on the latest product information available at the time of publication.
BPE INNOVATIONS PVT. LTD. reserves the right to make changes in product characteristics, packaging or
availability at any time without notice.
