BioBusiness CP501T Manual

Oxygen Concentrator
CP501T Oxygen Concentrator Instruction Guide
WARNING-Read instruction guide before operating this equipment.
DANGER---NO SMOKING

User Manual of Oxygen Concentrator - CP501T
1
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS ..........................................................................................................................................3
WHYYOUR PHYSICIAN PRESCRIBED SUPPLEMENTAL OXYGEN......................................................................3
HOWYOUR CP501T OXYGEN CONCENTRATOR WORKS.......................................................................................3
IMPORTANT PARTS OF YOUR CONCENTRATOR......................................................................................................3
SETTING UPYOUR OXYGEN CONCENTRATOR.......................................................................................................5
BEFORE OPERATING YOUR OXYGEN CONCENTRATOR.......................................................................................6
OPERATING YOUR CP501T CONCENTRATOR...........................................................................................................7
CARINGAND PERIODIC MAINTENANCE FOR YOUR UNIT...................................................................................7
MINOR TROUBLESHOOTING .....................................................................................................................................10
SPECIFICATIONS...........................................................................................................................................................11
SYMBOL .........................................................................................................................................................................12
ELECTROMAGNETIC IMMUNITY .............................................................................................................................13
DECLARATION OF CONFORMITY.............................................................................................................................15

User Manual of Oxygen Concentrator - CP501T
2
INDICATIONS FOR USE —The CP501T Oxygen Concentrator is intended for use as an oxygen
concentrator to provide supplemental oxygen therapy in the home, nursing homes, patient care facilities, etc.
WARNING
Under certain circumstances, oxygen therapy can be hazardous.
Seeking medical advice before using an oxygen concentrator is advisable.
Physician Information
Physician Name:
Telephone:
Address:
Prescription Information
Name:
Oxygen liters per minute
at rest：during activity：
other：
Oxygen use per day
Hours: Minutes:
Comments:
Oxygen Concentrator Serial Number: CP501T
（check one）
□3-Liter □5-Liter □8-Liter □10-Liter
Provider Information
Service Person：
This instruction guide was reviewed with me and I have been instructed on the safe use and care of the CP501T
Oxygen Concentrator.
Signature: Date:

User Manual of Oxygen Concentrator - CP501T
3
IMPORTANT SAFEGUARDS
Read this entire guide before using your CP501T oxygen concentrator. Important information is highlighted
by these terms throughout this guide：
DANGER
Urgent safety information for hazards that will cause serious injury or death.
WARNING
Important safety information for hazards that might cause serious injury.
CAUTION
Information for preventing damage to the product.
NOTE
Information which you should pay special attention.
INTRODUCTION
This instruction guide will acquaint you with the CP501T oxygen concentrator. Make sure that you read and understand this
guide before operating your unit. Important safeguards are indicated throughout this guide; pay special attention to all
safety information. Contact your Medical equipment provider if you have any questions.
WARNING
For your safety, the oxygen concentrator must be used according to the prescription determined by your physician.
DANGER
Oxygen causes rapid burning. Do not smoke while your oxygen concentrator is operating, or when you are near a
person utilizing oxygen therapy. Do not use within 5 feet（1.6m）of hot, sparking objects or naked sources of flame.
WHY YOUR PHYSICIAN PRESCRIBED SUPPLEMENTAL
OXYGEN
Today, many people suffer from heart, Lung, and other respiratory diseases. Many of these people can benefit from
supplemental oxygen therapy. Your body requires a steady supply of oxygen to function properly. Your physician
prescribed supplemental oxygen for you because you are not getting enough oxygen from room air alone.
Supplemental oxygen will increase the amount of oxygen that your body receives.
Supplemental oxygen is not addictive. Your physician prescribed a specific oxygen flow to improve symptoms such
as headaches, drowsiness, confusion, fatigue, or increased irritability. If these symptoms persist after you begin your
supplemental oxygen program, consult your physician.
HOW DO YOUR CP501T OXYGEN CONCENTRATOR WORKS
Oxygen concentrators are the most reliable, efficient, and convenient source of supplemental oxygen available today.
The unit separates oxygen from room air which allows high-purity supplemental oxygen to be delivered to you
through the oxygen outlet, although the concentrator filters the oxygen in a room, it will not affect the normal
amount of oxygen in your room.
IMPORTANT PARTS OFYOUR CONCENTRATOR
Please take time to familiarize yourself with your CP501T oxygen concentrator before operating.
Before using this product, make sure you have the following items：
．1 User manual.
．1 Oxygen concentrator set.
．1 Adapter for connecting humidification bottle

User Manual of Oxygen Concentrator - CP501T
4
．1 humidification bottle.
．1 Oxygen Outlet Connector

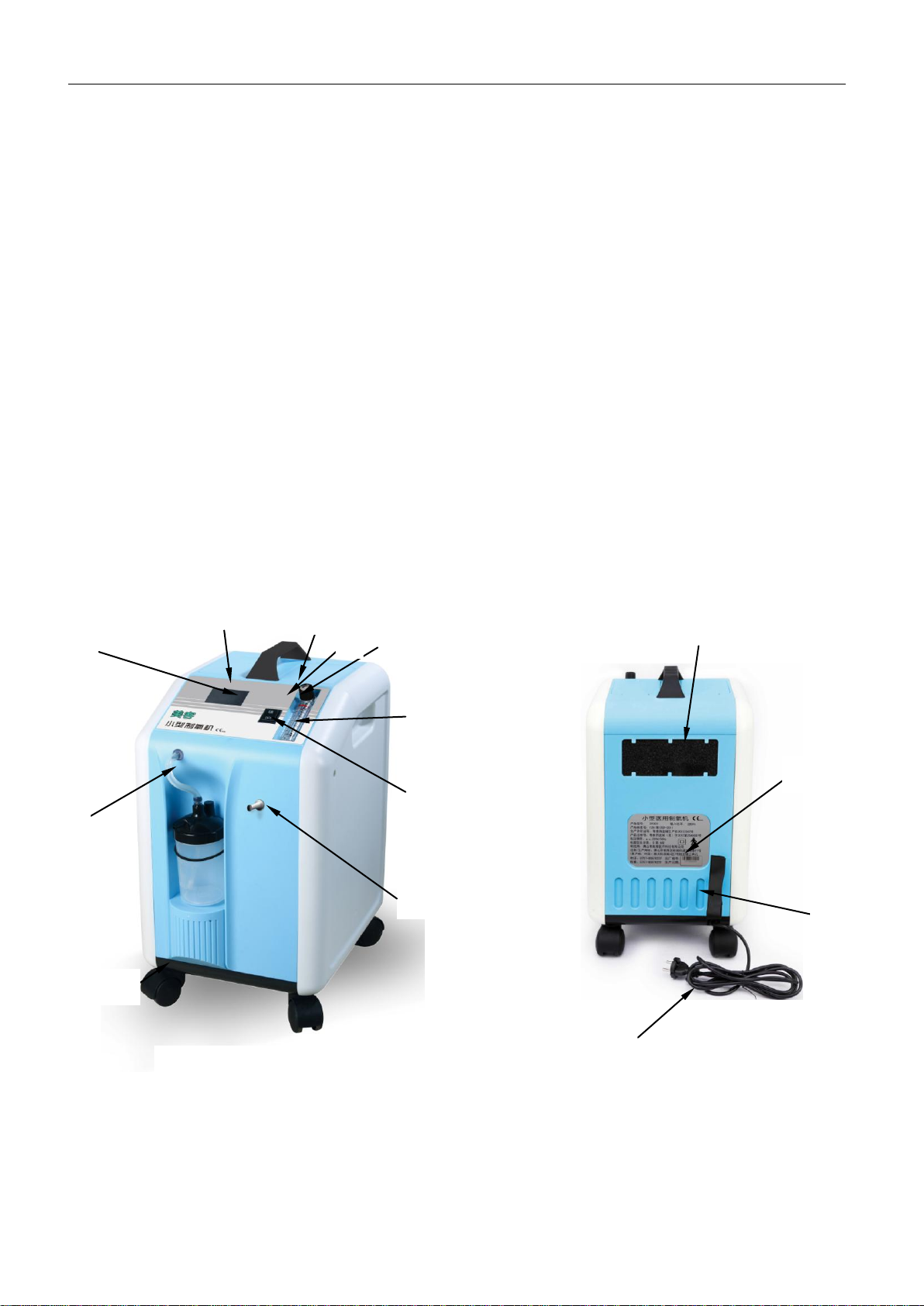

Front View（Figure 1）
1. Display Panel
2. Intake Filter
3. Accessories container
4. Circuit breaker –（selected units）resets the unit after electrical overload shutdown.
5. Flow meter knob
6. Flow meter
7. Power Switch
I =ON O=OFF
8. Oxygen outlet—oxygen is dispersed through this port
9. Nebulization function（optional）
10. Wheels
Back View（Figure 2）
11. Filter sponge —prevents dirt, dust, and lint from entering your unit
12. Product specification label
13. Exhaust（under unit）
14. Power cord and /or IEC power connector
BACK View（Figure 2）
11
2
6
6
7
8
1
10
FRONT View（Figure 1）
3
4
5
12
13
14
9

User Manual of Oxygen Concentrator - CP501T
5

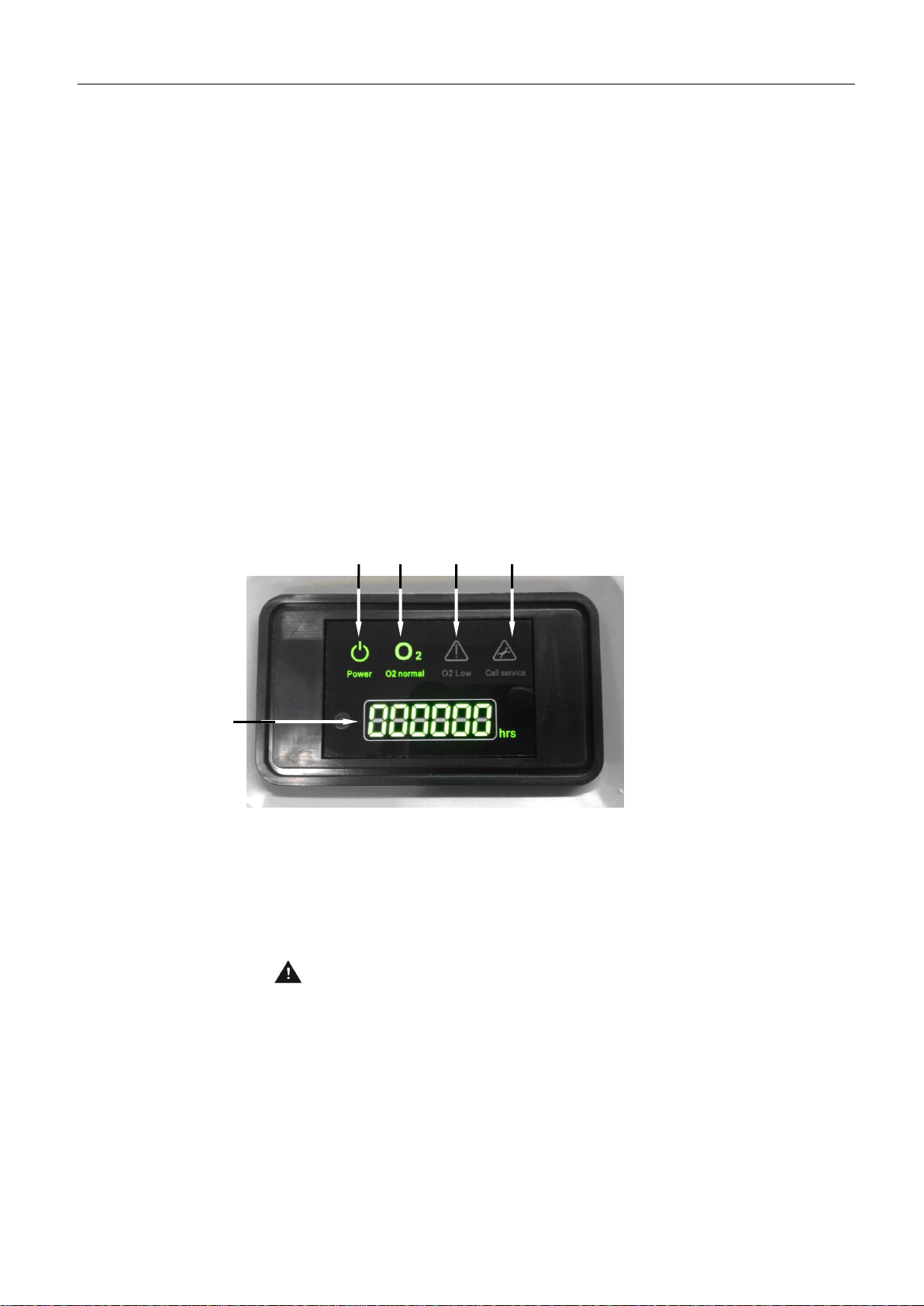

DISPLAY View（Figure 3）
15. Display panel
Indicate the
lo-p/hi-p:
lo-o2:
lo-po2/hi-po2
condition of system pressure（lo-p/hi-p）
condition of oxygen purity（lo-o2）
condition of circulation and pressure(lo-po2/hi-po2)
accumulative operated time
low pressure / high pressure
low oxygen purity
cycling fault and low pressure/high pressure
16. Power indicator（green light）
Device is operating
17. Normal oxygen（green light）
Oxygen purity is under normal condition
18. Low oxygen（yellow light）
Oxygen purity is below 82%, ASK FOR SERVICE
19. Alarm（red light）
TURN this device OFF and contract your device supplier for service
immediately.
SETTING UPYOUR OXYGEN CONCENTRATOR
1. Position your unit near an electrical outlet in the room where you spend most of your time.
DANGER
Keep the oxygen concentrator at least 5 feet （1.6 m）from hot, sparking objects or naked sources of
flame.
NOTE —Do not connect to an electrical outlet controlled by a wall switch. No other appliances should
be plugged into the wall outlet.
2. Position your unit at least 6 inches（16 cm）from walls, draperies, or any other objects that might prevent the
proper flow of air in and out of your oxygen concentrator. The Oxygen concentrator should be located so as
to avoid pollutants or fumes.
DISPLAY View（Figure 3）
19
4
16
17
18
15

User Manual of Oxygen Concentrator - CP501T
6
BEFORE OPERATINGYOUR OXYGEN CONCENTRATOR
1. Before operating your unit always check to make sure the filter sponge（located on the back of your unit）is
clean. Proper cleaning of this sponge if necessary.
2. Attach the appropriate oxygen accessories to the oxygen outlet.

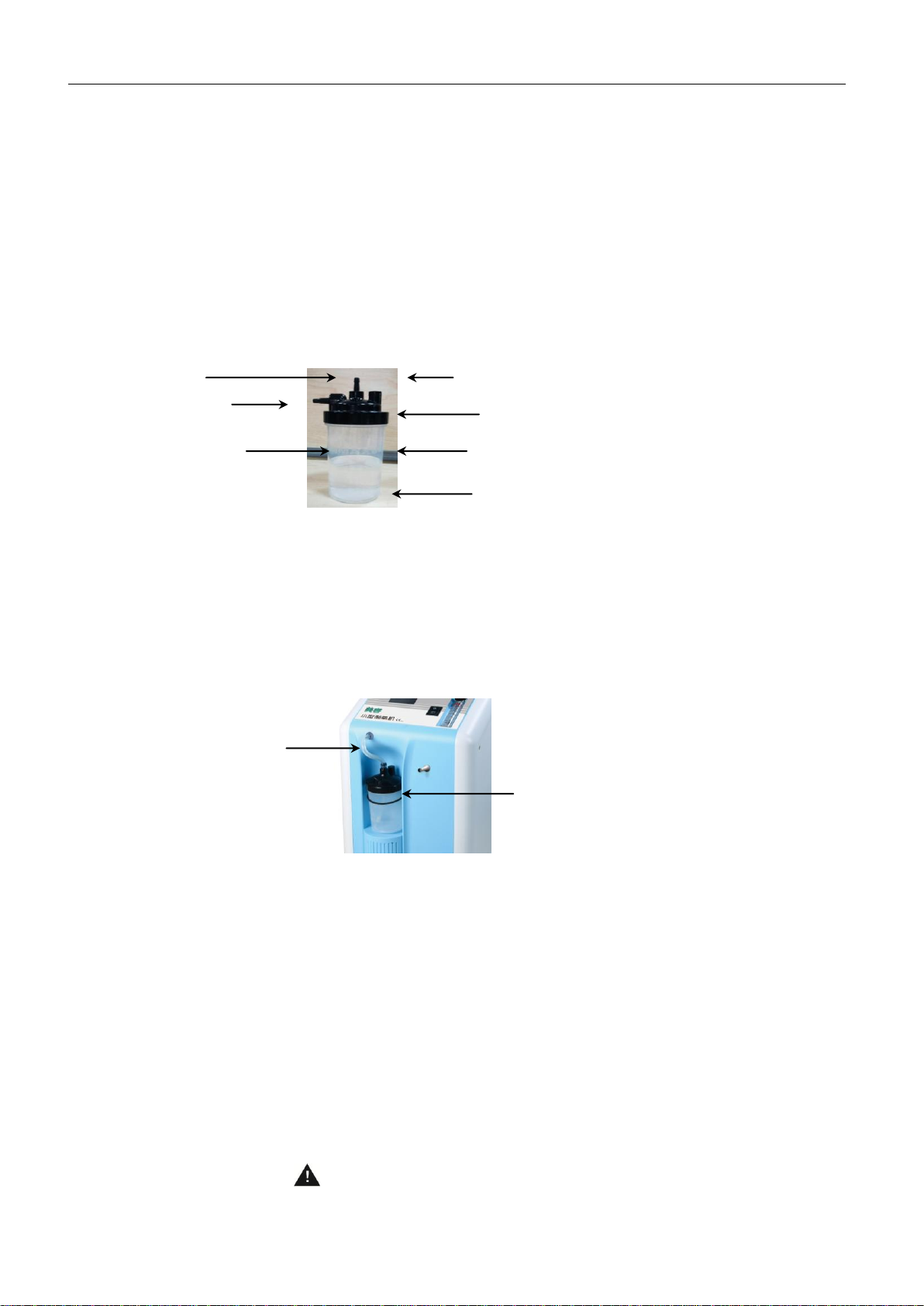

Oxygen Tubing Connection:
1、Connected humidifier: selected with humidifier, follow the below instructions steps:
a. . Fill with cold water or distilled water, the water level must be instructed not more o
r less than high / low indicator line of the bottle, bottle cap should be tightening (se
e Figure I);
b. Fix humidifier to machine with a rubber band, connected humidifier to intake port in one side,
and connected humidifier to machine oxygen outlet in other side (See Figure 2).
Figure 5 Figure 6
3. Remove the power cord completely from the line cord strap, Make sure the power switch is in the ―off‖
position, and insert the plug into the wall outlet; the unit is double insulated to guard against electric shock.
WARNING
Improper use of the power cord and plugs can cause a burn, fire or other electric shock hazards. Do not use
the unit if the power cord is damaged.
Highest water level（MAXIMUM）
Lowest water level (MINIMUM)
Humidifier cap
Cap
Fixed to the machine cover with a rubber band
（Figure I）
（Figure I）
Humidifier safety valve(inside)
Inlet connector
Outlet connector
Humidifier
Humidifier connected tube

User Manual of Oxygen Concentrator - CP501T
7
OPERATINGYOUR CP501T CONCENTRATOR
DANGER
Oxygen causes rapid burning. Do not smoke when you are operating oxygen concentrator. Smoking or naked
fire are forbids to near around while somebody who is utilizing oxygen therapy. Keep the oxygen concentrator
at Least 5 feet（1.6 m）from hot or sparking objects or naked sources of flame.
1. Press the power switch to the ―On‖ position, when the unit is turned on, the Power light will illuminate, and the
patient alert system –Service required light and audible signal —will briefly alarm.
NOTE —If the Service Required light illuminates and the audible signal alarms but the unit is not operating, there
is no power to the unit, Refer to the Minor Troubleshooting chart on page 8 and contact your Medical
provider if necessary.
NOTE —If an audible low-frequency vibration sound is detected, the unit is not operating properly. Refer to the
Minor Troubleshooting chart on page 12, and contact your provider if necessary.
2. Check the flow meter to make sure that the flow meter ball is centered on the line next to the prescribed number
of your flow rate.
CAUTION —It is very important to follow your oxygen prescription. Do not increase or decrease the flow of
oxygen-consult your physician.
NOTE —Your Medical provider may have preset the flow meter so that it can not be adjusted.
NOTE —If the flow meter knob is turned clockwise, the flow decreases（and eventually will shut off the oxygen
flow）.If the knob is turned counterclockwise, the flow increases.
CARINGAND PERIODIC MAINTENANCE FOR YOUR UNIT
Not —Use no lubricants, oils or grease.
WARNING
Before attempting any cleaning procedures, turn the unit ―OFF.‖
Oxygen Humidifier （reusable bottles）
If your physician has prescribed humidification, clean your humidifier bottle daily. Follow the instructions
Supplied by the manufacturer, if no cleaning instructions were supplied, follow these steps:
1. Wash the humidifier in a solution of hot water and dishwashing detergent.
2. Soak the humidifier in a solution of one part white vinegar to three parts hot water for 30 minutes. This
solution acts as a germicidal agent.
3. Rinse thoroughly with warm tap water and refill with distilled water for use. Do not overfill.
Nasal Cannula、Mask、and Tubing

User Manual of Oxygen Concentrator - CP501T
8
Clean and replace the Nasal cannula, mask, and tubing as instructed by your Medical provider.
Filter Sponge and Oxygen Outlet Connector
The air filter sponge and connector should be clean once a week. To clean, follow these steps:
1. Remove the filter sponge, located on the back of the unit. Remove the oxygen outlet connector（if used）.
2. Wash in a solution of warm water and dishwashing detergent.
3. Rinse thoroughly with warm tap water and towel dry. The filter should be completely dry before reinstalling.
CAUTION —To prevent product damage, do not attempt to operate the unit without the filter sponge or while the
filter sponge is still damp.
Exterior Cabinet
WARNING
To avoid electric shock, do not remove the concentrator cabinet. The cabinet should only be removed by a
qualifier Medical technician. Do not apply liquid directly to the cabinet or utilize any petroleum-based
solvents or cleaning agents.
Clean the concentrator exterior cabinet by using a damp cloth or sponge with a mild house-hold cleaner and wipe it
dry.
Periodic Maintenance for Your Unit
1. Clean the Air Filter Sponge at least once a week. The steps of cleaning see the Air Filter Sponge and Oxygen
Outlet connector.
2. Change Felt of the Inlet Pre-Filter at least once half a year. Follow those steps：
Open the cabinet and pull out the Inlet Pre-Filter. Pull out the old felts from the Inlet Pre-Filter（two sides）.
Then insert the new felts to the Inlet Pre-Filter each side, insert the Inlet Pre-Filter to the cabinet and close cabinet.
3. Change the Bacterial Filter at least once a year. You can not change this by yourself and must contact your
Medical provider to change this for you.

User Manual of Oxygen Concentrator - CP501T
9
Accessories
The accessories below are approved for use with CP501T Oxygen Concentrators:
object/part No.
manufacturer
/ trademark
type/model
technical data
mark（s）of
conformity1）
Bubble Humidifier
（200 ml Capacity）
SALTER
LABS
REF7100
ABS, PP
CE 0482
Nasal Cannula （disposable）
Hsiner Co,.Ltd
3583
PVC
CE 0434
Nasal Cannula w/ 2.1m（7 ft）
Oxygen Tubing （disposable）
Hsiner Co,.Ltd
3031
PVC
CE 0434
Oxygen Outlet Connector
KEY-HUB
OP01A609A
ABS
---
Oxygen Tubing （disposable）
Hsiner Co,.Ltd
30302
PVC
CE 0434
NOTE —The use of certain humidifiers and accessories not specified above may impair the oxygen
concentrator’s performance.
NOTE —If the Service Required light illuminates and the audible signal alarms but the unit is not operating,
there is no power to the unit. Refer to the Minor Troubleshooting chart and contact your Medical
provider.
The OCI Device is a device within your concentrator that monitors the oxygen produced by your unit. When the
units is turned ―ON,‖ all four light （Power, Low Oxygen, Normal Oxygen, and Service Required）on the front
panel will illuminate briefly. After a few seconds, only the Power and Normal Oxygen lights will remain lit.
The lights on the front panel are defined as follows:
．Green Normal Oxygen light-acceptable oxygen level.（The LED will display ―Normal Oxygen‖）
．Yellow Low Oxygen light-below an acceptable oxygen level.（The LED will display ―Low Oxygen‖）
If the oxygen purity falls below the acceptable level, the green Normal Oxygen light will shut off and the yellow
Low Oxygen light will illuminate. Switch to your reserve oxygen system. Refer to the Troubleshooting section in
this guide on page 12 and contact your Medical provider.
As an added safety feature should the oxygen purity continue to drop, an intermittent audible signal will sound.
Contact your Medical provider immediately. Do not attempt any other maintenance.

User Manual of Oxygen Concentrator - CP501T
10
MINOR TROUBLESHOOTING
Symptom
Possible Cause
Remedy
A. Unit does not operate.
Power light is off when the
power switch is ―on‖. Audible
alarm is pulsing and Service
Required light is flashing.
1. Power cord not properly inserted into
wall outlet.
Check power connection at the wall outlet. On 115
volt units, check the back of the unit.
2. No power at wall outlet.
Check your home circuit breaker and reset if
necessary. Use a different wall outlet if the situation
occurs again.
3. Oxygen concentrator circuit breaker
activated （selected units）.
Press the concentrator circuit breaker button （if
equipped）located below the power switch. Use a
different wall outlet if the situation occurs again.
B. Unit operates; the Power
light is on when the Power
switch is ―On‖. Red Service
Required light is illuminated.
Audible alarm may be
sounding.
1. Air filter is blocked.
Check the air filter. If the filter is dirty, wash it
following the cleaning instructions on page 7.
2. Exhaust is blocked.
Check the exhaust area; make sure there is nothing
restricting the unit exhaust.
3. Blocked or defective nasal cannula,
catheter, face mask or oxygen tubing.
Detach nasal cannula, catheter, or face mask. If proper
flow is restored, clean or replace if necessary.
Disconnect the oxygen tubing at the oxygen outlet. If
proper flow is restored, check oxygen tubing for
obstructions or kinked. Replace if necessary.
4. Blocked or defective humidifier bottle.
Detach the humidifier from the oxygen outlet. If
proper flow is obtained, clean or replace humidifier.
5. Flow meter set too low.
Set flow meter to prescribed flow rate. If the above
remedies do not work, contact your Medical provider
C. Unit operates the power
light is on when power switch
is ―on ―, audible low-frequency
vibration sound is detected.
Turn your unit ―off‖, Switch to your reserve oxygen
system, and contact your Medical provider
immediately.
D. If any other problems
occur with your oxygen
concentrator.
Turn your unit ―Off‖. Switch to your reserve oxygen
system, and contact your Medical provider
immediately.
E. Both the green Normal
Oxygen and the yellow Low
Oxygen lights are either on or
off.
O.C.I malfunction
Contact your Medical provider.
F. Yellow Low Oxygen light
is on or the yellow low Oxygen
light is on and the intermittent
audible Signal is sounding.
1. Flow meter is not properly yet.
Ensure the flow meter is properly set to the
prescribed.
2. Air filter is blocked.
Check the air filter. If the filter is dirty, wash it
following the cleaning instructions on page 7.
3. Exhaust is blocked.
Check the exhaust area: make sure there is nothing
restricting the unit exhaust.
G. Red Service Required
light is on and an intermittent
audible signal is sounding.
1. Flow meter is not properly yet.
Ensure the flow meter is properly set to the
prescribed.
2. Air filter is blocked.
Check the air filter. If the filter is dirty, wash it
following the cleaning instructions on page 7.
3. Exhaust is blocked.
Check the exhaust area: make sure there is nothing
restricting the unit exhaust. If the above remedies do
not work, contact your Medical provider.

User Manual of Oxygen Concentrator - CP501T
11
SPECIFICATIONS
Model
CP501T
5L
Oxygen Flow (Liter Per Minute)
Up to 5 LPM
Oxygen Purity
93%±3%
Sound Level
≤45 dB(A)
Power Consumption (Average)
280W
Outlet Pressure
8.5 psi ( 58.6 kpa )
Weight
15.8kg / 34.8lb
Dimensions
H: 51cm / 20 in; W: 30cm / 12 in; D: 40cm / 16 in
AC Power
220Vac 50Hz; 115Vac 60Hz
Class & Rating
Medical Device Category: Class II
Insulation Rating: B
In Compliance With
EU Medical Device Directive 93/42/EEC
Approvals, Certifications
CE (No: 0434); RoHS; SFAD
Operating Environment
Temperature: 10ºC ~ 40ºC
Humidity: 30% to 75%
Atmospheric Pressure: 86 kPa ~ 106 kPa
Storage & Transportation
Temperature: -20ºC ~ 55ºC
Humidity: up to 93% non-condensing
Atmospheric Pressure: 86 kPa ~ 106 kPa
Oxygen Concentration Indicator
(Optional)
Yellow below 82%
Red below 72%
Filters
3 Levels Filtration System
Lifetime
5 Years
Warranty Period limit
1 Year

User Manual of Oxygen Concentrator - CP501T
12
SYMBOL
General warning, caution, risk of danger
Please read the instructions carefully before operating the product.
Type B applied part
Class II equipment
Manufacture’s serial number
Authorized representative in the European community
Date of manufacture
Manufacture
Waste Electrical and Electronic Equipment Directive 2002/96/EC （WEEE Directive）
after over the valid term within 3 years, the machine should be treated on local law or
regulation requirement. To avoid hurt users and pollute environment.
The equipment bears CE mark CE0434 indicating its conformity with the provision of
Council Directive 93/42/EEC concerning medical devices, and fulfills the essential
requirement of Annex I of this directive.
FRAGILE
Contents of the transport package are fragile therefore it shall be handled with care.
THIS WAY UP
Indicates correct upright position of the transport package.
KEEPAWAY FROM RAIN
Transport package shall be kept away from rain.
Non-ionizing electromagnetic radiation

User Manual of Oxygen Concentrator - CP501T
13
ELECTROMAGNETIC IMMUNITY
Guidance and manufacturer’s declaration – electromagnetic immunity
The CP501T OXYGEN CONCENTRATOR is intended for use in the electromagnetic environment specified
below. The customer or the user of the CP501T OXYGEN CONCENTRATOR should assure that it is used in such
an environment.
Immunity test
IEC 60601 test level
Compliance
level
Electromagnetic environment-guidance
Portable and mobile RF communications equipment
should be use no closer to any part of the CP501T
OXYGEN CONCENTRATOR including cables,
than the recommended separation distance
calculated from the equation applicable to the
frequency of the transmitter.
Recommend ed separation distance
Conducted RF
IEC 61000-4-6
3 Vrms
150 kHz to 80 MHz
3 V
d
=
P]
V5.3
[1
d
=
P]
E5.3
[1
80 MHz to 800 MHz
Conducted RF
IEC 61000-4-3
3 V/m
80 MHz to 2.5 GHz
3 V/m
d
=
P]
E
7
[1
800 MHz to 2.5 GHz
Where pis the maximum output power rating of the
transmitter in watts （W）according to the
transmitter manufacturer and dis the recommended
separation distance in metres （m）.b
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey,
ashould be less than the compliance level in each
frequency range. b
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE-1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE-2 These guidelines may not apply in all situations. Electromagnetic is affected by absorption and
reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio （cellular/cordless）telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with
accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey
should be considered. If the measured field strength in the location in which the CP501T OXYGEN
CONCENTRATOR is used exceeds the applicable RF compliance level above, the CP501T OXYGEN
CONCENTRATOR should be observed to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as reorienting or relocating the CP501T OXYGEN
CONCENTRATOR.

User Manual of Oxygen Concentrator - CP501T
14
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

User Manual of Oxygen Concentrator - CP501T
15
DECLARATION OF CONFORMITY
Manufactured: Bio - Medical Instruments&Systems
Product Designation: Oxygen Concentrator
Model Number: CP501T
EC authorized representation
CGI Business Trading
Inh. Herr Leizhang, Huegel Str. 73, 60433 Frankfurt am Main, Germany
