BlastKing ULTRAMIX-12USB II User manual

1
blastking.com
blastking.com

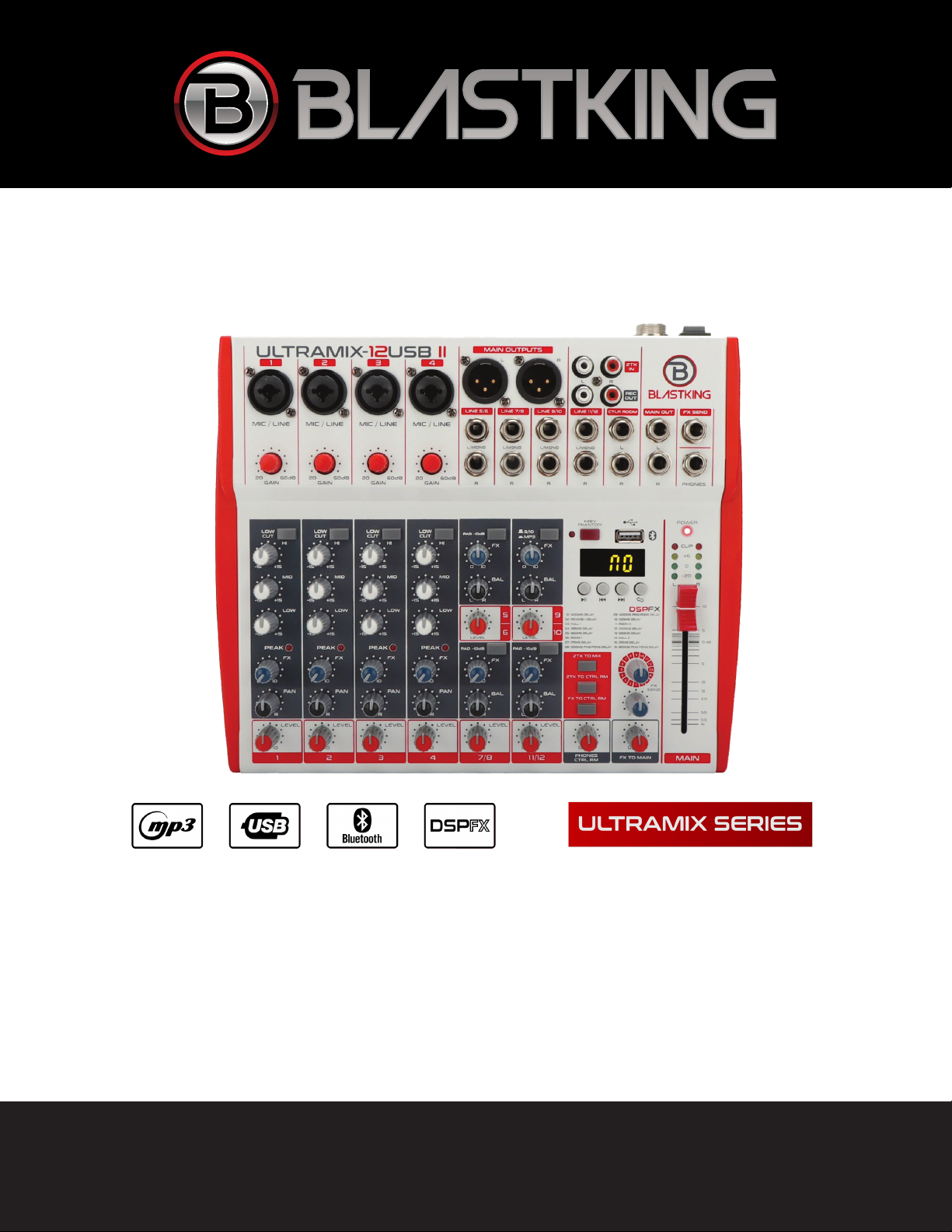

USER MANUAL
ULTRAMIX-12USB II
12 Channel Mixer
PROFESSIONAL MIXING CONSOLE

2
Thank you for the purchase of your BLASTKING ULTRAMIX Series Mixer.
We know you have a world full of choices and we thank you for selecting us.
Please read this entire user manual before operating this unit
CAUTIONS
• All operating instructions should be read before using this equipment.
• To reduce risk of electrical shock, do not open the unit. There are NO USER OR SERVICEABLE PARTS INSIDE. Please refer servicing to a qualified service
technician. Opening the unit without the manufacturer authorization will void the warranty.
• Do not expose this unit to direct sunlight or a heat source such as a radiator or stove.
• Dust, dirt and debris can interfere with the performance of this unit. Make an effort to keep this unit away from dusty, dirty environments, and cover the unit when
it is not in use. Dust it regularly with a soft clean brush.
• DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
• DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR SWITCHES.
BlastKing® products purchased in the USA are protected under the regular manufacturer’s warranty. The Ultramix series comes with a 2 year warranty.
This warranty is intended to protect customers from any and all manufacturer defects from two years of purchase.
The product will be replaced or repaired at the manufacturer’s discretion upon receipt of the warranted unit along with a dated proof of purchase from an authorized
dealer or distributor. This warranty becomes null and void under situations including but not limited to misusage, normal wear and tear, shipping damage and abuse.
For international purchases, please contact your local dealer or sales associate for further warranty information.
FCC STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
For warranty please register this product online at
http://blastking.com/product-registration/

3
blastking.com
FEATURES
• 12 Ultra Low-Noise Channels
• High Precision 3 Band EQ (80Hz, 2.5kHz, 12kHz)
• Sealed Rotary Controls Resist Dust and Grime
• 24-BIT Digital FX with 16 Presets
• Built in Bluetooth Interface
• PC/MAC Interface
• 4 Combo Inputs XLR - 1/4”
• Stereo Record RCA Outputs
• 2 Tracks in RCA Connectors
• Stereo Headphone Output
• Control Room Stereo Output
• +48V Phantom Power
• Slim and Lightweight Design
• Multi Voltage Power Supply
• High-Quality Components
• 2 Year Warranty
• Designed in U.S.A

4
FRONT PANEL FUNCTION INDICATOR DIAGRAM
11
4
10
9
8
7
6
5
3
2
1
12
13
14
15
16
17
18 19
20
21
22
23
26
25
27
28
29
30
31
24
20
21

5
blastking.com
FRONT PANEL DESCRIPTIONS
1. MIC Use this balanced XLR jack to connect a microphone to the machine.
The phantom power required for condenser Mics can be activated with switch PHANTOM
2. Channels 1 feature an additional LINE / input on a balanced 1/4” jack.
3. Use the GAIN control to adjust the input gain. This control should always be turned fully counter clock
whenever you connect or disconnect a signal source to one of the inputs.
4. In addition, the mono channels are equipped with a steep LOW CUT filter (slope at 18 dB/oct, -3 dB
at 75 Hz) designed to eliminate unwanted low-frequency signal components.
5. 6. 7. The upper (HIGH) and the lower band (LOW) are shelving filters that increase or decrease all
frequencies above or below their cut-off frequency. The cut-off frequencies of the upper and lower band
are 12 kHz and 80 Hz respectively. The MID band Is configured as a peak filter with a center Frequency
of 2.5 kHz
8. The PK LED’s of the mono channels illuminate when the input signal is driven too high, which could
cause distortion. If this happens, use the GAIN control to reduce the preamp level until the LED does not
light anymore.
9. EFF sends enable you to feed signals via a variable control from one or more channels and sum these
signals to a bus. The bus appears at the console’s FX sent output and can be fed from there to an ex-
ternal effects device. The return from the effects unit is then brought back into the console on the stereo
channels. Each FX send is mono and features up to +10 dB gain.
10. The PAN control determines the position of the channel signal within the stereo image. This control
features a constant-power characteristic, which means the signal is always maintained at a constant
Level, irrespective of position in the stereo panorama.
11. The LEVEL control determines the level of the channel signal in the main mix.
12. LINE IN Each stereo channel has two balanced line level inputs on 1/4” jacks for left (L/MONO) and
right (R) channels. If you use only the (L/MONO) jack, same sound is output from both Left and right
speakers.
13. The EFF SEND connector outputs the signal you picked up from the individual channels using the
EFF SEND controls. You can connect this to the input of an external effects device to process the EFF
bus’s master signal. Once an effects mix is created, the processed signal can then be routed from the
effects device outputs back into a stereo input.

6
FRONT PANEL DESCRIPTIONS
14. PHONES/CTRL ROOM OUT
The stereo PHONES connector (at the top of the connector panel) is where headphones are connected.
The unbalanced CTRL ROOM OUT connectors carry the summed effects and main mix signals as well
as soloed channel signals. The PHONES/CONTROL ROOM control in the main section adjusts the level
Of both headphones and main monitor outputs.
15. The unbalanced CTRL ROOM OUT jacks carry the summed effects and main mix signals, as well as
all channel signals. The PHONES/CTRL RM control adjusts the level of both headphones and main
16. USB Jack
play/pause switch. Long press this key until the indicator flashes. Then turn on the phone Bluetooth,
search until the phone shows the Bluetooth link of the mixer, join the link until the connection is success-
ful.
Vol+/Next Press once to key is play song skip to next song. Press and hold it volume up.
Vol-/Prev Press once to key is play song skip to previous song. Press and hold it volume down.
17. The -10d8 switch which selects between +4 dBu and -10 dBV. At -10 dBV (home-recording level),
the input is more sensitive (requires less level to drive it) than at +4 dBu (studio level).
18. REC OUT These connectors are wired in parallel with the MAIN OUT and carry the main mix signal
(unbalanced). Connect the 2-TRACK OUTPUT to the inputs of your recording device. The output level is
adjusted via the high-precision MAIN MIX fader or rotary control.
19. 2TK RET The 2-TRACK INPUTS are used to bring an external signal source (e.g. CD player,tape
deck, Etc.) into the console.
20. 21. The MAIN OUT connectors are unbalanced and balanced jacks. The main mix signal appears
here at a Level of O dBu. The MAIN MIX fader adjusts the volume of these outputs.
22. The red +4BV LED lights up when phantom power is on. The PHANTOM switch activates the phan-
tom power supply on the XLR connectors of all mono channels.
23. EFF SELECT - Selects the internal effects processor will apply to the various channels. Each channel
can send different levels of audio to the processor by adjusting their EFF SEND knobs. See the EFFECTS
section for an explanation of the available effects.
24. Level indicator The high-precision 4-segment display accurately displays the relevant signal level.
25. The EFF SEND control adjusts the volume level of the EFF signal provided at connector EFF SEND
JACK.
26. The EFF TO MAIN control feeds the effects signal into the main mix. If the control is turned all the
way counterclockwise, no effects signal is present in the sum signal of the mixing console.

7
blastking.com
TECHNICAL SPECIFICATIONS
Common mode rejection -80 dBu
S/N Ratio -82dB
Frequency response +/-0.5dB 20Hz-20KHz
THD less than <0.03%@1KHz
Input Level
MIC input +60dBu
LINE input +30dB
Stereo input +20dBu
Headphones output (200Ω) 300mW
Equalization
Hi ± 15 dB @ 12 kHz
Low ± 15 dB @ 80 Hz
Weight Dimension (WxHxL)
ULTRAMIX-12USB II 3.7 Lbs / 1.7 kg 10.5” x 2” x 9.5” / 26.6 x 5 x 24.1 cm
PHYSICAL DIMENSIONS AND WEIGHT
PACKAGE DIMENSIONS AND WEIGHT
27. When the 2TK TO MIX switch is depressed, the 2-track input is assigned to the main mix providing
an additional input for tape machines, MIDI instruments or other signal sources that do not require any
Processing.
28. Press the 2TK TO CTRL RM switch if you want to monitor the 2-track input via the CTRL ROOM
OUT. This provides an easy way to monitor signals coming back from tape to ensure that they are re-
cording correctly.
29. If you want to monitor only the effects signal in your headphones or monitor speaker(s), press the
EFF TO CTRL switch. Now the signal of the effects processor can be monitored alone, and the main mix
and/or CD/tape signal is no longer present on the phone and control room outputs.
30. Use the MAIN fader to set the overall volume level of your machine.
31. The PHONES/CTRL RM control adjusts the level of both headphones and CTRL ROOM outputs.
FRONT PANEL DESCRIPTIONS
Weight Dimension (WxHxL)
ULTRAMIX-12USB II 6 Lbs / 2.7 kg 12” x 4” x 13” / 30.4 x 10.1 x 33 cm
