Bosch WAN28008NL User manual

Washing machine
WAN28008NL
[NL] User manual and
installation instructions
Translated from Dutch to English - www.onlinedoctranslator.com

NL
Refer to the Digital User's Guide for more
information.
Index
1 Safety................................................ 4
1.1 General instructions .................. 4
7 Display .................................. 21
8 Buttons .................................. 23
9 Programs ................................ 24
10 Accessories................................ 27
1.2 Destination of the device
rate .................................. 4
1.3 Restriction of users ...... 4
1.4 Secure installation................................. 5
1.5 Safer use ................................... 7 11 Laundry................................... 27
11.1 Preparing the laundry.......... 27
1.6 Safe cleaning and
maintenance ............................................... 9
12 Detergent and care
ginger.................................. 28
2 Avoiding material damage ...... 11
3 Environmental protection and saving
ring................................................. 12 13 The Ministry in Essentials.......... 28
13.1 Switching on the appliance ................ 28
13.2 Set program .................. 28
3.1 Disposing of the packaging .... 12
3.2 Saving on energy and
resources ................................... 12 13.3 Adjust program
settings ................................ 28
3.3 Energy Saving Mode ........ 12 13.4 Loading the drum with
laundry ................................................ 28
4 Set-up and connection .................. 13
4.1 Unpacking the device .................. 13
4.2 Package contents.......... 13
13.5 Inserting the dosing aid for liquid
detergent ............... 29
4.3 Installation site
requirements ................................... 13
13.6 Dosing detergent and care
agent ........... 29
4.4 Removing transport
locks ................................... 14
13.7 Starting the program ... 29
13.8 Changing the activated program
end time ................... 29
4.5 Connecting the device .................. 15
4.6 Adjusting the device .......... 16 13.9 Soaking the laundry ................... 30
13.10 Adding laundry ................................ 30
13.11 Program cancel.................... 30
4.7 Connecting the appliance
electrically................................................. 16
13.12 Resume program at rinse
hold........................... 30
5 Getting to know your device.......... 18
5.1 Device ................................... 18
5.2 Detergent drawer................................. 18
5.3 Control panel..................... 19
13.13 Taking out the laundry .............. 30
13.14 Switching off the appliance ........ 30
14 Child Lock .................................. 31
14.1 Activating child lock .......... 31
14.2 Deactivating the child lock.......... 31
6 Before using for the first time ............... 20
6.1 Starting a wash cycle without
laundry................................................ 20
2

NL
15 Basic Settings .................. 32
15.1 Overview of the basic
settings ................................... 32
15.2 Changing basic settings....... 33
16 Cleaning and maintenance .......... 33
16.1 Cleaning the drum ................... 33
16.2 Cleaning the detergent
drawer................................ 33
16.3 Cleaning the drain pump................ 34
17 Troubleshooting .................. 38
17.1 Emergency release................. 47
18 Transporting, Storing and
drain.................................. 47
18.1 Disassembling the device ............... 47
18.2 Installing transport
locks ................................ 47
18.3 Restarting the
appliance ................................ 47
18.4 Disposal of your old
appliance ................................ 48
19 Customer Service............................ 48
19.1 Product number (E no.) and
production number (FD) ........... 48
20 Consumption values .................. 50
21 Technical data.............. 50
3

NLSafety
1 Safety
Observe the following safety regulations.
1.1 General instructions
sRead this manual carefully.
sKeep the operating instructions and product information for future reference.
for use or for subsequent owners.
sDo not connect the device in case of transport damage.
1.2 Destination of the device
Only use the device:
sto wash machine-safe textiles and wool by hand
wash care label.
swith tap water and commercially available washing machine
detergents and maintenance products.
sfor domestic use and in enclosed spaces within the
sly environment.
sto an altitude of 4000 m above sea level.
1.3 Restriction of users
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and/or knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the resulting hazards. understood. Children must
not play with the appliance.
Cleaning and user maintenance shall not be made by children
unless they are supervised.
Make sure that children up to 3 years old and pets cannot reach the
device.
4

SafetyNL
1.4 Secure installation
WARNING ‒ Risk of electric shock! Improper
installations are dangerous.
▶Only connect and use the device in accordance with the
information on the type plate.
▶ Only connect the device to a mains supply with alternating
current via a properly installed earthing socket.
▶ The protective earth system of the electrical house installation must be
installed in accordance with the electrical engineering regulations. The
installation must have a sufficiently large conductor diameter.
▶ When using an earth leakage circuit breaker, only use a type
marked with .
▶ Never power the device via an external switching device, e.g. a
time switch or remote control.
▶ When the device is installed, the mains plug of the mains
connection cable must be freely accessible or, if free access is not
possible, an all-pole disconnecting device must be installed in the
permanently installed electrical system in accordance with the
installation instructions.
▶When setting up the device, make sure that the power cord is
not pinched or damaged.
Damaged power cord insulation is dangerous.
▶ Never bring the connecting cable into contact with hot
appliance parts or heat sources.
▶ Never bring the power cable into contact with sharp points or
edges.
▶ Never kink, pinch or alter the power cord.
WARNING ‒ Risk of fire!
Using an extended power cord and unauthorized adapters is
dangerous.
▶ Do not use extension cords or multiple sockets.
▶ Use only manufacturer-approved adapters and power cords.
5

NLSafety
▶If the power cord is too short and a longer power cord is not
available, contact an electrical retailer to adjust the home
installation.
WARNING ‒ Risk of injury!
The heavy weight of the device can cause injuries when lifted.
▶ Do not lift the device alone.
If this appliance is installed incorrectly in a washer-dryer column,
the installed appliance may fall.
▶ Stack the dryer on top of a washing machine only with the dryer
manufacturer's connection kit. No other method of installation is
allowed.
▶ Do not install the appliance in a washer-dryer column if the dryer
manufacturer does not offer a suitable connection set.
▶ Do not install appliances from different manufacturers and with
different depths and widths in a washer-dryer column.
▶Do not set up a washer-dryer column on a platform, the
devices can tilt.
WARNING ‒ Risk of suffocation!
Children can pull packing material over their head and become
entangled and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION ‒ Risk of injury!
The device may vibrate or move during operation.
▶ Set up the device on a clean, flat and solid surface.
▶ Level the appliance using the appliance feet and a spirit level.
There is a tripping hazard with incorrectly laid hoses and mains
connection cables.
▶ Lay the hoses and connection cables in such a way that they cannot
be tripped over.
6

SafetyNL
If the appliance is moved by protruding parts, such as the loading
door, the parts can break off.
▶Do not move the appliance by protruding parts.
CAUTION ‒ Risk of cutting!
Sharp edges on the device can cause cuts if touched.
▶ Do not touch the device on sharp edges.
▶ Use protective gloves when installing and transporting the
device.
1.5 Safer use
WARNING ‒ Risk of electric shock!
A damaged appliance or damaged power cord is dangerous.
▶ Never use a damaged device.
▶ Never pull on the power cord to disconnect the device from the
power supply. Always pull the plug on the power cord.
▶ If the appliance or the mains cable is damaged, immediately
unplug the mains cable from the socket or switch off the fuse in
the fuse box and close the tap.
▶Contact customer service. → Page 48 Penetrating moisture
can cause an electric shock.
▶ Only use the device in closed rooms.
▶ Never expose the device to excessive heat and humidity.
▶ Do not use a steam cleaner, pressure washer, hoses or nozzles
to clean the appliance.
WARNING ‒ Risk of health hazard! Children can lock
themselves in the appliance and endanger their lives.
▶ Do not install the appliance behind a door that blocks or
prevents the opening of the appliance door.
7

NLSafety
▶ In the case of discarded appliances, remove the plug of the
mains cable from the socket, then cut the mains cable and
damage the lock of the appliance door so that the appliance door
no longer closes.
WARNING ‒ Risk of suffocation!
Children can inhale or swallow small parts and choke.
▶Keep small parts away from children.
▶ Do not allow children to play with small parts.
WARNING ‒ Risk of poisoning!
Detergents and care products can lead to poisoning if ingested.
▶ Consult a doctor in case of accidental ingestion.
▶ Keep detergents and care products out of the reach of children.
WARNING ‒ Risk of explosion!
If laundry has been pretreated with cleaning agents containing
solvents, this can lead to an explosion in the appliance.
▶ Rinse pre-treated laundry thoroughly with water before
washing.
CAUTION ‒ Risk of injury!
The cover plate may break when climbing or clambering on the
device.
▶Do not climb or scramble on the device.
The appliance may tip over when sitting or leaning on the open
door.
▶ Do not sit or lean on the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the rotating drum can cause injury to hands.
▶ Wait for the drum to come to a complete stop before reaching inside the
drum with your hand.
8

SafetyNL
CAUTION ‒ Risk of burns!
The soap gets hot when washing at high temperatures.
▶ Do not touch the hot soapy water.
CAUTION ‒ Risk of chemical burns! When opening the
detergent drawer, detergent and care products may splash out of
the appliance. Contact with eyes or skin may cause irritation.
▶ In case of contact with detergents or care products, rinse eyes
or skin thoroughly with clean water.
▶Consult a doctor in case of accidental ingestion.
▶ Keep detergents and care products out of the reach of children.
1.6 Safe cleaning and maintenance
WARNING ‒ Risk of electric shock! Improper
repairs are dangerous.
▶ Only trained specialist personnel may carry out repairs on the
device.
▶ Only original spare parts may be used for repair of the device.
▶ If the power cord of this appliance is damaged, it must be
replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard. Penetrating
moisture can cause a shock.
▶ Do not use a steam cleaner, pressure washer, hoses or nozzles
to clean the appliance.
WARNING ‒ Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶Only use original spare parts and original accessories from the
manufacturer.
9

NLSafety
WARNING ‒ Risk of poisoning!
Toxic fumes can be generated when cleaning agents containing
solvents are used.
▶ Do not use solvent-based cleaning agents.
10

Avoid material damageNL
▶ Make sure that the thread length
on the connection to the water
tap is at least 10 mm.
Water pressure that is too low or too high can
interfere with the appliance function.
▶ Make sure that the water pressure
on the water supply system is at
least 100 kPa (1 bar) and at most
1000 kPa (10 bar).
▶ If the water pressure exceeds the
specified maximum value, a
pressure reducing valve must be
installed between the drinking
water connection and the hose set
of the device.
▶Do not connect the appliance to the
mixer tap of a pressureless water
heater or boiler.
Modified or damaged water hoses can
lead to material damage and damage
to the device.
▶ Never kink, pinch, modify or cut
water hoses.
▶ Only use supplied water hoses or
original spare hoses.
▶ Reuse never used water hoses.
Use with contaminated or too hot
water can cause material damage and
damage to the device.
▶ Operate the device only with cold
tap water.
Unsuitable cleaning agents can
damage the surfaces of the device.
▶ Do not use sharp or abrasive
cleaning agents.
▶ Do not use strong alcohol-based
cleaning agents.
▶Do not use hard scouring or
dishwashing sponges.
▶ Clean the device only with water
and a soft, damp cloth.
2 Material damage
avoid
PAY ATTENTION!
Incorrect dosage of fabric softeners,
detergents, care products and
cleaning agents can affect the
functioning of the appliance.
▶ Follow the manufacturer's dosing
recommendations.
Exceeding the maximum load
quantity affects the operation of the
appliance.
▶ Observe and do not exceed the
maximum load for each
programme.
→ "Programs", Page 24
The device is secured for transport
with transport locks. Transport locks
that have not been removed can lead
to material damage and damage to
the device.
▶ Before commissioning, remove and
store all transport locks completely.
▶Before each transport, install all
transport locks completely to avoid
transport damage.
Improper connection of the water
inlet hose can lead to material
damage.
▶ Tighten the screw connections on
the water supply hand-tight.
▶ It is best to connect the water inlet
hose directly to the water tap
without additional connecting
elements such as adapter,
extension, valve or the like.
▶ Make sure that the valve housing of
the water inlet hose is installed
without contact with the
environment and that it is not
exposed to external forces.
▶ Make sure that the internal
diameter of the water tap is at least
17 mm.
11

NLEnvironmental protection and saving
▶ Remove all detergent residues, spray
mist residues or residues immediately
upon contact with the appliance.
Reduce washing temperature for
lightly and normally soiled laundry.
aAt low temperatures, it consumes
device less energy. For light to
normal soiling, lower
temperatures than those stated on
the care label are also sufficient.
3 Environmental protection and
savings
3.1 Disposal of the packaging Set the maximum speed if the
laundry is subsequently to be dried
in the tumble dryer.
The packaging materials are
environmentally friendly and can be
reused.
▶Dispose of the individual components
separately according to type.
aDryer laundry shortens the pro-
gramme time during drying and
reduces energy consumption. With
a higher spin speed, the residual
moisture in the laundry decreases
and the spinning sound volume
increases.
3.2 Energy- and resource-
efficient Wash laundry without prewash.
If you follow these directions, your
device will use less power and water.
aWashing with prewash extends
program duration and increases
energy and water consumption.
Use programs with low temperatures
and longer washing times and use
the maximum load capacity.
The device has automatic load
matching.
aThe automatic load matching
ming optimally adapts the water
consumption and program duration
to the type of textile and the load
capacity.
aThe energy consumption and water
consumption are the most efficient.
Dose detergent according to the
degree of soiling of the laundry. 3.3 Energy Saving Mode
aFor a light to normal degree
of contamination, a small amount
of detergent is sufficient. Follow the
detergent manufacturer's dosing
recommendations.
If you do not operate the device for a
long time, it automatically switches
to energy-saving mode.
The energy saving mode is exited
when you operate the device again.
12

Set up and connectNL
remain on the device. The stains
disappear after the first wash.
4 Set up and connect
4.1 Unpacking device The delivery consists of: s
Washing machine
sAccompanying documents s
Transport protections
→ "Remove transport locks", page
14
scover caps
sWater supply hose
→ "Connecting the water inlet hose",
page 15
PAY ATTENTION!
Objects that remain in the drum and
that are not intended for use with the
device can lead to material and device
damage.
▶Before use, remove all these items
and the supplied accessories from
the drum.
4.3 Installation site
requirements
1.Completely remove packaging
material and protection from the
device.
→ "Disposal of the packaging",
Page 12
WARNING
Risk of electric shock!
The device contains live parts.
Touching live parts is dangerous.
▶Do not use the appliance without
a cover.
2.Check the device for visible
damage.
3.Open the door.
4.Remove the accessories from the
drum.
5.Close the door. WARNING
Risk of injury!
When used on a plinth, the device can
tip over.
▶ The device feet for commissioning
on a plinth must be absolutely
with the fixings
→ Page 27 confirm from the
manufacturer.
4.2 Package contents
After unpacking, check all parts for
transport damage and the
completeness of the delivery.
PAY ATTENTION!
Use with incomplete or defective
accessories may impair the operation
of the device or cause material
damage and damage to the device.
▶Do not use the device with
incomplete or defective accessories.
▶ Replace the accessories before
using the device.
→ "Accessories", Page 27
PAY ATTENTION!
Freezing residual water in the device
can damage the device.
▶ Do not place and use the device in
frost-sensitive places or outdoors.
If the device is tilted more than 40°,
residual water can run out of the
device and cause material damage.
▶ Carefully tilt the device.
Remark:The device has been checked
at the factory for correct operation. In
addition, water stains can
13

NLSet up and connect

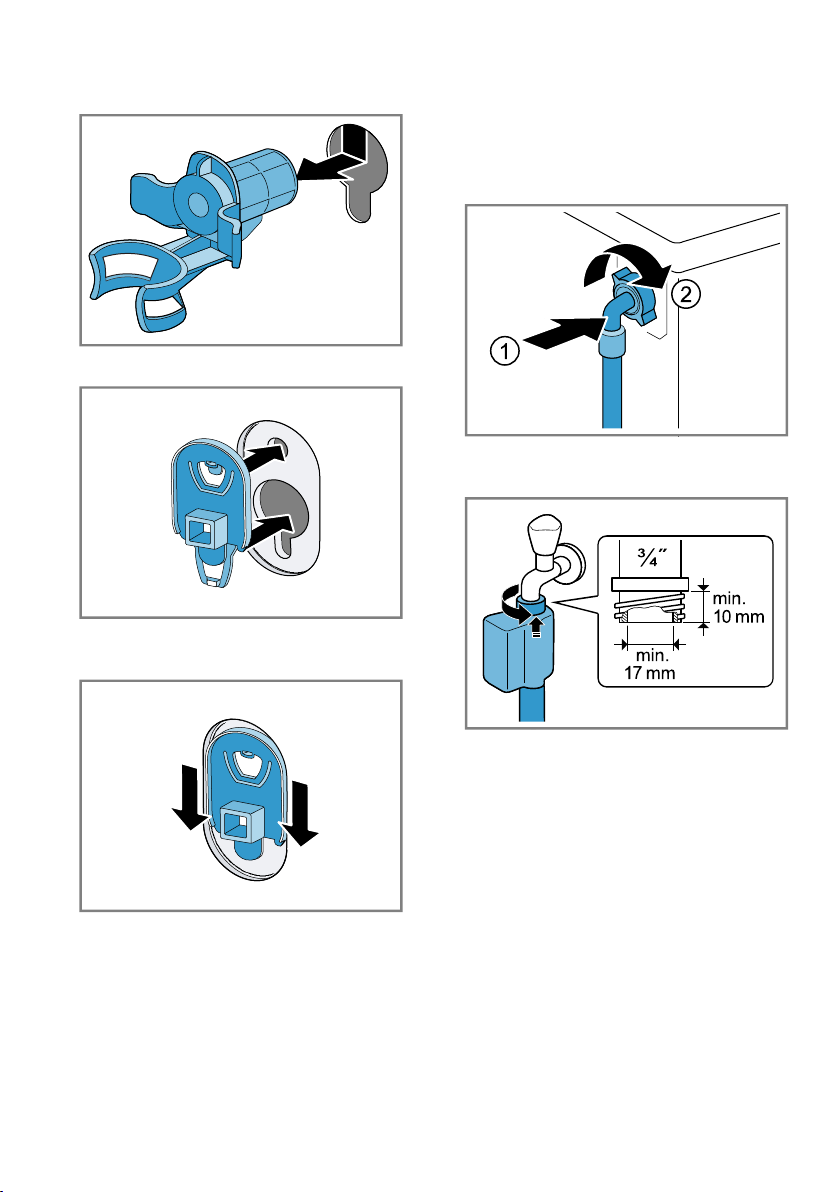

▶ Transport the device upright. 1.Pull the hoses out of the holders.
installation site
Holder
Requirements
The device with
locking lips
→ Page 27
to confirm.
Floor with wooden
beams
Place the device
guess at a wa-
resistant
wooden plate (thick-
too minimal
30mm) which
screwed to the
floor.
2.Loosen and remove all bolts of the 4
transport locks with a SW13 open-
end wrench
.
Kitchenette The device al-
borrow under a
continuous work
place sheet,
that fixed with the
adjacent
cabinet is connected
Pine tree. Required
niche width:
60 cm.
on a wall No mains connection
cable and no
snakes between
wall and appliance
wedge in.
3.Remove the mains connection cable from
the holder.
4.4 Removing transport locks
The device is secured for transport
with transport locks at the rear of the
device.
Remark:Save the bolts from
s tb e
nr
→ "Install transport locks", g 4
d
z
e
e
tran por e
la
v il
there
igin
tra
gene and the help
nsport.fore een t
pa ina 7
14

Set up and connectNL
4.Remove the 4 sleeves. 4.5 Connecting device
Connect water supply hose
1.Connect the water supply hose to the
appliance.
5.Install the 4 cover caps.
2.Connect the water inlet hose to the
tap (26.4 mm = 3/4").
6.Slide the 4 cover caps downwards.
3.Open the tap carefully and check
that the connections are tight.
Water drainage connection types
The information will help you connect this
appliance to the water outlet.
PAY ATTENTION!
When draining, the water drain hose is
under pressure and can come loose
from the installed connection position.
▶Secure the water drain hose against
unintentional disconnection.
Remark:To place the transport locks
in the device for transport, make
them
undo steps in the reverse
the sequence.
15

NLSet up and connect
Remark:Observe the pumping
heights.
The pumping heights are: minimum
al: 100 cm
2.To adjust the appliance, turn the
appliance feet. Check the horizontal
adjustment of the appliance with a
spirit level.
The connection position
tie with a
hose clamp
(24-40 mm) bore
gene.
washbasin the water drainage
feeding hose with
a bend
→ Page 27
fixate and
gene.
All appliance feet must be firmly
planted on the floor.
3.Tighten the lock nuts against the
housing with an open-end wrench
SW17 hand-tight.
plastic stand
pipe with rubber
run muff
the water drainage
feeding hose with
a bend
→ Page 27
fixate and
gene.
4.6 Adjusting the device
To reduce noises and vibrations and to
prevent the device from walking, place
the device horizontally.
1.Loosen the lock nuts with a SW17
open-end wrench.
Hold the appliance foot while
doing so and do not adjust the
height.
4.7 Connecting the appliance
electrically
Remark:Your home electrical
installation for this appliance must
comply with local legal and safety
regulations and must include an
earth leakage circuit breaker.
16

Set up and connectNL
1.Insert the mains plug of the
appliance's connecting cable into
a socket in the vicinity of the
appliance.
The connection data of the device
can be found in the technical data
→ Page 50 .
2.Check the mains plug for tightness.
17

NLGetting to know your device
5 Getting to know your device
5.1 Device

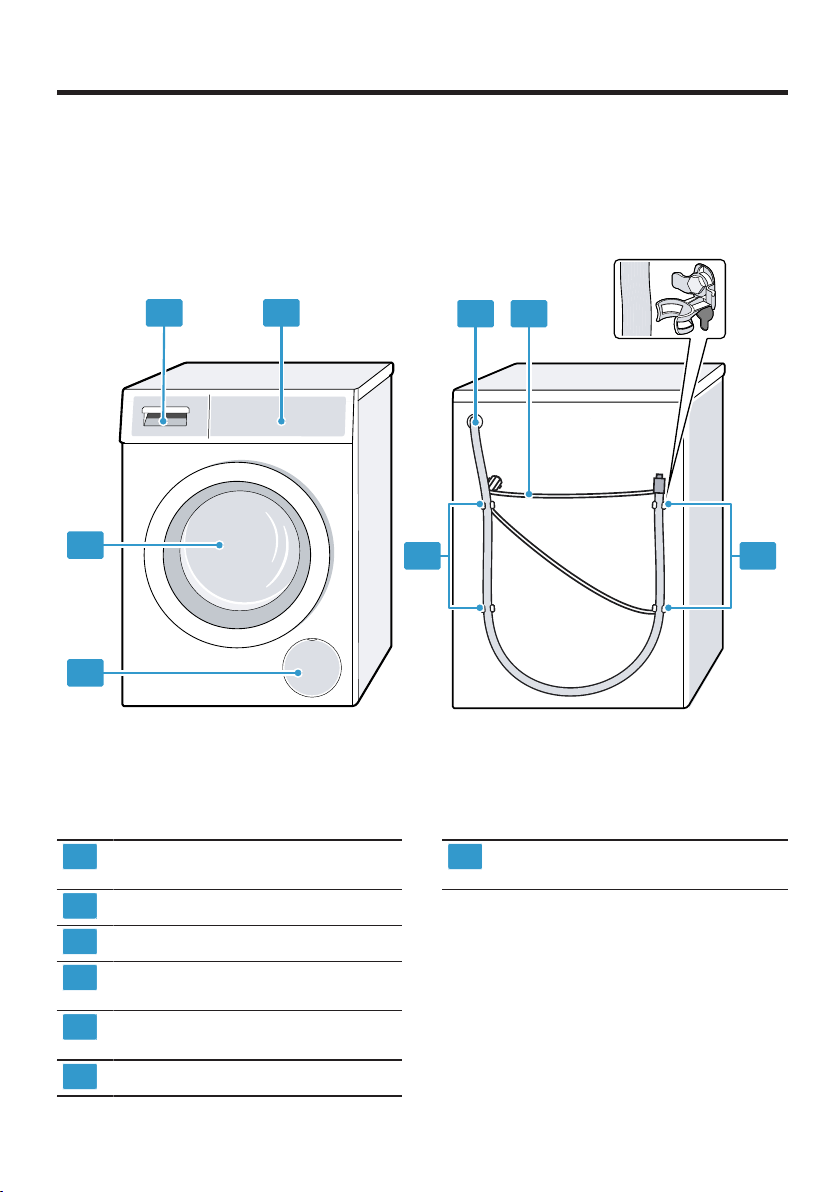

Here you will find an overview of the components of your device.
3 4 5 6
277
1
Depending on the device type, details in the picture may differ, e.g. the color
and m.the vor
1Service valve n pump
→ Page 34
e7Transport protections
→ Page 14
2Door
Detergent drawer → Page 18
5.2 Detergent drawer
3dRemark:Observe the manufacturer's
information on the use and dosing of
the w products and care products and
the information in the program
descriptions.
→ "Programs", Page 24
4Control p n
→ Page 19
a eel
ash
5water drains ag
→ Page 15
l n
6Mains connection cable →
Page 16
18

Getting to know your deviceNL

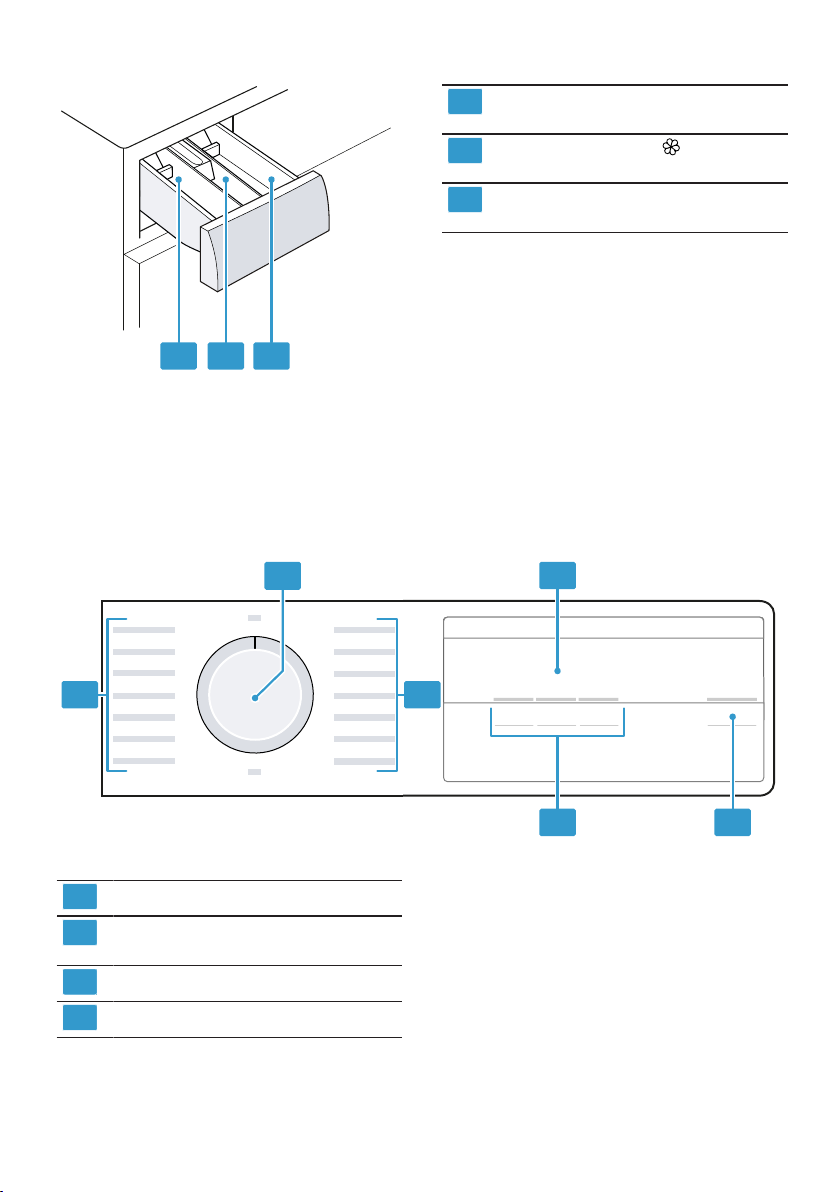

1Detergent compartment II:
detergent for the main wash
2Detergent dispenser: fabric
softener
3Detergent compartment I:
detergent for prewash
1 2 3
5.3 Control panel
You can set all functions of your device and obtain information about the
operating status via the control panel.
2 3
1 1
4 4
1Programs →
Page 24
2Program selector
→ Page 28
ma
3Display →
p
Page 21
4button pen →
pagenat 23
19

NL usage
g6
use
Before first use 5.Fill powder detergent into
compartment II.
gB
use
prepare the device for use
use.
6.1 Starting a wash cycle
without laundry
Your device has been thoroughly
checked before leaving the factory. To
remove any residual water, wash
without any laundry the first time.
1.Turn the program selector onCotton
90°to make. To avoid foaming, use only half the
amount recommended by the
detergent manufacturer for light
soiling. Do not use wool or delicate
detergent.
2.Close the door.
3.Pull out the detergent drawer.
4.Approx. Pour 1 liter of tap water into
compartment II.
6.Slide the detergent drawer into the
appliance.
7.To start the program, press Start /
Refill to press.
aThe display shows the remaining
program duration.
aAfter the program end, it shows
display: "End".
8.Start the first wash cycle or turn the
program selector toOutto turn off
the device.
→ "The Ministry in Essence",
Page 28
20
