bossauto JS5238CEA Technical manual

SUPER AUTOMATIC VACUUM CLEANER
DRY VACUUM CLEANER
OPERATION INSTRUCTION
JS5238CEA
Thank you for purchasing our products.
◎For completely understanding the functions of this product
and operating it correctly please read this Operation Instruction carefully
before using.Please keep this instruction for future reference.
OPERATION
INSTRUCTION

1
The meaning
of symbol sign
This symbol is used to mark
prohibition and please do not
do it.
This symbol is used to mark
instruction and must follow it.

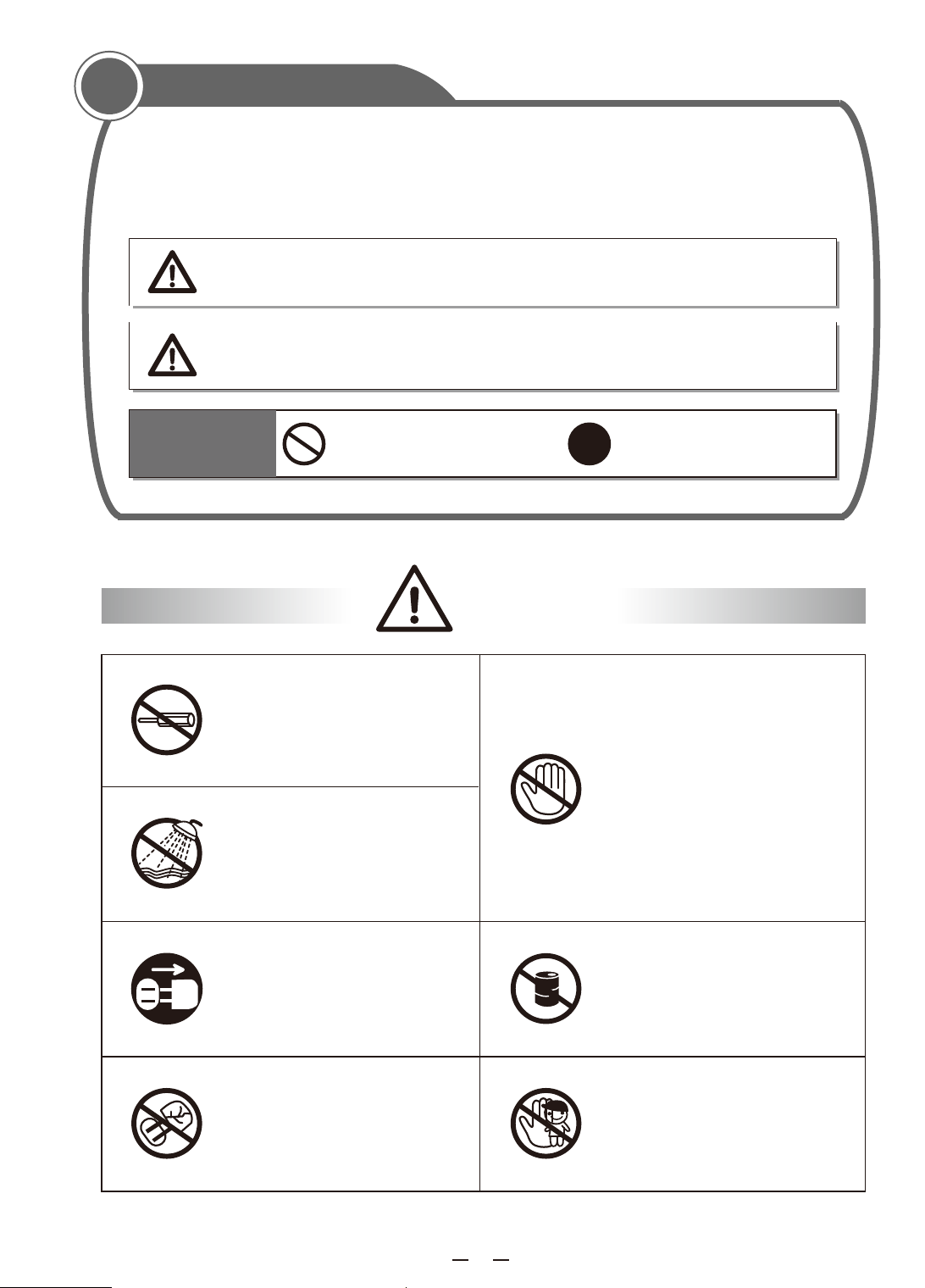

Safety Rules
For using safely,please read and understand “Safety Rules”carefully before using.
Please follow this “Safety Rules of the Operation lnstruction”
to ensure a safe and accident- free operation.
※After reading this instruction, please keep it in an obviously place for reference.
Caution
Notice
lt will cause death or serious injury.
lt will cause injury for improper operations.
CAUTION
●Please disassemble,repair or
reconstruct this machine by
qualified technical personnel
to prevent any unusual work
and injury.
●Do not wipe or pour oil or
water into the machine.
Moisture entering the product
will cause electric shock or
wire short.
●Please disconnect the power
source before safety checking
or cleaning to prevent electric
shock or injury.
●Never use damaged power
plug,Damaged plug would
result electric shock,wire
short and fire.
●Please don’t pick up the below
materials by the machine to
avoid fire, explosion or injury.
◎Explosive powder: Aluminum (AI),
Magnesium (Mg), Titanium (Ti)
and Zinc(Zn) etc.
Flamable material: Gasoline,
organic solvent, benzene, lamp- oil
and paint etc; Chemistry material;
Oil and medicine etc.
Hot material: campfire ashes and
cigarette butt etc; the power with
spark: High-speed cutting machine,
grinding wheel and welding machine
etc.
◎
◎
●Never operate the product near
the explosive, flammable
materials such as lamp-oil,
gasoline, organic solvent,
benzene and paint to avoild fire,
explosion or injury.
●Keep children away form
the product to avoid injury.
01

NOTICE
●Do not use the machine in high
temperature environment. ●Place the micro-filter in operation to
prevent from motor breaking down.
●Stop operating when the inlet and
exhaust hole are blocked.
Otherwise the machine will be
deformed by overheat. ●Please install wet filter for use with wet
pick-up. After wet pick-up, please
pouring the residul water and clean
the tank. Dry the tank completely.
※ Attention : only for the water sucking
vacuum cleaner
●Please turn off the power and
disconnect the piug while
installation or maintenance to
avoid electric shock and injury.
●Do not pull the wire to loosen the plug
from the outlet. Otherwise, it may cause
fire due to short circuit.
●Please take off the plug form the
socket when the machine doesn’t
operate to prevent electric leakage,
electric shock or fire. ●Please do not bend, trample on the
wire. Also, do not pull it suddenly to
cause damage.
●Place the filter and paper bag before
operation to prevent form the motor
breaking down. ●Please do not bend or pull the plastic
tube. Also, do not trample on and put
heavy objects on it to prevent damage
and deforation.
●Please install the filtration system
and filter before using. Otherwise, it
will cause the motor breakdown. ●Do not touch the plug, power or wire
with wet hands to prevent electric
shock.
●Please keep the machine away
from fire and heat to reduce the
risk of fire and wire short.
●The life time of the filter depends on
its frequency and condition.
Change the filter regularly for
maintenance.
●Please do not use the machine in
high temperature environment. It will
cause damage, electric shock and fire.
Please use this machine under 80%
humidity.
●Please do not keep the sewage
and debris in the tank for long time
to prevent the odour.
●Hot air will exhaust from the cooling system
which at the top of the machine for normal
operation.
●Please do not pick up too much dust
to cause block of the dust box or
motor breakdown.
●When operate the machine under dry
environment (especially in winter), static
electricity may be occurred at the frame and
part of the machine. Please notice.
02

2

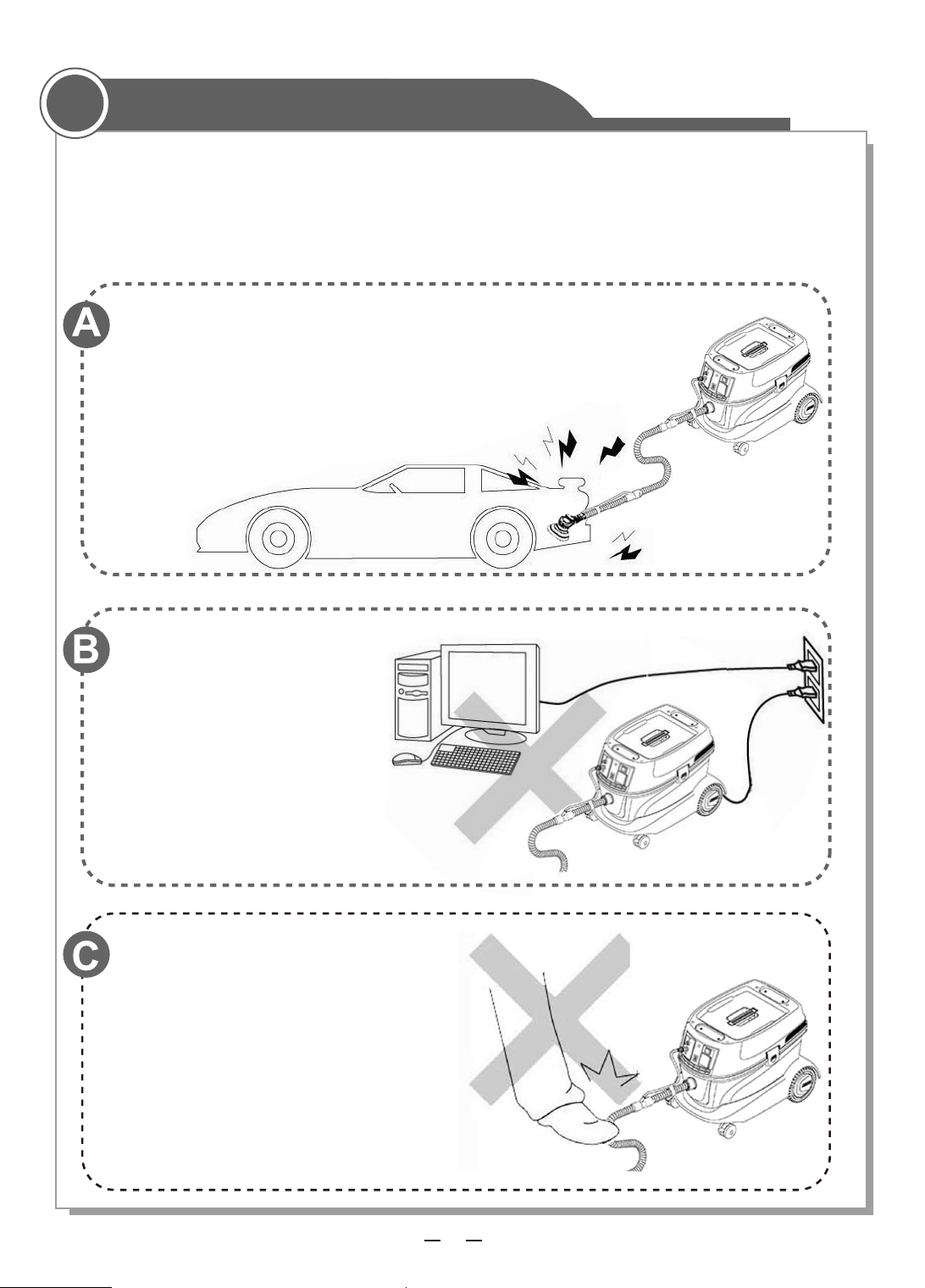

Additional Safety Rules
To use the Dry Vacuum Cleaner safely, besides of the Safety rules of
the Operation Instruction, plesae pay attention to the following:
Beware the static electricity when pick up the
iron power or dust.
Please stop running the machine immediately if
there is static electricity occurred. Please do not
close to the precision instruments or machine to
avoid damage when static ekctricity occured.
Please do not use the same socket
with OA machine. The generated
attack voltage during switching on/ off
will cause OA machines damage.
Avoid to twist, bend, trample on, pull, forced
the hose and unusual storage to make it
out of shape and cause damage.
03

33

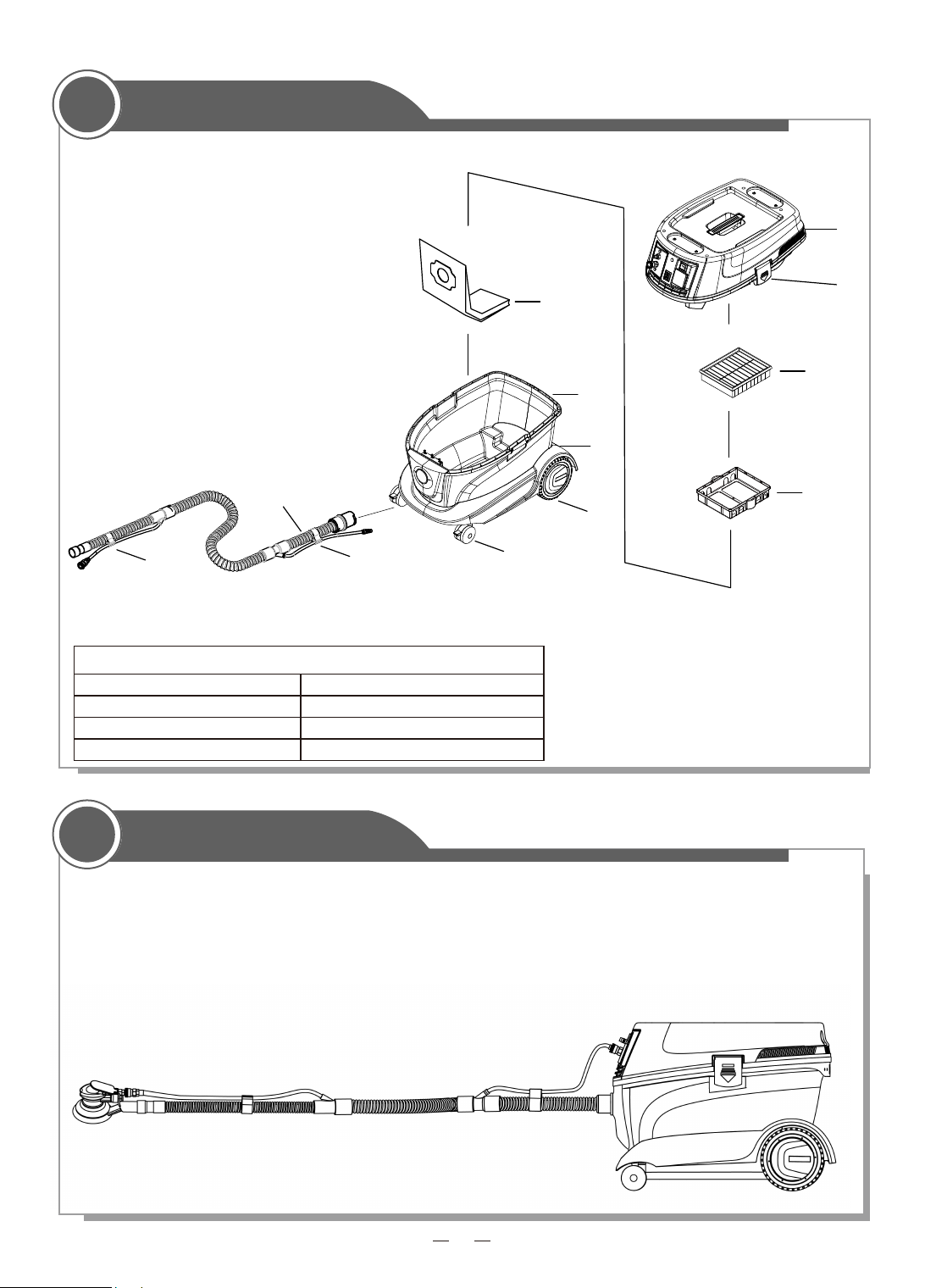

Parts Name JS5238CEA
A
B
E
F
G
D
J H
I
K
L
Specifications A HOST HEAD G SEAT
Model: JS5238CEA Drum Capacity: 38L B BUCKLE H WHEEL 7.5”
C PAPER FILTER I WHEEL 3”
Voltage: 220V~240V 50/60Hz Consumption Power: 1150W~1350W D FILTER HOLDER J HOSE
Max Vacuum: 2450mmH2O±10% Measurement: 790*545*570(mm) E PAPER BAG K HOSE CLASP(BIG)
Air Flow: 2.9m3/min±10% Weight: 16.17kgs F TANK L HOSE CLASP(SMALL)
4
Use Dispose
04
C

B
D
E A
C
1
2
PREPARATION
OPERATION INTERFACE INSTRUCTION
Operation Instruction
5
Open the host head before using. Install paper bag into the dust tank, then put back the host
head and clip side buckles tightly.
Insert 2 in 1 Suction hose into the pneumatic tool, ensure not coming off, and turn on the machine.
1
2
A
B
C
POWER SWITCH:
Switch at “AUTO” position, the vacuum to start control of the pneumatic tool or power tool.
When turn the switch to “ AUTO” position, the vacuum cleaner will delay start about 3 seconds
, then will run for 1.5 seconds and then stop. It means the vacuum cleaner is on.
If the tool stops, the Vacuum cleaner will stop after running 5-10 sec.
●
●
●
Switch at “MANU” position can turn on the vacuum.
When turn the switch to “ MANU” position, the Vacuum cleaner will delay start about 3 seconds
and then run continuously.
Turn the switch to “ OFF” position,the vacuum cleaner will stop.
When finish working with vacuum cleaner, please turn the AUTO- MANU switch
at the OFF position.
Press the switch right will speed up, press it for 3 seconds to get the highest speed.
Press the switch left will slow down, press it for 3 seconds to get the lowest speed.
SUCTION POWER CONTROL:
OPERATION INDICATION LAMP:
It will be lit when the motor is on.
D
Note: the power of power tool can’t be over 1000W, it will be overload and cause fire.
When turn the switch to “AUTO” position, the power tool using the plug can
control the ON/OFF of vacuum.
THE SOCKET OF POWER TOOL:
E PNEUMATIC TOOL- TRIGGER MODULE CONNECTOR:
The quick coupling attached to the compressor and the other attached to the pneumatic hose.
05

6
Clean and Maintenance
Notice Remove the head
unit and store in a
Please turn off and proper place to
disconnect the plug prevent cotaminations
and release the and damage.
side clips.
PAPER BAG EMBEDDED:
1 2 3
※Clean up and replace the paper bags regularly for maintenance.
FILTER REPLACEMENT :
2
1
34
● Available to use soft brush or high pressure air gun for periodically cleaning.
● Replace the filter regularly for maintenance.
※Recommend replacing the parts every three months in normal maintenance procedure.
06

7
General Error Solution and Maintenance
PROBLEM CHECK SUGGESION
Motor does
not operate
Plug The plug maybe loosen, please connect the socket again.
Carbon brush
exhausted Please contact our service center.
Temperature
Control
The Electronic Thermal Protection Device worked automatically when the motor
was overheated up to 125 degree.
After a complete 10~20 minute cool down period has passed, the Electronic
Thermal Protection Device will RE- SET automatically.
Cleaner fails
to pick up
Hose Maybe the hose or extension wands didn’t fit completely.
please refit.
Inside of tank Please check if the tank is full and empty it.
Filter Please check the filter and filtration system and clean it.
●
Check: Please check the parts or accessories
(Hose, wire, paper bag, filter rack and filter)
if need to be replaced.
●
lf the power cord is damage, please requests
profession and technical personnel to replace it.
● Maintenance and Lubrication:
1. Do not lubricate the motor.
2. Clean the machine outside regularly.
07

8

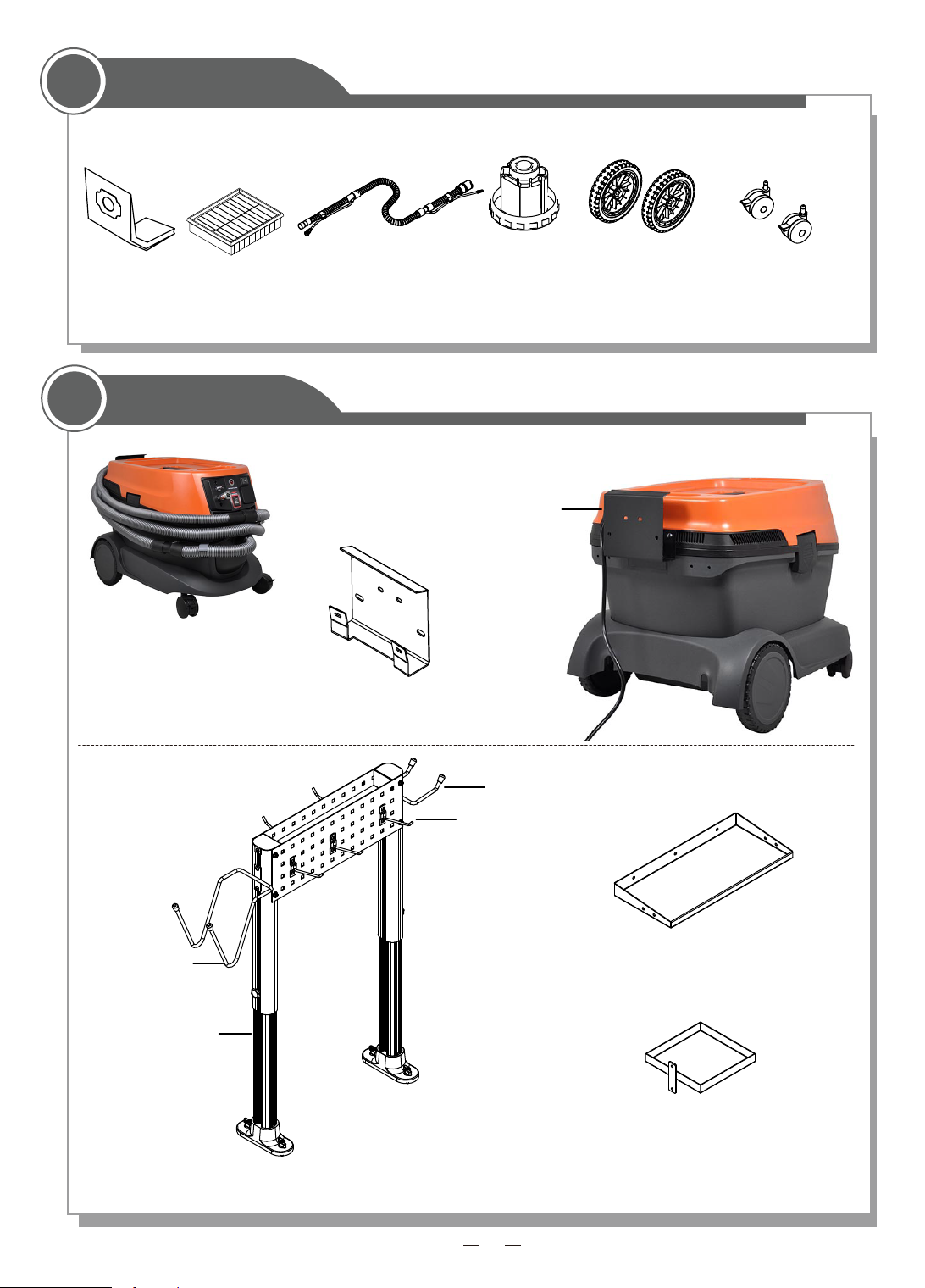

Expendables
● PAPER BAG ● PAPER FILTER ● HOSE ● MOTOR ● WHEEL 7.5” ● WHEEL 3”
9
Option
Hose Hook
●Hose Hook
Multipurpose Hook
Pad Hook
● Compartment Tray (Big)
Tool Hook
Tool Rack
● Compartment Tray (Small)
● Tool Rack Set
(Attached Tool Rack*1set、Pad Hook*5pcs、Tool Hook*1pc、
Multipurpose Hook*1pc)
08

Product Warranty:
1. This product comes with a one- year full warranty from
the date of purchase with the normall using.
2. The range of warranty is covered the unit and parts, but
consumable items are not covered by this warranty.
3. It has to be charged during the guarantee period under
the situations as below:
a. Incorrect using or any unit that has been modified in any way causes the
failure or damages.
b. Failure caused by accident drop or falling clean in moving.
c. During the guarantee period, if repair can’t be done because of the
parts are stop for production or modified for better replacement; we may
charge the price difference of better replacement.
d. The natural disaster, social effects of pollution and incorrect voltage
cause the failure or damages.
4. If lose this warranty, don’t reissue again.
5. We reserve right to change products and specification
at any time without prior notice.
Warranty
Product name: JS5238CEA Stamp of the store :
Data of the Supplier: (yyyy) (mm)
(This product comes with a one- year full warranty from the
date of purchase with the normal using.)
(dd)
Name:
Address :
