BOSSCO DD-7 Digital Delay User manual

Owner’s Manual
DCAC
AC & BATTERY
POWERED
FET
DD-7_e.book 1 ページ ２００８年３月７日 金曜日 午前１１時１８分

2
Thank you, and congratulations on your choice of the BOSS DD-7 Digital Delay.
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and
“IMPORTANT NOTES” (supplied on a separate sheet). These sections provide important in-
formation concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature pro-
vided by your new unit, this manual should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.
A battery is supplied with the unit. The life of this battery may be limited, however, since
its primary purpose was to enable testing.
Copyright © 2008 BOSS CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of BOSS CORPORATION.
DD-7_e.book 2 ページ ２００８年３月７日 金曜日 午前１１時１８分

3
Main Features
● Achieves long delay times of up to 6.4 seconds. (*1) What’s more, up to 40 seconds of
loop play—or “sound on sound”—is possible in HOLD mode.
● Multiple delay modes include “MODULATE,” which adds a chorus effect to the delay
sound, and “ANALOG,” which models the classic BOSS DM-2 analog delay pedal.
● Features two new stereo modes in addition to 2-in/2-out true stereo connections.
● Provides stereo effects like “Panning” and “Effect + Direct.”
● Parameters can be controlled using an optional expression pedal (Roland EV-5).
● The delay time can be set in realtime by pressing an optional footswitch (FS-5U) or the
built-in pedal to input the tempo.
(*1) The delay time that can be set varies according to the mode.
DD-7_e.book 3 ページ ２００８年３月７日 金曜日 午前１１時１８分

4
Panel Description
fig.01
1. AC Adaptor Jack
Accepts connection of an AC Adaptor (PSA-
series; optional). By using an AC Adaptor,
you can play without being concerned about
how much battery power you have left.
* If there are batteries in the unit while an AC
adaptor is being used, normal operation will
continue should the line voltage be interrupted
(power blackout or power cord disconnection).
* Use only the specified AC adaptor (PSA-series).
* If the AC adaptor is connected while power is on,
the power supply is drawn from the AC adaptor.
2. CHECK Indicator
This is a combination indicator, which indi-
cates whether the effect is on or off, indicates
the various functions (p. 12–20), and func-
tions as the battery check indicator.
The indicator lights when an effect is ON.
5
3
1
4
6
7
2
DD-7_e.book 4 ページ ２００８年３月７日 金曜日 午前１１時１８分

5
Panel Description
* If this indicator goes dim or no longer lights
while an effect is ON, or when the functions are
indicated, the battery is near exhaustion and
should be replaced immediately. For instructions
on changing the batteries, refer to “Changing
the Battery” (p. 22).
* The CHECK indicator shows whether the effect
is on or off, and indicates the different functions.
It does not indicate whether the power to the
device is on or not.
3. OUTPUT-A (MONO) Jack
OUTPUT-B Jack
The output jacks are used to connect the unit
to an amplifier or another effects unit.
* The unit’s functions differ according to how it is
connected. Refer to “Setting the Output
Method” (p. 16).
4. INPUT-A (MONO) Jack
INPUT-B Jack
These jacks accept input signals (coming
from a guitar, some other musical instru-
ment, or another effects unit).
* The unit’s functions differ according to how it is
connected. Refer to “Setting the Output
Method” (p. 16).
* The INPUT-A (MONO) and INPUT-B jacks
double as power switches. Power to the unit is
turned on when you plug into the INPUT-A
(MONO) or INPUT-B jack; the power is turned
off when the cable is unplugged. Be sure to
disconnect any cord plugged into the INPUT-A
(MONO) or INPUT-B jack when not using this
effects device.
5. TEMPO/EXP Jack
This jack is for connecting an optional external
footswitch (FS-5U) or an optional expression
pedal (Roland EV-5).
DD-7_e.book 5 ページ ２００８年３月７日 金曜日 午前１１時１８分

6
Panel Description
You can make tempo settings using a foot-
switch or manipulate various parameters us-
ing an expression pedal.
* Refer to “Setting the Tempo Using an External
Footswitch” (p. 13), “Control Using an
Expression Pedal” (p. 20).
6. Pedal Switch
This is used for switching the effect on and
off, and for switching between the different
functions (p. 12–15).
7. Thumbscrew
When this screw is loosened, the pedal will
open, allowing you to change the battery.
* For instructions on changing the battery, refer
to “Changing the Battery” (p. 22).

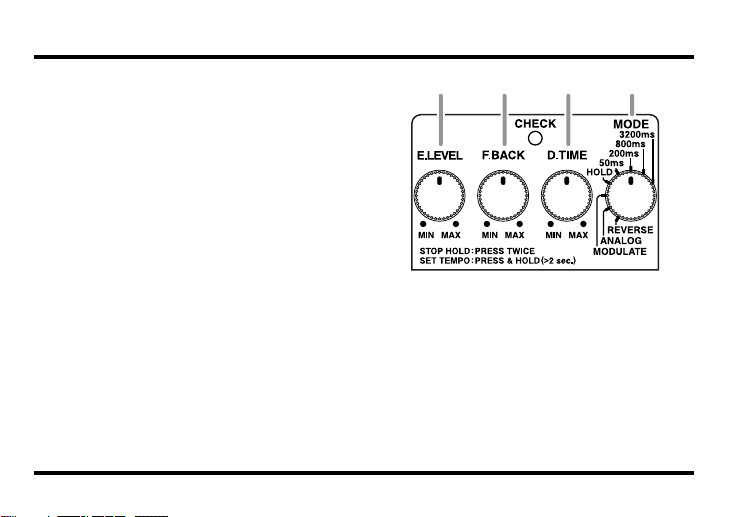

fig.02
8. E.LEVEL (Effect Level) Knob
This adjusts the volume of the effect sound. Turn
the knob clockwise to increase the effect sound.
When set at the three o’clock position, the effect
is played at the same volume as the direct sound.
* When the E.LEVEL knob is set to MAX while in
REVERSE mode, only the effect sound is
output, with the effect sound at the same level as
the input sound.
9 10 118
DD-7_e.book 6 ページ ２００８年３月７日 金曜日 午前１１時１８分

7
Panel Description
9. F.BACK (Feedback) Knob
This adjusts the feedback level. The number
of times the delay sound is repeated increas-
es as the knob is turned to the right.
* This cannot be used in HOLD mode.
* Oscillation may occur when the knob is set at
certain positions.
10.D.TIME (Delay Time) Knob
This adjusts the delay time. Turning the knob
clockwise lengthens the delay time.
* This cannot be used in HOLD mode.
* The delay times that can be set vary according to
the position of the MODE knob.
11. MODE Knob
This switches the delay effect.
● Ordinary Delay
* The delay time is doubled when the DD-7 is
connected for long delay output. For more infor-
mation, refer to “Long” (p. 17).
MODE Knob Delay Time
3200 ms 800-3200 ms
200-800 ms
50-200 ms
1-50 ms
800 ms
200 ms
50 ms
DD-7_e.book 7 ページ ２００８年３月７日 金曜日 午前１１時１８分

8
Panel Description
● Specialized Delays
*1 In HOLD mode, the maximum recording
time is 20 seconds for stereo input or 40
seconds for monaural input.
* The delay time is doubled when the DD-7 is
connected for long delay output. For more infor-
mation, refer to “Long” (p. 17).
HOLD:
This records up to 40 seconds of a perfor-
mance (when using monaural input),
then plays it back repeatedly.
* For details, refer to “Using the HOLD
(Overdubbing) Function” (p. 15).
MODULATE:
This produces a pleasant chorus effect by
adding a small amount of undulations to
the effect sound.
ANALOG:
The sound changes progressively with
each repetition of the repeat sound.
This tone is modeled on the BOSS “DM-2”
Compact Delay.
REVERSE:
This delay produces an effect like playing
back a tape in reverse.
You can adjust the E.LEVEL knob setting
to get two different kinds of effect, “Effect
Sound + Direct Sound” and “Effect Sound
Only.” Turning the E.LEVEL knob com-
pletely to the right switches this to “Effect
Sound Only.”
MODE Knob Delay Time
300-3200 ms
20-800 ms
20-800 msMODULATE
HOLD
ANALOG
REVERSE
40 sec. *1
DD-7_e.book 8 ページ ２００８年３月７日 金曜日 午前１１時１８分

9

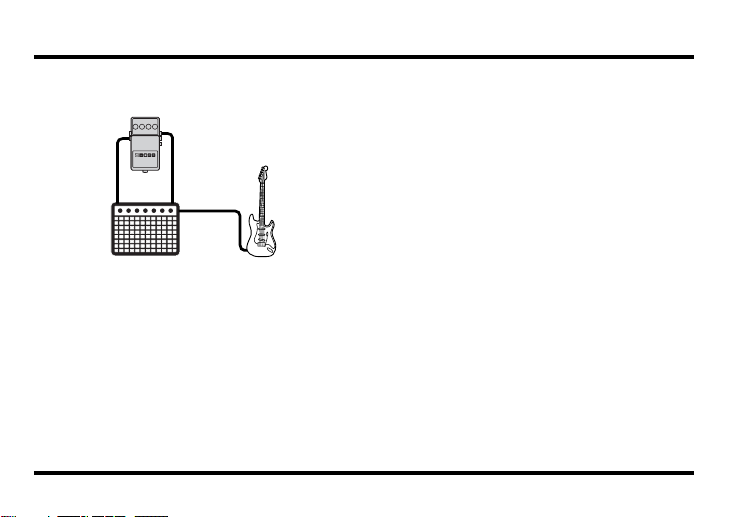

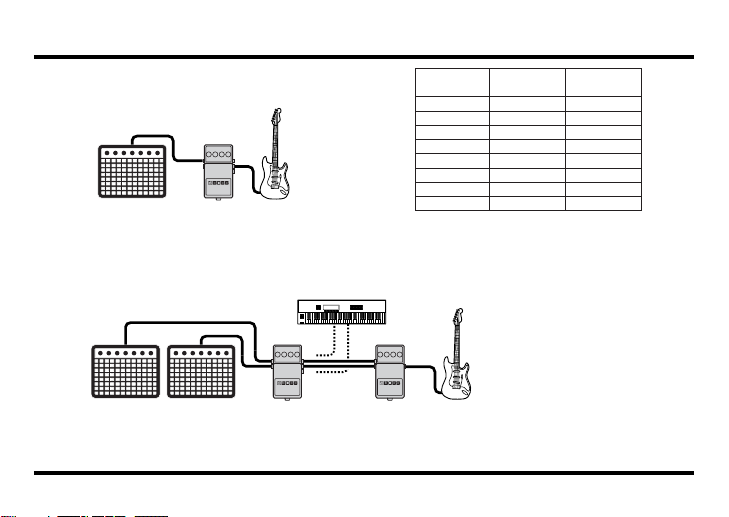

Connections
* You can obtain a variety of different delay effects by changing how the connections are made. For more
information, refer to “Setting the Output Method”(p. 16).
Footswitch
(FS-5U)
Expression Pedal
(Roland EV-5)
AC Adaptor
(PSA-series: optional)
Electric
Guitar
Guitar Amplifier
Keyboard
DD-7_e.book 9 ページ ２００８年３月７日 金曜日 午前１１時１８分

10
Connections
* When running the unit on battery power, inserting a plug into the INPUT-A (MONO) or INPUT-B jack
will automatically switch the unit on.
* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required
before the unit will operate normally.
* The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you
prefer to use batteries, please use the alkaline type.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and
turn off the power on all devices before making any connections.
* Some connection cables contain resistors. When connection cables with resistors are used, the sound level may be
extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.
* If there are batteries in the unit while an AC adaptor is being used, normal operation will continue should
the line voltage be interrupted (power blackout or power cord disconnection).
* Once the connections have been completed (p. 9), turn on power to your various devices in the order
specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to
speakers and other devices.
When powering up: Turn on the power to your guitar amp
last .
When powering down: Turn off the power to your guitar amp
first .
* When operating on battery power only, the unit’s indicator will become dim when battery power gets too
low. Replace the battery as soon as possible.
DD-7_e.book 10 ページ ２００８年３月７日 金曜日 午前１１時１８分

11
Operating the Unit
fig. 05
1. Turn on the effect
After you have finished making the connec-
tions (p. 9), press the pedal switch to turn
the effect on (the CHECK indicator lights red) .
* The DD-7 features a “seamless switching function”
whereby the delay sound decays gradually, even
after the effects are switched off.
* When in HOLD mode, the effect cannot be
switched on or off.
*
You can obtain a variety of different delay effects
by changing how the connections are made. For
more information, refer to “Setting the Output
Method”(p. 16).
2. Select the mode
Use the MODE knob to select the mode to
be used.
* Operations vary according to the mode. Refer to
each operation.
3. Adjust the delay time
Adjust the delay time with the D.TIME
knob.
4. Adjust the feedback level
Use the F.BACK knob to adjust the feedback
level (or how much the sound is repeated).
* Oscillation may occur with certain input sounds,
or when the knob is set at certain positions.
5. Adjust the volume
Adjust the volume level of the effect
sound with the E.LEVEL knob.
4 3 25
DD-7_e.book 11 ページ ２００８年３月７日 金曜日 午前１１時１８分

12
Using the Tempo Delay
Tempo input allows you to set the delay time to
match the tempo of a song by repeatedly pressing
the pedal switch in time with the desired tempo.
You can also use this method to change the delay
time to any setting you like as you perform.
Using tempo input, the delay time can be set
within the range of 0.2–3.2 seconds.
* With long delay, the maximum setting is 6.4 seconds.
Setting the Tempo Using the
Built-in Pedal
1. Select the mode
Use the MODE knob to select the mode to
be used.
* Tempo input cannot be used in HOLD mode.
2. Switch to TEMPO mode
Hold down the pedal switch for at least
two seconds
(the CHECK indicator lights
green)
.
* When an optional external footswitch (the FS-
5U) is connected to the TEMPO/EXP jack, you
won't be able to enter TEMPO mode by
pressing the built-in pedal.
3. Begin inputting the tempo
Press the pedal switch in time with the
song tempo
(the CHECK indicator flashes red
and green)
.
* The timing with which you press the pedal is
converted to quarter-note beats.
4. Finish inputting the tempo
Hold down the pedal switch for at least
two seconds to complete the setting
(the
CHECK indicator lights red)
.
* The tempo may become confused momentarily
when you go from Step 3 to Step 4.
* Turning the D.TIME knob resets the delay time
to that indicated by the knob’s position.
DD-7_e.book 12 ページ ２００８年３月７日 金曜日 午前１１時１８分

13
Using the Tempo Delay
Setting the Tempo Using an
External Footswitch
Connecting an optional footswitch (FS-5U) to
the TEMPO/EXP jack lets you set the tempo
delay by inputting the tempo.
* You can input the tempo with the external pedal
regardless of whether the effect is on or off.
1. Connect the FS-5U to the TEMPO/EXP
jack
* Use a connecting cord with a 1/4” phone plug.
* On the FS-5U, move the polarity switch toward
the jack.
* The FS-5L cannot be used.
2. Select the mode
Use the MODE knob to select the mode to
be used.
* Inputting the tempo is not possible in HOLD
mode.
3. Start inputting the tempo
Press the pedal switch in time with the
song’s tempo
(Effect off: CHECK indicator flashes red; effect
on: CHECK indicator flashes red and green).
* The timing with which you press the pedal is
converted to quarter-note beats.
* Tempo input using the built-in pedal is not
possible.
* Turning the D.TIME knob resets the delay time
to that indicated by the knob’s position.
DD-7_e.book 13 ページ ２００８年３月７日 金曜日 午前１１時１８分

14
Using the Tempo Delay
The delay sound produced is as shown in the figure.
* The CHECK indicator flashes red in time with the interval with which you press the pedal.
* When the mode is MODULATE, ANALOG, or REVERSE, the effect at the position of the MODE knob
is applied to the delay sound.
Rhythm Used in
Pressing the Pedal
MODE: 3200 ms
MODE: 800 ms
MODE: 200 ms
MODE: 50 ms
MODE: MODULATE
ANALOG
REVERSE
DD-7_e.book 14 ページ ２００８年３月７日 金曜日 午前１１時１８分

15
Using the HOLD (Overdubbing) Function
With the HOLD function, you can record up to
40 seconds of your performance, and then
have that content played back repeatedly. You
can also layer this as you perform something
else, then record these together (overdub).
You can keep the recorded content playing
continuously as backing and produce other
special effects.
1. Select HOLD
Set the MODE knob to HOLD
(the CHECK
indicator goes out).
2. Begin recording
Recording starts when you press the built-
in pedal switch
(the CHECK indicator flashes
red).
* The maximum recording time is 20 seconds for
stereo input or 40 seconds for monaural input.
* Recording continues even if you release the
built-in pedal switch.
3. When recording is finished, playback starts
Press the built-in pedal switch a second
time to stop recording. Playback of what
you recorded begins simultaneously
(the
CHECK indicator flashes green).
4. Overdubbing
Press the pedal switch during playback to
start overdubbing
(The CHECK indicator
flashes orange).
5. When overdubbing is finished, play-
back starts
Pressing the built-in pedal switch during
overdubbing stops overdubbing, and play-
back resumes
(the CHECK indicator flashes
green).
6. Adjust the volume
Use the E.LEVEL knob to adjust the vol-
ume of the playback sound.
7. Finish playback
To stop playback, press the pedal twice.
* Press the pedal two times in succession, keeping
the interval between presses to one second or less.
* If a footswitch (FS-5U
; optional ) is connected to
the TEMPO/EXP jack, you can stop playback by
pressing the FS-5U.
DD-7_e.book 15 ページ ２００８年３月７日 金曜日 午前１１時１８分

16
Setting the Output Method
With the DD-7, you can obtain a variety of different delay effects by changing how the connec-
tions are made.
Panning
This produces panning delay with A input and A/B output.
* The panning feature is not available in
HOLD mode.
Effect + Direct
This produces effect + direct output with B input and A/B output.
* A: effect, B: direct
* Switching off the effect outputs the
direct sound from A.
Guitar Amplifier Guitar
DD-7
AA
B
DD-7
Guitar Amplifier
(Direct sound) (Effect sound)
Guitar
A
BB
DD-7_e.book 16 ページ ２００８年３月７日 金曜日 午前１１時１８分

17
Setting the Output Method
Long
This produces long delay with A input and B output.
*1 In HOLD mode, the maximum
recording time is 20 seconds for stereo
input or 40 seconds for monaural input.
Stereo
This produces stereo delay with A/B input and A/B output.
* You can select any of three types of stereo delay modes. For more information, refer to “Setting the Mode
for Stereo Delay”(p. 19).
Guitar Amplifier DD-7
A
B
Guitar
800-3200 ms 3200ms 1600-6400 ms
200-800 ms
800ms 400-1600 ms
50-200 ms
200ms 100-400 ms
1-50 ms
50ms 2-100 ms
20-800 ms
MOUDULATE
REVERSE
40-1600 ms
40 sec. *1
HOLD
40 sec.
20-800 ms
300-3200 ms
ANALOG 40-1600 ms
600-6400 ms
Normal Delay
MODE
Long Delay
Keyboard
Guitar Amplifier GuitarEffector
(chorus, flanger etc.)
DD-7
A
BB
A
DD-7_e.book 17 ページ ２００８年３月７日 金曜日 午前１１時１８分

18
Setting the Output Method
Effect
This produces effect output with B input and A output.
* The direct sound is not output from A, regardless of whether the effect is on or off.
* Be sure to lower the output level of any device being connected.
DD-7
A
SENDRETURN
INPUT
B
Guitar Amplifier Guitar
DD-7_e.book 18 ページ ２００８年３月７日 金曜日 午前１１時１８分

19
Setting the Mode for Stereo Delay
When using the DD-7 as a stereo delay, you
can choose among three different operation
modes. Each mode provides a different type
of stereo delay effect.
* For detailed information on how to make the connec-
tions for stereo delay, refer to “Stereo”(p. 17).
1. Make the connection to the INPUT-A
(MONO) jack and leave nothing con-
nected to the INPUT-B jack
2. Hold down the built-in pedal and insert
the plug to INPUT-B jack
The setting mode for stereo delay is en-
abled, and the CHECK indicator lights in
orange.
3. Select the stereo delay effect
Use the MODE knob to select the mode
for stereo delay.
3200ms: This is a completely indepen-
dent delay for A and B.
800ms: This is panning delay.
200ms: This is a stereo delay that im-
parts spatial broadness to re-
verberant sound.
4. Save the settings
Press the built-in pedal switch to make
the CHECK indicator rapidly flash in or-
ange and save the settings.
After the settings have been saved, the
unit returns to normal operation.
* Never switch off the power while the CHECK
indicator is flashing rapidly.
* This setting is retained even while the power is
turned off.
DD-7_e.book 19 ページ ２００８年３月７日 金曜日 午前１１時１８分

20
Control Using an Expression Pedal
Connecting an expression pedal (Roland EV-
5; optional) to the TEMPO/EXP jack enables
you to control the respective parameters of
the E.LEVEL, F.BACK, and D.TIME knobs.
* Use only the specified expression pedal (Roland
EV-5; optional). By connecting any other
expression pedals, you risk causing malfunction
and/or damage to the unit.
Making the Settings for
Expression Pedal Functions
1. Hold down the built-in pedal and con-
nect the expression pedal
The function-setting mode for the expres-
sion pedal is enabled and the CHECK in-
dicator lights in orange.
* The setting mode cannot be entered while
HOLD MODE is selected.
*
When connecting an expression pedal to the
TEMPO/EXP jack, set the minimum volume for the
connected expression pedal to the “MIN” position
.
2. Make the settings for the parameters
Turn the E.LEVEL, F.BACK, and D.TIME
knobs to set the maximum values of the
ranges you want to control. If you don’t
want to control a particular parameter
with the expression pedal, set its value to
the “MIN” position.
* You can set only the maximum value of a
parameter range controlled using the expression
pedal. Setting the minimum value is not possible.
3. Save the parameters
Press the built-in pedal switch to make
the CHECK indicator rapidly flash in or-
ange and save the settings.
After the settings have been saved, the
unit returns to normal operation.
* Never switch off the power while the CHECK
indicator is flashing rapidly.
* This setting is retained even while the power is
turned off.
DD-7_e.book 20 ページ ２００８年３月７日 金曜日 午前１１時１８分
