BougeRV 30 Quart User manual

Instructions Manual
For Portable Car Freezer
www.bougerv.com
30 Quart 23 Quart

After-Sales Service and Warranty
▲BougeRV portable car refrigerator comes with a 2 year warranty that commences from the
date of purchase.
If you have any questions during use, please feel free to contact us at
SYKPE: 18924140684
Whatsapp: [phone]
Email: [email protected]
Web: www.bougerv.com
Message through “Ask a question”in BougeRV Amazon ship
Want to upgrade a 2-year warranty to a 3-year warranty?
1.Search “QR Code”on your FB
2.Scan the QR Code beside
3.Join ”BougeRV Car Refrigerator Club“
4.You become a VIP and get a 3-year warranty

Attention:
▲Please read this manual carefully before using your unit.
①Before use for the first time, clean the inside and outside of the car refrigerator with a damp
cloth.
②Please clean the inner cavity regularly to prevent odor and bacteria ensuring food safety.
③If not used for a long time, please disconnect the power supply and keep the inside of the car
refrigerator dry.
▲Connect the power supply
①Find the DC power cord in the kit. Connect the DC plug to the power outlet of the car
refrigerator.
②Car refrigerators are placed in the car (back-up, seats...).
③Arrange the power cable according to the space inside the car. The cigarette lighter plug is
connected to the car cigarette lighter.
④Press and hold the "ON /OFF" button for 3 seconds and the car refrigerator will be ready for
use.
This product can be connected to more than one type of power supply.
The car refrigerator is directly connected to 12/24V power supply.
If you want to use at home, pls use the 100~240V AC adapter.
01
12/24 V 110~240 V

▲Safety Attentions：
①Make sure that the power voltage connected to the car refrigerator is correct at any time
(Refer to the parameter labels on car refrigerator).
②Do not fill in corrosive liquids. Do not pour the liquid directly into the car refrigerator.
③Do not place the unit under direct sunlight.
④Refrigerator could not be exposed to the rain.
⑤This product is not intended to be used by children. Do not allow children to crawl around
this product.

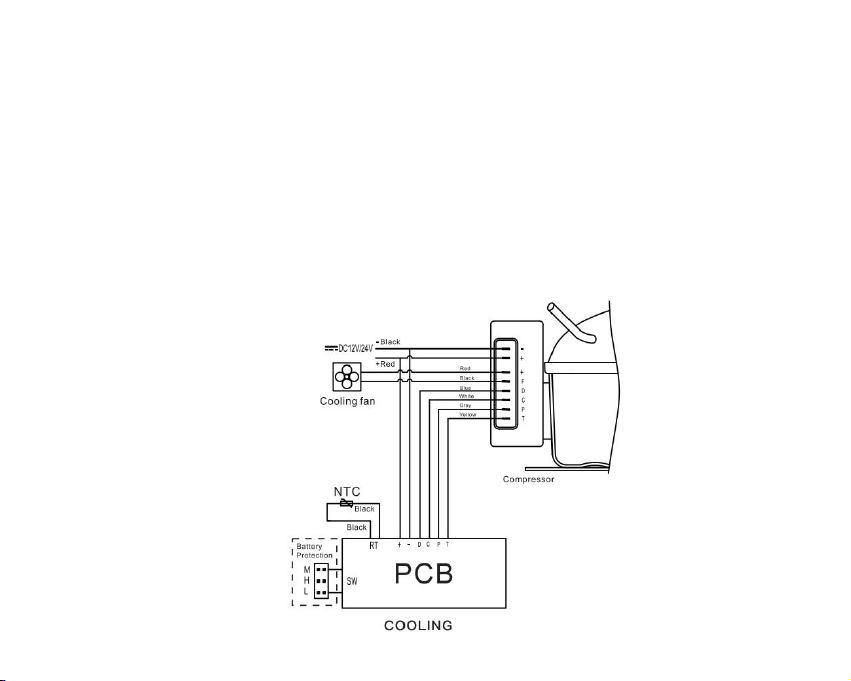

Car Refrigerator Electrical Schematic
02

6
5
3
2
84
1
7
Car Refrigerator Operation
▲Car battery protection voltage reference
Built-in ECO electronic control module can automatically monitor the car battery voltage.
Before power consumption affects the normal ignition of the car, car refrigerator will
automatically disconnect power, to ensure that the car battery power will not be
consumed too low and affect the normal ignition of the car.
Voltage
12V DC
24V DC
Factory default voltage protection level sets to H Mode
High mode Medium Mode Low mode
11.3V OFF, 12.5V ON 10.1V OFF, 11.4V ON 9.6V OFF, 10.9V ON
24.6V OFF, 26V ON 22.3V OFF, 23.7V ON 21.3V OFF, 22.7V ON
Note: When the car refrigerator connects to the power and starts, ON or OFF refers to the
ON or OFF of the compressor.
▲Parts schematic
①Compressor cooling hole
②12/24V power outlet
③Handle
④Control Panel
⑤Digital display
⑥Seal rubber ring
⑦Refrigerator cabinet
⑧USB
03

▲Digital display and touch control panel
04

▲Temperature Adjustment Settings
Touch the LCD smart screen to adjust and cool the internal temperature of the car refrigerator.
Operation Method
①Press and hold the {On/Off} key for 3 seconds to turn on/standby the refrigerator.
②Touch the {+ or -} key to adjust the temperature.
③Press the {+ or -} key for a long time. The preset temperature is linearly adjusted with a speed
of 4°C. During the adjustment, the number does not flicker.
④Within 3 seconds after the operation panel has not detected any key operation, the tempera-
ture display will stop flashing, exit the temperature setting, and save the currently set tempera-
ture.
⑤The temperature display shows the actual temperature inside the box.
⑥In the standby mode, only the temperature display is off, the other buttons are on.
⑦In working status, press {SET} key to perform MAX/ECO switching.
⑧Temperature adjustment function can be adjusted between -7.6℉~50℉（ -22 °C ~ +10 °C) .
⑨Temperature conversion: Press [SET] and [+] 3 seconds at the same time Celsius (°C) \ Fahren-
heit (°F) temperature switch.
⑩Power protection mode: In the power-on state,press “SET”button for 3 seconds to enter the
battery protection setting. Click “SET”button to switch H>L>M in turns, then corresponding gear
flashes for 5 seconds, exits and saves. We recommend High level for car battery. To set Medium
and Low level when with other battery.
⑪Note: please adjust the refrigerator parameters while unlocking. If the refrigerator is locked,
press “set” up for 3 seconds to unlock it.
The car refrigerator has a power-off memory function. The working state (power on/off state and working mode) before the
power off is automatically restored after the next power on, and there is no need to set it again.
ECO : Energy Saving and Cooling Mode
MAX: Strong Cooling Mode
05

If you have a spare battery, you can
hold any temperature you set in
any situation without any worries.
To solve healthy drinking water
problem caused by the hot
temperature.
Tea in the car refrigerator has
been effective preservation.
During self-driving tour, you can
drink fresh and delicious tea at
any time.
During the summer heat , if you
put your precious fruit in the car,
the preservation time of which will
not exceed 2 hours. Even if the air
conditioning is turned on, storage
time is still short. But with a car
refrigerator, the precious fruit can
be effectively preserved.
When putting ice cream in refrigerator,
its power should be connected and it
should be set to the lowest temperature.
Frozen food, expensive seafood. Car
refrigerator let chilled ingredients
accompany the journey.
The ideal storage temperature for red
wine is 50℉~64℉（ 10 °C ~ 18 °C）, the
precise temperature control of the car
refrigerator can effectively guarantee
the storage temperature for red wine.
High-grade sunglasses coating will be
off under the summer high tempera-
ture and the car refrigerator is an ideal
place to place it.
High-grade cosmetics in the car easily
deteriorating under high temperature.
With the car carrying cosmetics, car
refrigerator will be your better place to
choose.
Operation Suggestion
06

Troubles and troubleshooting
Advice: If an abnormal situation cannot be resolved through simple fault analysis, please
contact professional customer service for assistance.
▲The car refrigerator does not work
①Check whether if the power is connected correctly or not. (If the plug is loose, positive and
negative poles are reversed).
②Check whether the power switch on the operation panel is turned on.
③Check the cooling ventilation is normal.
④Check whether if the fuse is blown or not.
▲Not cooling sufficiently
①The door may not have been closed properly.
②The door seal is damaged or deformed.
③The poor heat dissipation of car refrigerator.
④Improper temperature settings.
▲Abnormal noise
①The place of car refrigerator is not stable.
②Hit the wall or other items.
③Internal parts loose or fall off.
▲The refrigerator surface condensation
When the ambient air humidity> 75%, the surface of the box will normally have slight
condensation.
07

▲The definition of the error code on the display
Error Code
E1
E2
E3
E4
E5
Er1
Error Type
Input voltage too low
Fan Problem
Compressor Start up
frequently Input voltage fault.
Compressor turbine speed
too low.
Controller chip overheating
NTC opening or short circuit
Solutions
①Condition one: insert refrigerator power cord into car cigar
lighter when it doesn't start. Solution: to connect the refrigerator
later after the car starts.
②Condition two: the input voltage of the adapter is too low.
Solution: to adjust the battery protection level to middle or low
level. If fridge still no start properly, pls use a new adapter.
Please replace a new fan when you confirm the fan malfunction.
①Condition one: E3 appears when use fridge in car, pls
shutdown fridge 5 minutes and after that, it can work normally. If
it still not works after restart, it is E1 fault, with reference to E1
Fault troubleshooting and solution.
②Condition two: E3 appears when use fridge at home, to adjust
battery protection level to middle or low level. If it still no works
properly, pls use a new adapter.
Compressor turbine speed too low. The input voltage needs to
be adjusted and reconnect the power.
Controller chip overheating. It needs to shutdown the power of
fridge for 5 minutes. After hat, to check whether if it is an
overheating caused by the blockage around the vent of the
compressor.
Tilt the control panel to see if the panel wiring plug is loose
08

Cleaning & Maintenance
▲Cleaning:
①Please disconnect the power before cleaning the fridge/freezer.
②Bicarbonate (baking soda) dissolved in lukewarm water to clean the unit. Never use abrasive
products, detergents or soap.
③After cleaning, wipe out interior with a clean damp cloth and dry carefully.
④Do not store the unit if it is wet inside or without leaving the lid open.
⑤Never clean the unit under running water or in dish water.
⑥Clean all vents with compressed air or vacuum cleaner.
▲Defrosting:
①Periodically ice may form on the inside of your fridge. This will reduce its capacity and
cooling efficiency. Defrosting your fridge regularly will keep the fridge/freezer at peak operat-
ing condition.
②Remove all contents and removable basket.
③Disconnect fridge/freezer from power supply.
④Open lid to allow interior compartment to warm up to ambient air temperature.
⑤As ice melts, soak up water with a clean towel.
⑥Once all ice has melted, clean interior.
CAUTION: DO NOT use hard, sharp or pointed objects to defrost the fridge/freezer or
loosen items that have become frozen in place. Irreparable damage to cooling system
can occur.
09

PC-BJ-22001
