BOXER AGRI ME15 User manual

INSTRUCTION MANUAL
ME15

This manual is an essential part of the equipment
Itmust alwaysaccompanythe machineforeasyreference. Allannexesmentionedinthemanualarean
integral part of the manual.
Purpose of the manual
Thismanualcontainsallthenecessaryinformationfortheproperandsafeuseofthemachine.Theuser
must carefullyreadthismanualbeforeusingthemachine.
User responsibility
The user is responsible for all accidents and damages caused by the incorrect use of the machine.
Assistance in the use of the instruction manual
Explanation:contactthe seller. Requestnewcopiesofthe manual :ifthemanual getslost, damaged orif
themanualisneededinadifferentlanguage,theusermustcontactthesellerormanufacturer.
Watch out for warning signs
<Danger> : when you see this sign : hazardous situation, possibility of death or serious injury.
<Warning> :whenyouseethissign:hazardoussituation,possibilityofdeathorseriousinjury. Less
severe than theother.
<Caution> :whenyouseethissign:potentiallyhazardoussituation, possibilityofmediumorsmall
lesions.
<Important> :when youseethissign : theinstructionsmustbefollowed precisely toavoiddamage
to the machine or the environment.
INTRODUCTION

DESCRIPTION MACHINE
TheME-15excavator,isashovelfittedtoabasicchaser.Itissmall,powerfulandversatile.Theframe consists
ofaweldedstructure.Itincludesatoothedwheelandarotatingjointthatallowsthismini excavator to
turn on itself 360°.
The boom rotation is equipped with:
- Agasoline B&S13,5HP engine with anelectric
starter - A 35A/h battery
- Progressive controlvalves
- Suitable and resistantcylinders
- A double pump 3.2cc + 3.2cc
- A compass (for better bucket reference)
The digger allows all types of work:
- Digging,trenching
- Ditching,loadingandlevelling
- -wood grabber and rockgrabberand
digging hole - … etc.-
With ease, efficiency and maneuverability.
TheME-15excavator issuppliedasstandardwithanadditionalhydrauliclineandabucket of
yourchoice.Forsafetystandards,itisequippedasstandardwitharollbar.
We offer as options:
- Bucket20cmwide
- Bucket30cmwide
- 60cm wide gradingbucket
- Ripper tooth
- Quick hitch bucketsystem
- Wood grabber
- rock grabber
- hydraulic hole digger with
varioussizeofaugerasoption
DESCRIPTION

ME15 Technical Specifications

In this section the safety symbols on the machine are reproduced and explained.
Main security information
symbol
Arm retraction
Fuel
Close the bucket
HYD
Hydraulic fluid
Open the bucket
Raise the boom
Orientationoftheboom
(to theleft)
Lower the boom
Orientationoftheboom
(to theright)
Arm extension
Read the instruction
manual
SAFETY ON OUR MACHINES

GENERAL REQUIREMENTS
. Regularly maintain safety accessories. (Check maintenance instructions)
.DonotusetheME15 under theinfluence of medication,alcohol, drugsoranysubstances that
can cause any kind of disorientation.
. Work only during the day.
.Themachinemustnotbeusediftherearepeople,especiallychildrenoranimalsintheworkzone.
. The machine must be operated by trained personnel and after reading this manual.
. Before turning the machine on, check the functions of the safety devices.
. Before operating the machine, make sure the stabilizer blade is lowered.
. Do not move, stop or work under the arm.
. Do not work under or near power lines.
. Do not use the machine to transport, lift people or for any other unforeseen uses.
. Never exceed the usage limits set by the manufacturer.
. Never leave the machine unattended when the engine is running or the key is inserted.
SECURITY USE RESTRICTIONS
Usingthemachineisforbiddentochildrenandpeoplewhoarenotfamiliarwiththeseinstructions.
Localregulationsmayprohibittheuseofthemachinedependingontheage.
SAFETY INFORMATION

Controls

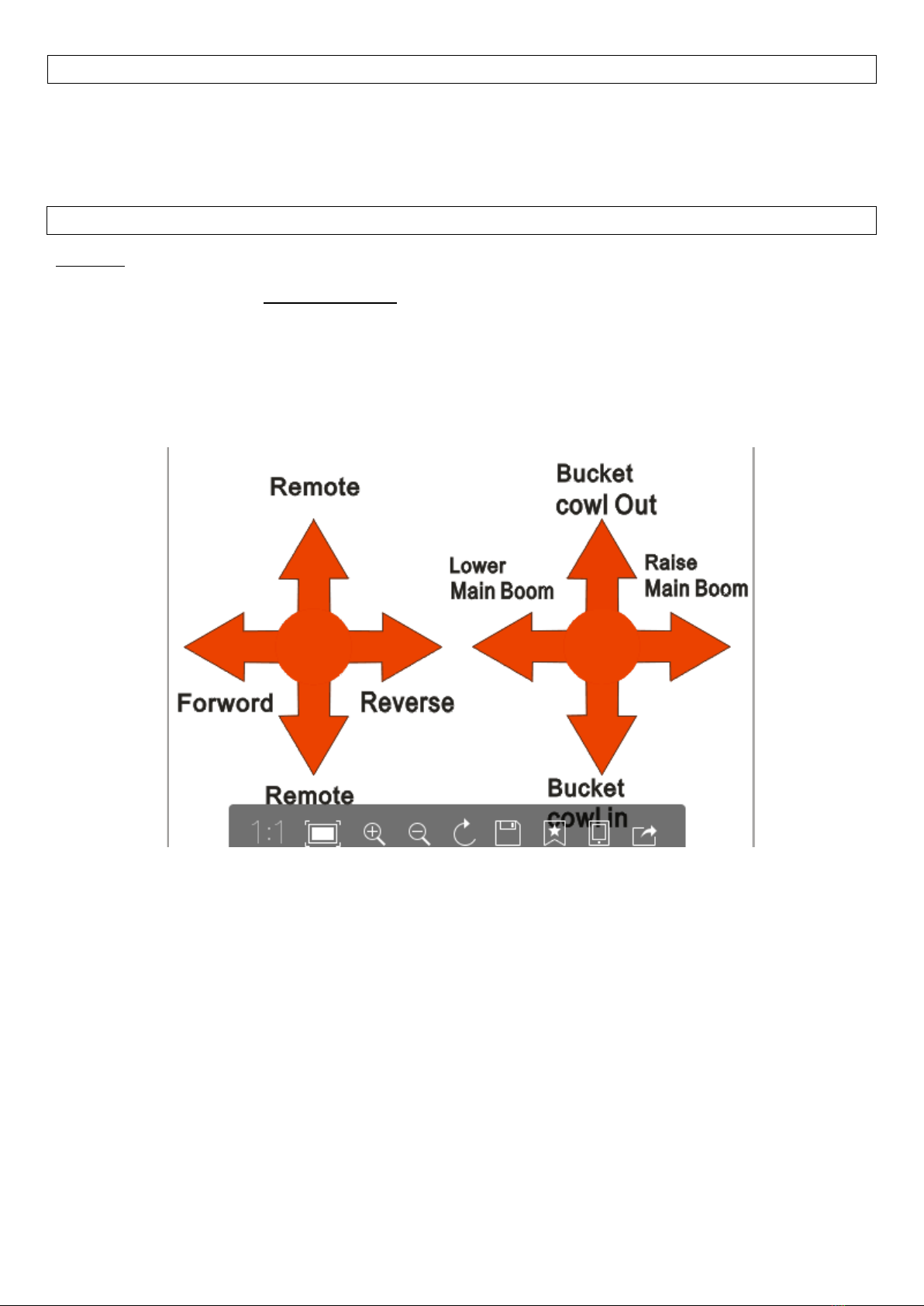

Control valve A
INSTALATION INSTRUCTIONS
INSTRUCTIONS FOR USE

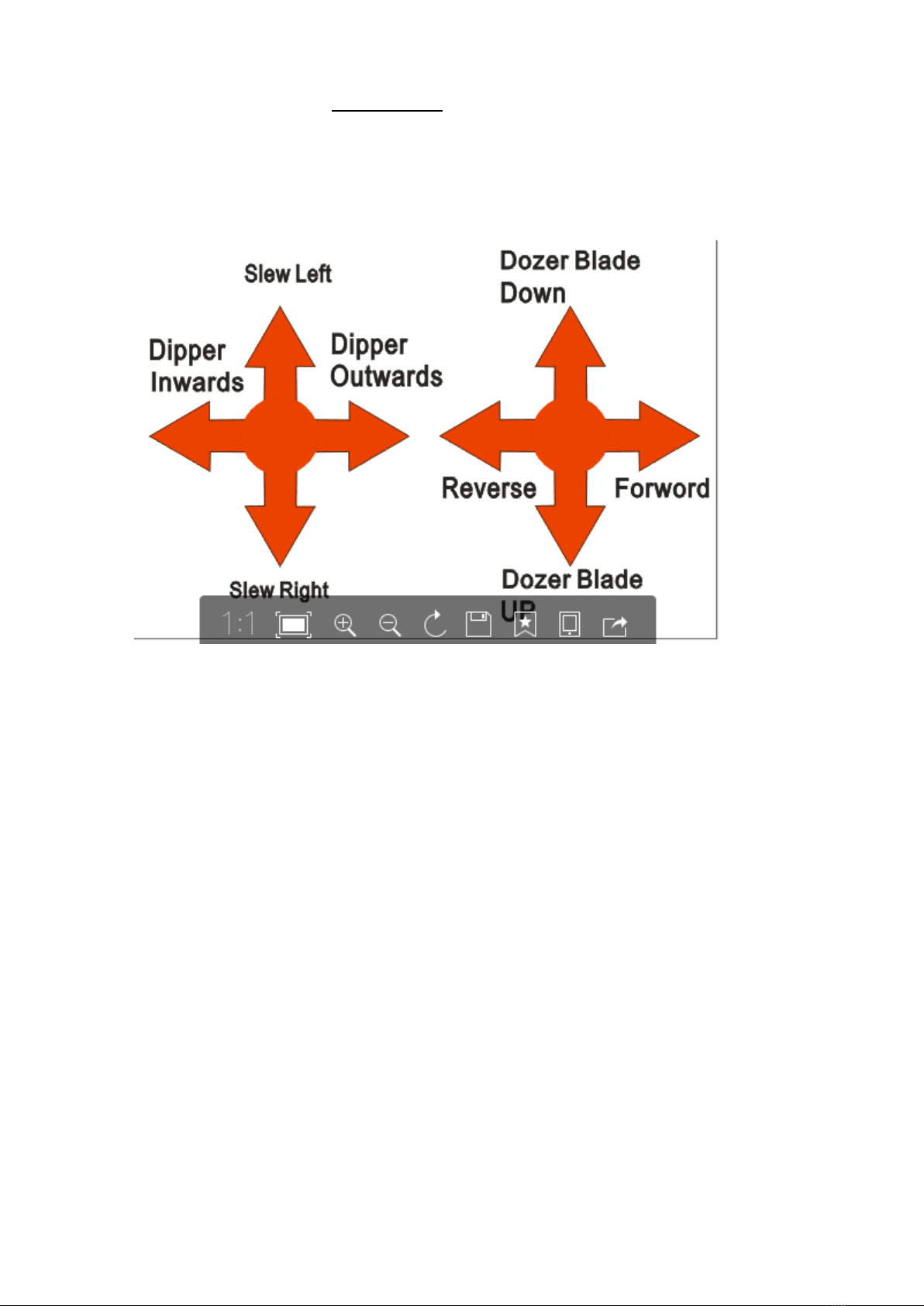

Distributor B

Before starting work
a / Checktheoillevelintheengineandhydraulicreservoir
b / Lubricate the machine
c / Move to the work zone
d / Check tightness and condition of parts
e / Checkfuel
To start working
a/Keepawayatadistanceofatleast15mfrompeople,animalsandallotherobjects.
b/Begin excavating using the levers.
At the end of the excavation operations
a/Closethearmonitself,turntothetransportposition.
b / Turnoffthemachine,closethefuelsupply.

Chart « A » represents a required maintenance schedule with time intervals for your machine. Not
respecting this schedule will affect the proper functioning ofthemachineandcause warrantyloss.
CHART « A » MAINTENANCE SCHEDULE
FIRST START-UP
EVERYDAY
EVERY 150 HOURS
OR MONTHLY
EVERY 1200
HOURSOR
ANNUALLY
SAFETY LABELS
Check condition
Check condition
Check condition
Check condition
LEVER CONTROL
Check automatic
return
Check automatic
return
Check automatic
return
Check automatic
return
HOSES
Check tightness
Check tightness
Check tightness
Check tightness
OIL TANK
Check level
Check level
Check level
Check level
OIL FILTER
OIL MULTIPLIER
Check level
Check level
Check level
Check level
PINS
Check for
presence
Check for
presence
Check for
presence
Check for
presence
HARDWARE
Check tightness
Check tightness
Check tightness
Check tightness
LUBRICATION
Grease
Grease
Grease
Grease
MAINTENANCE INSTRUCTIONS

OIL LEVEL, CHANGING THE OIL AND FILTER
Totopuporchangetheoil,useonlyhydraulicoilISOHVI46.Thecapacityofthetankis16L.
Theoperationoflevelingoremptyingmustbemadeasshownonthemaintenancechart«A».
1/To checkthe oil level in the tank, proceed asfollows:
a/ Put the machine on a flat surface and check the level.
b/Ifthelevelislow,unscrewthecapandfillitwiththeoilindicatedabove.Useonlynewoil.
c/ Once the level isreached, close the cap.
2/ To drain and replace the oil filter, proceed as follows:
a/ Put an adequate capacity container under the tank.
b/Loosenoneofthetwohosestopouroutthehydraulicoil.
c/Unscrewthe cartridgefilterandchangeit.
d/ Reconnect the hose and fill the tank..
LUBRICATION
All greasing points have HYDRAULIC FORM "A" UNI 7663 grease.
For lubrication, use only the MULTIFUNCTIONAL LITHIUM BASED NLGI 2 grease.

Symptom
Causes
Procedure
The controls do not work
- Hosesunconnected
- Hydraulicpump
broken
- Lack ofoil
- Connect the hoses
- Replacethepump
- Addoiltothetank
The cylinders move jerkily
- Air in the hydraulic system
- Checktheoillevelinthetank
- Check hosefittings
- Workeachcylinderforafew
minutestopushtheairout
Loose arm and/or stabilizers
- Worn out cylinder joints
- Replace theseals
- Checkthewearofthe
distributors
Oil overheating
- Dirty oilfilter
- Crushedhoses
- Low oillevel
- Replace thefilter
- Checkandreplaceif
necessary
- Fill up tolevel
Oil leak
- Couplingsnottightenough
- Worn outjoints
- Tighten couplings
- Replacethejoints
Insufficient bucket power
- Worn outpump
- Low oillevel
- Badly adjustedvalves
- Dirty oilfilter
- Oil leak
- Worn outjoint
- Replace thepump
- Level up theoil
- Checkthesetting
- Replace thefilter
- See above
- Replace joint
PROBLEM SOLVING

The transportation of the machine, after work, must be made on trailers with the engine turned off.
<Important>:keepamoderatespeed.Avoidheavyvibration.
<Note> :ontheroad,respectthelocalroadrules.Ensureallthe sidelightsanddirection indicators
are clearly visible from the rear.
< Operations >: Make sure that all the mechanical safety blocks are fully inserted..
Beforestorage,cleanthemachinetoremoveanydebris,soilanddust.Storethemachineinadryplace.
Attheendofthemachinesfunctionality,itmustbedestroyed;thisshouldbedoneonlybyauthorized
specialists. Follow local rules. Apply tothe competent authorities forthe procedure. The main components
of the machine are: iron, rubber, paint, etc ....
Themachineiscoveredbyamanufacturer'swarrantyforaperiodof24monthsfromthedateof
delivery;
The warranty is void:
a) if themaintenancehasnot been performed correctly
b) if the use doesnot matchthat specified bythemanufacturer
c) ifthemachinehasbeenalteredormodifiedwithoutpriorwrittenconsentofthemanufacturer
A3-yearwarrantyisgrantedonKOHLERengines,byKOHLERandonsiteatthedateofdelivery.
TRANSPORT
STORAGE
DISPOSING OF THE MACHINE
WARRANTY
