HBO TAKEDOWN:
TIER 1 INSTRUCTIONS

2
BRDGBRDG
BRIDGE STUDIOS
TABLE OF CONTENTS / INTRO
OVERVIEW ....................................................... 3
LAYOUT AND DIMENSIONS.............................. 4
LIST OF PARTS ................................................. 5
STICKERS.......................................................... 6
GRAPHICS......................................................... 7
UNBOXING........................................................ 8
UNIT ASSEMBLY.......................................... 9-17
SCREEN MOUNTING................................. 18-19
GRAPHIC APPLICATION.............................20-21
https://brdg.co/take-down-1
This booklet includes all assembly
instructions and information for HBO Max
Take Down 1. Scan above QR code or enter
URL to access online version.
Contact us:
1-844-999-2734
[e-mail]

3
BRDGBRDG
BRIDGE STUDIOS
OVERVIEW
T1-F
T1-D
T1-E
BASE
PLATE
T1-F
CABINET
STEEL PLATES
WITHOUT
GRAPHICS
T1-08
T1-08
T1-10
T1-08
T1-11
T1-11
T1-11
T1-12
T1-11
T1-08

4
BRDGBRDG
BRIDGE STUDIOS

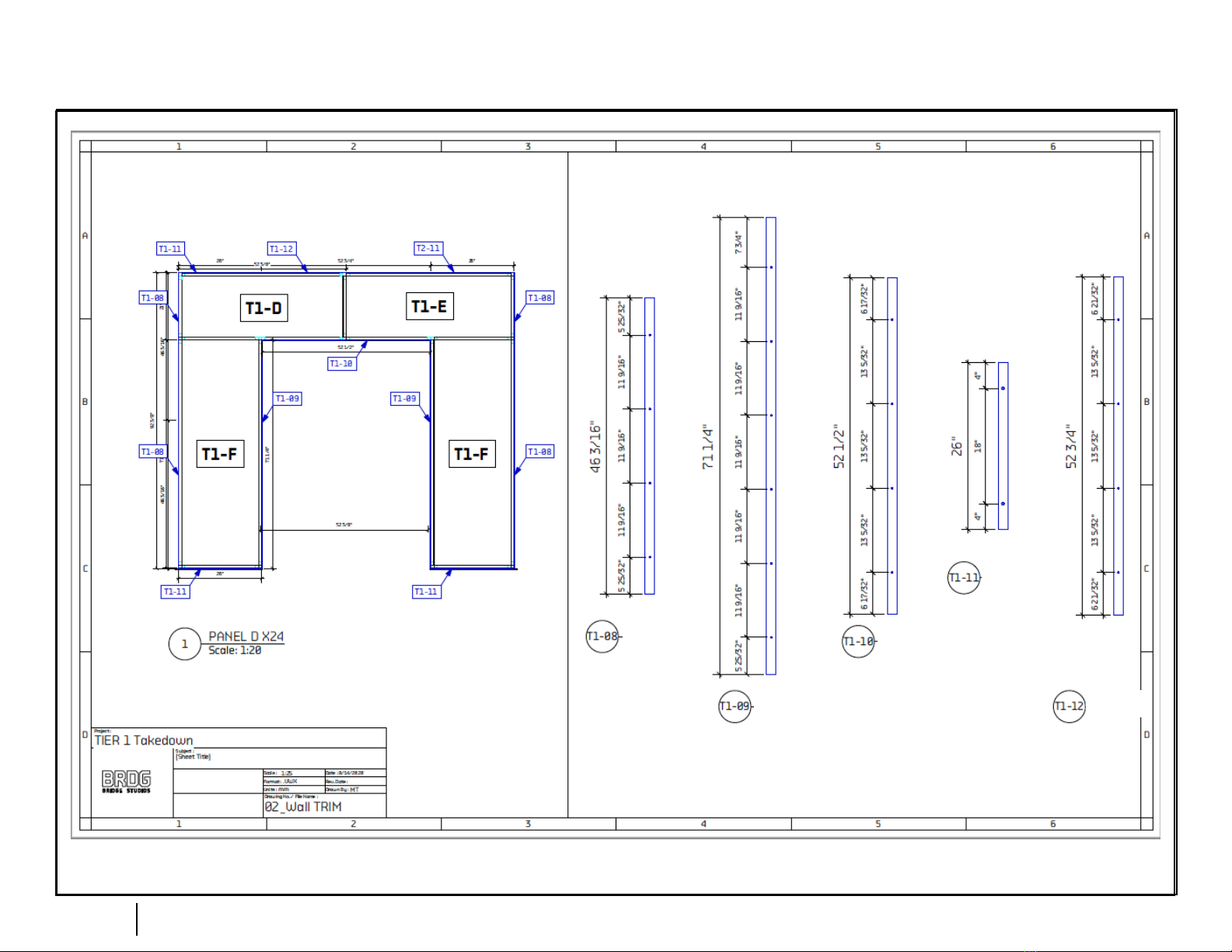

LAYOUT AND DIMENSIONS
QTY-4
QTY-4
QTY-2
QTY-1
QTY-1

5
BRDGBRDG
BRIDGE STUDIOS
LIST OF PARTS
NAME TYPE QTY
T1-D TOP LEFT HAND PANEL 1
T1-E TOP RIGHT HAND PANEL 1
TI-F SIDE PANELS 2
T-08 OUTER SIDE TRIM 4
T2-09 INNDER SIDE TRIM 1
T1-10 INNER TOP TRIM 1
T1-11 OUTER TOP TRIM 2
T1-12 MIDDLE TOP TRIM 1
CABINET METAL FRAME THAT HOLDS SCREEN 1
HARDWARE BAG EQUIPMENT 1
TOOL BAG EQUIPMENT 1
MAGNETIC PANELS APPLICABLE GRAPHICS 6
SCREEN DISPLAY 1

6
BRDGBRDG
BRIDGE STUDIOS
STICKERS
BRIDGE S T UDIOS
T1
-D
BACK
BRIDGE S T UDIOS
T1
-D
BACK
- EACH PART IS LABELED WITH A STICKER. THE QR CODE
LEADS TO A WEBSITE WITH INFORMATION ABOUT THIS
UNIT AND THIS GUIDE AS A
DOWNLOADABLE PDF.
- ALL STICKERS ARE POSITIONED IN THE BOTTOM RIGHT
HAND CORNER ON THE BACK OF THE PANEL.
- ALL STICKERS ON TRIM ARE TO BE FACING INWARD
WHEN THE TRIM IS APPLIED SO THAT THEY ARE NOT VIS-
IBLE AFTER ASSEMBLY.

7
BRDGBRDG
BRIDGE STUDIOS
GRAPHICS
FRONT BACK

8
BRDGBRDG
BRIDGE STUDIOS
UNBOXING
- OPEN THE ROLLING CASE AND LAY OUT ALL PARTS FLAT ON THE
GROUND.
- REFER TO PAGES 5 TO MAKE SURE NOTHING IS MISSING.
- REMOVE GRAPHICS BUT DO NOT REMOVE THEM FROM ROLLS.

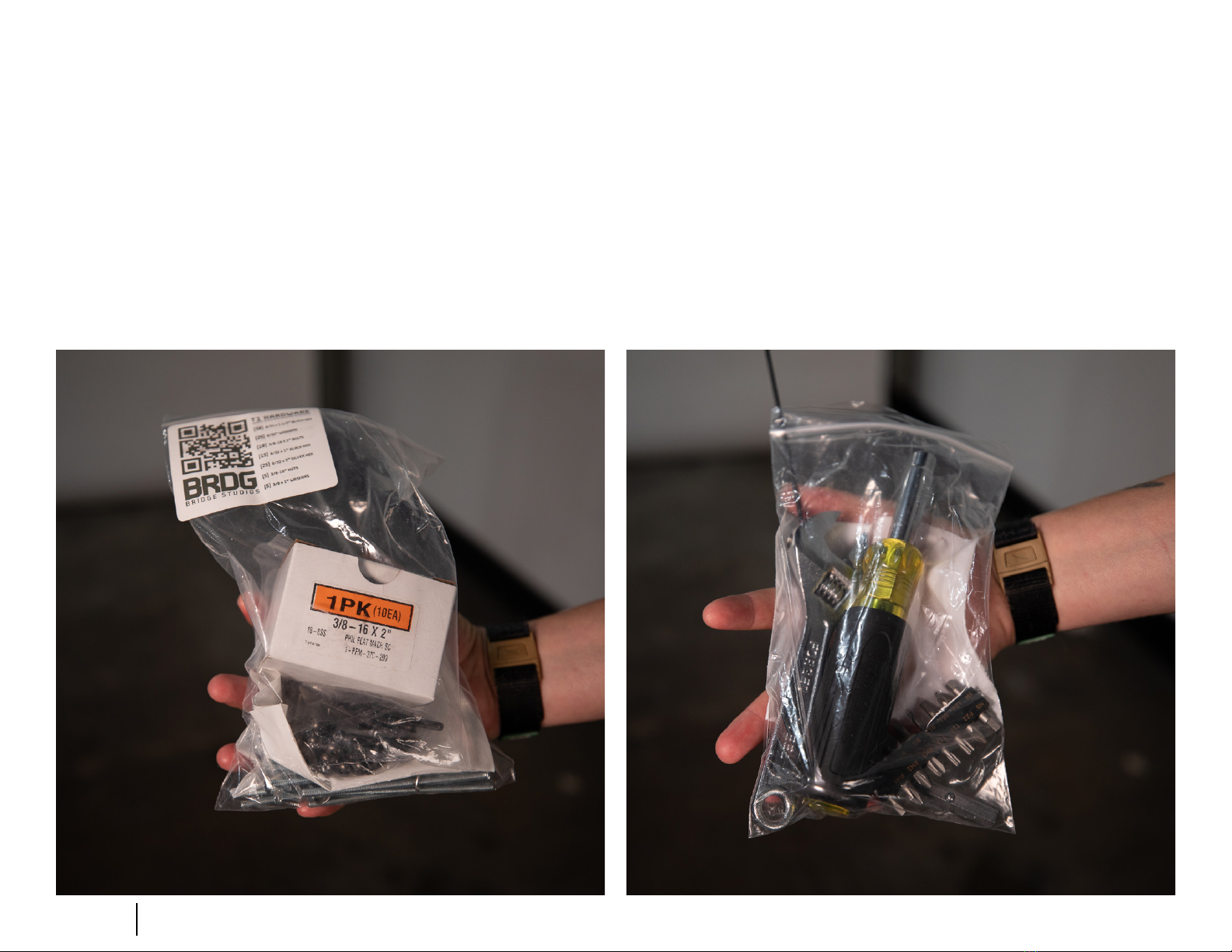

- EACH CASE SHOULD INCLUDE A TOOL AND HARDWARE SET.

9
BRDGBRDG
BRIDGE STUDIOS
UNIT ASSEMBLY

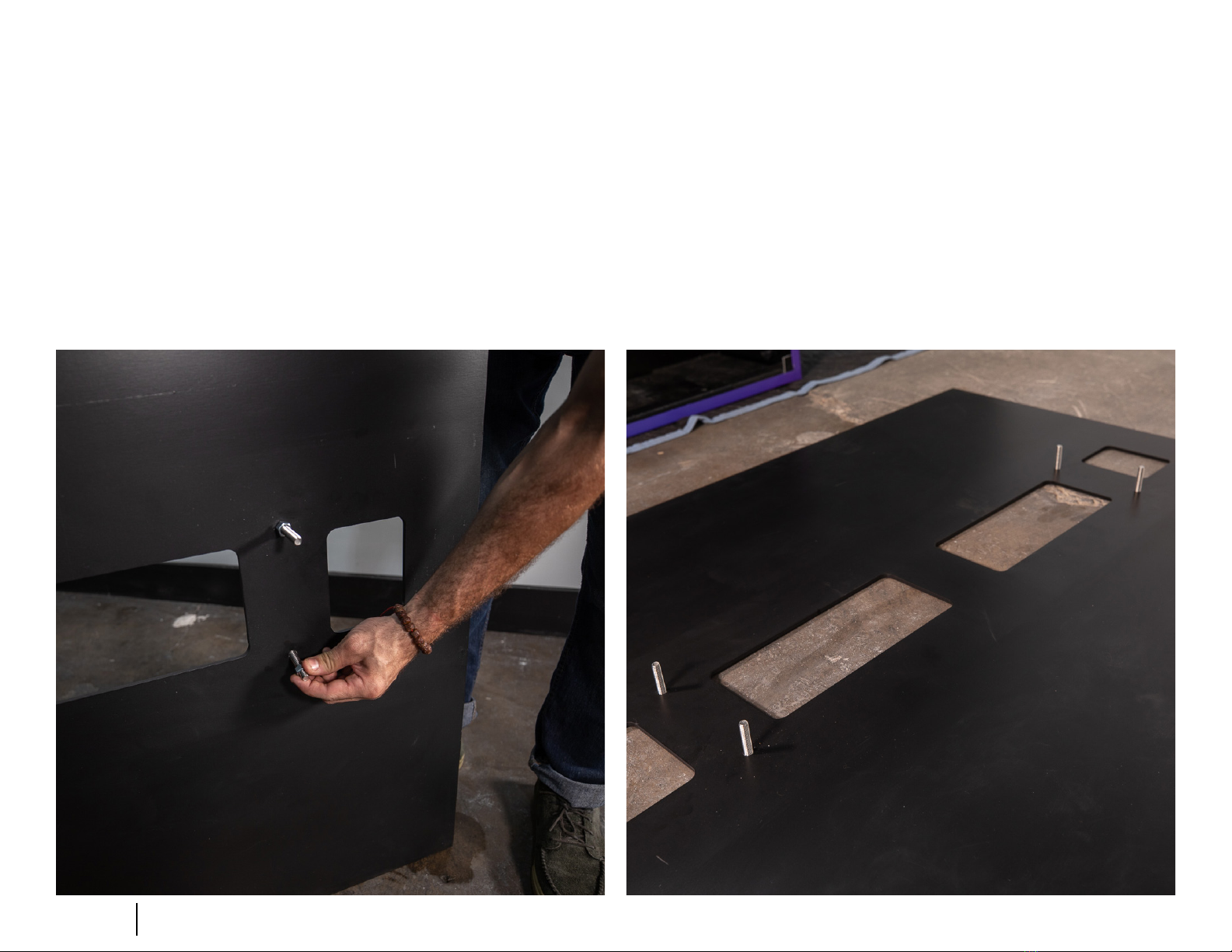

- LOCATE THE BASE PLATE AND STAND IT UP ON ITS SIDE.
- THREAD THE 3/8-16 x 2” BOLTS THROUGH THE BASE PLATE HOLES.
LIGHTLY HAND TIGHTEN 3/8-15” NUTS, SO THAT BOLTS REMAIN IN PLACE
WHEN LAID FLAT ON GROUND.
- LAY BASE PLATE DOWN FLAT WITH THREADS FACING UPWARD. REMOVE
NUTS

10
BRDGBRDG
BRIDGE STUDIOS

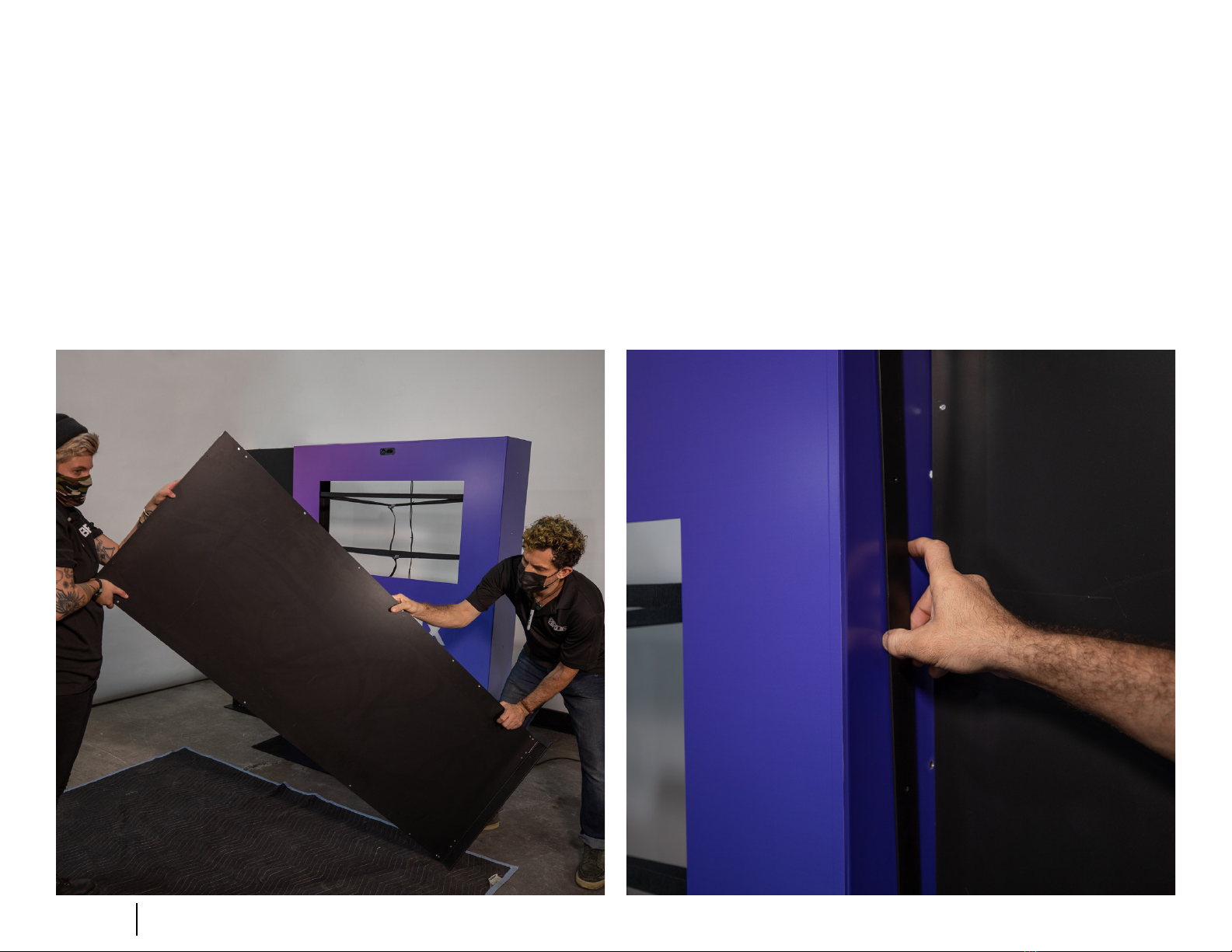

- UNSCREW BACK PANEL SCREWS USING ALLEN WRENCH (ONE INCLUDED
IF NECESSARY) AND UNLOCK TOP LOCKS USING A FLAT HEAD
SCREWDRIVER (ONE INCLUDED IF NECESSARY). REMOVE BACK PANEL
FROM CABINET.
UNIT ASSEMBLY

11
BRDGBRDG
BRIDGE STUDIOS
- WITH TWO PEOPLE, LIFT THE CABINET UP AND PLACE IT DOWN SO THAT
THE BOLTS FROM THE BASE PLATE GO THROUGH THE BOTTOM SLOTS.
- ALIGN THE BOLTS TO THE MIDDLE OF THE SLOTS.
- SECURE BASE PLATE TO CABINET WITH 3/8 X 1” WASHERS AND 3/8-16”
NUTS AND TIGHTEN FULLY USING INCLUDED WRENCH.
UNIT ASSEMBLY

12
BRDGBRDG
BRIDGE STUDIOS

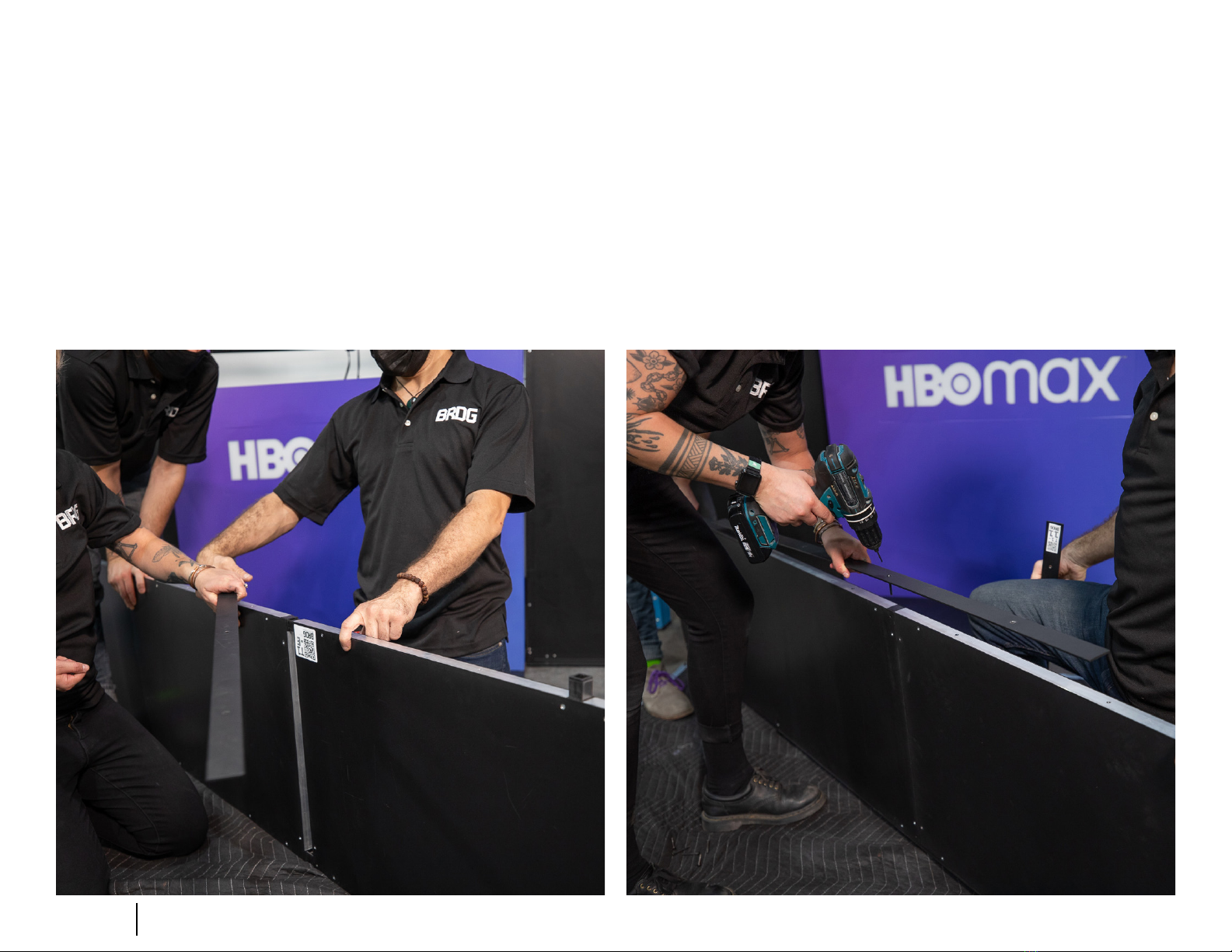

- LOCATE BOTH T1-F’S, THEIR BASEPLATES, AND THE T1-11 TRIM WITH
THE LARGER HOLES.
- WITH T1-F ON ITS SIDE, ALIGN THE HOLES IN THE TRIM AND BASEPLATE
WITH THOSE ALONG THE BOTTOM OF T1-F. THE PLATE WILL ONLY FIT ON
ONE WAY. THE EXTRUDED FOOT WILL FACE OUTWARD FROM THE UNIT.
- CAREFULLY THREAD TWO 3/8-16 X 2” BOLTS BEFORE FULLY TIGHTENING
WITH INCLUDED SCREW DRIVER
UNIT ASSEMBLY

13
BRDGBRDG
BRIDGE STUDIOS
- REPEAT STEPS 11 THROUGH 13 FOR THE OTHER T1-F.
- ALIGN THE HOLES ON THE INNER SIDE OF ASSEMBLED T1-F (SIDE WITH-
OUT THE BOTTOM LIP) AND THE HOLES ON THE SIDES OF THE
CABINET.
- SLIDE TRIM T1-09 BETWEEN THE CABINET AND T1-F AND LINE ITS HOLES
UP AS WELL.
UNIT ASSEMBLY

14
BRDGBRDG
BRIDGE STUDIOS

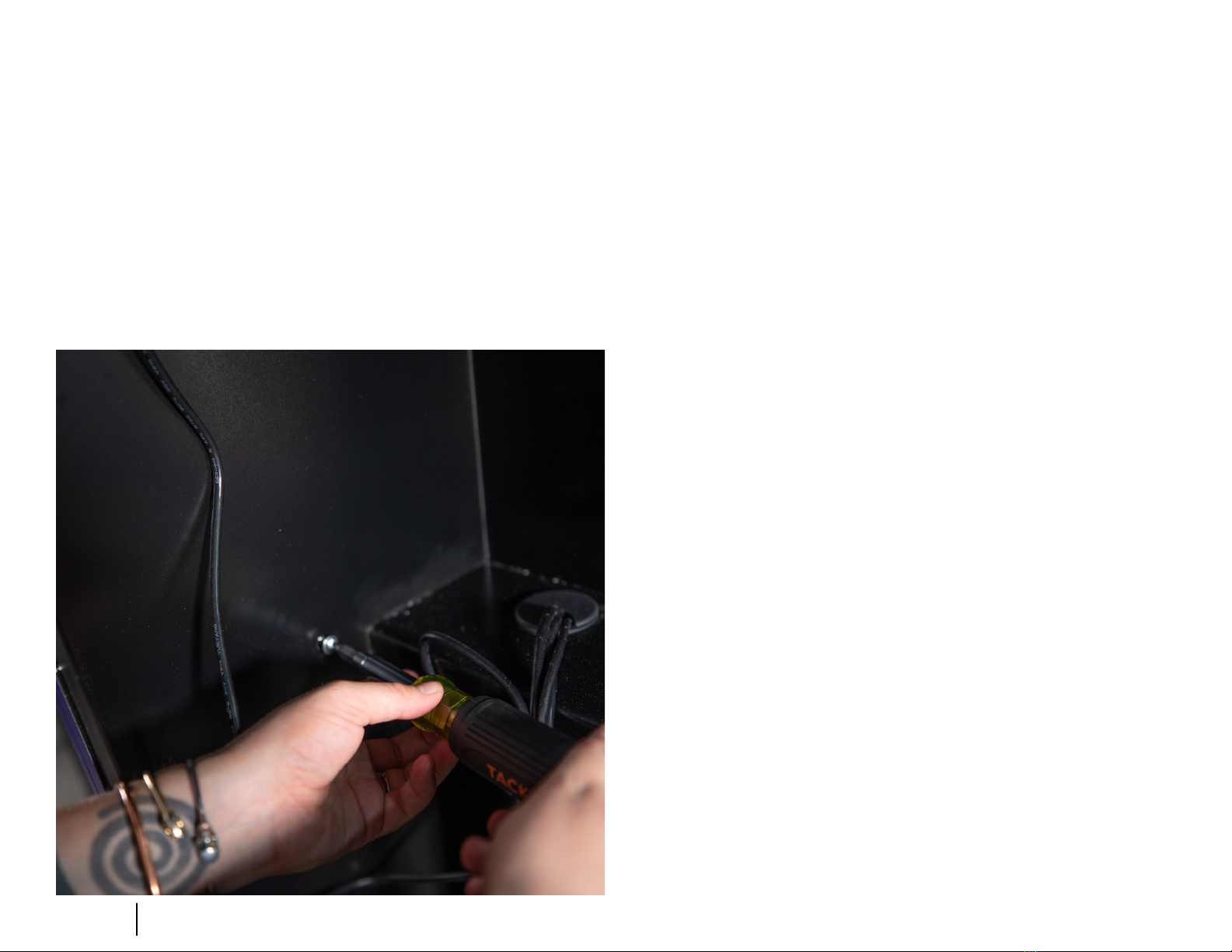

- SCREW 8/32 X 3” SILVER HEX BOLTS WITH 8/32” WASHERS FROM THE
CABINET’S INTERIOR HOLES, THROUGH THE TRIM, AND INTO THE HOLES ON
THE INSIDE OF T1-F USING A PHILIPS HEAD SCREWDRIVER ( ONE INCLUDED
IF NECESSARY). DO NOT FULLY TIGHTEN SCREWS.
- REPEAT STEPS 15 THROUGH 17 FOR THE OTHER T1-F.
UNIT ASSEMBLY

15
BRDGBRDG
BRIDGE STUDIOS

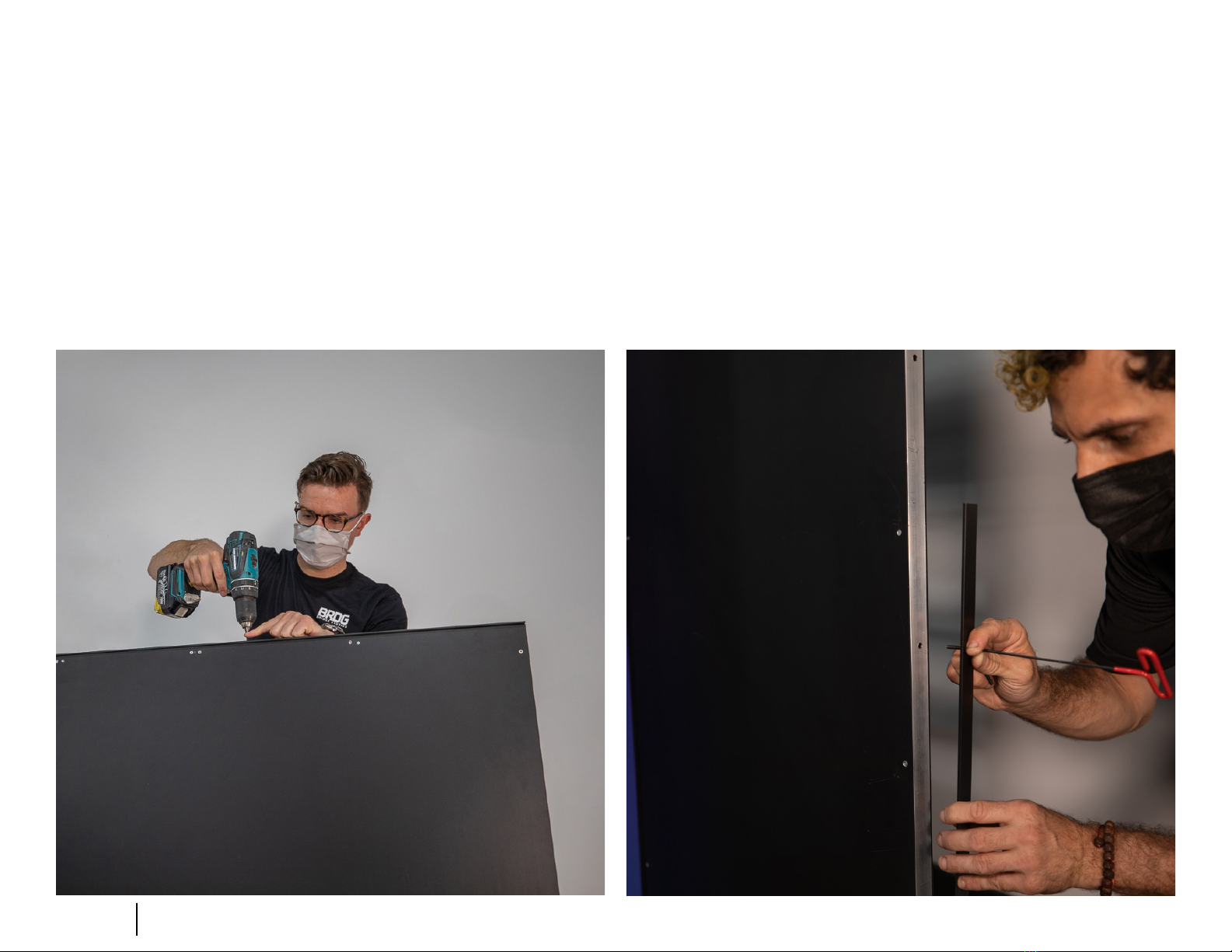

- LOCATE T1-D AND T1-E AND PUSH THEM TOGETHER.
- ATTACH TOP TRIM T1-12 ALONG TOP AND THEN BOTH T1-10 ALONG
BOTTOM WITH 8/32 X 1 1/2” BLACK HEX BOLTS USING THE ALLEN
WRENCH. DO NOT TIGHTEN SCREWS UNTIL ALL TRIM IS PROPERLY
ALIGNED. THIS STEP MUST BE COMPLETED BEFORE YOU ATTEMPT TO LIFT
THIS PIECE. THE SEAM BETWEEN T1-D AND T1-E IS FRAGILE.
UNIT ASSEMBLY

16
BRDGBRDG
BRIDGE STUDIOS

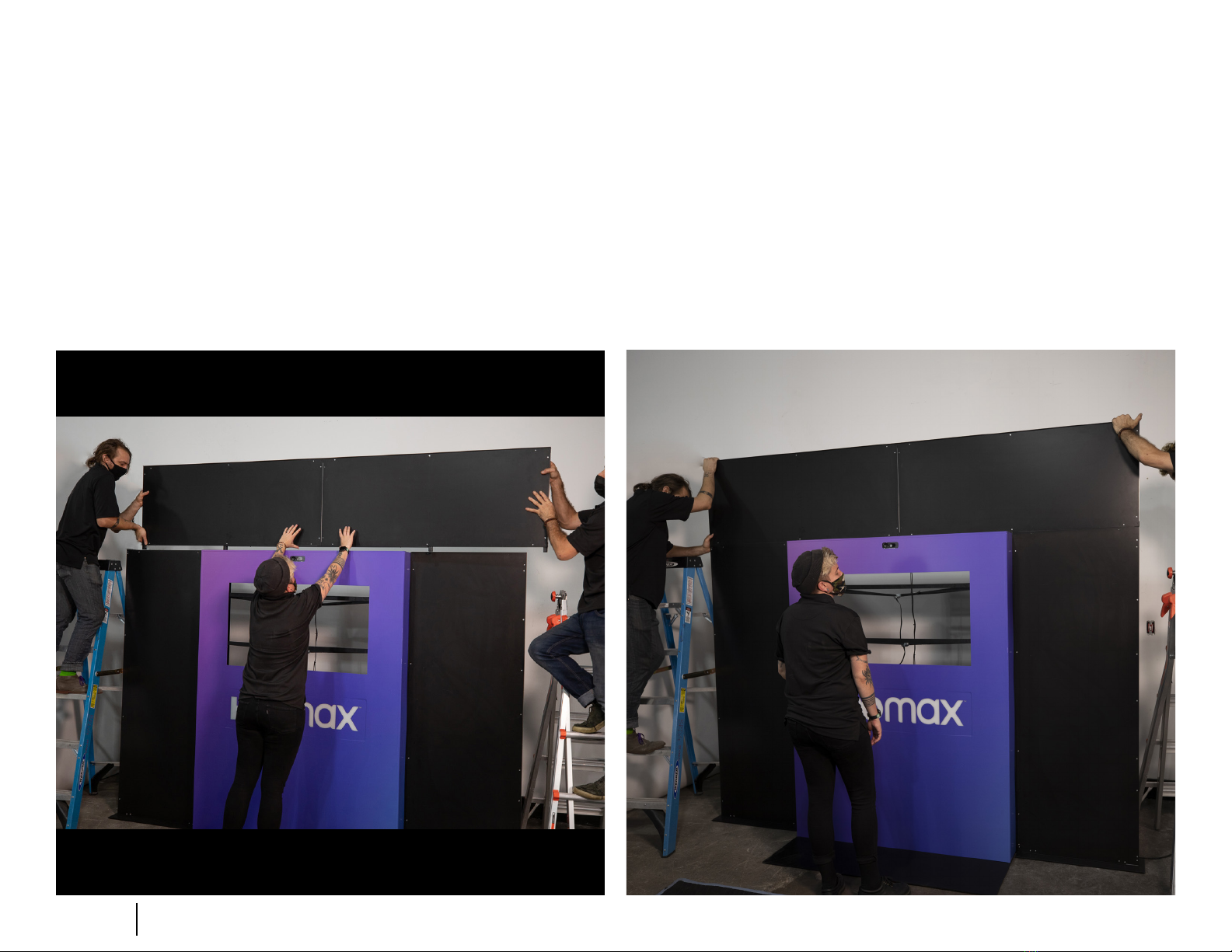

- WITH A PERSON ON EITHER SIDE AND ONE PERSON IN THE MIDDLE, LIFT
THE ASSEMBLED TOP OF THE UNIT. LIFT THE TOP OVER THE CABINET
ANDTHE TOPS OF BOTH T1-F’S.
- ONCE IN PLACE TIGHTEN ALL OF THE SCREWS INSIDE OF THE CABINET.
UNIT ASSEMBLY

17
BRDGBRDG
BRIDGE STUDIOS
- ATTACH T1-11 TRIM ON TOP LEFT AND RIGHT USING ALLEN WRENCH AND
8/32 X 1 1/2” BLACK HEX BOLTS.
- ATTACH T1-08 TRIM ON LEFT AND RIGHT SIDES USING ALLEN WRENCH
AND 8/32 X 1 1/2” BLACK HEX BOLTS.
-DO NOT TIGHTEN ALL BOLTS UNTIL YOU ARE SURE THE TRIM IS PROPERLY
ALIGNED.
UNIT ASSEMBLY

18
BRDGBRDG
BRIDGE STUDIOS

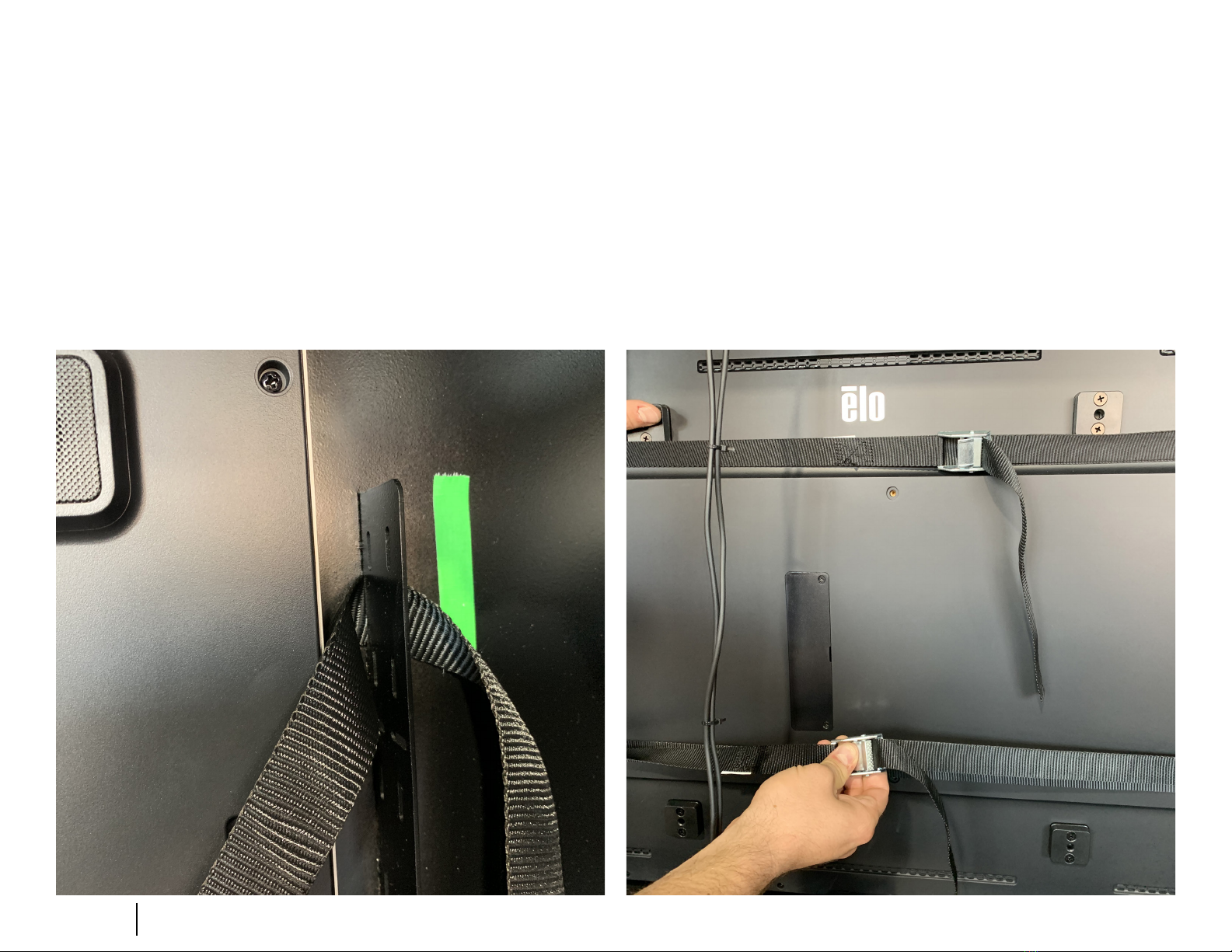

- LIFT SCREEN ONTO LEDGE ON THE BACK OF THE CABINET WITH ITS
DISPLAY FACING OUT.
- CAM STRAPS SHOULD BE THREADED THROUGH SIDE BRACKETS.
TIGHTEN THEM UNTIL THE SCREEN IS SECURE.
SCREEN MOUNTING

19
BRDGBRDG
BRIDGE STUDIOS
- PLUG IN ALL CABLES. THE HDMI CABLE MUST GO INTO THE “HDMI 1”
PORT ON THE SCREEN.
- PUT BACK PANEL ON UNIT AND SCREW IN WITH ALLEN WRENCH AND
8/32 X 1” BLACK HEX BOLTS.
SCREEN MOUNTING

20
BRDGBRDG
BRIDGE STUDIOS
GRAPHIC APPLICATION

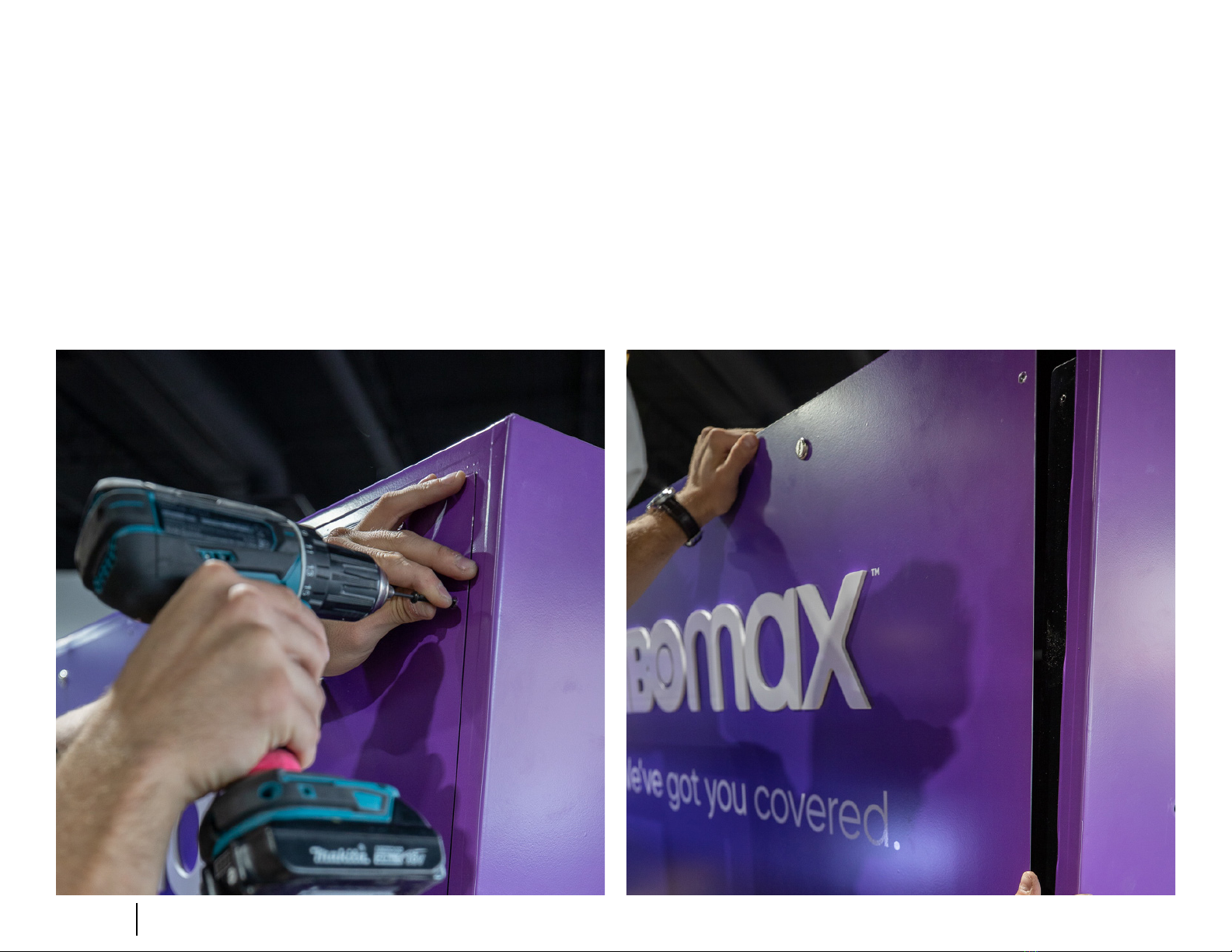

- UNROLL MAGNETIC GRAPHICS. HAVE ONE PERSON HOLD UP EACH SIDE.
NEVER BEND OR FOLD GRAPHICS, THEY CREASE EASILY.
- APPLY GRAPHIC STARTING FROM OUTER EDGE AND WORK INWARD. ALIGN
WITH TRIM. REPOSITION AS NECESSARY.
- APPLY GRAPHICS FROM RIGHT TO LEFT, FRONT TO BACK.
