Bromic Heating 3735203-NR User manual

01/2022 - V7
UPRIGHT STORAGE
CHILLERS AND FREEZERS
3735203-NR, 3735161-NR, 3735200-NR, 3735194-NR

1300 276 642bromicrefrigeration.com.au
2
CONTENTS
Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration.
1. PREFIX
3
2. IMPORTANT NOTES & WARNINGS
4
3. PRODUCT OVERVIEW
6
4. INSTALLATION
7
5. OPERATION
9
6. PRODUCT LOADING AND STORAGE
10
7. MAINTENANCE
10
8. TROUBLESHOOTING
11
9. ENVIRONMENTAL & DISPOSAL NOTES
12
10. WARRANTY
12

1300 276 642 bromicrefrigeration.com.au
3
1. PREFIX
This manual contains important information about the installation, operation, and maintenance
of Bromic upright storage chillers and freezers. Please pay close attention to the important
safety information shown throughout this instruction manual. Any safety information will be
accompanied by the following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can result
in death, severe injury, or property damage.
• Improper installation, operation, or maintenance may also
result in warranty being voided.
• This appliance is intended for 220-240 Volt power supply.
• Installation and maintenance MUST be carried out as per
instruction, by a qualified technician in accordance with
local regulation.
!
!
!

1300 276 642bromicrefrigeration.com.au
4
• Read all instructions before installing or using this appliance.
• Retain this manual for future reference.
• Use this appliance only as described in this manual. Any other use not recommended by the manufacturer
may cause fire, electric shock or injury.
• Improper installation, adjustment or alteration and failure to follow the warnings and instructions in this
manual could result in severe personal injury, death or property damage.
• The manufacturer is not responsible for any damage that could happen from improper use. The manufacturer
emphasises that this appliance should be used in a responsible manner and that all procedures, warnings,
and safety instructions contained in this booklet be followed strictly.
• Check the appliance for damage. Do not operate a damaged unit.
• Check for damage to the appliance regularly. If damage to the appliance is suspected, discontinue use
immediately and contact the supplier or qualified person to repair.
• This appliance is not intended for use by people (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible of their safety.
• Keep packaging material out reach of children.
• Children should be carefully supervised to ensure that they do not play with the appliance.
• Do not attempt to alter the appliance in any manner.
• Please pay attention to the maximum load limit when filling the shelves.
• All work on electrical equipment must be carried out by a qualified and licenced technician only.
• Do not perform maintenance until the appliance has been turned o and power disconnected.
• Never detach any cover except where specifically instructed in this manual. Doing so might expose live
electrical parts.
• Do not operate the appliance with panels, covers or guards removed.
• Keep the air intake and outlets free of obstructions.
• Do not use the appliance outdoors.
• If the supply cord becomes damaged, it must be replaced by an authorised service agent or similarly
qualified person in order to avoid a hazard.
• If the appliance has not been used, or will not be used for a long period of time, disconnect
power supply.
• The appliance must be installed in accordance to AS1677.2:1998 to ensure there are no sources of ignition in
any area where refrigerant could gather in the event of a leak.
• Electrical equipment should not be placed under the unit or where refrigerant could gather in the event of a
leak.
• Installation/servicing of the appliance must be performed by a licenced technician with Gas Work
Authorization if the appliance gas system is being opened or charged.
2. IMPORTANT NOTES AND WARNINGS

1300 276 642 bromicrefrigeration.com.au
5
• The refrigerant used in this appliance is flammable, use caution during handling, servicing and disposal of the
appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure
for building-in.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• WARNING: Do not damage the refrigerating circuit.
• WARNING: Do not use electrical appliances inside the food/ice storage compartments unless they are of the
type recommended by the manufacturer.
• WARNING: In order to reduce flammability hazards the installation of this appliance must only be carried out
by a suitably qualified person
Warning: Risk of fire /
Flammable materials

1300 276 642bromicrefrigeration.com.au
6
3. PRODUCT OVERVIEW
UC0650SD
-NR
UF0650SDF
-NR
UC1300SD
-NR
UF1300SDF
-NR
Part Number 3735161-NR 3735203-NR 3735200-NR 3735194-NR
External Dimension
Height, mm 2010 2010 2010 2010
Width, mm 740 740 1480 1480
Depth, mm 830 830 830 830
Net Capacity Litres 440 440 1035 1035
Net Weight kg 135 140 198 208
Air Circulation Type Forced Forced Forced Forced
Climate Class Class 4 4 4 4
Max Ambient Temperature 38°C 38°C 38°C 38°C
Temperature
Range 1°C to 5°C -18°C to -22°C 1°C to 5°C -18°C to -22°C
Type Digital Digital Digital Digital
Exterior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Interior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Electrical
Voltage, V a.c. 220-240 220-240 220-240 220-240
Frequency, Hz 50 50 50 50
Current, A 3.0 4.2 3.4 6.0
Power, W 305 520 508 815
Door
Solid/Glass Solid Solid Solid Solid
Type Hinged Hinged Hinged Hinged
Self-Closing Yes Ye s Yes Ye s
Door Lock Yes Ye s Yes Ye s
Shelves Qty 5+base 5+base 10+base 10+base
Weight Limit, kg 20 20 20 20
Adjustable Yes Ye s Yes Ye s
Refrigeration
Refrigerant R290 R290 R290 R290
Charge, g 120 145 135 135
Plug Rating 10A 10A 10A 10A
Wheels
Type Castors Castors Castors Castors
Lockable Yes Yes Yes Yes
Quantity 4 4 4 4
Extra Care Warranty Years 2 2 2 2
* Climate class 4 refers to 30 °C ambient temperature and 55% relative humidity

1300 276 642 bromicrefrigeration.com.au
7
4. INSTALLATION
Locating the Cabinet
Ensure the following instructions are observed as this is vital for proper and trouble-free operation.
• Do not install the cabinet outdoors.
• Locate the appliance in a dry and well ventilated place.
• The unit must be positioned on a level surface.

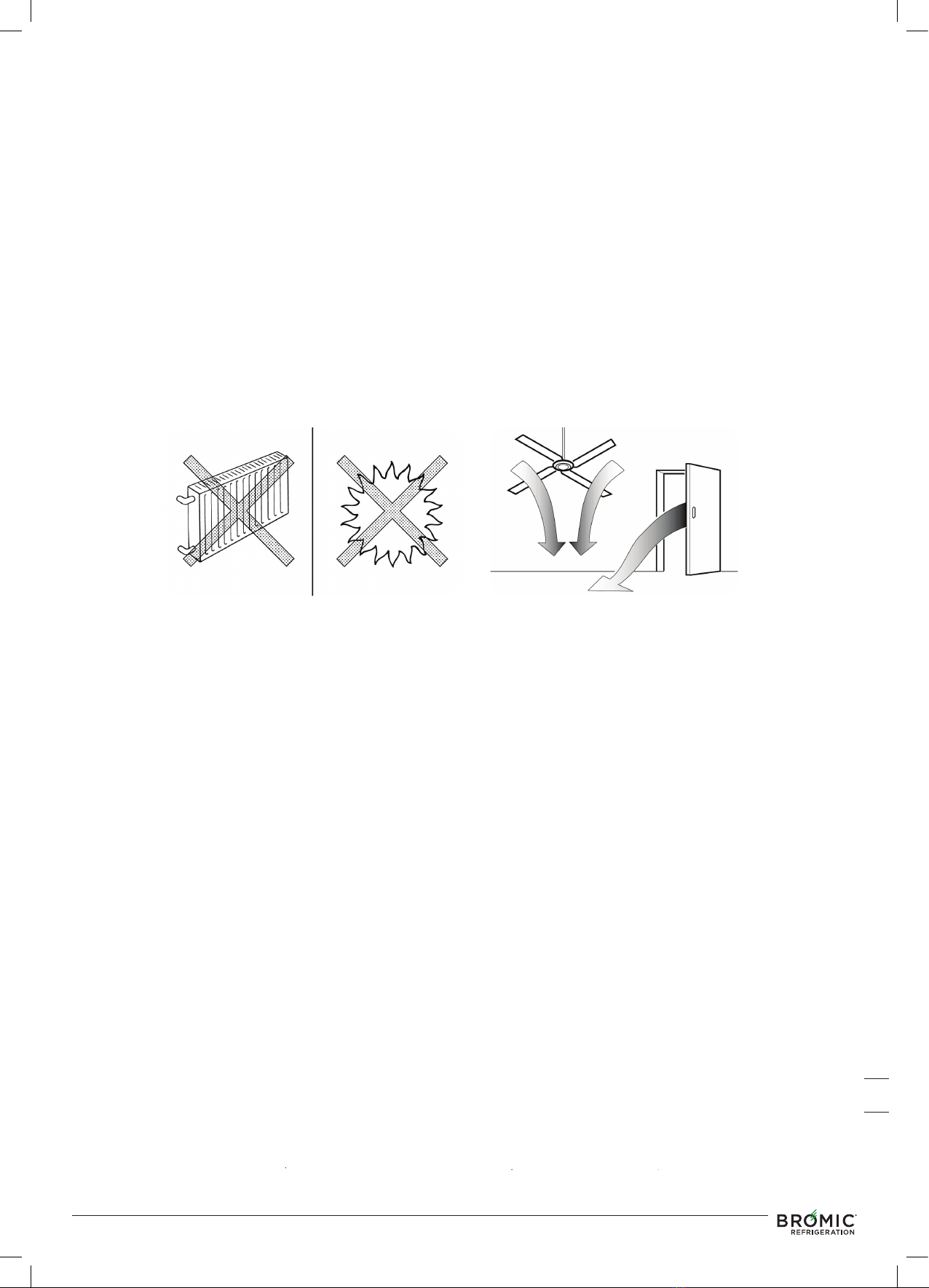

• Do not install in the vicinity of heating radiators or other heat sources.
• Do not install the appliance where it is exposed to direct sunlight.
• Do not install the appliance where it is exposed to warm draughts or open doors.
• Keep the air intake and outlets free of obstructions.
• Adequate allowance should be made for door openings.
Ventilation
• Allow 150mm clearance between walls, ceiling and the appliance.
• Ensure that the condenser fan is free to take in ambient air from the room.
• Ensure adherence to minimum clearances and maximum ambient temperature for optimal
performance and reliability

1300 276 642bromicrefrigeration.com.au
8
Power Supply

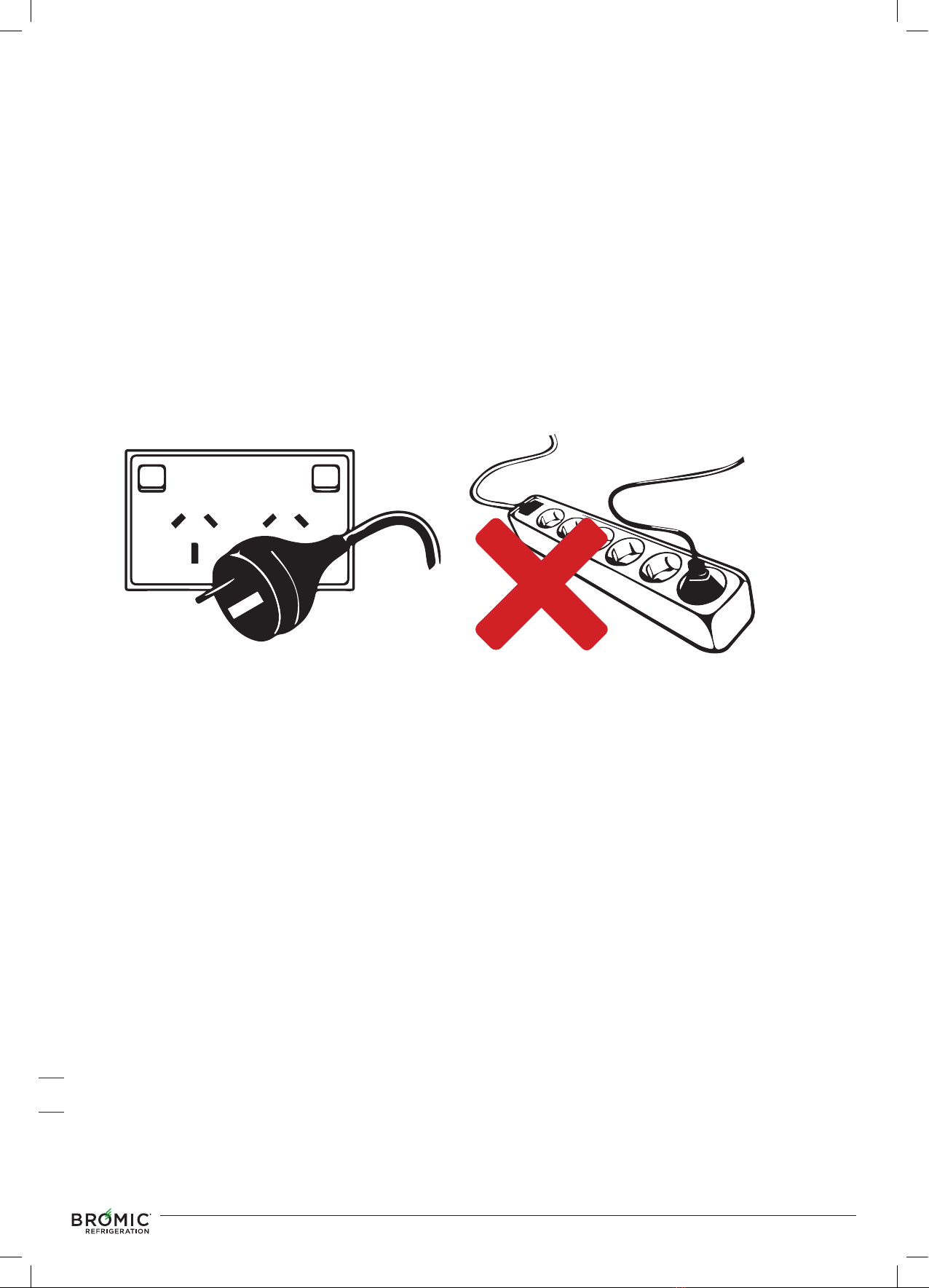

• The appliance must not be plugged into a multiple outlet power board.
• The appliance is supplied with a flexible power cord fitted with a 3-pin plug.
• The socket used must be properly earthed and fuse/RCD protected.
• See the rating label inside the cabinet for supply voltage, frequency and current draw.
• Power cable should not be placed next to heat source such as room heater or other
electrical appliance.
• Do not turn o power before consulting the person responsible.
• Mark the power source clearly, so the refrigerator is not unplugged or turned o
accidentally.
Before Operating
• Avoid tilting or transporting the appliance in a horizontal position. If the appliance were
to be tilted, it must be left to stand in an upright position and not plugged in for at least 6
hours.
• Remove all the packaging material before using the appliance.
• Start the appliance only if it has been installed as described.

1300 276 642 bromicrefrigeration.com.au
9
5. OPERATION
Start-up
• Connect the appliance to the mains power supply and turn on the main switch by flipping
it upward.
• The compressor and condenser fan should operate within 3 minutes after the main switch
is turned on.
• The electronic controller will display the current cabinet temperature after the
Refrigeration switch is turned on.
• The LED indicates that refrigeration circuit is operating.
• During the start-up delay (3 minutes), the LED is flashing.
• The LED indicates that the refrigeration circuit is defrosting.
Setting the temperature
i. Press the button for more than 3 seconds.
ii. The value of the set point will be displayed and the ‘°C’ or ‘°F’ LED starts blinking.
iii. Press or arrow key within 10 seconds to adjust the set point.
iv. Press the key again or wait 10 seconds.

1300 276 642bromicrefrigeration.com.au
10
6. PRODUCT LOADING AND STORAGE
Start-up
• Clean the interior surface with a soft cloth and warm water before loading.
• Ensure there is free circulation of air between the products.
• Do not block the evaporator fan.
• Do not overstock the refrigerator.
• Keep refrigerator door openings to a minimum.
• Some products are sensitive to ultraviolet (UV) light, please see storage guidelines from
the manufacturer before removing from packaging.
• Maximum recommended shelf load (for each shelf) is specified in section 3 (page 5) of
this manual. Do not overstock.
NOTE: Bromic cannot be responsible for loss of stock or damage to stock.
IMPORTANT: Run the refrigerator for at least 2 hours before loading.
7. MAINTENANCE
WARNING: Disconnect the appliance from the power supply before performing any
maintenance. Never unplug the appliance by pulling on the cord. Always grasp the
plug firmly and pull straight out of the outlet.
WARNING: Exposure to significant water ingress will void warranty and cause
potential safety issues. If the unit should be exposed to water, please contact the
manufacturer immediately.
IMPORTANT: Warranty may be void if there is no evidence of preventative
maintenance is performed on the appliance.
WARNING: WARNING: Do not store explosive substances such as aerosol cans with
a flammable propellant inside the appliance.

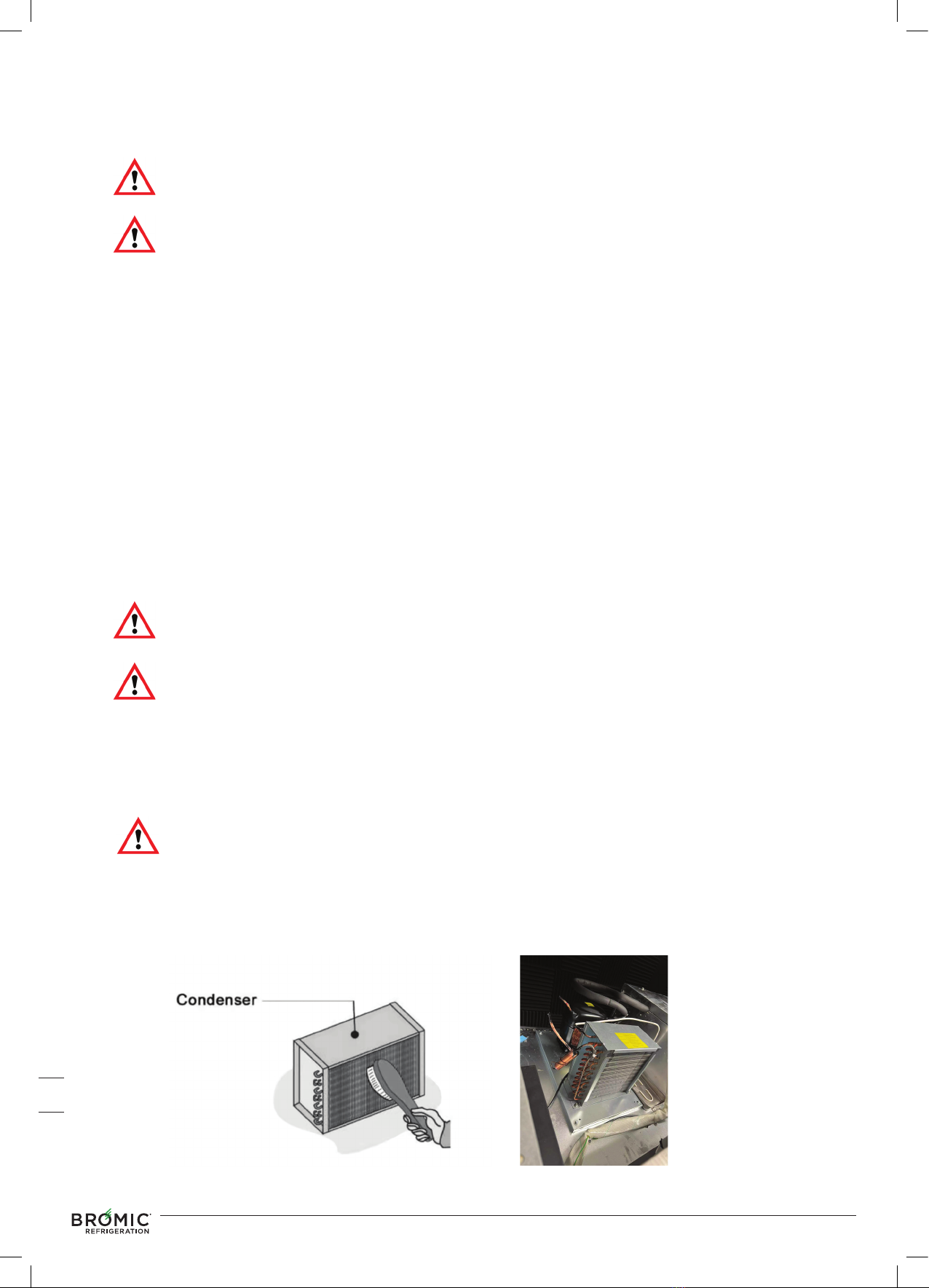

Condenser Coil/Filter
IMPORTANT: The filter and the condenser coil must be cleaned once a month with
vaccum/brush to maintain the performance and minimise power consumption. The
filter (for selective models) can be removed for cleaning with water, make sure it is
dried before reattaching. A poorly maintained condenser coil can lead to failure of the
unit and higher cabinet temperatures.
The condenser is located at the top of the cabinet next to the compressor, use
caution while cleaning as fins are sharp.

1300 276 642 bromicrefrigeration.com.au
11
8. TROUBLESHOOTING
IMPORTANT: Repairs on the unit must be carried out by an authorised and licenced
person only. Contact the manufacturer or an approved service agent for any repairs
needed.
Symptom Possible Cause(s)
Unit does not work A. No power supply
B. Main switch o
A. Check power supply
B. Turn on main switch
Cabinet
Temperature
Too High
A. Ambient temperature too high
B. Inadequate ventilation
C. Wall clearances below
minimum distance
D. Dirty condenser coil and filter
E. Ice build-up on evaporator coil
A. Relocate unit
B. Keep ventilation slots free
C. Adjust to minimum clearance
D. Clean
E. Check gaskets and set
temperature
Cabinet
Temperature
Too Low
A. Set temperature too low A. Adjust set temperature
Water leak A. Extreme operating condition A. Relocate unit
Odour inside
cabinet
A. Cabinet dirty A. Clean
Controller error
code
A. P1
B. P2
C. dA
A. Room probe failure
B. Evaporator probe failure
C. Door open or door switch
failure
Noisy A. Unlevel surface A. Relocate unit
Cleaning the Cabinet
• Remove the products and transfer to a suitable location prior to cleaning the inside
of the cabinet.
• Do not use any aggressive or abrasive cleaning agents.
• Never use a water hose or a high-pressure jet to clean.
• Do not use sharp or pointed objects for cleaning.
• Clean the inside and outside of the appliance with a clean damp cloth or with a
neutral cleanser.
• Dry all surfaces with a dry cloth.

1300 276 642bromicrefrigeration.com.au
12
9. ENVIRONMENTAL AND DISPOSAL NOTES
These refrigerated cabinets are designed to high standards of environmental protection and recycling
convenience. Cyclopentane, an environmentally friendly foaming agent, has been used. Cyclopentane
is distinguished by zero ozone depletion potential (ODP) and zero global warming potential (GWP).
The refrigerant used and contained within a hermetically tight circuit is environmentally friendly and
does not contain chlorine and zero ODP.
The device must be disposed of in accordance with applicable regulations. The WEEE regulations
must be observed.
In the interest of preventing environmental nuisance and promoting re-use of the high quality
materials employed, used commercial refrigeration equipment must be collected for expert disposal
and recycling. Therefore, observe the following disposal regulations:
• The cabinet must not be discarded with regular waste.
• The refrigeration circuit must not be damaged.
• Before disposal, make it unserviceable by disconnecting the power plug and cutting o the
power cable.
• Consult your local authorities or authorised dealers for details of collection and disposal facilities.
• Children are often unable to recognise the dangers associated with commercial refrigeration
equipment. Proper supervision must be maintained and children must be prevented from playing
with discarded refrigerated cabinets.
• The refrigerant used in this appliance is flammable. The refrigeration circuit must not be
damaged.
10. WARRANTY
All Bromic products are manufactured
to the highest quality standard and are
supported by our Extra Care Service Warranty,
including guarantees against any material or
workmanship defects; guarantees that cannot
be excluded under Australian Consumer Law.
Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions
that apply to the purchase of your Bromic product by referring to the Warranty Policy included with
your purchased product.
Alternatively, you can also download the Warranty Policy at
www.bromicgroup.com/warranty-information
Warning: Risk of fire /
Flammable materials

1300 276 642 bromicrefrigeration.com.au
13
HOW TO PLACE A SERVICE REQUEST
• Please call 1300 276 642 to place a warranty service request and let the operator know whether
you need Priority A or B service. More information can be found below.
• Ensure you have the serial number of your product ready before contacting us.
• The serial number of your product can be found on a compliance plate located on the inside right
and at the rear of your cabinet.
SERVICE REQUEST PRIORITY
Compliance Plate Example 1

10 Phiney Place, Ingleburn
NSW 2565 Australia
T: AU 1300 276 642
F: ([phone]
E: [e-mail]
SYDNEY HEAD OFFICE & SHOWROOM
BROMICREFRIGERATION.COM.AU
NSW VIC QLD TAS WA SA NT ACT
