Brunswick innova User manual

Ultra-Low Temperature
Freezers
innova®Range
(with vacuum insulation panel technology)
MANUAL No. M1288-0052
Revision N
October 25, 2007
NEW BRUNSWICK SCIENTIFIC CO., INC.
BOX 4005 •44 TALMADGE ROAD •EDISON, NJ 08818-4005
Telephone: [phone] •1-800-631-5417
Fax: [phone] •Telex: 4753012 NBSCO
Internet: http://www.nbsc.com •E-mail: [email protected]

ii
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide

iii
New Brunswick Scientific Co., Inc. User’s Guide
INTERNATIONAL OFFICES:
BELGIUM
New Brunswick Scientific NV-SA
Stationsstraat 180/4
3110 Rotselaar
België/Belgique
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
GERMANY
New Brunswick Scientific GmbH
In Der Au 14
D-72622 Nürtingen
Deutschland
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
CHINA
New Brunswick Scientific Co., Inc.
A903, 904 Yin Hai Building
No. 250, Cao Xi Road
Shanghai 200235, P.R. China
Tel: [phone] or 5966
Fax: [phone]
E-mail: [email protected]
THE NETHERLANDS
New Brunswick Scientific BV
Kerkenbos 1101, 6546 BC Nijmegen
P.O Box 6826, 6503 GH Nijmegen
Nederland
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
FRANCE
New Brunswick Scientific SARL
12-14, Rond Point des Champs Elysées
75008 Paris
France
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
UNITED KINGDOM
New Brunswick Scientific (UK) Ltd.
17 Alban Park
St. Albans, Herts. AL4 0JJ
United Kingdom
Tel: [phone] or 0800 581331
Fax: [phone]
E-mail: [email protected]
Web: www.nbsuk.co.uk

iv
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
CAUTION!
This equipment must be operated as described in this manual.
If operational guidelines are not followed, equipment damage and
personal injury can occur.
Please read the entire User’s Guide before attempting to use this unit.
HEALTH AND SAFETY AT WORK ACT 1974
(FOR THE UNITED KINGDOM)
New Brunswick Scientific, as manufacturers and suppliers of laboratory equipment, are
obliged under the terms of the above Act to provide our users with instructions on the safe
installation, operation and maintenance of our equipment.
Our equipment is designed to acceptable standards and does not entail any hazard if used, as
advised in the attached instructions.
The following safety precautions should be observed by all personnel using this equipment:
1. Read and understand this manual. If in doubt, contact one of the New
Brunswick Scientific Companies listed.
2. Do not remove any covers. There are no operable controls other than those
referred to in this manual. There are voltages in excess of 41.5 volts AC
behind the covers.
3. Use freezer gloves at all times when loading or unloading the equipment.
The temperature of operation is such that direct contact with the cold
contents or inside the equipment can burn unprotected skin.
4. Observe good housekeeping practices, at all times keeping the equipment
and the adjacent areas clean, dry and uncluttered.
5. Should any malfunctions occur or be suspected, immediately call a qualified
service engineer to investigate.

v
New Brunswick Scientific Co., Inc. User’s Guide
Copyright Notice
New Brunswick Scientific Company, Inc.
Box 4005 44 Talmadge Road
Edison, New Jersey 08818-4005 USA
©Copyright 2007 New Brunswick Scientific Co., Inc.
All Rights Reserved.
Reproduction, adaptation, or translation without prior written permission
from New Brunswick Scientific is prohibited.
Disclaimer Notice
New Brunswick Scientific Co., Inc. reserves the right to change
information in this document without notice. Updates to information in
this document reflect our commitment to continuing product
development and improvement.
Manual Conventions
#NOTE:
Notes contain essential information that deserves
special attention.
CAUTION!
Caution messages appear before procedures which, if
caution is not observed, could result in damage to the
equipment.
WARNING!
Warning messages alert you to specific procedures or
practices which, if not followed correctly, could result in
serious personal injury.
Bold Text in boldface type emphasizes key words or
phrases.
This particular Warning message, whether found in the
manual or on the unit, means HOT SURFACE–and
therefore represents a potential danger to touch.
CRUSH WARNING!
Crush Warning messages alert you to specific
procedures or practices regarding heavy objects which,
if not followed correctly, could result in serious personal
injury .

vi
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
Every instrument manufactured by the New Brunswick
Scientific Co., Inc. is warranted to be free from defects in material
and workmanship. In the USA, this apparatus, with the exception of
lamps (where supplied), is warranted for 2 years against faulty components
and assembly; and our obligation under this warranty is limited to repairing
or replacing the instrument or part thereof which shall, within 2 years
after date of shipment, prove to be defective after our examination.
Component parts are warranted for 3 additional years (excluding labor).
Vacuum Insulation Panels (where present) are warranted for a total of 12
years. This warranty does not extend to any NBS products which have
been subjected to misuse, neglect, accident or improper installation
or application; nor shall it extend to products which have been
repaired or altered outside the NBS factory or its authorized
service centers without prior authorization from the
New Brunswick Scientific Co., Inc.
ÆÆÆ
Outside the USA, contact your NBS
representative for warranty details.
W A R R A N T Y

vii
New Brunswick Scientific Co., Inc. User’s Guide
NEW BRUNSWICK SCIENTIFIC CO., INC.
CERTIFICATE OF CONFORMITY
This is to confirm that the following NBS Low & Ultra Low Temperature Freezers:
Innova U101
Innova U535
Innova U725
Innova C585
Innova C760
Premium U410
Premium U570
Premium C340
Premium C660
conform to the following European Directives:
Electromagnetic Compatibility (EMC) 89/336/EEC & Amendment 92/31/EEC
Test Standard BS EN 55014-1 : 1997
Test Standard BS EN 55014-2 : 1997
Test Standard BS EN 61000-3-2 : 1995
Test Standard BS EN 61000-3-3 : 1995
Low Voltage Directive (LVD) 73/23/EEC
Test Standard EN 61010-1 : 1993 Amendment A2 : 1995
Test Standard ISO 5149 : 1993 (E)
Conducted/Radiated Emissions FCC Part 15 Class B
Approved by _____________________ on this 21st day of August, 2007
D J Minister, Executive Designer
New Brunswick Scientific Co., Inc., 44 Talmadge Road, Edison, NJ 08818, USA
New Brunswick Scientific (UK) Ltd, 17 Alban Park, St. Albans AL4 0JJ UK
New Brunswick Scientific BV, Kerkenbos 1101, Nijmegen 6546 BC, NL

viii
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
TABLE OF CONTENTS
1INSPECTION & UNPACKING OF EQUIPMENT............................................................................. 1
1.1 INSPECTION OF BOXES/PACKAGING .................................................................................................. 1
1.2 PACKING LIST VERIFICATION............................................................................................................ 1
2INTRODUCTION/OVERVIEW............................................................................................................ 2
2.1 DESCRIPTION OF EQUIPMENT ............................................................................................................ 2
2.1.1 Freezer Handles........................................................................................................................... 5
2.1.2 Voltage Stabilizer......................................................................................................................... 5
3INSTALLATION..................................................................................................................................... 6
3.1 PHYSICAL LOCATION......................................................................................................................... 6
3.2 GETTING STARTED ............................................................................................................................ 7
3.2.1 Plug In ......................................................................................................................................... 7
3.2.2 Turn On........................................................................................................................................ 7
3.2.3 Alarm Activation.......................................................................................................................... 8
3.2.4 Remote Alarm .............................................................................................................................. 9
3.2.5 Vacuum Effect.............................................................................................................................. 9
4OPERATING CONTROLS & DISPLAYS ......................................................................................... 10
4.1 OPERATING CONTROLS ................................................................................................................... 10
4.1.1 Temperature ºC Display............................................................................................................. 10
4.1.2 High Alarm/Low Alarm Lights................................................................................................... 10
4.1.3 Temp-Alarm Light...................................................................................................................... 11
4.1.4 Power-Fail Light........................................................................................................................ 12
4.1.5 Fault Light ................................................................................................................................. 12
4.1.6 Battery-Low Light...................................................................................................................... 12
4.1.7 Filter-Clean Light...................................................................................................................... 12
4.1.8 Remote Control Light................................................................................................................. 13
4.1.9 Set Temp Key ............................................................................................................................. 13
4.1.10 High Alarm/Low Alarm Keys.................................................................................................... 13
4.1.11 Lock Key................................................................................................................................... 13
4.1.12 Code Change Key..................................................................................................................... 13
4.1.13 Alarm Test/Mute Key................................................................................................................ 14
4.1.14 “E” Key.................................................................................................................................... 14
4.1.15 “C” Key.................................................................................................................................... 14
4.1.16 Numerical Keys......................................................................................................................... 14
4.2 PROGRAMMING THE FREEZER ......................................................................................................... 14
4.2.1 Setting Operating Temperature ................................................................................................. 15
4.2.2 Setting High/Low Alarm Setpoints............................................................................................. 15
4.2.3 Checking Temperature Settings................................................................................................. 16
4.2.4 Changing Lock Codes................................................................................................................ 16
4.3 BATTERY BACKUP SWITCH ............................................................................................................. 17
4.4 ALARM MONITORING SOCKET ........................................................................................................ 17
4.5 REMOVAL &REINSTALLATION ....................................................................................................... 18
4.6 GENERAL OPERATING PROCEDURES ............................................................................................... 19
4.6.1 After a Power Failure................................................................................................................ 19
4.6.2 Interior Warming....................................................................................................................... 19
4.7 VOLTAGE STABILIZER ..................................................................................................................... 20
4.7.1 Voltage Stabilizer Operation ..................................................................................................... 20
4.7.2 Voltage Stabilizer Specifications ...............................................................................................20
4.7.3 Start-Up ..................................................................................................................................... 21
5MAINTENANCE................................................................................................................................... 22

ix
New Brunswick Scientific Co., Inc. User’s Guide
5.1 CLEANING ....................................................................................................................................... 22
5.1.1 Painted Surfaces ........................................................................................................................ 22
5.1.2 Panels & Shelves........................................................................................................................ 22
5.1.3 Air Intake Grill & Filter ............................................................................................................ 22
5.1.4 Vent Tube................................................................................................................................... 23
5.1.5 Door/Lid Seal............................................................................................................................. 23
5.1.6 Lubrication................................................................................................................................. 23
5.2 DEFROSTING.................................................................................................................................... 23
5.3 ELECTRICAL COMPONENTS ............................................................................................................. 24
5.3.1 Lamps......................................................................................................................................... 24
5.3.2 Alarms........................................................................................................................................ 24
5.3.3 Battery Replacement.................................................................................................................. 24
5.3.4 Fuses.......................................................................................................................................... 25
6TROUBLESHOOTING......................................................................................................................... 26
6.1 ERROR CODES ................................................................................................................................. 26
6.2 OTHER SYMPTOMS .......................................................................................................................... 26
7ACCESSORIES & SPARE PARTS.....................................................................................................28
7.1 ACCESSORIES .................................................................................................................................. 28
7.1.1 CO2& LN2Back-Up Systems..................................................................................................... 28
7.1.2 Racking Systems......................................................................................................................... 28
7.1.3 Chart Recorder .......................................................................................................................... 28
7.1.4 RTMS Software/RS-485 Computer Interface ............................................................................. 29
7.2 SPARE PARTS................................................................................................................................... 29
8SPECIFICATIONS................................................................................................................................ 31
8.1 UPRIGHT FREEZERS......................................................................................................................... 31
8.2 CHEST FREEZERS............................................................................................................................. 32
9DRAWINGS........................................................................................................................................... 33
9.1 CIRCUIT DIAGRAM/WIRING SCHEMATIC ......................................................................................... 33
9.2 INDEX OF DRAWINGS....................................................................................................................... 37
10 INDEX..................................................................................................................................................... 38

1
New Brunswick Scientific Co., Inc. User’s Guide
1
1 I IN
NS SP PE EC CT TI IO ON N &
&
U
UN
NP PA AC CK KI IN NG G O OF F
E
EQ
QU UI IP PM ME EN NT T
1.1 Inspection of Boxes/Packaging
After you have received your order from New Brunswick Scientific, inspect the
boxes/packaging carefully for any damage that may have occurred during shipping.
Report any damage immediately to the carrier and to your local NBS Sales Order
Department.
1.2 Packing List Verification
Unpack your order, saving the packing materials for possible future use. Also be
sure to save the User’s Guide, for instruction and reference.
Verify against your NBS packing list that you have received the correct materials,
and that nothing is missing.
If any part of your order was damaged in transit, is missing, or fails to operate,
please fill out Customer Satisfaction Form 6300 and return it by fax or mail. You
can also call the New Brunswick Scientific Service Department or your local NBS
representative.
CAUTION!
Inspect the freezer cabinet panels for punctures or other damage that
compromises the integrity of the freezer
Any unauthorized punctures or other damage deliberately made to the
cabinet walls will invalidate the warranty.

2
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
2
2 I IN
NT TR RO OD DU UC CT TI IO ON N/
/O OV
VE ER RV VI IE EW W
This manual provides the user with the necessary information for
installation and operation of the Innova range of Ultra-Low
Temperature freezers with vacuum insulation panels. It also
provides some preliminary user maintenance information.
2.1 Description of Equipment
The New Brunswick Scientific range of Innova freezers is designed to provide
precise, ultra-low temperature environments for scientific and medical use.
CAUTION!
Vacuum insulation panels are used in the construction of these
freezers. These panels are mounted in the cavity against the steel
outer wall of the freezer. Any drilling or puncture to the outer wall
could release the vacuum from the panel, resulting in impaired freezer
performance.
There are two types of Innova freezer: Upright (see Figures 1 & 3 below) and Chest
(see Figure 2 below). This manual covers all versions of these freezer models:
Upright Freezer Model Capacity
U101 3.6 cubic feet (101 liters)
U535 18.9 cubic feet (535 liters)
U725 25.6 cubic feet (725 liters)
Chest Freezer Model Capacity
C585 20.7 cubic feet (585 liters)
C760 26.9 cubic feet (760 liters)
The freezers are totally free of CFCs (Chlorofluorocarbons) and HCFCs
(Hydrochlorofluorocarbons). They use HFCs (Hydrofluorocarbons) as refrigerants.
The interior panels and shelves are made of corrosion-resistant stainless steel,
making them easy to keep clean and to sterilize.
A membrane keypad and digital temperature readout are provided on a small
control panel. On the upright models, this is located on the door. On the chest
models, it is located on a console at the right-hand side of the equipment. (See
Figures 1, 2 & 3)

3
New Brunswick Scientific Co., Inc. User’s Guide
Controls for setting the freezer temperature and alarm warning setpoints are
enabled by an electronic lock. A unique code, which is selected by the user
through the membrane keypad, sets this lock. The code can be changed at any
time, provided the current setting of the lock is known. On delivery, the lock
code is "0000" (unlocked).
Indicator lamps on the control panel provide warnings of power loss, system
failure, exceeding Hi/Low temperature setpoints, low battery voltage and filter
blockage. There is also an LED to indicate when the freezer is under remote
control via the RS-485 optional computer interface.
Figure 1 shows a typical upright freezer, Figure 2 shows a typical chest freezer,
and Figure 3 shows the upright U101 freezer.

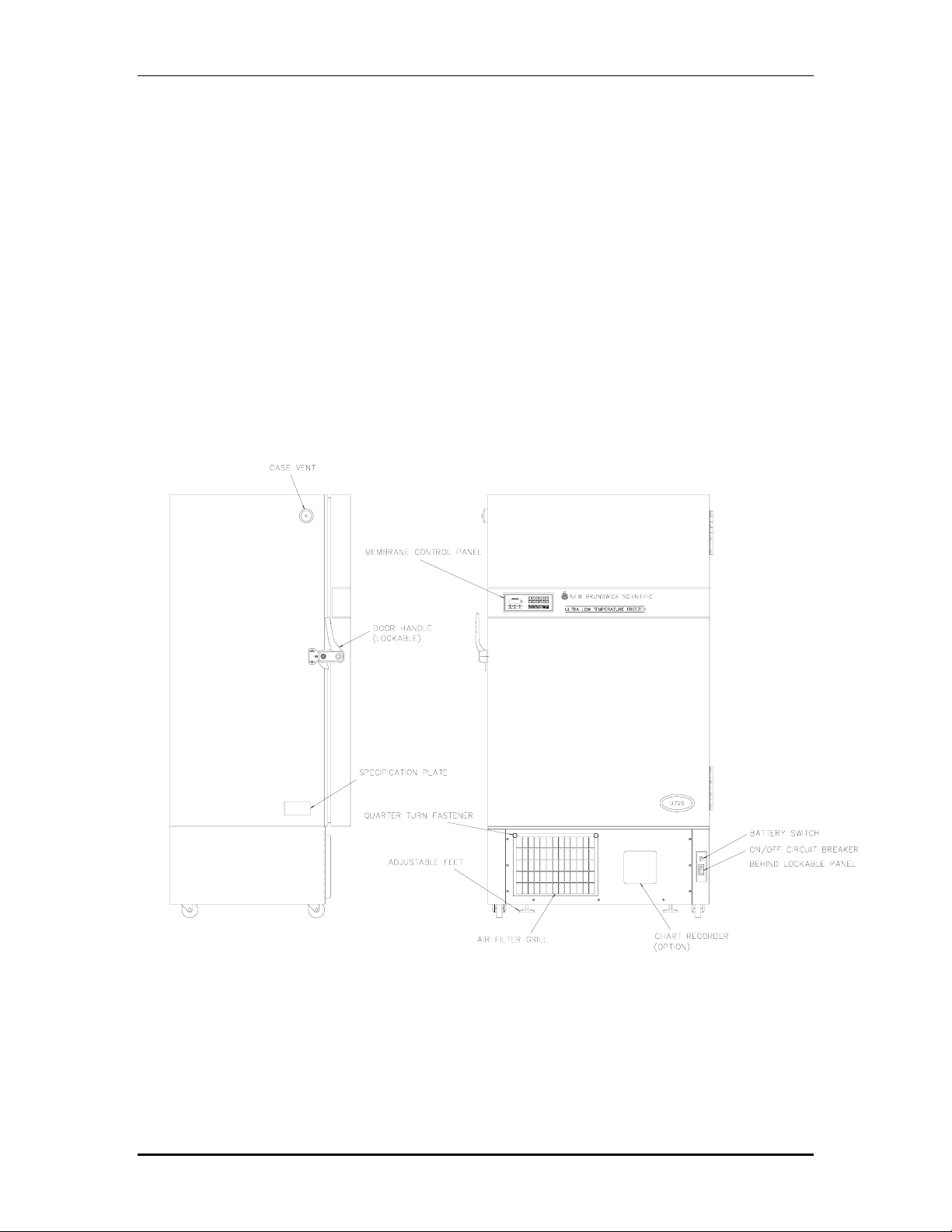

Figure 1: Upright Freezer—Side and Front Views

4
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
Figure 2: Chest Freezer—Side and Front Views
Figure 3: U101 Freezer—Side and Front Views

5
New Brunswick Scientific Co., Inc. User’s Guide
2.1.1 Freezer Handles
Freezers are supplied with lockable handles.
The U101, C585 and C760 are fitted with quarter turn key locks.
The U535 and U725 upright freezer handles are fitted with barrel locks (push to
lock, turn key to unlock). The barrel lock may be removed from the upright
freezer handle if the lock facility is not required:
1. Remove the two retaining screws at the rear of the handle.
2. Remove the lock barrel and packing plate.
3. Fit the plastic blanking plug supplied.
4. Refit the packing plate using the existing screws.
#NOTE:
It is important that the handle lock packing plate be fitted at all times.
#NOTE:
For UPRIGHT freezers: DO NOT SLAM THE DOOR WITH THE HANDLE
IN THE CLOSED POSITION.
The door handle has a cam action to pull the door closed and a
reverse can action to break the seal so the door can be opened. When
closing the outer door, ensure that the cam is engaged for correct
operation. The initial vacuum inside the cabinet may cause the door to
appear closed, but when the vacuum releases, the door will open.
Always ensure the handle is properly engaged.
2.1.2 Voltage Stabilizer
Certain freezer models are fitted with an automatic voltage stabilizer. See Section
4.7 for details.

6
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
3
3 I IN
NS ST TA AL LL LA AT TI IO ON N
CRUSH WARNING!
DO NOT attempt to lift any freezer by hand. Preferred lifting for
loading and unloading is by hydraulic tail lift.
Maintenance, adjustment and repair work should be carried out only
by QUALIFIED, EXPERIENCED personnel who have been
AUTHORIZED to undertake such work by New Brunswick Scientific
or its authorized agents.
Failure to use authorized service agents may invalidate the warranty.
3.1 Physical Location
All freezers are mounted on castors for ease of movement. Upright freezers have
feet that provide both a leveling feature and a locking feature to stop the freezer
from rolling once it is in place. Chest freezers have locking front castors; these do
not provide leveling adjustment, so the site chosen for the freezer must have a flat,
level floor.
Position the freezer to allow free air entry through the intake grill and free air exit
from the back; provide a clearance of at least 6 inches (150 mm) on all sides. The
grill is located on the front of both chest and upright models (see Figures 1, 2 & 3
above).
For efficient temperature control, the freezer should be placed in a shaded area,
away from sources of excessive heat. For maximum cooling capability, the unit
should be located in an air-conditioned room.
WARNING!
BEFORE connecting the freezer to the electrical supply, make sure
that the power supply matches the requirements of the equipment.
Check the specification plate (located on the side of the freezer) for
the electrical requirements.

7
New Brunswick Scientific Co., Inc. User’s Guide
Model U101 upright freezers are fitted with one fixed shelf. Model U535 and
U725 upright freezers are fitted with two adjustable shelves. These can be
positioned in ½ inch (12.7 mm) steps anywhere throughout the freezer. To
remove the shelf, gently squeeze the shelf clip to release it from the side of the
freezer, then reposition it as required.
3.2 Getting Started
3.2.1 Plug In
Once you have verified that the power supply matches the electrical
requirements of the freezer, connect the unit to the power supply using the
power cord provided.
CAUTION!
If the freezer’s voltage rating does not match your electrical supply, or
if the plug on the power cord does not fit the outlet, do not plug the
freezer in. Contact your laboratory supervisor, safety officer, or
qualified service or electrical engineer.
#NOTE:
Some freezers are supplied with more than one removable power cord.
Utilize the cord that matches your power receptacle. Check the
voltage rating plate on the side of the freezer, to confirm that the
freezer is compatible with your laboratory power supply.
3.2.2 Turn On
The ON/OFF circuit breaker is located within the lockable panel (a) at the
bottom right-hand corner of the upright freezer, or (b) to the left of the
control panel on the chest models. The panel can be removed by turning
the key (provided) one quarter turn to the right. The key can be removed
to prevent access.
Set the ON/OFF circuit breaker to the I(ON) position. The temperature
display illuminates immediately.

8
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
The following models have a built-in voltage stabilizer for the supply
voltage:
•Innova U535, 100-120V and 208-220V, 60 Hz
•Innova U725, 208-220V, 60Hz
•Innova C585, 100-120V and 208-220V, 60Hz
•Innova C760, 208-220V, 60Hz
See section 4.7 for operation.
#NOTE:
The freezer’s compressor will not operate for approximately one
minute after connection of the power supply, because there is an
automatic delay device in the circuit. Temperature and alarm settings,
however, can be adjusted immediately.
3.2.3 Alarm Activation
The equipment is delivered with the battery deactivated. The Power Fail
alarm is activated by the battery rocker switch within the lockable panel. On
upright models, the panel is located at the bottom right-hand corner. On chest
models, the panel is located on front right of the unit, near the display. The
switch is labelled I(ON) and O(OFF). (See Figures 1, 2 & 3.)
To activate the alarm, put the battery switch in the Iposition.
After activating the alarm, test its operation by pressing the ALARM
TEST/MUTE key on the display. The audible alarm should sound. The
ALARM TEST/MUTE key also tests the LED lamps. All of the LEDs should
light up together when the button is pressed.
#NOTE:
When the equipment is first switched on, it will take approximately six
hours to reach a temperature of -86°C. The alarm will sound every 30
minutes until the temperature setpoint is reached. Use the ALARM
TEST/MUTE key to mute the alarm during this initial pull-down period.
If the freezer is turned off during the initial pull-down period, the alarm
will activate 30 minutes after you switch it back on again.
The factory-set temperature is –80º C.

9
New Brunswick Scientific Co., Inc. User’s Guide
3.2.4 Remote Alarm
The freezer is also fitted with a remote alarm socket (see Section 4.4 for
details). This can be tested by turning off (O) the ON/OFF circuit breaker. This
tests the POWER FAIL (see Section 4.1) and ALARM output at the same time. The
battery must be switched on to test the POWER FAIL. The remote alarm facility
provides voltage-free contacts rated at 1 amp, 24 volts maximum.
3.2.5 Vacuum Effect
After closing the door or lid of the freezer, following access to the contents, a
vacuum may be created. Before the door can be opened again, it may be
necessary to wait two or three minutes for the vacuum to be released by the vent
tube. Do not try to force the door or lid. During the release of the vacuum, a
slight hissing may be heard. In order to minimize vacuum formation, the vent
heater assembly has a spring-loaded plunger to clear ice from the inside of the
vent.
#NOTE:
Be careful not to place a rack directly against the vent, as this will
inhibit the plunger’s ability to operate correctly (see Section 5.1.4).

10
Innova Ultra-Low Temperature Freezers M1288-0052 User’s Guide
4
4 O OP
PE ER RA AT TI IN NG G C
CO
ON NT TR RO OL LS S &
&
D
DI
IS SP PL LA AY YS S
4.1 Operating Controls
Switch the freezer on using the ON/OFF circuit breaker at the front of the
equipment. On upright models (except U101), this is located behind the lockable
panel, low on the right-hand side. On chest and U101 upright models, it is located
behind the lockable panel on the right-hand side, adjacent to the control panel.
(See Figures 1, 2 & 3)
Operating controls are located on a membrane panel mounted in the door of the
upright models U535 and U725. The same panel is located on the right-hand side
of all chest freezers and the small U101 upright model.
Every NBS freezer is equipped with the unique S.M.A.R.T. Plus™ diagnostic
software, to help identify, by means of an error code, the cause of a fault or
setpoint variance.
The available functions, identified by key Item numbers in Figure 4, are described
in the sections below.
4.1.1 Temperature ºC Display
Item Name Function
1 TEMPERATURE
°C The digital display normally shows the current internal
temperature of the freezer. Temperature is displayed in 1°C
increments.
4.1.2 High Alarm/Low Alarm Lights
Item Name Function
2 [HIGH/LOW]
TEMP-ALARM Illuminates if the freezer’s internal temperature is
above/below the user-selected alarm setpoints. Illuminates
as soon as the setpoint is passed. The audible alarm,
however, does not sound until the freezer temperature has
been beyond alarm setpoint for 30 minutes. After the
temperature returns to the normal range, the TEMP-ALARM
switches off & the audible warning stops.
