USER’S
INFORMATION
MANUAL FOR
THE
OPERATION
AND
MAINTENANCE
OF YOUR NEW
OIL-FIRED
FURNACE
NOTE TO
INSTALLER:
This manual
must be
left with the
equipment user.
Oil Furnace
Model 369AAN

2
WELCOMETO A
NEW GENERATION
OF COMFORT
Congratulations! In light of rising
energy costs, the 369AAN Multi-
poise Oil Furnace is among the
soundest investments today’s
homeowner can make.
Your new furnace is truly a tri-
umph of technology in home
heating. Its unique silencer within
the heat exchanger, insulated cab-
inet, and rubber blower mounts
make it among the quietest units
on the market. The combustion
chamber is stainless steel for long
life and it heats up quickly result-
ing in enhanced comfort and
energy efficiency.
With onlyminimalcare, your new
furnacewilldelivermanyyears of
money-saving home comfort and
enjoyment. Spend just a few min-
utes with this manual to learn the
operation of your new furnace
and the small amount of mainte-
nance it takes to help keep it oper-
ating at peak efficiency year after
year.

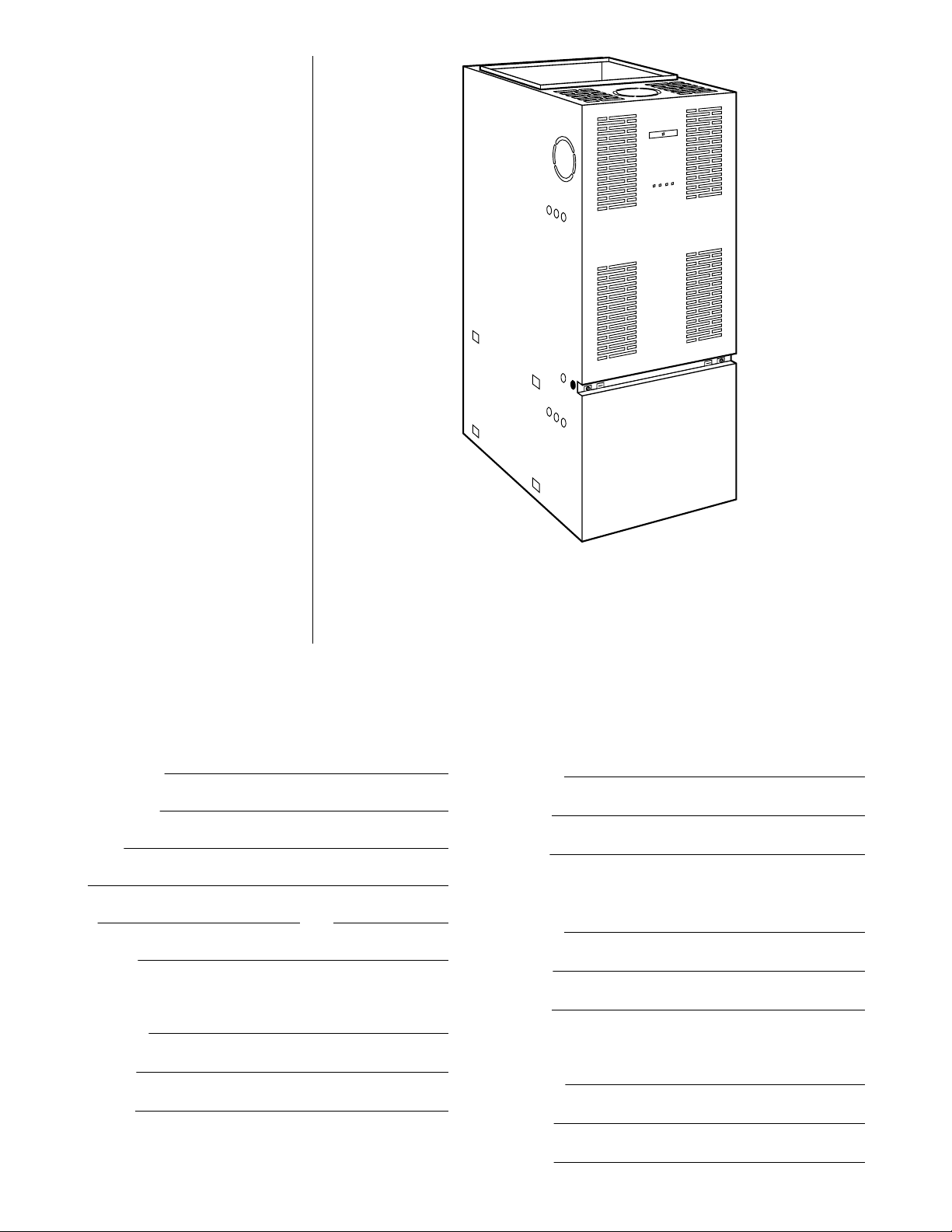

INSTALLATION DATA
Date Installed
Dealer Name
Address
City
State Zip
Telephone
FURNACE
Product No.
Model No.
Serial No.
SPLIT-SYSTEM
OUTDOOR UNIT:
Product No.
Model No.
Serial No.
INDOOR COIL:
Product No.
Model No.
Serial No.
ACCESSORIES
Product No.
Model No.
Serial No.
1
MODEL 369AAN MULTIPOISE FURNACE

3
FURNACE COMPONENTS
2
Heavy-duty blower circulates air across the heat
exchanger to transfer heat into the home.
Stainless steel combustion chamber/primary
heat exchanger.
Unique silencer system reduces combustion
noise.
Heat exchanger designed and shaped to effi-
ciently transfer heat from furnace into the home.
Fully insulated internal walls to minimize heat
loss.
Supply-air plenum.
High limit control to prevent overtemperature
operation.
Reversible door provides easy access to burner
and controls.
High-performance oil burner.
Manual switch to allow user control of constant
low-speed blower operation.
Adjustable electronic fan timer control (inside)
with low-voltage electrical terminal strip for
easy connection of thermostat, cooling control,
electronic air cleaner, and humidifier.
Access door to air filters and blower.
Air filter (field-supplied).
Return-air plenum.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
12
11
10
9
8
7
6
5
4
3
2
1
Left side, right side, or bottom.
13, 14SEE NOTES:

4
IMPORTANT FACTS
Your furnace must have adequate
airflow for efficient combustion
and safe ventilation. Do not
enclose it in an airtight room or
“seal” it behind solid doors.
To minimize the possibility of
serious personal injury, fire, fur-
nace damage, or improper opera-
tion,
carefully follow these
safety rules:
3
• Do not cover the furnace, store
trash or debris near it, or in any way
block the flow of fresh air to the
unit.
• Combustion air must be clean and
not contaminated with chlorine or
fluorine. These compounds are
present in many products around
the home, such as: water softener
salts, laundry bleaches, detergents,
adhesives, paints, varnishes, paint
strippers, waxes, and plastics.
Make sure the combustion air for
your furnace does not contain any
of these compounds. During re-
modeling be sure the combustion
air is fresh and uncontaminated. If
airwith vaporsof these compounds
is burned in your furnace, the heat
exchangers and metal vent system
may deteriorate.
NOTE: Do not use this furnace if
any part has been under water.
Immediately call a qualified ser-
vice technician to inspect the fur-
nace and to replace any part of the
control system, electrical compo-
nents, and any oil control which
has been under water.
NOTE: The qualified installer or
agency must use only factory-
authorized replacement parts, kits,
and accessories when servicing
this product.
The furnace burner control has a
safety device which must be man-
ually reset. If the furnace is left
unattended for an extended period
of time, have it checked periodi-
cally for proper operation. This
precaution will prevent problems
associated with no heat, such as
frozen water pipes, etc.
SAFETY
CONSIDERATIONS
Installing and servicing of heating
equipment can be hazardous due to
oil and electrical components.
Only trained and qualified person-
nel should install, repair, or service
heating equipment.
Untrained personnel can perform
basic maintenance functions such
ascleaning andreplacingair filters.
All other operations must be per-
formed by trained service person-
nel. Observe safety precautions in
this manual, on tags, and on labels
attached to the furnace and other
safety precautions that may apply.
Recognize safety information.
This is the safety-alert symbol .
When you see this symbol on the
furnace and in instructions or man-
uals, be alert to the potential for
personal injury.
Understand the signal words —
DANGER, WARNING, and CAU-
TION. These words are used with
the safety-alert symbol. DANGER
identifies the most serious hazards
which
will result in severe personal
injury or death. WARNING signi-
fies hazards which
could result in
personal injury or death. CAU-
TION is used to identify unsafe
practices which
would result in
minor personal injury or product
and property damage.
STARTING YOUR
FURNACE
This appliance is equipped with an
ignitiondevicewhichautomatically
lights the burner each time the ther-
mostat starts your furnace.
Follow
these important safeguards:
4
• If a suspected malfunction occurs
with your oil control system, such as
the burner not lighting when it
should, refer to the “Shutting Down
Your Furnace” section and call your
dealer as soon as possible.
FORYOUR SAFETY
Do not store or use gaso-
line or other flammable
vapors and liquids in the
vicinity of this or any oth-
er appliance.
!
WARNING
For use with grade 2 Fuel Oil
maximum. Do not use Gaso-
line, Crankcase Oil, or any Oil
containing Gasoline! Failure
to follow this warning could
lead to sooting, fire, explo-
sion, and/or severe bodily
harm.
CAUTION
Never burn garbage or paper
in the heating system and
never leave rags, paper, or
any flammable items around
the unit.
CAUTION
This furnace is equipped with
a constant type primary igni-
tion system. DO NOT AT-
TEMPT TO LIGHT WITH A
MATCH.
DANGER
HIGH VOLTAGE AT IGNI-
TOR. Severe electrical
shock, personal injury, or
death could result.
!
!
!
!

5
CHECK AIR FILTER: Before
attempting to start your furnace, be
sure the furnace air filter is clean
and in place. See “Performing Rou-
tine Maintenance” section in this
manual. Then proceed as follows:

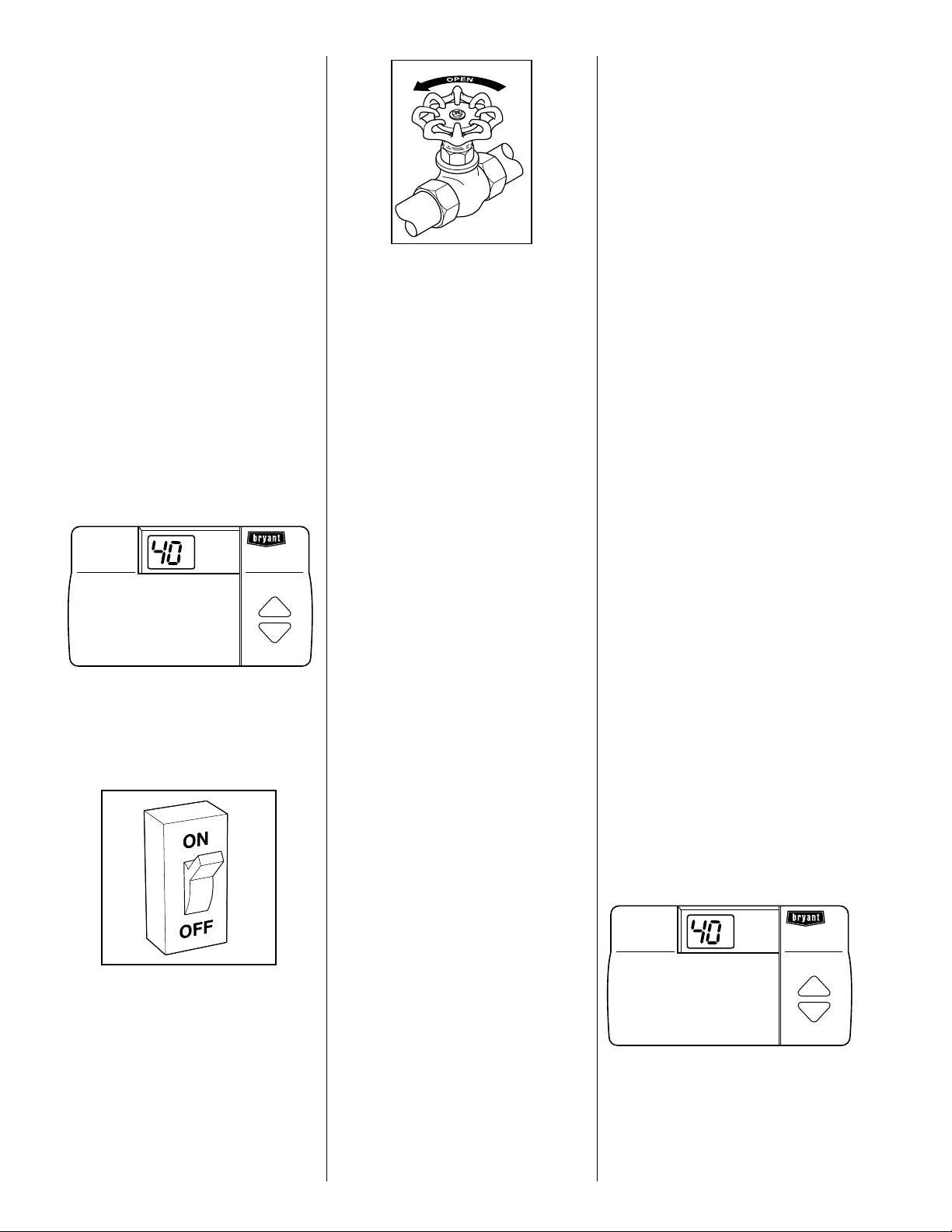

STEPS FOR STARTING
YOUR FURNACE
1. Open all warm air registers and
make sure that all return-air
grills are unobstructed.
2. If a humidifier is installed with
your system, open water supply
valve.
3. Make sure blower access door is
secured in place.
4. Set your room thermostat to
lowest temperature setting.
(See Fig. 5.)
5
5. Turn on electric power to
furnace. (See Fig. 6.)
6
6. Open oil supply valve.
(See Fig. 7.)
7
7. Check all connections to ensure
there are no leaks.
8. Set room thermostat to a tem-
perature slightly above room
temperature. This will auto-
matically signal the furnace to
start.
9. When the thermostat calls for
heat, power from the trans-
former energizes the fan control
board. The fan control energizes
the ignition control. The igni-
tion control will automatically
light the burner.
The electronic fan control auto-
matically turns on the blower
after 60 sec. Fan on control is
not adjustable. The air moved
over the heat exchanger by the
blower is warmed and passes
through the ducts to the room
registers.
This unit is equipped with con-
tinuous ignition control. If the
main burner does not ignite
within 30 sec from the call for
heat, the control will lock out.
The red button on top of the
control must be depressed for 3
sec in order to reset the control.
The control CANNOT be reset
from the room thermostat.
10.Set your thermostat to the tem-
perature that satisfies your com-
for requirements. SUGGES-
TION: Setting the thermostat
back a few degrees and compen-
sating for the difference with
warmer clothing can make a big
difference in your fuel consump-
tion on extremely cold days. The
few degrees at the top of your
thermostat “comfort level” are
the most costly degrees to obtain.
When room temperature drops
below temperature selected on
the thermostat, the furnace will
be switched on automatically.
When room temperature reaches
the degree selected on the ther-
mostat, the furnace will be
switched off automatically.
Some thermostats have a FAN
mode with 2 selections, AUTO
and ON. When thermostat is set
to AUTO, the furnace blower
cycles on and off, controlled by
the thermostat. In ON mode, the
furnace blower runs continu-
ously. This keeps the tempera-
ture level in your home more
evenly balanced. It also contin-
uously filters indoor air.
NOTE: Constant low-speed blower
operation can also be achieved by
turning on the constant blower
rocker switch located on side of
control box. Regardless of room
thermostat setting, blower will run
continuously in low speed to pro-
vide constant air circulation. If
constant blower rocker switch is
turned off, room thermostat will
control blower operation.

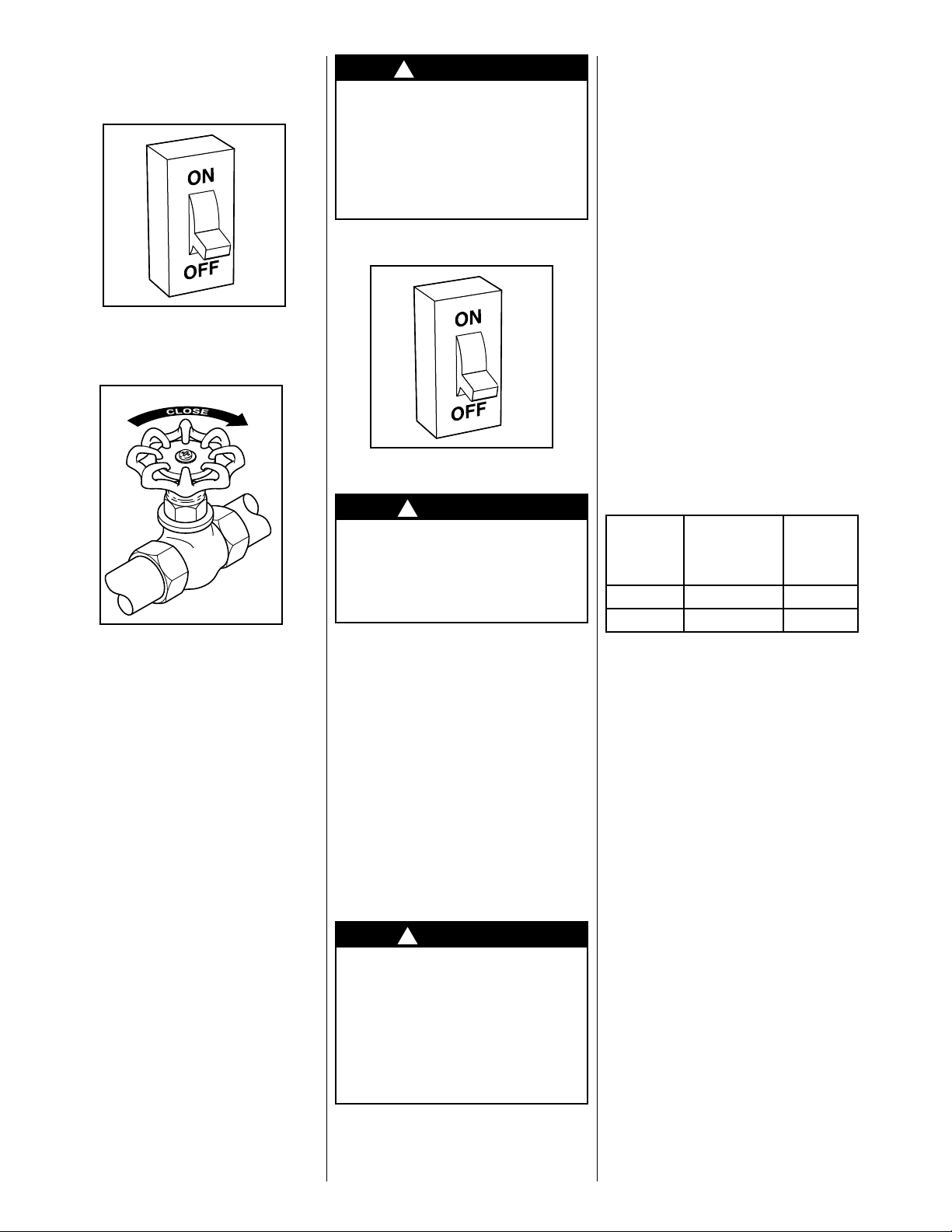

SHUTTING DOWN
YOUR FURNACE
Should you need to shut down your
furnacefor serviceor maintenance,
you will need to turn the furnace
off.Thefollowingproceduresmust
be followed:
1. Set thermostat to lowest setting.
(See Fig. 8.)
8
®
®

6
2. Turn off all electrical power to
the furnace. (See Fig. 9.)
9
3. Close oil supply valve.
(See Fig. 10).
10
4. If applicable, turn off water sup-
ply to humidifier.
5. If furnace blower will be neces-
sary for cooling system, remem-
ber to turn electric power back
on when needed for air condi-
tioning.
6. If furnace is being shut down be-
cause of a malfunction, call your
dealer as soon as possible.
ALWAYS KEEP MAIN OIL
VALVE TURNED OFF IF
BURNER IS SHUT DOWN FOR
AN EXTENDED PERIOD OF
TIME.
PERFORMING
ROUTINE
MAINTENANCE
With proper maintenance and care,
your furnace will operate economi-
cally and dependably. Instructions
for basic maintenance follow. How-
ever, before beginning maintenance,
follow these safety precautions:
11
FILTERING OUT
TROUBLE
Dirty air filters will cause a loss of
airflow in your duct system. When
excessive loss of airflow occurs,
the furnace may cycle on its safety
controls. If this condition is left
unattended, the furnace will even-
tually lock out. It is recommended
that furnace air filters be checked
every 3 or 4 weeks and cleaned or
replaced as necessary.
The air filter is installed in an ex-
ternal filter rack which is provided
a standard equipment with furnace.
Toinspect,clean,and/orreplaceair
filter, follow these steps:
1. Turn off electrical supply to fur-
nace. (See Fig. 11.)
2. Remove filter from external fil-
ter rack.
3. Inspect filter. If torn, replace it.
NOTE: If filter has been replaced
with an electronic air cleaner
(EAC), refer to the EAC Owner’s
Manual for maintenance informa-
tion.
5. If filter is dirty, it must be re-
placed. If your furnace air filter
needs to be replaced, be sure to
use the same size and type of fil-
ter that was originally supplied.
Use furnace filter table for filter
size and filter rack flange dimen-
sions for return air duct.
FURNACE AIR FILTERTABLE
If you have replaced a disposable
filter with a permanent washable
filter, it may be cleaned if it is dirty.
Wash filter in a sink, bathtub, or
outside with a garden hose.Always
use cold tap water. A mild liquid
detergent may be used if necessary.
Spray water through filter in the
opposite direction of airflow.
Allow filter to dry.
6. Re-install clean air filter.
7. Turn on electrical supply to
furnace.
A CHECK-UP
CHECKLIST
Your furnace represents an impor-
tant investment in your family’s
comfort and your home’s value. To
keep it performing properly and as
a preventative to future problems,
have a trained service specialist
give your furnace a professional
check-up annually. The following
checklist can be used as a guideline
to proper service:
WARNING
Turn off all electrical power to
furnace before performing
any maintenance or service
on unit. Failure to take this
precaution may result in per-
sonal injury due to electrical
shock.
CAUTION
Although special care has
been taken to minimize sharp
edges, be extremely careful
when handling parts or
reaching into the furnace.
CAUTION
Never operate your furnace
without the air filters in place.
Doing so may damage the
furnace blower motor. An ac-
cumulation of dust and lint
on internal parts of your fur-
nace can cause a loss of effi-
ciency.
!
!
!
FLANGE
OPENING
SIZE
(IN.)
FILTER
SIZE
(IN.) FILTER TYPE
15 X 24 16 X 24–25 X 1 Disposable
17 X 30 18 X 30 X 1 Disposable

7
• Check flue and secondary tube pas-
sage ways including chimney —
clean if necessary.
• Change oil filter.
• Change nozzle.
• Check and adjust combustion and
draft.
• Inspect all vent piping inside struc-
ture for deterioration and vent termi-
nations outside the structure for
blockage.
• Check oil pipes leading to and
inside of your furnace for leaks.
• Inspect and clean the blower motor
and wheel.
• Inspect and change or clean air fil-
ter if necessary.
• Inspect all supply- and return-air
ducts for obstructions, air leaks, and
insulation. Remedy any problem
when necessary.
• Inspect the return-air duct connec-
tions at the furnace to ensure it is
physically sound, sealed to the fur-
nace casing, and terminates outside
the space containing the furnace.
• Inspect electrical wiring, connec-
tions, and components for loose con-
nections.
• Examine the physical support of
the furnace. Support should be
sound with no cracks, sagging, gaps,
etc. around the base.
• Check furnace for any obvious
signs of deterioration.
BEFOREYOU REQUEST
A SERVICE CALL
If your furnace is not operating or
not performing properly, you may
save the expense of a service call
by checking a few things yourself
before calling for service.
FOR INSUFFICIENTAIRFLOW:
• Check for dirty air filters.
• Check for blocked return-air or
supply-air grilles throughout your
home. Ensure they are open and
unobstructed.
If problem still exists, call your
dealer for service.
IF FURNACE FAILS TO
OPERATE:
Follow this checklist step by step,
advancing to the next step only if
furnace fails to start.
• Check thermostat for proper tem-
perature. Is thermostat set above
room temperature?
• Is thermostat set on HEAT?
• Check fuses and circuit breakers.
Is electrical supply on?
• Is valve in oil supply pipe in open
position?
• Is the ignition control on the burn-
er not in lockout? The red button on
top of the control must be depressed
for 3 sec in order to reset the control.
• Check for obstructions around the
vent termination.
If furnace still fails to operate, call
your service representative. For your
convenience, record furnace product
and serial numbers on page 2.
Should you ever require service, you
will have ready access to the infor-
mation needed by your service rep-
resentative.

Cancels: OM16-7 OM16-9
© 1997 Bryant Heating & Cooling Systems, 7310 W.Morris St. Indpls, IN 46231 Printed in U.S.A. Catalog No. 5336-904 12-97
8
