Buhler 450 User manual

YT MODEL 450 550 650 750
Cutting width 134" (11.2') 163" (13.6') 200" (16.7') 236" (19.9')
Transportation width bottom / top 84" / 90" 86" / 100" 86" / 102" 79" / 102"
Transportation height / length 80" / 13' 84 ½" / 15' 9" 103" / 16' 3" 121 ½" / 16' 9"
Recommended horsepower 35 40 45 50
Parking jack Standard Standard Standard Standard
Wing frame 2" x 3" x ¼" wall tube 2" x 3" x ¼" wall tube 2" x 3" x ¼" wall tube 2" x 3" x ¼" wall tube
Wing ex †30° up 17° down 35° up 16° down 30° up 11° down 30° up 11° down
Deck overlap 5" 8.5" 8" 8"
Gear box rating at 540 RPM 66 horsepower - divider box / 30 horsepower - wing boxes
Hitch type Cast clevis - standard, 2 /" ball hitch - optional
Driveline main / wings Series 4-80° CV / series 2 Series 6-80° CV / series 2 Series 6-80° CV / series 2 Series 6-80° CV / series 2
Deck width / thickness 4' / 10 Ga. 5' / 7 Ga. 6' / 7 Ga. 7' / 7 Ga.
Deck tires 8 (15" x 6" x 6") 10 (15" x 6" x 6") 10 (15" x 6" x 6") 12 (15 " x 6 " x 6 ")
Main frame tire 2 (27" x 10 ½" x 15") 2 (27" x 10 ½" x 15") 2 (27" x 10 ½" x 15") 2 (27" x 10 ½" x 15")
Blades per deck / overlap 3 blades / 1 ⁄" 3 blades / 2 ⁄" 3 blades / 2 ⁄" 3 blades / 2 ⁄"
Blade tip speed 15,485 ft/min 15,829 ft/min 18,737 ft/min 18,552 ft/min
Cutting height 1 ½" to 4 ½" 1 ½" to 4 ½" 1 ½" to 4 ½" 1 ½" to 4 ½"
Mower drive system 2 belt B groove 2 belt B groove 2 belt B groove 2 belt B groove
Front roller 4" x 7" UHMW Poly 4" x 7" UHMW Poly 4" x 7" UHMW Poly 4" x 7" UHMW Poly
Weight 3347 lbs 3919 lbs 4349 lbs 4633 lbs
† Not recommended for operation greater than 30°, actual measurement based on mower deck flex.

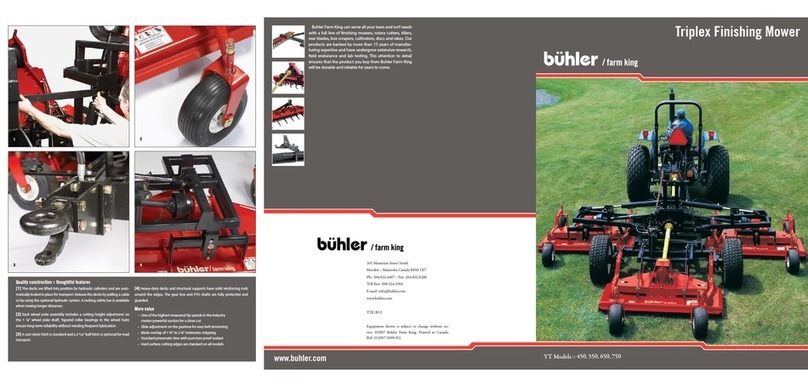

Buhler Farm King Triplex specifications
