BZB Gear BG-MAESTRO User manual

BG-MAESTRO
Educational Auto Tracking ePTZ Camera
User Manual

1
Attention
This manual introduces functions, installations and operations for this camera in details.
Please read this manual carefully before installation and use.
1. Cautions
1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during
transportation, storage and installation.
1.2 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or solids
which may corrode the shell.
1.3 Do not expose the product to rain or moisture.
1.4 To prevent the risk of electric shock, do not open the case. Installation and maintenance should
only be carried out by qualified technicians.
1.5 Do not use the product beyond the specified temperature, humidity or power supply
specifications.
1.6 Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent
if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting the
image.
1.7 This product contains no parts which can be maintained by users themselves. Any damage
caused by dismantling the product by user without permission is not covered by warranty.
2. Electrical Safety
Installation and use of this product must strictly comply with local electrical safety standards.
The power supply of the product is ±12V, the max electrical current is 2A.
3. Install
3.1 This product should be placed on a stable desktop or other horizontal surface. Do not install the
product obliquely, otherwise it may display inclined image.
3.2 Do not power on before completely installation.
4. Magnetic Interference
Electromagnetic fields at specific frequencies may affect the video image. This product is Class A.
It may cause radio interference in household application. Appropriate measure is required.

2
Content
1. Product Overview ………………………………………………………………………………..3
1.1 System Introduction ………………………………………………………………………3
1.2 Main Features …………………………………………………………………………….3
1.3 Mounting Brackets ………………………………………………………………………..4
2. Interface Introduction …………………………………………………………………………..5
3. Dimension ……………………………………………………………………………………….6
4. System Connection ………………………………………………………………………………7
4.1 Installation Layout ……………………………………………………………………….7
4.2 System Wiring ……………………………………………………………………………8
5. Network Connection .……………………………………………………………………………7
5.1 Connection Mode …………………………………………………………………………8
5.2 Web Browser Login …………………………………………………………………….10
5.3 Browser Preview ………………………………………………………………………..10
5.4 Browser Configuration ………………………………………………………………….11
5.4.2 Video Configuration …………………………………………………………………………………11
5.4.3 Network Configuration ……………………………………………………………………………..14
5.4.4 System Configuration ……………………………………………………………………………….15
5.5 Logout ……………………………………………………………………………………………………16
5.6 Configure Tracking Parameter ………………………………………………………….17
Set up process ………………………………………………………………………………17
5.6.1 Teacher Tracking Configuration …………………………………………………………………..18
5.6.2 Student Tracking Configuration ……………………………………………………………………22
6. Description of Recording and Broadcasting Host ……………………………………………..25
6.1 Auto Tracking Control …………………………………………………………………………………25
6.2 Action Code Docking ………………………………………………………………………………….25
7. Technical Parameter ……………………………………………………………………………26
8. Maintenance and Troubleshooting ……………………………………………………………..27
8.1 Camera Maintenance …………………………………………………………………….27
8.2 Troubleshooting…………………………………………………………………………. 27
9. Warranty….............…………………….………………………………………………….……29
10. Mission Statement….............…………………………………………………………….……29
11. Copyright Statement….............………………………………………………………………29

3
1. Product Overview
1.1 System Introduction
Th BG-MAESTRO combines 4K ultra-definition imaging, video analysis technology and
electronic PTZ control technology to enable a single camera to output close-up main stream,
close-up sub-stream, panoramic main stream, panoramic sub-stream and blackboard stream
simultaneously. This camera can track and detect accurately and quickly, and fully meet the
requirements of various scenes of teaching recording and remote interactive teaching.
1.2 Main Features
Intelligent lecturer tracking: Built-in image recognition and tracking algorithm allows the
camera to track targets quickly and accurately without the need for auxiliary positioning
cameras or a tracking host.
Strong anti-interference ability: Once the tracking target is locked, it is resistant to
acquisition of interfering subjects.
●Smooth tracking: The sensitivity of action can be adjusted and it will not be affected by
target’s minor movement or gestures.
●Strong environmental adaptability: The tracking performance is not affected by
classroom’s size, shape or seats layout.
●Intelligent director: Built-in intelligent director switching strategy;
●Multiple tracking modes: Support multiple tracking modes, including tracking mode, movie
mode and area tracking mode.
●Ultra HD: 1/2.8 inch high quality 4K CMOS sensor; support 1080P@30fps/25fps image
output.
●Wide view angle and distortion-free lens: Using ultra wide-angle, distortion-free camera;
supports 3X digital zoom and EPTZ control at the same time;
●Low noise and high SNR: Low Noise CMOS effectively ensure high SNR of camera video.
Advanced 2D/3D noise reduction technology is used to further reduce the noise, while
ensuring image sharpness.
●Multiple video compression: H.265, H.264, MJPEG;
●Multiple video outputs: Supports SDI, USB3.0 and LAN (Gigabit);
●Multiple streams: Supports five streams, simultaneously outputs close-up main stream,
close-up sub-stream, panoramic stream, panoramic sub-stream and blackboard writing
stream;
●POE support: A single network cable can support power, control, and video output
simultaneously, thus simplifying wiring installation.
●Multiple installation: Wall mount and in-ceiling mount for options.
●Networking control interface: Controlling via Network can meet different deployment of
various scenarios.
●Wide application: Lecturer capture, remote interactive teaching etc.

4
1.3 Mounting Brackets

5
2. Interface Introduction
Figure 1.1 Product Interface
1. Camera Lens
5.SDI Interface
9. RS232/ RS485
2. Tripod Screw Hole
6. LAN Interface
10. Power Interface
3. Tripod Screw Hole
4. USB3.0 Interface
7. Reset button
8. A-IN
11. Power Indicator

6

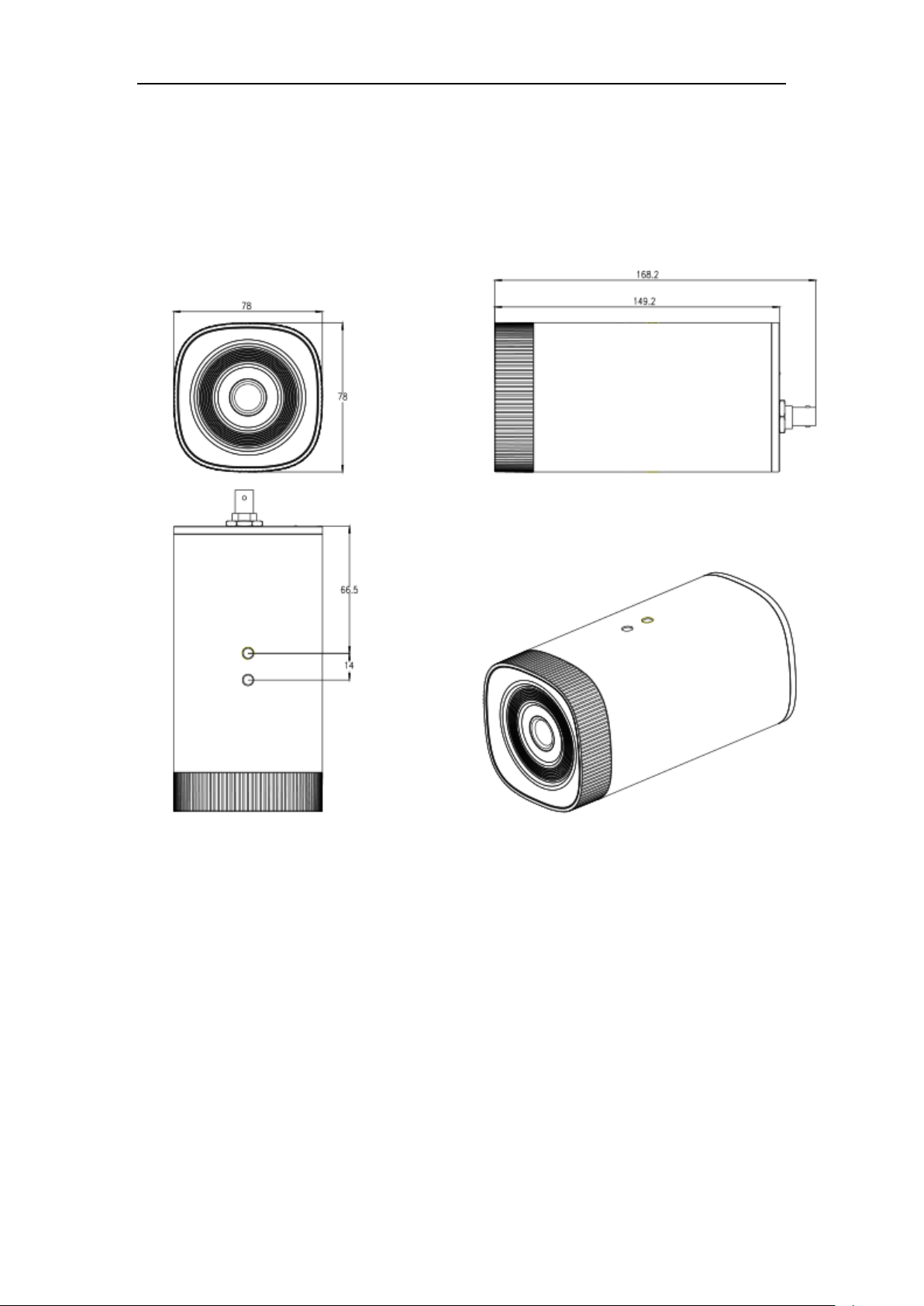

3. Dimension

7
4. System Connection
4.1 Installation Layout
Teacher tracking camera is installed at 1.6 –2.1m (5 –7 feet) from ground(distance from panoramic
lens to ground), and the distance from the blackboard is 5 -9 m (15 –30 ft). Teacher tracking camera
should be installed as close to the center of the classroom as possible to achieve the best result.
(Supports ceiling mounting)

8

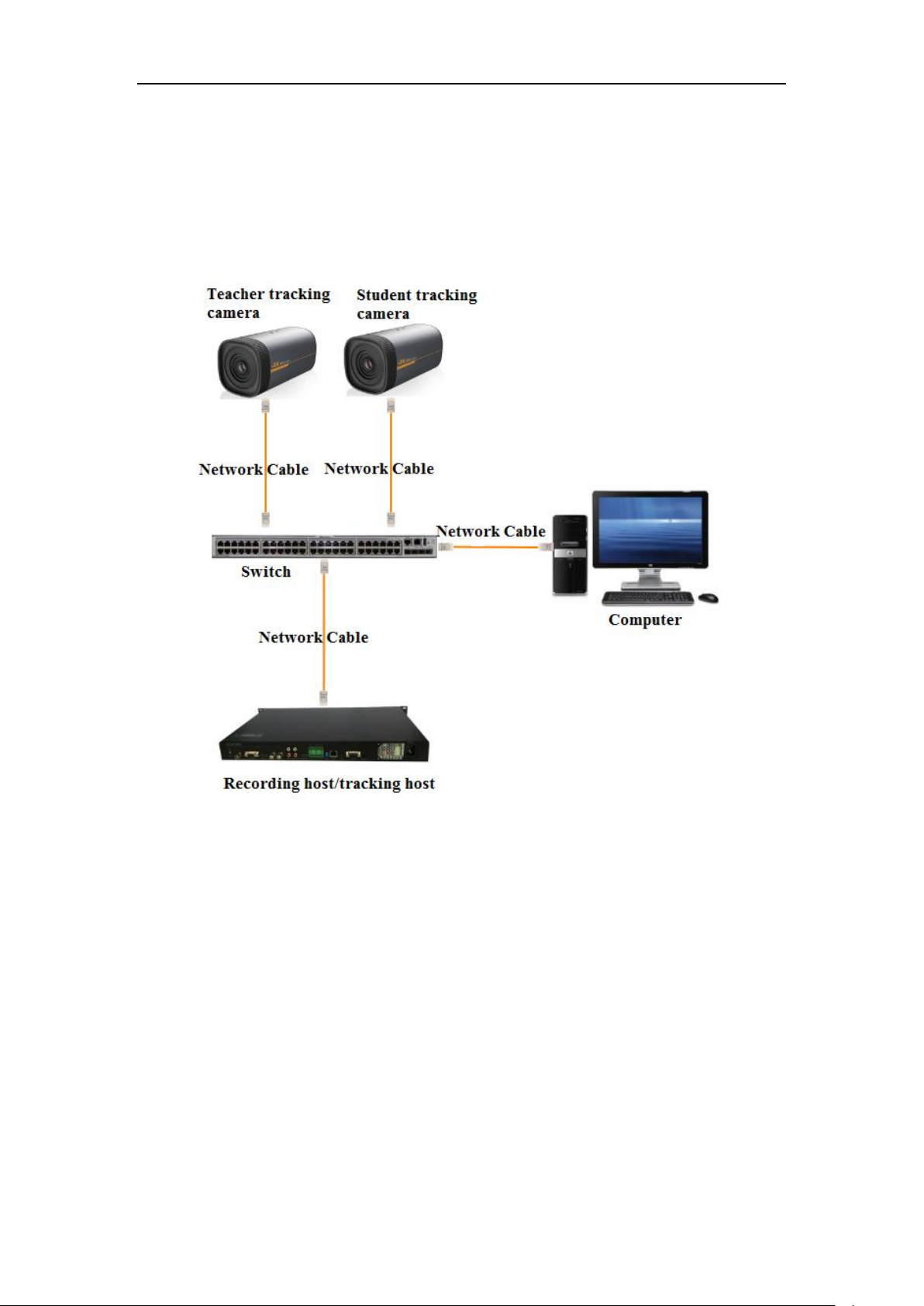

4.2 System Wiring
The teaching tracking camera products provide a smart camera solution for education
environments, and customers can select all or some products as needed. Different combinations of
products meet the demands of customers’ in various scenarios.
5. Network Connection
5.1 Connection Mode
Direct connection: Connect the camera directly to the computer by using an ethernet cable.
Internet connection mode: Connect the camera and computer to a router or switch and access via
the local area network (LAN).
Note: Ensure power and network connections are secured to prevent video issues caused by poor
connection quality.
The computer must be on the same subnet as the camera to connect successfully. The device will
not be accessible otherwise. The camera default IP address is 192.168.5.163, therefore the computer
must be connected to the 192.168.5.x subnet.

9

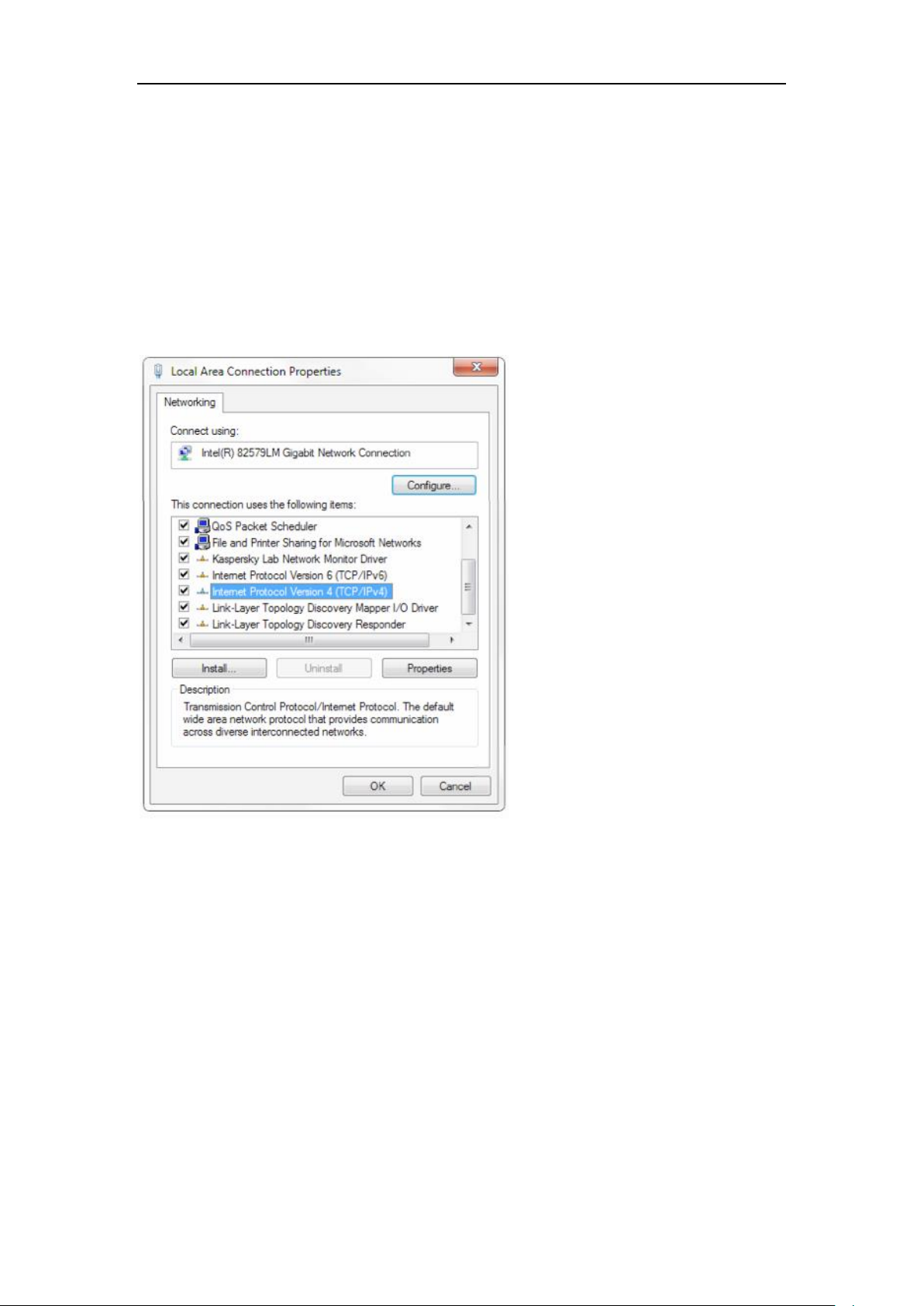

To connect to the camera, open the Local Area Connection Properties on the computer.
For Windows users right-click on the internet connection in the lower right corner of the desktop.
Select “Open Network & Internet Settings.”
Select “Change Adapter Options.”
Right-click on your connection (Wi-Fi or Ethernet) and select “Properties.”
Select “Internet protocol version 4 (TCP/IPv4)” as shown below and click “Properties.”
For the following steps refer to the diagram below.
Click on the bubble for “Use the following IP address.”
In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there
is another device with the same IP address you will not be able to connect. In the example below
we are using 192.168.5.200
In the Subnet mask field enter 255.255.255.0
In the Default gateway field type 192.168.5.1
You can leave the DNS fields blank.
Click OK to apply your settings.
Note: When you are finished configuring the camera you will need to return to this screen and click
the bubbles for “Obtain an IP address automatically” and “Obtain DNS server automatically”
to restore internet connectivity to your computer. Also make sure to reconnect any ethernet cables

10
you may have unplugged.
5.2 Web Browser Login
1）Web Client Login
Enter 192.168.5.163 in the address bar of your internet browser and click Enter. If logged in as
administrator (Default Username/Password: admin), users can preview and configure in the Web
Client. If logged in as a normal user (Default Username/Password: user1 or user2), users can only
preview with no options for configuration.

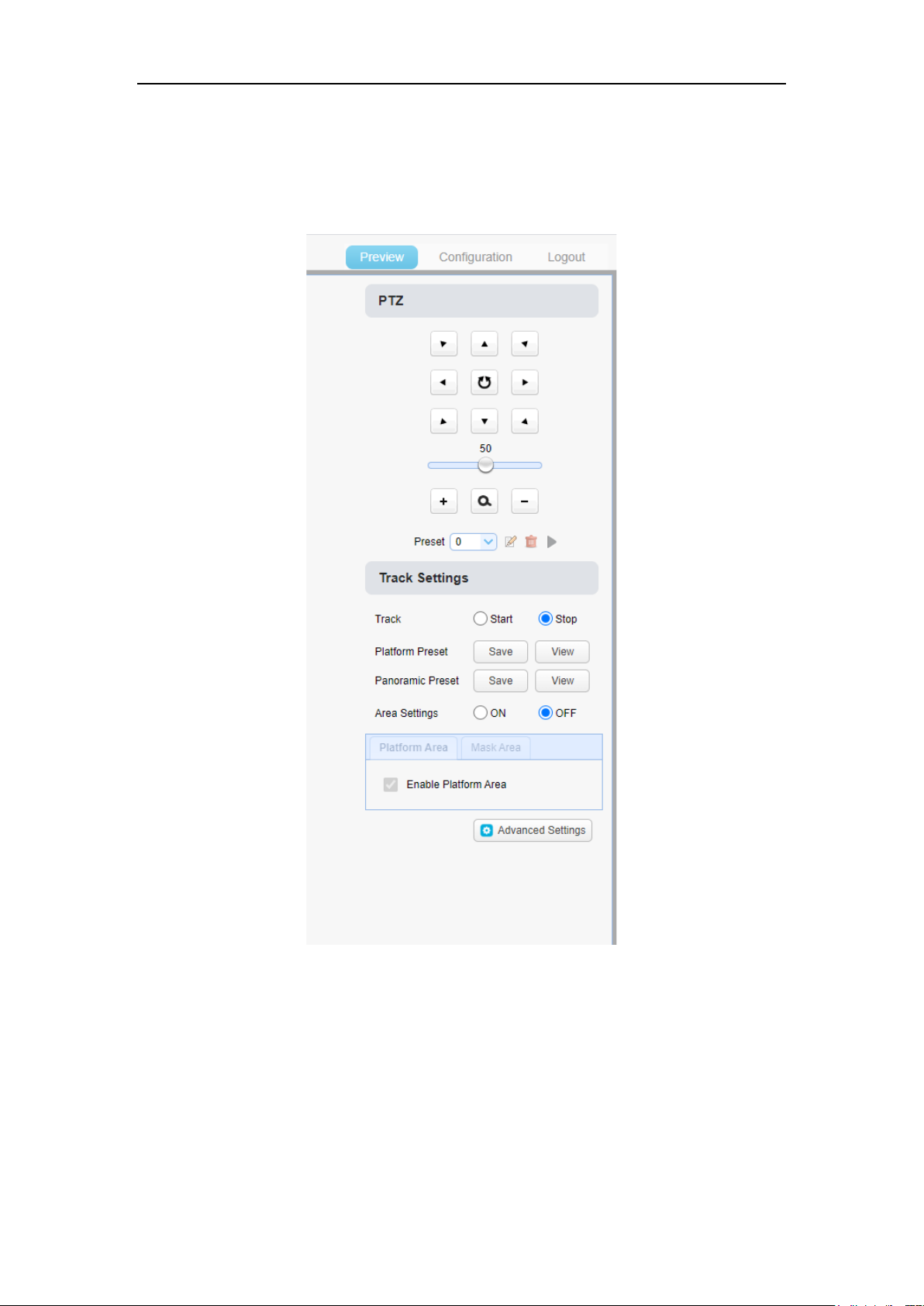

5.3 Browser Preview
After successful login into the management interface, it enters the video preview interface. In the
preview screen, users can: control pan, tilt, zoom, focus, video capture, sound, full screen, set the
preset position, run, delete, along with other operations.
1) Login as administrator
Default Username/Password: admin
PTZ control can be carried out, zoom, focus, video capture, sound, zoom, full screen and set the
preset position, run, and delete; you can preview, playback, configure, log out.
2) Login as normal user
Default Username/Password: user1 or user2
PTZ control can be carried out, zoom, focus, video capture, sound, zoom, full screen and set the
preset position, run, and delete; you can preview, playback, and log out.
Note: There are no configuration rights for normal user login.

11
5.4 Browser Configuration
Click Configuration to enter into the device parameters setting page
There are the following options: audio configuration, video configuration, network configuration
and system configuration, detailed description see the following table.
Menu
Explanation
Audio
configure
Including audio compressing format, sampling frequency, sampling precision,
compressing code rate settings etc.
Video
configure
Including video encoding, stream release, RTP broadcasting ,video parameters,
character-overlapping, character size, video output setting etc.
Network
configure
Including basic parameters, Ethernet, DNS, GB28181, wireless network setting etc.
System
configure
Including equipment property, system time, user management, version update, reset,
reboot device settings etc.
5.4.1 Audio Configuration
Switch: Choose to enable the audio or not. (default: off)
Compressing Format: Set audio compressing format and the device will reboot automatically after
change (default MP3, AAC, G.711A optional)
Sampling Frequency: Set sampling frequency and the device will reboot automatically after
change (default 44100, 8000, 16000, 32000 and 48000 optional)
Sampling Precision: Set sampling precision (default 16bits)
Compressing Code Rate: Set audio compressing code rate (default 64bits, 32, 48, 96, 128bits
optional)
Channel type: Set channel type (default mono, stereo optional)
Input Volume: Set the input volume (default 2, 1-10 optional)
Click “Save”, it will remind “Enable has changed. Restart the device to take effect after the success
of the save.”, then please reboot the camera to apply the settings.
5.4.2 Video Configuration
1) Video Encoding
Code stream: Different video output mode setting, use different streams. (close-up main stream,
close-up sub-stream, panoramic main stream, panoramic sub-stream, and broadcast code stream)
Compression Format: Set the video compression format, save and reboot to take it effect (main /
secondary stream default: H.264, H.265 optional)
Profile: Set Profile mode (default HP, BP, MP optional）
Video Size: Set video image resolution, save and reboot to take effect (close-up main stream
default 1920*1080, 1280*720, 640*480 optional; close-up sub-stream default 320*180，
320*240,640*360, 640*480, 1280*720 optional; panoramic main stream default
1920*1080，1280*720,640*480 optional; panoramic sub-stream default
320*180，320*240,640*360,640*480,1280*720 optional; broadcast code stream
1920*1080，1280*720,640*480 optional)
Stream Rate control: Set rate control mode, save and reboot to take it effect (close-up main
stream, close-up sub-stream, panoramic main stream, panoramic sub-stream and blackboard code
stream default variable bit rate, fixed rate is for option).

12
Image Quality: Set the image quality, image quality can be changed only when rate control is
variable bit rate, (main stream defaulted is best, secondary stream default is better, there are best,
better, good, bad, worse, worst for options).
Rate (Kb / s): Set the video bit rate (close-up main stream default 4096Kb/s, 64-40960Kb/s
optional; close-up sub-stream default 512Kb/s, 64-40960Kb/s optional; panoramic main stream
default 4096Kb/s, 64-40960Kb/s optional; panoramic sub-stream default 512Kb/s, 64-40960Kb/s
optional; and broadcast code stream default 4096Kb/s, 64-40960Kb/s optional).
Frame rate (F/S): Set the video frame rate (close-up main stream, close-up sub-stream,
panoramic main stream, panoramic sub-stream, and broadcast code stream default 25F/S, main
stream 5-30F/S optional).
Key frame interval: Set the key frame interval (close-up main stream, close-up sub-stream,
panoramic main stream, panoramic sub-stream, and broadcast code stream default 100F, main
stream 1-150F optional).
Key frame minimum QP: Set the key frame minimum QP (default 20, 10-51 optional)
Stream Name:When streaming via rtsp or rtmp, user can modify stream name. close-up main
stream (default live/av0), close-up sub-stream (default live/av1), panoramic main stream (default
live/av2), panoramic sub-stream (default live/av3), and broadcast code stream (default live/av4).
Click the "Save" button to display the "saved successfully" message, then settings take effect.
2) Stream Release
Switch: To turn on/off close-up main stream, close-up sub-stream, panoramic main stream,
panoramic sub-stream and blackboard code stream.
Protocol: primary / secondary stream applies RTMP protocol.
Host Port: server port number (default 1935, 0-65535 optional)
Host Address: server IP addresses (default 192.168.5.11)
Stream Name: choose a different stream name (live / av0, live / av1, live/av2,live/av3,live/av4
optional).
User: Set the username.
Password: Set the password.
Click on the "Save" button to display the "Save successful" message, then settings take effect.
3) RTP Broadcasting
Switch: To turn on/off close-up main stream, close-up sub-stream, panoramic main stream,
panoramic sub-stream and blackboard code stream.
Protocol: RTP or TS
Address: Default 224.1.2.3. It can be edited.
Port: Main Stream Default Port: close-up main stream default 4000，close-up sub-stream default
4002，panoramic main stream default 4004，panoramic sub-stream default 4006，broadcast code
stream default 4008.
Visit: Address comes up after setting. Eg ; rtp: //224.1.2.3:4000; udp: //@224.1.2.3:4000
4) Video Parameters
a. Exposure: Exposure mode, exposure compensation, back light compensation, anti-flicker,
gain limit, wide dynamic, shutter speed, aperture value and brightness can be set.
Exposure Mode: Set the exposure mode (the default automatic, manual, shutter priority, aperture
priority, Brightness priority optional)
Exposure compensation: Exposure compensation setting is active when it is auto status (default
is off).
Exposure compensation value: Set the exposure compensation value, valid when it is set for auto
(default 0, -7 to 7 optional).
BLC: Set back light compensation, valid when it is auto status (default is off).
Anti-flicker: Set up anti-flicker mode, valid when status of automatic, aperture or brightness
priority (default 50Hz, closed, 60Hz optional).
Gain limit: set the gain limits, only valid when exposure mode is automatic, aperture/brightness
priority. (default 4, 0-15 optional).

13
Dynamic range: Set the dynamic range (default 4, 1-8 optional).
Shutter speed: Active when it is status of manual or shutter-priority (default
1/100，1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/40
00,1/6000,1/10000 optional).
Aperture value: Set the aperture value, active when it is status of manual or aperture-priority
(default close, F1.8, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0 optional).
Brightness: Set the brightness value, active when it is a state of brightness priority (default 7, 0-
23 optional).
b. Color: White balance, saturation, color, white balance, sensitivity, color temperature, gain
red and blue gain can be set.
White balance modes: Set the white balance mode (the default automatic, 2400K-7100K,
manual, One-push optional).
Note: Click the “Correction” button when selected the One-push white balance mode.
Red fine-tuning: default0, -10~10 (only available in automatic mode)
Blue fine-tunable: default 0, -10~10 (only available in automatic mode)
Saturation: Set the saturation (default 60%, 70%, 80%, 90%, 100%, 110%, 120%, 130%, 140%,
150%, 160%, 170%, 180%, 190%, 200% optional).
Chroma: Set the chroma (default 7, 0-14 optional).
White balance sensitivity: Set the white balance sensitivity (default is high, medium, low for
options)
Red Gain: Set the red gain, effective when it is manual (default 108, 0-255 optional).
Blue Gain: Sets the Blue gain, effective when it is manual (default 71, 0-255 optional).
c. Image: Brightness, contrast, sharpness, black and white mode, the gamma curve,
Horizontal Flip and Vertical Flip can be set.
Brightness: Set the brightness (default 7, 0-14 optional).
Contrast: set the contrast (default 7, 0-14 optional).
Sharpness: Set the sharpness value (default 4, 0-15 optional).
Black and white mode: Set black and white mode (default color, black/white optional).
Gamma: Gamma value setting (default, 0.45, 0.50, 0.55, 0.63 optional).
Dynamic Contrast: set the dynamic contrast (default off, 1～8 optional)
Ultra-low illumination: default off
d. Noise Reduction: 2D noise reduction, 3D noise reduction and dynamic dead pixel correction
available.
2D Noise Reduction: Set 2D noise reduction level (default 2, Auto, 1-7 and Off optional).
3D Noise Reduction: Set 3D noise reduction level (default 5, 1-8 and Off optional).
Dynamic dead pixel correction: Set Dynamic dead pixel correction (default Off, 1-5 optional).
e. Style: select the picture style (default, standard, clear, bright, soft optional)
Note: Click “Refresh” to make revision of any video parameters of a, b, c, d, e effective.
4) Character-Overlapping
Display date and time: Set whether to display the time and date (default display).
Display Title: Set whether to display the title (default display).
Font Color of Time: Set font color of time and date (default white, black, yellow, red, and blue
optional).
Font Color of Title: Set font color of title (default white, black, yellow, red, and blue optional).
Moving characters: Set the display position of moving date, time and title, click on the "up, down,
left, right" buttons to move the corresponding character position.
Title Content: Set title content (default CAMERA1).
Time Content: Set time content (default 1970/01/10 05:36:00)
Click on the "Save" button and display the "Save successful" message, then valid

14
5) Character Size
Main stream character size: Set the character size of the display, the device will restart
Automatically after changed and saved (default 48, 28-200 optional)
Secondary stream character size: Set the character size of the display, the device will restart
automatically after changed and saved (default 48, 28-200 optional)
Click on the "Save" button to display "Parameter saved successfully" message, set to take effect.
6）Video output
Output format can be checked by on/off (default off)
Output format: 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50
Click on the "Save" button, it will be valid when display "Save successful".
5.4.3 Network Configuration
1) Network port
Data port: set the data port, the device will restart automatically after changed (default 3000, 0-
65535 optional)
Web Port: Set Web port, the device will restart automatically after changed (default is 80, 0-
65535 is optional)
Onvif Port: Set Onvif port, the device will restart automatically after changed (default 2000, 0-
65535 optional)
Soap Port: Set Soap port (default 1936, 0-65535 optional)
RTMP Port: Set RTMP port (default 1935, 0-65535 optional)
RTSP Port: Set RTSP port, the device will restart automatically after changed (default 554, 0-
65535 optional).
Visca Port: Set Visca port, the device will restart automatically after changed (default 1259,0-
65535 optional).
Click on the "Save" button, it will be valid when display "Save successful".
RTSP Obtaining method: rtsp: // device IP address: 554 / live / av0 (av0 close-up main stream, av1
close-up sub-stream, av2 panoramic main stream, av3 panoramic sub-stream, av4 broadcast code
stream.)
RTMP Obtaining method: rtmp: // device IP address:1935/live/ av0 (av0 close-up main stream, av1
close-up sub-stream, av2 panoramic main stream, av3 panoramic sub-stream, av4 broadcast code
stream.)
2) Ethernet parameters
DHCP: Enable or disable obtain IP automatically can be set. Save changes and reboot the device
to takes effect (default: OFF)
IP Address: Set the IP address, save changes and reboot the device to takes effect (default
192.168.5.163). Note: This IP address is the same with the one used to login Web page.
Subnet Mask: Set the subnet mask (default 255.255.255.0).
Default Gateway: Set the default gateway (default 0.0.0.0).
Physical Address: Set the physical address (the parameter is read-only and cannot be modified).
Click on the "Save" button, it will be valid when display "Save successful". (Note: To prevent IP
conflicts When modify)
3) DNS parameters
Preferred DNS server: set the preferred DNS server. (Default 0.0.0.0).
Alternate DNS server: Alternate DNS server settings. (Default 0.0.0.0).
Click on the "Save" button, it will be valid when display "Save successful".

15
4) GB28181
Switch: set whether open GB28181, can check
Time Synchronization: whether synchronization time is set, you can check
Stream Type: stream type setting (the default main stream, secondary stream optional)
Sign effective time (in seconds): 3600 Range 5-65535
Heartbeat time (seconds): 60 Range 1-65535
Register ID: 34020000001320000001
Register Username: IPC
Register Password: 12345678
Equipment ownership: Users can add their own
Administrative regions: Users can add their own
Alarm Zone: Users can add their own
Equipment installation address: Users can add their own
Local SIP Port: 5060 Range 0-65535
GB28181 Server Address: IP address of the computer
Server SIP Port: 5060 Range 0-65535
Server ID: 34020000002000000001
Click on the "Save" button, it will be valid when display "Save successful".
5.4.4 System Configuration
1) Device Properties
Device Name: Set the device name (the default Camera1, user can add their own).
Device ID: Set the device ID (default 1, Read-Only).
System Language: Set the system language (default Simplified Chinese, English optional). Need
to re-login after modify and save the setting.
Click on the "Save" button, it will be valid when display "Save successful".
2) System Time
Date Format: Set the date format (YYYY-MM-DD default That year - month - day, MM-DD-
YYYY namely Month - Day - Year, DD-MM-YYYY date - month - year Optional).
Date separator: set the date separator (default '/','.','-' Optional).
Time Zone: Set the time zone (default East eight districts, other time zones optional).
Time Type: Set the time types (default 24 hours, optional 12 hours).
Time setting: Set time mode (to choose the computer time synchronization, NTP server time
synchronization, or set manually).
Computer Time: Set the computer synchronization valid.
Update interval: Set the NTP server automatic updated time interval. Valid after setting NTP
server synchronization (default one day, 2-10 days Optional).
NTP server address or domain name: Set NTP server address or domain name (default
time.nits.gov). Valid after setting NTP server synchronization.
NTP Server Port: Sets the NTP server port (default 123).Valid after setting NTP server
synchronization.
Set the time manually, Effective when set manually.
Click on the "Save" button, it will be valid when display "Save successful".
3) User Management
Select users: Set the user type (the default administrator, Common User 1, Common User 2
optional)
Username: set the username (Select User Administrator default admin; select a common user1
default user1; to select a common user 2 default user2; user can modify their own)
Password: Set a password (Select User Administrator default admin; select a common user1
default user1; to select a common user 2 default user2; user can modify their own).
Password confirmation: Confirm the input passwords are the same or not.

16
Click on the "Save" button to display the "Save successfully" message, then the set is to take
effect.
Please note the case-sensitivity of the username and password.
If login page by a common user’s name and password, one does not have configuration privileges
but can only operate to preview, playback, logout.
4) Version upgrade
Users only read the version information above which is consistent with the menu version but
cannot modify. Different types of the machine have different information.
Update file: Click "Browse ..." installation, to select the upgrade file in the pop-up window.
Click on the "Upgrade" button, the upgrade dialog will appear, the device will reboot
automatically after update successfully.
(Note: Make sure the power and network remain connected during the process, or the upgrade will
fail)
Note: After the version upgrade is complete, you need to restore factory defaults; a. through web
to restore the factory default configuration; b. through the recovery menu; c. remote control
shortcut * #6;
Choose one of the above three ways. The IP account and password of mode a are also restored to
default.
5) Restore factory setting
Click on pop-up "Restore Factory Defaults" button and choose “yes” or “no”, then the device will
restart automatically and restore factory setting.
6) Reboot
Click on the pop-up "Reboot" button and choose “yes” or “no”, then the device will restart
automatically.
5.5 Logout
Point "Logout" pop-up "Confirmation" dialog; select "Yes" or "No", choose “Yes” to exit the
current page and return to the user login interface again.

17
5.6 Configure Tracking Parameter
Set up process
The setup process of teacher tracking The setup process of student tracking
Set the platform and
panoramic preset
Start tracking
Set space for platform
and shield
Set tracking
parameters
Stop tracking
Set panoramic
presets
Start tracking
Set shield area
Set tracking
parameters
Stop tracking

18
5.6.1 Teacher Tracking Configuration
The following instructions are given in accordance with the setup flowchart. The main interface of
teacher tracking configuration is shown in Figure 5.6-1
Figure 5.6-1 Operation interface
1. Click stop tracking
2. Preset setting of the platform

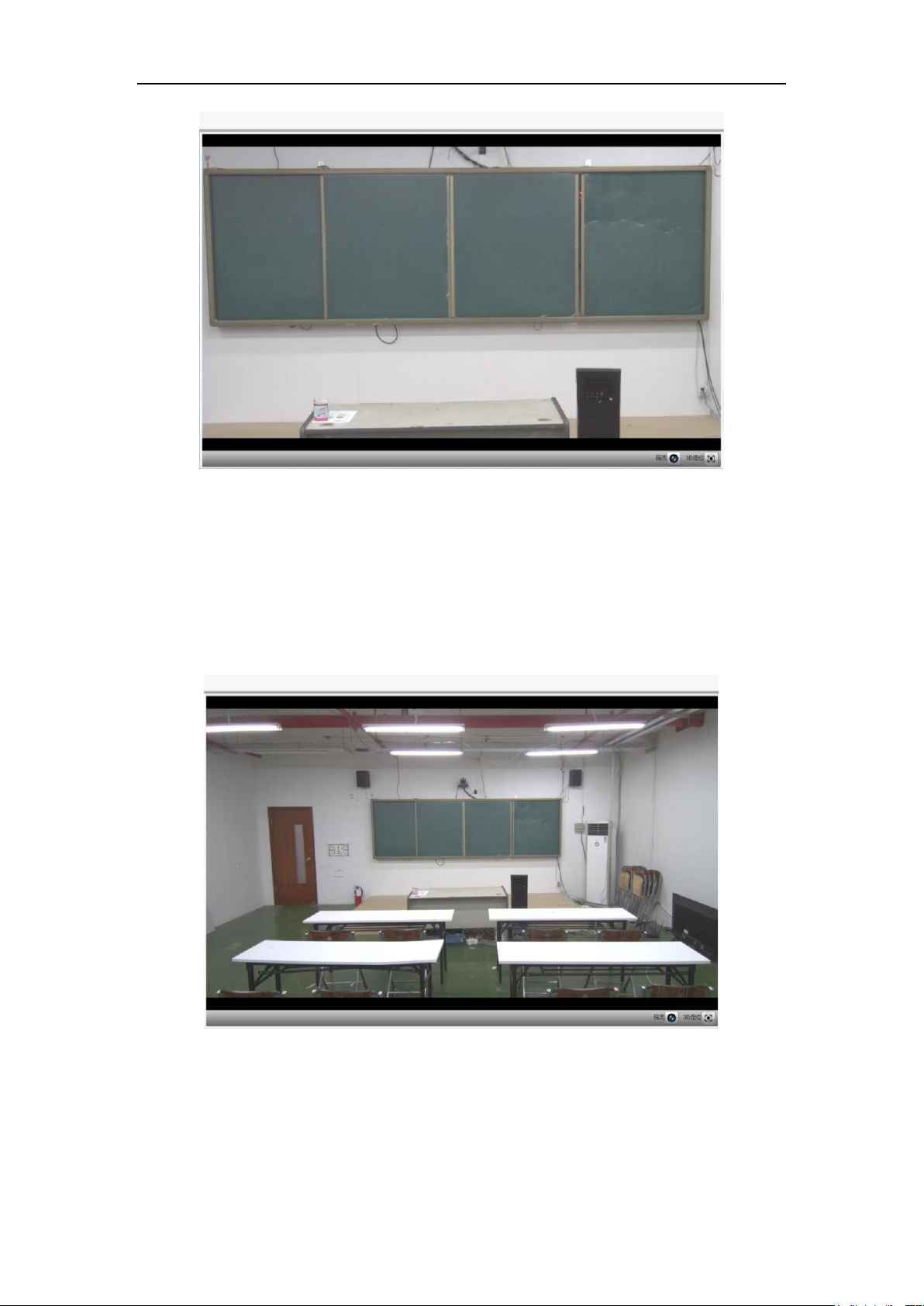

The operation interface for setting the preset position is shown in Fig. 5.6-2. By controlling the
position and ZOOM value of the PTZ, the camera Angle and position are adjusted to the preset
position and saved. The description of the preset position of the podium is as follows.

19
Figure 5.6-2 Operation interface
Platform preset: Control teacher tracking camera to capture the platform (we suggest that teachers
stand in the middle of platform during setup) in camera image, then click and save platform preset.
During normal tracking, the size of the teacher’s image in the picture uses Platform preset as a
reference. When the tracking target disappears, the close-up lens will return to the platform preset.
3. Panoramic preset setting
The operation interface for setting the preset position is shown in Fig. 5.6-3. By controlling the
position and ZOOM value of the PTZ, the camera Angle and position are adjusted to the preset
position and saved. The panoramic preset settings are described below.
Figure 5.6-3 Operation interface
Panoramic preset: Control teacher tracking camera to capture a panoramic view of the classroom
(or any position). When tracking target disappears, the close-up lens will return to panoramic
position.
4. Area settings (ON: show the mask area; OFF: hide the mask area)
5. Platform area: It is the area tracked once close-up lens start up tracking. It is usually the
blackboard/whiteboard area on the platform. This should be configured so that when teacher is on
