Camec RV Media Evolution 044694 User manual

说明书材质：
封面158G铜版纸,彩色印刷
内页黑白书写纸，A5

EVOLUTION
044694 32" SMART TV
12/24V FULL HD LED TV/PVR SMART TV with BLUETOOTH

Contents
What’s in the Box
Controls on the TV/Installation
TV Inputs and Outputs
Remote Control
5
6
7
8
MAIN MENU OPERATION
Picture Menu
Sound Menu
Time Menu
Option Menu
MEDIA PLAYBACK
Photo Viewer
Music Playback
Text Viewer
Movie Playback
17
18
21
23
26
27
27
28
Lock Menu 24
10
Installing Batteries in the remote
Cleaning and Maintenance
Troubleshooting
34
35
37
Specifications
Important Safety Instructions
PVR - Personal Video Recorder 25
Getting Started - Power Connection
11

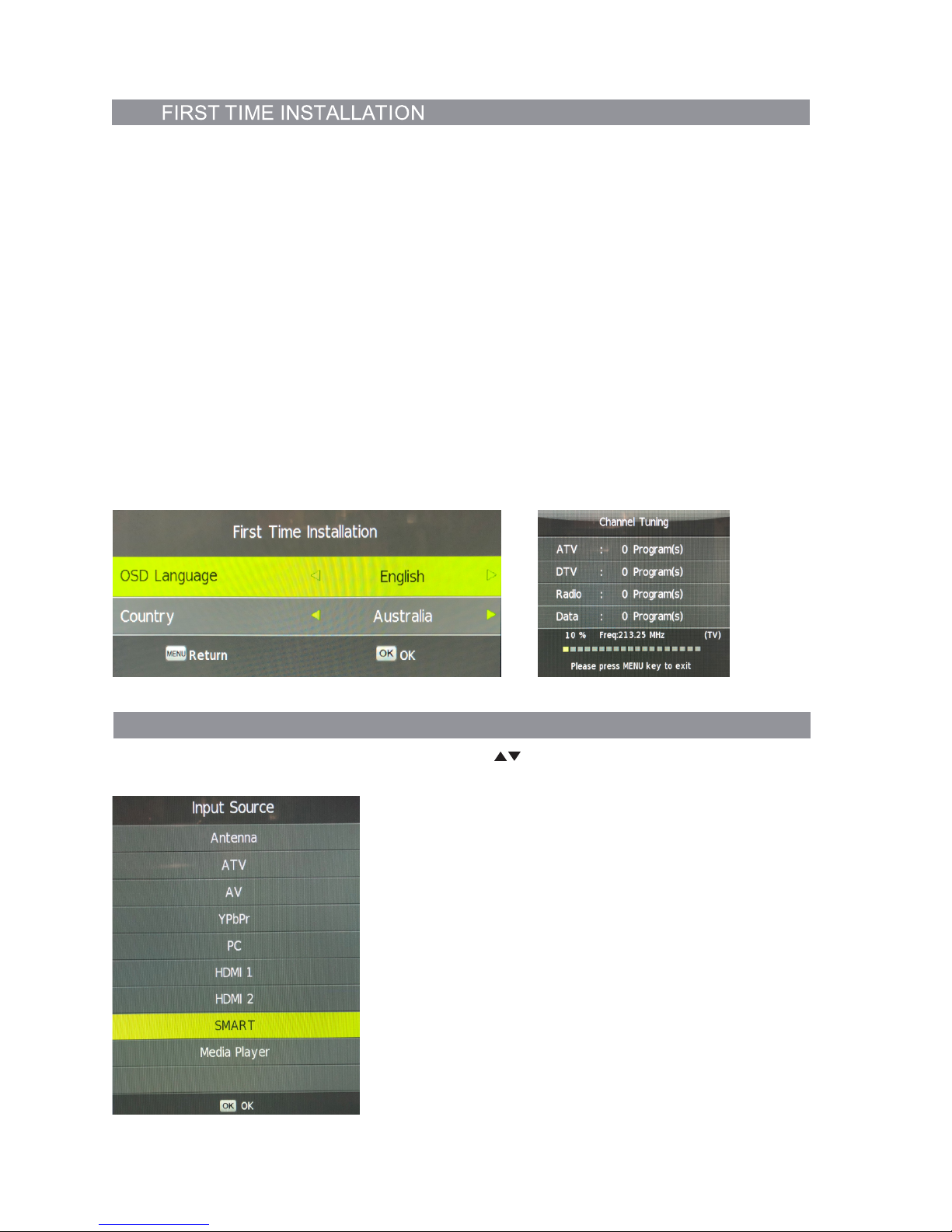

First Time Installation
13
Using the EPG (Electronic Program Guide)
14
Channel 15
Low Battery Voltage Warning
12
SMART TV
Quick Start & General Information
Configuration
Home, Favourites & Web
Apps & Settings
29
30
32
33

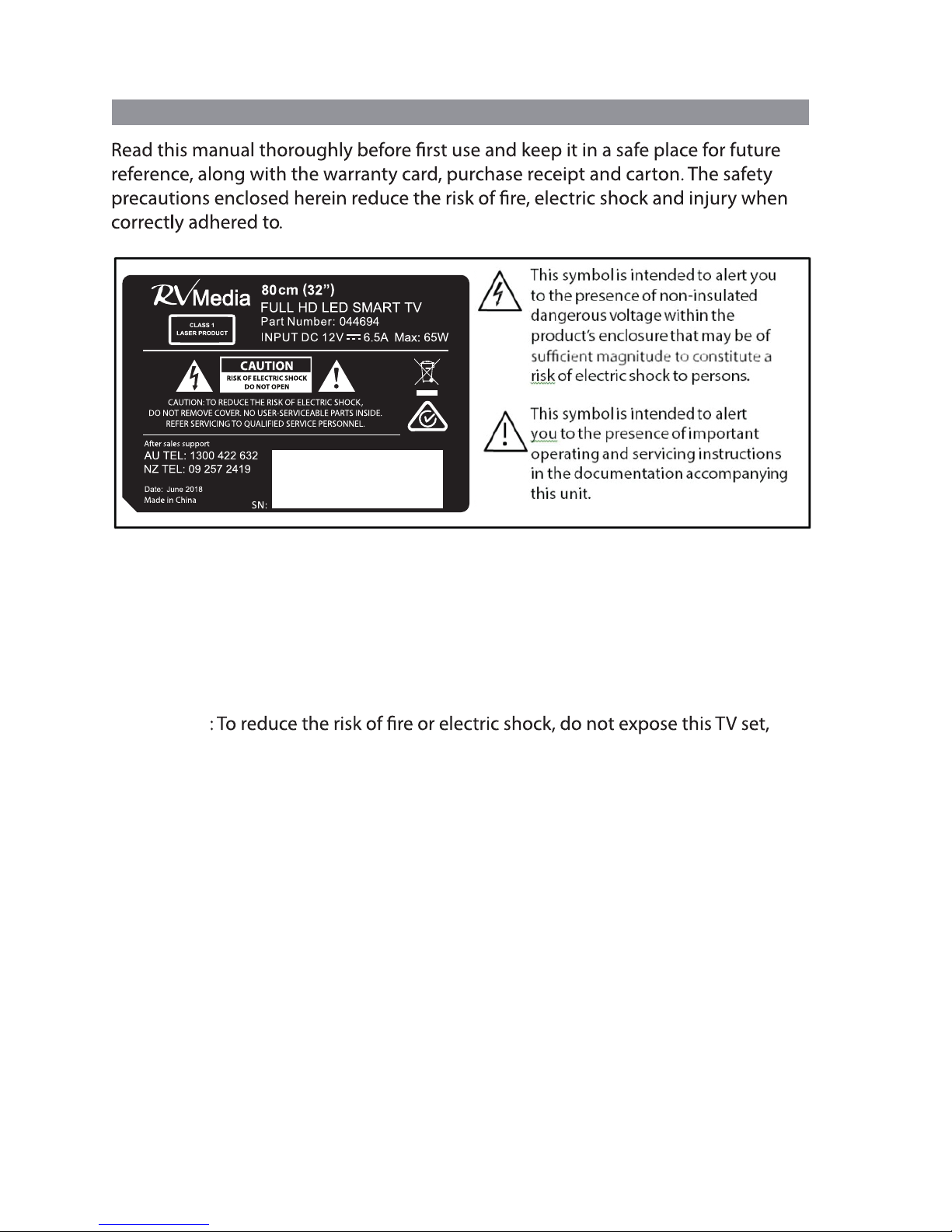

• Before installing this TV set, make sure your outlet voltage corresponds to the
voltage stated on the appliance rating label of the power adaptor being used..
• Do not overload the power outlet.
• CAUTION
the power supply cord, plug and antenna cable to rain or moisture; do not use it
anywhere near water; do not touch the power plug with wet hands.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not allow anything to rest on or roll over the power cord and antenna cable.
Protect the cord and run all cables so that no one steps on or trips over them.
• Do not run the cord near heatproducing appliances such as radiators, stoves or
irons. The excessive heat could melt the insulation and expose live wires.
• When not in use, disconnect the power cord from the outlet. Hold the plug, not
the cord, when disconnecting the unit. Pulling the cord can damage the internal
wires and may cause a fire.
• Never touch the TV screen, antenna or cord during thunderstorms. Stop use
during thunderstorms; unplug the unit when a thunderstorm is approaching.
• Only use this TV with the power adaptors supplied. If either plug does not
fit into your outlets, consult your dealer or an RV service center for
replacement of the outlet.
IMPORTANT SAFETY INSTRUCTIONS
2

Position
• If a television is not positioned in a sufficiently stable location, when stand
mounted, it can potentially be hazardous if it falls. Many injuries, particularly to
children, can be avoided by taking simple precautions such as:
• Using cabinets, shelves or stands that provide a sturdy support for the TV and are
not in areas where the TV can be accidently knocked or bumped .
• Only using furniture that can safely support the television.
• Ensuring the TV is not overhanging the edge of the supporting furniture.
• Not placing the TV on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the TV to a suitable support.
• Educating children about the dangers of climbing up to reach the TV controls.
• Not standing the TV on cloth or other materials placed between the TV and
supporting furniture.
Usage conditions and restrictions
• Follow the instructions in this manual when installing and adjusting the TV set.
Only adjust those controls that are covered in this instruction manual; improper
adjustment of other controls may result in damage. If this happens, unplug the TV
and have it serviced by appropriately qualified personnel.
• Do not change or modify the TV set in any way. Only use the attachments/
accessories specified.
• Do not cover the ventilation openings with items such as newspapers, tablecloths,
curtains etc., as this could impede ventilation.
• Do not insert any objects of any kind into this unit through the ventilation slots or
DVD slot, as they could touch the currentcarrying parts or shortcircuit parts,
resulting in fire, electric shock or damage to the unit.
• Do not touch the screen with fingers, as this may scratch or smudge the TV screen.
• Do not expose the batteries to excessive heat such as sunshine, fire or the like.
• Unplug the TV set in all of the following circumstances:
• If it has been subject to impact or has been dropped and is damaged.
• If its voltage adaptor plugs, or the wall socket, are damaged.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Young children should be supervised to ensure they do not play with the TV.
IMPORTANT SAFETY INSTRUCTIONS Cont’d

• When deciding where to put the TV set, make sure the location is:
• Well ventilated. Leave at least a 20cm space all around the TV set for good
ventilation.
• Protected from overheating and away from direct sunlight.
• Away from damp and cold.
• Away from areas with extremes of temperature (below 0°C or exceeding 40°C)
or moisture.
• Away from moisture drips or splashes.
• Protected from excessive dust.
• Do not install this equipment in a confined space such as a bookcase or similar.
• Do not put any objects filled with liquids, such as vases, on top of the TV set.
• Do not place any naked flame sources, such as lighted candles, on top of the TV.
IMPORTANT SAFETY INSTRUCTIONS Cont’d

Backlit Remote Control
32" Full HD TV
WHAT’S IN THE BOX
TV Stand Feet
240V Power adaptor

It is recommended that this TV be removed
NOTES:

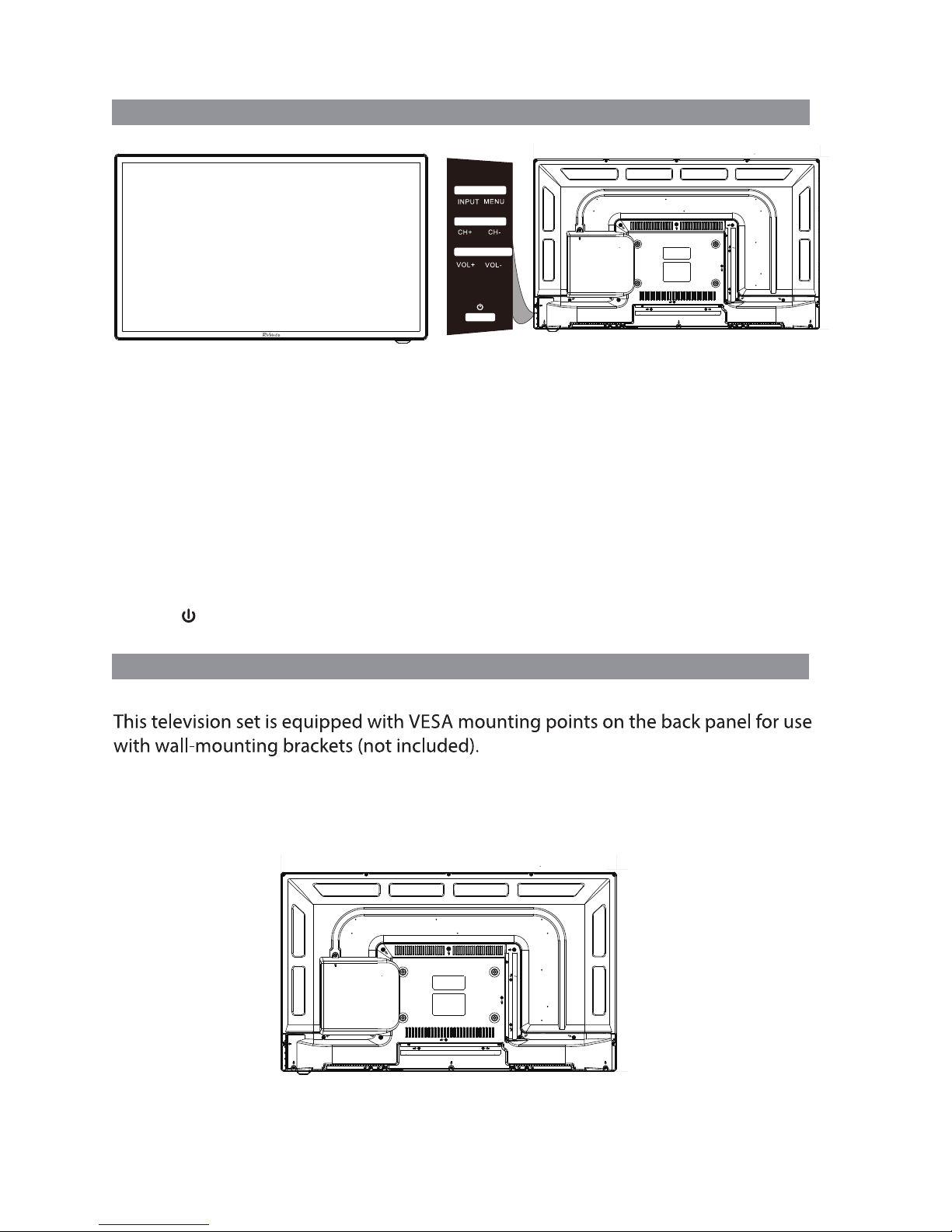

Wall-Mounting
TV CONTROLSCONTROLS ON THE TV
INSTALLATION
3. VOL(+) - This button increases the TV’s volume. If the On Screen Display (OSD) menu is active,
pressing this button will move the selection to the right.
4. VOL(-) - This button decreases the TV’s volume. If the OSD menu is active, pressing this button will
move the selection to the left.
5. CH(+) - This button changes the TV channel upward. If the OSD menu is active, this button functions
as up control for the menu.
6. CH(-) - This button changes the TV channel down. If the OSD menu is active, this button functions as
down control for the menu.
7. MENU - This button activates the OSD menu. If a sub-menu is active, pressing this button will return
selection to the previous menu level.
8. INPUT - This button switches between all the different sources of the TV. When the OSD is active,
this button acts as the enter button and confirms the menu selection.
9. POWER ( ) - Turn on the TV by pressing the button once. Press the button again to turn off the TV.
from the wall bracket when the RV is in transit.
The distance between the holes is 200mm in width and 100mm in height.
If you are using a standard VESA 100 x 100 RV TV wall bracket, you will need
a 200 to 100mm converter bracket such as the TV Media 100 x 100 to
200 x 100 adaptor P/N 043042.
6

NOTE: Please, make sure the inputs and outputs have solid connections before
connecting power.
14
25
37
6
5. HDMI 2 Input Jack: HDMI 2 in.
4. HDMI 1 Input Jack: HDMI in.
10. Mini Y/Pb/Pr: Component Video in - use the supplied adaptor lead.
12. PC Audio Input Jack: Connect to the Audio Out jack of a computer.
6. VGA Input Jack: Connect to the VGA output jack on a personal computer.
7. RF Input: Connect to external antenna to receive DTV signal in DTV mode.
13. USB: TV USB Port for media playback when Media is the TV’s selected source.
11. Mini A/V In: Composite Video & Audio in (A/V).
3. AUDIO output: Audio output for external devices such as Head Units, amplifiers etc.
1. POWER (DC12/24V or plugpack) input.
9. Headphone Jack: Headphone output jack.
8. Coaxial Out: Digital Audio output for surround sound/sound bars etc.
TV INPUT & OUTPUTS
7
2. Video Out: This mirrors the Video Signal from Input 12 (A/V) ONLY. The output is Video only;
not audio.
15. Smart TV USB Inputs: Use for mouse or keyboard connection, install apps, play
14. RJ45 Network Cable In (24" only): For internet connection via a modem or router.
media via the Smart TV and update the Smart TV Firmware.
VGA
PC INPC INPC INPC IN
13
12
10
11
8
9
15
14
5V 500mA
Smart TV
5V 500mA RJ45

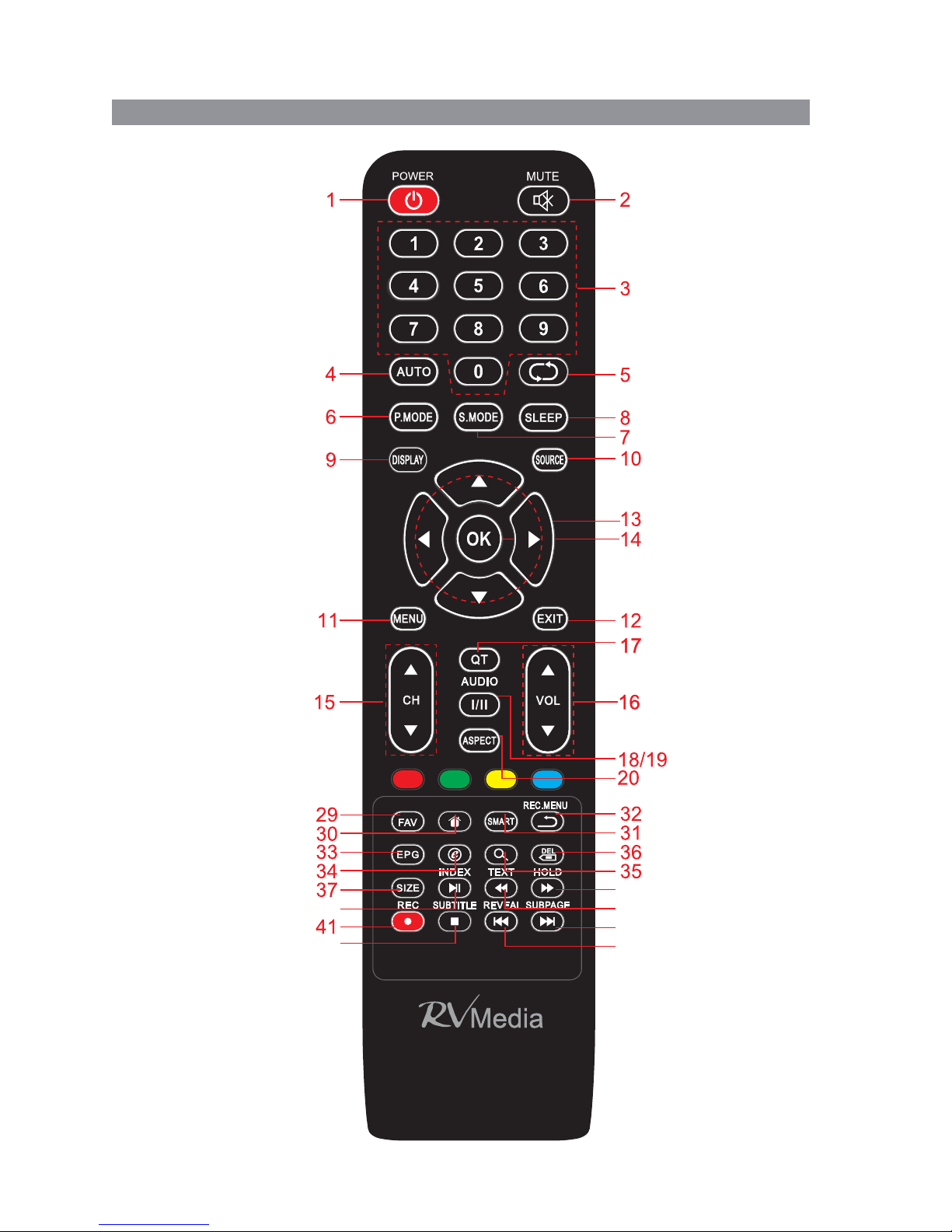

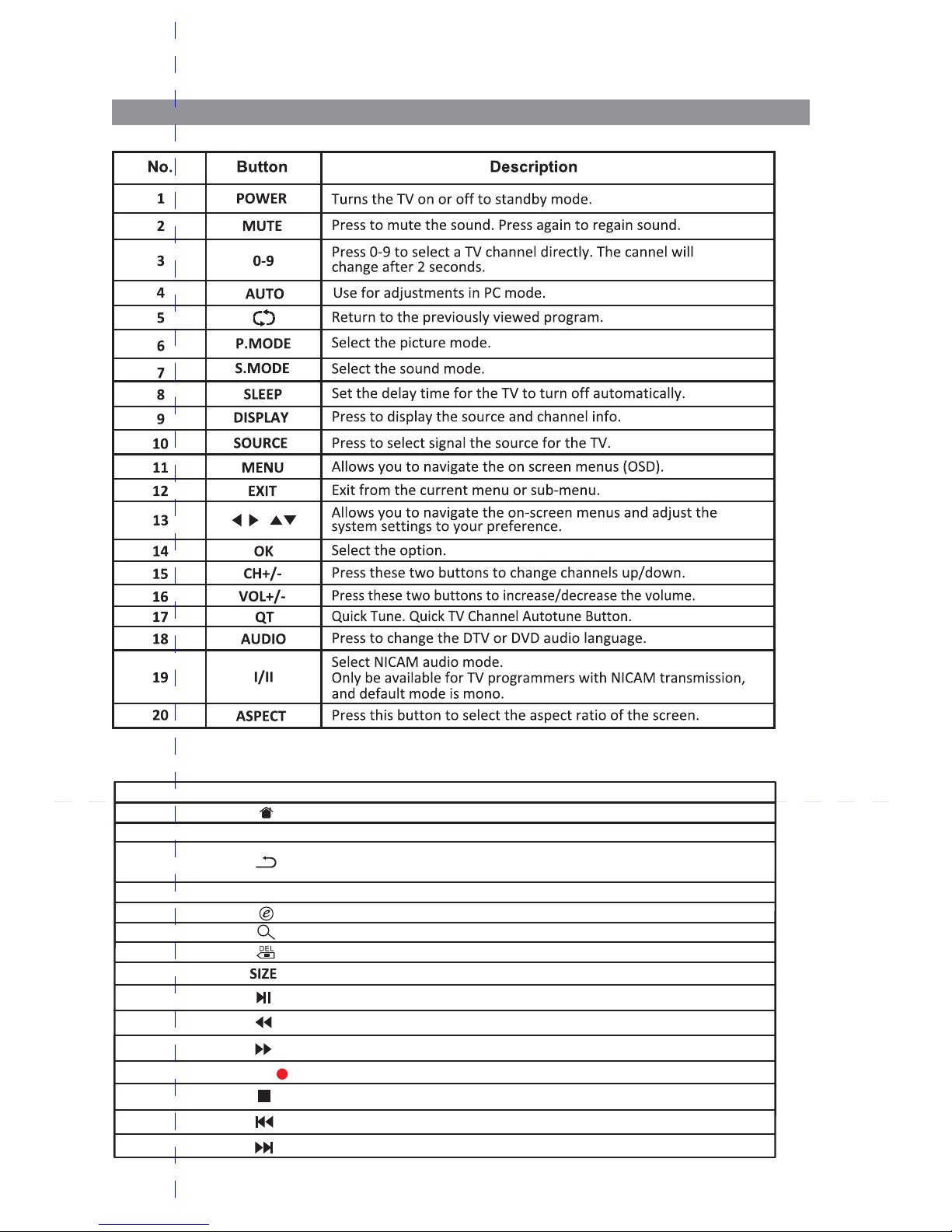

REMOTE CONTROL FUNCTIONS
38
42
40
39
44
43
8

REMOTE CONTROL FUNCTIONS
9
30
31
32
33
34
35
36
EPG Press to display EPG (Electronic Program informaon) for TV.
SMART Selects the Smart TV Source directly.
Smart TV - return to home screen.
Smart TV - Open Web Browser.
Smart TV - return to previous screen or previous web page/
Smart TV - Open onscreen keyboard where text entry is required.
Smart TV delete text.
open DTV Record menu.
39
40
42
43
44
38 Play and Pause control for the Media-Player and DVD.
Stops playback of the Media-Player and DVD.
Fast Rewind control for the Media-Player and DVD.
Fast Forward control for the Media-Player and DVD.
Plays previous Media-Player file or previous DVD scene.
Plays the next Media-Player file or previous DVD scene.
41 Press to record the current TV program to USB.
REC/
29 FAV Press to display EPG (Electronic Program informaon) for TV.
37 Not used.
Note as this TV does not include a DVD player, some funcons are not available and some buon
diagram number allocaons are not used.

Installing Batteries
1Open the battery compartment
cover on the back side.
2Insert two 1.5V AAA size Alkaline*
batteries in the correct polarity. Don´t
mix old or used batteries with new.
3Replace the cover.
Battery
Cover
2 x size AAA 1.5V
Battery
Cover
To use the remote control, point
it towards the special remote sensor
slightly below the television. The
remote has a range of up to seven
meters from the TV at an angle of
up to 170 degrees! - depending on the
the RV’s interior layout.
- Batteries should not be exposed to excessive heat such as direct
sunlight, fire or the like.
- If not being used for a period of time, please remove the batteries
from the remote in case of leakage.
- Do not mix old & new batteries together.
*Due to the additional power required for the
backlight function, we recommend the use of quality
Alkaline batteries for best results.
170 170
REMOTE CONTROL BATTERIES AND RANGE
10

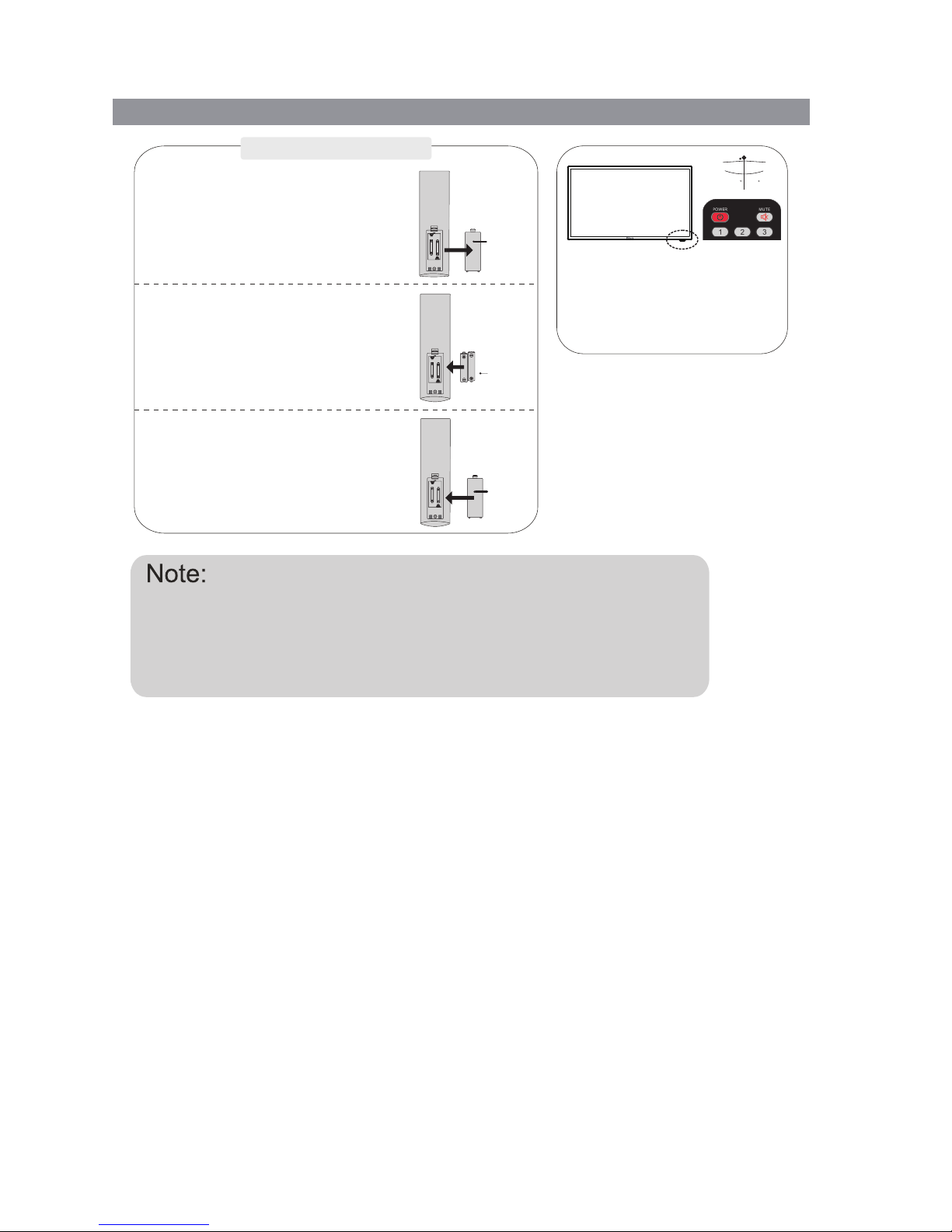

GETTING STARTED - POWER CONNECTION
11
Power Connection Options
Power Adaptors
Your RV Media TV with inbuilt USB functionality can operate from two
different power sources allowing you to use your T V in a multitude of applications:
- Caravans, Campers & RV’s
- Trucks (12V or 24V operation)
- Marine (12V or 24V operation)
- Store Demonstrations
- Home use
- Kitchens
- Bedrooms
- Garage
- PC Monitor
- Security systems etc.
12/24V operation
240V Mains Operation
Y
The TV can also operate on 240V. This is done via an 240V adaptor.
our TV is supplied with a 12V style accessory lead (cigarette lighter plug) which
can be connected to 12V or 24V sources. This power method also ensures
that in 12V applications, your TV is protected from voltage spikes from Charges
and Solar Systems etc up to 30V
Note this lead is also available as a spare part should you require a second
power connection point or if it gets lost - Part Number: 044575

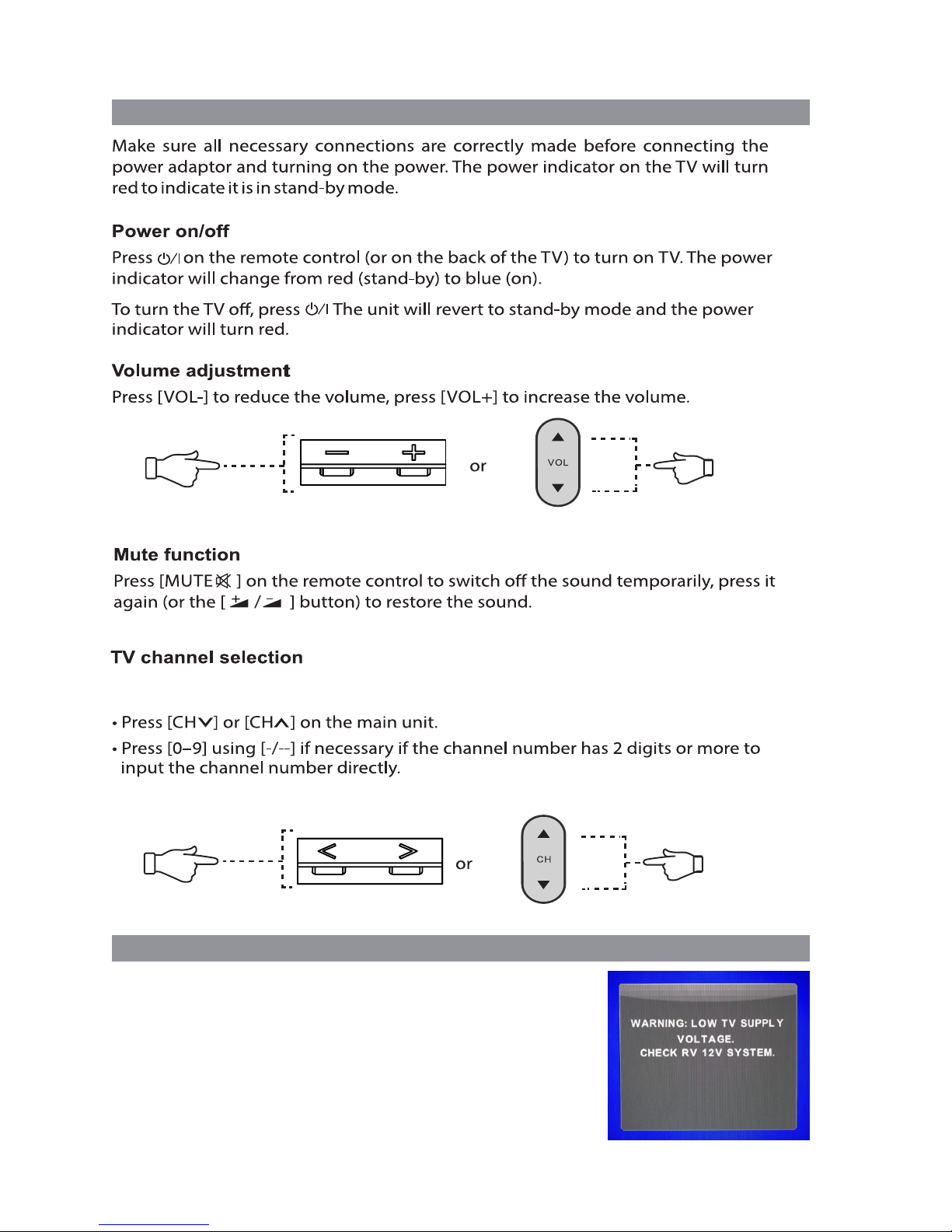

GETTING STARTED - BASIC OPERATIONS
12
TV Remote
ON SCREEN LOW BATTERY VOLTAGE WARNING
If the RV’s system voltage drops below 11V* when powering the TV
via the 12V accessory lead, an on screen warning will be displayed
warning you of the low voltage state.
Low battery voltage can not only potentially damage electronic
devices, it may also reduce the battery life. While RV Media
Evolution TV’s are designed to operate at voltages as low as 10V,
we recommend you charge your battery(s) if this warning is
displayed. When the system voltage rises above 11V, the warning
message will disappear.
* This voltage may vary depending on battery capacity, vehicle wiring etc.
To select a TV Channel, first select Sat or DTV as an input source first, then choose
your desired channel in one of the following ways.
TV Remote

Firstly connect an RF Antenna cable from the TV’s RF output to the TV Antenna socket.
When you turn on the TV for the first time or Reset the TV from the Setup menu, you will be
presented with a number of dialogue boxes that will step you through the TV tuning process.
Setup Process
First Time Installation Menu
Selection 1: Language - English - select OK on the remote. Note this is the menu language
setting.
Selection 2: Country: Australia. Please select a different country if applicable.
Selection 3: Environment: On. There is no need to adjust this setting.
Tuning Setup Menu
Selection 1: Tune Type - DTV. This does not need to be adjusted unless you need to receive
Analogue TV signals (not Applicable for Australia).
Selection 2: Digital Type - Default is “DTV + ATV” - select “DTV” for quicker tuning..
After these selections are finalised, press OK on the remote to begin Auto Tuning (see Channel
SELECTING AN INPUT SOURCE
Press Source on the remote, then use the arrow keys to select your desired source. Press OK
on the remote to select the source.
13

SCHEDULE RECORDING & REMINDERS
Press the EPG button on the Remote control to access the Electronic Program Guide
(DTV only)
Use the ▼/▲ keys on the remote to select a channel. The current programme on that channel
will be displayed in the box on the right. You can then use the ▼/▲ keys to scroll up or down
to select a programme. Note programmes will be displayed until midnight of the current day.
You need to move to the next day by pressing the blue button on the remote to view
after midnight and for the next day. To view programmes from the previous day, press the
yellow button on the remote.
Record
Press the RED button on the remote control to enter the Recording sub-menu. You can set the
channel, start and end times of the program you want to record using the ▼/▲◄ / ► and
buttons. A USB drive must be inserted in the TV to record. For more information on recording,
please see P25 for more information on the PVR function.
Info
Press the GREEN button on the remote to display detailed information about the program.
Schedule
Press the YELLOW button on the remote to display the Schedule List to display the
programmes you have scheduled to record or be reminded of.
Remind
Press the BLUE button on the remote control to set a reminder for a program you would like
to watch at a later date. Note this reminder which consists of a popup on the screen will only be
displayed if the TV is on and the source is DTV.
NOTE 1: If you select a channel in the EPG and the available programmes are not displayed,
briefly exit the EPG and quickly tune in to the channel. This will ensure the programme is
downloaded for that channel.
NOTE 2: The EPG for a particular channel will only work if you can tune in to the Channel
based on your location and TV signal area.
EPG - ELECTRONIC PROGRAM GUIDE
14

Channel Menu (when DTV is selected as the source)
Auto Tuning
Press the ▼/▲ buttons to select Auto Tuning. After pressing the OK button, the auto tuning
interface will be displayed. Auto Tuning can also be activated by pressing the “QT” button
on the remote control while in DTV mode.
NOTE: You will need to press OK on the remote to confirm the country and language selection
first before starting the Auto tune process.
Press the Menu button on the remote to select the Main Menu. From there, you can use the /
buttons to select between the following sub-menus:
- Channel
- Picture
- Sound
- Time
- Option
- Lock
Once you select a sub-menu, use the / buttons to select an option in the sub-menu.
CHANNEL SUB-MENU
15

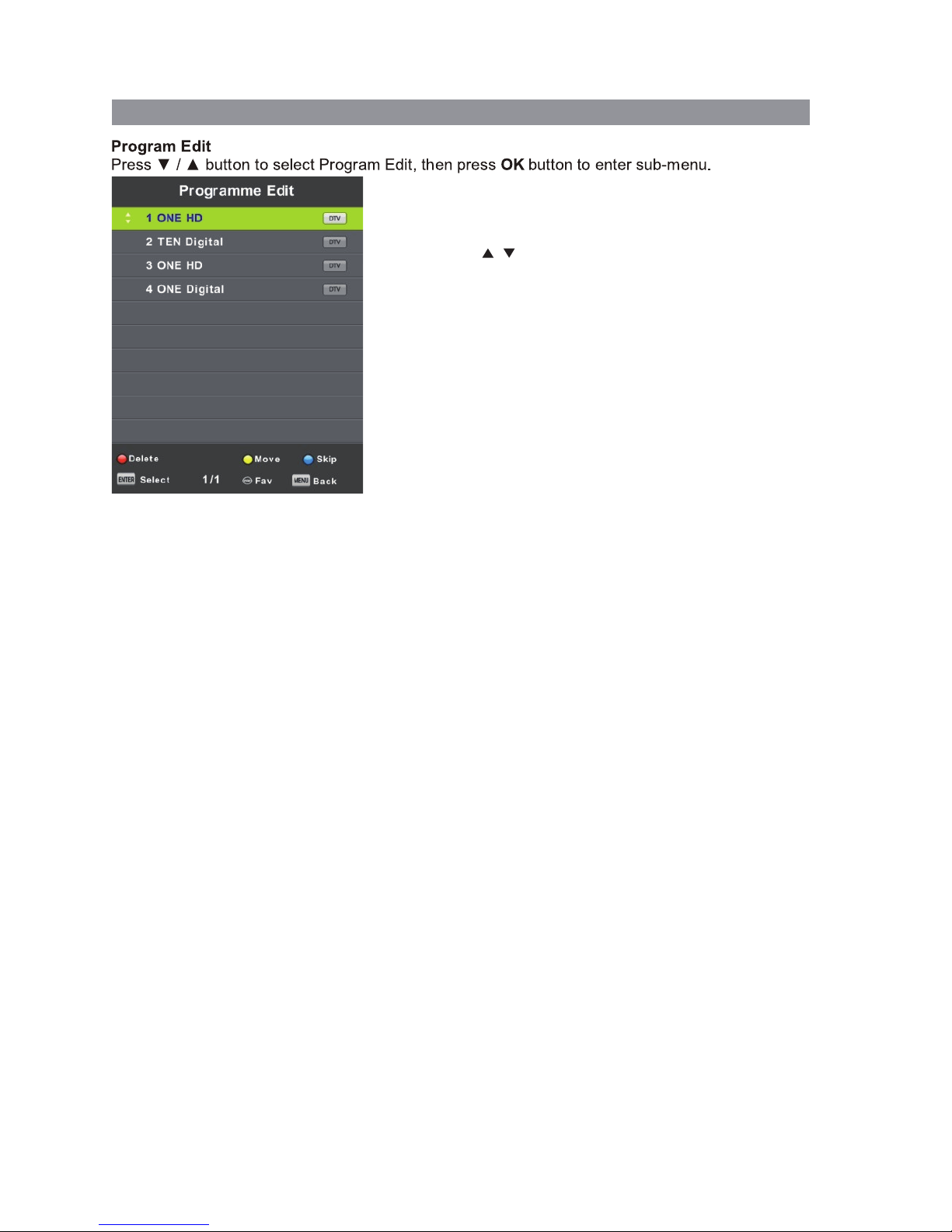

Use the coloured buttons on the remote to edit the channels.
First press the / buttons on the remote to highlight the
channel you want to select, then:
Press the button to delete the channel from the program list.Red
Press the button to move the channel in the list.Yellow
Press the button to skip the selected channel (this channel Blue
will be skipped when using channel up/down on the remote.
Press the Fav button (see pgs 8-10) on the remote to add or
remove the channel from your favourite list.
DTV TUNING cont’d
Signal Information
This displays the current signal information of the TV Signal. This option can be useful to help
you position your RV’s antenna.
LCN (Logical Channel Number)
This setting makes sure that the Channels tuned in to the TV represent the actual channel
number. For example, the main Channel 7 feed will be tuned in as Channel number 7 on the
TV, rather than the order the Channel is Tuned in. It is recommended that this setting is always
set to “Yes”.
Software Update (USB)
Software updates may become available for this TV from time to time. To update the Software,
copy the updated Software file on to an empty USB drive and insert in to the TV.
Press the ▼/▲ buttons and OK to start the update process. The power LED on the TV will
begin to flash slowly. When it starts flashing fast, disconnect the power from the TV,
remove the USB drive, reconnect power and turn the TV back on.
16

Picture Mode
Press ▼/▲ buttons to select Picture mode, and go into next interface by pressing the OK
button. Then you can change picture mode to standard/mild/dynamic/personal
using the ▼/▲ buttons.
Note: Button no. 6 on the Remote Control also performs this function. Press the button
repeatedly to cycle through the available Picture Mode options.
Contrast, Brightness, Colour, Tint, Sharpness
Note that you can only adjust the Contrast, Brightness, Colour,
Tint & Sharpness settings when the User Picture Mode is selected. Press the ▼/▲
buttons to select the picture adjustment you would like to make then press the / buttons
to adjust the desired setting.
Colour Temp
Press ▼/▲ to select the Colour Temp menu item, and then the OK button to take you to next
menu where you can change Colour Temperature. Modes available are standard, warm,
cool and personal. You can alter colour temperature with the ▼/▲ buttons.
Aspect Ratio
Press the ▼/▲ buttons to select the Aspect Ratio you would like to make then press the /
buttons to select the Aspect Ratio from: Auto (Default), 4:3, 16:9, Zoom1, Zoom2.
Note: Button no. 20 on the Remote Control also performs this function. Press the button
repeatedly to cycle through the available Aspect Ratio options.
Noise Reduction
Noise reduction helps filter out and reduce image noise which can improve the picture quality
from poor video sources.
Press ▼/▲ to select the Noise Reduction menu option, and then the OK button to take you to
next menu. Then press the ▼/▲ buttons to select off/low/middle/high.
PICTURE SUB-MENU
17
