NOTE: Read the entire instruction manual before starting the installation.
This symbol →indicates a change since the last issue.
SAFETY CONSIDERATIONS
Installing and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and qualified personnel should
install, repair, or service heating equipment.
Untrained personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed
by trained service personnel. When working on heating equipment, observe precautions in the literature, on tags, and on labels attached to or
shipped with the unit, and other safety precautions that may apply.
Follow all safety codes. In the United States, follow all safety codes including the National Fuel Gas Codes NFPA No. 54-1996/ANSI Z223.1-1996
(NFGC). In Canada, refer to the National Standard of Canada Natural Gas and Propane Gases Installation Codes, CAN/CGA-B149.1 and .2-M95
(NSCNGPIC).
Wear safety glasses and work gloves. Have a fire extinguisher available during start-up operation, adjustment procedures, and service calls.
Recognize safety information. This is the safety-alert symbol . When you see this symbol on the furnace and in instructions or manuals, be
alert to the potential for personal injury.
Understand the signal word DANGER, WARNING, CAUTION, or NOTE. The words DANGER, WARNING, and CAUTION are used with the
safety-alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies
hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which would result in minor personal injury
or product and property damage. NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or operation.
WARNING: This conversion kit shall be installed by a qualified service agency in
accordance with the manufacturer’s instructions and all applicable codes and requirements
of the authority having jurisdiction. If the information in these instructions is not followed
exactly, a fire, explosion, or production of carbon monoxide may result causing property
damage, personal injury, or loss of life. The qualified service agency performing this work
assumes responsibility for the proper conversion of this furnace with this kit.
In Canada, the conversion shall be carried out in accordance with the requirements of the
provincial authorities having jurisdiction and the National Standard of Canada Natural Gas
and Propane Installation Code (NSCNGPIC).
AVERTISSEMENT: Cet ensemble de conversion ne doit être installé que par le représen-
tant d’un organisme qualifié et conformément aux instructions du fabricant et à tous les
codes et exigences applicables de l’autorité compétente. Quiconque ne respecte pas à la
lettre les instructions dans le présent manuel risque de déclencher un incendie ou une
explosion entraînant des dommages matériels, des lésions corporelles ou la perte de vies
humaines. L’organisme qualifié qui effectue les travaux est responsable de la conversion
correcte de ce générateur d’air chaud à l’aide de cet ensemble.
INTRODUCTION
This instruction covers the installation of gas conversion kit Part No. KGAPN20012SP to convert the following furnaces from propane gas usage
to natural gas usage. See the appropriate section for your furnace type.
®
CANADIAN GAS ASSOCIATION
APPROVED
R
Installation Instructions
KGAPN20012SP
Gas Conversion Kit
Propane-to-Natural for
Variable-Speed and
2-Speed Furnaces
Form: AG-GAPN-13 Cancels: AG-GAPN-12 Printed in U.S.A. 8-97 Catalog No. 63GA-PN0

• Section 1—Models 58DXT, 58TMA, 58TUA, 58UHV, 58UXT, 58UXV, 330AAV, 330JAV, 331AAV, 331JAV, 333BAV, and 333JAV
Induced-Combustion, Hot Surface Ignition, 2-Speed and Variable-Speed Non-Condensing Furnaces. The kit is designed for use in 040 through
140 size furnaces.
• Section 2—Models 58MVP and 355MAV Multipoise, Hot Surface Ignition, Variable-Speed Condensing Furnaces. The kit is designed for use
in 040 through 120 size furnaces.
WARNING: Improper installation, adjustment, alteration, service, maintenance, or use can cause carbon monoxide
poisoning, explosion, fire, electrical shock, or other conditions which could result in personal injury or death. Consult a
qualified installer, service agency, local gas supplier, or your distributor or branch for information or assistance. The
qualified installer or agency must use only factory-authorized kits and accessories when modifying this product. Failure to
follow these instructions could result in serious injury or property damage.
CAUTION: Gas supply MUST be shut off before disconnecting electrical power and proceeding with conversion.
DESCRIPTION AND USAGE
This kit is designed for use in the furnaces listed above. See Table 1 for kit contents. The conversion uses a White-Rodgers 36E 2-stage gas valve.
More parts are shipped in kit than are needed to complete conversion. Furnace models 58DXT, 58UXT, 58UXV, 330JAV, 331JAV, and 333JAV
that reside in South Coast Air Quality Management District or Bay Area Air Quality Management District in California, or other areas that regulate
NO
x
emissions below 40 ng/J for natural gas furnaces must be outfitted with NO
x
reducing device. Use kit number 322562-751 to convert to low
NO
x
emissions furnace. When installation is complete, discard extra parts.
Table 1— Kit Contents
DESCRIPTION PART NO. QUANTITY
Gas Valve—Natural (White-Rodgers 36E, 2-Stage, Elect. Sw.) EF33CW195 1
Main Burner Orifice (Drill Size No. 42) LH32DB207 7
Main Burner Orifice (Drill Size No. 43) LH32DB202 7
Main Burner Orifice (Drill Size No. 44) LH32DB200 7
Main Burner Orifice (Drill Size No. 45) LH32DB205 7
Conversion Rating Plate Label 323870-101 1
Conversion Responsibility Label 321201-104 1
Installation Instructions AG-GAPN-13 1
—2—
→

SECTION 1—MODELS 58DXT, 58TMA, 58TUA, 58UHV, 58UXT, 58UXV, 330AAV, 330JAV, 331AAV, 331JAV, 333BAV,
AND 333JAV INDUCED-COMBUSTION, HOT SURFACE IGNITION, 2-SPEED AND VARIABLE-SPEED,
NON-CONDENSING FURNACES
PROCEDURE 1—INSTALL MAIN BURNER ORIFICES
NOTE: See Fig. 1 or 2 for component location.
1. Turn off main gas and electrical supplies to furnace.
2. Remove control access door.
3. Turn furnace gas valve control knob or electric switch to OFF position.
4. Remove burner hold-down bracket.
5. Remove burners from manifold.
6. Remove and discard orifices from manifold.
7. Determine natural gas orifice size for correct input at installed altitude by using Table 2 (for upflow and upflow/horizontal models) or Table
3 (for downflow and downflow/horizontal models). (See also Fig. 3.)
Furnace gas input rate on rating plate is for installations at altitudes up to 2000 ft.
In the U.S.A., the input rating for altitudes above 2000 ft must be reduced by 4 percent for each 1000 ft above sea level.

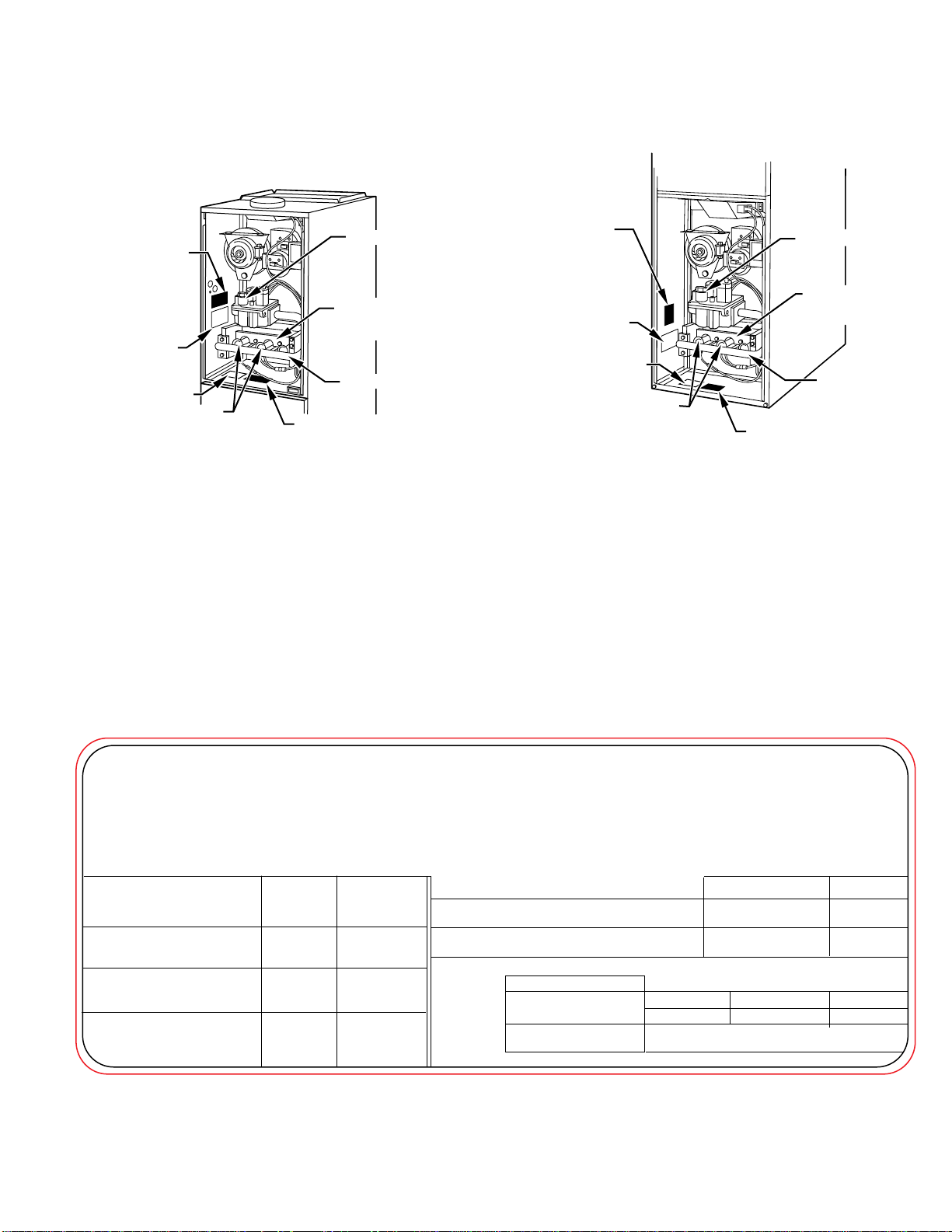

Fig. 1—Upflow and Upflow/Horizontal, 2-Speed and
Variable-Speed, Non-Condensing Furnace
Compartment and Conversion Label Location
A95461
CONVERSION
RESPONSIBILITY
LABEL
CONVERSION
RATING
PLATE
BURNERS
CLEARANCE LABEL
FURNACE
RATING
PLATE
BURNER 
HOLD–DOWN 
BRACKET
MANIFOLD
GAS VALVE
Fig. 2—Downflow and Downflow/Horizontal, 2-Speed,
Non-Condensing Furnace Compartment
and Conversion Label Location
A95462
GAS VALVE
BURNER 
HOLD–DOWN 
BRACKET
CONVERSION
RESPONSIBILITY
LABEL
CONVERSION
RATING
PLATE
MANIFOLD
BURNERS
CLEARANCE LABEL
FURNACE
RATING
PLATE
→Fig. 3—Conversion Rating Plate Label
(Used for Natural Gas, Non-Condensing, 2-Speed and Variable-Speed Furnaces)
A97180
CONVERSION KIT RATING PLATE - CARRIER CORP.
APPLIANCE MODELS
58MVP, 355MAV
323870-101 REV. B
Max. Inlet Gas Pressure
(Press. Max. D’Admission De Gaz)
Manifold
Pressure
13.6 3,386
4.5 1,121
0-2,000 ft.
(0 - 610 m)
3.2 - 3.8 797 - 946
Refer to installation manual
Respecter les instruction D’Installation
2% 5%
4% 10%
58TMA, 58DXT,
331AAV, 331JAV
58TUA, 58UXT,
58UHV, 58UXV,
330AAV, 330JAV,
333BAV, 333JAV
THIS APPLIANCE HAS BEEN CONVERTED TO USE NATURAL GAS FOR FUELREFER TO KIT INSTRUCTIONS FOR CONVERSION
PROCEDURES. USE PARTS SUPPLIED BY CARRIER CORPORATION AND INSTALLED BY QUALIFIED PERSONNEL. SEE EXISTING
RATING PLATE FOR APPLIANCE MODEL NO. AND INPUT RATING.
NOTE: Furnace gas input rate on rating plate is for installations up to 2000 ft. above sea level. In U.S.A. the input rating for altitudes above
2000 ft. must be derated (per chart below) for each 1000 ft above sea level. In Canada the input rating must be derated (per chart below) for
altitudes of 2000 ft. to 4500 ft. above sea level.
Pression
Tubulure
High Heat 1.3 - 1.7 324 - 423
4% 10%
Min. Inlet Gas Pressure
(Press. Min. D’Admission DeGaz)
2,000 - 10,000 ft
(610 - 3050 m)
KIT NO. KGAPN20012SP FUEL USED: NATURAL GAS
(For Purpose of Input Adjustment) (Pour L’Adjustment D’Entree)
Altitude
IN. W.C. (PO C.E.) Pa
Low Heat
% DERATE
PER
1000 FT
% DERATE
FOR
2000-4500 FT
USA CANADA NATURAL GAS PRESSURE
—3—
→
→

In Canada, the input rating must be derated by 10 percent for altitudes of 2000 ft to 4500 ft above sea level.
a. Obtain yearly heat value average (at installed altitude) for local gas supply.
b. Obtain yearly specific gravity average for local gas supply.
c. Verify furnace model and select appropriate table. Table 2 can only be used for upflow and upflow/horizontal, 2-speed and
variable-speed, non-condensing furnaces. Table 3 can only be used for downflow and downflow/horizontal, 2-speed, non-condensing
furnaces.
d. Find installation altitude in Table 2 (for upflow and upflow/horizontal models) or Table 3 (for downflow and downflow/horizontal
models).
NOTE: For Canada altitudes of 2000 to 4500 ft, use U.S.A. altitudes of 2001 to 3000 ft in Table 2 or 3.
e. Find closest natural gas heat value and specific gravity in Table 2 (for upflow and upflow/horizontal models) or Table 3 (for downflow
and downflow/horizontal models).
f. Follow heat value line and specific gravity line to point of intersection to find orifice size and manifold pressure settings for proper
operation at given natural gas condition.
EXAMPLE: (Using Table 2 at 0—2000 ft altitude)
Heat value 1050 Btu/cu ft
Specific gravity 0.62
Therefore, Orifice No. 45 is required.
8. Install main burner orifices. Finger-tighten orifices at least 1 full turn to prevent cross threading, then tighten with wrench. There are enough
orifices in each kit for the largest furnace. Discard extra orifices. Orifices of other sizes must be field supplied and are available through
your local distributor.
NOTE: DO NOT reinstall main burners or burner hold-down bracket at this time.

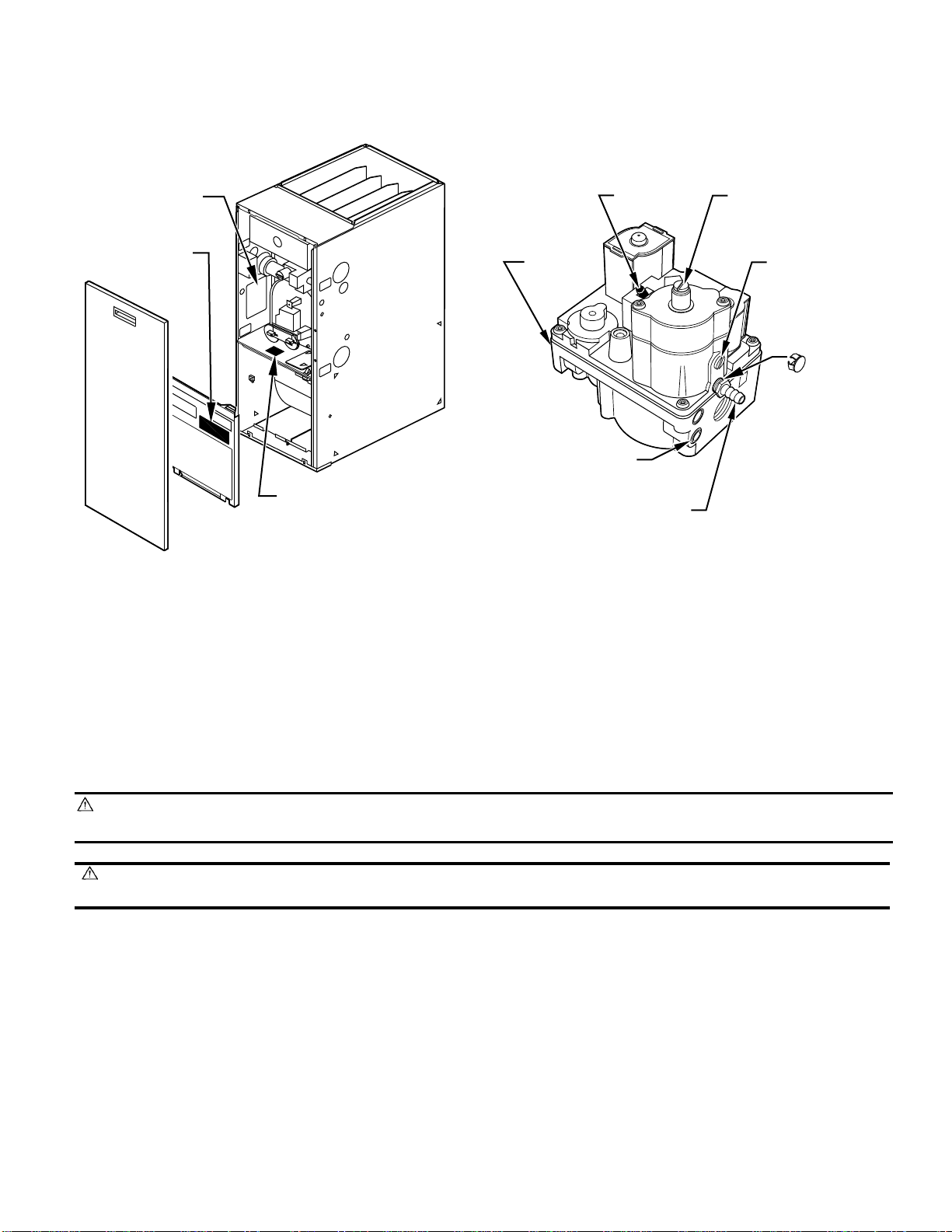

PROCEDURE 2—REPLACE AND CONVERT GAS VALVE. (SEE FIG. 4.)
NOTE: Discard labels and instructions packaged with White-Rodgers gas valve. All necessary information is provided in this instruction.
1. Be sure gas and electrical supplies to furnace are off.
2. Remove wires from gas valve. Note location for reassembly.
3. If a low gas pressure switch (LGPS) is installed on inlet pressure tap of gas valve, remove 2 wires to LGPS.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation.
ATTENTION: Lors des opérations d’entretien des commandes, étiqueter tous les fils avant de les déconnecter. Toute
erreur de câblage peut être une source de danger et de panne.
4. Remove gas supply line from gas valve.
5. Remove propane gas valve using backup wrench and discard valve. On some models, the pressure switch assembly may need to be loosened
and moved aside to permit removal of the gas valve.
NOTE: Propane gas valve has RED knob, and natural gas valve has a BLUE knob or ELECTRIC SWITCH.
6. Modify natural gas valve.
a. Remove burner enclosure reference pressure tap from natural gas valve. (See Fig. 4.)
b. Remove plug button from same location on propane gas valve and insert in hole in new natural gas valve from which pressure tap was
removed.

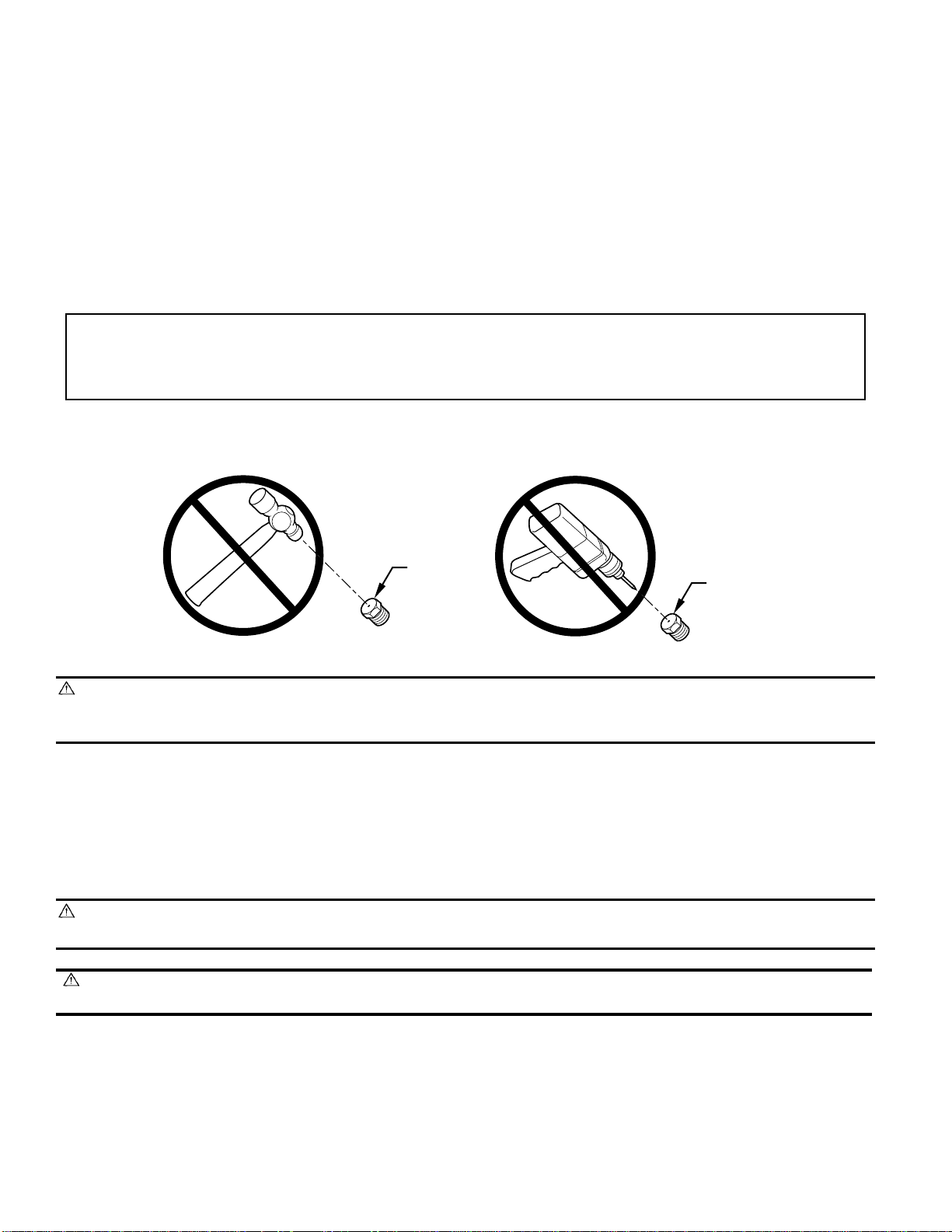

CAUTION: DO NOT redrill burner orifices. Improper drilling (burrs, out-of-round holes, etc.) can cause excessive
burner noise and misdirection of burner flames. This can result in flame impingement of the burners and heat exchanger
causing failure. Obtain new orifices if orifice size must be changed.
A96249
BURNER 
ORIFICE BURNER 
ORIFICE
—4—
→

Table 2—Upflow and Upflow/Horizontal, 2-Speed and Variable-Speed, Hot Surface Ignition, Non-Condensing
Furnace Orifice Size and Manifold Pressure for Correct Input
(Tabulated Data Based on 20,000 Btuh High Heat/13,000 Btuh Low Heat per Burner,
Derated 4% for Each 1000 Ft Above Sea Level)*
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. and Canada
850 43 3.7/1.5 43 3.8/1.6 42 3.2/1.4 42 3.3/1.4 42 3.4/1.4
875 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6 42 3.2/1.4
900 44 3.7/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6
0 925 44 3.5/1.5 44 3.7/1.6 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5
950 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.6 44 3.8/1.6
to 975 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
1000 45 3.7/1.6 45 3.8/1.6 44 3.2/1.4 44 3.4/1.4 44 3.5/1.5
2000 1025 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3 44 3.3/1.4
1050 45 3.3/1.4 45 3.4/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
1075 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5
1100 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4 45 3.4/1.4 45 3.5/1.5
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. and Canada
U.S.A. 775 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6
Altitudes 800 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5
2001 825 44 3.4/1.4 44 3.5/1.5 44 3.7/1.5 44 3.8/1.6 43 3.4/1.4
to 850 44 3.2/1.4 44 3.3/1.4 44 3.4/1.5 44 3.6/1.5 44 3.7/1.5
3000 875 45 3.7/1.6 45 3.8/1.6 44 3.2/1.4 44 3.4/1.4 44 3.5/1.5
or 900 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6 44 3.3/1.4
Canada 925 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6
Altitudes 950 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.5 45 3.6/1.5
2000 975 47 3.5/1.5 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4
to 1000 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4
4500 1025 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
750 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5
775 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4
800 44 3.2/1.4 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
3001 825 45 3.6/1.5 45 3.8/1.6 44 3.2/1.4 44 3.3/1.4 44 3.4/1.4
850 45 3.4/1.4 45 3.5/1.5 45 3.7/1.5 45 3.8/1.6 44 3.2/1.4
to 875 45 3.2/1.4 45 3.3/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6
900 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5
4000 925 47 3.4/1.5 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4
950 48 3.7/1.6 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6
975 48 3.5/1.5 48 3.7/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5
1000 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6
* For 060135 and 135-20 sizes only, input is 19,000 Btuh for high fire. Deduct 0.1 in. from manifold pressure shown in table. Change orifice size if manifold pressure falls
below 3.2-in. wc.
—5—

Table 2—Upflow and Upflow/Horizontal, 2-Speed and Variable-Speed, Hot Surface Ignition, Non-Condensing
Furnace Orifice Size and Manifold Pressure for Correct Input-Continued
(Tabulated Data Based on 20,000 Btuh High Heat/13,000 Btuh Low Heat per Burner,
Derated 4% for Each 1000 Ft Above Sea Level)*
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
725 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4
750 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
775 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4
4001 800 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3
825 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5
to 850 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.4
875 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4
5000 900 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5
925 48 3.4/1.5 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6 47 3.4/1.5
950 49 3.8/1.6 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
700 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
725 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6 44 3.3/1.4 44 3.4/1.4
750 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
775 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5
5001 800 47 3.5/1.5 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4
825 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5 47 3.7/1.5 45 3.2/1.3
to 850 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6 47 3.4/1.5 47 3.5/1.5
875 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6
6000 900 49 3.7/1.6 49 3.8/1.6 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5
925 49 3.5/1.5 49 3.6/1.5 49 3.8/1.6 48 3.3/1.4 48 3.4/1.4
950 49 3.3/1.4 49 3.5/1.5 49 3.6/1.5 49 3.7/1.6 49 3.8/1.6
975 50 3.7/1.6 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5 49 3.6/1.5
1000 50 3.6/1.5 50 3.7/1.6 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
650 44 3.2/1.4 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
675 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6 44 3.3/1.4 44 3.4/1.4
700 45 3.3/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
6001 725 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.5 45 3.5/1.5
750 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4
to 775 48 3.7/1.6 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6
800 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6 47 3.5/1.5
7000 825 49 3.8/1.6 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6
850 49 3.6/1.5 49 3.7/1.6 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5
875 49 3.4/1.4 49 3.5/1.5 49 3.6/1.5 49 3.8/1.6 48 3.3/1.4
* For 065135 and 135-20 sizes only, input is 19,000 Btuh for high fire. Deduct 0.1 in. from manifold pressure shown in table. Change orifice size if manifold pressure falls
below 3.2-in. wc.
—6—

Table 2—Upflow and Upflow/Horizontal, 2-Speed and Variable-Speed, Hot Surface Ignition, Non-Condensing
Furnace Orifice Size and Manifold Pressure for Correct Input-Continued
(Tabulated Data Based on 20,000 Btuh High Heat/13,000 Btuh Low Heat per Burner,
Derated 4% for Each 1000 Ft Above Sea Level)*
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
625 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4
650 45 3.3/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
675 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5
7001 700 47 3.4/1.4 47 3.5/1.5 47 3.7/1.5 45 3.2/1.3 45 3.3/1.4
725 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5
to 750 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4
775 49 3.7/1.6 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5
8000 800 49 3.5/1.5 49 3.6/1.5 49 3.8/1.6 48 3.3/1.4 48 3.4/1.4
825 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5 49 3.6/1.5 49 3.8/1.6
850 50 3.7/1.6 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
600 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
625 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5
8001 650 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4
675 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5
to 700 48 3.3/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6
725 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4 48 3.4/1.5 48 3.5/1.5
9000 750 49 3.4/1.4 49 3.5/1.5 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4
775 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5 49 3.6/1.5
800 50 3.6/1.5 50 3.7/1.6 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
575 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5
600 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4
9001 625 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5
650 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6
to 675 49 3.6/1.5 49 3.7/1.6 49 3.8/1.6 48 3.4/1.4 48 3.5/1.5
700 49 3.3/1.4 49 3.4/1.5 49 3.6/1.5 49 3.7/1.6 49 3.8/1.6
10,000 725 50 3.7/1.6 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5
750 50 3.4/1.5 50 3.6/1.5 50 3.7/1.6 50 3.8/1.6 49 3.3/1.4
775 51 3.8/1.6 50 3.3/1.4 50 3.4/1.5 50 3.5/1.5 50 3.7/1.5
* For 060135 and 135-20 sizes only, input is 19,000 Btuh for high fire. Deduct 0.1 in. from manifold pressure shown in table. Change orifice size if manifold pressure falls
below 3.2 in. wc.
—7—

Table 3—Downflow and Downflow/Horizontal, 2-Speed, Hot Surface Ignition, Non-Condensing
Furnace Orifice Size and Manifold Pressure for Correct Input
(Tabulated Data Based on 21,000 Btuh High Heat/13,500 Btuh Low Heat per Burner,
Derated 4% for Each 1000 Ft Above Sea Level)*
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. and Canada
850 42 3.3/1.4 42 3.4/1.4 42 3.5/1.5 42 3.7/1.5 42 3.8/1.6
875 43 3.8/1.6 42 3.2/1.3 42 3.3/1.4 42 3.5/1.4 42 3.6/1.5
900 43 3.6/1.5 43 3.7/1.5 42 3.2/1.3 42 3.3/1.3 42 3.4/1.4
0 925 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.8/1.6 42 3.2/1.3
950 44 3.7/1.5 44 3.8/1.6 43 3.5/1.4 43 3.6/1.5 43 3.7/1.5
to 975 44 3.5/1.5 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4
1000 44 3.3/1.4 44 3.5/1.4 44 3.6/1.5 44 3.7/1.5 44 3.8/1.6
2000 1025 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
1050 45 3.7/1.5 45 3.8/1.6 44 3.2/1.3 44 3.4/1.4 44 3.5/1.4
1075 46 3.7/1.5 46 3.8/1.6 45 3.7/1.5 44 3.2/1.3 44 3.3/1.4
1100 46 3.5/1.5 46 3.6/1.5 46 3.8/1.6 45 3.7/1.5 45 3.8/1.6
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. and Canada
U.S.A. 775 43 3.7/1.5 42 3.2/1.3 42 3.3/1.4 42 3.4/1.4 42 3.5/1.4
Altitudes 800 43 3.5/1.4 43 3.6/1.5 43 3.7/1.5 42 3.2/1.3 42 3.3/1.3
2001 825 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.7/1.5
to 850 44 3.6/1.5 44 3.7/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5
3000 875 44 3.4/1.4 44 3.5/1.4 44 3.6/1.5 44 3.7/1.5 44 3.8/1.6
or 900 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.4 44 3.6/1.5
Canada 925 46 3.8/1.6 45 3.8/1.6 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4
Altitudes 950 46 3.6/1.5 46 3.7/1.5 45 3.7/1.5 45 3.8/1.6 44 3.2/1.3
2000 975 46 3.4/1.4 46 3.5/1.5 46 3.7/1.5 46 3.8/1.6 45 3.7/1.5
to 1000 47 3.7/1.5 47 3.8/1.6 46 3.5/1.4 46 3.6/1.5 46 3.7/1.5
4500 1025 47 3.5/1.5 47 3.6/1.5 47 3.8/1.6 46 3.4/1.4 46 3.5/1.5
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
750 43 3.5/1.4 43 3.6/1.5 43 3.7/1.5 42 3.2/1.3 42 3.3/1.4
775 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4 43 3.6/1.5 43 3.7/1.5
800 44 3.5/1.5 44 3.7/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4
3001 825 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.7/1.5 44 3.8/1.6
850 45 3.8/1.6 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.6/1.5
to 875 46 3.7/1.5 45 3.7/1.5 44 3.2/1.3 44 3.3/1.3 44 3.4/1.4
900 46 3.5/1.5 46 3.7/1.5 46 3.8/1.6 45 3.7/1.5 44 3.2/1.3
4000 925 47 3.8/1.6 46 3.5/1.4 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6
950 47 3.6/1.5 47 3.7/1.5 46 3.4/1.4 46 3.5/1.5 46 3.6/1.5
975 47 3.4/1.4 47 3.5/1.5 47 3.7/1.5 47 3.8/1.6 46 3.4/1.4
1000 48 3.7/1.5 48 3.8/1.6 47 3.5/1.4 47 3.6/1.5 47 3.7/1.5
* For 060125 and 125-20 sizes only, input is 20,500 Btuh for high fire. Deduct 0.1 in. from manifold pressure shown in table. Change orifice size if manifold pressure falls
below 3.2-in. wc.
—8—

Table 3—Downflow and Downflow/Horizontal, 2-Speed, Hot Surface Ignition, Non-Condensing
Furnace Orifice Size and Manifold Pressure for Correct Input-Continued
(Tabulated Data Based on 21,000 Btuh High Heat/13,500 Btuh Low Heat per Burner,
Derated 4% for Each 1000 Ft Above Sea Level)*
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
725 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4 43 3.6/1.5 43 3.7/1.5
750 44 3.5/1.5 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4
775 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.5
4001 800 45 3.7/1.5 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5
825 46 3.7/1.5 46 3.8/1.6 45 3.8/1.6 44 3.2/1.3 44 3.3/1.4
to 850 46 3.5/1.4 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6 45 3.8/1.6
875 47 3.7/1.5 46 3.4/1.4 46 3.5/1.5 46 3.6/1.5 46 3.7/1.5
5000 900 47 3.5/1.5 47 3.6/1.5 47 3.8/1.6 46 3.4/1.4 46 3.5/1.5
925 48 3.8/1.6 47 3.4/1.4 47 3.6/1.5 47 3.7/1.5 47 3.8/1.6
950 48 3.6/1.5 48 3.7/1.5 48 3.8/1.6 47 3.5/1.4 47 3.6/1.5
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
700 44 3.5/1.5 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4
725 44 3.3/1.4 44 3.4/1.4 44 3.5/1.4 44 3.6/1.5 44 3.7/1.5
750 45 3.7/1.5 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.4
775 46 3.6/1.5 46 3.8/1.6 45 3.7/1.5 44 3.2/1.3 44 3.3/1.4
5001 800 46 3.4/1.4 46 3.5/1.5 46 3.7/1.5 46 3.8/1.6 45 3.7/1.5
825 47 3.7/1.5 47 3.8/1.6 46 3.4/1.4 46 3.6/1.5 46 3.7/1.5
to 850 47 3.4/1.4 47 3.6/1.5 47 3.7/1.5 47 3.8/1.6 46 3.5/1.4
875 48 3.7/1.5 48 3.8/1.6 47 3.5/1.4 47 3.6/1.5 47 3.7/1.5
6000 900 48 3.5/1.4 48 3.6/1.5 48 3.7/1.5 47 3.4/1.4 47 3.5/1.4
925 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.8/1.6
950 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4 48 3.5/1.4 48 3.6/1.5
975 49 3.5/1.4 49 3.6/1.5 49 3.7/1.5 48 3.3/1.4 48 3.4/1.4
1000 49 3.3/1.4 49 3.4/1.4 49 3.6/1.5 49 3.7/1.5 49 3.8/1.6
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
650 44 3.5/1.5 44 3.7/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.4
675 44 3.3/1.4 44 3.4/1.4 44 3.5/1.4 44 3.6/1.5 44 3.7/1.5
700 45 3.7/1.5 44 3.2/1.3 44 3.3/1.3 44 3.4/1.4 44 3.5/1.4
6001 725 46 3.6/1.5 46 3.7/1.5 45 3.7/1.5 45 3.8/1.6 44 3.2/1.3
750 47 3.8/1.6 46 3.5/1.4 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6
to 775 47 3.6/1.5 47 3.7/1.5 47 3.8/1.6 46 3.5/1.4 46 3.6/1.5
800 48 3.8/1.6 47 3.5/1.4 47 3.6/1.5 47 3.7/1.5 47 3.8/1.6
7000 825 48 3.6/1.5 48 3.7/1.5 48 3.8/1.6 47 3.5/1.4 47 3.6/1.5
850 48 3.4/1.4 48 3.5/1.4 48 3.6/1.5 48 3.7/1.5 47 3.4/1.4
875 49 3.8/1.6 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5
* For 060125 and 125-20 sizes only, input is 20,500 Btuh for high fire. Deduct 0.1 in. from manifold pressure shown in table. Change orifice size if manifold pressure falls
below 3.2-in. wc.
—9—

Table 3—Downflow and Downflow/Horizontal, 2-Speed, Hot Surface Ignition, Non-Condensing
Furnace Orifice Size and Manifold Pressure for Correct Input-Continued
(Tabulated Data Based on 21,000 Btuh High Heat/13,500 Btuh Low Heat per Burner,
Derated 4% for Each 1000 Ft Above Sea Level)*
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
625 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.5
650 45 3.7/1.5 45 3.8/1.6 44 3.3/1.3 44 3.4/1.4 44 3.5/1.4
675 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6 45 3.8/1.6 44 3.2/1.3
7001 700 47 3.8/1.6 46 3.4/1.4 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6
725 47 3.5/1.5 47 3.6/1.5 47 3.8/1.6 46 3.4/1.4 46 3.5/1.5
to 750 48 3.7/1.5 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5 47 3.7/1.5
775 48 3.5/1.5 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.4
8000 800 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.5
825 49 3.6/1.5 49 3.8/1.6 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5
850 49 3.4/1.4 49 3.5/1.5 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
600 45 3.7/1.5 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.4
625 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6 45 3.8/1.6 44 3.2/1.3
8001 650 47 3.8/1.6 46 3.4/1.4 46 3.5/1.5 46 3.7/1.5 46 3.8/1.6
675 47 3.5/1.4 47 3.6/1.5 47 3.7/1.5 47 3.8/1.6 46 3.5/1.4
to 700 48 3.7/1.5 48 3.8/1.6 47 3.5/1.4 47 3.6/1.5 47 3.7/1.5
725 48 3.4/1.4 48 3.6/1.5 48 3.7/1.5 48 3.8/1.6 47 3.4/1.4
9000 750 49 3.8/1.6 48 3.3/1.4 48 3.4/1.4 48 3.5/1.5 48 3.7/1.5
775 49 3.5/1.5 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4 48 3.4/1.4
800 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5 49 3.7/1.5 49 3.8/1.6
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
575 46 3.6/1.5 46 3.7/1.5 46 3.8/1.6 45 3.8/1.6 44 3.2/1.3
600 47 3.7/1.5 46 3.4/1.4 46 3.5/1.5 46 3.6/1.5 46 3.8/1.6
9001 625 47 3.4/1.4 47 3.6/1.5 47 3.7/1.5 47 3.8/1.6 46 3.5/1.4
650 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5 47 3.6/1.5
to 675 48 3.4/1.4 48 3.5/1.4 48 3.6/1.5 48 3.7/1.5 48 3.8/1.6
700 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4 48 3.5/1.4 48 3.6/1.5
10,000 725 49 3.4/1.4 49 3.5/1.5 49 3.7/1.5 49 3.8/1.6 48 3.3/1.4
750 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4 49 3.5/1.5 49 3.6/1.5
775 50 3.5/1.5 50 3.7/1.5 50 3.8/1.6 49 3.3/1.4 49 3.4/1.4
* For 060125 and 125-20 sizes only, input is 20,500 Btuh for high fire. Deduct 0.1 in. from manifold pressure shown in table. Change orifice size if manifold pressure falls
below 3.2-in. wc.
—10—

7. Install new natural gas valve to manifold.
NOTE: Use propane-gas-resistant pipe dope to prevent gas leaks. DO NOT use Teflon tape.
8. Reinstall main burners on manifold. Burners should be installed left to right to ensure proper alignment of the burner crossover slot. (See
Fig. 5 for ignitor position.)
9. Reinstall burner hold-down bracket.
10. Reconnect wires to gas valve. See wiring label on furnace to ensure proper location of wires.
11. If a LGPS was removed with propane gas valve, rewire unit low-pressure switch as follows:
a. Disconnect and discard yellow wire and splice connector attached to yellow wire from PL1-5 on control board.
b. Disconnect and discard yellow wire attached to NO terminal of low-pressure switch LPS.
c. Connect yellow wire from PL1-5 on control board to NO terminal of low-pressure switch LPS.
d. Refer to wiring label on furnace to ensure proper location of wires.
12. Reconnect gas supply line to gas valve.
NOTE: Use propane-gas-resistant pipe dope to prevent gas leaks. DO NOT use Teflon tape.
PROCEDURE 3—CHECK INLET GAS PRESSURE
NOTE: This kit is to be used only when inlet gas pressure is between 4.5- and 13.6-in. wc.
1. Be sure main gas and electrical supplies to furnace are off.
2. Remove 1/8-in. pipe plug from inlet pressure tap on gas valve. (See Fig. 4.)
3. Attach manometer to inlet pressure tap on gas valve. (See Fig. 17.)
4. Turn on furnace power supply.
5. Jumper R and W2 thermostat connections on control. (See Fig. 6.) This keeps furnace locked in high-heat operation.
CAUTION: DO NOT operate furnace more than 1 minute to check inlet gas pressure as conversion is not complete at
this time.
6. Turn gas supply manual shutoff valve to ON position.
7. Turn furnace gas valve control knob or electric switch to ON position.
8. When main burners have ignited, confirm inlet gas pressure is between 4.5- and 13.6-in. wc.
9. Remove jumper across R and W2 thermostat connections to terminate call for heat.
Fig. 4—Redundant Automatic 2-Stage Gas Valve
A97484
ON
O
F
F
ON/OFF
SWITCH
INLET
PRESSURE
TAP
BURNER ENCLOSURE
REFERENCE PRESSURE TAP
(VARIABLE-SPEED, CONDENSING
FURNACES ONLY)
MANIFOLD
PRESSURE
TAP
LOW-FIRE
ADJUSTMENT
ALLEN SCREW
(UNDER CAP)
HIGH-FIRE
ADJUSTMENT
ALLEN SCREW
(UNDER CAP)
INSERT PLUG
BUTTON FROM
NATURAL GAS
VALVE AFTER
REMOVING
PRESSURE TAP
(2-STAGE AND
VARIABLE–SPEED,
NON–CONDENSING
FURNACES ONLY)
Fig. 5—Position of Ignitor to Burner A93347
BURNER
IGNITOR
11 32"
78"C
L
C
L
IGNITOR
ASSEMBLY
CELL
PANEL
BURNER 13 32"
HOT
SURFACE
IGNITOR
ASSEMBLY
—11—
→
→

10. Turn furnace gas valve control knob or electric switch to OFF position.
11. Turn gas supply manual shutoff valve to OFF position.
12. Turn off furnace power supply.
13. Remove manometer and reinstall gas valve inlet pressure tap plug. (See Fig. 4.)
NOTE: Use propane-gas-resistant pipe dope to prevent gas leaks. DO NOT use Teflon tape.
PROCEDURE 4—CHECK FURNACE OPERATION AND MAKE NECESSARY ADJUSTMENTS
1. Be sure main gas and electrical supplies to furnace are off.
2. Remove 1/8-in. pipe plug from manifold pressure tap on downstream side of gas valve. (See Fig. 4.)
3. Attach manometer to manifold pressure tap on gas valve.
4. Turn gas supply manual shutoff valve to ON position.
5. Turn furnace gas valve control knob or electric switch to ON position.
6. Check all threaded pipe connections for gas leaks.
WARNING: NEVER use a match or other open flame to check for leaks. Use a soap-and-water solution. Failure to
follow this warning could result in personal injury or death.
7. Turn furnace power supply on.
8. Jumper R and W/W1 thermostat connections to call for heat.
9. Check manifold orifices for gas leaks when main burners ignite.
PROCEDURE 5—SET GAS INPUT RATE
Furnace gas input rate on rating plate is for installations at altitudes up to 2000 ft. (See Fig. 3.)
In the U.S.A., the input rating for altitudes above 2000 ft must be reduced by 4 percent for each 1000 ft above sea level.
In Canada, the input rating must be derated by 10 percent for altitudes of 2000 ft to 4500 ft above sea level.
Furnace input rate must be within ±2 percent of input on furnace rating plate.
The gas input rate must be set for both high- and low-heat stage. Each adjustment is made independently at the gas control regulators.
1. Determine natural gas orifice size and manifold pressure for correct input using Table 2 for models 58TUA, UHV, UXT, UXV/330AAV,
JAV, 333BAV, JAV (upflow and upflow horizontal) or Table 3 for models 58DXT, TMA/331JAV, AAV (downflow and
downflow/horizontal).
a. Obtain yearly heat value average (at installed altitude) from local gas supplier.
b. Obtain yearly specific gravity average from local gas supplier.
c. Verify furnace model and select appropriate table. Table 2 can only be used for upflow and upflow/horizontal, 2-speed and
variable-speed, hot surface ignition, non-condensing furnaces. Table 3 can only be used for downflow and downflow/horizontal, 2-speed,
hot surface ignition, non-condensing furnaces.
d. Find installation altitude in Table 2 (for upflow and upflow/horizontal furnaces) or Table 3 (for downflow and downflow/horizontal
furnaces).
NOTE: For Canada altitudes of 2000 to 4500 ft, use U.S.A. altitudes of 2001 to 3000 ft in Table 2 or 3.
e. Find closest natural gas heat value and specific gravity in Table 2 (for upflow and upflow/horizontal furnaces) or 3 (for downflow and
downflow/horizontal furnaces).
f. Follow heat value and specific gravity lines to point of intersection to find orifice size and low- and high-heat stage manifold pressure
settings for proper operation.
EXAMPLE: (Using Table 2 for upflow or upflow/horizontal furnace at 0—2000 ft altitude)
Heating value = 1050 Btu/cu ft
Specific gravity = 0.62
Therefore: Orifice No. 45
Manifold pressure: 3.6-in. wc for high-heat stage
1.5-in. wc for low-heat stage
g. Check and verify burner orifice size in furnace. NEVER ASSUME ORIFICE SIZE. ALWAYS CHECK AND VERIFY.
2. Adjust manifold pressure to obtain input rate.
a. Turn SW-2 (on control board) to the ON position. (See Fig. 6 and 7.)
b. Jumper R to W/W1 and R to W2 thermostat connections to call for high-heat stage.
c. Remove caps that conceal adjustment screws for high- and low-heat stage gas valve regulators. (See Fig. 4.)
d. Turn high-heat stage adjusting screw (5/64-in. hex allen wrench) counterclockwise (out) to decrease input rate or clockwise (in) to
increase rate.
—12—
→
→

NOTE: DO NOT set high-heat manifold pressure less than 3.2-in. wc or more than 3.8-in. wc for natural gas. If manifold pressure is outside this
range, change main burner orifices.
CAUTION: DO NOT bottom out gas valve regulator adjusting screw. This can result in unregulated manifold pressure
and result in excess overfire and heat exchanger failures.
NOTE: If orifice hole appears damaged or it is suspected to have been redrilled, check orifice hole with a numbered drill bit of correct size. Never
redrill an orifice. A burr-free and squarely aligned orifice hole is essential for proper flame characteristics.
e. Remove jumper across R and W2 thermostat connections to place furnace in low-heat stage operation.
f. Turn low-heat stage adjusting screw (5/64 hex Allen wrench) counterclockwise (out) to decrease input rate or clockwise (in) to increase
input rate.
NOTE: DO NOT set low-heat manifold pressure less than 1.3-in. wc or more than 1.7-in. wc maximum for natural gas. If manifold pressure is
outside this range, change main burner orifices.
g. Remove jumper across R and W/W1 thermostat connections after low-heat stage adjustments.
h. Replace gas valve regulator adjustment screw caps.
i. Turn setup switch SW-2 (on control board) to OFF position. (See Fig. 6 and 7.)

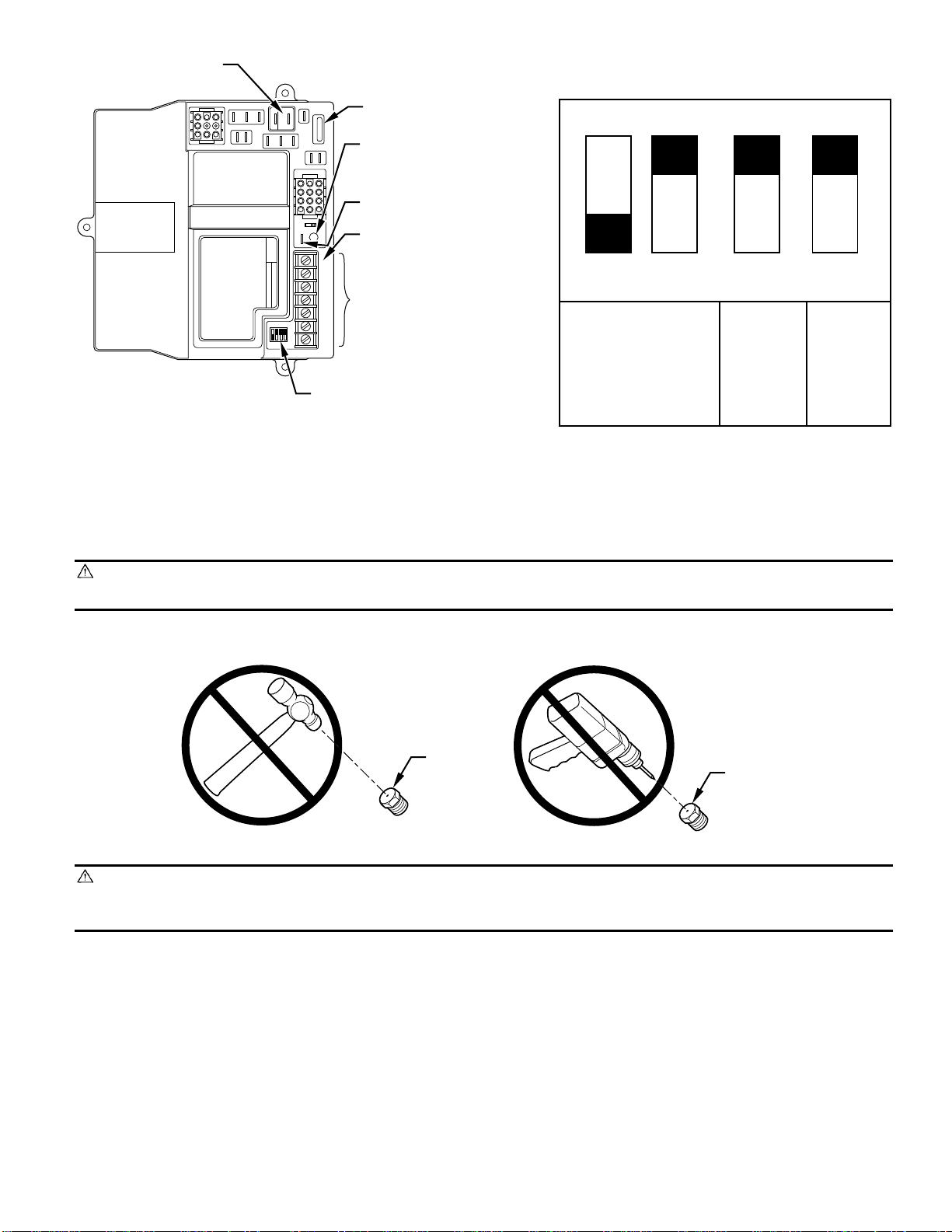

Fig. 6—Non-Condensing Furnace Control Center
(2-Speed Control Shown)
A93348
123
456
78 9
PR2
L2
COM
PR1
L1
EAC-2
EAC-1
HI-COOL
HI-GAS
-HEAT
LO-GAS
-HEAT
PARK
3
FU1
SEC-1 SEC-2
1
123
456
789
10 11 12
MASTER SLAVE
TWIN
TEST
LED
GRY/Y2W/W1
COM
24 V
W2
1
ON
OFF
1234
FURNACE AND
BLOWER OFF DELAY
SETUP SWITCHES
24-VOLT
THERMOSTAT
TERMINALS
EAC - ELECTRONIC
AIR CLEANER
(115-VAC 1 AMP MAX) 3-AMP
FUSE
LED -
DIAGNOSTIC
LIGHT
TWIN / TEST
TERMINAL
HUM -
HUMIDIFIER
(24-VAC 0.5
AMP MAX)
HUM
Fig. 7—Setup Switches on Control Center
(Factory Settings Shown)
A96402
BLOWER-
OFF
DELAY
LOW
HEAT
(ADAPTIVE
ALGORITHM)
HIGH
HEAT
ONLY
43 2 OFF
ON
1
CAUTION: DO NOT redrill burner orifices. Improper drilling (burrs, out-of-round holes, etc.) can cause excessive
burner noise and misdirection of burner flames. This can result in flame impingement of the burners and heat exchangers
causing failure. Obtain new orifices if orifice size must be changed.
A96249
BURNER 
ORIFICE BURNER 
ORIFICE
—13—

3. Verify natural gas input rate by clocking gas meter.
a. Calculate high-altitude adjustment (if required).
UNITED STATES
At installation altitudes above 2000 ft, this furnace has been approved for a 4 percent derate for each 1000 ft above sea level. See Table
4 for derate multiplier factor and example.
EXAMPLE: (For upflow and upflow/horizontal furnaces)
80,000 Btuh input furnace installed at 4300 ft.
Furnace Input Rate at Sea Level X Derate Multiplier Factor = Furnace Input Rate at Installation Altitude
80,000 X 0.82 = 65,600
CANADA
At installation altitudes from 2000 to 4500 ft, this furnace must be derated 10 percent by an authorized Gas Conversion Station or Dealer.
To determine correct input rate for altitude, see example above and use 0.90 as derate multiplier factor.
b. Turn off all other gas appliances and pilots.
c. Turn setup switch SW-2 (on control board) to ON position. (See Fig. 6 and 7.)
d. Jumper R to W/W1 and R to W2 thermostat connections.
e. Let furnace operate for 3 minutes in high-heat stage.
f. Measure time (in sec) for gas meter test dial to complete 1 revolution.
g. Refer to Table 5 for cu ft of gas per hr.
h. Multiply gas rate (cu ft/hr) X heating value (Btu/cu ft) using natural gas heating value from local gas utility/supplier.
EXAMPLE: (High-heat operation for upflow and upflow/horizontal furnaces at 0—2000 ft altitude)
Furnace input from rating plate is 80,000 Btuh.
Btu heating input = Btu/cu ft X cu ft/hr
Heating value of gas = 975 Btu/cu ft
Time for 1 revolution of 2-cu ft dial = 88 sec
Gas rate = 82 cu ft/hr (from Table 5)
Btu heating input = 82 X 975 = 79,950 Btuh
In this example, the orifice size and manifold pressure adjustment is within ±2 percent of the furnace input rate.
i. Remove jumper across R and W2 thermostat connections and repeat items d through h for low-heat stage.
NOTE: Measured gas inputs (high-heat and low-heat stage) must be within ±2 percent of that stated on furnace rating plate when installed at sea
level or derated per that stated above when installed at higher altitudes.
j. Turn setup switch SW-2 (on control board) to OFF position. (See Fig. 6 and 7.)
4. Remove jumper across R and W/W1 thermostat connections to terminate call for heat.
5. Turn furnace gas valve control knob or electric switch to OFF position.
6. Turn off furnace power supply.
7. Remove manometer and replace manifold pressure tap plug. (See Fig. 4.)
NOTE: Use propane-gas-resistant pipe dope to prevent gas leaks. DO NOT use Teflon tape.
8. Turn furnace gas valve control knob or electric switch to ON position.
9. Turn on furnace power supply.
10. Set room thermostat to call for heat.
Table 4—Altitude Derate Multiplier for U.S.A.
ALTITUDE (FT) % OF DERATE DERATE MULTIPLIER FACTOR FOR U.S.A.*
0—2000 0 1.00
2001—3000 8—12 0.90
3001—4000 12—16 0.86
4001—5000 16—20 0.82
5001—6000 20—24 0.78
6001—7000 24—28 0.74
7001—8000 28—32 0.70
8001—9000 32—36 0.66
9001—10,000 36—40 0.62
* Derate multiplier factor is based on midpoint altitude for altitude range.
—14—
→
→

11. Check pressure tap plug for gas leaks when main burners ignite.
12. Check for correct burner flame. (See Fig. 8.)
13. Observe unit operation through 2 complete heating cycles. See sequence of operation in furnace Installation, Start-Up, and Operating
Instructions.
14. Set room thermostat to desired temperature.

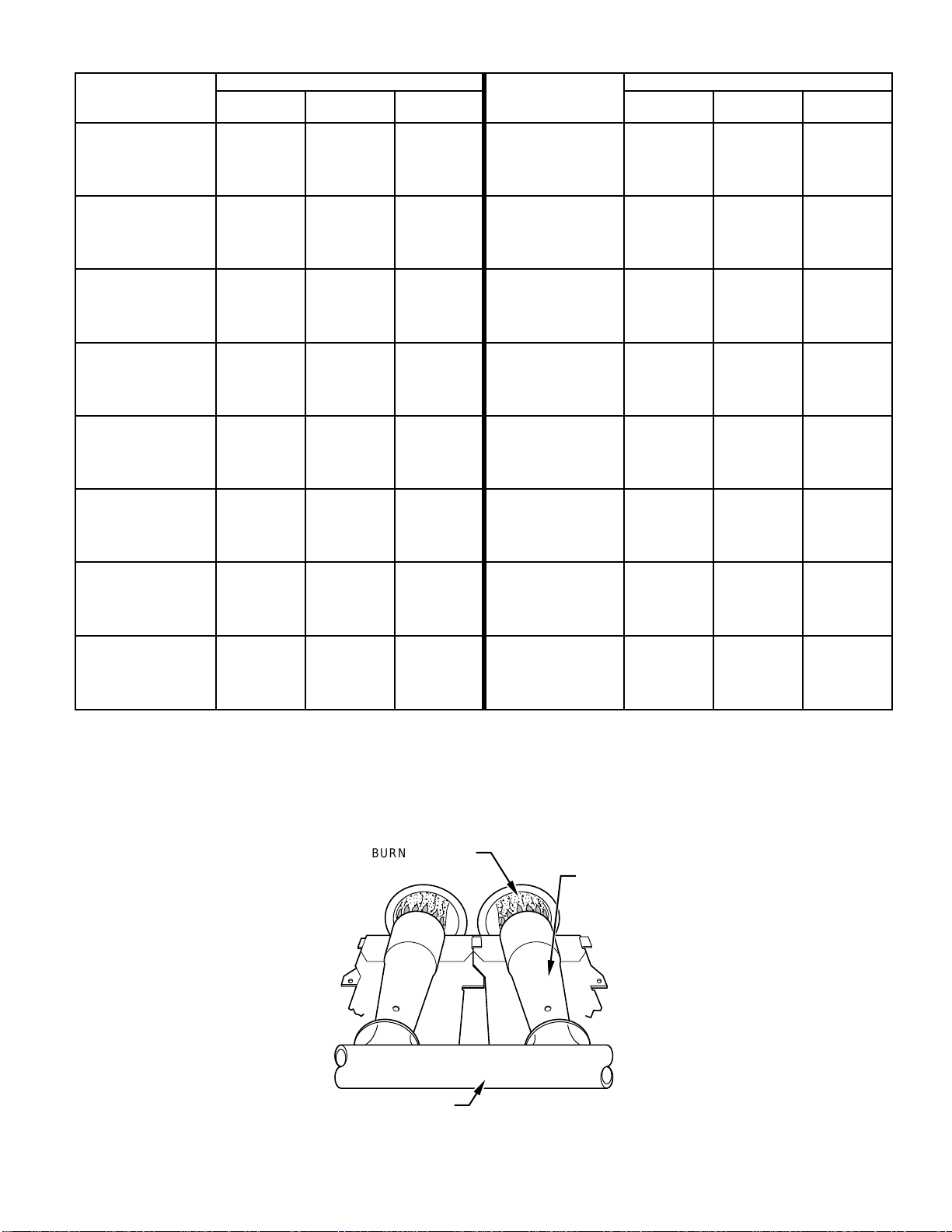

Table 5—Gas Rate (Cu Ft/Hr)
SECONDS
FOR 1
REVOLUTION
SIZE OF TEST DIAL SECONDS
FOR 1
REVOLUTION
SIZE OF TEST DIAL
1
Cu Ft 2 Cu Ft 5 Cu Ft 1 Cu Ft 2 Cu Ft 5 Cu Ft
10
11
12
13
14
360
327
300
277
257
720
655
600
555
514
1800
1636
1500
1385
1286
50
51
52
53
54
72
71
69
68
67
144
141
138
136
133
360
355
346
340
333
15
16
17
18
19
240
225
212
200
189
480
450
424
400
379
1200
1125
1059
1000
947
55
56
57
58
59
65
64
63
62
61
131
129
126
124
122
327
321
316
310
305
20
21
22
23
24
180
171
164
157
150
360
343
327
313
300
900
857
818
783
750
60
62
64
66
68
60
58
56
54
53
120
116
112
109
106
300
290
281
273
265
25
26
27
28
29
144
138
133
129
124
288
277
267
257
248
720
692
667
643
621
70
72
74
76
78
51
50
48
47
46
103
100
97
95
92
257
250
243
237
231
30
31
32
33
34
120
116
113
109
106
240
232
225
218
212
600
581
563
545
529
80
82
84
86
88
45
44
43
42
41
90
88
86
84
82
225
220
214
209
205
35
36
37
38
39
103
100
97
95
92
206
200
195
189
185
514
500
486
474
462
90
92
94
96
98
40
39
38
38
37
80
78
76
75
74
200
196
192
188
184
40
41
42
43
44
90
88
86
84
82
180
176
172
167
164
450
439
429
419
409
100
102
104
106
108
36
35
35
34
33
72
71
69
68
67
180
178
173
170
167
45
46
47
48
49
80
78
76
75
73
160
157
153
150
147
400
391
383
375
367
110
112
116
120
33
32
31
30
65
64
62
60
164
161
155
150
Fig. 8—Burner Flame A89020


BURNER FLAME
BURNER
MANIFOLD
—15—

PROCEDURE 6—LABEL APPLICATION
NOTE: See Fig. 1 or 2 for label location.
1. Fill in Conversion Responsibility Label (321201-104) and apply inside furnace as shown. Date, name, and address of organization making
this conversion are required.
2. Attach Furnace Conversion Rating Plate (323870-101) near existing furnace rating plates.
3. Check for correct normal operating sequence of ignition system as described in the furnace Installation Instructions.
4. Replace furnace control component access door.
—16—

SECTION 2—MODELS 58MVP AND 355MAV MULTIPOISE, HOT SURFACE IGNITION, VARIABLE-SPEED,
CONDENSING FURNACES
PROCEDURE 1—INSTALL MAIN BURNER ORIFICES
NOTE: See Fig. 9 for component location in upflow furnaces. Re-orient component arrangement when furnace is installed in other positions.
1. Turn off gas and electrical supplies to furnace.
2. Remove main furnace door.
3. Turn furnace gas valve control knob or electric switch to OFF position.
4. Remove burner enclosure front.
5. Remove gas supply pipe from gas valve.
6. Remove wires from gas valve. Note location for reassembly.
7. If a low gas pressure switch (LGPS) is installed on inlet pressure tap of gas valve, remove 2 wires to LGPS.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation.
ATTENTION: Lors des opérations d’entretien des commandes, étiqueter tous les fils avant de les déconnecter. Toute
erreur de câblage peut être une source de danger et de panne.
8. Remove burner box pressure tube from gas valve enclosure reference pressure tap fitting. (See Fig. 10.)
9. Remove screws that secure manifold to burner box and remove manifold, orifices, and gas valve as 1 assembly.
10. Remove and discard orifices from manifold.
11. Determine natural gas orifice size for correct input at installed altitude by using Table 6. (See also Fig. 11.)
Furnace gas input rate on rating plate is for installations at altitudes up to 2000 ft.
In the U.S.A., the input rating for altitudes above 2000 ft must be reduced by 2 percent for each 1000 ft above sea level.
In Canada, the input rating must be derated by 5 percent for altitudes of 2000 ft to 4500 ft above sea level.
a. Obtain yearly heat value average (at installed altitude) for local gas supply.
b. Obtain yearly specific gravity average for local gas supply.
c. Verify furnace model. Table 6 can only be used for 40-in. tall, multipoise, hot surface ignition, condensing furnaces.
d. Find installation altitude in Table 6.
NOTE: For Canada altitudes of 2000 to 4500 ft, use U.S.A. altitudes of 2001 to 3000 ft in Table 6.
Fig. 9—Condensing Furnace Component and Conversion
Label Location
A93207
FURNACE CONVERSION
RATING PLATE
FURNACE
RATING
PLATE
RESPONSIBILITY
LABEL
→Fig. 10—Redundant Automatic 2-Stage Gas Valve
A97484
ON
O
F
F
ON/OFF
SWITCH
INLET
PRESSURE
TAP
BURNER ENCLOSURE
REFERENCE PRESSURE TAP
(VARIABLE-SPEED, CONDENSING
FURNACES ONLY)
MANIFOLD
PRESSURE
TAP
LOW-FIRE
ADJUSTMENT
ALLEN SCREW
(UNDER CAP)
HIGH-FIRE
ADJUSTMENT
ALLEN SCREW
(UNDER CAP)
INSERT PLUG
BUTTON FROM
NATURAL GAS
VALVE AFTER
REMOVING
PRESSURE TAP
(2-STAGE AND
VARIABLE–SPEED,
NON–CONDENSING
FURNACES ONLY)
—17—
→
→

e. Find closest natural gas heat value and specific gravity in Table 6.
f. Follow heat value line and specific gravity line to point of intersection to find orifice size and low- and high-heat manifold pressure
settings for proper operation at given natural gas condition.
EXAMPLE: (Using Table 6 at 0—2000 ft altitude)
Heat value 1050 Btu/cu ft
Specific gravity 0.62
Therefore, Orifice No. 45 is required.
12. Install main burner orifices. Finger-tighten orifices at least 1 full turn to prevent cross threading, then tighten with wrench. There are enough
orifices in each kit for the largest furnace. Discard extra orifices. Orifices of other sizes must be field supplied.
NOTE: DO NOT reinstall the manifold, orifices, gas valve assembly, or burner enclosure front at this time.
PROCEDURE 2—REPOSITION AIR SHUTTER (060120 AND 120-20 SIZES ONLY)
1. Remove 2 screws holding air shutter in propane gas usage (PROP) position.
2. Reposition air shutter to natural gas usage (NAT) position. (See Fig. 12.) Screws will now be located in the shutter next to the NAT stamp.
NOTE: Air opening above burners will now be unobstructed by air shutter.
PROCEDURE 3—REPLACE GAS VALVE
1. Be sure main gas and electrical supplies to furnace are off.
2. Remove propane gas valve using backup wrench, and discard valve.
NOTE: Propane gas valve has RED knob and natural gas valve has BLUE knob or ELECTRIC SWITCH.
3. Install new natural gas valve to manifold.
→Fig. 11—Conversion Rating Plate Label
(Used for Natural Gas, Non-Condensing, 2-Speed and Variable-Speed Furnaces)
A97180
CONVERSION KIT RATING PLATE - CARRIER CORP.
APPLIANCE MODELS
58MVP, 355MAV
323870-101 REV. B
Max. Inlet Gas Pressure
(Press. Max. D’Admission De Gaz)
Manifold
Pressure
13.6 3,386
4.5 1,121
0-2,000 ft.
(0 - 610 m)
3.2 - 3.8 797 - 946
Refer to installation manual
Respecter les instruction D’Installation
2% 5%
4% 10%
58TMA, 58DXT,
331AAV, 331JAV
58TUA, 58UXT,
58UHV, 58UXV,
330AAV, 330JAV,
333BAV, 333JAV
THIS APPLIANCE HAS BEEN CONVERTED TO USE NATURAL GAS FOR FUELREFER TO KIT INSTRUCTIONS FOR CONVERSION
PROCEDURES. USE PARTS SUPPLIED BY CARRIER CORPORATION AND INSTALLED BY QUALIFIED PERSONNEL. SEE EXISTING
RATING PLATE FOR APPLIANCE MODEL NO. AND INPUT RATING.
NOTE: Furnace gas input rate on rating plate is for installations up to 2000 ft. above sea level. In U.S.A. the input rating for altitudes above
2000 ft. must be derated (per chart below) for each 1000 ft above sea level. In Canada the input rating must be derated (per chart below) for
altitudes of 2000 ft. to 4500 ft. above sea level.
Pression
Tubulure
High Heat 1.3 - 1.7 324 - 423
4% 10%
Min. Inlet Gas Pressure
(Press. Min. D’Admission DeGaz)
2,000 - 10,000 ft
(610 - 3050 m)
KIT NO. KGAPN20012SP FUEL USED: NATURAL GAS
(For Purpose of Input Adjustment) (Pour L’Adjustment D’Entree)
Altitude
IN. W.C. (PO C.E.) Pa
Low Heat
% DERATE
PER
1000 FT
% DERATE
FOR
2000-4500 FT
USA CANADA NATURAL GAS PRESSURE
CAUTION: DO NOT redrill burner orifices. Improper drilling (burrs, out-of-round holes, etc.) can cause excessive
burner noise and misdirection of burner flames. This can result in flame impingement of the burners and heat exchangers
causing failure. Obtain new orifices if orifice size must be changed.
A96249
BURNER 
ORIFICE BURNER 
ORIFICE
—18—
→

Table 6—Multipoise, Hot Surface Ignition, Variable-Speed, Condensing Furnace Orifice Size
and Manifold Pressure for Correct Input Rate Orifice Size and Manifold Pressure for Correct Input
(Tabulated Data Based on 20,000 Btuh High Heat/13,000 Btuh Low Heat per Burner
Derated 2% for each 1000 ft Above Sea Level)
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. and Canada
850 43 3.7/1.5 43 3.8/1.6 42 3.2/1.4 42 3.3/1.4 42 3.4/1.4
875 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6 42 3.2/1.4
900 44 3.7/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6
0 925 44 3.5/1.5 44 3.7/1.6 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5
950 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.6 44 3.8/1.6
to 975 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
1000 45 3.7/1.6 45 3.8/1.6 44 3.2/1.4 44 3.4/1.4 44 3.5/1.5
2000 1025 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3 44 3.3/1.4
1050 45 3.3/1.4 45 3.4/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
1075 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5
1100 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4 45 3.4/1.4 45 3.5/1.5
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. and Canada
U.S.A. 775 43 3.8/1.6 42 3.2/1.4 42 3.3/1.4 42 3.4/1.4 42 3.5/1.5
Altitudes 800 43 3.5/1.5 43 3.7/1.5 43 3.8/1.6 42 3.2/1.4 42 3.3/1.4
2001 825 44 3.8/1.6 43 3.4/1.5 43 3.6/1.5 43 3.7/1.5 43 3.8/1.6
to 850 44 3.6/1.5 44 3.7/1.6 44 3.8/1.6 43 3.5/1.5 43 3.6/1.5
3000 875 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.6 43 3.4/1.4
or 900 44 3.2/1.4 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
Canada 925 45 3.7/1.5 45 3.8/1.6 44 3.2/1.4 44 3.3/1.4 44 3.4/1.5
Altitudes 950 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6 44 3.3/1.4
2000 975 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.8/1.6
to 1000 47 3.7/1.6 45 3.2/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5
4500 1025 47 3.6/1.5 47 3.7/1.6 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
750 43 3.7/1.6 43 3.8/1.6 42 3.3/1.4 42 3.4/1.4 42 3.5/1.5
775 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6 42 3.2/1.4
800 44 3.7/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6
3001 825 44 3.5/1.5 44 3.6/1.5 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5
850 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.7/1.5 44 3.8/1.6
to 875 45 3.8/1.6 44 3.2/1.4 44 3.3/1.4 44 3.5/1.5 44 3.6/1.5
900 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6 44 3.3/1.4 44 3.4/1.4
4000 925 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3
950 45 3.2/1.4 45 3.3/1.4 45 3.4/1.5 45 3.5/1.5 45 3.7/1.5
975 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5
1000 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4
—19—

Table 6—Multipoise, Hot Surface Ignition, Variable-Speed, Condensing Furnace Orifice Size
and Manifold Pressure for Correct Input Rate Orifice Size and Manifold Pressure for Correct Input-Continued
(Tabulated Data Based on 20,000 Btuh High Heat/13,000 Btuh Low Heat per Burner
Derated 2% for each 1000 ft Above Sea Level)
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
725 43 3.7/1.5 43 3.8/1.6 42 3.2/1.4 42 3.3/1.4 42 3.4/1.4
750 43 3.4/1.4 43 3.5/1.5 43 3.7/1.5 43 3.8/1.6 42 3.2/1.4
775 44 3.7/1.6 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5 43 3.7/1.5
4001 800 44 3.5/1.5 44 3.6/1.5 44 3.7/1.6 44 3.8/1.6 43 3.4/1.4
825 44 3.2/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.6
to 850 45 3.7/1.6 45 3.8/1.6 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5
875 45 3.5/1.5 45 3.6/1.5 45 3.7/1.6 44 3.2/1.3 44 3.3/1.4
5000 900 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.8/1.6
925 47 3.7/1.6 45 3.2/1.4 45 3.3/1.4 45 3.4/1.5 45 3.6/1.5
950 47 3.5/1.5 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
700 43 3.6/1.5 43 3.7/1.6 42 3.2/1.3 42 3.3/1.4 42 3.4/1.4
725 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6
750 44 3.6/1.5 44 3.7/1.6 43 3.4/1.4 43 3.5/1.5 43 3.6/1.5
775 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5 44 3.7/1.6 43 3.4/1.4
5001 800 44 3.2/1.3 44 3.3/1.4 44 3.4/1.4 44 3.5/1.5 44 3.6/1.5
825 45 3.6/1.5 45 3.7/1.6 44 3.2/1.4 44 3.3/1.4 44 3.4/1.4
to 850 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5 45 3.8/1.6 44 3.2/1.4
875 45 3.2/1.4 45 3.3/1.4 45 3.4/1.5 45 3.6/1.5 45 3.7/1.5
6000 900 47 3.6/1.5 47 3.7/1.6 45 3.3/1.4 45 3.4/1.4 45 3.5/1.5
925 47 3.4/1.4 47 3.5/1.5 47 3.7/1.5 45 3.2/1.3 45 3.3/1.4
950 48 3.7/1.6 48 3.8/1.6 47 3.5/1.5 47 3.6/1.5 47 3.7/1.6
975 48 3.5/1.5 48 3.6/1.5 48 3.8/1.6 47 3.4/1.4 47 3.5/1.5
1000 48 3.3/1.4 48 3.5/1.5 48 3.6/1.5 48 3.7/1.6 48 3.8/1.6
ALTITUDE
RANGE
(FT)
AVG GAS
HEAT VALUE
AT ALTITUDE
(BTU/CU FT)
SPECIFIC GRAVITY OF NATURAL GAS
0.58 0.60 0.62 0.64 0.66
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
Orifice
No.
Manifold
Pressure
High/Low
U.S.A. Only
650 42 3.2/1.3 42 3.3/1.4 42 3.4/1.4 42 3.5/1.5 42 3.6/1.5
675 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6 42 3.2/1.4 42 3.3/1.4
700 44 3.8/1.6 43 3.4/1.5 43 3.6/1.5 43 3.7/1.6 43 3.8/1.6
6001 725 44 3.6/1.5 44 3.7/1.6 44 3.8/1.6 43 3.4/1.4 43 3.5/1.5
750 44 3.3/1.4 44 3.4/1.5 44 3.6/1.5 44 3.7/1.6 44 3.8/1.6
to 775 45 3.8/1.6 44 3.2/1.4 44 3.3/1.4 44 3.4/1.5 44 3.5/1.5
800 45 3.5/1.5 45 3.7/1.5 45 3.8/1.6 44 3.2/1.4 44 3.3/1.4
7000 825 45 3.3/1.4 45 3.4/1.5 45 3.6/1.5 45 3.7/1.6 45 3.8/1.6
850 47 3.7/1.6 45 3.2/1.4 45 3.4/1.4 45 3.5/1.5 45 3.6/1.5
875 47 3.5/1.5 47 3.6/1.5 45 3.2/1.3 45 3.3/1.4 45 3.4/1.4
—20—
