Central Pneumatic 94996 User manual

PAINT SPRAY GUN WASHER
94996
ASSEMBLY AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2006 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight
Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual
product may differ slightly from the product described herein. Tools required for assembly and service may not
be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 11h

Page 2
SKU 94996 For technical questions, please call 1-800-444-3353
Specications
Solvent Tank 2.5 gallons
Tank Capacity One spray gun and one cup
Working Air Pressure 40 PSI
Maximum Air Pressure 60 PSI
Air Hose Size ¼ inch
Overall Dimensions 14-1/2 (L) x 18 (W) x 30-1/2 (H) inches
Weight 27 lbs.
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, or extension cords.
3. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
4. Use the right tool for the job. Do not attempt to force a small tool or attachment to
do the work of a larger industrial tool. There are certain applications for which this
tool was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this tool and do not use this tool for a purpose for which it
was not intended.
5. Dress properly. Protective, electrically non-conductive clothes and non-skid footwear
are recommended when working. Wear restrictive hair covering to contain long hair.
6. Use eye protection. Always wear ANSI approved impact safety goggles and a full
face shield. Wear an ANSI approved dust mask or respirator when working around
chemical dusts and mists.
7. Do not overreach. Keep proper footing and balance at all times. Do not reach over
or across running machines.
8. Maintain tools with care. Follow instructions for lubricating and changing
accessories. Inspect tool cords periodically and, if damaged, have them repaired by
an authorized technician. The handles must be kept clean, dry, and free from oil and
grease at all times.
9. Disconnect air supply. Unplug tool from air supply when not in use.
REV 07g, 08d

Page 3
SKU 94996 For technical questions, please call 1-800-444-3353
10. Avoid unintentional starting. Be sure the switch is in the Off position when not in
use and before plugging in air supply.
11. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
12. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting xtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualied technician.
Do not use the tool if any switch does not turn On and Off properly.
13. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor
Freight Tools.
14. Do not operate tool if under the inuence of alcohol or drugs. Read warning
labels if taking prescription medicine to determine if your judgment or reexes are
impaired while taking drugs. If there is any doubt, do not operate the tool.
15. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualied technician.
1. Set up this product on a proper surface. Locate on a at, level, and solid surface that
is capable of supporting the weight of the Spray Gun Washer, the liquid and other
contents.
2. Use nonammable solvents to clean Spray Gun and Cup.
3. Never use gasoline in the Spray Gun Washer.
4. Never lift the tank lid during the cleaning operation.
5. Shut down, drain, and clean the Spray Gun Washer before storing.
Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions and situations that may occur. It must be understood by the
operator that common sense and caution are factors which cannot be built into this product,
but must be supplied by the operator.
Do not ll tank when the Spray Gun Washer is running. Do not operate if solvent has
been spilled. Clean spilled solvent before starting the Spray Gun Washer. Do not operate
or ll tank near a pilot light or open ame. Only operate in a well ventilated area. Always
have an ABC rated re extinguisher near by.
WARNING: This product contains or, when used, produces a chemical known to the State
of California to cause cancer and birth defects or other reproductive harm. (California
Health & Safety Code § 25249.5, et seq.)
Product Specic Safety Precautions
WARNING! FIRE HAZARD!
REV 07g

Page 4
SKU 94996 For technical questions, please call 1-800-444-3353

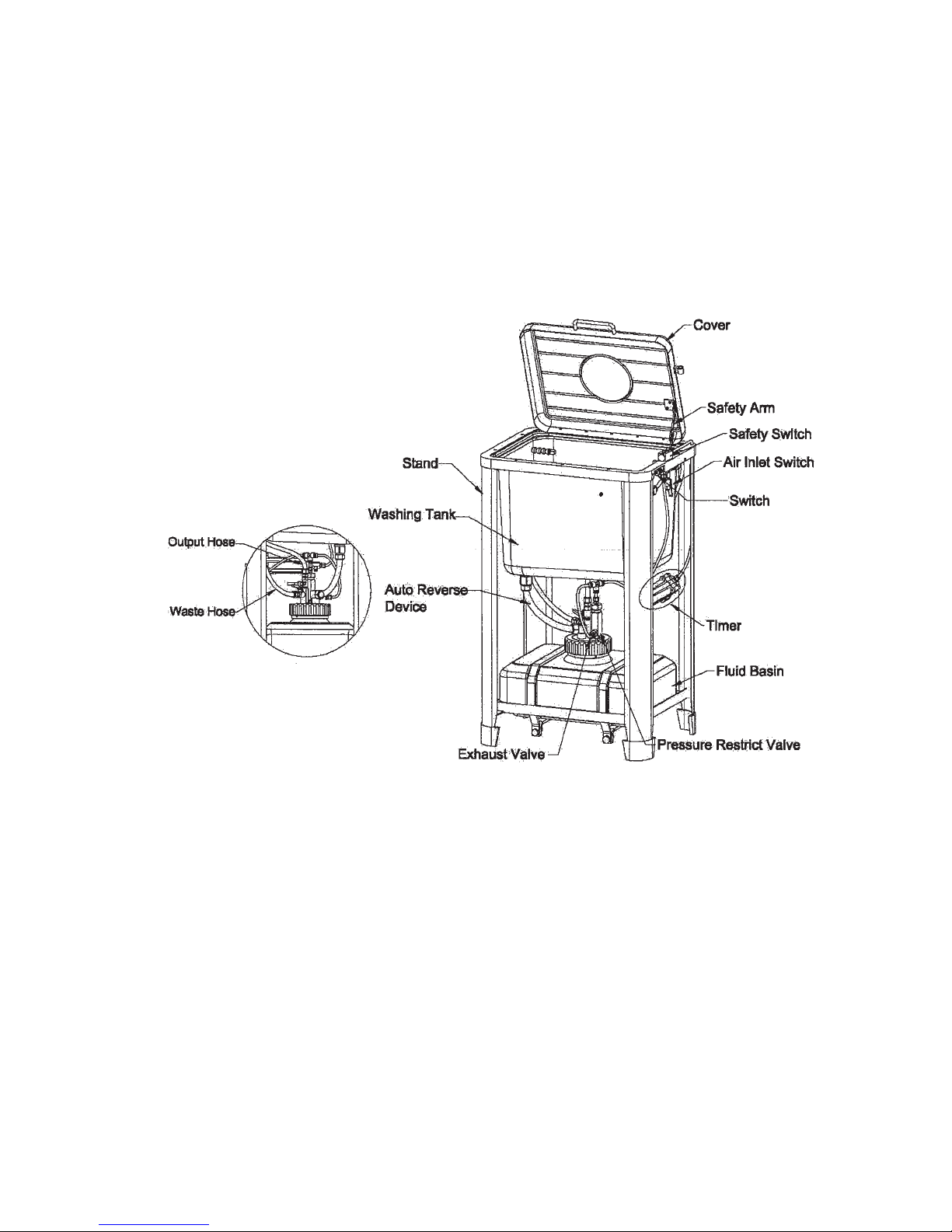

Unpacking
When unpacking, check to make sure all parts are included. Refer to the Assembly Drawing
and Parts List located at the end of this manual. If any parts are missing or broken, please
call Harbor Freight Tools at the number on the cover of this manual as soon as possible.
Operation
Please note: The Paint Spray Gun Washer comes fully assembled.
Set-up and Operation
1. Tighten the Basin Lid located on the Basin. See photo on top of page 5.
2. Add 2.5 gallons of organic, nonammable cleaning uid into the Tank.
3. Push in and use the Trigger Hook to lock the Spray Gun Trigger in the open position.
See diagram next page.
REV 07j

Page 5
SKU 94996 For technical questions, please call 1-800-444-3353
4. Place the Spray Gun intake Nozzle onto the Gun Rack connector (in Tank). See photo
below.
5. Place the Spray Gun Cup on the Tank rack as shown below. It can be placed on its
side (as shown below) or upside down on the Cup Holder, position #2.
6. Turn on the Output Hose Switch. See photo at the top of page 6.
7. Turn off the Waste Hose Switch.
8. Lower the Tank Lid to the closed position. See photo next page.
REV 07j

Page 6
SKU 94996 For technical questions, please call 1-800-444-3353
9. Connect the air hose from the air compressor (not supplied) to the Air Inlet (upper
right side of Tank). Please note: Only use compressed air with the Paint Spray Gun
Washer.
10. Turn on the air compressor and set its pressure to 40 PSI.
11. Turn the Air Inlet Switch (next to air supply hose) to the on (air ow) position. Cleaning
will begin. Under normal conditions, cleaning should take one minute. Dirtier units
may take longer.
Turning the System Off
1. Turn off the Air Inlet Switch (upper right side of Tank). See photo below.
2. Turn off Output Hose Switch.
3. Open Tank Lid and remove clean Spray Gun and Cup.
4. When nished with the Washer, disconnect from the air supply.
REV 07g, 07j, 08d

Page 7
SKU 94996 For technical questions, please call 1-800-444-3353
Draining Cleaning Fluid from Tank
1. Insert the end of the Waste Hose (left side of Fluid Basin) into an appropriate solvent
bucket with lid.
2. Turn off the Output Hose Switch.
3. Turn on the Waste Hose Switch.
Troubleshooting
Problem Possible Cause Probable Solution
If Tank is not running 1. Setup procedures incorrect
2. Air Inlet Switch off
3. Air compressor off or pressure
incorrectly set
1. Repeat Setup and Operation
procedures on page 4
2. Turn on Air Inlet Switch
3. Turn on air compressor and
set at 40 PSI
Cleaning of Spray Gun
incomplete
1. Wrong type of cleaning solu-
tion used
2. Paint dried hard in Spray Gun
and Cup
3. Cleaning solution too dirty
1. Check the paint can for the
appropriate type of cleaning
solution
2. Repeat cleaning process
3. Replace cleaning solution
Maintenance
1. Drain the Cleaning Fluid from the Tank and wipe Tank clean before storing the unit.
2. Store unit in a clean, dry, and cool location, away from any ame or spark source.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS
MANUALASA REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THATALL REPAIRSAND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
REV 07g; 08d

Page 8
SKU 94996 For technical questions, please call 1-800-444-3353
NOTE: Some parts are listed and
shown for illustration purposes only
and are not available individually as
replacement parts.
Parts List
REV 07j; 09j
No. Description Qty
1-1 Close Lid 1
1-2 Magnet 1
1-3 Magnet Shelf 1
1-4 Screw 4
1-5 Rivet 7
1-6 Safety Seat 1
1-7 Rivet 2
1-8 Safety Stand 1
1-9 Safety Stand 1
1-10 Valve Body 1
2-1 Screw 5
2-2 Gasket 5
2-3 Gasket 5
2-4 Nut 5
3-1 Screw 9
3-2 Spring Washer 8
3-3 Nut 8
4 Nut 5
5 Screw 1
6 Hex Plug 1
7 Switch Knob 1
8-1 Ball 1
9-1 Rear Cap 1
10 Switch Pilot Valve 1
11-1 Screw 1
12 Switch Nut 2
13 Bind Nut 2
14 Air Tube 4*6 5
15-1 O-Ring 1
16-1 O-Ring 1
17-1 Locking Nut 1
17-2 Switch Pole 1
17-3 O-Ring 2
17-4 Switch Valve 1
17-5 Air Stem 1
17-6 Spring 1
17-7 Rear Cap 2
17-8 Screw 1
17-9 Button Switch 1
17-10 O-Ring 1
17-11 Air Connector 1
17-13 O-Ring 1
18 Air Inlet Switch 2
22-1 Shelf 1
23 Pressure Restrict
Valve
1
24 Channel
Connector
1
25-1 Screw 2
25-2 Spring 2
25-3 NBR sate 1
25-4 Nut 1
26-1 Screw 1
26-2 Spring 1
26-3 Stuff 1
26-4 Connector 1
27-1 Air Inlet Switch 2
28 Bind Nut 14
29 Channel
Connector 8*12
8
30 Fluid Basin 1
31 Tube Stuff 1
32-1 Nozzle Core 1
33 Lock Ring 1
34 Gasket 1
35-1 Ball 1
35-3 Pin 1
35-4 Gyrate Pin 1
35-8 Gyrate Joint 1
35-9 Cover 1
36 Bind Nut 2
37 Fluid Tube 3*16 1
38-1 Flyid Connector 1
38-2 Screw 1
38-3 Washing Tank 1
39 Filter 1
40 Fluid Spray
Nozzle
6
41 Rotational Tube 2
42 Channel
Connector
2
No. Description Qty
19 Timer 1
20 Screw 1
21-1 Up Bridle 2
21-2 Down Bridle 2
21-4 Nut 4
21-5 Nut 4
No. Description Qty
43 Channel
Connector
3
44 Channel
Connector
1
45 Rotational Tube 1
46 Fluid Connector 1
47 Rotational Tube 3
48 Connector 1
49 Fluid Tube 1
50 Nozzle Seat 1
51 Nozzle 1
52 Cup Rack 1
53 Fluid Exhaust
Hose Bracket
1
54 Rubber Base 4
55-1 Gasket 7

Page 9
SKU 94996 For technical questions, please call 1-800-444-3353
Assembly Drawing
REV 07j; 09j

Page 10
SKU 94996 For technical questions, please call 1-800-444-3353
90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free
from defects in materials and workmanship for the period of 90 days from the date of
purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity,
improper installation, normal wear and tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation of
exclusion may not apply to you. This warranty is expressly in lieu of all other warranties,
express or implied, including the warranties of merchantability and tness.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection veries the defect, we will either repair
or replace the product at our election or we may elect to refund the purchase price if we
cannot readily and quickly provide you with a replacement. We will return repaired products
at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the
product.
This warranty gives you specic legal rights and you may also have other rights which vary
from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
REV 11h
