CHENGDU VANTRON TECHNOLOGY VT-Tablet-5101 User manual
All Rights Reserved
VT-Tablet-5101 User’s Manual
Chengdu Vantron Technology Ltd. Co.
2013.08.22
VT-Tablet-5101
Table of Contents
1REVISIONHISTORY:..............................................................................................................................................2
2FOREWORD.........................................................................................................................................................2
2.1COPYRIGHTNOTICE..............................................................................................................................................................3
2.2NOTES...............................................................................................................................................................................3
2.3STATEMENT........................................................................................................................................................................4
2.4DISCLAIMER.......................................................................................................................................................................4
2.5LIMITATIONOFLIABILITY/NON‐WARRANTY...............................................................................................................................4
2.6SAFETYINSTRUCTIONS..........................................................................................................................................................4
2.7PRECAUTIONS.....................................................................................................................................................................5
2.8SAFETYINSTRUCTIONSFORPOWERCABLESANDACCESSORIES.....................................................................................................6
3OVERVIEW..........................................................................................................................................................7
3.1INTRODUCTION...................................................................................................................................................................7
3.2PRODUCTSERIES.................................................................................................................................................................8
3.2.1ProductOrderCodingRule........................................................................................................................................8
3.2.2OrderingInformation................................................................................................................................................8
4VT‐TABLET‐5101HARDWAREINSTRUCTIONS.......................................................................................................9
4.1PRODUCTAPPEARANCE........................................................................................................................................................9
4.2SPECIFICATIONS.................................................................................................................................................................10
4.3INTERFACEINSTRUCTIONS...................................................................................................................................................12
4.3.1TopsideView..........................................................................................................................................................12
4.3.2leftsideView...........................................................................................................................................................12
4.3.3frontsideView........................................................................................................................................................13
4.3.4BacksideView.........................................................................................................................................................13
4.4DIMENSION......................................................................................................................................................................13
4.5INTERFACEDESCRIPTION.....................................................................................................................................................14
4.5.15VadapterInput.....................................................................................................................................................14
4.5.2InternalMICinInterface.........................................................................................................................................14
4.5.310/100MEthernetConnector(microUSBinstead)..................................................................................................14
4.5.4USBOTG(microUSBtype).......................................................................................................................................14
4.5.5HDMIConnector(microHDMItype)........................................................................................................................14
4.5.63.5mmearphoneJackwithexternalMICin............................................................................................................15
4.5.7MicroSDcardslot...................................................................................................................................................15
4.5.8Expanddockingport...............................................................................................................................................15
4.5.9StandardSIMcardslot............................................................................................................................................15
4.6PACKINGLIST....................................................................................................................................................................16
5SOFTWAREINSTRUCTIONS................................................................................................................................17
5.1BRIEFINTRODUCTION.........................................................................................................................................................17
6TIPS...................................................................................................................................................................18
VT-Tablet-5101
2/ 20
Revision History:
No. Version Description Date
1 V1.0 First release 8/22/2013
2 V1.1 Add ordering information 10/15/2013
3 V1.2 Modify Specification description 3/18/2014
4 V1.3 Update the mechanical picture 4/9/ 2014
VT-Tablet-5101
3/ 20
1Foreword
1.1 Copyright Notice
While all information contained herein have been carefully checked to assure its
accuracy in technical details and printing, Vantron assumes no responsibility resulting
from any error or features of this manual, or from improper uses of this manual or the
software. Please contact our technical department for relevant operation solutions if
there is any problem that cannot be solved according to this manual.
Vantron reserves all rights of this manual, including the right to change the
content, form, product features, and specifications contained herein at any time
without prior notice. The latest version of this manual is at www.vantrontech.com.cn.
Please contact Vantron for further information:
Vantron Technology（Vantron）
E-mail: sales@vantrontech.com
The trademarks and registered trademarks in this manual are properties of their
respective owners. No part of this manual may be copied, reproduced, translated or
sold. No changes or other purposes are permitted without the prior written consent of
Vantron.
Vantron reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table:
Sign Notice Type Description
Notice Important information and regulations
Caution Caution for latent damage to system or harm to
personnel
VT-Tablet-5101
4/ 20
1.3 Statement
It is recommended to read and comply with this manual before operating
VT-Tablet which provides important guidance and helps decreasing the danger of
injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
Vantron assumes no legal liability of accidents resulting from failure of
conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Vantron caused by
failure of conforming to this manual or the safety instructions on device label, Vantron
assumes neither warranty nor legal liability even if the device is still under warranty.
1.6 Safety Instructions
Keep and comply with all operation instructions, warnings, and information.
Pay attention to warnings on this device.
Read the following precautions so as to decrease the danger of injury, electric
shock, fire, or any damage to the device.
VT-Tablet-5101
5/ 20
1.7 Precautions
Pay attention to the product labels/safety instructions printed on silk screens.
Do not try repairing this product unless declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine casing.
Do not insert other items into the slot (if any) of this device.
Keep the ventilation slot ventilated for cooling.
System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation standard.
VT-Tablet-5101
6/ 20
1.8 Safety Instructions for Power Cables and Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage necessary
according to this manual. Please contact technical support personnel of Vantron for any
uncertainty about the requirements of necessary power source.
Use tested power source
This product still contains a button lithium battery as a real-time clock after its
external power source is removed and therefore should not be short-circuited during
transportation or placed under high temperature.
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust collector.
Support for special fault: Power off and contact technical support personnel of
Vantron in case of the following faults:
The device is damaged.
The temperature is excessively high.
Fault is still not solved after the operation according to the manual.
VT-Tablet-5101
7/ 20
2Overview
2.1 Introduction
Thank you for choosing Vantron. It is our commitment to provide our valued
customers with the embedded devices equipped with the state-of-the-art technology
and the best product services.
Tablet,enables the interaction between operators/users and applications, connects
industrial control products such as wireless, transducer, battery inside, storage, etc.
Tablet adopts a display for displaying and input units such as touch screen, keyboard,
audio, kind of sensors etc. for writing working parameters or inputting operation
commands. As a digital device for realizing information interaction between human
and machine, Tablet is composed of hardware and software. Based on its ample
function interfaces and powerful user operational interface, it is very suitable for
control units such as medical device, intelligent transportation, industrial field, etc..
Vantron’s VT-Tablet products are based on the most advanced ARM and Intel
Atom processors and have low-power consumption and high integration. The products
are designed for applications such as industrials, medicals, and transportations etc.
VT-Tablet-5101
8/ 20
2.2 Product Series
2.2.1 ProductOrderCodingRule
2.2.2 OrderingInformation
VT-Tablet-5101 10.1” TFT, 1280x800 16:10 Wide Screen,i.MX6QQuad core 1.2GHz, Ethernet, RS232,
USB2.0 OTG, 8000mAH battery inside, Wifi/3G/BT3.0/GPS.
E：Temperature suffix:
Bank: Normal Temperature
I: Industrial Version
D：Minor version suffix C：Type suffix:
1: Basic type;
2: Enhanced type or other
BB:Screen size:
07, 10: for LCD in 7,
10inches.
A: Product series:
5：IMX6x multi-core ARM cortex A9 platform 10inches.
types
VT-Tablet- ABBC-D-E
VT-Tablet-5101
9/ 20
3VT-Tablet-5101Hardware Instructions
3.1 Product Appearance
FrontView
Back View
VT-Tablet-5101
10/ 20
3.2 Specifications
Specifications
CPUProcessorFreescalei.MX6QQuadcore1.2GHz
MemoryOnBoardRAM2GBDDR3
OnBoard16GBEMMCFlash
External1xMicroSD,USB2.0OTG
DisplayLCD10.1"WideScreen,TFTLCD,1280x800
Resolution1280x80024bitColor
Contrast600:1
Brightness 350cd/m2(AutobrightnessbyLightsensor)
ViewAngle89U/89D,89L/89R
TouchScreenCap‐touch,multi‐point
InterfacesEthernet10/100‐BaseT,MicroUSBtype
External1xmicroSD
USB1XUSBOTG
COMPort1xDockingport(2xRS232,1xdebugport,
1xCAN)
Audio3.5mmearphonejackwithMICin
1x1Wspeaker
1xinternalMICin(onboard)
SIM1xSIMcardfor3Gmodule
wireless1xwifi,1xbluetooth3.0,
1xmini‐pcie(support3Gor4GLTEModule),
SensorLightsensor,3‐axisAccsensor,e‐COMPASS
RTCSupportedmustattachbattery
SoftwareOSAndroid4.2.2
ApplicationsProvideSDK,supportgoogletool
PowerInputDC5V3A,Adapter
Consumption4.2W
MechanicalDimensions262x184x16mm
Weight1.1Kg(Panel)
VT-Tablet-5101
11/ 20
Environment
Condition
Temperature
Humidity
Operating:‐10℃~+70℃
Storage:‐20℃~+70℃
10‐85%RH(Non‐Condensation),operating
Vibration2G,9‐26Hz(10timesinX,Y,Zdirections)
VT-Tablet-5101
12/ 20
3.3 Interface Instructions

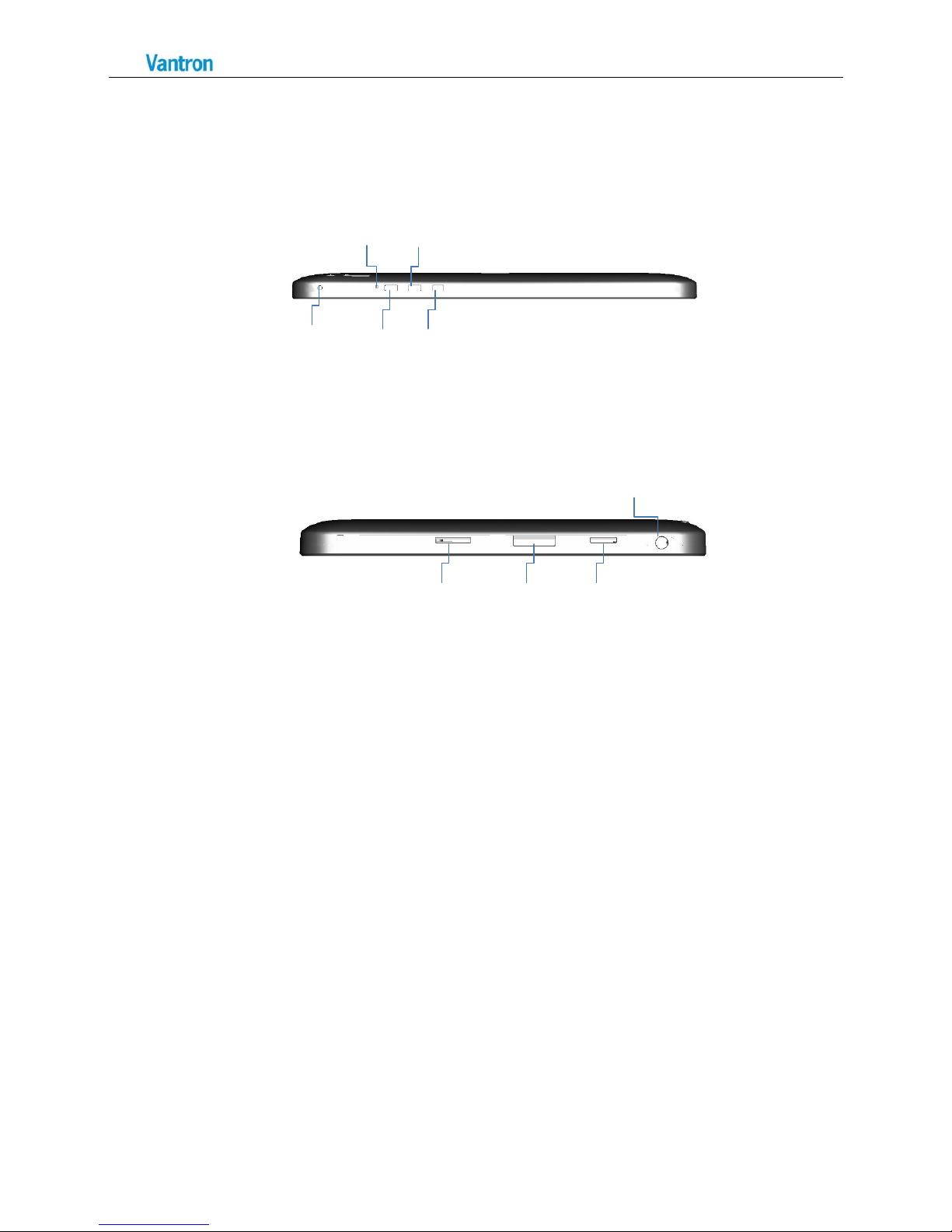

3.3.1 TopsideView
3.3.2 leftsideView
DC 5V IN 10/100M ETH Micro HDMI
USB OTGMIC in
SIM card slot Docking port MicrSD card slot
3.5mm earphone jack
VT-Tablet-5101
13/ 20

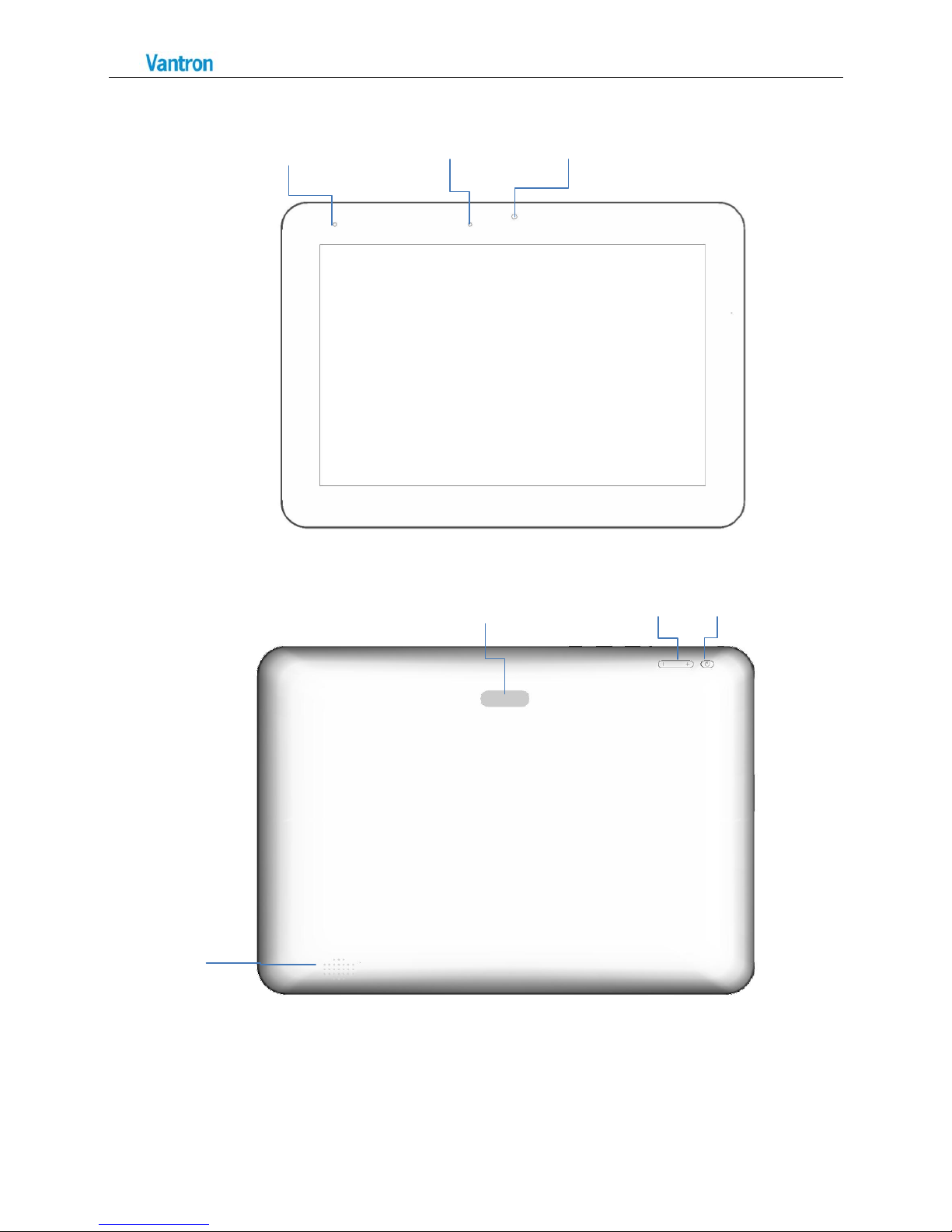

3.3.3 frontsideView
3.3.4 BacksideView
3.4 Dimension
Whole device Size: 262x184x16 mm3
Multi-color LED Light sensor hole 5M Front camera
5M Back camera Vol- Vol+ On/off
Speaker
VT-Tablet-5101
14/ 20
3.5 Interface Description
3.5.1 5VadapterInput
DC-056 typeadapter power Jack
Structure mark: +5V
Pin Description
centre +5V
diameter Ground
3.5.2 InternalMICinInterface
Structure mark: MIC.
This hole is used to the onboard MIC in, but this hardware version is not support
3.5.3 10/100MEthernetConnector(microUSBinstead)
Structure mark:
Pin Description
1 RX+
2 RX-
3 TX+
4 TX-
5 CTX& CRX
3.5.4 USBOTG(microUSBtype)
Structure mark:
It is a standard micro USB port, you can connect a PC as USB client to manager
the android device. or connect a USB OTG to HOST adapter cable as USB host
storage, mouse, keypad.etc
3.5.5 HDMIConnector(microHDMItype)
Structure mark:HDMI
It is a standard micro HDMI port; you can connect micro-HDMI to HDMI typeA
adapter cable, and connect to display.
VT-Tablet-5101
15/ 20

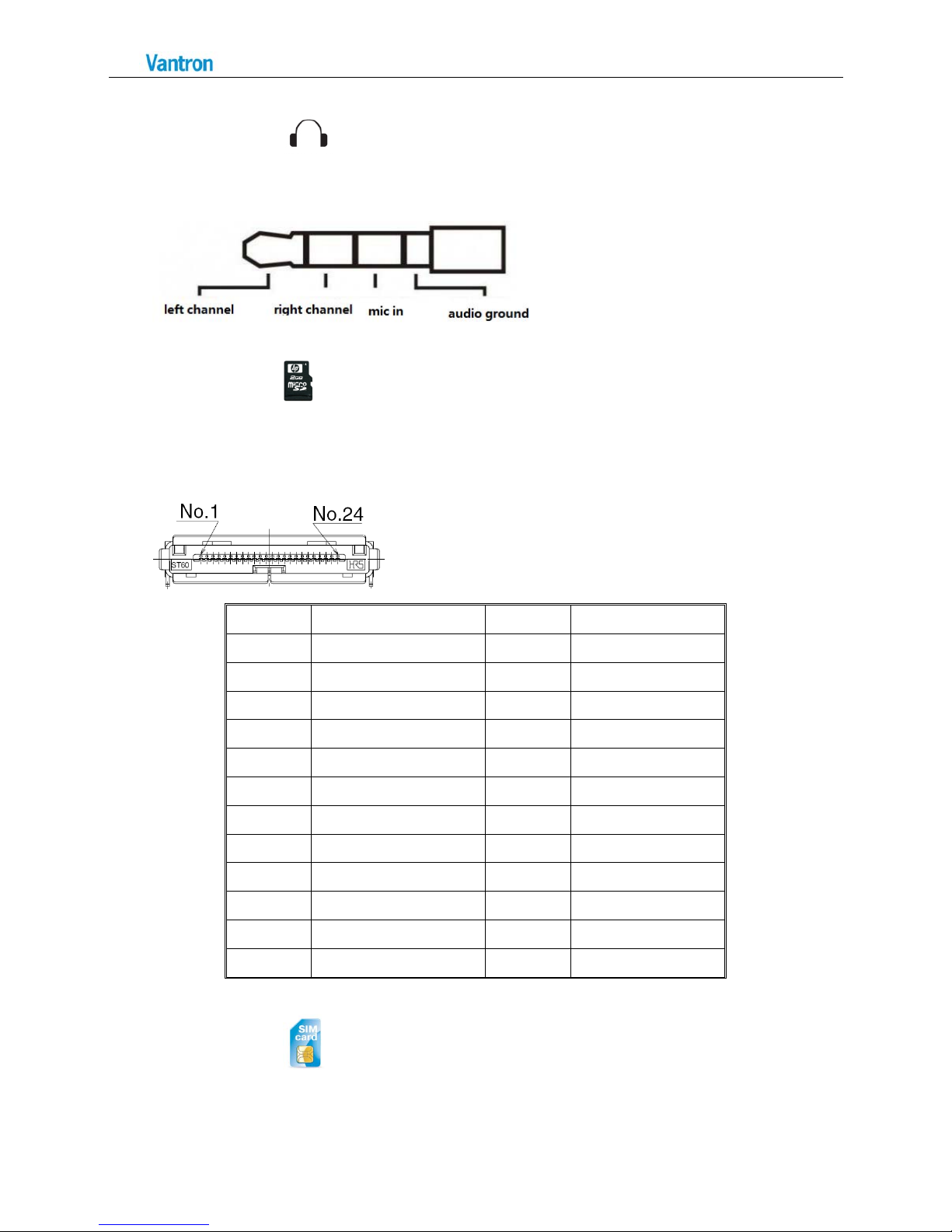

3.5.6 3.5mmearphoneJackwithexternalMICin
Structure mark:
It is a standard 4-pole 3.5mm earphone Jack with external MIC in , every pole
signal define is below
3.5.7 MicroSDcardslot
Structure mark:
It is a standard micro SD card slot. You can insert a micro sd card to increase
external storage.
3.5.8 Expanddockingport
Pin Description Pin Description
1 Ground 13 CTSB
2 CAN1_HIGH 14 Debug_TX
3 CAN1_LOW 15 Debug_RX
4 Ground 16 Ground
5 TXDA 17 USER_UI1
6 RXDA 18 USER_UI2
7 RTSA 19 USER_UI3
8 CTSA 20 USER_UI4
9 Ground 21 USER_UI5
10 TXDB 22 Ground
11 RXDB 23 GEN_3V3
12 RTSB 24 GEN_3V3
3.5.9 StandardSIMcardslot
Structure mark:
It is a standardSIM card slot. It is used to the 3G or 4G LTE module.1
VT-Tablet-5101
16/ 20
3.6 Packing List
No Part Description Quantity Type
1 CD_ROM 1pc
2 5V power adapter 1pc
3 Charge cable 1pc
4 USB client cable 1pc
VT-Tablet-5101
17/ 20
4Software Instructions
4.1 Brief Introduction
VT-Tablet-5101 has been pre-loaded with Android image, so that the system can
run mfg tool method to updates system image; please reference to SW-UM
VT-Tablet-5101
18/ 20
5Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity
with local regulations. Please ensure that the abandoned batteries are disposed according
to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put
in common waste canister. Products or product packages with the sign of “explosive”
should not be disposed like household waste but delivered to specialized electrical＆
electronic waste recycling/disposal center. Proper disposal of this sort of waste helps
avoiding harm and adverse effect upon surroundings and people’s health. Please contact
local organizations or recycling/disposal center for more recycling/disposal methods of
related products.
Comply with the following safety tips:
Do not use in combustible and explosive environment
Keep away from combustible and explosive environment for fear of danger.
Keep away from all energized circuits.
Operators should not remove enclosure from the device. Only the group or person
with factory certification is permitted to open the enclosure to adjust and replace the
structure and components of the device. Do not change components unless the power
cord is removed. In some cases, the device may still have residual voltage even if the
power cord is removed. Therefore, it is a must to remove and fully discharge the device
before contact so as to avoid injury.
Unauthorized changes to this product or its components are prohibited.
In the aim of avoiding accidents as far as possible, it is not allowed to replace the
system or change components unless with permission and certification. Please contact
the technical department of Vantron or local branches for help.
Pay attention to caution signs.
Caution signs in this manual remind of possible danger. Please comply with
relevant safety tips below each sign. Meanwhile, you should strictly conform to all
safety tips for operation environment.
VT-Tablet-5101
19/ 20
Notice
Considering that reasonable efforts have been made to assure accuracy of this
manual, Vantron assumes no responsibility of possible missing contents and information,
errors in contents, citations, examples, and source programs.
Vantron reserves the right to make necessary changes to this manual without prior
notice. No part of this manual may be reprinted or publicly released in forms of
photocopy, tape, broadcast, e-document, etc.
China Office: Chengdu VantronTechnology,Ltd
Address: 3rd floor, 3rd building, No.9, 3rd WuKe East Street, WuHou District,
Chengdu, P.R. China 610045
Tel: 86-28-8512-3930/3931, 8515-7572/6320
Email: [email protected]
Table of contents
