Chigo CMV-D56Q/HR1-C User manual

Technical Support Division
2017-4-25
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.

1
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit

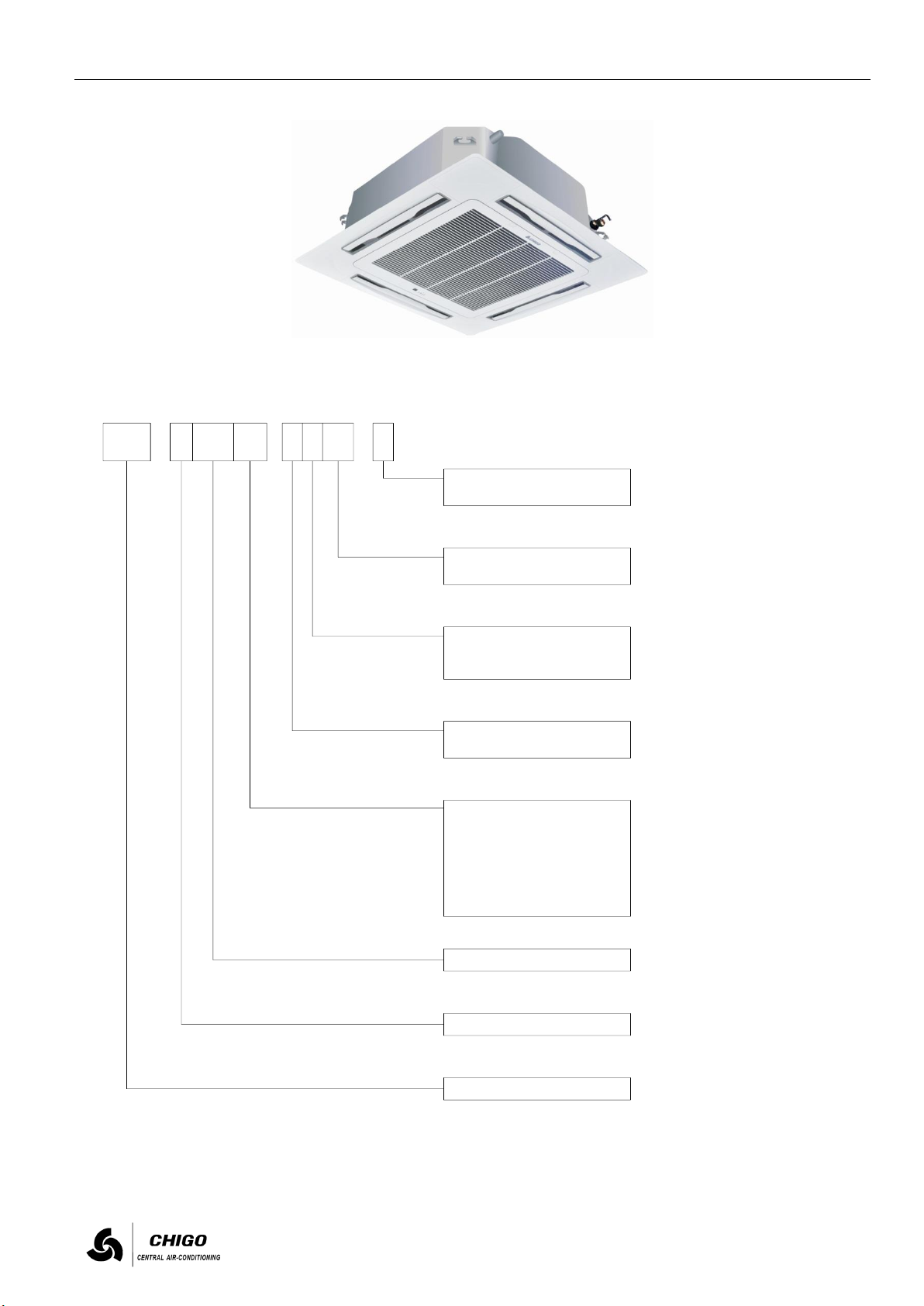

1. External appearance
2. Nomenclature
3. Specifications
4. Dimensions
5. Service space
6. Piping diagram
7. Wiring diagram
8. Capacity tables
9. Electric characteristics
10. Sound pressure levels
11. Accessories
12. Exploded view

2
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
1. External appearance
2. Nomenclature
CMV
Design code
C :3rd g en eratio n
Capacity (*100W)
Chigo VRF system
- D 140 Q / HR1 -C
DC Fan Motor
Chigo VRF system
Indoor unit code
Q :4-w ay cassette
G :W all-m o u nted
TA :Lo w ESP d u cted
TB :M ed iu m ESP d u cted
TH :H ig h ESP d ucted
LD :Flo o r ceilin g
TF:Fu llfresh air p ro cesso r
N
Refrigerant type
R 1:R 4 10A
Power code
N :208~ 230V /1PH /60H z
O m it:220~ 240V /1PH /50H z
Function code
H :H eat p u m p

3
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
3. Specifications
Model
CMV-D56Q/HR1-C
CMV-D71Q/HR1-C
CMV-D80Q/HR1-C
Power supply
220-240V/1PH/50Hz
220-240V/1PH/50Hz
220-240V/1PH/50Hz
Capacity
Cooling
kW
5.6
7.1
8
Heating
kW
6.3
8
8.8
Power Input
kW
0.03
0.07
0.07
Fan motor
Model
DR-310-60Q-8
DR-310-60Q-8
DR-310-60Q-8
Type
DC
DC
DC
Brand
Chigo
Chigo
Chigo
Speed (Hi/Med/Low)
r/min
620/570/520
850/790/600
850/790/600
Indoor coil
Number of rows
2
2
2
Fin type
Hydrophilic Aluminum
Hydrophilic Aluminum
Hydrophilic Aluminum
Tube diameter and type
mm
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Air flow (High speed)
m3/h
810
1200
1200
Sound pressure level
dB(A)
35～39
36~39
36~39
Body
Dimension (W×H×D)
mm
833×232×900
833×232×900
833×232×900
Packing (W×H×D)
mm
920×265×985
920×265×985
920×265×985
Net/Gross weight
kg
22/27
22.5/27.5
22.5/27.5
Panel
Dimension (W×H×D)
mm
950×50×950
950×50×950
950×50×950
Packing (W×H×D)
mm
1030×105×1030
1030×105×1030
1030×105×1030
Net/Gross weight
kg
5.4/8
5.4/8
5.4/8
Refrigerant type
R410A
R410A
R410A
Throttle type
Electrical expansion valve
Electrical expansion valve
Electrical expansion valve
Design pressure
MPa
3.8
3.8
3.8
Liquid pipe / Gas pipe
mm
Ø6.35/ Ø12.7
Ø9.53/ Ø15.9
Ø9.53/ Ø15.9
Connecting
wire
Power wire
AWG
16
16
16
Signal wire
AWG
22
22
22
Drainage water pipe (Outer diameter)
mm
Ø25
Ø25
Ø25
Controller
Standard
Remote controller
Remote controller
Remote controller
Optional
Wired controller
Wired controller
Wired controller
Operation temp
˚C
16~32
16~32
16~32
Notes:
1) Nominal cooling capacities are based on the following conditions.
Outdoor temperature: 35°C DB
Return air temperature: 27°C DB, 19°C WB
Equivalent piping length: 8m in horizontal
2) Nominal heating capacities are based on the following condition.
Outdoor temperature: 7°C DB, 6°C WB
Return air temperature: 20°C DB
Equivalent piping length: 8m in horizontal
3) Sound pressure level: Semi-anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.4 m.
4) The above data may be changed without notice for future improvement on quality and performance.

4
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Model
CMV-D90Q/HR1-C
CMV-D100Q/HR1-C
CMV-D112Q/HR1-C
Power supply
220-240V, 1Ph, 50Hz
220-240V, 1Ph, 50Hz
220-240V, 1Ph, 50Hz
Capacity
Cooling
kW
9
10
11.2
Heating
kW
10
11
12.5
Power Input
kW
0.1
0.1
0.1
Fan motor
Model
DR-310-100Q-8
DR-310-100Q-8
DR-310-100Q-8
Type
DC
DC
DC
Brand
Chigo
Chigo
Chigo
Speed (Hi/Med/Low)
r/min
750/650/550
750/650/550
750/650/550
Indoor coil
Number of rows
2
2
2
Fin type
Hydrophilic Aluminum
Hydrophilic Aluminum
Hydrophilic Aluminum
Tube diameter and type
mm
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Air flow (High speed)
m3/h
1600
1600
1600
Sound pressure level
dB(A)
37~41
37~41
37~41
Body
Dimension (W×H×D)
mm
833×286×900
833×286×900
833×286×900
Packing (W×H×D)
mm
920×310×985
920×310×985
920×310×985
Net/Gross weight
kg
27/32.5
27/32.5
27/32.5
Panel
Dimension (W×H×D)
mm
950×50×950
950×50×950
950×50×950
Packing (W×H×D)
mm
1030×105×1030
1030×105×1030
1030×105×1030
Net/Gross weight
kg
5.4/8
5.4/8
5.4/8
Refrigerant type
R410A
R410A
R410A
Throttle type
Electrical expansion valve
Electrical expansion valve
Electrical expansion valve
Design pressure
MPa
3.8
3.8
3.8
Liquid pipe / Gas pipe
mm
Ø9.53/ Ø15.9
Ø9.53/ Ø15.9
Ø9.53/ Ø15.9
Connecting
wire
Power wire
AWG
16
16
16
Signal wire
AWG
22
22
22
Drainage water pipe (Outer diameter)
mm
Ø25
Ø25
Ø25
Controller
Standard
Remote controller
Remote controller
Remote controller
Optional
Wired controller
Wired controller
Wired controller
Operation temp
˚C
16~32
16~32
16~32
Notes:
1) Nominal cooling capacities are based on the following conditions.
Outdoor temperature: 35°C DB
Return air temperature: 27°C DB, 19°C WB
Equivalent piping length: 8m in horizontal
2) Nominal heating capacities are based on the following condition.
Outdoor temperature: 7°C DB, 6°C WB
Return air temperature: 20°C DB
Equivalent piping length: 8m in horizontal
3) Sound pressure level: Semi-anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.4 m.
4) The above data may be changed without notice for future improvement on quality and performance.

5
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Model
CMV-D125Q/HR1-C
CMV-D140Q/HR1-C
CMV-D160Q/HR1-C
Power supply
220-240V, 1Ph, 50Hz
220-240V, 1Ph, 50Hz
220-240V, 1Ph, 50Hz
Capacity
Cooling
kW
12.5
14
16
Heating
kW
14.0
15.0
17.0
Power Input
kW
0.1
0.1
0.1
Fan motor
Model
DR-310-100Q-8
DR-310-100Q-8
DR-310-100Q-8
Type
DC
DC
DC
Brand
Chigo
Chigo
Chigo
Speed (Hi/Med/Low)
r/min
750/650/550
750/650/550
750/650/550
Indoor coil
Number of rows
2
2
2
Fin type
Hydrophilic Aluminum
Hydrophilic Aluminum
Hydrophilic Aluminum
Tube diameter and type
mm
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Ø7,Innergroove Tube
Air flow (High speed)
m3/h
1600
1600
1600
Sound pressure level
dB(A)
37~41
37~41
37~41
Body
Dimension (W×H×D)
mm
833×286×900
833×286×900
833×286×900
Packing (W×H×D)
mm
920×310×985
920×310×985
920×310×985
Net/Gross weight
kg
27/32.5
27/32.5
27/32.5
Panel
Dimension (W×H×D)
mm
950×50×950
950×50×950
950×50×950
Packing (W×H×D)
mm
1030×105×1030
1030×105×1030
1030×105×1030
Net/Gross weight
kg
5.4/8
5.4/8
5.4/8
Refrigerant type
R410A
R410A
R410A
Throttle type
Electrical expansion valve
Electrical expansion valve
Electrical expansion valve
Design pressure
MPa
3.8
3.8
3.8
Liquid pipe / Gas pipe
mm
Ø9.53/ Ø15.9
Ø9.53/ Ø15.9
Ø9.53/ Ø15.9
Connecting
wire
Power wire
AWG
16
16
16
Signal wire
AWG
22
22
22
Drainage water pipe (Outer diameter)
mm
Ø25
Ø25
Ø25
Controller
Standard
Remote controller
Remote controller
Remote controller
Optional
Wired controller
Wired controller
Wired controller
Operation temp
˚C
16~32
16~32
16~32
Notes:
1) Nominal cooling capacities are based on the following conditions.
Outdoor temperature: 35°C DB
Return air temperature: 27°C DB, 19°C WB
Equivalent piping length: 8m in horizontal
2) Nominal heating capacities are based on the following condition.
Outdoor temperature: 7°C DB, 6°C WB
Return air temperature: 20°C DB
Equivalent piping length: 8m in horizontal
3) Sound pressure level: Semi-anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.4 m.
4) The above data may be changed without notice for future improvement on quality and performance.
4. Dimensions

6
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Model
Body dimension (mm)
Installation dimension (mm)
Panel dimension (mm)
A
B
C
D
E
F
G
H
J
CMV-D56Q/HR1-C
900
833
232
776
684
91
950
950
50
CMV-D71Q/HR1-C
900
833
232
776
684
91
950
950
50
CMV-D80Q/HR1-C
900
833
232
776
684
91
950
950
50
CMV-D90Q/HR1-C
900
833
286
776
684
150
950
950
50
CMV-D100Q/HR1-C
900
833
286
776
684
150
950
950
50
CMV-D112Q/HR1-C
900
833
286
776
684
150
950
950
50
CMV-D125Q/HR1-C
900
833
286
776
684
150
950
950
50
CMV-D140Q/HR1-C
900
833
286
776
684
150
950
950
50
CMV-D160Q/HR1-C
900
833
286
776
684
150
950
950
50

7
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit

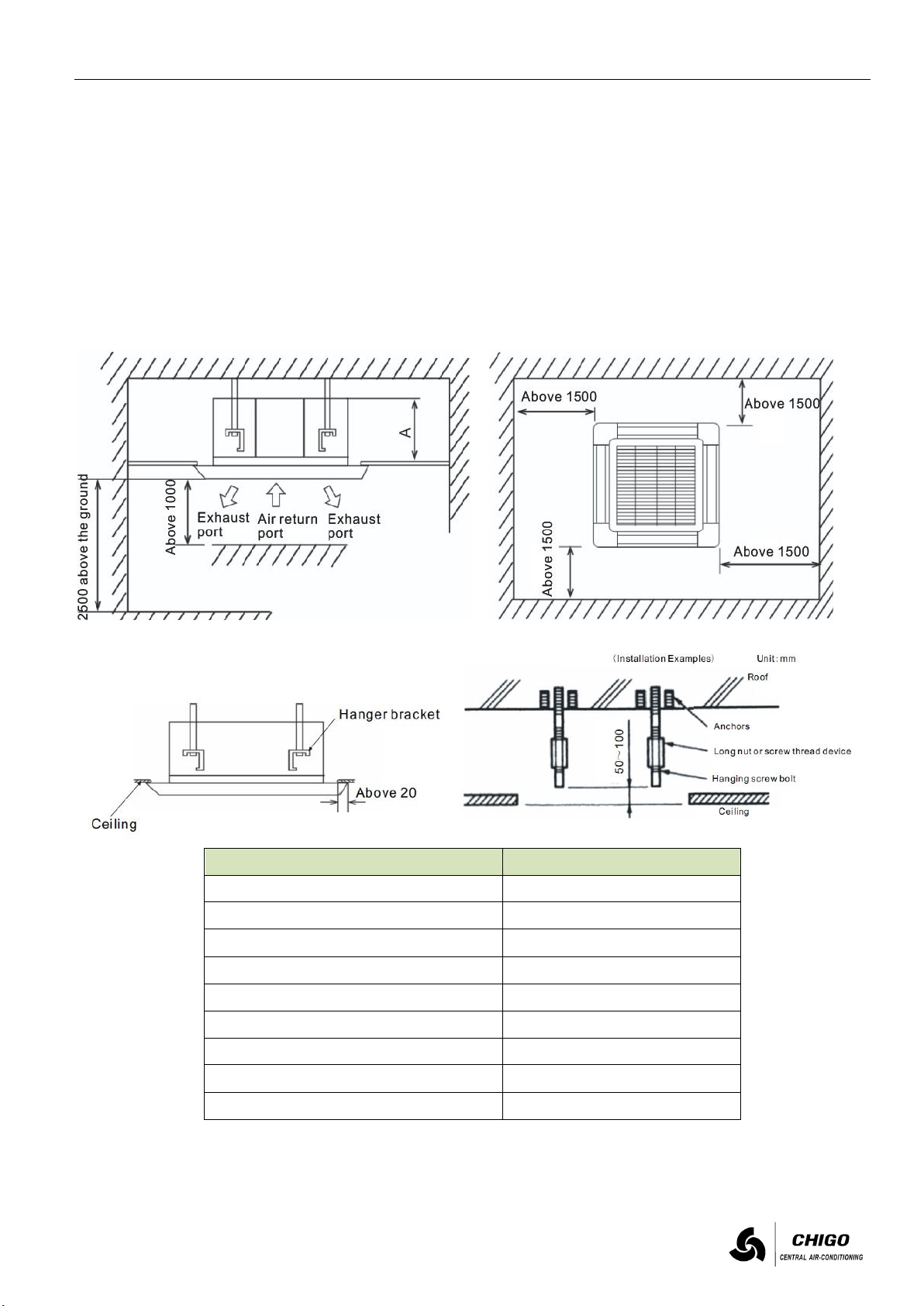

5. Service space
There is enough room for installation and maintenance.
The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
The outlet and the inlet are not impeded, and the influence of external air is the least.
The air flow can reach throughout the room.
The connecting pipe and drainpipe could be extracted out easily.
There is no direct radiation from heaters.
If the temperature and humidity of the ceiling exceeds respectively 30℃and RH80%, please stick insulating material on the body of the
air conditioner. Please use glass wool or expanded polyethylene etc., which is more than 10 mm thick. (If it is more than 10 mm, please
collect it in the opening of the ceiling.)
Indoor unit
A(mm)
CMV-D56Q/HR1-C
232
CMV-D71Q/HR1-C
232
CMV-D80Q/HR1-C
232
CMV-D90Q/HR1-C
286
CMV-D100Q/HR1-C
286
CMV-D112Q/HR1-C
286
CMV-D125Q/HR1-C
286
CMV-D140Q/HR1-C
286
CMV-D160Q/HR1-C
286

8
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit

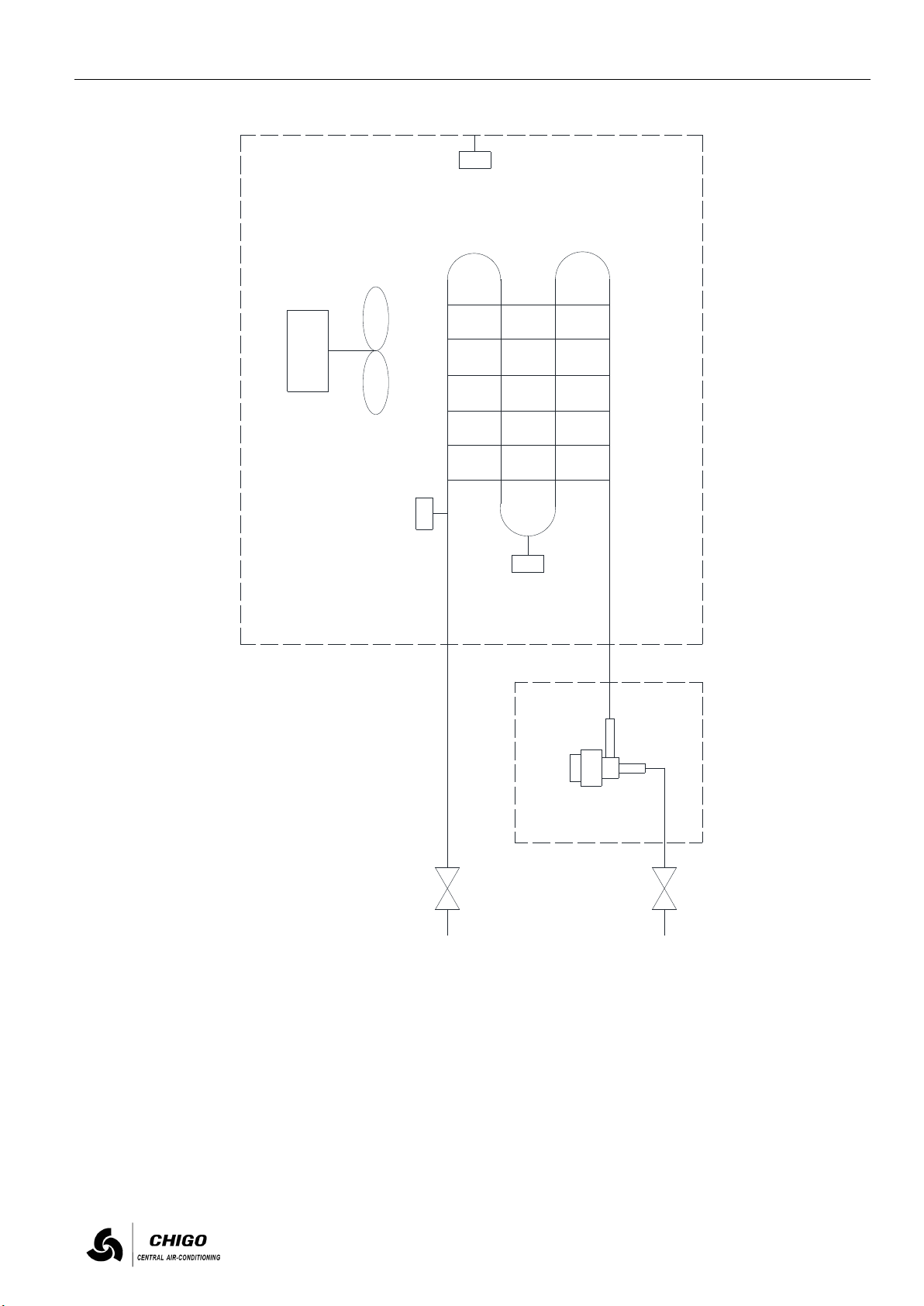

6. Piping diagram
Flare nut Liquid side Flare nut Liquid side
Motor
EXV
T2
T1
T2B
Heat exchanger
Notes:
1) T1: Room temperature sensor
2) T2: Temperature sensor of middle heat exchanger
3) T2B: Temperature sensor of heat exchanger outlet
4) EXV: Electrical expansion valve

9
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Notes:
1) Color code:
RD: Red
OR: Orange
BK: Black:
BR: Brown
WH: White
2) T1: Room temperature sensor
3) T2: Temperature sensor of middle heat
exchanger
4) T2B: Temperature sensor of heat
exchanger outlet
5) EXV: Electrical expansion valve
6) Electrical heater is optional, please contact
to Chigo’s technician for the detail.
7. Wiring diagram
7.1 Wiring diagram

10
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Chigo VRF indoor unit connect with card key

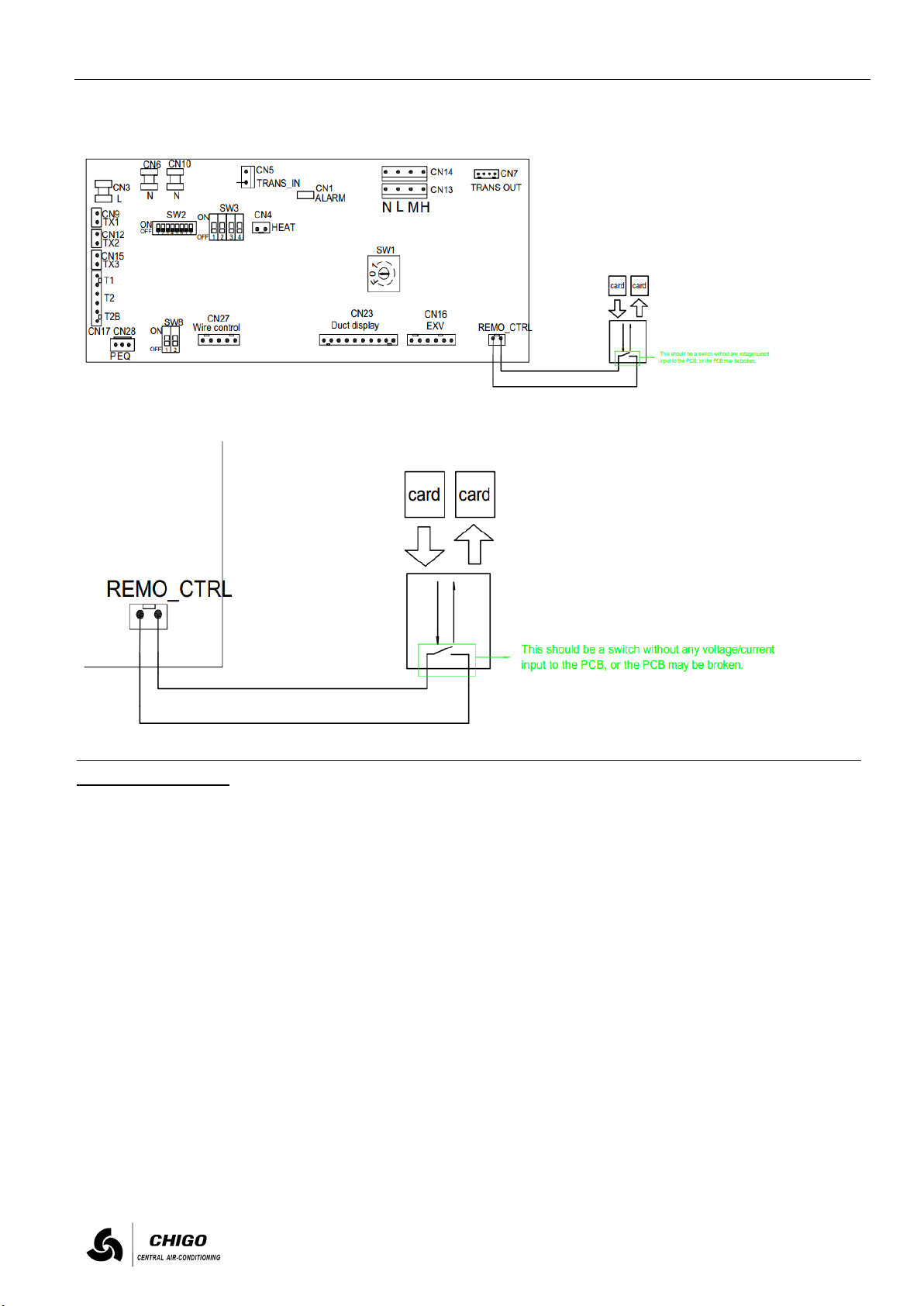

Connect the remote control terminal on the indoor PCB to the hotel card module.
NOTE: The terminal in the hotel card module must be a switch without any voltage/current input to the PCB, otherwise
the PCB will be broken.

11
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
7.2 Dial switches
7.2.1 SW1: Capacity switch.
Different number in the switch indicates different capacity. It is set in factory; leave it as default setting,
HP
0.8
1
1.2
1.7
2
2.5
Capacity (kW)
1.8/2.2
2.5/2.6/2.8
3.2/3.5/3.6
4.0/4.5/4.6
5.1/5.6
6.0/6.6/7.1
Code
0
1
2
3
4
5
HP
3
3.2
4
5
6
Capacity (kW)
8.0
8.8/9.0
10.0/11.0/11.2
12.0/12.5/14.0
15.0/16.0
Code
6
7
8
9
9
7.2.2 SW3
Name
Switch number 1 of SW3
Switch number 4 of SW3
Switch number 2,3 of SW3
Function
Auto-restart when power failure switch.
ON/OFF status, operation mode, fan
speed, temperature, swing, remote
control locked will be recovered.
Indoor unit address elimination
Reserved
Setting
ON DP
1 2 3 4
Dial up to disable Auto-restart function
ON DP
1 2 3 4
ON DP
1 2 3 4
Dial up to erase indoor unit’s address.
ON DP
1 2 3 4
ON DP
1 2 3 4
Default setting
ON DP
1 2 3 4
Dial down to enable Auto-restart
function (Default setting)
ON DP
1 2 3 4
ON DP
1 2 3 4
Default setting

12
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
7.2.3 SW2, only available in heating mode.
Name
Switch number 1,2 of SW2
Function
Reserved
Setting
1 2 3 4 5 6 7 8
Default setting
Name
Switch number 3,4 of SW2
Function

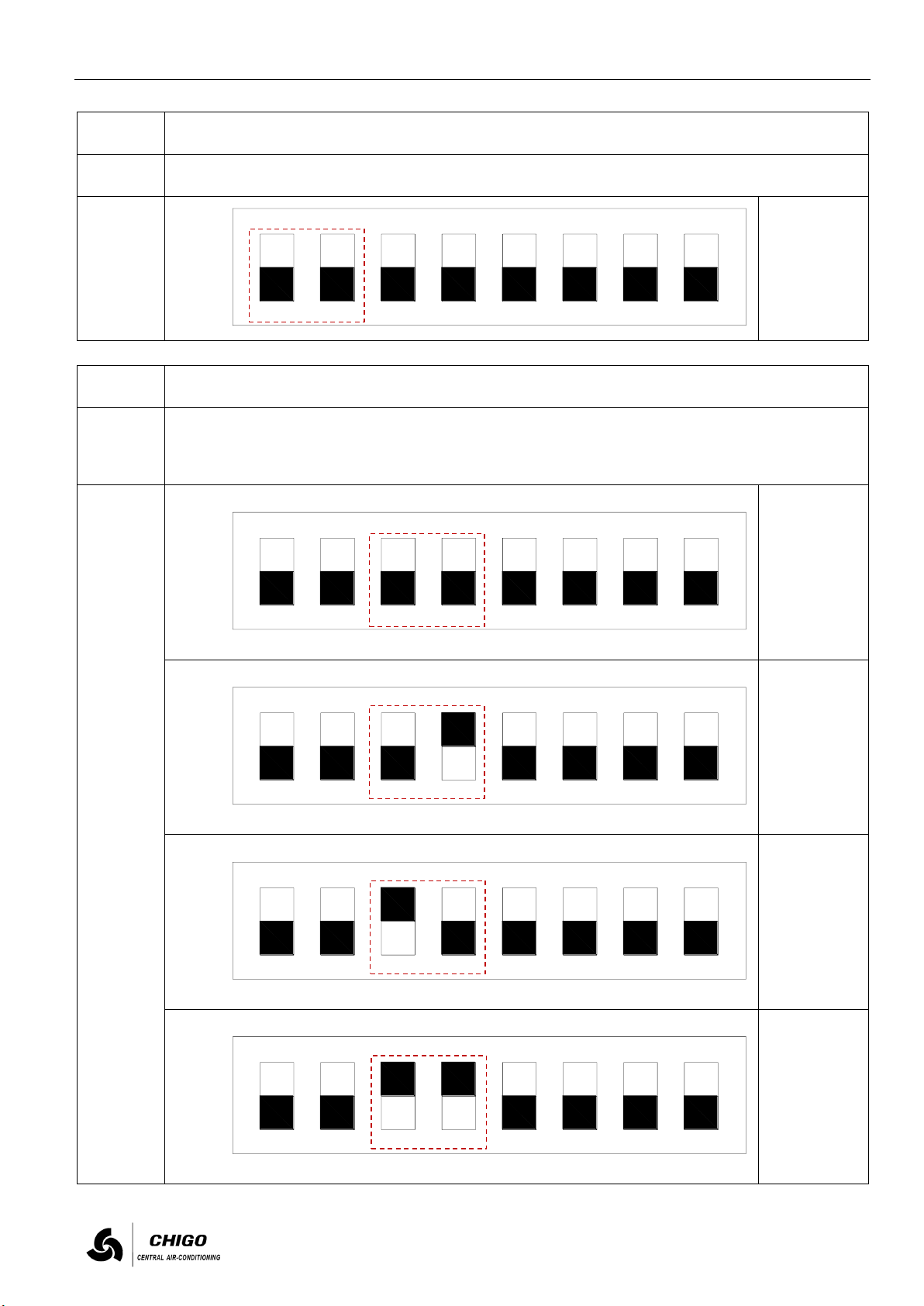

Heating temperature compensation value selection. When temperature difference between setting temperature and
room temperature is higher than the setting value, indoor fan motor turns off.
DO NOT change the default setting without professional guidance.
Setting
1 2 3 4 5 6 7 8
6˚C
Default setting
1 2 3 4 5 6 7 8
2˚C
1 2 3 4 5 6 7 8
4˚C
1 2 3 4 5 6 7 8
8˚C
ON
OFF
ON
OFF
ON
OFF
ON
OFF

13
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Name
Switch number 5,6 of SW2
Function

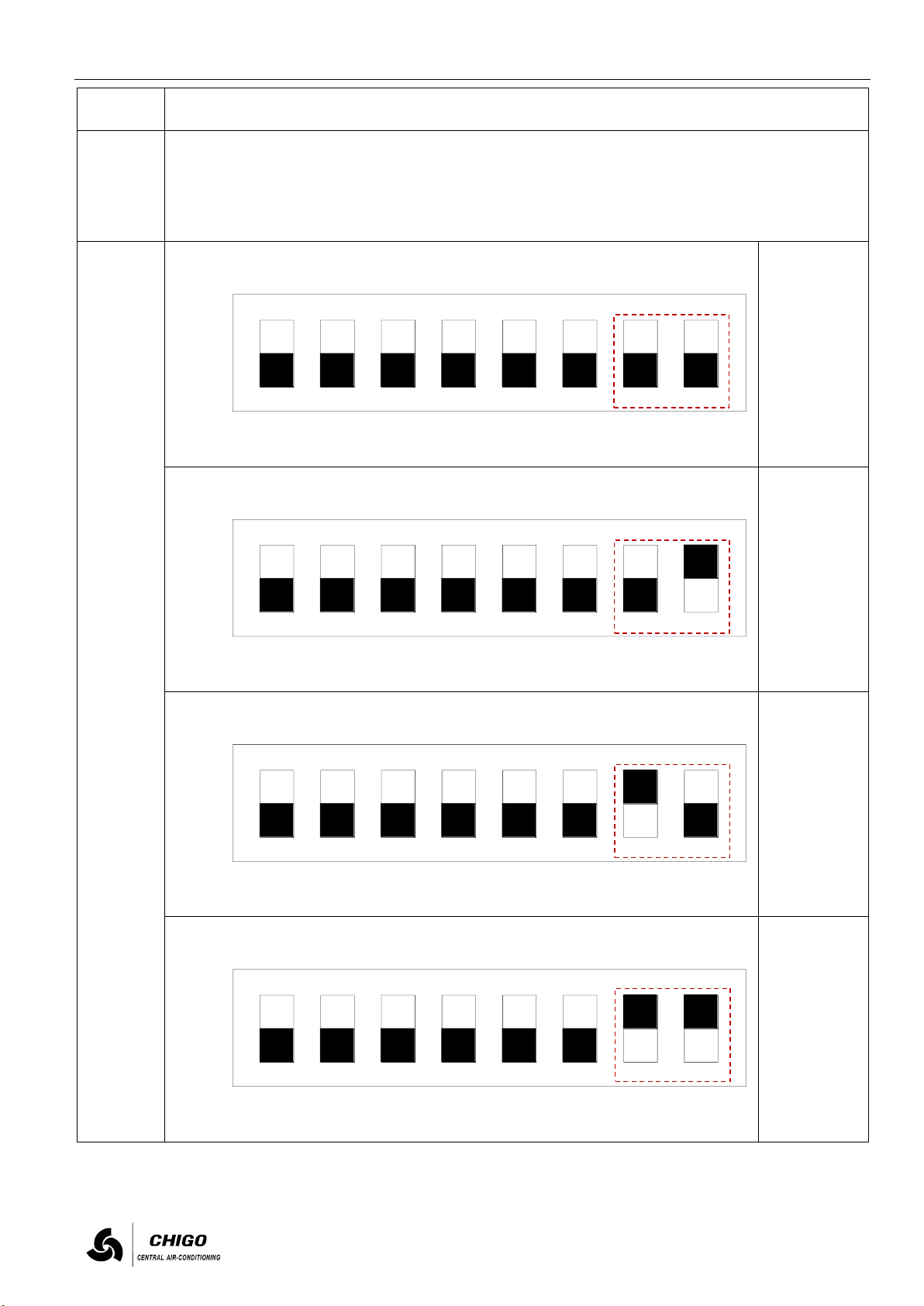

Temperature selection of turning off fan motor in anti-cold-wind-blow mode. When indoor heat exchanger
temperature is lower than the setting value, indoor fan motor turns off.
DO NOT change the default setting without professional guidance.
Setting
1 2 3 4 5 6 7 8
15 ˚C
Default setting
1 2 3 4 5 6 7 8
20 ˚C
1 2 3 4 5 6 7 8
24 ˚C
1 2 3 4 5 6 7 8
26 ˚C
ON
OFF
ON
OFF
ON
OFF
ON
OFF

14
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
Name
Switch number 7,8 of SW2
Function
Indoor fan motor stopping gap selection in heating mode.
When room temperature gets to (set point + temperature value in Switch number 3,4 of SW2), at this moment indoor
unit capacity requirement is 0, indoor fan motor turns off for 4minutes ( this stopping duration time can be changed
by below setting). After that indoor fan will run in low speed for 1 minute (this timing is fixed), if indoor unit
capacity requirement is still 0, then indoor fan motor keeps off for 4 minutes, and then cycles.
DO NOT change the default setting without professional guidance.
Setting
1 2 3 4 5 6 7 8
4 minutes
Default setting
1 2 3 4 5 6 7 8
8 minutes
1 2 3 4 5 6 7 8
12 minutes
1 2 3 4 5 6 7 8
16 minutes
ON
OFF
ON
OFF
ON
OFF
ON
OFF

15
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
7.2.4 Dial-up SW8
Dialing function of SW8 is temporarily retained, so it is not defined temporarily. It was dialed to the digital side before leaving factory.
Notes: Dialing function of SW8 is used for debugging and it is commonly dialed to digital side.

16
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
8Capacity tables
8.1 Cooling
TC: Total Capacity SC: Sensible Capacity WB: Wet-bulb Temperature DB: Dry-bulb Temperature
Capacity
(kW)
Outdoor
temperature
(˚C DB)
Indoor temperature (˚C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
5.6
10
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.53
4.44
6.79
3.98
12
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.53
4.44
6.73
3.95
14
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.47
4.40
6.67
3.91
16
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.41
4.36
6.61
3.88
18
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.35
4.32
6.55
3.84
19
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.29
4.28
6.49
3.80
21
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.24
4.24
6.42
3.77
23
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.38
6.18
4.20
6.36
3.73
25
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.10
4.33
6.12
4.16
6.30
3.70
27
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
6.04
4.29
6.06
4.12
6.24
3.66
29
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
5.98
4.25
6.00
4.08
6.18
3.63
31
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
5.93
4.21
5.94
4.04
6.12
3.59
33
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
5.87
4.13
5.88
4.00
6.06
3.56
35
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.11
5.78
4.09
5.83
3.96
6.00
3.52
37
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.09
5.70
4.01
5.77
3.88
5.88
3.45
39
3.88
3.50
4.58
3.65
5.28
4.11
5.60
4.07
5.66
3.97
5.71
3.84
5.82
3.42
41
3.88
3.50
4.58
3.65
5.21
4.11
5.54
4.05
5.60
3.93
5.66
3.80
5.76
3.38
43
3.88
3.50
4.58
3.65
5.15
4.11
5.49
4.03
5.54
3.89
5.60
3.76
5.70
3.35
46
3.88
3.50
4.49
3.58
4.98
4.11
5.43
4.01
5.49
3.84
5.54
3.72
5.66
3.31
48
3.88
3.50
4.44
3.54
4.82
3.99
5.26
3.97
5.43
3.80
5.38
3.68
5.49
3.28
50
3.81
3.50
4.40
3.51
4.65
3.95
5.10
3.86
5.26
3.76
5.21
3.64
5.32
3.24
7.1
10
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
8.27
5.63
8.60
5.05
12
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
8.27
5.63
8.53
5.00
14
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
8.20
5.58
8.45
4.96
16
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
8.13
5.53
8.38
4.91
18
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
8.05
5.47
8.30
4.87
19
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
7.98
5.42
8.22
4.82
21
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
7.91
5.37
8.15
4.78
23
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.55
7.83
5.32
8.07
4.73
25
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.73
5.50
7.76
5.27
7.99
4.69
27
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.66
5.44
7.68
5.22
7.92
4.64
29
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.58
5.39
7.61
5.17
7.84
4.60
31
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.51
5.34
7.54
5.12
7.76
4.56
33
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.44
5.24
7.46
5.07
7.69
4.51
35
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.21
7.33
5.18
7.39
5.02
7.61
4.47
37
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.19
7.22
5.08
7.31
4.92
7.46
4.38
39
4.92
4.44
5.80
4.63
6.69
5.21
7.10
5.15
7.17
5.03
7.24
4.87
7.38
4.33
41
4.92
4.44
5.80
4.63
6.60
5.21
7.03
5.13
7.10
4.98
7.17
4.82
7.31
4.29
43
4.92
4.44
5.80
4.63
6.53
5.21
6.96
5.11
7.03
4.93
7.10
4.77
7.23
4.24
46
4.92
4.44
5.69
4.54
6.32
5.21
6.89
5.09
6.96
4.87
7.03
4.72
7.17
4.20
48
4.92
4.44
5.63
4.49
6.11
5.06
6.67
5.03
6.89
4.82
6.82
4.67
6.96
4.15
50
4.83
4.44
5.57
4.45
5.89
5.01
6.46
4.90
6.67
4.77
6.60
4.62
6.75
4.11
8.0
10
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
9.32
6.34
9.70
5.69
12
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
9.32
6.34
9.61
5.64
14
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
9.24
6.28
9.52
5.59
16
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
9.16
6.23
9.44
5.54
18
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
9.07
6.17
9.35
5.49
19
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
8.99
6.11
9.27
5.44
21
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
8.91
6.06
9.18
5.38
23
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.25
8.82
6.00
9.09
5.33
25
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.71
6.19
8.74
5.94
9.01
5.28
27
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.63
6.13
8.66
5.89
8.92
5.23
29
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.55
6.08
8.57
5.83
8.83
5.18
31
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.47
6.02
8.49
5.77
8.75
5.13
33
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.38
5.90
8.41
5.72
8.66
5.08
35
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.87
8.26
5.84
8.32
5.66
8.58
5.03
37
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.84
8.14
5.73
8.24
5.55
8.41
4.93
39
5.54
5.00
6.54
5.22
7.54
5.88
8.00
5.81
8.08
5.67
8.16
5.49
8.32
4.88
41
5.54
5.00
6.54
5.22
7.44
5.88
7.92
5.78
8.00
5.61
8.08
5.43
8.23
4.83
43
5.54
5.00
6.54
5.22
7.36
5.88
7.84
5.76
7.92
5.55
8.00
5.38
8.15
4.78
46
5.54
5.00
6.41
5.12
7.12
5.88
7.76
5.73
7.84
5.49
7.92
5.32
8.08
4.73
48
5.54
5.00
6.34
5.06
6.88
5.70
7.52
5.67
7.76
5.43
7.68
5.26
7.84
4.68
50
5.44
5.00
6.28
5.01
6.64
5.64
7.28
5.52
7.52
5.37
7.44
5.21
7.60
4.63

17
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
TC: Total Capacity SC: Sensible Capacity WB: Wet-bulb Temperature DB: Dry-bulb Temperature
Capacity
(kW)
Outdoor
temperature
(˚C DB)
Indoor temperature (˚C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
9
10
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.49
7.13
10.91
6.40
12
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.49
7.13
10.81
6.34
14
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.39
7.07
10.71
6.28
16
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.30
7.00
10.62
6.23
18
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.21
6.94
10.52
6.17
19
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.11
6.88
10.43
6.11
21
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
10.02
6.81
10.33
6.06
23
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
7.03
9.93
6.75
10.23
6.00
25
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.80
6.97
9.83
6.69
10.13
5.94
27
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.71
6.90
9.74
6.62
10.04
5.89
29
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.61
6.84
9.65
6.56
9.94
5.83
31
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.53
6.77
9.55
6.49
9.84
5.77
33
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.43
6.64
9.46
6.43
9.75
5.72
35
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.61
9.30
6.57
9.36
6.37
9.65
5.66
37
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.57
9.16
6.44
9.27
6.24
9.46
5.55
39
6.23
5.62
7.36
5.87
8.48
6.61
9.00
6.53
9.09
6.38
9.18
6.18
9.36
5.49
41
6.23
5.62
7.36
5.87
8.37
6.61
8.91
6.51
9.00
6.31
9.09
6.11
9.26
5.44
43
6.23
5.62
7.36
5.87
8.28
6.61
8.82
6.47
8.91
6.24
9.00
6.05
9.17
5.38
46
6.23
5.62
7.21
5.76
8.01
6.61
8.73
6.45
8.82
6.18
8.91
5.98
9.09
5.32
48
6.23
5.62
7.14
5.70
7.74
6.41
8.46
6.38
8.73
6.11
8.64
5.92
8.82
5.27
50
6.12
5.62
7.06
5.64
7.47
6.35
8.19
6.21
8.46
6.05
8.37
5.86
8.55
5.21
10
10
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.65
7.92
12.12
7.11
12
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.65
7.92
12.01
7.05
14
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.55
7.85
11.90
6.98
16
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.44
7.78
11.80
6.92
18
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.34
7.71
11.69
6.86
19
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.24
7.64
11.58
6.79
21
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.13
7.57
11.47
6.73
23
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.81
11.03
7.50
11.37
6.67
25
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.89
7.74
10.92
7.43
11.26
6.61
27
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.79
7.67
10.82
7.36
11.15
6.54
29
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.68
7.59
10.72
7.29
11.04
6.48
31
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.58
7.52
10.62
7.22
10.94
6.42
33
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.48
7.38
10.51
7.15
10.83
6.35
35
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.34
10.33
7.30
10.40
7.07
10.72
6.29
37
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.30
10.17
7.16
10.30
6.93
10.51
6.16
39
6.92
6.25
8.17
6.53
9.42
7.34
10.00
7.26
10.10
7.08
10.20
6.86
10.40
6.10
41
6.92
6.25
8.17
6.53
9.30
7.34
9.90
7.23
10.00
7.01
10.10
6.79
10.29
6.04
43
6.92
6.25
8.17
6.53
9.20
7.34
9.80
7.19
9.90
6.94
10.00
6.72
10.19
5.98
46
6.92
6.25
8.01
6.39
8.90
7.34
9.70
7.16
9.80
6.86
9.90
6.65
10.10
5.91
48
6.92
6.25
7.93
6.33
8.60
7.12
9.40
7.09
9.70
6.79
9.60
6.58
9.80
5.85
50
6.80
6.25
7.85
6.26
8.30
7.05
9.10
6.90
9.40
6.72
9.30
6.51
9.50
5.79
11.2
10
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
13.05
8.87
13.57
7.96
12
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
13.05
8.87
13.45
7.89
14
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
12.93
8.79
13.33
7.82
16
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
12.82
8.72
13.21
7.75
18
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
12.70
8.64
13.09
7.68
19
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
12.59
8.56
12.97
7.61
21
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
12.47
8.48
12.85
7.54
23
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.75
12.35
8.40
12.73
7.47
25
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.20
8.67
12.24
8.32
12.61
7.40
27
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
12.08
8.59
12.12
8.24
12.49
7.33
29
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
11.96
8.51
12.00
8.16
12.37
7.26
31
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
11.85
8.42
11.89
8.08
12.25
7.19
33
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
11.74
8.26
11.77
8.00
12.13
7.12
35
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.22
11.57
8.18
11.65
7.92
12.01
7.05
37
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.18
11.40
8.02
11.54
7.76
11.77
6.90
39
7.76
7.00
9.16
7.31
10.56
8.23
11.20
8.13
11.31
7.93
11.42
7.69
11.65
6.83
41
7.76
7.00
9.16
7.31
10.42
8.23
11.09
8.10
11.20
7.85
11.31
7.61
11.53
6.76
43
7.76
7.00
9.16
7.31
10.30
8.23
10.98
8.06
11.09
7.77
11.20
7.53
11.41
6.69
46
7.76
7.00
8.97
7.16
9.97
8.23
10.86
8.02
10.98
7.69
11.09
7.45
11.31
6.62
48
7.76
7.00
8.88
7.09
9.63
7.98
10.53
7.94
10.86
7.61
10.75
7.37
10.98
6.55
50
7.62
7.00
8.79
7.02
9.30
7.90
10.19
7.73
10.53
7.52
10.42
7.29
10.64
6.48

18
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
TC: Total Capacity SC: Sensible Capacity WB: Wet-bulb Temperature DB: Dry-bulb Temperature
Capacity
(kW)
Outdoor
temperature
(˚C DB)
Indoor temperature (˚C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
12.5
10
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
14.57
9.90
15.15
8.89
12
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
14.57
9.90
15.01
8.81
14
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
14.43
9.82
14.88
8.73
16
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
14.31
9.73
14.75
8.65
18
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
14.18
9.64
14.61
8.57
19
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
14.05
9.55
14.48
8.49
21
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
13.92
9.46
14.34
8.41
23
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.77
13.78
9.37
14.21
8.34
25
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.61
9.68
13.66
9.29
14.07
8.26
27
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.48
9.58
13.53
9.20
13.94
8.18
29
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.35
9.49
13.40
9.11
13.80
8.10
31
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.23
9.40
13.27
9.02
13.67
8.02
33
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
13.10
9.22
13.13
8.93
13.54
7.94
35
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.18
12.91
9.13
13.01
8.84
13.40
7.86
37
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.13
12.72
8.95
12.88
8.67
13.13
7.71
39
8.66
7.81
10.22
8.16
11.78
9.18
12.50
9.08
12.62
8.85
12.75
8.58
13.00
7.63
41
8.66
7.81
10.22
8.16
11.63
9.18
12.38
9.04
12.50
8.76
12.62
8.49
12.87
7.55
43
8.66
7.81
10.22
8.16
11.50
9.18
12.25
8.99
12.38
8.67
12.50
8.40
12.73
7.47
46
8.66
7.81
10.01
7.99
11.13
9.18
12.12
8.96
12.25
8.58
12.38
8.31
12.62
7.39
48
8.66
7.81
9.91
7.91
10.75
8.90
11.75
8.86
12.12
8.49
12.00
8.22
12.25
7.31
50
8.50
7.81
9.81
7.83
10.38
8.81
11.37
8.63
11.75
8.40
11.63
8.14
11.88
7.23
14
10
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
16.32
11.09
16.97
9.95
12
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
16.32
11.09
16.82
9.86
14
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
16.17
10.99
16.67
9.78
16
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
16.02
10.89
16.52
9.69
18
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
15.88
10.80
16.37
9.60
19
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
15.73
10.70
16.22
9.51
21
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
15.59
10.60
16.06
9.42
23
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.94
15.44
10.50
15.91
9.34
25
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.24
10.84
15.29
10.40
15.76
9.25
27
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
15.10
10.73
15.15
10.30
15.61
9.16
29
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
14.96
10.63
15.01
10.20
15.46
9.07
31
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
14.82
10.53
14.86
10.10
15.31
8.98
33
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
14.67
10.33
14.71
10.00
15.16
8.89
35
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.28
14.46
10.22
14.57
9.90
15.01
8.81
37
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.23
14.24
10.02
14.42
9.71
14.71
8.63
39
9.69
8.75
11.44
9.14
13.19
10.28
14.00
10.16
14.14
9.92
14.28
9.61
14.56
8.54
41
9.69
8.75
11.44
9.14
13.02
10.28
13.86
10.12
14.00
9.81
14.14
9.51
14.41
8.45
43
9.69
8.75
11.44
9.14
12.88
10.28
13.72
10.07
13.86
9.71
14.00
9.41
14.26
8.37
46
9.69
8.75
11.22
8.95
12.46
10.28
13.58
10.03
13.72
9.61
13.86
9.31
14.14
8.28
48
9.69
8.75
11.10
8.86
12.04
9.97
13.16
9.93
13.58
9.51
13.44
9.21
13.72
8.19
50
9.52
8.75
10.99
8.77
11.62
9.87
12.74
9.66
13.16
9.41
13.02
9.11
13.30
8.10
16
10
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
18.65
12.68
19.22
11.27
12
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
18.48
12.56
19.05
11.17
14
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
18.31
12.45
18.88
11.07
16
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
18.15
12.34
18.70
10.97
18
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
17.98
12.22
18.53
10.87
19
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
17.82
12.11
18.36
10.77
21
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.50
17.64
12.00
18.18
10.67
23
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.42
12.39
17.48
11.88
18.01
10.57
25
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.26
12.27
17.31
11.77
17.84
10.47
27
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
17.09
12.15
17.15
11.66
17.67
10.37
29
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
16.93
12.03
16.98
11.55
17.50
10.27
31
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
16.77
11.80
16.81
11.43
17.33
10.17
33
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.75
16.53
11.68
16.65
11.32
17.16
10.06
35
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.69
16.28
11.45
16.48
11.09
16.81
9.86
37
11.08
10.00
13.08
10.44
15.08
11.75
16.00
11.62
16.16
11.33
16.32
10.98
16.64
9.76
39
11.08
10.00
13.08
10.44
14.88
11.75
15.84
11.57
16.00
11.22
16.16
10.87
16.47
9.66
41
11.08
10.00
13.08
10.44
14.72
11.75
15.68
11.51
15.84
11.10
16.00
10.75
16.30
9.56
43
11.08
10.00
12.82
10.23
14.24
11.75
15.52
11.46
15.68
10.98
15.84
10.64
16.16
9.46
46
11.08
10.00
12.69
10.13
13.76
11.40
15.04
11.35
15.52
10.87
15.36
10.53
15.68
9.36
48
10.88
10.00
12.56
10.02
13.28
11.28
14.56
11.04
15.04
10.75
14.88
10.41
15.20
9.26
50
12.66
11.42
14.95
11.93
17.23
13.43
18.29
13.42
19.91
14.29
21.31
14.49
21.96
12.88

19
GD CHIGO HEATING & VENTILATION EQUIPMENT CO., LTD.
New CMV System - 4-Way Cassette Indoor Unit
8.2 Heating
TC: Total Capacity WB: Wet-bulb Temperature DB: Dry-bulb Temperature
Capacity
(kW)
Outdoor temperature
(℃)
Indoor temperature (℃DB)
16.0
18.0
20.0
21.0
22.0
24.0
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
5.6
-20
-19.8
3.53
3.53
3.53
3.53
3.53
3.53
-19
-18.8
3.78
3.78
3.78
3.78
3.78
3.78
-17
-16.7
3.97
3.97
3.97
3.97
3.97
3.97
-15
-14.7
4.10
4.10
4.10
4.10
4.10
4.10
-13
-12.6
4.22
4.22
4.22
4.22
4.22
4.22
-11
-10.5
4.41
4.41
4.41
4.41
4.41
4.41
-10
-9.5
4.60
4.60
4.60
4.60
4.60
4.60
-9.1
-8.5
4.73
4.73
4.73
4.73
4.73
4.73
-7.6
-7
4.79
4.79
4.79
4.79
4.79
4.79
-5.6
-5
4.98
4.98
4.98
4.98
4.98
4.98
-3.7
-3
5.23
5.23
5.23
5.23
5.23
5.23
-0.7
0
5.61
5.61
5.61
5.61
5.61
5.29
2.2
3
5.92
5.92
5.92
5.92
5.80
5.29
4.1
5
6.11
6.11
6.11
6.11
5.80
5.29
6
7
6.30
6.30
6.30
6.11
5.80
5.29
7.9
9
6.49
6.49
6.30
6.11
5.80
5.29
9.8
11
6.68
6.68
6.30
6.11
5.80
5.29
11.8
13
6.93
6.80
6.30
6.11
5.80
5.29
13.7
15
7.12
6.80
6.30
6.11
5.80
5.29
7.1
-20
-19.8
4.48
4.48
4.48
4.48
4.48
4.48
-19
-18.8
4.80
4.80
4.80
4.80
4.80
4.80
-17
-16.7
5.04
5.04
5.04
5.04
5.04
5.04
-15
-14.7
5.20
5.20
5.20
5.20
5.20
5.20
-13
-12.6
5.36
5.36
5.36
5.36
5.36
5.36
-11
-10.5
5.60
5.60
5.60
5.60
5.60
5.60
-10
-9.5
5.84
5.84
5.84
5.84
5.84
5.84
-9.1
-8.5
6.00
6.00
6.00
6.00
6.00
6.00
-7.6
-7
6.08
6.08
6.08
6.08
6.08
6.08
-5.6
-5
6.32
6.32
6.32
6.32
6.32
6.32
-3.7
-3
6.64
6.64
6.64
6.64
6.64
6.64
-0.7
0
7.12
7.12
7.12
7.12
7.12
6.72
2.2
3
7.52
7.52
7.52
7.52
7.36
6.72
4.1
5
7.76
7.76
7.76
7.76
7.36
6.72
6
7
8.00
8.00
8.00
7.76
7.36
6.72
7.9
9
8.24
8.24
8.00
7.76
7.36
6.72
9.8
11
8.48
8.48
8.00
7.76
7.36
6.72
11.8
13
8.80
8.64
8.00
7.76
7.36
6.72
13.7
15
9.04
8.64
8.00
7.76
7.36
6.72
8.0
-20
-19.8
5.04
5.04
5.04
5.04
5.04
5.04
-19
-18.8
5.40
5.40
5.40
5.40
5.40
5.40
-17
-16.7
5.67
5.67
5.67
5.67
5.67
5.67
-15
-14.7
5.85
5.85
5.85
5.85
5.85
5.85
-13
-12.6
6.03
6.03
6.03
6.03
6.03
6.03
-11
-10.5
6.30
6.30
6.30
6.30
6.30
6.30
-10
-9.5
6.57
6.57
6.57
6.57
6.57
6.57
-9.1
-8.5
6.75
6.75
6.75
6.75
6.75
6.75
-7.6
-7
6.84
6.84
6.84
6.84
6.84
6.84
-5.6
-5
7.11
7.11
7.11
7.11
7.11
7.11
-3.7
-3
7.47
7.47
7.47
7.47
7.47
7.47
-0.7
0
8.01
8.01
8.01
8.01
8.01
7.56
2.2
3
8.46
8.46
8.46
8.46
8.28
7.56
4.1
5
8.73
8.73
8.73
8.67
8.28
7.56
6
7
9.00
9.00
8.80
8.67
8.28
7.56
7.9
9
9.27
9.27
9.00
8.67
8.28
7.56
9.8
11
9.54
9.54
9.00
8.67
8.28
7.56
11.8
13
9.90
9.72
9.00
8.67
8.28
7.56
13.7
15
10.17
9.72
9.00
8.67
8.28
7.56
