ENGLISH
Chainsaw
Art.no 31-9034 Model WLCS38A-375
Please read theentire instruction manual before using theproduct and then save it for future reference.
We reserve theright for any errors in text or images and any necessary changes made to technicaldata.
In theevent of technical problems or other queries, please contact our Customer Services (see address details on theback).
Safety
Warning: Readall safety information, warnings and instructions. Failure to read safety information,
warnings and instructions can lead to fire, property damage or serious personal injury.
Persons (including children) whose physical, sensory or mental capability or lack of experience and knowledge means that
they cannot use thesaw in asafe way must not use it without supervision or instruction. Children shall be supervised to
ensure that they do not play with thesaw.
1) Work area safety
a) Keep thework area clean and well illuminated. Cluttered and poorly lit areas invite accidents. Rags, clothing, cables,
gloves or other materials must not be left in theworkarea.
b) Do not use thesaw in explosive environments, such as in thepresence of flammable liquids, gases ordust.
Thesaw can create sparks which may ignite dust orfumes.
c) Keep children and bystanders away from thearea when you are using thesaw. Distractions can cause you to lose control.
2) Personal safety
a) Pay attention to what you are doing and use common sense when using thesaw. Neveruse thesaw if you are tired
or under theinfluence of drugs, alcohol or medication. Onemoment of inattention while using achainsaw may result in
serious injury.
b) Wear protective clothing. Always wear safety glasses. Usingprotective clothing such as dust masks, non-slip safety
shoes, helmets and ear defenders reduces therisk of injury.
c) Remove all service tools/keys before starting thechainsaw. Aspanner or other tool which has been left on arotating
part of thesaw could result in aninjury.
d) Do not overreach. Keepproper footing and balance at alltimes. This will allow you to have better control of thesaw
in unexpected situations.
e) Wear suitable clothing. Donot wear loose-fitting clothing or jewellery. Keephair, clothes and gloves away from
movingparts. Loose-fitting clothes, jewellery or long hair could become caught in movingparts.
3) Use and maintenance of thesaw
a) Do not force thesaw. Makesure that thesaw is designed for thework you are about to perform. Thesaw must only be
used as described in this instruction manual.
b) Do not use thesaw if thepower switch is not functioning properly. Anysaw that cannot be controlled by thepower
switch is dangerous and must be repaired.
c) Store chainsaws that are not being used out of children’sreach. Donot allow people who are unfamiliar
with chainsaws or these instructions to operatethem. Chainsaws can be dangerous if they fall into thehands of
inexperiencedusers.
d) Properly maintain thesaw. Checkfor misalignment, binding of moving parts, broken parts or anything else which
might affect theoperation of thesaw. Ifany damage is noticed, have thesaw repaired beforeusing. Manyaccidents are
caused by poorly maintainedsaws.
e) Keep thechain sharp andclean. Properly maintained chains with sharp edges are easier to control.
f) Use thesaw, and any accessories in accordance with these instructions, taking into account theworking conditions
and thework to be performed. Useof thesaw for apurpose other than that for which it is intended could result in
adangerous situation.
• Keep all parts of your body away from thesaw chain once thesaw has been started. Before starting thesaw,
check that thesaw chain is not in contact with any objects and can run freely. Evenabrief moment of inattention
can lead to thesaw chain fastening in anitem of clothing or abodypart.
• Always hold thesaw with your right hand on therear handle and your left hand on thefront handle. Neverhold
thesaw in any other way, it increases therisk of personal injury.

3
ENGLISH
• Use protective eyewear and hearing protection. Protective equipment for hands, head, legs and feet are also
recommended. Wearing thecorrect type of safety clothing reduces therisk of personal injury from thesaw chain or
flying debris from thesawing.
• Never climb atree to operate thechainsaw. Usingachainsaw in atree can result in personal injury.
• Make sure that you stand on afirm, level surface when you use thesaw. Slippery and unstable platforms such as
ladders can result in aloss of balance and loss of control over thesaw.
• Be prepared for branches under tension to spring back during thesawing process. Whenthetension in branches
isreleased they can spring back and strike chainsaw operators causing them to lose control of theirsaws.
• Be very careful when cutting brush and saplings. Thintwigs can get caught in thesaw chain and be projected
towards you or cause you to lose your balance.
• Always carry thechainsaw by thefront handle with theguide bar pointing away from yourbody. Thescabbard
must always be fitted when thechainsaw is being transported or stored. Usingthechainsaw correctly will reduce
thelikelihood of contact with thesaw chain when it is in motion.
• Follow theinstructions regarding lubrication, chain tensioning and changing of accessories. Animproperly
tensioned or lubricated chain increases therisk of chain breakage or kickback.
• Always keep thehandles dry, clean and free of oil and grease. Slippery handles covered in oil can cause you to lose
control over thesaw.
• Cut woodonly. Thesaw is not designed for sawing plastic, hardboard or other building materials not made
ofwood. Usingthesaw to saw amaterial it was not designed to saw could lead to adangerous situation.
Causes and prevention of kickback
Kickback can occur when thetip of theguide bar contacts anobject or if thesaw cut closes and traps thechain.
If thetip of theguide bar touches anobject it can cause areaction which throws theguide bar back up towards theoperator.
Pinching thesaw chain along thetop of theguide bar may push theguide bar rapidly back towards theoperator.
All of these reactions may cause you to lose control of thesaw which could result in serious personal injury.
Do not rely solely on thesafety features fitted to thesaw. Whenusing thesaw you yourself must take precautions to prevent
accidents and injuries. Kickback is caused either by poor maintenance, anincorrect sawing method or using thesaw for
thewrong purpose. Thiscan be avoided by following thefollowing safety precautions:
• If you understand what causes kickback therisk of being surprised and losing control will be reduced.
• Hold thesaw firmly with bothhands. Holdthesaw with your right hand on therear handle and your left hand on
thefront handle. Maintain afirm grip with thumbs and fingers encircling thehandles and your arms and body
positioned in such away that you can resist kickback forces should they occur. You can control theforces arising
from akickback if thecorrect precautions aretaken. Neverlet go of thesaw when theengine is running.
• Make sure that thework area is free of obstacles. Neverlet thetip of theguide bar contact atree trunk, branch or
other object.
• Always saw using full throttle.
• Do not overreach and do not saw above shoulder height. Thiswill help you to prevent thetip of theguide bar from
accidentally coming into contact with objects and and cause you to lose control over thesaw if something unexpected should
happen.
• Follow themanufacturer’s instructions regarding sharpening and maintenance of thesawchain. Ablunt chain also
increases thelikelihood of kickback.
• Use only those replacement parts, guide bar and saw chain recommended by themanufacturer. Usingaguide bar
or saw chain of theincorrect type can lead to kickback or chain breakage.
WARNING: BEWARE OF KICKBACK!
Warning: Kickback poses aserious accident risk and can cause theoperator to lose control of thesaw.
Thiscan result in serious injury to theoperator and any bystanders. Bevigilant at alltimes.
Kickback caused by thenose or tip of theguide bar touching anobject or by thewood closing
and pinching thesaw chain in thecut is themain cause of chainsaw accidents.

4
ENGLISH
General safety rules
• Never use thesaw when you are tired, sick, under theinfluence of alcohol or medicine.
• Local regulations may restrict theage of theoperator; check what minimum operator age requirements apply to your region.
• Always be careful when handlingfuel. Wipeoff any spilt fuel and move thesaw at least 3 metres away from therefuelling
location before startingit.
• Remove any sources of ignition and see that there are no sparks, naked flames, lit cigarettes,etc. inthearea where
thefuel is mixed, used or stored.
• Never smoke when refuelling or operating thesaw.
• Do not permit anyone other than theoperator to come close to thesaw when it is being started orused. Children, pets
and onlookers should be kept at least 10 metres away from thesaw when it is being started orused.
• Never begin using thesaw without having full view of theentire workarea. Keepyour proper footing and balance and
make sure that you have aplanned retreat path to asafe place away from thefallingtree.
• Never work alone, always have aperson close by whom you can call if you needhelp.
• Never work in poor light conditions, heavy rain or strongwind.
• Thesaw must only be used for cutting natural untreatedwood.
• Never use thechainsaw on treatedwood.
• Thesaw must not be used for clearingbrush.
• Make sure that thesaw chain is not in contact with any object before starting.
• Always carry thechainsaw with theengine shut off, theguide bar to therear and thesilencer pointing away from thebody.
• Always inspect thesaw before startingit. Donot start it if there are worn, missing or damagedparts. Neveruse thesaw
if it is damaged, incorrectly adjusted or incorrectly assembled. Whentheengine has started: Checkthat thechain saw
stops completely when you let go of thethrottle.
• Any service of thesaw other than that mentioned in this instruction manual should be carried out by qualified service personnel.
• Always shut off theengine before placing thesaw on theground.
• Use extreme caution when cutting brush and saplings because slender material may fasten in thesaw chain and be
whipped towards you or pull you off balance. Becareful when cutting limbs under tension. Guardagainst falling branches
and be alert for springback and pinching of theguide bar when thetension in thefibres of thewood is released.
• Keep thehandles dry, clean and free of oil and fuel mixture.
• Operate thechainsaw only in well-ventilatedareas.
• Never operate thesaw in atree unless you have been specially trained for suchwork.
• Never transport thesaw without thescabbard fitted.
• Never operate thesaw close to flammable liquids or gases, doing so poses arisk of fire or explosion.
• Never refuel, top up theoil or perform any maintenance to thesaw when theengine is running.
• First-time users should be equipped with safety equipment and be instructed in thecorrect use of thechainsaw by
anexperienced operator.
• Never start thesaw indoors. Thesaw will emit poisonous exhaust gases as soon as it is started, these gases may be
invisible and odourless but are harmful if inhaled. Beaware that thesaw will produce harmful sawdust and oil mist from
chain lubrication, protect yourself accordingly.
• Always wear gloves and keep your hands warm when using theproduct. Long-term exposure to hand-arm vibration from
using achainsaw can lead to permanent damage to hands andarms. Ifyou experience symptoms such as poor blood
circulation, white finger tips, reduction in sense of touch, numbness or tingling in fingers, contact adoctor.
• Drive in thespiked bumper directly behind theintended cut and let this be thehinge around which thesaw pivots.
Safety symbols
Make sure that you have read and understood theentire instruction manual before starting to use theproduct.
Wear anapproved helmet, approved ear defenders and safety glasses/visor.
Improper use can cause injury and damage to theproduct.
Warning: Riskof kickback.

5
ENGLISH
Always hold theproduct with bothhands.
Do not use theproduct in therain.
Always wear safety gloves.
Wear amask in dusty conditions.
In accordance with essential applicable safety standards of European directives.
Always wear approved safetyshoes.

6
ENGLISH
1 2
3 4 5
67
8
9
10
11
12
13
14
15
16
Product description
1. Front handle
2. Chain brakelever
3. Silencer
4. Sawchain
5. Guidebar
6. Clutch (under cover)
7. Drive sprocket and
clutchcover
8. Starter handle
9. Power switch
10. Fuelcap
11. Chain oilcap
12. Top cover lockingknob
13. Choke
14. Safetycatch
15. Throttle
16. Rear handle

7
ENGLISH
17 18 19
20
21
23
22
24
25
26
27 28
29
30
31
17. T, Idle speed adjuster
18. L, Low speed fuel valve adjuster
19. H, High speed fuel valve adjuster
20. Saw chain tension adjusterscrew
21. Spiked bumper
22. Guide bar retainingnuts
23. Chain catcher
24. Chain tensioner
25. Drive sprocket
26. Spark plugcap
27. Air filter
28. Spark plug spanner
29. Screwdriver
30. Saw chainscabbard
31. File

8
ENGLISH

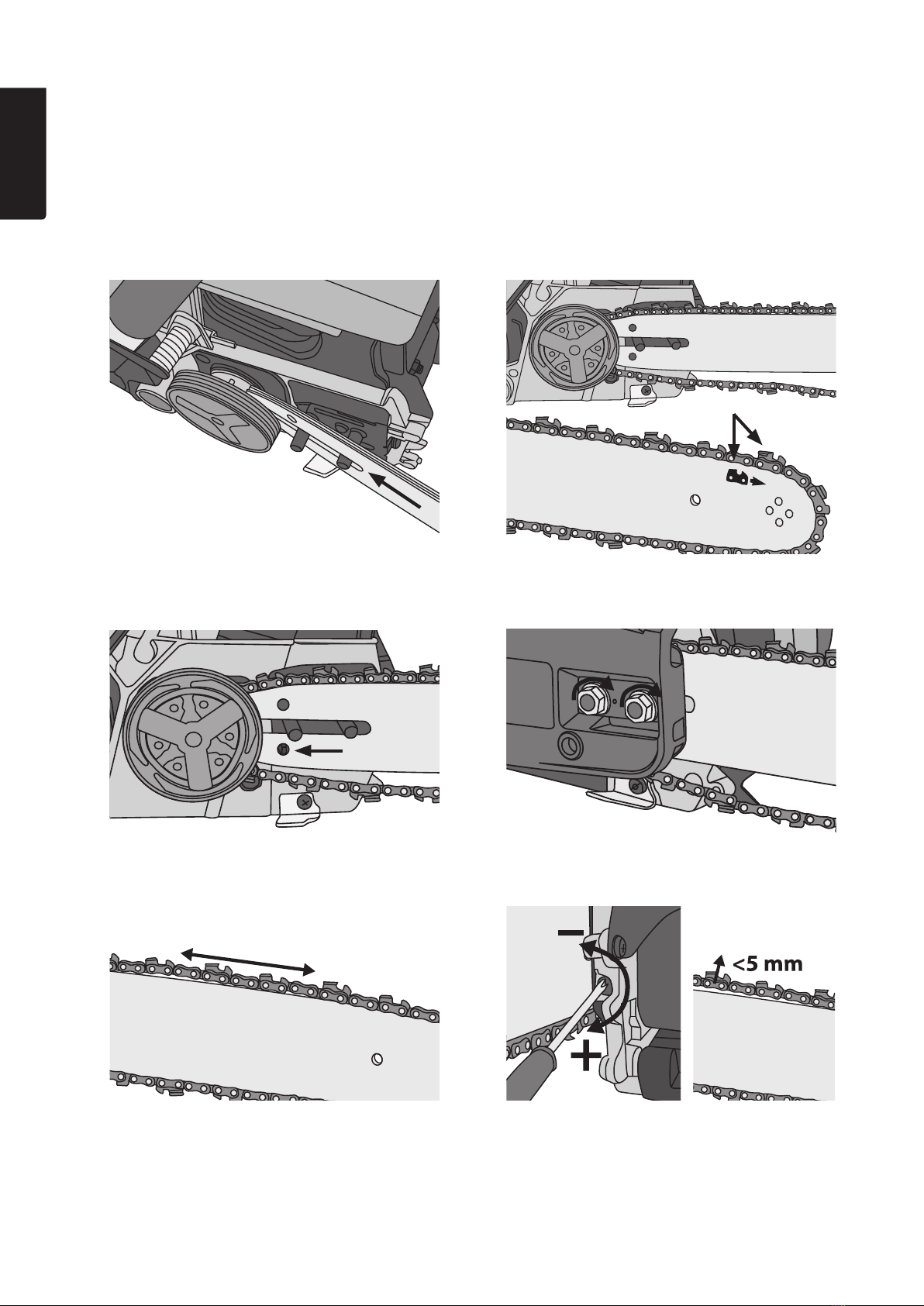

Fitting the guide bar and saw chain
Note: Onlyuse a14″(35cm) bar and 52-link 3/8″chain.
Warning:
• Thesaw chain is verysharp. Wearprotective gloves.
• Only use theincluded guide bar or one recommended by themanufacturer. Useof other types of guide bar can lead to
personal injury or damage to theproduct.
1. Remove thecover (7) over thedrive sprocket and clutch by first removing thetwo retainingnuts.

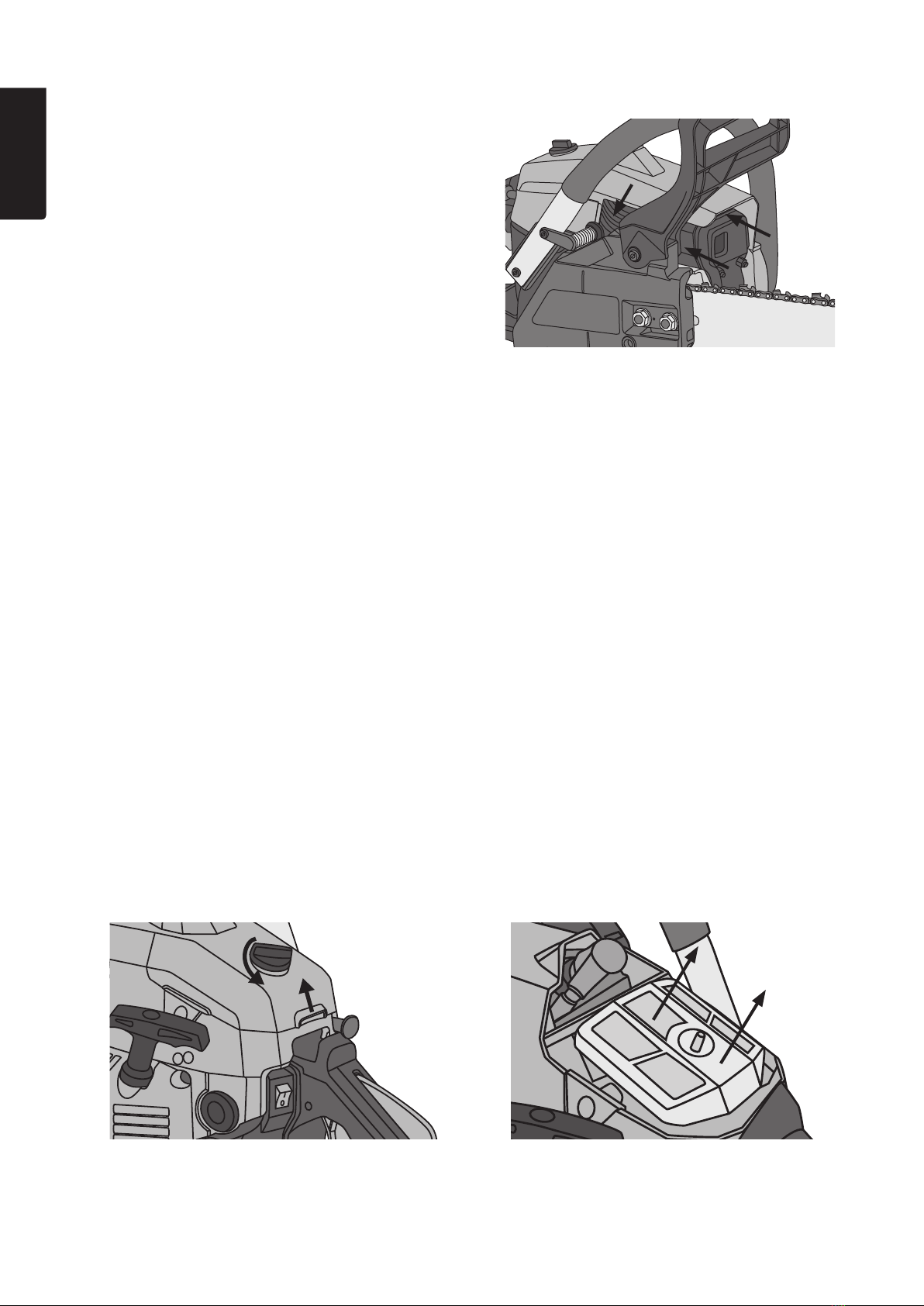

2. Place theguide bar over thetwo bolts and slide it
towards thedrive sprocket.
4. Move theguide bar so that thechain tensioner is in its
hole in thebar.
6. Turn thechain by hand so that you can feel that it runs
freely and is sitting correctly on thedrive sprocket.
3. Place thesaw chain around thedrive sprocket (25)
and into thegroove in theguide bar with thelinks
pointing in thedirection shown on theguidebar.
5. Refit thecover, hand-tighten thenuts enough for thecover
to hold theguide bar inplace. Ifyou tighten thenuts too
much you won’t be able to tension thechain.
7. Tension thechain by turning theadjuster screw
clockwise. Tension thechain until it can be lifted no
more than 5mm from theguidebar.
8. Tighten thetwo retaining nuts (to atorque of 12–15Nm).

9
ENGLISH
Fuel and lubrication
Petrol
• Warning: Neverrefuel thesaw while theengine is running.
• Let theengine cool for afew minutes before beginning to refuel.
• Use aready-mixed mixture of environmentally-friendly petrol (alkylate petrol) and 2%oil.
• Wipe off any spilt fuel and move thesaw at least 3 metres away from therefuelling location before startingit.
Note: Always refuel outdoors, never indoors.
1. Lay thesaw on its side, remove thefuel cap and pour in fuel until thetank is roughly 80%full.
2. Wipe up any fuel spills immediately.
3. Screw thefiller cap backon.
Chain oil
Warning: Neverstart thechainsaw without first filling thechain oil reservoir. Usingthesaw without chain oil will soon wear
out both thechain and theguidebar.
1. Lay thesaw on its side, remove theoil filler cap and pour in oil until thereservoir is roughly 80%full.
2. Wipe up any spills immediately.
3. Screw thefiller cap backon.
Chain brake
Thesaw is equipped with anautomatic chain brake which stops thesaw chain in theevent of kickback. Thechain brake is
activated by theinertial forces triggered by thekickback itself. Thechain brake can also be activated manually by pushing
thelever (2) forward towards thechain. Thebrake lever should click into position.
If thechain brake is activated, pull thehandle back towards thesaw again until it clicks and thebrake is disengaged.
Warning: Always check thechain brake before starting thesaw.
What todo:
1. Hold thesaw horizontal over atree stump or similar. Holdtherear handle and
let go of thefront handle so that theguide bar bumps against thetreestump.
Thechain brake should engage automatically. Contact theretailer for reparation if
thechain brake does not activate.
2. In theevent of akickback and thechain brake activates while you are working,
it is important that you release thethrottle immediately. Running theengine at
high speed with thechain brake activated will damage theclutch.
Starting the engine
Warning: Checkthat thesaw is intact and that theguide bar and chain are correctly fitted before startingit. Thesaw must
never be started if thechain or guide bar is damaged in anyway.
Cold start
1. Activate thechainbrake.
2. Pull thechoke control all theway out, this activates thechoke plate and supplies starting fuel to facilitate ignition.
3. Place thechainsaw securely on theground. Placeone foot on therear handle and hold thefront handle with onehand.
4. Pull firmly on thestarter handle with your otherhand. Whentheengine has fired once, push thechoke control all
thewayin. Thechoke is now disengaged but alittle starting fuel iskept.
5. Firmly pull thestarter handle until theengine starts. Theengine is now running on starting fuel, squeeze thethrottle once
to disengage thestartingfuel.
Warm start
1. Activate thechainbrake.
2. To activate thestarting fuel only, first pull thechoke control all theway out and then push it all theway backin.
Thiswill help to start theengine.
3. Place thechainsaw securely on theground. Placeone foot on therear handle and hold thefront handle with onehand.
4. Pull firmly on thestarter handle with your other hand until theengine starts. Theengine is now running on starting fuel,
squeeze thethrottle once to disengage thestartingfuel.

10
ENGLISH
2
1
2
3
1
2
1
2
3
1
Check the chain lubrication
Warning! The guide bar, saw chain and drive sprocket should always be
assembled while checking the chain lubrication. If you start without these being
assembled you can be injured by rotating parts or by the centrifugal clutch’s
weights. It is very dangerous to start the chain saw if all the parts are not mounted.
Start the engine and let it run on medium speed. Keep the guide bar with the saw chain
close to the ground or an object. If the chain lubrication is working a small amount of oil
should spatter in front of and under the guide bar.
Switching off
1. Release thethrottle.
2. Turn thepower switch to 0.
Tips for using the chainsaw
Chopping rewood
Safety rules:
• Make sure that thelog is secure and not able to slide/roll around during sawing. Try to fasten small logs before starting to
cut them.
• Only use thechainsaw for cutting wood. Make sure that no stones, nails or other objects that can be projected or
damage thechain are close to thechainsaw during use. Avoid letting thechainsaw come into contact with theground,
barbed wire fences, etc, during operation.
• Make sure that thetip of theguide bar does not come into contact with small branches, chop one branch/twig at atime.
Make sure you have asteady stance, use safety footwear with non-slip soles.
• Thechainsaw must always be switched off when you move around. Do not keep your hand on thepower trigger so that
thesaw can start if you trip over something.
Remember
• Thechainsaw must always be started first and running at full speed before thesaw chain is pressed against thewood.
• Start thesaw by pressing in thelock-off switch and squeezing thetrigger on therear handle (16).
• Place thelower part of thespiked bumper (21) against thewood and begin sawing. Pull thechainsaw backwards alittle
and move it so that thewood is higher up on thespiked bumper and continue sawing.
• Be careful when sawing wood that is split or cracked, splinters might be ejected.
Sawing trees that are under tension or compression
Warning: Be careful when cutting branches that are under tension or compression.
Size up thejob and work out how thetree or branch is bowed before starting to saw. If you saw into wood that is under compression,
thesaw could get stuck; if you saw into wood that is under tension, thewood could split and spring back unexpectedly.
Tension
Compression
Compression
Tension
Thetop of thewood is under tension and thebottom of
thewood is under compression.
Warning: Thewood will spring upwards when it is cut.
Thebottom of thewood is under tension and thetop of
thewood is under compression.
Warning: Thewood will collapse when it is cut.

11
ENGLISH
2
1
2
3
1
2
1
2
3
1
B
A
2
1
2
3
1
Compression
Tension
Thetop of thewood is under tension and thebottom of
thewood is under compression.
Warning: Thetree trunk will spring up with force
and twist when cut and theroots can tip forwards or
backwards. Use extreme caution in this situation!
Both sides of thewood are under stress.
Warning: Thetree trunk can move sideways when cut.
Use extreme caution in this situation!
Tree felling
This chainsaw is not intended for felling, but mostly for small jobs such as removing branches and sawing logs. However,
it can be used on exception for felling small trees. Ask someone who knows how to use achainsaw for advice if you are
in theleast unsure of how to use thechainsaw.
Protective equipment should always be used for forestry work: Helmet with ear defenders and visor, chainsaw trousers or
leggings, chainsaw boots or shoes with non-slip soles and toe caps and of course afirst aid kit. Also use work clothes in
avisible colour that stands out.
• Small trees can often be felled with one cut almost entirely through thewhole trunk and pushed in thecorrect direction
by hand or by ashoulder. (Do not cut completely through, save alittle of thetrunk to be used as ahinge).
• Larger trees require directional cuts. Directional cuts determine thedirection of thefall.
45°
Warning: Always make sure that you have anescape route ready. If
needed take away bushes and branches that are in theway. Thebest
escape route (A) is diagonally to therear of theexpected line of fall.
Warning: If theterrain is sloped or uneven, thechainsaw operator
should keep on theuphill side of thetree, as thetree is likely to roll or
slide downhill after it is felled.
Note: Thedirection of fall (B) is determined by thenotch cut. Before
felling, consider thenatural lean of thetree, thelocation of larger
branches and thewind direction to judge which way thetree will fall.
Warning: Never fell atree alone if there is arisk of it falling onto something which can be damaged such as ahouse
or fence. Get help from aprofessional. Never fell atree close to apower line or telephone line. Check that there are no
onlookers or pets close by before you begin cutting. Look up often and check that no one is approaching thedanger area.

12
ENGLISH
2
1
2
3
1
C
D
F
E
2
1
2
3
1
2
1
2
3
1
3–5 cm
3/4 1/4
1. Normal tree felling consists of two cutting phases,
thenotching undercut (C) and thefelling back cut (D).
2. Start with theupper notching cut (C) on theside of
thetree facing thedirection of fall (E). Then make
thelower, horizontal notching cut so that it meets
theupper notching cut (do not cut too far).
3. Thenotching undercut should be wide enough to
steer thetree during as much of thefall as possible.
Warning: Never walk in front of atree in which you
have made anotching undercut.
4. Make thefelling back cut (D) from theother side
of thetree, parallel to but 3–5 cm higher than
thehorizontal notching cut.
Warning: Before making thefinal cut, check again that there are no
onlookers, pets or other obstacles in thevicinity.
Use afelling wedge of plastic or wood to prevent theguide bar
from being clamped down upon in thecut.
Note: If thediameter of thetree is larger than thelength of theguide bar you must make two cuts.
Warning: When thefelling cut (D) has been made so deep that only thehinge (F) is left, thetree can begin to fall, otherwise
you must use afelling wedge or crowbar to help.
When thetree begins to fall, remove thechainsaw from thecut and switch off themotor. Retreat diagonally backwards and to
theside along your planned escape route and keep your eye on thetree while it is falling.
De-limbing/Snedding
NEVER cut completely through theremaining trunk. ALWAYS leave ahinge (F). It is thehinge that steers thetree during thefall.
Thehinge wood keeps thetree from twisting and falling in thewrong direction. Do not cut through thehinge. As thesaw
chain gets close to thehinge, afelling wedge should be inserted into thefelling back cut. If theentire felling cut is made before
afelling wedge has been placed in thesaw cut, there is arisk of thetree rocking backwards and pinching thesaw chain. Before
felling thetree by driving in thefelling wedge, make sure that there are no bystanders or pets in thefall area.
De-limbing (or snedding) means cutting away
thebranches and shoots of afallen tree. Start by cutting
thehigher branches on thetree. Stand to one side
of thetree and de-limb them from theother side of
thetrunk/stem (thetrunk will serve as protection between
you and thechainsaw). Use caution when cutting
branches which are under tension. They must be cut from
thecorrect side; otherwise theguide bar will get stuck.
Warning: Never stand on thestem of atree while
de-limbing (snedding) it.

13
ENGLISH
2
1
2
3
1
Bucking
Bucking is cutting fallen tree stems into lengths. Make sure that you are standing steady with good balance. If theground
is sloped you should stand uphill of thetree stem when cutting. Thestem of thetree should preferably be chocked up on
something so that it is not lying directly on theground. This helps to prevent thesaw chain from cutting into theground and
blunting. If thestem is supported at both ends, you must begin by cutting thestem in half at themiddle. Start by cutting
half theway through thestem from theupper side, then cut up towards this cut from theunderside of thestem (to avoid
pinching). Be careful not to let thesaw chain come in contact with theground.
1. Atree stem supported along theentire length: Cut from
thetop first, then roll thestem over and make another
cut from thetop which meets thefirst cut.
2. Atree stem supported at one end (such as alog lying in
asaw horse): Cut 1/3 of theway through thestem from
theunderside first (to avoid splintering). Then make
acut from above which meets thefirst cut (to avoid
pinching).
3. Atree stem supported at both ends: First cut 1/3 of
theway through thestem from theupper side (to avoid
splitting). Then make asecond cut from underneath to
meet thefirst cut.
Note: Whenever possible thestem should be supported
and raised off theground, preferably in asaw horse. If this
is not possible, thestem should be supported on limbs,
logs or chocks. Make sure that thelog is secure and not
able to slide/roll around while it is being cut.
Bucking with the help of a saw horse
• Hold thechainsaw firmly with both hands on your right-hand
side while cutting.
• Keep your left arm as straight as possible.
• Adopt asteady stance with your weight divided equally
between both feet.

14
ENGLISH
Care and maintenance
Warning: Switch thesaw off and let it cool before inspecting,
cleaning or servicingit. Disconnect thespark plug cable from
thespark plug to prevent theengine from starting accidentally.
Note:
• Do not expose thesaw to constant sunlight orrain.
• Air-blast or brush thesaw clean after everyuse. Makesure
that thecooling fins and area around thesilencer (see fig.)
are not clogged withdirt.
Operational checks
In order for thesaw to operate normally and therisk of accidents to be kept to aminimum, checkthat:
• thechain is stretched and receives enough lubrication. Tighten thechain and top up theoil if necessary.
• all nuts and bolts aretight.
• thechain brake functions as it should.
• thethrottle and throttle safety catch function as they should.
• thepower switch works properly.
Clean theair filter regularly and make sure that thesaw is keptclean.
Adjusting the carburettor
Note: Theguide bar and saw chain must always be fitted before carburettor adjustments can bemade.
Thecarburettor is carefully calibrated at thefactory and normally needs no adjustment. External factors such as temperature
and humidity can require thecarburettor to be fine-tuned alittle for best performance. Whattodo:
1. Check that theair filter is intact and clean and that thefuel is of good quality and thecorrect mixtureratio.
2. Switch theengine off and screw in (clockwise) both thevalves (H and L) completely. Note: Donot overtighten them, just
closethem.
3. Then unscrew (anticlockwise)them. H (high speed valve): 3/4 turn ± 3/8turn. L (low speed valve): 1½ turns ±1/4turn
4. Start theengine and warm it up on half-throttle.
5. Carefully turn thelow speed valve (L) clockwise to aposition which gives thehighest idlespeed. Thenturn thevalve back
¼ turn anticlockwise.
6. Turn theidle screw (T) anticlockwise and decrease theengine speed until thesaw chainstops.
7. Turn theidle screw (T) clockwise if theidle speed is toolow.
8. Make atest cut and adjust thehigh speed valve (H) for maximum power, not for maximumspeed. Theengine should not
race, it should run smoothly.
Air lter
1. Theexterior of thesaw should be wiped clean using asoft, dampcloth. Useonly mild cleaning agents, never solvents or
corrosive chemicals.
2. Undo thetop cover locking knob (12) and remove
thecover.
3. Lift theair filter off thecarburettor.

15
ENGLISH
4. Carefully take thefilterapart.
5. Wash thefilter in petrol or soapy water and blow it clean from theinside out
with compressedair.
6. Reassemble theair filter and refit it in thereverseorder.
2. Undo thetop cover locking knob (12) and remove
thecover.
3. Remove thespark plug cap from thesparkplug.
4. Remove thesparkplug.
5. Clean thespark plug with awire brush if necessary
and check that theelectrode gap is 0.6–0.7mm.
6. Replace thespark plug with anew one if necessary.
Checkthegap of thenew spark plug before fittingit.
Spark plug
1. Theexterior of thesaw should be wiped clean using asoft, dampcloth. Useonly mild cleaning agents, never solvents or
corrosive chemicals.

16
ENGLISH
Support template
Check that all the cutting teeth have the same length and cutting angle illustrated in the picture:
Cutter length Filing angle Angle cutting
teeth side
Cutting teeth
Maintenace of guide bar and saw chain
Saw chain
Warning! It is very important that the saw chain is sharp for safe and effective
use of the chain saw.
Chain should be sharpened:
• When saw dust becomes like powder.
• When the chain saw needs to be pressed against the object to be cut.
• When the cut is not straight.
• When vibration increases.
• When use of fuel increases.
Warning! Always use work gloves while handling the saw chain.
Before filing begins:
• Make sure that the chain saw is shut off.
• Make sure that the chain saw is held in a steady grip.
• Make sure that you have the correct equipment: A good file with the correct dimension:
Ø 4mm and preferably some type of filing gauge for filing at the right angle and depth.
Chain type: 91VG
File diameter: Ø 4 mm (5/32″)
Place the saw in a cut track or in a screw vice so that both hands can be used for filing.
Place the file in a tooth and push the file forward according to the picture.
File each tooth equally. Keep count of how many cutting teeth which are filed so you know
when the whole chain is filed.
When all the teeth have been filed the clearance heels must be measured and filed to correct
height according to the picture.
Warning! Remember to round off the support heels to reduce the risk for kickback
or chain break.
Guide bar
Turn the guide bar once in a while to avoid wearing it out on one side.
The guide track on the guide bar should have straight edges. Check for wear: Press a ruler against the guide bar and up
against the outside of a guide link. If a gap between them is seen then the guide bar is good. If no gap is seen then the guide
track is worn and the guide bar must be changed.
No gap The chain folds
Round off the support heels (keep the
original angle)
Support size 0.64 mm.
Ruler
Gap

17
ENGLISH
Transport and storage
Transport
• In order to avoid fuel leaks, damage to thesaw and personal injury: secure thesaw firmly so that there is no risk of it
coming loose during transport.
• Always make sure that theguide bar scabbard is fitted during transport.
Storage
Thefollowing actions should be taken before thesaw is put away for storage for anextended period (more than 30 days).
1. Empty thefueltank.
2. Start theengine and let it run until it is out offuel.
3. Allow theengine to cool for 5 minutes.
4. Remove thesparkplug.
5. Pour about 1 teaspoonful of 2-stroke engine oil into thecylinder.
6. Turn theengine over by hand using thestarter handle afew times to coat all theparts withoil.
7. Refit thesparkplug.
8. Clean theexterior of thesaw.
9. Thesaw should be stored in adry location away from any sources of ignition such as naked flames, sparks,
heaters and smokingareas.
Using the saw after long-term storage
1. Remove thesparkplug.
2. Turn theengine over by hand using thestarter handle afew times to remove any excess oil from thecylinder.
3. Clean theelectrodes and check that theelectrode gap is 0.028–0.031 inch (0.6–0.7mm).
4. Check that thesaw is lubricated and that all thesafety features work as they should.
5. Top up thefuel and chainoil.
Troubleshooting guide
Problem with starting. Check that the fuel does not contain
water or has become bad.
Rinse the can out and fill with new fuel.
Check if the engine has “flooded”
(too much petrol in the cylinders).
Take out thespark plug and dry it.
Pull thestart cord acouple of times to empty
thecylinder (without thespark plug and with
thechoke lever pushed in).
Check if the spark plug sparks. Change spark plug.
Weak power/weak
acceleration/weak idle.
Check that the fuel does not contain
water or has become bad.
Rinse the can out and fill with new fuel.
Check the air filter and fuel filter. Clean or change if needed.
Check carburettor setting. Adjust the nozzle.
No feed from chain oil. Check if the oil has the right quality
and viscosity.
Rinse the can out and fill with new chain oil.
If this trouble shooting schedule does not assist in finding the fault you should leave the chain saw to a repair shop.
Responsible disposal
This symbol indicates that this product should not be disposed of with general householdwaste. Thisapplies
throughout theentire EU. Inorder to prevent any harm to theenvironment or health hazards caused by
incorrect waste disposal, theproduct must be handed in for recycling so that thematerial can be disposed
of in aresponsible manner. Whenrecycling your product, take it to your local collection facility or contact
theplace of purchase. Theywill ensure that theproduct is disposed of in anenvironmentally sound manner.

18
ENGLISH
Specications
Engine
Engine capacity 37cm³
Power 1.2 kW/1.6 hk@8000 min−1
Idlespeed 2800±400 min−1
Max enginespeed 10000min−1
Fuel Mixture of environmental petrol with 2% oil or 50:1 mixture of petrol and two-strokeoil.
Fuel capacity 310cm³
Chain lubrication Sawchainoil
Oil capacity 210cm³
Chain oilpump Automatic
Carburettor Walbro WT diaphragmtype
Ignition system Breakerless (CDI)
Sparkplug BoschWSR6F
Chain sprocket 6T×3/8″(teeth×pitch)
Dimensions 73×25×25cm
Dry weight 4.4kg w/o guide bar and chain, 4.9kg with guide bar and chain
Guide bar
Type Withnosewheel
Length 14″(350mm)
Saw chain
Type 91VG
Pitch 3/8″(9.53 mm)
Gauge 0.05″(1.3mm)
Links 52
Noise level
Guaranteed sound power level (LwA) 99.7 dB(A)
Measured sound power level (LwA) 109.8 dB(A)
Sound pressurelevel (LpA) 100 dB(A), K = 3dB(A)
Vibration value front handle 7.87 m/s², K = 1.5 m/s²
Vibration value rear handle 9.44m/s², K = 1.5 m/s²

19
SVENSKA
Motorsåg
Art.nr 31-9034 Modell WLCS38A-375
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtidabruk.
Vi reserverar oss förev. text- och bildfel samt ändringar av tekniskadata.
Vid tekniska problem eller andra frågor, kontakta vår kundtjänst (se adressuppgifter på baksidan).
Säkerhet
Varning! Läsalla säkerhetsanvisningar, varningar och instruktioner. Attinte läsa säkerhets-
anvisningar, varningar och instruktioner kan leda till brand , skadad egendom eller allvarlig
kroppsskada.
Personer (inklusive barn) vars fysiska eller mentala förmåga eller brist på erfarenhet och kunskap gör att de inte kan använda
sågen på ettsäkert sätt får inte använda den utan tillsyn eller handledning. Barnska hållas under uppsikt så att de inte leker
medsågen.
1) Arbetsutrymmet
a) Håll arbetsutrymmet rent och väl upplyst. Belamrade och mörka utrymmen inbjuder till olyckor. Trasor, kläder, kablar,
snören och liknande får aldrig lämnas kvar inärheten av arbetsutrymmet.
b) Använd inte sågen iexplosiva miljöer, som inärheten av lättantändliga vätskor, gaser ellerdamm. Sågenkan
generera gnistor som kan antända damm ellerångor.
c) Håll undan barn och åskådare medan du användersågen. Störningsmoment kan göra att du tappar kontrollen.
2) Personlig säkerhet
a) Var uppmärksam på vad du gör och använd sunt förnuft när du användersågen. Använd den inte om du är trött
eller påverkad av droger, alkohol eller medicinering. Ettögonblicks ouppmärksamhet när du använder enmotorsåg kan
resultera iallvarlig personskada.
b) Använd skyddsutrustning. Bäralltid skyddsglasögon. Attanvända skyddsutrustning,t.ex. andningsskydd, halksäkra
skyddsskor, hjälm och hörselskydd minskar risken för personskada.
c) Ta bort alla serviceverktyg/nycklar innan du startarsågen. Ettkvarglömt serviceverktyg på enroterande del av sågen
kan resultera ipersonskada.
d) Sträck dig inte förlångt. Setill att du står stadigt med god balans helatiden. Dettamöjliggör bättre kontroll över
sågen ioväntade situationer.
e) Bär lämplig klädsel. Bärinte löst sittande kläder eller smycken. Hållhår, kläder och handskar undan från rör-
ligadelar. Lösakläder, smycken och långt hår kan fastna irörligadelar.
3) Användning och underhåll av sågen
a) Pressa intesågen. Försäkra dig om att den är avsedd för det arbetsmoment duutför. Sågenfår endast hanteras på det
sätt som beskrivs iden här bruksanvisningen.
b) Använd inte sågen om strömbrytaren inte fungerar normalt. Allasågar som inte kan kontrolleras med strömbrytaren
är farliga och måste repareras.
c) Förvara motorsågar som inte används utom räckhåll för barn och låt inte personer som inte är förtrogna med
motorsågar eller dessa instruktioner användadem. Motorsågar är farliga om de kommer ihänderna på ovana användare.
d) Underhållsågen. Kontrollera om något är felinställt, om rörliga delar kärvar, om delar har gått sönder eller om något
annat har inträffat som kan påverka funktionen hossågen. Omnågot är skadat måste det repareras före användning.
Mångaolyckor beror på dåligt underhållnasågar.
e) Håll kedjan vass ochren. Ordentligt underhållna kedjor med vassa eggar är lättare att kontrollera.
f) Använd sågen och tillbehöretc. enligt dessa instruktioner, ta hänsyn till arbetsförhållanden och till det arbete
som ska utföras. Användning av sågen för arbeten andra än vad den är ämnad för kan resultera ifarliga situationer.
• Håll alla delar av kroppen på avstånd från sågkedjan när sågen startats. Kontrollera innan du startar sågen att
sågkedjan går helt fri från närliggande föremål. Ävenettkort ögonblick av bristande uppmärksamhet kan leda till att
sågkedjan fastnar iklädesplagg eller kroppsdelar.
• Håll alltid sågen med din högra hand på det bakre handtaget och den vänstra handen på det främre handtaget.
Hållaldrig sågen på något annat sätt, det ökar risken för personskada.

20
SVENSKA
• Använd skyddsglasögon och hörselskydd. Ävenskyddsutrustning för händer, huvud, ben och fötter rekommenderas.
Rätttyp av skyddskläder minskar risken för personskada från sågkedjan eller kringflygande material från sågningen.
• Klättra aldrig upp iettträd för att utföra sågningsarbete. Attanvända ensåg uppe iettträd kan resultera iperson-
skada.
• Se till att stå stadigt på ettstabilt, säkert och plant underlag när du användersågen. Halaoch instabila underlag
somt.ex. stegar kan göra att du förlorar balansen och därmed kontrollen översågen.
• Var beredd på att engren som är i spänn kan fjädra tillbaka vid sågning. Närspänningen iträfibrerna släpper kan den
återfjädrande grenen träffa användaren och göra att kontrollen över sågen förloras.
• Var mycket försiktig när du sågar buskar och ungaträd. Tuntmaterial kan fastna isågkedjan och kastas mot dig eller
göra att du tappar balansen.
• Bär alltid sågen idet främre handtaget med sågkedjan vänd bort från kroppen. Närsågen transporteras eller
förvaras ska svärdskyddet alltid vara monterat. Atthantera sågen på ettkorrekt sätt minskar sannolikheten för
kontakt med sågkedjan när den är irörelse.
• Följ anvisningarna för smörjning, kedjespänning och byte av tillbehör. Omkedjan är felaktigt spänd eller undermåligt
smord ökar risken för kedjebrott ellerkast.
• Håll handtagen torra, rena och fria från olja ochfett. Omhandtagen är hala av olja och fett kan du lätt förlora kontrollen
översågen.
• Såga endast iträ. Sågenär inte avsedd för sågning it.ex. plast, masonit eller andra byggmaterial som inte är avträ.
Omsågen används till annan sågning än sådan som den är avsedd för kan farliga situationer uppstå.
Orsaker till, och eliminering av, kast
Kast kan uppstå när svärdets spets vidrör ettföremål eller om sågspåret sluter sig och klämmer fast svärdet.
Om svärdets spets vidrör ettföremål kan det orsaka enbakåtriktad rörelse som gör att svärdet kastas uppåt och bakåt mot
användaren.
Om sågkedjan kläms fast vid svärdets övre kant kan svärdet snabbt kastas bakåt mot användaren.
Alla ovanstående reaktioner kan leda till att du förlorar kontrollen över sågen vilket kan leda till allvarlig personskada.
Lita inte uteslutande på de säkerhetsdetaljer som är monterade på dinsåg. Närdu använder sågen bör du själv vidta
nödvändiga åtgärder för att undvika olyckor och skador. Kastorsakas av att sågen misskötts, använts på fel sätt eller för fel
ändamål. Dettakan undvikas genom att nedanstående säkerhetsföreskrifterföljs:
• Om du förstår vad som orsakar kast minskas risken för att du överraskas och tappar kontrollen.
• Håll stadigt isågen med båda händerna. Hållhögra handen på sågens bakre handtag och den vänstra handen
på det främre handtaget. Setill att fingrarna och tummarna omsluter sågens handtag och placera kroppen och
armarna så att du klarar att stå emot krafterna som uppstår vid ettev. kast. Du kan kontrollera krafterna som upp-
står vid ettkast om rätt försiktighetsåtgärder vidtas. Släppaldrig taget om sågen när motorngår.
• Försäkra dig om att arbetsutrymmet är fritt från hinder. Låtaldrig svärdets spets få kontakt med enträdstam, gren
eller något annat föremål.
• Ha full gas när dukapar.
• Sträck dig inte för långt och såga aldrig över axelhöjd. Dettahjälper dig att förebygga att svärdspetsen oavsiktlig
vidrör något föremål och att du tappar kontrollen om något oförutsett skulle inträffa.
• Följ tillverkarens anvisningar för slipning och underhåll av sågkedjan. Förlåg djupgångsbegränsning ökar risken förkast.
• Använd endast de utbytesdelar, svärd och sågkedjor som tillverkaren rekommenderar. Svärdoch sågkedjor av fel
typ kan leda till kast eller kedjebrott.
FARA! VARBEREDD PÅ KAST!
Varning! Kastutgör enallvarlig olycksrisk och kan leda till att användaren förlorar kontrollen översågen.
Dettakan resultera iallvarlig och livshotande kroppsskada hos användaren ochev. åskådare. Varalltid
uppmärksam. Kastsom uppstår för att svärdets spets vidrör ettföremål eller för att sågspåret
sluter sig och klämmer fast svärdet är den huvudsakliga orsaken till att motorsågsolyckor.
