Cocraft M2E1233M User manual

ENGLISHSVENSKANORSKSUOMIDEUTSCH
Ver. 20151218
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung
Art.no Model
18-4661 M2E1233M
31-8738 M2E1233M
Important!
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the
equipment. Keep the manual for future
reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre
deg om at du forstår dem, før du tar
produktet i bruk. Ta vare på anvisningene
for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin
alat käyttää laitetta. Säilytä ohjeet
myöhempää tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung sorgfältig
durchlesen und aufbewahren.
LM33
18-4661 ∙ 31-8738
ELECTRIC LAWNMOWER
ELDRIVEN GRÄSKLIPPARE
ELEKTRISK GRESSKLIPPER
SÄHKÖKÄYTTÖINEN RUOHONLEIKKURI
ELEKTRORASENMÄHER
CUTTING WIDTH: 33 CM. CUTTING HEIGHTS: 20-60 MM

ENGLISH
3
Electric Lawnmower
Art.no 18-4661 Model M2E1233M
31-8738 M2E1233M
Please read theentire instruction manual before using theproduct and then save
it for future reference. We reserve theright for any errors in text or images and any
necessary changes made to technical data. In theevent of technical problems or other
queries, please contact our Customer Services (see address details on theback).
Safety

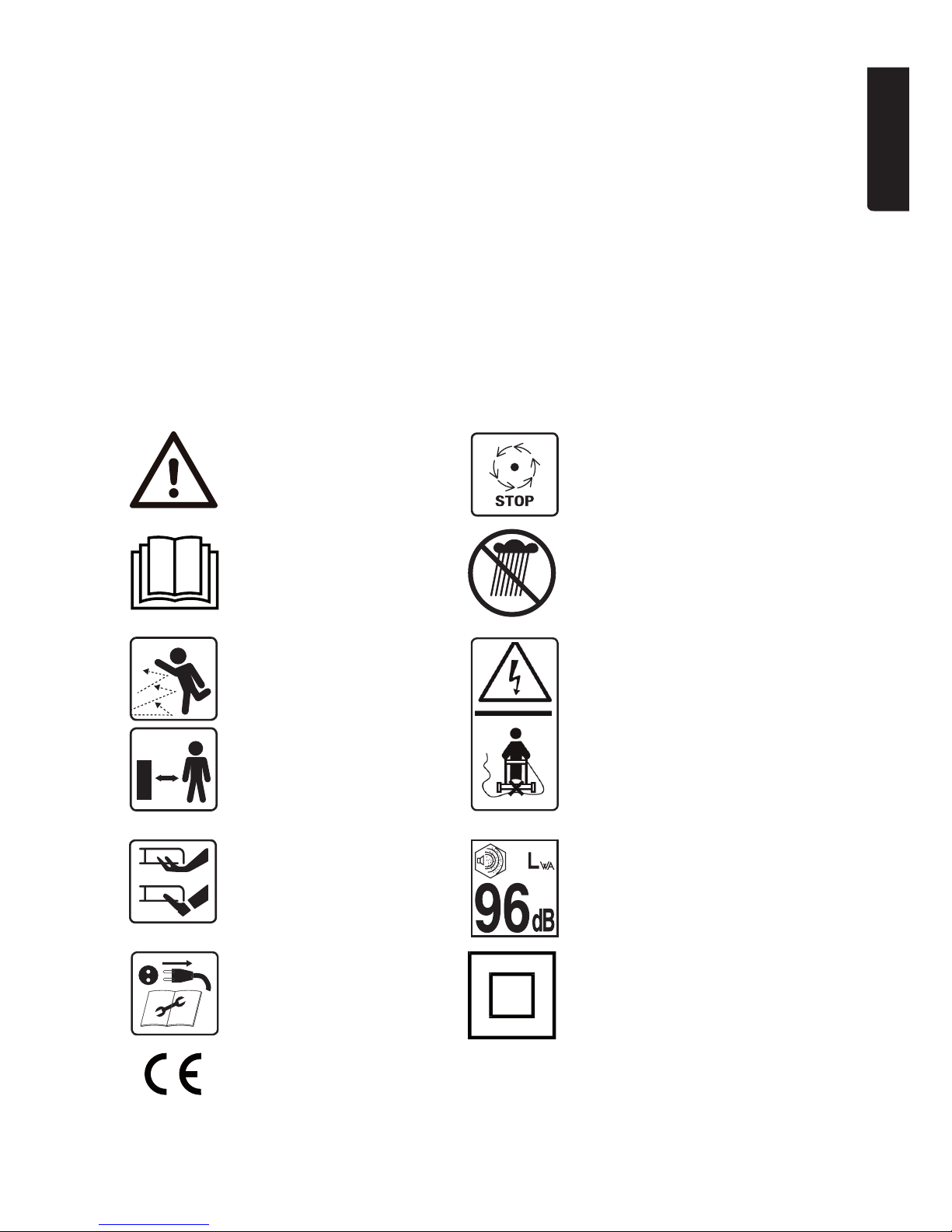

Product safety symbols
Warning!
CE marking.
Read theinstruction
manual before operating
this machine.
Keep bystanders at
asafe distance.
Extremely sharp
cutting blades.
Unplugthemains
lead before carrying
out any maintenance,
repairs or service.
The blades will continue to
rotate after themotor has
been turned off.
To avoid electric shock avoid
cutting thegrass after it has
rained. Donot leave thelawn-
mower outdoors during rain.
Keep themains lead
away from therotating
cutting blade.
Sound power level.
Double insulation.

ENGLISH
4
General safety instructions
• Theinstruction manual must always accompany thelawnmower. Anyone intending
to use thelawnmower must first read theentire instruction manual before starting
any work.
• Thelawnmower is only intended for domestic use and only in themanner
described in this instruction manual.
• Thelawnmower must be assembled in themanner described in this instruction
manual, be undamaged and in normal operating condition before use.
• Thelawnmower should be connected to amains outlet protected by a30 mA RCD.
• Use only extension leads and connections approved for outdoor use.
• Do not use thelawnmower if any of theused extension leads or connections are
damaged in any way. This includes any leads or connections on thelawnmower itself.
• Never allow children or persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge or people unfamiliar with these instructions to
use themachine. Local regulations may restrict theage of theoperator.
• Never let children play with thelawnmower.
Pre-work safety precautions
• Ensure that you have read and understood theentire instruction manual before
starting work.
• Make sure that themower is completely assembled and that all parts are intact
and functioning normally before beginning work.
• Make sure that all screws and bolts are properly tightened and that all safety
devices are in place before commencing work.
• Make sure that thegrass collector is undamaged and is functioning normally
before starting any work.
• Inspect theblade, fastening bolt and theentire cutting apparatus before starting
work. Damaged or worn parts must first be replaced in order to prevent imbalance
or abnormal vibrations during use.
• All repairs must only be carried out by qualified service technicians and only using
genuine spare parts.
• All electrical work must only be carried out by aqualified electrician.
• Follow all relevant instructions and use protective gloves when replacing theblade.
• Users are responsible for all injuries caused to any third parties present within
thework area at thetime that thelawnmower is in use.
• Only perform work during daylight hours or work appropriately under adequate
lighting conditions.
• Never use thelawnmower when you are tired, sick, under theinfluence of alcohol
or medicine.

ENGLISH
5
• Never start thelawnmower in poorly ventilated areas or where flammable or
explosive substances are stored or used.
• Make sure themower is disconnected from themains before cleaning
thedischarge chute or other maintenance performed during operation.
• Always inspect thearea to be cut before mowing. Remove any objects from
themowing area that can be thrown by themower. Pay close attention to
thelocation of theextension lead and keep it away from themower.
• Never work in areas where there is apossibility that theextension lead could
become trapped or otherwise damaged.
• Never lift themower while it is switched on.
• Before lifting themower in order to move it, check that it is turned off,
disconnected from themains and that theblade is completely stopped.
• Never use your hands or feet to reach towards any rotating parts. Keep away from
thedischarge chute.
• Make sure that themower is off and that theblade has completely stopped before
attaching or detaching thegrass collector.
Operating safety precautions
• Always wear appropriate footwear with anti-slip soles and long trousers.
Never use thelawnmower while barefoot or wearing open-toed sandals.
• Avoid cutting wet grass. Never let themower stand out in therain.
• Never run with themower. Walk at anormal pace.
• Be extra careful when cutting on slopes. Always cut across slopes. Never up or down.
• Always be extra careful when changing directions on aslope.
• Never cut on steep slopes.
• Always be extra careful when backing or pulling themower towards yourself.
• Make sure that no persons, especially children, or pets are in thevicinity of
themower when it is on. Make sure that everyone is at least 10 m from themower
while it is being used.
• Turn off themower and disconnect it from themains, whenever theblade strikes
any foreign object. Always inspect themower and its blade and repair any damage
before starting work.
• If any abnormal vibration or noise is detected, turn off themower and disconnect it
from themains. Check theblade, tighten any loose screws and repair any possible
damage before re-commencing work.
• Always turn off themower and disconnect if from themains whenever crossing
over surfaces other than lawns, such as gravel or asphalt.
• Always turn off thelawn mower and disconnect it from themains before touching
theblade.

ENGLISH
6
• Turn off themower and disconnect it from themains, whenever leaving themower
unattended.
• Never use themower if any part of thebody has been damaged. Never use
themower without having thecollector attached.
• Make sure that themower stands steady on all four wheels before starting.
Keep hands and feet away from therotating blades at all times.
Note: Always disconnect themower from themains whenever:
- Leaving themower unattended.
- Cleaning or performing any type of maintenance.
- Theblade has struck aforeign object.
- You notice any abnormal vibration or noise during use.
Vibration
• The measurement of the vibration emission level declared in this instruction manual
has been carried out in accordance with a standardised test method described in
EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of
vibration exposure.
• The declared vibration emission level applies when the power tool is used in
accordance with this instruction manual. If however, the power tool is used for
other purposes and with other accessories or has not been properly maintained,
the vibration emission level could increase significantly over the total working
period.
• For an exact assessment of the vibration exposure, the times when the tool is switched
off or running idle should also be taken into account. This significantly reduces the
vibration exposure over the total working period. Decideupon safety measures to
protect the operator from the effects of vibration during all types of use.

ENGLISH
7
1
9
10
11
12
2
3
4
5
6
7
8
13
14

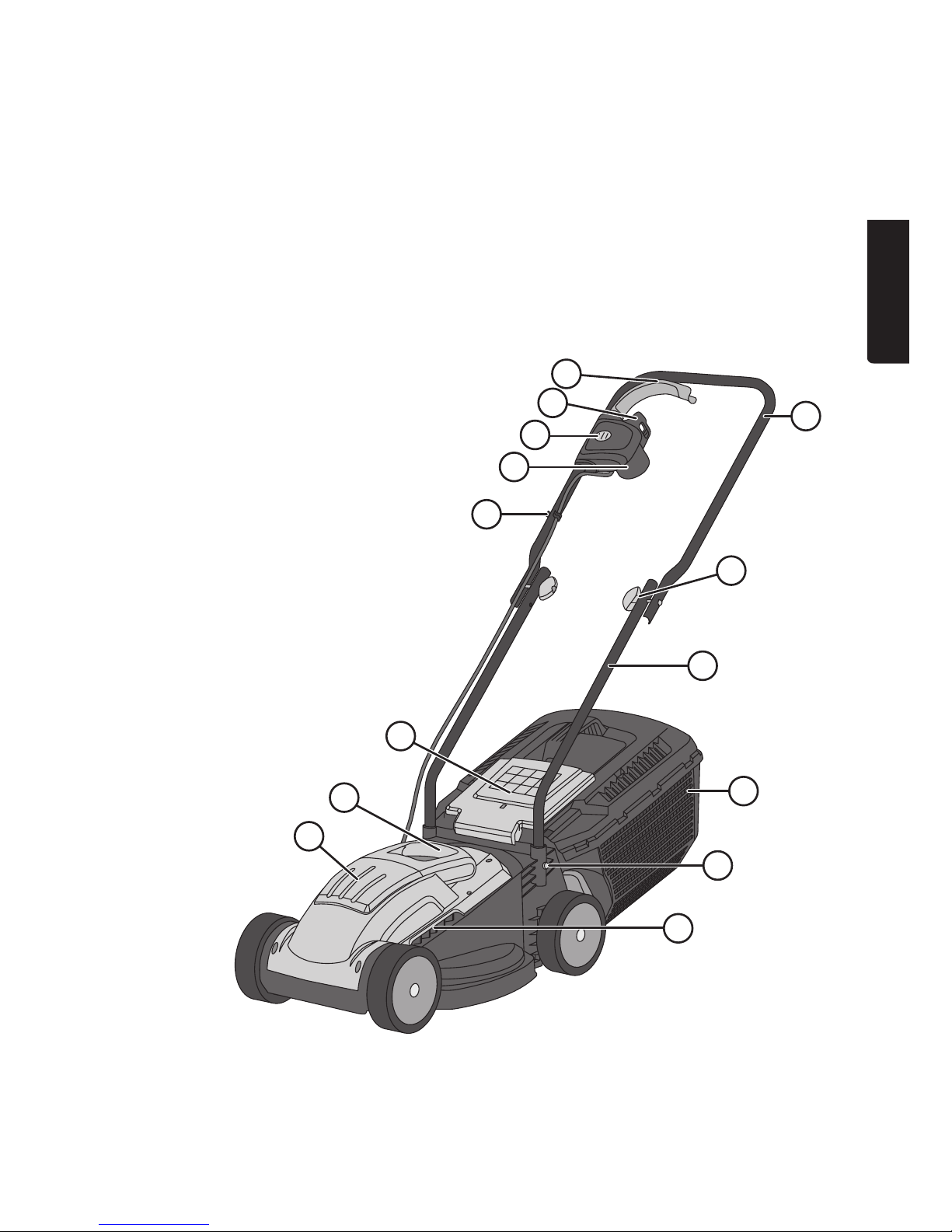

Product description
1. Power lever
2. Cable strain relief
3. Power lever lock button
4. Extension lead coupling
5. Cable clip
6. Discharge chute inspection hatch
7. Carrying handle
8. Housing
9. Upper handle
10. Handle bolts and wing nut fasteners
11. Lower handle
12. Grass collector
13. Lower handle retaining screws
(one on each side)
14. Motor ventilation ports
(one on each side)

ENGLISH
8
Assembly

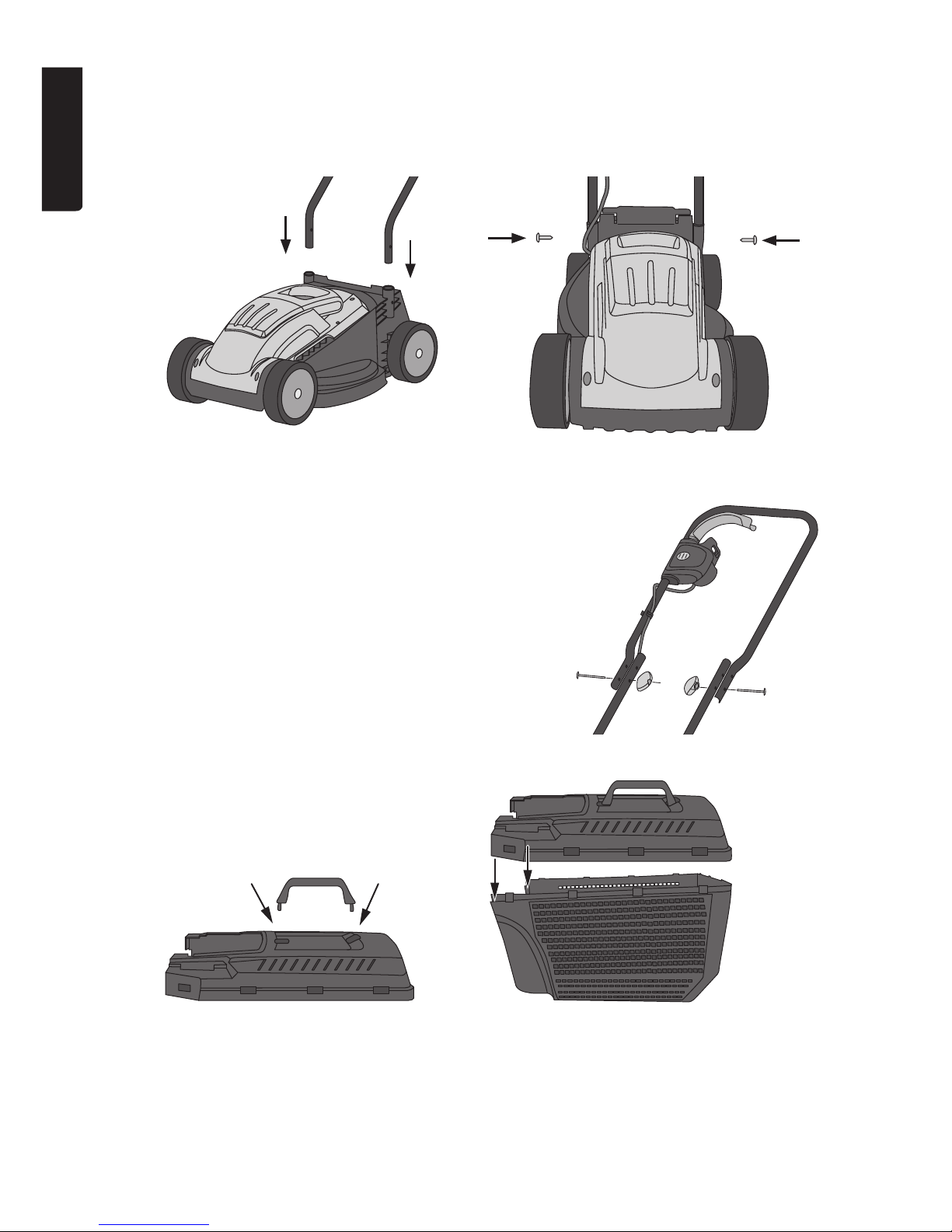

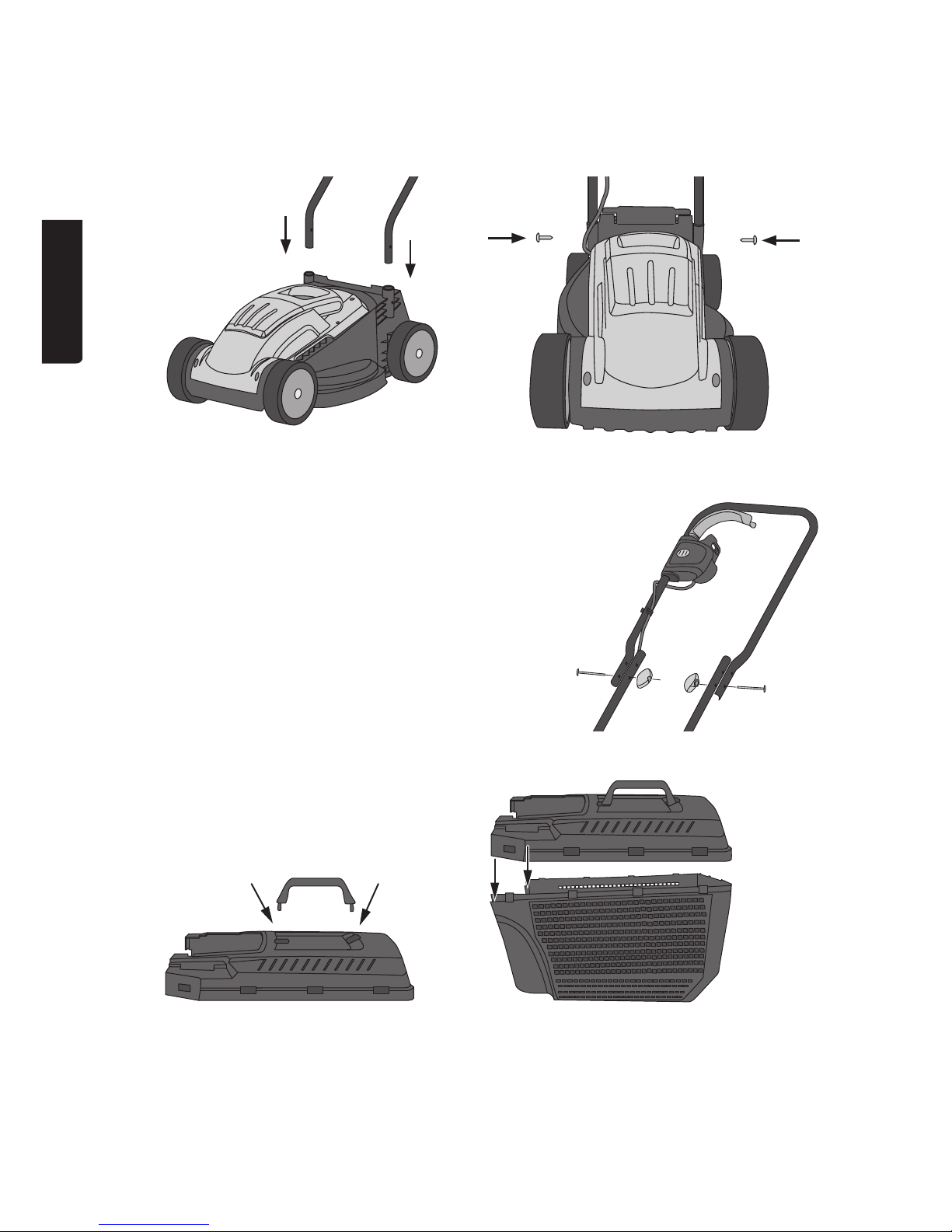

Handle
1. Slot thelower handle (11) into theattachment holes on themower and screw in
theretaining screws (13) to attach thelower handle securely.
2. Attach theupper handle (9) to thelower handle
with thebolts and wing nut fasteners.
3. Loosen thewing nut fasteners to fold theupper
handle forward for storage.
Note: Be careful not to pinch thecable when
folding thehandle forwards.
Grass collector
1. Insert thehandle lugs securely
into theholes on thegrass
collector lid.
2. Line the holes in the lid up with the lugs on
thegrass collector.

ENGLISH
9
3. Press thelid down firmly until all lugs clip
securely into place.
4. Fit thedischarge chute guide onto thegrass
collector. Theguide helps to direct theinflow
of grass into thecollector.
5. Fit thecollector onto themower
by first lifting up theinspection
hatch, hooking it on to its
fasteners and closing
thelid again.
6. Disconnect themower from
themains, lift theinspection
hatch and remove thegrass
collector from themower to
empty it.
Operating instructions
Adjusting the cutting height
Note: Make sure that themower is disconnected
from themains before adjusting thecutting height.
1. Lay themower onto its side.
2. Set thespring loaded wheel axle into
thedesired cutting height position.
Refer to thetable.
Position Cutting height
1 20 mm
2 40 mm
3 60 mm

ENGLISH
10

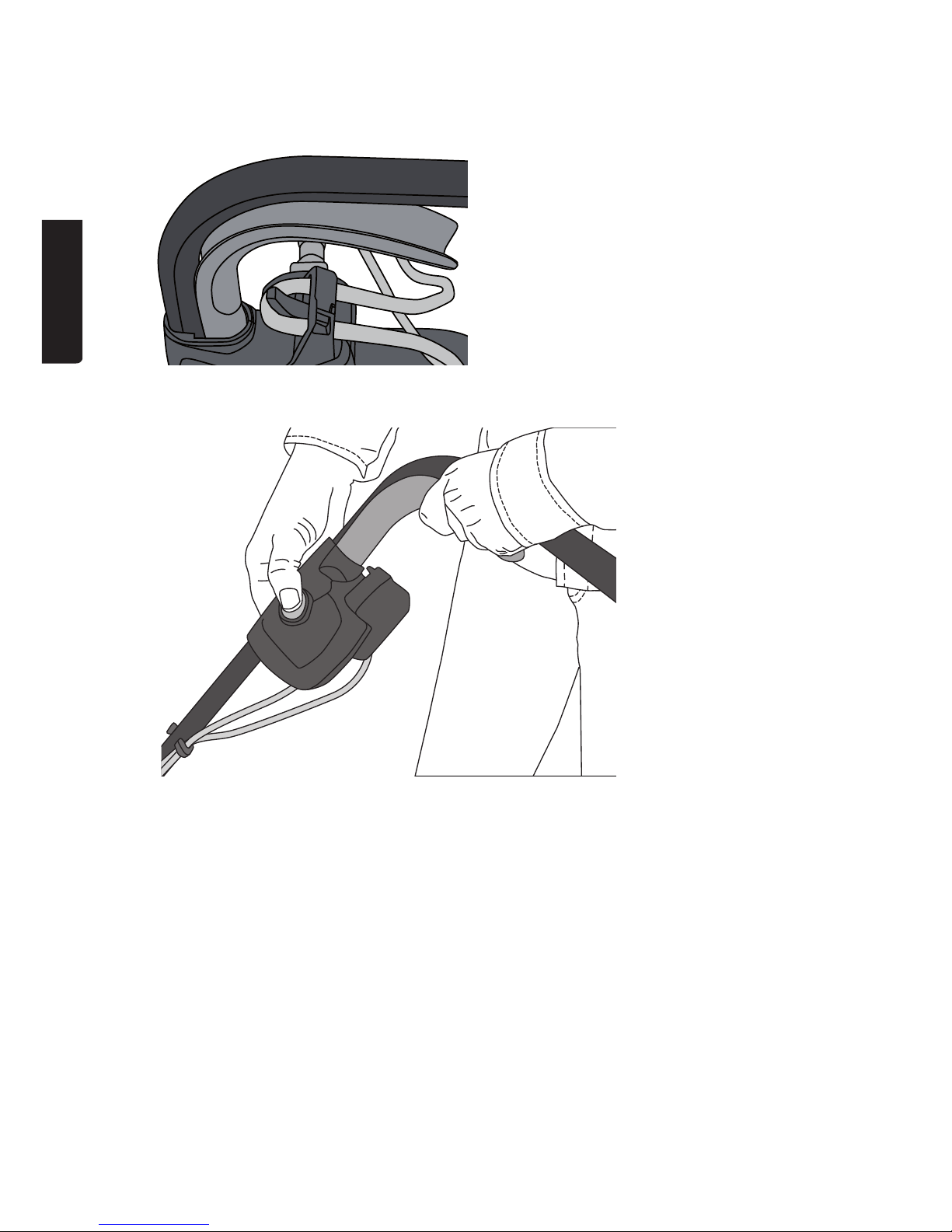

Hook the extension lead onto the cable strain relief
On/off
1. Connect themower to themains.
2. Hold thepower lock button down while pulling thepower lever against thehandle.
3. Release thepower lock button.
4. Release thepower lever to switch themower off.
Warning:
• Do not use thelawnmower if thepower lock button or power lever are
damaged in any way.
• Never open theinspection hatch while themower is turned on.
• Do not cut on areas that slope more than 15°.
