CombiSteel 7455.1660 User manual

Microwave
7455.1660
User Manual
Gebruikershandleiding
Gebrauchsanweisung
Le mode d’emploi

2
www.combisteel.com
CONTENT
ENGLISH
Precautions to avoid possible exposure to excessive microwave energy ............................................................... 4
Addendum .............................................................................................................................................................. 4
Specifications.......................................................................................................................................................... 4
Important safety instructions .................................................................................................................................4
To Reduce the Risk of Injury to Persons.................................................................................................................. 5
Caution ................................................................................................................................................................... 6
Materials you can use in microwave oven..............................................................................................................6
Materials to be avoided in microwave oven...........................................................................................................7
Setting up your oven............................................................................................................................................... 7

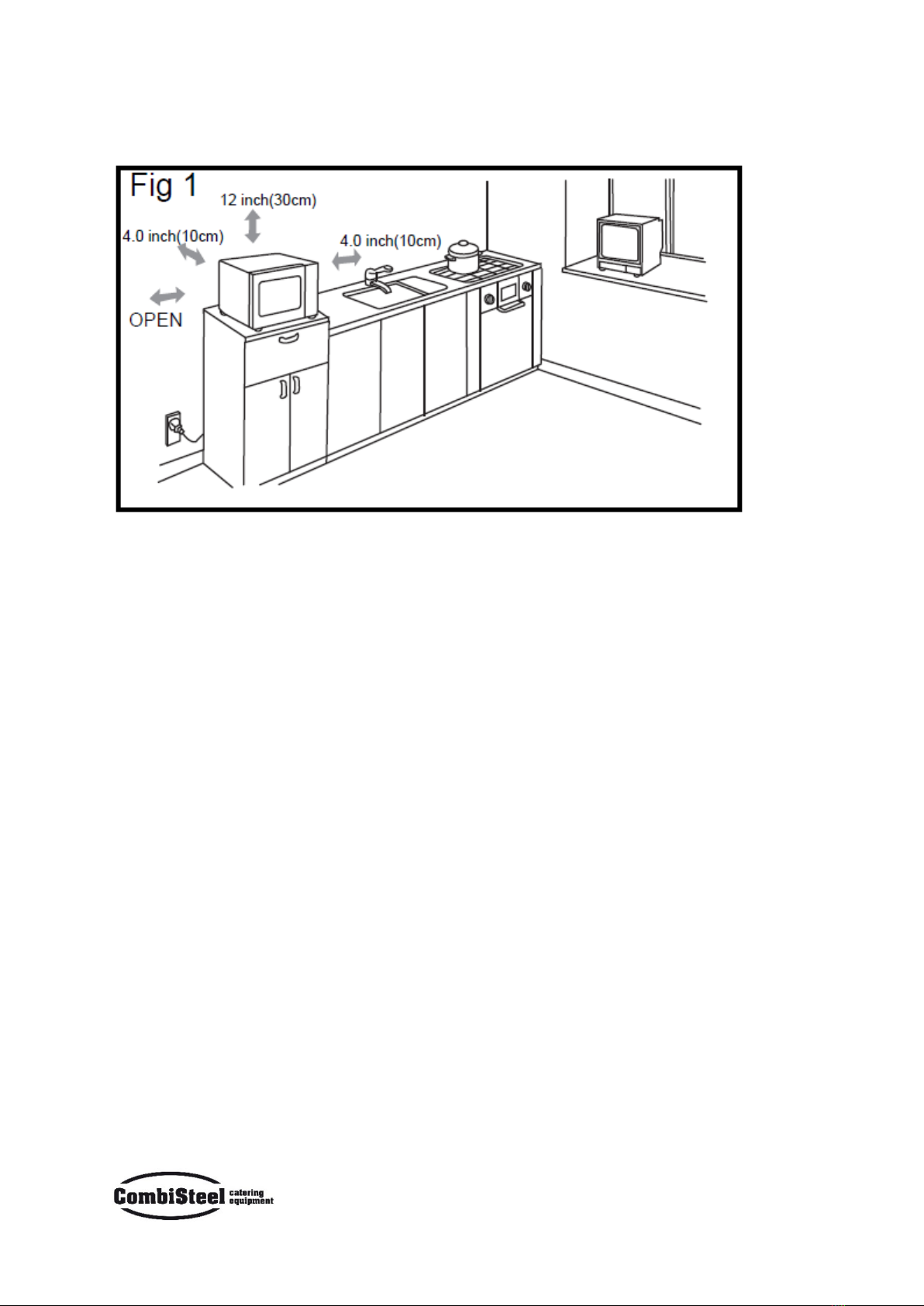

Countertop Installation...........................................................................................................................................7
Installation .............................................................................................................................................................. 8
Cleaning instructions ..............................................................................................................................................8
Operation................................................................................................................................................................ 9
Operation instruction ........................................................................................................................................... 10
How to remove and install the filter.....................................................................................................................14
How to remove and install the oil blockage..........................................................................................................15
Troubleshooting.................................................................................................................................................... 16
Installation (supplement)......................................................................................................................................16
NEDERLANDS
Voorzorgsmaatregelen om mogelijke blootstelling aan overmatige microgolfenergie te vermijden................... 17
Appendix............................................................................................................................................................... 17
Specificaties ..........................................................................................................................................................17
Belangrijke veiligheidsinstructies.......................................................................................................................... 17
Het risico op letsel aan personen verminderen.................................................................................................... 18
Opgepast............................................................................................................................................................... 19
Materialen die u in de magnetron kunt gebruiken............................................................................................... 19
Materialen die vermeden moeten worden in de magnetron............................................................................... 20
Uw oven instellen .................................................................................................................................................21
Countertop Installatie ........................................................................................................................................... 21
Installatie .............................................................................................................................................................. 22
Reinigingsinstructies............................................................................................................................................. 22
Bediening.............................................................................................................................................................. 23
Bedieningsinstructie ............................................................................................................................................. 24
De filter verwijderen en installeren ...................................................................................................................... 29
Hoe de olie-blokkering verwijderen en installeren............................................................................................... 30
Probleemoplossing ...............................................................................................................................................31
Installatie (aanvulling)...........................................................................................................................................31

3
www.combisteel.com
DEUTSCH
Vorsichtsmaßnahmen, um einer möglicher Belastung durch starke Mikro-wellenstrahlung vorzubeugen......... 32
Nachtrag ...............................................................................................................................................................32
Spezifikationen ..................................................................................................................................................... 32
Wichtige Sicherheitsinstruktionen........................................................................................................................ 32
Reduktion des Risikos von Körperverletzungen....................................................................................................33
Vorsichtsmaßnahmen ........................................................................................................................................... 34
Materialien/Stoffe, die Sie in der Mikrowelle verwenden können....................................................................... 34
Materialien/Stoffe, die nicht für die Mikrowelle geeignet sind............................................................................35
Einrichtung Ihrer Mikrowelle................................................................................................................................ 36
Installation auf einer Küchenarbeitsfläche ........................................................................................................... 36
Installation ............................................................................................................................................................ 37
Reinigungsanleitung ............................................................................................................................................. 37
Betrieb ..................................................................................................................................................................38
Betriebsanleitung ................................................................................................................................................. 39
Entfernen und Befestigen des Filters ....................................................................................................................44
Entfernen und Befestigen des Ölabscheiders ....................................................................................................... 45
Fehlersuche und -behebung .................................................................................................................................46
Installation (Ergänzung) ........................................................................................................................................ 46
FRANÇAIS
Précautions pour éviter une exposition possible à une énergie micro-ondes excessive......................................47
Addenda ............................................................................................................................................................... 47
Spécifications........................................................................................................................................................ 47
Consignes de sécurité importantes ...................................................................................................................... 47
Réduire le risque de blessures pour les personnes .............................................................................................. 48
Attention...............................................................................................................................................................49
Matériaux que vous pouvez utiliser dans un four à micro-ondes......................................................................... 49
Matières à éviter dans le four à micro-ondes .......................................................................................................50
Installation de votre four ......................................................................................................................................51
Installation du comptoir ....................................................................................................................................... 51
Installation ............................................................................................................................................................ 52
Instructions de nettoyage.....................................................................................................................................52
Fonctionnement ...................................................................................................................................................53
Instructions de fonctionnement ...........................................................................................................................54
Comment enlever et installer le filtre................................................................................................................... 59
Comment enlever et installer le blocage d'huile .................................................................................................. 60
Dépannage............................................................................................................................................................61
Installation (supplément)......................................................................................................................................61

4
www.combisteel.com
Read these instructions carefully before using your microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
Precautions to avoid possible exposure to excessive microwave energy
(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired
by a competent person.
Addendum
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
Specifications
Model:
7455.1660
Rated voltage:
230V~50Hz
Rated Input Power(Microwave):
3200W
Rated Output Power(Microwave):
2100W
Oven Capacity:
34L
External Dimensions:
574x528x368mm
Net Weight:
Approx. 32.3 kg
Important safety instructions
WARNING
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including the following:
1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation
that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Only use utensils that are suitable for use in microwave ovens.
4. The oven should be cleaned regularly and any food deposits should be removed.
5. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY".
6. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
7. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
8. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
10. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation.

5
www.combisteel.com
11. Warning: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
12. Warning: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be
taken when handling the container.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
14. Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of
electric shock.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
To Reduce the Risk of Injury to Persons
Grounding Installation
Danger
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death. Do not disassemble this
appliance.
Warning
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly
installed and grounded.
Cleaning
Be sure to unplug the appliance from the power supply.
1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are
dirty.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if
doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use
only a 3-wire extension cord.
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping
over a longer cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a grounding type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or table top where it
can be pulled on by children or tripped over unintentionally.

6
www.combisteel.com
Caution
Personal Injury Hazard
It is hazardous for anyone other than a competent person to carry out any service or repair operation that
involves the removal of a cover which gives protection against exposure to microwave energy.
See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There
may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil
in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils
Remarks
Aluminium foil
Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry
to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should
be at least 1 inch (2.5cm) away from oven walls.
Browning dish
Follow manufacturer’s instructions. The bottom of browning dish must be placed
smoothly on the ceramic board. Incorrect usage may cause the ceramic board to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or
chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars are not heat
resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use
cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow
steam to escape.
Paper plates and cups
Use for short–term cooking/warming only. Do not leave oven unattended while
cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for a short-
term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled
"Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling
bags" and tightly closed plastic bags should be slit, pierced or vented as directed by
package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow
plastic wrap to touch food.
Thermometers
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain moisture.

7
www.combisteel.com
Materials to be avoided in microwave oven
Utensils
Remarks
Aluminium tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to
high temperature.
Wood
Wood will dry out when used in the microwave oven and may split or crack.
Setting up your oven
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Instruction Manual: 1x
Note:
1) Don't press the ceramic board forcibly.
2) Take and put the utensils gently during the operation in order to avoid damage to the ceramic board.
3) After using, don't touch the ceramic board by hand in order to avoid high temperature scald.
Countertop Installation
Remove all packing material and accessories.
Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.

8
www.combisteel.com
Installation
1. Select a level surface that provide enough open space for the intake and/or outlet vents(Figure1).
A 10cm spacing should be kept between the appliance and right and back walls and a 30cm spacing kept on the
top. Never dismantle the appliance’s feet, nor block the air intake and exhaust opening. The left side must be
open.
1) Blocking the intake and/or outlet openings can damage the oven.
2) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause
interference to your radio or TV reception.
3) Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the
voltage and the frequency on the rating label.
4）Warning: The plug socket, electric appliances or the appliance which are liable effected by heat and moisture
should be kept away from any vents on the oven.
Cleaning instructions
Always keep the oven clean
1. Cleaning the glass viewing window, the inner door panel and oven front face.
For best performance and to maintain the high degree of safety, the inner door panel and oven front face should
be free of food or grease build-up. Wipe these parts with a mild detergent, rinse and wipe dry. Never use abrasive
powders or pads.
2. Cleaning the control panel and plastic parts.
Do not apply a detergent or an alkaline liquid spray to the control panel and plastic parts, as this may cause
damage to these parts. Use a dry cloth (not a soaked cloth) to clean these parts.
3. Cleaning the oven interior
After use be sure to clean up spilled liquids, spattered oil and food debris as quickly as possible. If the oven is
used when dirty, efficiency drops and the dirt gets stuck on the oven surface and may cause bad odours. Clean
the interior with a cloth soaked in lukewarm water with a mild detergent dissolved in it, then rinse the soap off
with a damp cloth.
4. Cleaning the oil blockage regularly, keep the oil blockage clear. Otherwise, the stain on the oil blockage will
drop on the food.
5. Cleaning the filter regularly, keep it clear. The appliance will overheat when the filter is blocked.
6. When the appliance is operated, oil blockage and filter location must correct, avoiding to damage other parts
(the installation in page 19and 20).

9
www.combisteel.com
CAUTION: Do Not wipe plastic and painted sections of the oven with bleach, thinners or other cleaning agents,
as this may cause these parts to dissolve or change sharp.
Operation
Control Panel and Features
1) Power Buttons
2) Time Entry Button
3) Double Quantity Button
4) Stop/Reset Button
5) Start Button
6) Number Keyboard

10
www.combisteel.com
Operation instruction
Appendix. A User Options
Items bolded below are the default values.
Option
Setting
Description
1
EOC Tone
OP:10
3 seconds beep
OP:11
Continuous beep
OP:12
5 quick beeps, Repeating
2
Beeper Volume
OP:20
Beeper Off
OP:21
Low
OP:22
Medium
OP:23
High
3
Beeper On/Off
OP:30
Key beep Off
OP:31
Key beep On
4
Keyboard Window
OP:40
15 seconds
OP:41
30 seconds
OP:42
60 seconds
OP:43
120 seconds
5
On the Fly
OP:50
On-the-Fly Disable
OP:51
On-the-Fly Enable
6
Door Reset
OP:60
Door reset Disable
OP:61
Door Reset Enable
7
Max Time
OP:70
60 Minute Maximum Cook Time
OP:71
10 Minute Maximum Cook Time
8
Manual Programming
OP:80
Manual Programming Disable
OP:81
Manual Programming Enable
9
Double Digit
OP:90
Single Digit Mode-10 programs
OP:91
Double Digit Mode-10 programs
Appendix. B Default Cook Times
The oven shall ship with the following Pre-set Cook Times unless otherwise noted in the product Specification.
Button
Display (time)
Power
Cook Factors
1
0:10
100%
80%
2
0:20
100%
80%
3
0:30
100%
80%
4
0:45
100%
80%
5
1:00
100%
80%
6
1:30
100%
80%
7
2:00
100%
80%
8
2:30
100%
80%
9
3:00
100%
80%
0
3:30
100%
80%
1. Power up
"- - - - - - - - " displays when the oven is electrified for the first time. If " " button pressed, the oven will change
to idle mode. Note: Under idle mode, no button can be pressed.
