comfort gear PPH360-10 Manual

USER'S MANUAL AND OPERATING INSTRUCTIONS
READ INSTRUCTIONS CAREFULLY: Read and follow all
instructions. Place instructions in a safe place for future
reference. Do not allow anyone who has not read these
instructions to assemble, light, adjust or operate the heater.
PORTABLE PROPANE HEATER FOR:
RECREATIONAL, COMMERCIAL AND EMERGENCY INDOOR USE
"FOR US SALE EXCEPT
MASSACHUSETTS"
Patent Pending
–An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
–WHAT TO DO IF YOU SMELL GAS
1. Do not try to light appliance and make sure appliance is in the "OFF" position.
2. Extinguish any nearby flames.
3. Shut off the cylinder fuel supply valve, if so equipped.
4. Disconnect the disposable fuel cylinder, if so equipped.
5. Leave the area immediately.
6. Allow gas to dissipate for 5 minutes.
7. If gas smell has dissipated from the area, the appliance, and fuel supply, follow gas
connection procedures. If you smell gas again, follow steps 1-6 and have appliance
serviced.
–Service must be performed by a qualified service agency.
This is an unvented gas-fi red portable heater. It uses air (oxygen) from the area in which
it is used.
Adequate combustion and ventilation air must be provided. Refer to page 4.
1
WARNING: If the information in this manual is not followed exactly, a fi re or
explosion may result causing property damage, personal injury or
loss of life.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 800-776-9425 8:30 a.m. – 5:00 pm EST, Monday – Friday
or email us at [email protected]
www.worldmkting.com
ANSI Z21.103-2017 Unvented portable type gas camp
heaters for indoor and outdoor use
PORTABLE GAS CAMP HEATER FOR OUTDOOR USE
World Marketing of America, Inc. (WMAI)
PO Box 192
Mill Creek, PA 17060
US
PPH360-18
PPH360-10
WMAIPPH36010K_18K_23

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
2
Service / Parts Ordering Information ....................................................................................1
General Safety Instructions ..................................................................................................2
General Information .............................................................................................................3
Tank Installation Instructions ................................................................................................5
Operating with Disposable Propane Cylinders ......................................................................5
Operating With Hose Connected to Remote Cylinder. ...........................................................5
Lighting Operation Instructions..............................................................................................6
Maintenance ........................................................................................................................8
Troubleshooting ...................................................................................................................9
Parts List ........................................................................................................................... 11
Warranty.............................................................................................................................12
TABLE OF CONTENTS
WARNING:
Every time hose or tank is connected to unit, connection
must be checked for leaks in one or more ways: Apply
soapy water to connection, look for bubbles, listen for
hiss of escaping gas, feel for extreme cold, smell for
rotten egg odor. Do not use if leaking!
Any changes to this heater or its controls can be
dangerous.
Some people-pregnant women, persons with heart
or lung disease, anemia, those under the infl uence of
alcohol, those at high altitudes - are more aff ected by
carbon monoxide than others.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to this manual. For assistance or additional information,
consult a qualifi ed installer, service agency or the gas
supplier.
WARNING:
WARNING: WARNING:
Early signs of carbon monoxide poisoning resemble the
fl u, with headache, dizziness and/or nausea. If you have
these signs, heater may not be working properly.
Get fresh air at once! Have heater serviced.
WARNING:
This product and the fuels used to operate this product (liquid propane), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is known to the State of California to cause cancer and reproductive harm.
For more information go to www.p65Warnings.ca.gov
WARNING:
This appliance can produce car-
bon monoxide which has no odor.
Using it in an enclosed space can
kill you.
Never use this appliance in an en-
closed space such as a camper,
tent, car or home.
CARBON MONOXIDE HAZARD FOR YOUR SAFETY
Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
3
GENERAL INFORMATION:
• When the heater is cold or at room temperature, it will take a few minutes for the burner to turn bright orange. This is normal
and the heater is working properly. Also, during the initial lighting, the oil used during manufacturing process needs to burn off . This can
take up to 60 minutes of continuous burning. Some odor and yellow fl ames may occur during this time but will diminish after the burn-in
period.
• It is recommended not to use the heater in windy conditions. The heater may fl utter reducing the eff ectiveness of the
appliance and could have excessive pilot outages.
• When operating the heater at altitudes over 7,000 FT. above sea level, the unit may not burn as bright as in lower altitudes.
This is normal. At higher altitudes, the heater may shut-off . If this happens, provide fresh air, wait 5 minutes and re-light.
Due to local atmospheric conditions heater may not re-light.
• When moving heater when lit or bumping heater setting it down, tip over switch may shut off heater. If this happens,
re-light.
• Operating time will vary depending on the heater setting and the supply cylinder size. See chart and "Cold Weather
Operations" section.
•NOTE: This HEATER MAY BE OPERATED WITH (1) DISPOSABLE 1 LB. PROPANE CYLINDERS OR WITH (1)
REMOTE REFILLABLE PROPANE CYLINDER MAX. 20 LBS USING BOTH (1) WMAI # 20-7512F 12’ Extension
Hose and (1) WMAI Model # 20-7512F Fuel Filter (Sold Separately)
COLD WEATHER OPERATION:
• Cold weather is generally defi ned as ambient temperatures below 32 degrees F.
• 1 lb. propane cylinders have diffi culty producing suffi cient gas at lower temperatures and can “freeze-up”, reducing the time of
operation by as much as 50-70%. For this reason, it is recommended to use only 20 lb. propane tanks under these conditions.
• If a 1 lb. tank is used in cold weather, such as in an ice fi shing hut, following are some operating suggestions;
1. Expect operating times to be signifi cantly reduced.
2. Never set the heater directly on the ice. Set the heater on a rigid piece of fl ame retardant insulation and make sure the
ventilation slots on the bottom of the heater are not obstructed.
3. Elevate the heater slightly above the ground level. Insure the unit is level and secure and cannot be knocked over.
4. Keep the tank access door open. This provides some additional heat to warm the 1 lb. cylinder.
5. Adequate ventilation and combustion air must be provided.
6. Maintain all clearances as specifi ed on Page 4.
WARNING:
Carefully watch the Heater for signs of the 1 lb. cylinder "freezing-up". If the lower portion of the burner starts to turn from
orange to blue and begins sputtering, immediately shut off the heater and remove it from any enclosure.
If the recreational or commercial enclosure does not have a window or roof vent that is open, DO NOT USE THIS
HEATER inside.
WARNING:
FOR US ONLY EXCEPT MASSACHUSETTS
This heater is safe for indoor use in small recreational enclosures, having means for providing combustion air and ventilation, such
as enclosed porches, cabins, fi shing huts, trailers, tent trailers, tents, truck caps and vans. It may be used for emergency indoor
heating when connected to a disposable 1 lb. propane cylinder and for indoor use in commercial enclosures, having means
for providing combustion air and ventilation, such as construction trailers or temporary work enclosures. Do not operate heater in
any moving vehicle. This heater can also be used in a recreational or commercial enclosure with a window or roof vent.
It may also be used outdoors. This heater requires a vent area of 18 square inches (example 4 1/4" x 4 1/4" opening)
minimum for adequate ventilation during operation. Do not use other fuel burning appliances inside.

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
4
•
Do not use non-approved attachments on this heater.
•Due to high temperatures, the appliance should be located out of traffi c and away from combustible materials.
•Children and adults should be alerted to the hazard of high surface temperatures and should stay away to avoid burns
or clothing ignition.
•Young children should be carefully supervised when they are near the appliance.
•Do not place clothing or other fl ammable material on or near the appliance.
• GAS PRESSURE AT HEATER IS REGULATED AND FIXED AT 11" W.C. WHEN USING A REMOTE HOSE CONNECTION TO HEATER
REGULATOR(S), DO NOT REGULATE OR REDUCE PROPANE TANK SUPPLY PRESSURE TO HEATER.
• REGULATOR(S) IN HEATER MUST ALWAYS BE IN PLACE DURING OPERATION.
•Any safety screen or guard removed for servicing the appliance must be replaced prior to operating the heater.
•The appliance should be inspected before each use. Frequent cleaning may be required. The control compartments,
burner(s) and circulating air passageways of the appliance must be kept clean, see MAINTENANCE.
• DO NOT use this heater if any part has been under water. Immediately call a qualifi ed service technician to inspect
the heater and to replace any part of the control system and any gas control, which has been under water.
• When used without adequate combustion and ventilation air, this heater may give off excessive CARBON MONOXIDE,
an odorless, poisonous gas.
• Some people - pregnant women, persons with heart or lung disease, anemia, those under the infl uence of alcohol, those at
high altitudes - are more aff ected by carbon monoxide than others.
• Cylinders must be disconnected when the heater is not in use.
•When the heater is placed on the ground, make sure the ground is level and keep any objects at least 15" from the edge of the
heater. THIS HEATER IS EQUIPPED WITH A TIP OVER SWITCH THAT WILL SHUT THE HEATER OFF IF THE HEATER TIPS
OVER. HOWEVER, DO NOT LEAVE THIS APPLIANCE UNATTENDED WHILE IT IS IN OPERATION. KEEP CHILDREN AND PETS
AWAY FROM THE APPLIANCE AT ALL TIMES. NEVER OPERATE THE HEATER WHILE SLEEPING!
• Keep remote 20 lb. refi llable cylinders at least 8 ft. away from heater at all times.
GENERAL SAFETY INSTRUCTIONS
THIS IS A HEATING APPLIANCE. DO NOT OPERATE THIS APPLIANCE WITHOUT THE WIRE GUARD INSTALLED. DO NOT
ATTEMPT TO WARM OR COOK FOOD ON THIS HEATER.
MODEL NO.. ....................................................................................PPH360-10 / PPH360-18
GAS TYPE .................................................................................................PROPANE
INPUT BTU/HR. ..........................................................PPH10 Series - 5,500 - 10,000
MAX. SUPPLY PRESSURE......................................................BOTTLE PRESSURE
CLEARANCE TO COMBUSTIBLES (FROM EDGE OF GUARD)
TOP ...............................................................................................................30 inches
FRONT ............................................................................................................24 inches
SIDES ..............................................................................................................6 inches
REAR .............................................................................................................0 inches
CAUTION:
• Some linoleum surfaces may discolor if heater
is placed directly on these fl oor coverings.
• When operating the heater at altitudes
over 7,000 FT above sea level the heater
may shut off . (Please read the GENERAL
INFORMATION)
• Minimum environmental temperature
-4 F (-20 C) for safe storage and
operation of the appliance.
Cylinder Size
One 1 lb. cylinder
Two 1 lb. cylinders
One 20 lb. cylinder
Operating Time PPH360-10
2.7 hrs (high) - 3.2 hrs (low)
N/A
45 hrs (high) - 58 hrs (low)
INPUT BTU/HR. .......................................................PPH18 Series - 18K, 9K, and 4K
NOT RECOMMENDED
2.4 hrs (H) 4.7 hrs (M) 10.7 hrs (L)
24 hrs (H), 48 hrs (M), 108 hrs (L)
•
Operating Time PPH360-18

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
5
TANK INSTALLATION INSTRUCTIONS
Tank Installation for DOT Certifi ed 1 lb. Propane Cylinder(s) (Fig. 1)
• Open easy access tank compartment door(s).
• Locate regulator and swivel it upward by hand to provide better access for cylinder
• Attach cylinder(s) to swivel mount by gently turning clockwise until it is hand tight. Do not overtighten. Do not use tools to tighten.
• Check for gas leaks by using a 50% soap-water solution at the joint of the regulator and cylinder.
• The LP-gas cylinder(s) must be constructed and marked in accordance with the specifi cations for Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods, CSA B339;
•We recommend using the WMAI 20 lb. tank connection kit model# 20-7512F, which includes (1) 12' extension hose and (1) fuel
filter (sold separately).
• Disconnect the disposable fuel cylinder when the unit is not being used.
• 1 lb. cylinders must be Dept. of Transportation (DOT) constructed and approved and have an outlet connection compatible with a CGA 600 fi tting.
Tank Installation for 20 lb. Propane Cylinder (Fig. 1a)
• Open easy access tank compartment door.
• Locate regulator and swivel it upward by hand to provide better access for hose end adapter.
• Attach Fuel Filter, Model 20-7512F, to swivel mount by gently turning clockwise until it is hand tight. Do not over tighten. Do not
use tools to tighten.
•Attach WMAI hose end adapter (No. 20-7512F) to fuel filter by gently turning clockwise until it is hand tight. Do not
overtighten. Do not use tools to tighten.
• Check for gas leaks by using a 50% soap-water solution at the joint of the regulator and hose end adapter.

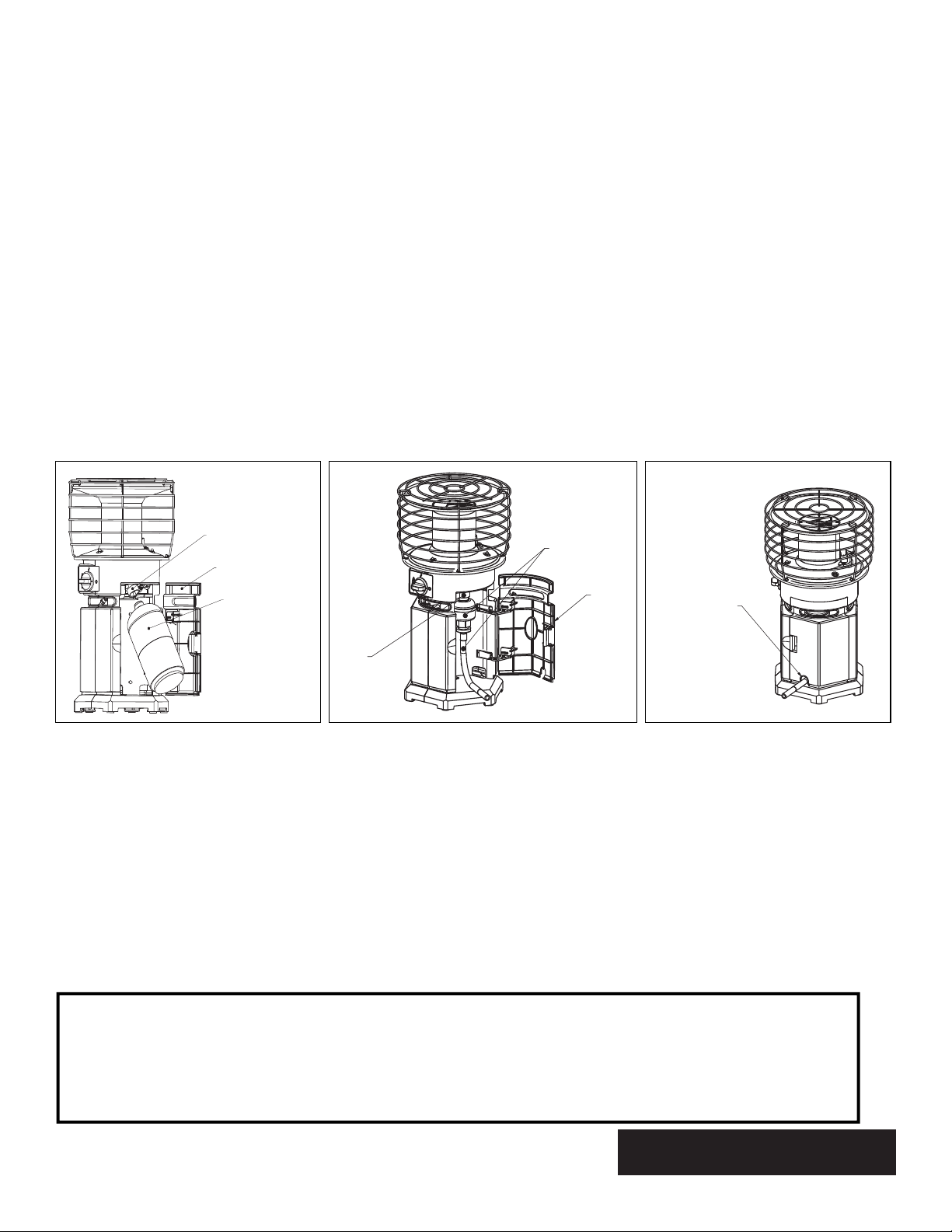

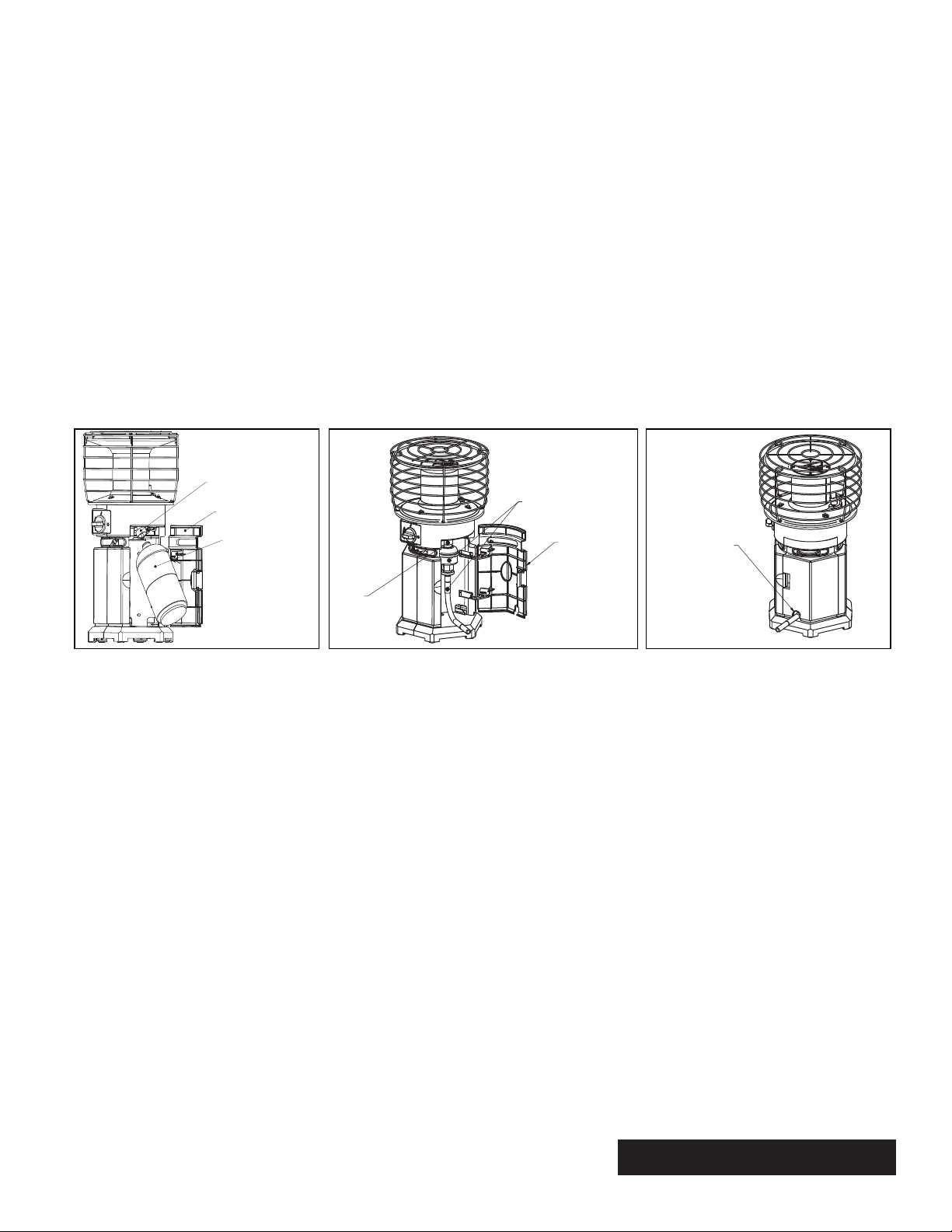

Fig. 1 - 1 lb. Cylinder Tank Installation Fig. 1a - Remote Tank Installation
FOR US ONLY EXCEPT MASSACHUSETTS
EMERGENCY INDOOR USE
Adequate combustion and ventilation air must be provided when the appliance is in use. Refer to General Safety Instructions on
Page 4 for additional information. Only disposable 1 lb. cylinders, marked as PROPANE can be used with this heater. NEVER bring
a refi llable propane cylinder indoors. A fi re or explosion can occur causing property damage, serious injury, or death.
ADDITIONAL INFORMATION REGARDING OPTIONAL ACCESSORIES TO CONNECT A
20 LB LP TANK
• Please note: this heater may be operated with (1) remote refi llable propane cylinder max. 20 Lbs.
• Any CSA certifi ed hose with a CGA 600 fi tting and excess fl ow device, that is appropriate for this application, may be used to
connect a 20 lb. propane tank.
• Non-certifi ed or handmade hoses and adapters may not be used to connect a 20 lb. propane tank.
• The use of a fuel fi lter is also recommended but not mandatory. The fuel fi lter can reduce potential contaminants from the 20 lb. LP
tank/hose and extend the life of the heater.
•We recommend using the WMAI 20 lb. tank connection kit model# 20-7512F, which includes (1) 12’ extension hose and (1)
fuel filter (sold separately).
OE'27
$SSURYHG
&\OLQGHU7DQN
5HJXODWRU
$FFHVV'RRU
Access
Door
Regulator
Fuel Filter & Hose
Kit # 20-7512F
Carefully close the
Door while
positioning the
remote hose
through the
access slot.

6
LIGHTING / OPERATING INSTRUCTIONS
FOR USE WITH HOSE(S) CONNECTED TO A
REMOTE CYLINDER, MAXIMUM SIZE 20 LBS:
•WMAI Hose No. 20-7512FF includes a hand-tightening
tank connector and a #600 hose connector fi tting.
•WARNING: NEVER bring a refi llable propane cylinder indoors.
A fi re or explosion can occur causing property damage, serious
injury or death!
•Inspect the hose before each use of the heater. If there is
excessive abrasion or wear, or the hose is cut, replace prior to
using the heater with WMAI 20-7512F.
• The propane cylinder must include a listed overfi lling protection
device as well as a collar to protect the cylinder valve.
• Heater must be in an upright position during operation.
• Screw hose connector into tank swivel on heater and screw
opposite end of hose into LP gas tank valve. Tighten all hose
connections. DO NOT use thread sealant on any of these
connections.
• Open valve at LP-gas supply cylinder.
• Check all hose connections for leaks with soapy water at the
threaded connection where the hose connector screws into the
regulator and at LP-gas supply cylinder. SEE WARNING! ON
ATTACHED HANG TAGS.
LIGHTING, OPERATION, AND
SHUTDOWN INSTRUCTIONS
1. Make sure the control knob is in the OFF position. " "
2. Open the access door and install the propane fuel source;
a. Install a DOT certifi ed 1 lb. propane cylinder.
b. Install the WMAI hose connector model # 20-7512F.
Check for gas leaks by using a 50% soap-water solution at
the joint of the regulator and cylinder.
3. Depress and turn the control knob to the pilot position " ".
a. If fueled by a 1 lb. propane cylinder, hold for 30 seconds.
b. If fueled by a 20 lb. propane cylinder, hold for 4-5 minutes.
Push and turn knob back to the off position. From the OFF “O” position,
push and turn counter clockwise to the PILOT position. " ". The Igniter
will spark each time this step is performed. Repeat until the pilot fl ame
lights.
4. Continue holding the knob down in the PILOT position
for 30 seconds or until pilot fl ame holds.
5. Release the knob. The knob should return to the fully
extended position and the pilot should remain lit.
6. Turn on the burner by depressing the knob slightly and
gently turn the knob to the HI position " ".
7. Adjust heat output by turning the knob between HI and
LOW position " ".
8. To shut down the heater turn the knob clockwise to the OFF
position and remove the gas cylinder or close the propane
tank shut off valve and allow the heater to burn off the gas in
the hose, then turn the heater knob to the OFF position.
CAUTION
Do not try to adjust heating levels by using the propane tank shutoff valve.
After turning heater off the guard will remain hot. Allow the heater to cool
down before storing the heater.
Do not operate, store, connect or remove cylinder/hose connection near
fl ammable items or ignition sources.
Do not expose this heater to any fl ammable vapors or liquids during the
lighting process.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

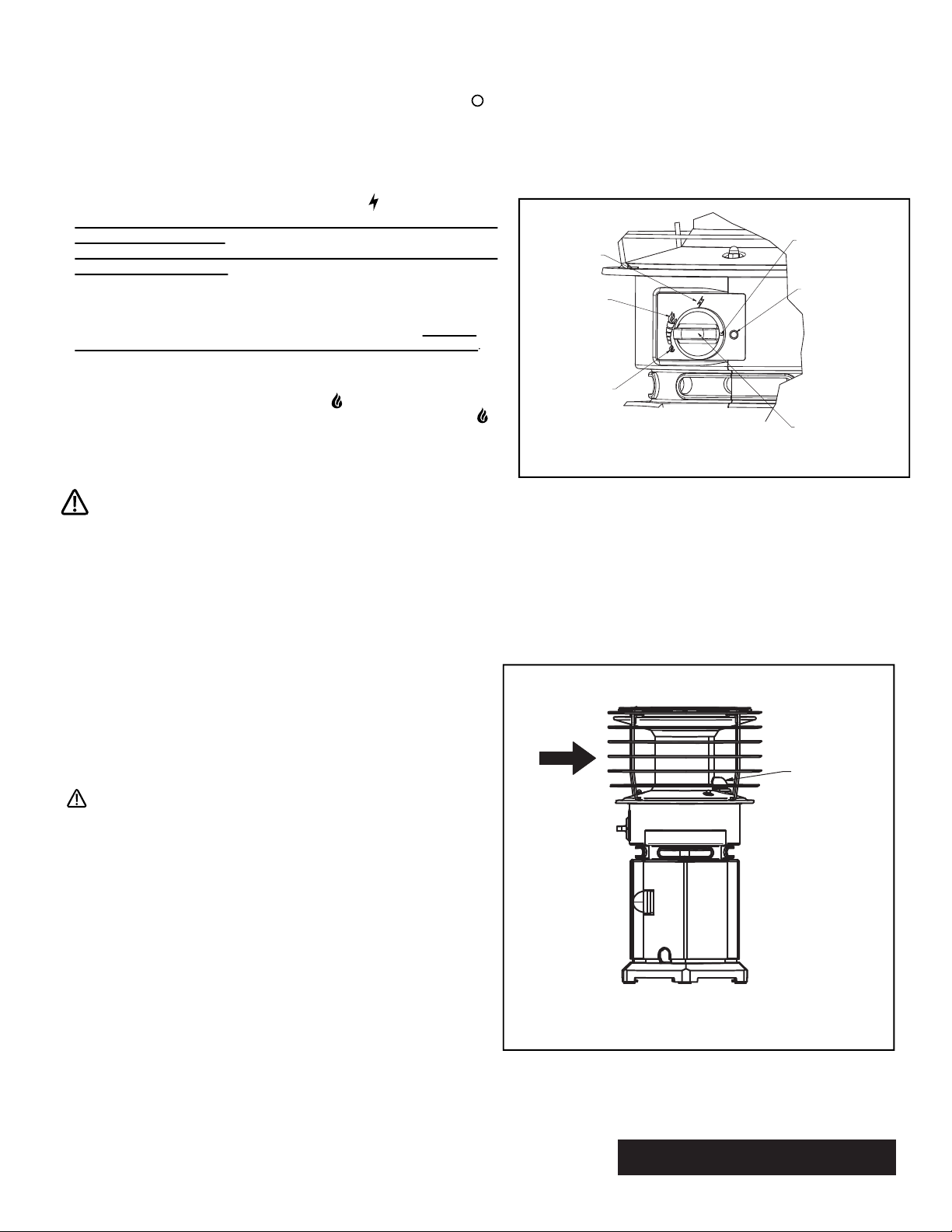

Fig. 2 - Lighting Instruction
Fig. 3 - Lighting in Windy Areas
LIGHTING IN WINDY AREAS
1. Position the heater such that the Pilot is opposite the direction that
the wind is coming from.
2. Position your body behind the heater such that your body blocks the
wind while you are following the instructions for lighting the unit.
FOR US ONLY EXCEPT MASSACHUSETTS
This Heater may be used in a Recreational Enclosure or
Temporary Construction Work Enclosure with a Remote
Refi llable Propane Cylinder ONLY when the Cylinder is
Located Outdoors and the Heater is Used with WMAI
Hose No. 20-7512F.
• Both the 1 lb. and 20 lb. cylinders must be in an upright position during use
to insure proper vapor withdraw
• Clearance from Combustibles: Top: 30 Inches, Front: 24 Inches, Sides: 6
Inches, Rear: 0 Inches
Control
Knob
OFF
Position
Pilot
Position
HIGH
Position
LOW
Position
Knob Indicator
Mark
WIND
DIRECTION
PILOT
POSITION

7
IMPORTANT NOTICE
REGARDING THIRD PARTY ATTACHMENTS TO ALL
WORLD MARKETING OF AMERICA, INC. PERSONAL PROPANE HEATERS
These heaters, which are sold by World Marketing of America, Inc.(WMAI), feature an Oxygen Depletion Sensor (“ODS”), which
shuts off the heater if the oxygen in the room gets below a certain point, and a tip-over safety switch that turns it off in the
event of it being knocked on its side. These features allow the heater to be safely used during numerous indoor and outdoor
activities.
WMAI recognizes the many different third party attachments for the personal propane heater and is aware of their intended
purpose of using the product to heat or cook food. WMAI strongly encourages that these third party attachments NOT be used as
they are neither certified, nor safe to be used to warm or cook food of any kind. These Heaters are not certified as a cooker and
are not designed to operate in this manner. WMAI explicitly prohibits the use of any type of non-approved attachments with its
personal propane heaters.
This product is a heater. It is certifi ed to ANSI Z21.103-2017 Unvented portable type gas camp heaters for indoor and outdoor use.
This product is NEVER to be used for the cooking or warming of foods as doing so can interfere with the safety systems of the
heater, which may result in a fi re, explosion, the production of deadly carbon monoxide, and personal injury or death to you or others.
NEVER use hand-made or third party accessories or attachments with this heater; this is extremely dangerous and may result in
personal injury or death to you or others
WARRANTY LANGUAGE
WMAI warrants its heaters and accessories to be free from defects in material and workmanship for a period of 1-year from
date of purchase. WMAI will repair or replace this product free of charge if it has been proven to be defective within the 1-year
period and is returned at customer expense with proof of purchase to WMAI within the warranty period. DISCLAIMER: This
warranty does not cover any product that: a) has been subject to misuse or neglect; b) has been used in a manner inconsistent
with the warnings and instructions contained in the owner’s manual, including but not limited to using a heater for the cooking
or warming of foods; or c) has been used with hand-made or third party accessories or attachments.
WMAI prohibits the personal propane heaters from being used for cooking or warming foods. Third party attachments intended
to change the intended operation of the heaters are prohibited for use as they could cause serious harm to consumers. Using
such products with WMAI heaters will immediately void the product warranty. WMAI values the safety of its consumers above all
else and appreciates your continual trust in all WMAI products. Please feel free to contact us at [e-mail] with any
questions.
•CAUTION: After turning heater off , wire guard will remain hot. Allow to thoroughly cool before moving or storing.
•CAUTION: When not in use, the gas must be turned off at the LP-gas supply cylinder. As stated before, allow heater to use up
propane in supply line until heater shuts off . When the LP-gas supply cylinder is not disconnected from the heater, the cylinder must
be stored outdoors, in a well ventilated space, out of reach of children, and must not be stored in a building, garage or any other
enclosed area. Disconnect all cylinders when heater is not in use.
•CAUTION: Indoor storage of the heater is permissible only if the cylinder is disconnected and removed from the heater. Cylinders
must be stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed area.
1 lb. cylinders must be Dept. of Transportation (DOT) constructed and approved and have an outlet connection compatible with a
CGA 600 fi tting.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
WARNING:

MAINTENANCE:
Always keep the heater area clear and free from combustible
materials, gasoline and other fl ammable vapors and liquids.
Keep the vent areas (slots in the bottom and the top at the front
of heater) clear at all times so combustion is ventilation air is not
obstructed. Visually inspect the pilot fl ame and burner periodical-
ly during use so combustion and ventilation air is not obstruct-
ed. The pilot fl ame should be blue in color (not yellow) and will
extend beyond the thermocouple. The fl ame will surround the
thermocouple just below the tip, see Figure 4. A slight yellow
fl ame may occur where the pilot fl ame and main burner fl ame
meet. The burner(s) should be bright orange (with a slight blue
color around the border, a red-orange haze that is visible on
the burner is acceptable) and without a noticeable fl ame. A blue
fl ame that rolls out at the top indicates an accumulation of dust,
lint or spider webs inside the main burner assembly. If the pilot
is yellow or the burner has a noticeable fl ame, cleaning may be
required. Use the following procedure to inspect main burner
assembly. It is necessary to periodically check the burner(s)
orifi ce and burner venturi tube to make sure they are clear of
insects/nests or spider webs that may accumulate over time. It is
strongly recommended that these maintenance instructions be
performed annually. A clogged tube can lead to a fi re.
1 Allow heater to thoroughly cool before performing
any maintenance.
2 Remove disposable 1 lb. cylinder from heater or turn OFF
gas supply at remote cylinder valve, and disconnect
hose from heater.
3. Inspect and clean main burner orifi ce located at bottom
of burner venturi tube, by using a vacuum or apply air
pressure at orifi ce opening.
4 Inspect and clean pilot (mounted to bracket) by using a
vacuum or apply air pressure through the holes in the pilot
indicated by the arrows in Figure 5.
WARNING: Never use needles, wires, or similar cylindrical
objects to clean the pilot to avoid damaging the calibrated
orifi ce that controls the gas fl ow.
5 Apply air pressure onto burner tiles and pilot to remove dust
lint or spider webs.
6 Use a vacuum or compressed air to blow dust/dirt off the
burner to clean the pilot.
7 Clean outer casting with a damp cloth.
8
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

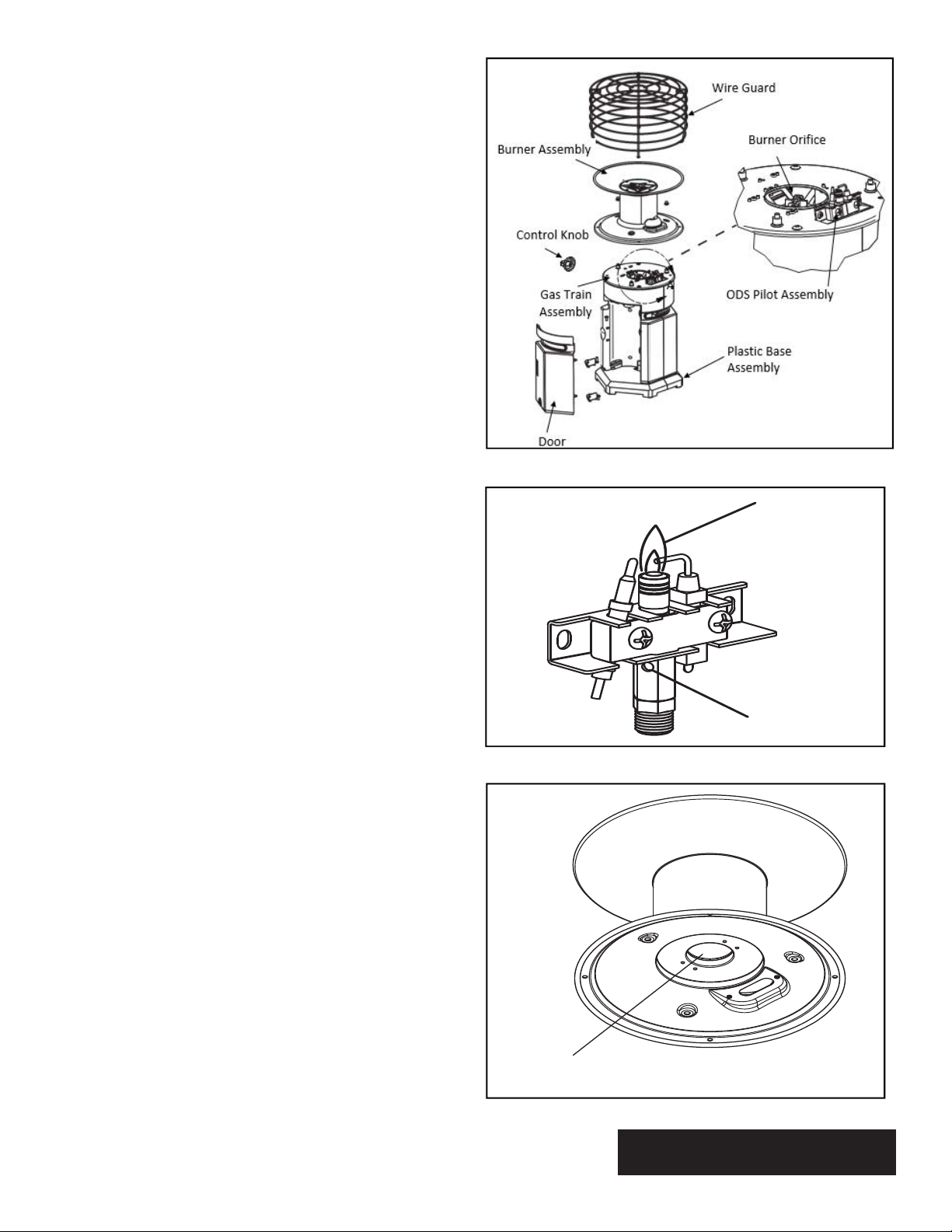

Fig. 4 - Burner Orifi ce Location
Fig. 5 - Pilot Assembly
Fig. 6 - Burner Assembly
3LORW)ODPH
3LORW$LU+ROH
Venturi tube

WARNING: If you smell gas:
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fi re department.
IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint
remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix
with combustion air and create odors.
WARNING: Turn off and let cool before servicing. Only a qualifi ed service person should service
and repair heater.
CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
When ignitor knob is
turned, there is no
spark at ODS/pilot.
1. Ignitor electrode is
positioned wrong.
2. Ignitor electrode is broken.
3. Ignitor electrode is not
connected to ignitor cable.
4. Ignitor cable is pinched or
wet.
5. Damaged ignitor cable.
1. Replace electrode.
2. Replace electrode.
3. Replace ignitor cable
4. Free ignitor cable if pinched by any met-
al or tubing. Keep ignitor cable dry.
5. Replace ignitor cable.
When ignitor knob
is turned, there
is a spark at ODS/
pilot but no ignition.
1. Tank shutoff valve is
closed.
2. Control knob not fully
pressed in while pressing
ignitor button.
3. Air in gas lines when
installed.
4. ODS / pilot is clogged.
5. Control knob not in PILOT
position.
6. Depleted gas supply (propane)
1. Turn on gas supply valve.
2. Fully press in control knob while
pressing ignitor button.
3. Continue holding down control knob.
Repeat igniting operation until air is
removed.
4. Clean ODS/pilot (see Care and
Maintenance, page 8) or replace
ODS/pilot assembly.
5. Turn control knob to PILOT position.
6. Purchase new tank or refi ll 20 lb tank.
ODS/pilot lights
but fl ame goes out
when control knob is
released.
1. Control knob is not fully
pressed in.
2. Control knob is not pressed
in long enough.
3. Equipment shutoff valve is
not fully open.
4. Thermocouple connection is
loose.
5. Thermocouple damaged.
6. Control valve damaged.
1. Press in control knob fully.
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds.
3. Fully open equipment shutoff valve.
4. Hand tighten until snug, and then
tighten ¼ turn more.
5. Replace thermocouple.
6. Contact customer service.
Burner(s) does not
light afterODS/pilot
is lit.
1. Burner orifi ce is clogged.
2. Burner orifi ce diameter is
too small.
3. Inlet gas pressure is too low.
1. Clean burner orifi ce (see Care and
Maintenance, page 8) or contact
customer service.
2. Contact customer service.
3. Change tanks.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
9

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Burner backfi ring
during combustion.
1. Burner orifi ce is clogged or
damaged.
2. Burner is damaged.
3. Gas regulator is damaged.
1. Clean burner orifi ce (see Care and
Maintenance, page 8 or contact
customer service.
2. Contact dealer or customer service.
3. Replace gas regulator.
High yellow fl ame
during burner
combustion
1. Not enough air.
2. Gas regulator is defective.
3. Outside temperature is too
low.
1. Check burner for dirt and debris. If found,
clean burner (see Care and Maintenance,
page 8).
2. Replace gas regulator.
3. Buy new tank or refi ll 20lb tank.
Gas odor during
combustion.
1. Foreign matter between
control valve and burner.
2. Gas leak. (See Warning
Statement on page 2).
1. Take apart gas tubing and remove foreign
matter.
2. Locate and correct all leaks.
Heater produces a
clicking/ticking noise
just after burner is lit
or shut off .
1. Metal is expanding while
heating or contracting
while cooling.
1. This is common with most heaters. If
noise is excessive, contact qualifi ed
service technician.
Heater shuts off in
use (ODS operates).
1. Not enough fresh air is
available.
2. Low line pressure.
3. ODS/pilot is partially
clogged.
1. Open window and/or door for
ventilation.
2. Contact local gas supplier.
3. Clean ODS/pilot (see Care and
Maintenance, page 8).
Gas odor exists
even when control
knob is in OFF posi-
tion.
1. Gas leak. See Warning
Statement on page 2.
2. Control valve is
defective.
1. Locate and correct all leaks (see
“Checking Gas Connections” page 4).
2. Contact customer service.
Slight smoke or odor
during initial opera-
tion
1. Residues from
manufacturing process.
1. Problem will stop after a few hours of
operation.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
10

11
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

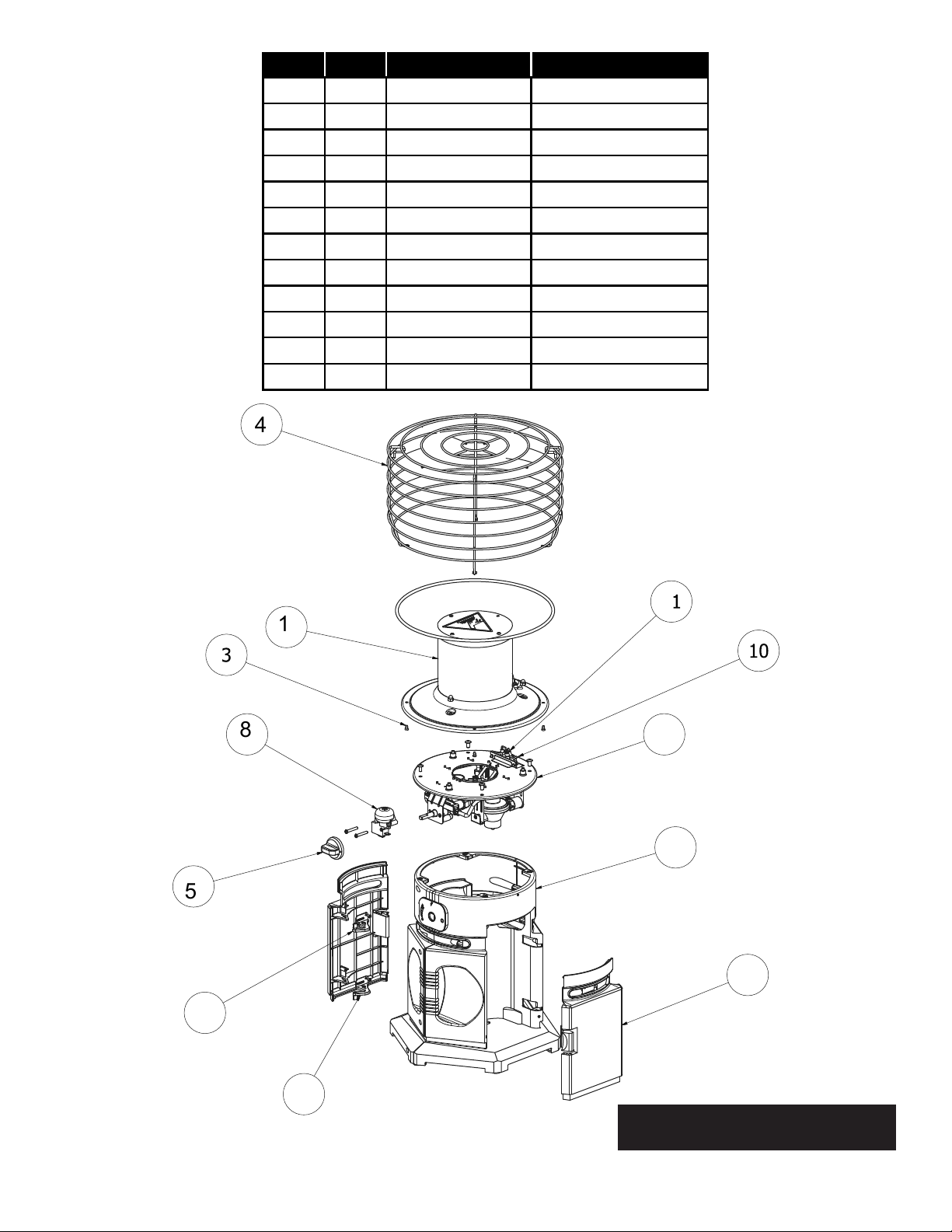

ITEM QTY PPH360-10 DESCRIPTION
1 1 23-5410 Wire Guard
2 1 Call for Information Gas Train Assembly
3 1 KW-16B Tip Switch
4 1 23-1708 Control Knob
5 1 Call for Information Plastic Base Assembly
6 1 HA1360-15-RD Access Door
7 1 23-0110 Burner Assembly
8 N/A 23-6008 Hardware Kit (Includes all
hardware to assemble unit)
9-1 1 Call for Information Hinge Assembly, upper
9-2 1 Call for Information Hinge Assembly, lower
10 1 23-3010 LP ODS Pilot Assy.
11 1 Call for Information Thermocouple
PT
PP
R
S
U
X
Y
7
1
8
9-1
9-2

ITEM QTY PPH360-18 DESCRIPTION
1 1 23-0118 Burner Assembly
2 1 Call for Imforamtion GasTrainAssembly
3 N/A 23-6008 Hardware Kit
4 1 23-5418 WireGuard
5 1 23-1708 ControlKnob
6 1 PlasticBaseAssembly
7 2 Door
8 1 23-6461 TipSwitch
9-1 2 DoorHinge,Upper
9-2 2 Door Hinge, Lower
10 1 23-3018 LPODSPilotAssy.
11 1 Thermocouple
12
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
R
J
JS
4
1
8
5
9-1
9-2
2
6
7
1
Call for Imforamtion
Call for Imforamtion
Call for Imforamtion
Call for Imforamtion
Call for Imforamtion

LIMITED WARRANTY:
DUTIES OF THE OWNER:
This heating appliance must be operated in accordance with the written instructions furnished with this heater. This warranty shall not excuse
the owner from properly maintaining this heater in accordance with the written instructions furnished with this heater.Abill of sale, canceled
check or payment record must be kept to verify purchase date and establish warranty period. Original carton should be kept in case of warranty
return of unit.
WHAT IS NOT COVERED:
1. Damage resulting from use of improper fuel.
2. Damage caused by misuse or use contrary to the owners manual and safety guidelines.
3. Damage caused by a lack of normal maintenance.
4.Use of non-standard parts or accessories.
5.Damage caused in transit. Freight charges on warranty parts or heaters to and from the factory shall be the responsibility of the owner.
This warranty does not imply or assume any responsibility for consequential damages that may result from the use, misuse, or the lack of
routine maintenance of this heating appliance.Acleaning fee and the cost of parts may be charged for appliance failures resulting from lack of
maintenance. This warranty does not cover claims which do not involve defective workmanship or materials. FAILURE TO PERFORM
GENERAL MAINTENANCE (INCLUDING CLEANING) WILL VOID THIS WARRANTY.
THIS LIMITED WARRANTY IS GIVEN TO THE PURCHASER IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDY PROVIDED IN THIS WARRANTY IS EXCLUSIVE AND IS GRANTED IN LIEU OF ALL OTHER REMEDIES. IN NO EVENT WILL
WMAI. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.
CLAIMS HANDLEDAS FOLLOWS:
1. Contact your retailer and explain the problem.
2. If the retailer is unable to resolve the problem, contact ourCustomer Service Dept. detailing the heater model, the problem, and proof
of date of purchase.
3. A representative will contact you. DO NOT RETURN THE HEATER TO WMAI unless instructed by our Representative. This
warranty gives you specific legal rights and you may also have other rights which vary from state to state.
TO REGISTER THE WARRANTY ON YOUR HEATER, PLEASE FILL OUT THIS CARD COMPLETELY
AND MAIL WITHIN 14 DAYS FROM DATE OF PURCHASE OR REGISTER ON-LINE AT www.worldmkting.com
NAME: ______________________________________ PHONE: ( ) __________________ EMAIL: ____________________________
ADDRESS: _________________________________ CITY: ______________________________ STATE: __________ ZIP: ____________
MODEL: ____________________ SERIAL#: _______________________________________ DATE PURCHASED: __________________
DEALER PURCHASED FROM: ____________________________________________ TYPE OF STORE: __________________________
CITY & STATE WHERE PURCHASED: ______________________________________________ PRICE PAID: _______________________
Please Take a Minute To Give Us Your Answers To The Following Questions.
All ResponsesAre Used Solely For Market Research AndAre Held In Strict Confidence.
Who primarily decided this purchase? Male Female 18-24 25-39 40-59 60 and over
Purpose of Purchase? _______________________________________________________________________________________________
Do you own any other portable heaters? Yes No If yes, type____________________________brand_____________________
How do you intend to use your new heater? Construction Site Farm Warehouse/Commercial Garage/Outbuilding Other
How did you become aware of this heater? In-Store Display Newspaper Ad MagazineAd Friend/Relative
TV Commercial Store Salesperson Other ___________________________
What made you select this heater? Style Size/Portability Price Package Brand Other ___________________
Do you: own rent Would you recommend this heater to a friend? Yes No
Please give us your comments:________________________________________________________________________________________
THANK YOU FOR COMPLETINGTHIS FORM!
Information will be held confidential.
This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any defect
in materials and workmanship for a period of one (1) year from the date of retail sale. World Marketing of America, Inc. (WMAI) at it’s option,
will either provide replacement parts or replace or repair the unit, when properly returned to the retailer where purchased or one of our
service centers as directed by WMAI within one (1) year of retail purchase. (Shipping costs, etc. are the responsibility of the purchaser.)
Part Number_23PPHWTY_ENG

WARRANTY REGISTRATION
IMPORTANT: We urge you to fill out your warranty registration card within fourteen (14)
days of date of purchase. You can also register your warranty on the internet at
www.worldmkting.com. Complete the entire serial number. Retain this portion of the card
for your records.
World Marketing of America, Inc.
PO Box 192
Mill Creek PA 17060-0192
Tel) 1-814-643-1775
www.worldmkting.com
SAVE THIS CARD!
World Marketing of America, Inc.
PO Box 192
Mill Creek PA 17060-0192
Place
Postage
Stamp
Here

14
MANUAL DEL USUARIO E INSTRUCCIONES DE FUNCIONAMIENTO
LEA ATENTAMENTE LAS INSTRUCCIONES:
Lea y respete todas las instrucciones.
Guarde las instrucciones en un lugar
seguro para consultarlas en el futuro.
No permita que nadie ensamble,
encienda, ajuste ni utilice el calefactor
sin leer estas instrucciones.
CALEFACTOR PORTÁTIL A PROPANO
PARA USO EN INTERIORES,
RECREATIVO, COMERCIAL Y DE
EMERGENCIA
PARA VENTA EN EE. UU. EXCEPTO EN
MASSACHUSETTS
Patente en trámite
– No guarde ni utilice gasolina u otros vapores y líquidos infl amables cerca de
este artefacto ni de ningún otro.
–
Cuando los cilindros de gas propano líquido no estén conectados,
no deben quedar guardados cerca de este artefacto ni de ningún otro.
– QUÉ HACER SI SIENTE OLOR A GAS
• No intente encender el artefacto.
• Apague toda llama abierta.
• Cierre la conexión de gas que va al artefacto.
– Las reparaciones deben ser realizadas por una
agencia de servicio califi cada.
Este es un calefactor portátil a gas sin salida al exterior. Utiliza el aire (oxígeno) del área en que
se utiliza.
Se debe proporcionar cantidad adecuada de aire de combustión y ventilación. Consulte la página 18.
ADVERTENCIA:
Si la información de este manual no se respeta con exactitud, se
podría ocasionar una descarga eléctrica o un incendio, lo que podría
provocar daños materiales y lesiones personales, incluso la muerte.
CONSUMIDOR: conserve este manual para consultarlo cuando sea necesario.
¿Dudas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
departamento de servicio al cliente al 800-776-9425 de lunes a viernes de 8:30 a 5:00 EST
oescriba a [email protected]
www.worldmkting.com
PPH360-10
ANSI Z21.103-2017 Calentadores de campamento a gas
de tipo portátil sin ventilación para uso en interiores y
exteriores
World Marketing of America, Inc.
(WMAI)
PO Box 192
Mill Creek, PA 17060
PPH360-18
WMAIPPH36010K_18K_23

15
NUNCA DEJE DESATENDIDO EL CALEFACTOR
MIENTRAS ESTÁ ENCENDIDO.
Información sobre reparación/solicitud de piezas .............................................................................. 14
Instrucciones generales sobre seguridad ........................................................................................... 15
Información general ............................................................................................................................ 16
Instrucciones de instalación del tanque .............................................................................................. 18
Funcionamiento con cilindros de gas propano desechables .............................................................. 18
Funcionamiento con manguera conectada a cilindro remoto. ............................................................ 18
Instrucciones de funcionamiento del encendido ................................................................................ 19
Mantenimiento .................................................................................................................................... 21
Solución de problemas ....................................................................................................................... 22
Lista de piezas .................................................................................................................................... 24
Garantía............................................................................................................................................... 25
CONTENIDO
Cada vez que se conecta la manguera o el tanque a la
unidad, se debe verifi car que la conexión no tenga fugas.
Para esto: Aplique agua jabonosa en la conexión, observe si
hay burbujas, escuche si hay un silbido de escape de gas,
palpe para comprobar si está muy frío y verifi que que no haya
olor a huevo podrido. ¡No utilice el artefacto si hay fugas!
Realizar cambios en el calefactor o en sus controles puede
ser peligroso.
Algunas personas ―embarazadas, personas con
enfermedades cardíacas o pulmonares, anémicas, las que
están bajo los efectos del alcohol o las que están a alturas
elevadas― se ven más afectadas por el monóxido de
carbono que otras.
Si se trata de un espacio cerrado recreativo o comercial sin
ventana ni ventilación en el techo que esté abierta,
NO UTILICE ESTE CALEFACTOR en el interior.
Los signos tempranos de intoxicación por monóxido de
carbono se asemejan a los de la gripe, con dolores de
cabeza, mareos y/o náuseas. Si presenta estos signos, es
posible que el calefactor no esté funcionando correctamente.
¡Tome aire fresco inmediatamente! Haga reparar el calefactor.
ADVERTENCIA:
ADVERTENCIA: ADVERTENCIA:
ADVERTENCIA:ADVERTENCIA:
Este producto y los combustibles utilizados para poner en funcionamiento este producto (propano líquido), y los productos
de la combustión de tales combustibles, pueden exponerlo a sustancias químicas como el benceno que, según el estado de
California puede provocar cáncer y daños reproductivos.
Para obtener más información, visite www.p65Warnings.ca.gov
ADVERTENCIA:

16
NUNCA DEJE DESATENDIDO EL CALEFACTOR
MIENTRAS ESTÁ ENCENDIDO.
INFORMACIÓN GENERAL:
• Este calefactor es seguro para ser utilizado en el interior de espacios cerrados pequeños de uso recreativo que tengan
medios para proporcionar aire de combustión y ventilación, como galerías cerradas, cabinas, cabañas de pescadores,
remolques, tienda-remolques, tiendas de campaña, capotas de camionetas y furgonetas. Se puede utilizar como calefacción
de emergencia para interiores si se conecta a un cilindro de gas propano de 1 lb desechable y también en espacios
cerrados comerciales que tengan medios para proporcionar aire de combustión y ventilación, como casillas de obrador o
compartimentos para trabajos temporarios.
• Cuando el calefactor está frío o a temperatura ambiente, demorará unos minutos para que el quemador se torne de
color naranja brillante. Esto es normal y signifi ca que el calefactor está funcionando correctamente. Además, durante el
procedimiento de encendido inicial, el aceite utilizado en el proceso de fabricación debe quemarse. Observará un quemado
continuo que puede llevar hasta 60 minutos, y tal vez perciba cierto olor y observe llamas de color amarillo. Esto disminuirá
una vez fi nalizado el quemado del aceite.
• Después de unas horas de funcionamiento, la placa superior del quemador se descolorará debido al calor del funcionamiento
normal. Esto es normal y no afecta al funcionamiento seguro de la unidad.
• No se recomienda el uso del calefactor cuando hay mucho viento. Se pueden agitar las llamas del calentador, lo que reduce la
efi cacia del artefacto y podría ocasionar excesivos apagados del piloto.
• Cuando la unidad esté encendida, habrá un borde de aproximadamente un cuarto de pulgada que no se tornará de color
naranja brillante. Esto es normal.
• Cuando el calefactor funciona a alturas superiores a los 7000 pies sobre el nivel del mar, es posible que la unidad no queme
con tanta intensidad como en alturas inferiores. Esto es normal. A alturas más elevadas, el calefactor podría apagarse. Si esto
sucede, procure que haya aire fresco, espere 5 minutos y vuelva a encenderlo. Debido a las condiciones atmosféricas locales,
es posible que el calefactor no se vuelva a encender.
• Si mueve el calefactor cuando está encendido o si, al colocarlo en el suelo, lo golpea, es posible que el interruptor de vuelco
haga que se apague el calefactor. Si esto sucede, vuelva a encenderlo.
• El tiempo de funcionamiento variará según el lugar y el tamaño del cilindro. Consulte el gráfi co y la sección "Funcionamiento
en clima frío".
• NOTA: ESTE CALEFACTOR PUEDE FUNCIONAR CON (1) CILINDROS DE GAS PROPANO DESECHABLES DE 1 LB O
CON (1) CILINDRO DE GAS PROPANO RECARGABLE REMOTO DE 20 LB COMO MÁXIMO UTILIZANDO (1) manguera
de extensión de 12’ WMAI modelo n.º 20-7512F y (1) fi ltro de combustible WMAI modelo n.º 20-7512F (se venden por
separado)
FUNCIONAMIENTO EN CLIMA FRÍO:
• Por lo general, el clima frío se defi ne como temperaturas ambiente inferiores a 32 °F.
• Los cilindros de gas propano de 1 lb tienen difi cultad para producir sufi ciente gas a bajas temperaturas y se pueden congelar,
lo que reduce el tiempo de funcionamiento entre un 50 % y un 70 %. Por esta razón, se recomienda utilizar únicamente
tanques de gas propano de 20 lb bajo estas condiciones.
• Si se utiliza un tanque de 1 lb en climas fríos, por ejemplo, en una cabaña para pescadores escarchada, tenga en cuenta las
siguientes sugerencias:
1. Los tiempos de funcionamiento se reducirán considerablemente.
2. Nunca coloque el calefactor directamente sobre el hielo. Coloque el calefactor sobre una pieza de material aislante
rígido resistente a las llamas y asegúrese de que las ranuras de ventilación de la parte inferior del calefactor no estén
obstruidas.
3. Levante ligeramente el calefactor sobre el nivel del suelo. Asegúrese de que la unidad esté nivelada y fi rme y no se
pueda volcar.
4. Mantenga abierta la puerta de acceso del tanque. Esto proporciona calor adicional para calentar el cilindro de 1 lb.
5. Se debe proporcionar cantidad adecuada de aire de ventilación y combustión.
6. Mantenga todas las distancias según se especifi can en la página 18.
Observe cuidadosamente el calefactor para verifi car que no haya signos de congelamiento del cilindro de 1 lb. Si la parte in-
ferior del quemador comienza a tornarse de naranja a azul y comienza a chisporrotear, apague inmediatamente el calefactor
y retírelo del espacio cerrado.
ADVERTENCIA:

17
NUNCA DEJE DESATENDIDO EL CALEFACTOR
MIENTRAS ESTÁ ENCENDIDO.
• No utilice accesorios no aprobados en este calefactor.
• Debido a las altas temperaturas, el artefacto se debe colocar fuera del tráfi co y apartado de materiales combustibles.
• Tanto los niños como los adultos deben estar al tanto de los peligros de las altas temperaturas y mantenerse alejados para
evitar quemaduras o riesgo de que se les prenda fuego la ropa.
• Cuando haya niños cerca del lugar donde se encuentra el artefacto, se los deberá supervisar atentamente.
• Nunca coloque ropa u otro material infl amable sobre el artefacto o cerca de este.
• No ponga en funcionamiento el calefactor sobre un vehículo en movimiento.
• Este calefactor también se puede utilizar en un espacio cerrado de uso recreativo o comercial que tenga una ventana o una
ventilación en el techo. También se puede utilizar en exteriores.
• Este calefactor requiere un área de ventilación mínima de 18 pulgadas cuadradas (por ejemplo, una abertura de 4 1/4" × 4 1/4") para
que la ventilación sea adecuada durante el funcionamiento. No utilice otros artefactos que queman combustible en el interior.
• LA PRESIÓN DE GAS DEL CALEFACTOR SE REGULA Y SE FIJA EN 11" DE COLUMNA DE AGUA. AL UTILIZAR UNA CONEXIÓN
DE MANGUERA REMOTA A LOS REGULADORES DEL CALEFACTOR, NO REGULE NI REDUZCA LA PRESIÓN DE SUMINISTRO
DEL TANQUE DE GAS PROPANO AL CALEFACTOR.
• LOS REGULADORES DEL CALEFACTOR SIEMPRE DEBEN ESTAR EN SU LUGAR DURANTE EL FUNCIONAMIENTO.
• Antes de poner en funcionamiento el calefactor, vuelva a colocar todas las protecciones o pantallas de seguridad que hayan
sido retiradas para realizar la reparación del artefacto.
• El artefacto debe ser inspeccionado antes de cada uso. Posiblemente se requiera una limpieza frecuente. Los
compartimentos de control, los quemadores y los conductos de aire circulante deben mantenerse limpios; consulte la
sección MANTENIMIENTO.
• NO utilice este calefactor si se ha mojado alguna de las piezas. Llame inmediatamente a un técnico califi cado para que inspeccione el
calefactor y reemplace las piezas del sistema de control y los controles de gas que se hayan mojado.
• Si se lo utiliza sin un fl ujo adecuado de aire de combustión y ventilación, el calefactor puede emitir una cantidad excesiva de
MONÓXIDO DE CARBONO, un gas tóxico que no produce olor.
• Algunas personas ―embarazadas, personas con enfermedades cardíacas o pulmonares, anémicas, las que están bajo los efectos
del alcohol o las que están a alturas elevadas― se ven más afectadas por el monóxido de carbono que otras.
• Los cilindros se deben desconectar cuando el calefactor está fuera de uso.
• Cuando el calefactor se coloque sobre el suelo, asegúrese de que el suelo esté nivelado y mantenga cualquier objeto a una distancia
mínima de 15" desde el borde del calefactor. ESTE CALEFACTOR ESTÁ EQUIPADO CON UN INTERRUPTOR DE VUELCO QUE
APAGA EL ARTEFACTO SI SE VUELCA. NO OBSTANTE, NUNCA DEJE EL CALEFACTOR DESATENDIDO O EN UN LUGAR
DONDE LOS NIÑOS PUEDAN VOLCARLO. ¡NUNCA DEJE EN FUNCIONAMIENTO EL CALEFACTOR MIENTRAS DUERME!
• Mantenga los cilindros recargables remotos de 20 lb. por lo menos a 6 pies del calentador en todo momento.
INSTRUCCIONES GENERALES SOBRE SEGURIDAD
ESTE ES UN ARTEFACTO DE CALEFACCIÓN. NO PONGA EN FUNCIONAMIENTO ESTE ARTEFACTO SI LA REJILLA DE
PROTECCIÓN NO ESTÁ INSTALADA. NO INTENTE CALENTAR NI COCINAR ALIMENTOS SOBRE ESTE CALEFACTOR.
N.º DE MODELO ................................................................................ PPH360-10 / PPH360-18
TIPO DE GAS .........................................................................................................PROPANO
ENTRADA BTU/H.....................................................................Serie HA1360 - 7500 - 10 000
PRESIÓN MÁX. DE SUMINISTRO........................................................PRESIÓN DEL TUBO
DISTANCIA A COMBUSTIBLES (DESDE EL BORDE DE PROTECCIÓN)
SUPERIOR ...........................................................................................................17 pulgadas
FRONTAL .............................................................................................................15 pulgadas
LATERALES .........................................................................................................15 pulgadas
TRASERA .............................................................................................................15 pulgadas
ESPECIFICACIONES PRECAUCIÓN:
• Las superfi cies de linóleo se pueden decolorar
si el calefactor se coloca directamente sobre el
revestimiento.
• Cuando el calefactor funciona a alturas
superiores a los 7000 pies sobre el nivel
del mar, es posible que se apague. (Lea la
INFORMACIÓN GENERAL).
Tamaño del cilindro Tiempo de funcionamiento
Un cilindro de 1 lb
Dos cilindros de 1 lb
Un cilindro de 20 lb
PPH360-10
2.7 h (alto) - 3.2 h (bajo)
N/A
45 h (alto) - 58 h (bajo)
ENTRADA BTU/H. .....................................................................Serie PPH18 - 18K, 9K y 4K
Tiempo de funcionamiento
PPH360-18
NO RECOMENDADO
2,4 horas (H) 4,7 horas (M) 10,7 horas (L)
24 h (H), 48 h (M), 108 h (L)

18
NUNCA DEJE DESATENDIDO EL CALEFACTOR
MIENTRAS ESTÁ ENCENDIDO.
INSTRUCCIONES DE INSTALACIÓN DEL TANQUE
Instalación del tanque para cilindros de gas propano de 1 lb con certifi cación del Departamento de Transporte (DOT) (Fig. 1)
• Abra las puertas de fácil acceso del compartimento del tanque.
• Localice el regulador y gírelo hacia arriba con la mano de manera que tenga mejor acceso para el cilindro.
• Conecte los cilindros en el montaje giratorio girando suavemente en sentido de las agujas del reloj hasta que quede ajustado. No
ajuste demasiado. No utilice herramientas para ajustar.
• Coloque una solución de agua con 50 % de jabón en la junta entre el regulador y el cilindro para detectar fugas de gas.
Instalación del tanque para cilindros de gas propano de 20 lb (Fig. 1a)
• Abra las puertas de fácil acceso del compartimento del tanque.
• Localice el regulador y gírelo hacia arriba con la mano de manera que tenga mejor acceso para el adaptador del extremo de la
manguera.
• Conecte el fi ltro de combustible modelo 20-7512F en el montaje giratorio girando suavemente en sentido de las agujas del reloj
hasta que quede ajustado. No lo ajuste demasiado. No utilice herramientas para ajustar.
• Conecte el adaptador del extremo de la manguera WMAI (n.º 20-7512F al fi ltro de combustible girando suavemente en sentido
de las agujas del reloj hasta que quede ajustado. No ajuste demasiado. No utilice herramientas para ajustar.
• Coloque una solución de agua con 50 % de jabón en la junta entre el regulador y el adaptador del extremo de la manguera para
detectar fugas de gas.
Fig. 1 - Instalación del tanque del cilindro de 1 lb
Fig. 1a - Instalación del tanque remoto
PARA USO EN INTERIORES Y DE EMERGENCIA
• Cuando el artefacto está en uso, se debe proporcionar cantidad adecuada de aire de combustión y ventilación. Para obtener más
información, consulte las Instrucciones generales sobre seguridad en la página 18.
• En este calefactor solo se pueden utilizar cilindros de 1 lb. marcados con la leyenda PROPANO.
• NUNCA use un cilindro de gas propano recargable en lugares cerrados. Podría producirse un incendio o una explosión, con daños
materiales y lesiones graves o mortales.
INFORMACIÓN ADICIONAL SOBRE ACCESORIOS
OPCIONALES PARA CONECTAR UN TANQUE DE GAS PROPANO DE 20 LB
• Atención: este calefactor puede funcionar con (1) tanque de gas propano recargable remoto de 20 lb. como máximo.
• Para conectar el tanque de gas propano de 20 lb. se puede utilizar cualquier manguera certifi cada por CSA que tenga un acceso-
rio CGA 600 y un dispositivo de exceso de fl ujo, y que sea adecuada para esta aplicación.
• No se recomienda utilizar mangueras ni adaptadores no certifi cados o confeccionados a mano para conectar el tanque de gas
propano de 20 lb.
• El uso de un fi ltro de combustible es recomendable, pero no obligatorio. El fi ltro de combustible puede reducir los potenciales
contaminantes de la manguera o del tanque de gas propano de 20 lb. y prolongar la vida útil del calefactor.
• Se recomienda usar el kit de conexión del tanque de gas propano de 20 lb. WMAI o, modelo n.° 20-7512F, que
incluye (1) manguera de extensión de 12’ y (1) fi ltro de combustible (se vende por separado).
OE'27
Aprobado
Tanque Cilindro
Regulador
Puerta de acceso
Regulador
Filtro de combustible y
manguera
Kit #
20-7512F
Puerta de
acceso
Cierre con
cuidado la puerta
mientras coloca
la manguera
remota a través
de la ranura de
acceso.

19
NUNCA DEJE DESATENDIDO EL CALEFACTOR
MIENTRAS ESTÁ ENCENDIDO.
INSTRUCCIONES DE ENCENDIDO/
FUNCIONAMIENTO CON MANGUERAS
CONECTADAS A UN CILINDRO REMOTO,
TAMAÑO MÁXIMO DE 20 LB
• Este calefactor se puede utilizar, en un espacio cerrado de uso recreativo
o en un espacio cerrado destinado al trabajo temporario de constructores,
con un cilindro de gas propano recargable remoto ÚNICAMENTE cuando el
cilindro se encuentra en el exterior y el calefactor se utiliza con una manguera
WMAI n.º 20-7512F
• La manguera de WMAI n.º 20-7512F incluye un conector de tanque que
se ajusta con la mano y un accesorio conector de manguera n.º 600.
•ADVERTENCIA: NUNCA use un cilindro de gas propano recargable en
lugares cerrados. Podría producirse un incendio o una explosión, con daños
materiales y lesiones graves o mortales.
• Inspeccione la manguera antes de cada uso. Si hay demasiada abrasión
o está demasiado gastada, reemplácela antes de usar el calefactor con
WMAI 20-7512F.
• El cilindro de gas propano debe incluir un dispositivo de protección contra
sobrellenado registrado y un collarín para proteger la válvula del cilindro.
• El calefactor debe estar en posición vertical durante el funcionamiento.
• Atornille el conector de la manguera en el montaje giratorio del tanque del
calefactor y atornille el extremo opuesto de la manguera en la válvula del
tanque de gas propano líquido. Ajuste todas las conexiones de la manguera.
NO utilice sellador de roscas en ninguna de estas conexiones.
• Abra la válvula del cilindro de suministro de gas propano líquido.
• Verifi que todas las conexiones de la manguera para detectar fugas colocando
agua jabonosa en la conexión roscada, donde el conector de la manguera se
atornilla al regulador y al cilindro de suministro de gas propano líquido.
LEA LAS ADVERTENCIAS DE LAS ETIQUETAS COLGANTES.
INSTRUCCIONES DE ENCENDIDO,
FUNCIONAMIENTO Y APAGADO
1. Asegúrese de que la perilla de control esté en la posición de APAGADO " ".
2. Abra la puerta de acceso e instale la fuente de combustible propano:
a. Instale un cilindro de gas propano de 1 lb con certifi cación del
Departamento de Transporte (DOT).
b. Instale el conector de manguera WMAI modelo n.º 20-7512F
Coloque una solución de agua con 50 % de jabón en la junta entre el
regulador y el cilindro para detectar fugas de gas.
3. Oprima y gire la perilla de control hasta la posición piloto " ".
a. Si está alimentado por un tanque de gas propano de 1 lb, manténgala
oprimida por 30 segundos.
b. Si está alimentado por un tanque de gas propano de 20 lb, manténgala
oprimi da por 4 a 5 minutos
Presione la perilla y gírela hasta la posición de apagado
Desde la posición APAGADO "O", presiónela y gírela en sentido contrario a las
agujas del reloj hasta la posición PILOTO.
4. Mantenga presionada la perilla en la posición PILOTO durante 30 segun
dos o hasta asegurarse de que la llama piloto permanece encendida
5. Suelte la perilla. Esta debería regresar a la posición completamente
extendida y el piloto debería permanecer encendido.
6. Encienda el quemador presionando levemente la perilla y girándola con
suavidad hasta colocarla en la posición ALTO " ".
7. Regule la salida de calor girando la perilla entre la posición ALTO y BAJO " ".
8. Para apagar el calefactor, gire la perilla en sentido de las agujas del reloj
hasta la posición de APAGADO, retire el cilindro de gas o cierre la válvula
del tanque de gas propano para que el calefactor pueda quemar el gas en la
manguera y luego gire la perilla del calefactor hasta la posición APAGADO.
PRECAUCIÓN
No intente regular la temperatura con la válvula de paso del tanque de gas
propano. Una vez que se apague el calefactor, la protección seguirá estando
caliente. Deje que el calefactor se enfríe antes de guardarlo.
No utilice, guarde, conecte ni retire la conexión de la manguera/cilindro cerca
de elementos infl amables o fuentes de ignición.
Fig. 2 - Instrucciones de encendido
Fig. 3 - Encendido en áreas ventosas
ENCENDIDO EN ÁREAS VENTOSAS
1. Coloque el calefactor de manera que el piloto quede en dirección
opuesta al viento.
2. Colóquese detrás del calefactor de manera que su cuerpo bloquee
el viento y siga las instrucciones para encender la unidad.
DIRRECIÓN
DEL VIENTO
POSICIÓN PILOTO
Perilla de control
Posición APAGADO
Puesto de piloto
Posición alta
Posición BAJA
Marca indicadora de
la perilla
