ConServ CW 2240 W User manual

High Efficiency Washer
Model - CW 2240 W/B/S

Your appliance is protected by this warranty under
normal, personal, family or household use for 2 Year Parts & Labor
and limited commercial use (90 days) in USA and Canada.
two
Conserv Appliances
Conserv Appliances
Conserv Appliances

In no event shall Conserv Appliances be liable for incidental or consequential damages or for
damages resulting from external causes such as abuse, operation misuse, neglect,
alterations, normal wear and tear, incorrect voltage or acts of God. This warranty does not
cover service calls which involve defective workmanship, damage due to other products while
combined use with this product or materials covered by this warranty. Accordingly, diagnosis
and repair costs for a service call which involves defective workmanship or materials will be
the responsibility of the consumer-owner.
Most work is covered. The defining factor is has the appliance malfunctioned (Conserv
Appliances is responsible) or has the customer omitted or done something to cause malfunction
(customer is responsible).

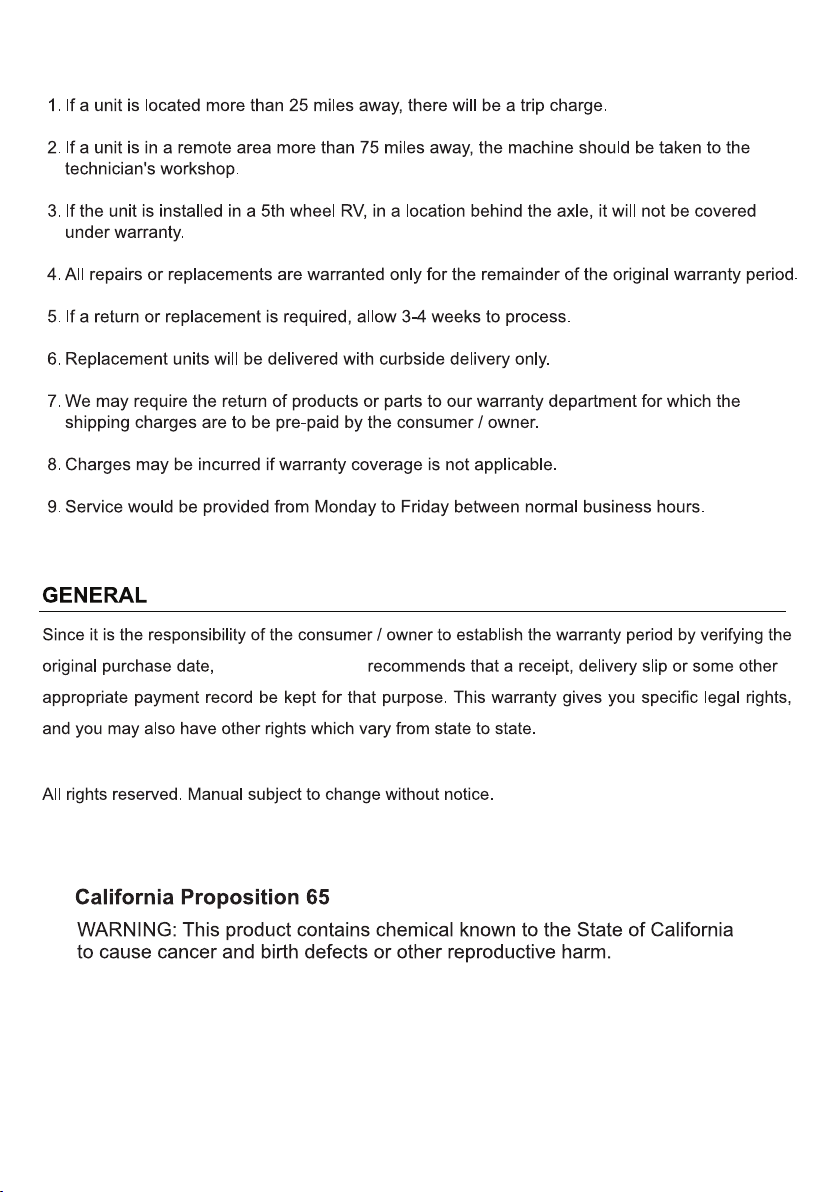

Exclusions
1. Non-removal of shipping bolts, causing vibration, resulting in internal damage.
2. Non-adjusment of feet to level machine, causing vibration, resulting in internal damage.

Conserv Appliances
Warranty Limitations

Safety
Installation
Electrical Connection
Grounding Instructions
Water Inlet Hose Connection
Water Discharge Connection
Operation
Control Panel
Detergent Drawer and Compartments

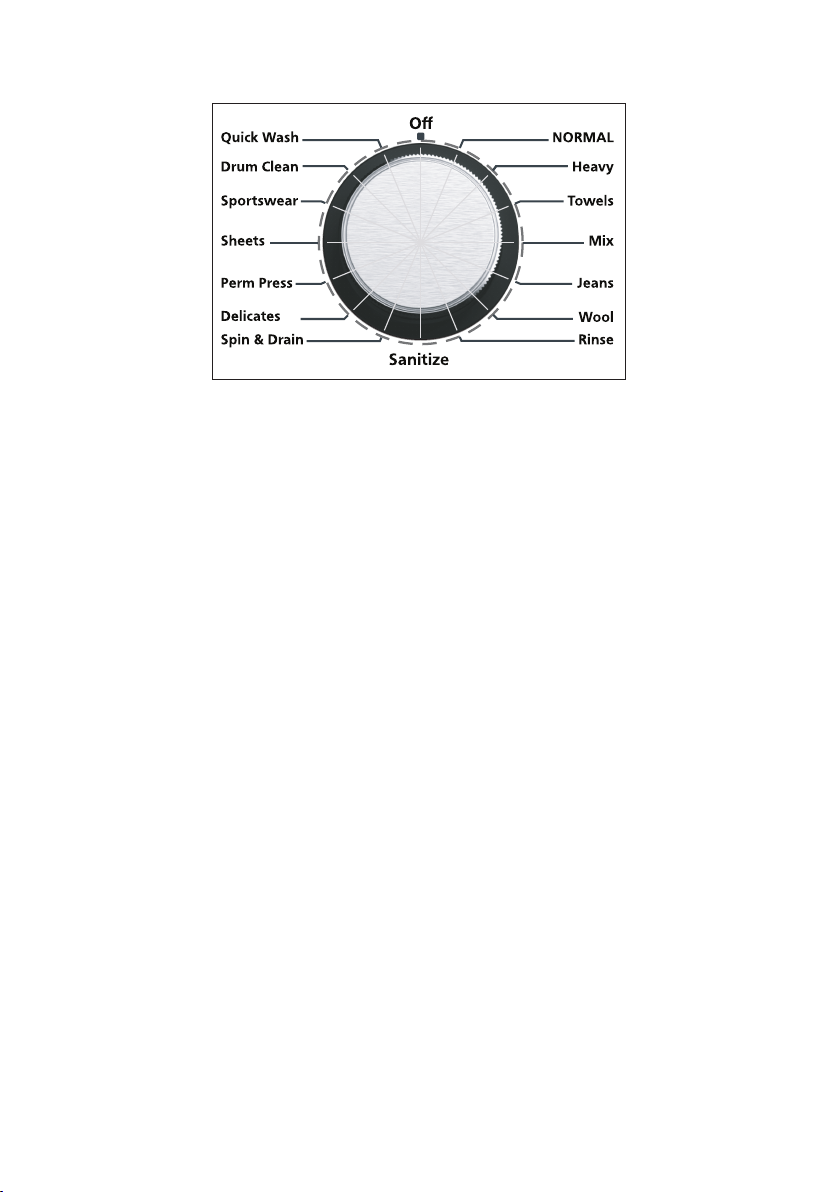

Program Dial
Wash Programs Table
Display Panel
Maintenance
Troubleshooting
Error Codes
Technical Specifications
1
5
7
7
8
9
10
11
11
12
13
14
17
21
23
23
Table of Contents

SAFETY
Your safety and the safety of others are very important.
Please read and follow the important safety warnings in this manual and on
your appliance.
Danger indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
Warning indicates a hazardous situation that if not avoided, ,
could result in death or serious injury.
, Caution indicates a hazardous situation that if not avoided,
could result in minor or moderate injury.
DANGER
WARNING
CAUTION
• Do not wash items that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that could
ignite or explode.
• Do not add gasoline, dry-cleaning solvents, or other flammable or
explosive substances to the wash water. These substances give off
vapors that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot-water
system that has not been used for 2 weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot-water system has not been used for such a
period, before using the appliance, turn on all hot-water faucets and
let the water flow from each faucet for several minutes. This will release
any accumulated hydrogen gas. As the gas is flammable, do not smoke
or use an open flame during this time.
• Do not store flammable liquids near the appliance.
• The sulfur content of paint removers may cause corrosion. Never use paint
removing materials in the appliance.
• Never use products that contain solvents in the appliance.
Risk of Fire
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, always follow basic precautions.
1

• Please ensure that items loaded into your appliance do not have plastic,
metallic, or sharp objects such as pins, keys, or coins.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in the manual or in published user-repair
instructions that you understand and have the skills to carry out.
• To reduce the risk of electric shock, disconnect this appliance from the
power supply before attempting any maintenance. Turning the controls to
the OFF position does not disconnect this appliance from the power supply.
Do not touch the drain hose or any discharged water while your appliance is
running. The high temperatures pose a burn risk.
Risk of Injury or Death from Electrical Current
• Do not connect your appliance to the mains electricity supply using an
extension cord.
• Do not insert a damaged plug into a socket.
• Never remove the plug from the socket by pulling the cord. Always hold
the plug.
• Never touch the power cord/plug with wet hands as this could cause a
short circuit or electric shock.
• Do not touch your appliance if your hands or feet are wet.
• A damaged power cord/plug can cause fire or give you an electric shock.
A damaged cord or plug must be replaced by a qualified technician.
• Connect the appliance to a dedicated circuit.
Risk of Burns
WARNING
2

Risk of Flooding
• Check the speed of water flow before placing the drain hose in a sink.
• Secure the hose to prevent it from slipping. Water flow may dislodge the
hose if it is not properly secured.
• Ensure the plug in your sink does not block the drain.
Risk of Falling and Injury
• Do not climb on your appliance.
• Do not reach into the appliance if the drum is rotating.
• Ensure hoses and cables are secured and do not present a tripping hazard.
• Do not turn your appliance upside down or on its side.
• Do not lift your appliance using the door or detergent drawer.
• The appliance must be carried by at least 2 people.
3

Child Safety
• The appliance is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Do not leave children unattended near the . Children might lockappliance
themselves in the appliance resulting in risk of death.
• Children should not play with the appliance.
• Cleaning and maintenance should not be done by children.
• Do not allow children to touch the glass door during operation. The surface
becomes extremely hot and may cause damage to skin.
• Poisoning and irritation may occur if detergent and cleaning materials are
consumed or come into contact with the skin and eyes. Keep cleaning
materials out of the reach of children.
• Keep packaging material away from children. The packaging of the
appliance could be hazardous to children. Do not allow children to play
with the packaging or small parts from the appliance.
• Keep the packaging materials in a place where children cannot reach them
or dispose of them appropriately.
• Before the appliance is removed from service or discarded, remove the
door to prevent child entrapment.
Safe disposal
Dispose off this appliance in accordance with local regulations.
4

Installation
Please check the packaging of the washer and the outer surface of the
washer once the packaging has been removed. Do not operate the washer
if it appears damaged or if the packaging has been opened.
Your washer must only be installed by an authorized service agent.
Before installing the washer, remove the shipping bolts.
1. Remove the 4 shipping bolts and rubber spacers from the back of the
washer. If the bolts are not removed, they may cause heavy vibration,
noise and malfunction of the washer and void the warranty.
2. Loosen the shipping bolts by turning them counterclockwise with a wrench.
3. Remove the shipping bolts by pulling them straight out.
4. Fit the plastic blanking caps supplied in the accessories bag into the
gaps left by the removal of the shipping bolts Store the shipping bolts .
for future use.
5

• The necessary ambient temperature for operation of your washer is
59°F - 77°F. If the temperature is below 32°F, hoses may split or the
electronic module may not operate correctly.
• Do not install or store this where it will be exposed to the weather washer
or outdoors.
• Install your washer in a location that can be fully ventilated and
preferably has constant air circulation.
• Do not install the washer on a carpet or surfaces that would prevent the
ventilation of its base.
• Ensure that the door of your washer is not restricted and can be
opened fully.
washer place the • To ensure silent and vibration-free operation of the
washer on a flat, smooth and firm surface.
Leveling
• Level your using the adjustable feet. Never insert cardboard, washer
wood or other similar materials under the to level it.washer
• To increase the height of the , turn the feet clockwise. To decrease washer
the height of the , turn the feet counterclockwise.washer
• Once the is level, tighten the locking nuts by turning washer
them clockwise.
Placement
6

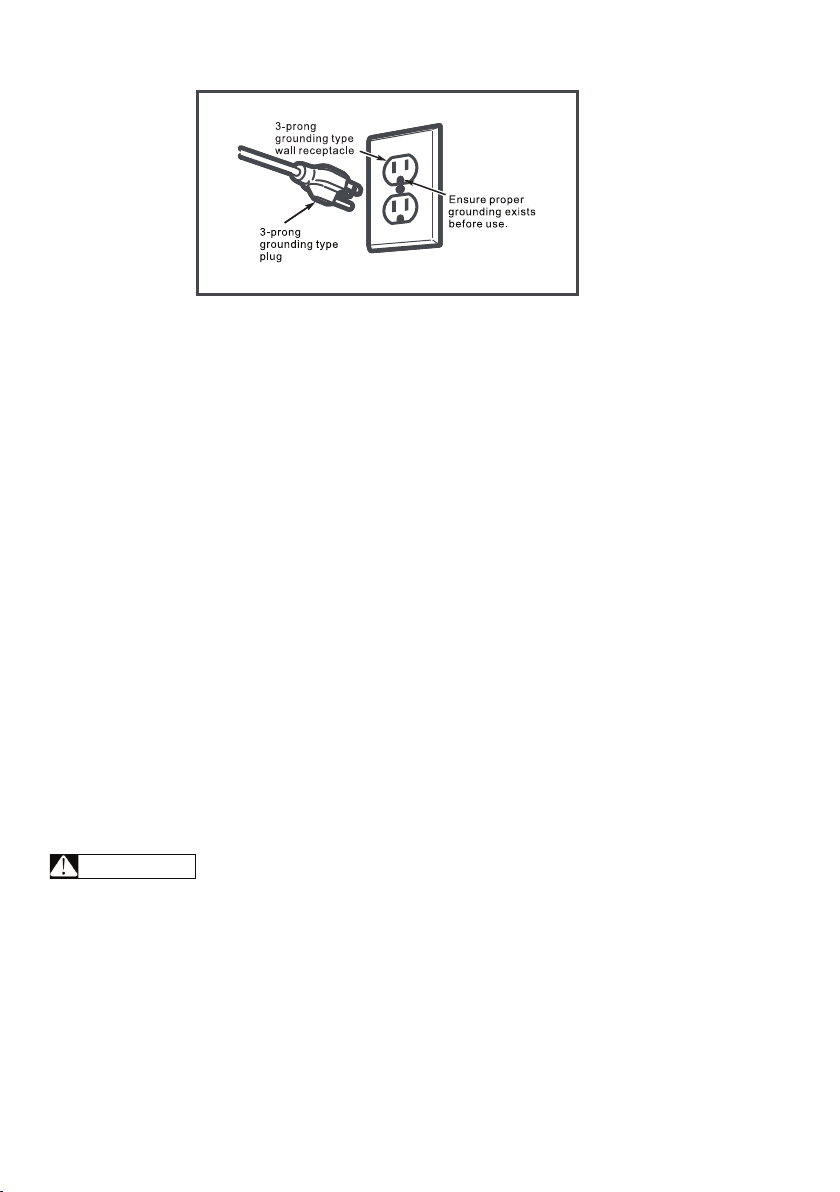

Grounding Instructions
This must be grounded. In the event of malfunction or breakdown, washer
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This is equipped with a cord having washer
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
service technician if you are in doubt as to whether the is washer
properly grounded.
Do not modify the plug provided with the . If it does not fit the washer
outlet, ensure that the correct outlet is installed by a qualified electrician.
Electrical Connection
The requires a 110 -120V / 60Hz mains supply.• washer
• The mains cord of the is equipped with a grounded plug. This washer
plug should always be inserted to a grounded outlet of minimum15 amps.
If connected to a circuit protected by fuses, use time-delay fuses with •
this washer.
• If you do not have a suitable socket and fuse conforming with this, please
ensure the work is carried out by a qualified electrician.
WARNING
7

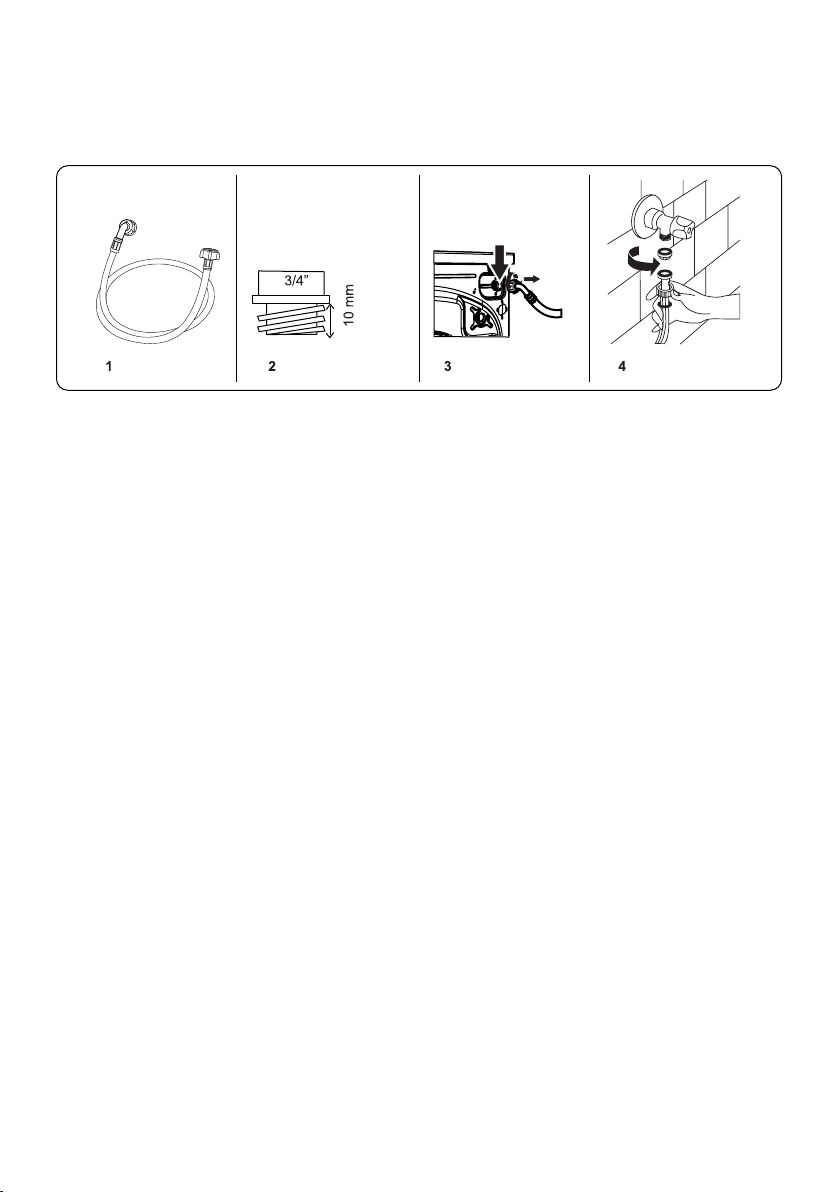

Water Inlet Hose Connection
• Your has hot and cold water inlet connections. The red capped washer
hose should be connected to the hot water inlet.
• To prevent water leaks at the joints, nuts are supplied with the hose. Fit
these nuts to the end(s) of the water inlet hose that connect to the
water supply.
• Connect the water inlet hoses to a ¾” threaded tap.
• Connect the white capped end of the water inlet hose to the white water
inlet valve on the rear side of the and the red capped end of the washer
hose to the red water inlet valve (if applicable).
• Hand tighten the connections If in any doubt, consult a qualified plumber. .
• Water flow with pressure of 0 1 1 Mpa will allow your to operate . - washer
at optimum efficiency. Pressure of 0.1 Mpa means that more than
2 gallons (8 liters) of water per minute will flow through a fully opened tap.
• Once you have made all of the connections, carefully turn the water supply
on and check for leaks.
• Ensure that the new water inlet hoses are not trapped, kinked, twisted,
folded or crushed.
• If the has a hot water inlet connection, the temperature of the washer
hot water supply should not be higher than 158°F.
Note: Some water may be left in your washer as a result of quality
checks during production. This will not affect the operation of your washer.
8
Use only the water inlet hose provided with your when making water inlet washer
connections to your . Never use old, used or damaged water inlet hoses.washer

Water Discharge Connection
• Connect the water drain hose to a standpipe or to the outlet elbow of a
household sink.
• Ensure that the drain hose is not bent buckled crushed or extended, , .
• The drain hose must be installed at a minimum height of 24 inches and
maximum height of from the ground40 inches .
• Do not extend the drain hose.
• Do not put the drain hose into a container bucket or bathtub.,
9

Operation
WARNING - To reduce the risk of fire, electric shock, or injury to persons,
read IMPORTANT SAFETY INSTRUCTIONS before operating
this .washer
Ensure the Washer is plugged in correctly and the water supply is turned on.
Ensure that children and pets have not climbed into the and keep washer
them away from the when it is in use.washer
• Follow the instructions given on the care labels on the clothing.
• Separate your laundry according to type (cotton, synthetic, sensitive, wool
etc.), washing temperature and soil level.
• Never wash colored and white clothing together. Dark clothing may contain
excess dye and should be washed separately several times.
• Please ensure that items loaded into your do not have objects washer
such as lighters, keys, coins, etc. Any malfunctions due to foreign materials
damaging your are not covered by the warranty.washer
• Close zips and fasten any hooks and eyes.
• Reverse items such as pants, t-shirts and sweat shirts.
• Wash small items in a net bag.
• Load each item of laundry separately.
• Do not overload the washer. You should be able to comfortably place your
hand above the loaded laundry, ensuring there is enough space for the
clothes to be washed properly.
• Check that no items of laundry are trapped between the rubber seal and
the door.
• Gently push the door until it clicks shut. Ensure the door is fully closed,
otherwise the program will not start.
Never force the door open or open the detergent drawer while the
is in operation.washer
10
Preparation

Control Panel
Detergent Drawer Program Dial Display Panel
Detergent Drawer and Compartments
Liquid Detergent Attachments
Detergent - powder or liquid
(left compartment)
Softener
(middle compartment)
Pre-Wash - for heavily soiled laundry
(right compartment)
• The amount of detergent used depends on the load size and the soil level.
• Use detergents produced for automatic washing machines. Follow the
manufacturer's instructions on the amount of detergent and softener to use.
• Put softener in the middle compartment and ensure not to exceed the
Max level. Thick softeners may cause clogging of the drawer and should
be diluted.
• Residue may build up in detergent and softener compartments. Fill these
compartments only at the beginning of each wash.
11

• The Program Dial should be in the Off position (no lights will appear
around the dial).
• To select the desired program turn the Program Dial either clockwise or ,
counterclockwise until the light next to the selected program illuminates
and you hear a beep.
Ensure the display panel is illuminated with the default features.•
If the above does not happen, then turn the Program Dial to the Off •
position, and select the program again.
The wash program is successfully selected when the light on the dial •
next to the program is illuminated and the Display Panel is also
illuminated with the default features.
Refer to the Wash Programs Table as a guide to select programs.•
For all programs there are default factory settings. Depending on the •
specific program, some features can be changed and options added.
Program Dial
12

Wash Programs Table
* Max Temperature and Spin Speed - can be decreased depending on wash program.
**For Quick Wash use less detergent.
NOTE PROGRAM DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS: .
(*) Washing water temperature of the program is the factory default.
(**) Normal program is most energy efficiency program with all wash temperature selections.
(***) Due to the short washing time of this program, we recommend that less detergent is used The program may last longer than 12 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2 minute period is not included in the program duration). .
13
Program Load Description
Max Temp.*
(Default)
Max Spin Speed*
(Default)
Time(Mins)
NO R M AL
Mixed clothes
(shirts, pants, etc.)
Warm Max 113
Heavy Thick cottons Hot Max 131
Towels Thick towels, cottons Hot Max 113
Mix Mixed fabrics Hot Medium 118
Jeans Jeans, pants, denim Warm Medium 100
Wool Sweaters, scarves Warm Medium 58
Rinse All types Tap Cold Max 35
Sanitize All types X-Hot Medium 200
Spin & Drain All types NA Max 17
Delicates Silks, light fabrics Warm Medium 100
Perm Press Cotton blends Hot High 120
Sheets Bedsheets, linen Hot Medium 123
Sportswear T-shirts, leggings Warm High 100
Drum Clean NA X-Hot Max 90
Quick Wash** Light fabrics Cool Medium 12
Program
Load
Descriptions
(Default)
Max
Temp.*
(Default)
Max Spin
Speed*
(Mins)
Time
NORMAL
Mixed clothes
(shirts, pants, etc.)
Warm
Max
113
Heavy
Thick cottons
Hot
Max
131
Towels
Thick towels, cottons
Hot
Max
113
Mix
Mixed fabrics
Hot
Medium
118
Jeans
Jeans, pants, denim
Warm
Medium
100
Wool
Sweaters, scarves
Warm
Medium
58
Rinse
All types
Tap Cold
Max
35
Sanitize
All types
X-Hot
Medium
200
Spin & Drain
All types
NA
Max
17
Delicates
Silks, light fabrics
Warm
Medium
100
Perm Press
Cotton blends
Hot
High
120
Sheets
Bedsheets, linen
Hot
Medium
123
Sportswear
T-shirts, leggings
Warm
High
100
Drum Clean
NA
X-Hot
Max
90
Quick Wash**
Light fabrics
Cool
Medium
12

Display Panel
Additional Functions and Options
Start/Pause
Key
Energy/Water
Efficiency Bar
Child Lock
Once the wash program has been selected, there are additional features
and options that can be added to the program. It is not necessary to select
additional functions and options. You can simply select the wash program
on the Program Dial and then press the Start key and the wash cycle will
begin with the pre-programed default settings.
Each feature and option is explained below.
Note: Each wash program has a different set of features and options and
not all features and options are available for all the programs.
Press this key to delay the start of the wash program. The time
icon and the delay time (1h) will appear on the Display Panel.
Each time you press the Delay key, the time will increase in
one-hour increments from 1 to 23 hours. Press the Start key to
activate the program.
To cancel the delay, press the Delay key until it passes 23h or
turn the Program Dial to Off and select the wash program again.
To change the soil level from the default, press the Soil Level
key to select from 3 levels and the selection will illuminate on
the Display Panel .
To add a rinse to the wash program, press the Extra Rinse key
to select the number of rinses and the selection will illuminate
on the Display Panel .
The default maximum temperature for the wash program
selected will be illuminated on the Display Panel. To change
the temperature, press the Temp. key to select from X-hot, Hot,
Warm, Cool and Tap Cold. (Not all may be displayed.)
Delay
Soil Level
Extra Rinse
Temp.
14
Display Panel and Features

The default maximum spin speed for the wash program
selected will be illuminated on the Display Panel. To change
the spin speed, press the Spin key to select from Max, High,
Medium, Low and No Spin. (Not all may be displayed.)
Press the Options key to select any of the 4 options.
This option allows an extra wash before the regular wash cycle.
Remember to add detergent to the right compartment.
Recommended for heavily soiled clothes.
This option reduces the time, energy and water in the wash
program. If the laundry is only half a load, it will be detected by
the sensors and Rapid wash will automatically be enabled.
This option reduces wrinkles in clothes.
This option keeps the laundry in the last rinse water. To
finish the wash cycle, press the Start key. The water will drain
but not spin.
This is a default function that steams the laundry
eliminating wrinkles.
Press the Options and Steam keys simultaneously for at least
3 seconds until “CL” flashes on the Display Panel for 2 seconds
and child lock is activated. Follow the same procedure to
deactivate child lock and CL will disappear from the panel.
Press this key to start the wash program. When the cycle has
already begun, press it again to pause the program. When you
press the Start/Pause key, the unlock icon on the Display
Panel will change to the lock icon . The door is locked and
cannot be opened until the end of the cycle. When the cycle
ends, a beep will sound and End will show on the Display Panel
and you can then open the door easily.
(After some time the Display Panel will go blank.)
Spin
Options
Pre-wash
Rapid wash
Easy Ironing
Rinse & Hold
Steam
Child Lock
Start/Pause
For the first wash, run the Normal program without laundry and half fill
detergent in the left compartment of the detergent drawer.
This will remove any residue and water from the washer that has been
tested in the factory.
15
