COOL WISE MB 32 User manual

INSTRUCTION MANUAL
MB 32/MB 42/MB 52
PLEASE READ AND FOLLOW ALLINSTRUCTIONS CAREFULLY BEFORE USE.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN BODILY
INJURY, AND/OR PROPERTY LOSS.
RETAIN INSTRUCTION MANUAL FOR FUTURE USE.

1
I. PARTS AND FEATURES
1. Temperature Control Knob 2. Interior Light
3. Cold Sink Fan Cover 4. Shelf
5. Legs 6. Door Liner
7. Upper Hinge Cover 8. Small Bottle Rack
9. Door Gasket 10. Large Bottle Rack
11. Door
Temperature Control

2
II.GENERAL SAFETY PRECAUTIONS
●After removing the refrigerator from the package, make sure it is in good condition.
In case of doubt, do not use it and contact an authorized service center.
●Plastic bags, nails, etc. should be kept out of the reach of children.
●Read the operation manual carefully, check and make sure that the rating data on
the rating nameplate corresponds to your power supply.
●This refrigerator can only be used in the designed use. The manufacturer will not
respond for any damage due to improper use or repairs made by unqualified
personnel.
●Before cleaning the refrigerator, make sure it is unplugged. Never clean the unit
with an acid impregnant, medical, dilution, gasoline, oil or any other kind of
chemical substance that could damage the refrigerator.
●Repair should only be made by authorized service centers.
Caution：
1. To reduce the risk of fire, replace only with same type fuse.
2. Free standing installation only.
3. Do not use extension cords.
Warning:
1. If the supply cord is damaged, it must be replaced by the manufacturer or service
agent or similarly qualified person in order to avoid hazard.
2. Please screw off the door before throwing it away.
3. Please keep the appliance away from any flammable substances.
4. To avoid a hazard due to the instability of the appliance, it must be fixed according
to the instructions.
5. Children should be supervised to ensure that they do not play with the appliance.
6. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
7. Keep ventilation holes clear of obstruction.

3
III. OPERATION OF REFRIGERATOR
Clean the inside before use.
Fix the shelves properly according to the instruction.
When use for the first time (or not use for a long time), you should adjust the
temperature to minimum and have the cabinet empty running for 2 hours, and
then adjust to the desired temperature.
When the power is connected, cooling system starts to work. The TEMP-ADJ
knob(thermostat) is set on certain position, which means that if the temperature
in the refrigerator reaches the point set, Self-control Temperature System stops
cooling system so the temperature in the cabinet rises gradually.
When the inside temperature rises above the set point, Cooling Self-control
Temperature starts to work again, the refrigerator enter into cooling circles.
When you want to change the temperature in the cabinet, You can make use of
the temperature setting knob to set the temperature.The temperature range is
6°C—12°C (± 1°C), after the temperature is set on one certain point and when
the temperature inside reaches this point, the automatic temperature control
system begin to work.

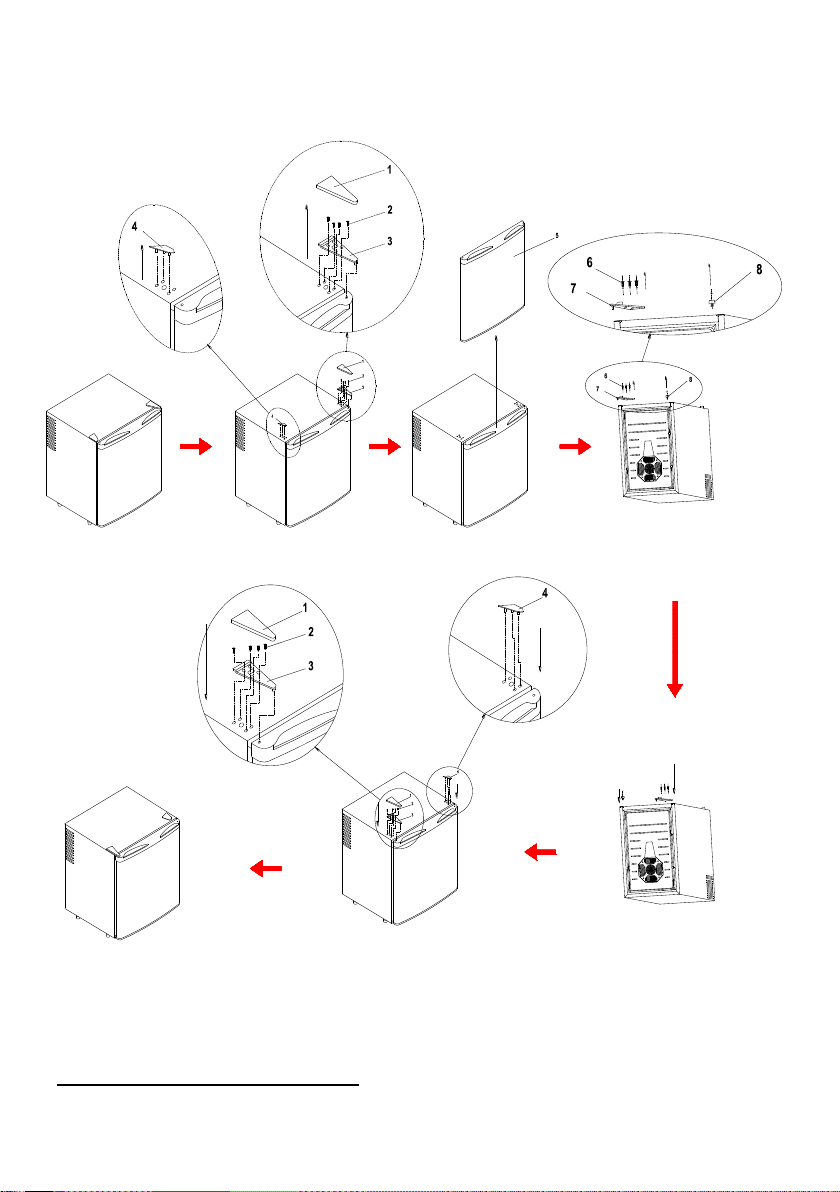

IV. Reversing the Door Swing of Your Appliance
This refrigerator has the capability of the door opening from either the left or
right side. The unit is delivered to you with the door opening from the left side.
Should you desire to reverse the opening direction, please call customer
service for reversal instruction or the chart following the installation of an
adjustment：
Pull out the cover and 4 pcs screws, see step 1 and 2.
Take out upper hinge, see step 3.
Pull out the other cover, see step 4.
Take out the whole door, see step 5.
Pull out the 4 pcs screw and take out the down hinge, see step 6 and 7.
Pull out the feet on anther side, see step 8.
Fix the down hinge into another side which pull out the feet by step 8;
Fix the whole door into the down hinge; then fix the upper hinge by
screws, and fix the cover.

4
V. PARTICULAR PRECAUTIONS
Please unplug the refrigerator before moving.

5
Please check if all the parts are available before installation.
In order to get the best performance at its potential, this refrigerator
needs to be placed on flat floor, with 5cm spaces from the wall at each
side and 10 cm at the backside.
The height of the refrigerator can be adjustable by adjusting the four legs,
but cannot be over 20 mm of each.
Keep ventilation holes clear, and keep at a distance of 50 mm from
surroundings.
Hot food should be cooled down before placing in the refrigerator.
Please keep away from the heat resources or gas.
Avoid direct sunshine and carry high temperature.
Do not place heavy articles on the top of the refrigerator.
VI.TECHNICAL DATA
Model
Semiconductor Electric Refrigerator
Climate Class
Please refer to the information indicated on the product. You will
find the information on the rating label on the back of the unit as
well as inside the cooling compartment. The circuit diagram is
displayed on the back of the unit as well as inside the cooling
compartment
Refrigerant Gas
Refrigerant Charge
Temperature Range
(°C)
Input Power
Rated Frequency
Rated Voltage
Internal volume
Net Weight
Gross Weight
Foaming Agent
External Dimension
(mm)
VII. MAINTENANCE
Shut off power supply before cleaning cabinet.
Clean the cabinet with soda water first and with clean water last.

6
Do not use soap or detergent for the cabinet.
Clean the refrigerator regularly.
VIII. TROUBLE SHOOTING
Symptoms
Possible cause
Solutions
No cooling
Plug not put in
Low voltage
Fuse broken
Put in the plug
Ensure normal voltage
Change fuse
Not cold enough
temperature
inside
The refrigerator is placed
too near heat source;
Bad ventilation;
Fans don’t work;
The door is not closed
tightly or opened too
frequently or for too long
time;
Keep the refrigerator away from
sunshine or other heat source;
Place the refrigerator in the area
with good ventilation and keep
things away from the fans;
Check whether the plug is
connected or change the fan;
Close the door tightly and don’t
open the door too frequently or
for too long time.
Peculiar smell
inside Refrigerator
Check whether there is
any sour inside
Wrap the source or take it out
Inside light flash
Set temperature
Higher than inner
Temperature;
The automatic
Defrost function
Start to work
Adjust the adjustor
Normal function ,No repair needed
Frost on the cold
sink
Too much humidity or too
Low temperature
Inside the case
Output the plug, Stop the power, and
defrost by hand, Connect power again
when the ice thaws
