Coralife Super Luft SL-38 User manual

Owner’s
Manual
Super Luft Pump
SL-38 & SL-65

2
WARNING: To guard against injury, basic safety precautions should be
observed, including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. DANGER: To avoid possible electric shock, special care should be taken since water is
employed in the use of aquarium equipment. For each of the following situations, do not
attempt repairs by yourself; return the appliance to an authorized service facility for service
or discard the appliance:
1. If the appliance falls into the water, DO NOT reach for it! First, unplug it and then retrieve it.
If the electrical components of the appliance get wet, unplug the appliance immediately.
(non-immersible equipment only)
2. If the appliance shows any signs of abnormal water leakage, immediately unplug it from the
power source. (immersible equipment only)
3. Carefully examine the appliance after installation. It should not be plugged in if there is water
on parts not intended to be wet.
4. Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if
it has been dropped or damaged in any manner.
5. To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium
stand and tank to one side of a wall-mounted receptacle to prevent water from dripping

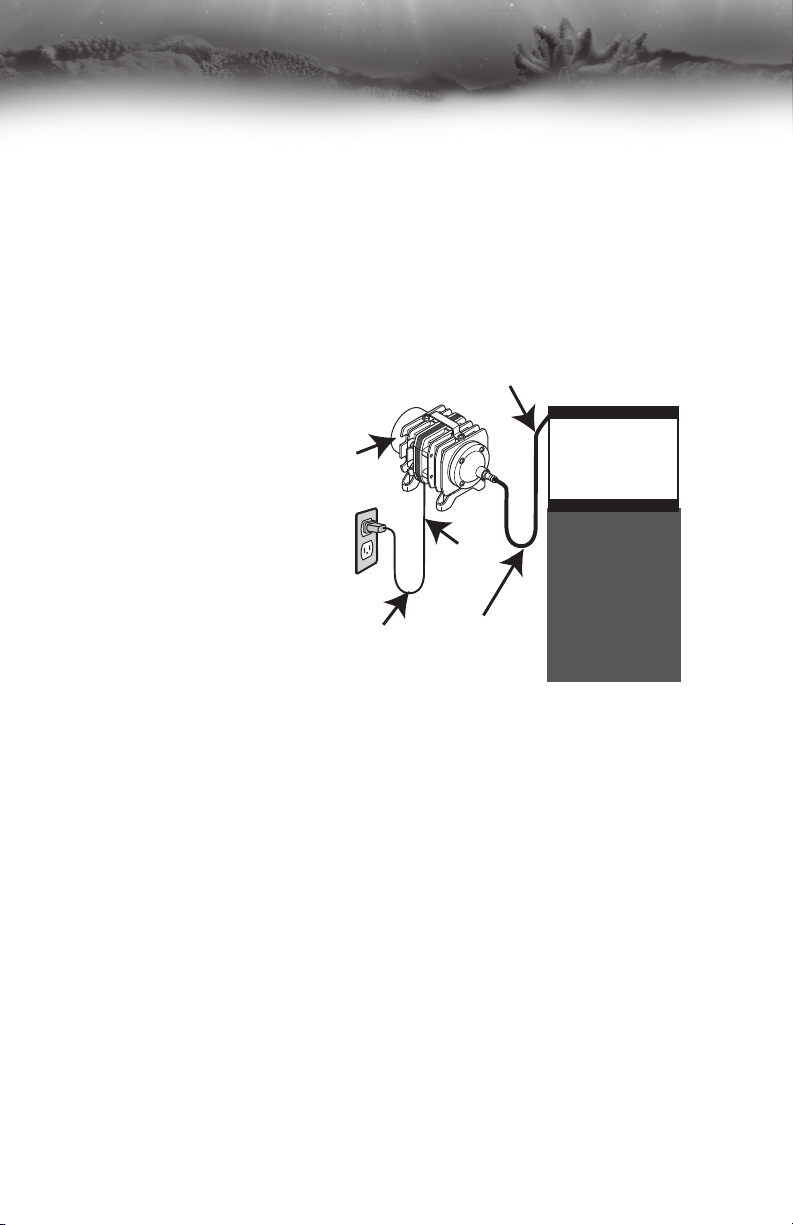

onto the receptacle or plug. A "drip loop" (fig. A1) should be arranged by the user for each
cord connecting an aquarium appliance to a receptacle. The "drip loop" is that part of the
cord below the level of the receptacle, or the connector if an extension cord is to be used,
to prevent water from traveling along the cord and coming in contact with the receptacle.
If the plug or receptacle does get wet, DO NOT unplug the cord. Disconnect the fuse or
circuit breaker that supplies power to the appliance. Then, unplug and examine for presence
of water in the receptacle.
IMPORTANT SAFETY INSTRUCTIONS
Pump
Power
Supply
Cord
DRIP LOOP
fig. A1 - Drip Loop Airline
Tubing
DRIP LOOP

3
c. Close supervision is necessary when any appliance is used by or near children.
d. To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp
bulbs and the like.
e. Always unplug an appliance from an outlet when not in use, before putting on or taking off
parts and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull
to disconnect.
f. Do not use an appliance for other than intended use. The use of attachments not
recommended or sold by the appliance
manufacturer may cause an unsafe
condition.
g. Do not install or store the appliance where
it will be exposed to weather or to
temperatures below freezing.
h. Make sure an appliance mounted on
an aquarium is securely installed before
operating it.
i. Read and observe all the important notices
on the appliance.
j. If an extension cord is necessary, a cord
with a proper rating should be used.
A cord rated for less amperes or watts
than the appliance rating may overheat. Care should be taken to arrange the cord so that it
will not be tripped over or pulled.
k. To prevent corrosion or deterioration of materials that could lead to electric shock, do not
allow contact with water.
l. For added safety, the appliance must be plugged into a receptacle controlled by a GFI
(ground fault interrupter) circuit breaker. Device must be properly connected to a grounded
three-prong receptacle. (fig. A2)
IMPORTANT: Make sure to read and follow instructions in their entirety before
plugging the appliance into an outlet or power source.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE
INSTRUCTIONS
fig. A2 - Three-Prong
Receptacle
Ground Outlet
Grounded
Plug
Grounding Pin

4
Grounding Setup
This appliance should be grounded to
minimize the possibility of electric shock.
This appliance is equipped with an electric
cord with an equipment grounding
conductor and a grounding-type plug.
The plug must be plugged into an
appropriately grounded outlet.
This appliance is for use on a nominal
120-volt circuit and has a grounding plug
that looks like the plug illustrated below.
(fig. B3)
A temporary adaptor may be used to
connect this plug to a two-pole receptacle
if a grounded outlet is not available (fig. B1)
The temporary adaptor should be used only
until a grounded outlet can be installed by a
qualified electrician.
Grounding Installation
The green-colored rigid ear (screw and the
like) extending from the adaptor must be
fastened to a permanent ground, such as a
ground outlet box. (fig. B2)
1. Plug temporary adaptor into two-pole
outlet. (fig. B3)
2. Insert screw through rigid ear on
temporary adaptor and into grounded
outlet box.
Power Strip Setup
1. If using a power strip, the ground
connector must be plugged into a
receptacle controlled by a GFI (ground
fault interupter) circuit breaker.
2. Make sure to place the power strip in a
dry and safe area away from the
aquarium in order to avoid moisture.
3. Place power strip in a secure and stable
area so that it cannot fall into the
aquarium or sump.
4. Make sure all receptacles are protected
from water: splash, spilling and
evaporation.
GROUNDING
Temporary
Adaptor
Temporary
Adaptor
Rigid Ear
(Grounding Means)
Rigid Ear
(Grounding Means)
Grounded
Plug
Ground Outlet
Box Cover
Two-Pole Receptacle
Two-Pole Receptacle
Screw

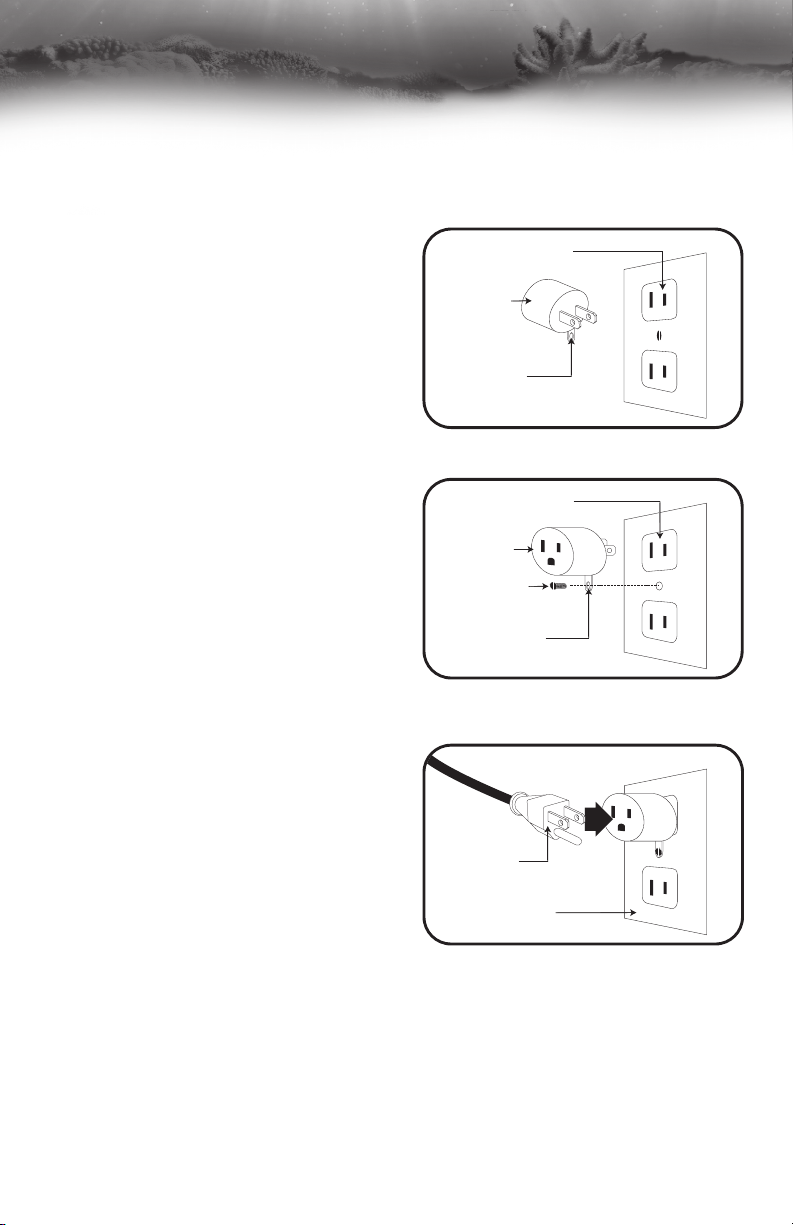

fig. B1 - Temporary Adaptor
fig. B2 - Temporary Adaptor
Installation
fig. B3 - Grounded Plug
Connection

5

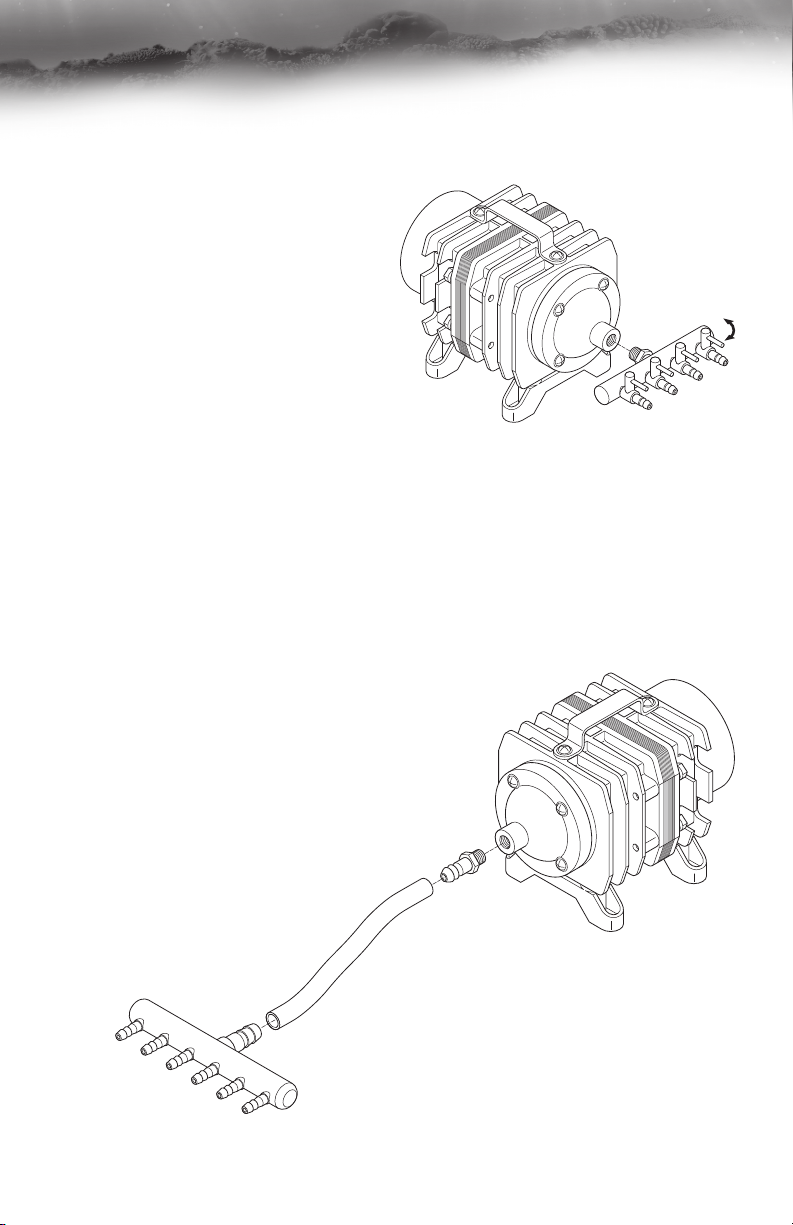

fig. C1 - 4-Outlet Metal Valve
Installation and Adjustment
fig. C2 - Plastic Multi-Outlet Valve
Installation and Adjustment
ATTACHMENTS
Adjustable 4-Outlet Metal Valve
(Figure C1)
1. Connect Adjustable 4-Outlet Metal Valve
by turning clockwise into pump end.
DO NOT overtighten.
2. Adjust the airflow to each individual outlet
by turning adjustment valve. The closer
the valve is to being parallel with the
outlet, the less the airflow is restricted.
As you turn the valve away from being
parallel with the outlet, the airflow
becomes more restricted.
3. Attach airline tubing (not included)
to outlets, position and plug in.
Plastic Multi-Outlet Valve
(Figure C2)
1. Connect metal outlet adapter by turning
clockwise into pump end.
DO NOT overtighten.
2. Securely attach one end of included
tubing to metal outlet adapter.
3. Securely attach Plastic Multi-Outlet Valve
(38 - 4-outlet; 65 - 6-outlet) to opposite
end of tubing.
4. Attach airline tubing (not included)
to outlets, position and plug in.
NOTE: Pump is for external use only
and should not come in contact with water.

6
MAINTENANCE
Clean the Air Filter Every
Three Months (Figure D1 and D2)
1. Unplug pump and disconnect any airline
tubing from valves. Allow pump to
completely cool down.
2. Remove screw from back plastic cover
with a crosshead screwdriver, and remove
back plastic cover from pump (fig. D1).
3. Remove air filter from inside of back cover
(fig. D2).
4. Rinse air filter under cool water to remove
any dust and debris.
5. Allow to dry completely, replace air filter
in back cover, and reattach back cover
using screw.
fig. D2 - Air Filter
Removal
fig. D1 - Plastic Cover
Removal

7
Screw
(4x)
Outlet
Front
Rubber
Seal
Retainer
Disk
Outlet
Plate
Pump
Cover
Inner
Screw
Outlet
Diaphragm
Outlet Rear
Rubber Seal
MAINTENANCE con't
Outer Diaphragm (flapper)
Replacement (Figure E1)
1. Remove four screws from Pump Cover
using a crosshead screwdriver. Remove
Pump Cover from pump.
2. Remove Inner Screw from Retainer Disk,
Oulet Diaphragm and Outlet Plate using
a crosshead screwdriver.
3. Replace damaged Outlet Diaphragm with
new one and reassemble.
fig. E1 - Outer Diaphragm
Replacement

8
Piston
Screw
Retainer
Disk
Piston
Diaphragm
Piston
Ball
Bearing
Piston
Chamber
MAINTENANCE con't
Piston Diaphragm (flapper)
Replacement (Figure F1)
1. Remove Pump Cover and all
accompanying pieces according to Outer
Diaphragm Replacement instructions on
previous page.
2. Stand pump upright on back plastic cover.
Remove entire Piston assembly from
Piston Chamber. NOTE: Be mindful of the
ball bearing inside Piston Chamber so that
it does not roll away.
3. Remove Piston Screw from Retainer Disk,
Piston Diaphragm and Piston using a
crosshead screwdriver.
4. Replace damaged Piston Diaphragm with
new one.
fig. F1 - Piston Diaphragm
Replacement

9

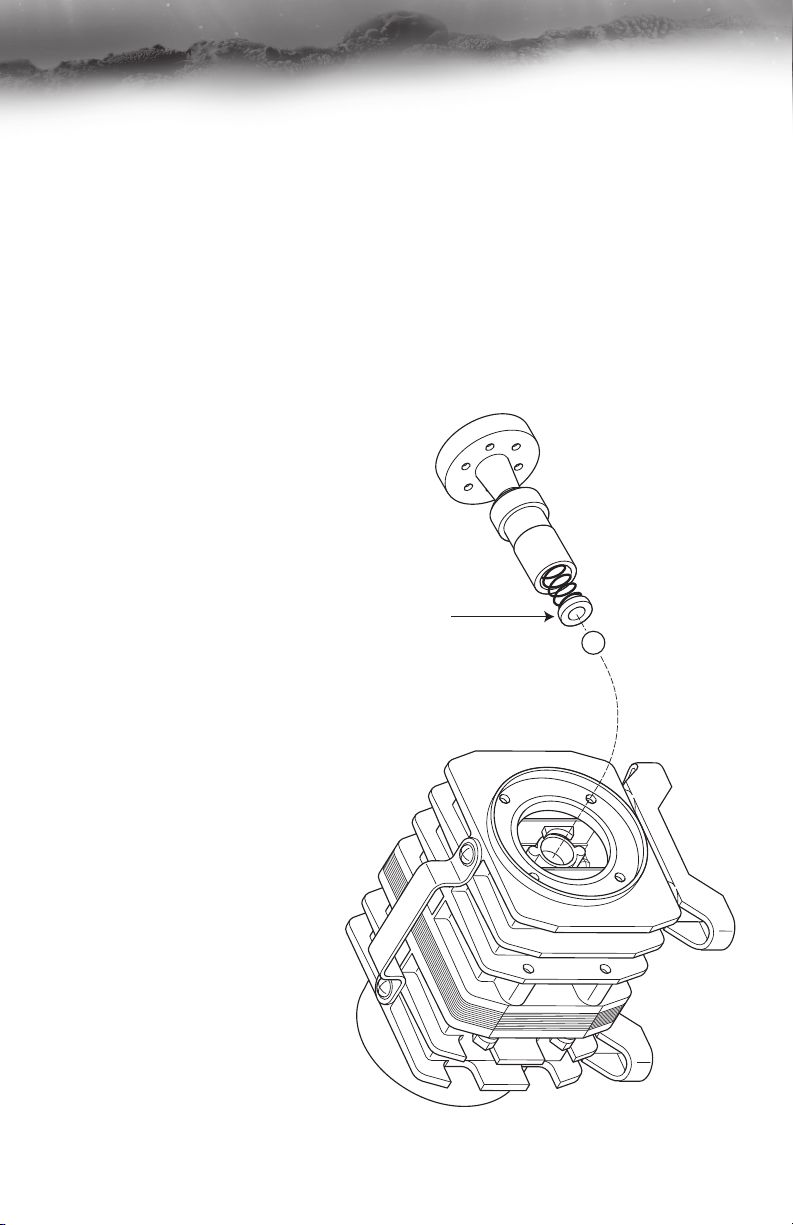

Spring
Attachment
MAINTENANCE con't
Piston Diaphragm (flapper)
Reassembly (Figure F2)
1. Re-attach Piston Diaphragm Lock and new
Piston Diaphragm to Piston using Piston
Screw.
2. While still syanding upright on back plastic
cover, insert entire Piston assembly into
Piston Chamber, making sure that concave
edge of Spring Attachment is over Ball
Bearing. NOTE: Top of Piston should be
flush with edge of Piston Chamber.
3. Reassemble and replace Pump Cover and
all accompanying parts according to Outer
Diaphragm replacement instructions on
page 7.
fig. F2 - Piston Diaphragm
Reassembly

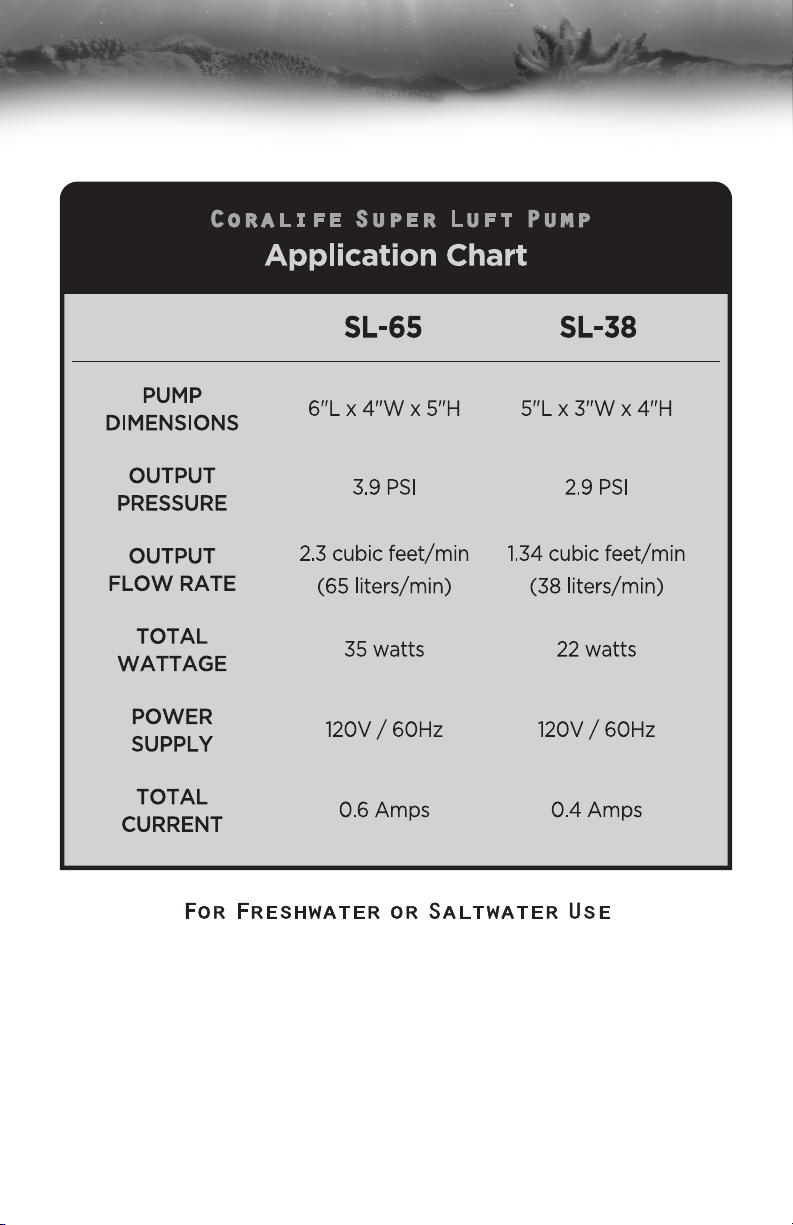

10

11
LIMITED WARRANTY *
Coralife warrants that this product shall be free from defective electrical components due to defects in
materials or workmanship for a period of twelve months from the date of purchase. If a defect is shown,
Coralife will, at Coralife’s sole discretion, either repair or replace the product without charge. No cash
refunds will be made. This warranty is provided solely to the original consumer purchaser of the product
and may not be transferred or assigned.
This warranty does not apply to damage resulting from accident, misuse, abuse, lack of reasonable care,
failure to follow safety and installation instructions, use of the product with non-standard electrical service,
or any other defect not resulting from defects in the electrical components of the product or defects in
materials or workmanship. This warranty will not be effective unless and until the Coralife product is shown
to have been used in accordance with the safety and installation instructions accompanying the product,
including the requirement that the product be used over a covered aquarium.
THIS CONSTITUTES CORALIFE’S ENTIRE WARRANTY AND CORALIFE MAKES NO OTHER
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCT. CORALIFE
SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORALIFE
CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
CORALIFE IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL
THEORY. CORALIFE EXPRESSLY DISCLAIMS ALL ALLEGED DAMAGES FOR LOSS OF AQUATIC LIFE,
PERSONAL INJURY, AND/OR PROPERTY DAMAGE. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages or exclusions or limitations on the duration of implied
warranties or conditions, so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights that vary by state or province.
Coralife shall not have any obligations under this warranty unless the owner notifies Coralife in writing
of any alleged defect(s) within 30 days of discovery of the defect(s). Any notice to Coralife must be
delivered by United States or electronic mail to one of the following addresses:
U.S. Mail:
Central Aquatics - Coralife
5401 West Oakwood Park Drive
Franklin, Wisconsin 53132
Electronic Mail:
[email protected]
Coralife shall be allowed a reasonable period of time to investigate any warranty claim and to perform any
testing Coralife deems necessary to determine the cause of the defect. This warranty shall be interpreted
under the laws of the state of Wisconsin.
For additional information regarding this limited warranty, please contact us at the addresses above,
or call us at 888-255-4527.
*Lamps are not included in this warranty.

12
A product of Central Aquatics
(Division of Central Garden & Pet Company)
Franklin, WI 53132
888.255.4527 coralifeproducts.com
Coralife is a registered trademark of Central Garden & Pet Company
©2014 Central Garden & Pet Company
