Corema GAMMA 250 MONO User manual

Z15.036
0102 V01 ING GEL
OPERATING INSTRUCTIONS
GAMMAGAMMA
GAMMAGAMMA
GAMMA 250250
250250
250 --
--
- GAMMAGAMMA
GAMMAGAMMA
GAMMA 250250
250250
250 MONOMONO
MONOMONO
MONO
Ice cream freezer

English
Ice cream freezer
2

3
Dear customer,
we congratulate you for choosing a high quality product
which will surely satisfy your expectations.
With our thanks for choosing us,
we kindly invite you to examine the present operating
instructions manual before operating your new device.
SUMMARY
WARNING:
GENERAL/MECHANICAL DANGEROUS
DANGER VOLTAGE
A TEXT IN UPPER-CASE, IDENTIFIED BY ONE OF THE SYMBOLS ABOVE, CONTAINS INSTRUCTIONS
THAT, IF NOT FOLLOWED, MAY CAUSE HARM TO PEOPLE.
A text in lower-case, identified by this symbol, contains instructions that, if not followed, could cause
damages or malfunctions to the device, or falls in its quality.
1 IMPORTANT SAFETYSUGGESTIONSAND
PRECAUTIONS ...................................................... 4
2 SAFETYDEVICES.................................................. 5
2.1 Lid'smagnetic sensor ..................................... 5
2.2 Extraction door's grill....................................... 5
3 TECHNICALDATA.................................................. 6
3.1 Technicaldata plateand CE marking .............. 6
3.2 Acoustic pressurelevel ................................... 6
4 CARRYINGANDUNPACKING ............................... 6
4.1 Transportation ofthe packed machine
(floormodels) .................................................. 7
4.2 Unpacking....................................................... 7
5 INSTALLATION ...................................................... 7
5.1 Placing and check of the parts........................ 8
5.2 Machine’s parts reassembling......................... 8
5.3 Electrical connection....................................... 8

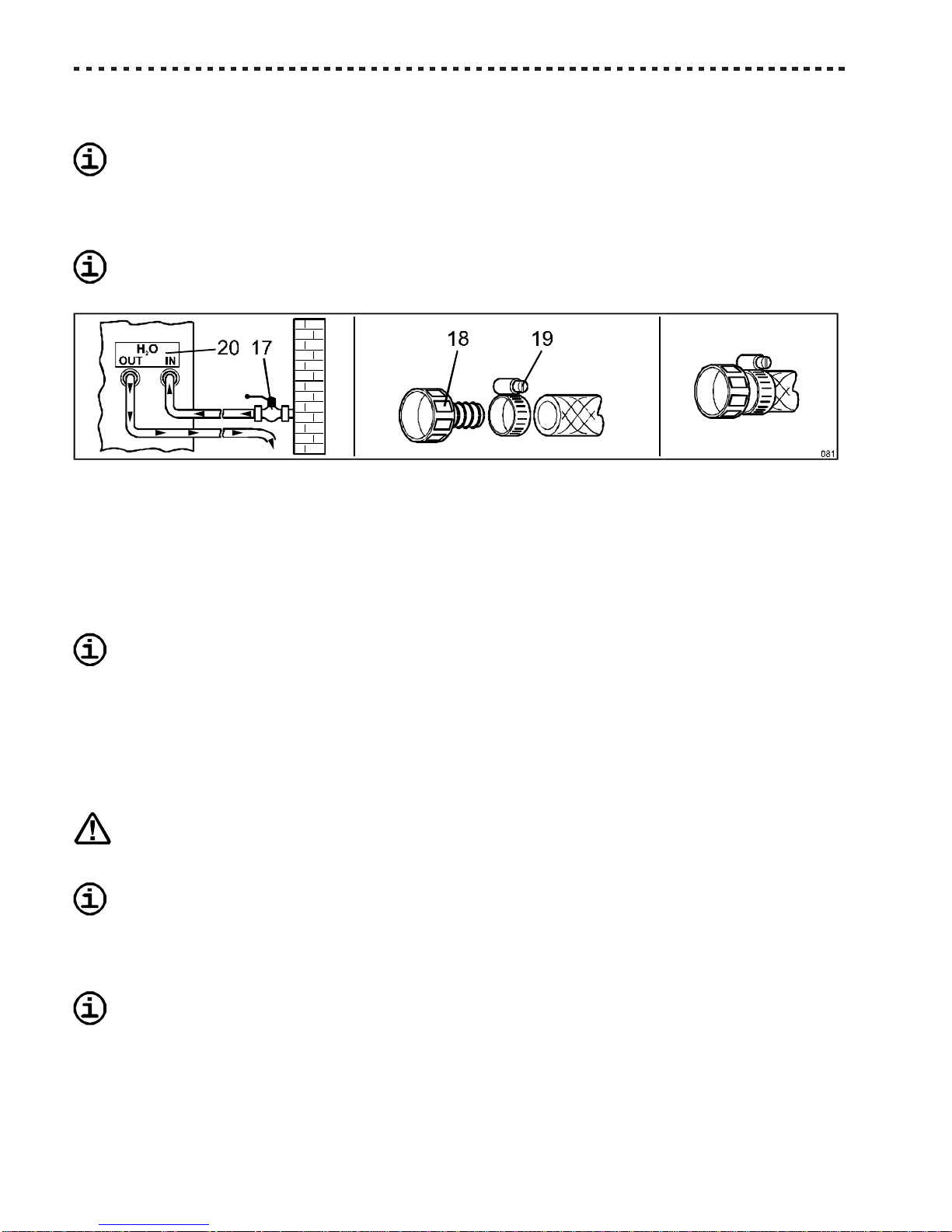

5.4 Connection tothe water network(devices with
watercondensation) .......................................10
5.5 Initial functioning check..................................10
6 MACHINE’SOPERATION......................................11
6.1 Warnings .......................................................11

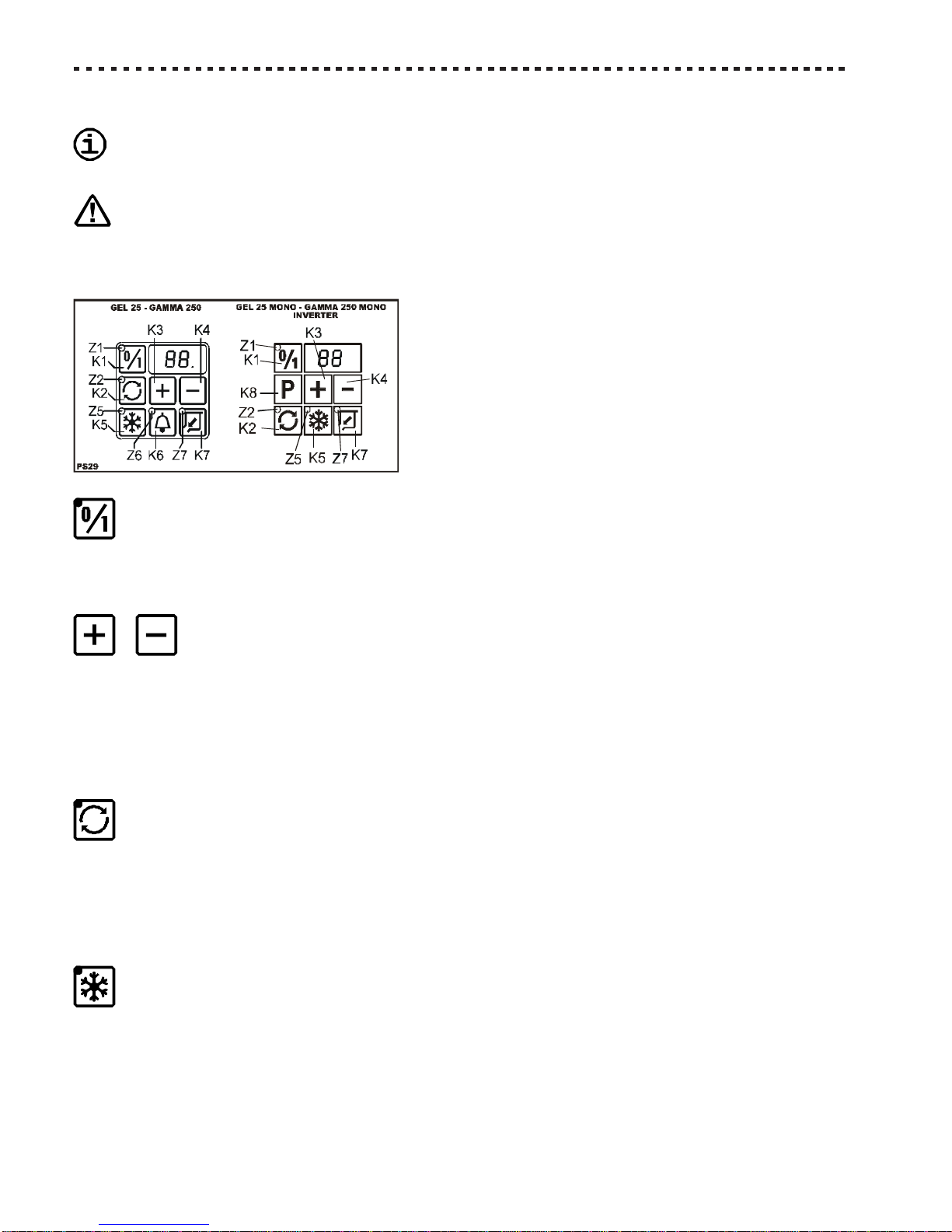

6.2 Commands and indicators..............................12
6.3 Production .....................................................14
7 WASHING .............................................................16
7.1 Simplewashing andhygienisation .................16
7.2 Disassembling ofthe parts.............................17
7.3 Accuratewashing ..........................................17
7.4 Reassembly...................................................18
8 MAINTENANCE .....................................................19
8.1 Maintenance duringthe components
disassembling................................................19
8.2 Check of safetydevices .................................19
8.3 Yearly maintenance .......................................20
9 PERIODS OF INACTIVITY ....................................20
10 MALFUNCTIONS ..................................................20

English
Ice cream freezer
4
1IMPORTANT SAFETY SUGGESTIONS AND PRECAUTIONS
CAREFULLY READ THE INSTRUCTIONS CONTAINED IN THE PRESENT OPERATING INSTRUCTIONS
MANUAL BEFORE INSTALLING AND OPERATING THIS DEVICE. THESE INSTRUCTIONS HAVE BEEN
DRAFTED FOR THE SAFETY OF INSTALLATION, OPERATIONAND MAINTENANCE OF THIS DEVICE.
The present manual of Operating Instructions, placed on the device in the packing and supplied with the Technical
Handbook,the EC’sconformity certificationand the electrical tests schedule,is anintegral partof the ice-creamfreezer
(also defined, in the present manual of operating instructions, simply with the term, device) and must be preserved for
anyfuture consultation.
TheTechnical Handbook must always be given, together with the device, to theAssistance Service’s personnel or to
thetechnicians to whomyou will eventually requestassistance.
Incase ofselling or transferringto other user,all the abovementioned documentation mustbe handed to the newuser,
so that he can be informed of the operation and relative technical information and safety instructions.
DO NOT INTRODUCE YOUR FINGERS OR OBJECTS IN THE DEVICE’S LOOPHOLES.
DO NOT REMOVE OR HIDE, FOR ANY REASON, ANY LABEL APPLIED ON THE DEVICE.
NEVER OPEN THE PROTECTING PANELS. THE DEVICE DOES NOT CONTAIN, IN ITS INSIDE, PARTS
WHICH CAN BE OPERATED BY THE USER.
THEUSER MUST NOT EXECUTE OPERATIONS WHICHARE NOT CLEARLYCONTAINED IN THE PRESENT
USER’S MANUAL. ANY OPERATION WHICH REQUIRES TOOLS NOT GIVEN IN THE DEVICE’S EQUIP-
MENT IS TO BE CARRIED OUT ONLY BY THE ASSISTANCE SERVICE OR BY TECHNICALLY AUTHOR-
ISED PERSONNEL.
Always unplug the device before undertaking any operation requiring access to the device’s moving parts (beater,
cylinder or extracting door).
Any modifying of the electrical supply must be exclusively performed by professionally qualified and certified person-
nel.
Any use of the device that is not for the production of ice-cream, ice-cream cake or slush, is to be considered
improper.
Do not connect and/or operate the device when any part is missing, except for specifically mentioned cases.
The device has been made to be operated by adults, prohibit children to play with it.
Modifying, or attempting to modify this device, can be dangerous and would void any type of warranty.
Always use original spare parts.
It is important to adopt the following precautions to avoid damages at the cylinder, at the beater or any
other mechanical part:
- Do not drop them and do not expose them to bumps;
- do not operate the refrigerator when the beater is not in the cylinder;
- do not operate the device dry, with a bad quality mixture or in a quantity lower or higher to that recommended: the
liquidsin the cylinder, in addition to the lubrication of itssurface, keep the beater cool, uniforming its temperature.
- The beater and the cylinder are disposals built and paired with precision: for this reason they are very sensible to
temperaturechanges, thatmay cause eventualdamages atthe mechanical partsof thedevice. NEVERexpose to
abrupt temperature changes the parts subject to refrigeration: DO NOT pour water (hot or cold) in the cylinder
immediately after ice-cream has been produced.
In the event of the use of the device being no longer required, deactivate the machine by severing the electric cable
(after unplugging it from wall socket). In addition, follow these recommendations:
- avoid dispersing the freezing gas and the oil contained in the device;
- carry out the draining and/or recycling according to the local provisions of the law currently in force on this matter.

English
Operating instructions
5
2SAFETY DEVICES
DO NOT ALTER THE SAFETY DEVICES AND DO NOT UTILIZE THE MACHINE IF THE SAFETY DEVICES
ARE DAMAGED OR MALFUNCTIONING.
THE MANUFACTURER IS NOT RESPONSIBLE FOR POSSIBLE DAMAGES CAUSED TO PEOPLE OR OB-
JECTSBY THEALTERING OR BYPASSING SUCH DEVICES ORRELATIVE CIRCUITS.
2.1 Lid's magnetic sensor
This safety device, featuring an approved type magnet [1] and a magnetic contact [2]
avoids accidents caused by the accidental starting of the beater when the lid is open.
In consequence the device can't operate when the lid is open, and if it is opened
during its functioning the beater immediately stops.
In any case the lid's magnetic sensor MUST NOT be considered a control to be used
for the normal stop of the device.
DURING THE NORMAL USE, THE DEVICE MUST BE STOPPED ONLY
BY USING THE BUTTONS ON THE CONTROL KEYPAD, AND NOT BY
OPENING THE LID.
The magnet [1] and the magnetic contact [2] MUST be assembled as follows: the grooves [3] and the stencilled semicircle
[5] on the bottom of the magneto [1] must coincide with the grooves [4] (marked by a white line down the side) and the
stencilled semicircle [6] on top of the magnetic contact [2]. The device will not work unless all parts have been
correctly assembled in accordance with these instructions.
2.2 Extraction door's grill
Inlarge-sized models,supplied with extractiondoor, a fixedprotection grill[3] prevents,
asfar as possible,fingers or objectsfrom beingACCIDENTALLYinserted inthe chute.
Inorder toinsure normal operationit is notpossible toadjust the fixedgrill as toprevent
fingers and objects from being VOLUNTARILY inserted through the extraction chute
(according to Machines Directive 89/392/CEE and ensuing modifications, Ap-
pendix I, Art. 1.1.2.b, 3rd paragraph).
RESIDUAL HAZARD: DONOT FOR ANY REASON INSERT
FINGERS OR OBJECTS THROUGH THE GRILL OF THE EX-
TRACTION DOOR WHEN THE MACHINE IS IN FUNCTION.
The user is warned of the above RESIDUAL HAZARD (89/392/CEE and ensuing
modifications, Appendix. 1, Art. 1.1.2.b, 3rd paragraph and 1.7.2) by a plate [30]
affixed next to the extraction chute.
DONOT HANDLE OR REMOVE THE GRILL [3] FROM ITS SET-
TING IN THE EXTRACTION DOOR!

English
Ice cream freezer
6
3TECHNICAL DATA
3.1 Technical data plate and CE marking
The technical data and CE mark plate must not be removed. It is positioned on the machine's rear side and shows:
— manufacturer'sname and address[F];
— model'sdenomination [MOD] andserial number [S/N];
— types [GAS] and quantities [gr] of refrigerating gases included;
— yearof manufacturing[ANNO];
— tension [V], frequency [Hz] and number of phases [Ph], electrical input power [kW] and current [A];
— CE mark.
— the symbol for the dismantling of the product [G].
3.2 Acoustic pressure level
Theaverage equivalent continuousacoustic pressure level ofthis machine is quotedin theTechnical Handbook(Technical
Data section). This data has been measured at 1 meter from the surface of the machine and at 1.60 meters from ground-
level, during the machine’s functioning.
4CARRYING AND UNPACKING
Note: We suggest you to let the Assistance Service or qualified technicians carry out the transportation, un-
packing and installation.
TOLIFT THE MACHINE ALWAYS USE AN ADEQUATE LIFTING
DEVICE. ATTEMPTING TO LIFT IT MANUALLY IS DANGEROUS
AND CAN DAMAGE YOUR HEALTH.
The machine’s weight specifications, both inclusive of packaging and net, can be
found in both the supplied documents and on the packaging itself.
To prevent the oil contained in the compressor to flow into the refrigerating circuit, it is neces-
sary to always keep the machine in upright position, both during carrying and during the instal-
lation and operation. Always follow the instructions on the packing.

English
Operating instructions
7
4.1 Transportation of the packed machine
(floor models)
The packing has been projected to assure at the machine the highest protection.
Itis therefore suggestedto transportthe machine whileit is packedas near aspossible
at the place where it will be installed.
Tocarrythe packed machine,use anelevator, ora benchtrolley,inserting its forksin the
basement’sholes.
4.2 Unpacking
Unpack the machine and carefully check it. In case of doubt, do not use it, and call the
Seller.
- cut the straps and remove the cardboard box from the top;
THEOPENINGOFTHE LATERALPANEL ISONLYALLOWED TO THEASSISTANCESERVICE OR TO QUALI-
FIED TECHNICIANSAND MUST BE MADE BEFORE CONNECTING IT. MAKE SURE NOT TO DAMAGE THE
INTERNALPARTSOF THE DEVICE.
- Removeboth the lateralpanels unscrewingthe relevant fixingscrews [21];
- Find and unscrew the bolts [22] which fix the machine’s frame at the packing’s basement;
The outlet of the supply cable is placed on the machine’s lower side. During the lifting make sure
not to damage it.
- Lift the machine from the basement, possibly working on the lower side, near the wheels, and however, only on the
frame’s carrying parts. Remove the basement, and lean the machine on the floor avoiding bumps;
DO NOT insert objects, ropes or brackets for the lifting THROUGH the machine, since these
could damage the inside parts.
- Re-closethe lateralpanels;
- Replace or move the packing, which is produced with entirely recyclable materials ( ).
5INSTALLATION
THE INSTALLATION MUST BE CARRIED OUT ONLY BY THE ASSISTANCE SERVICE OR BY TECHNI-
CALLY AUTHORISED PERSONNEL AND IN COMPLIANCE WITH THE LAWS IN FORCE, ALWAYS FOL-
LOWING INSTRUCTIONS OF THE MANUFACTURER.

English
Ice cream freezer
8
5.1 Placing and check of the parts
Place the device on the floor, on a flat and steady surface.
Install the device away from any source of heat, avoiding a direct exposition to sun
radiation and making sure that air can freely circulate around each side of the device
itself.
The devices with AIR CONDENSING need at least a 50 cm free space in
front of the condenser’s grill, to assure the refrigerating plant correct
functioning. Further information are reported on the Technical Book
(Technical Data section).
Check that the following items are all included in the package:
- lid [5];
- beater [6], correctly fixed inside the cylinder with its knob [7] and supplied with adjustable blades [31] (1…3 according
tothe model);
- extraction door [14]);
Also check that the following items are included:
- spare part kit [11], tube-brush [12] and ice-cream blade [13];
- basin support [10], knobs [16], the lever [8] and the extraction door chute [9];
- all thetechnical documentation(in addition to this handbook): theTechnical Handbook, the EC’s Conformity Certifi-
cation and ElectricalTest’s Schedule.
5.2 Machine’s parts reassembling
THE REASSEMBLINGMUST BE MADE BEFORE CONNECTINGTHE MACHINE TO THE ELECTRICAL SUPPLY
SYSTEM.
- Screw the lever [8] in the extraction door [14];
- if the chute [9] is supplied disassembled, install it under the extraction door [14] by screwing the knob[16];
- install the basin support [10] by fixing it to the front panel with knobs [16].
5.3 Electrical connection
THE SUPPLY’S VOLTAGE REQUIRED BYTHE DEVICE IS HIGH, SO, IT IS PARTICULARLY DANGEROUS.
THE WORKS ON THE SUPPLY’S ELECTRICAL CIRCUITS MUST BE MADE WORKMANLIKE BY QUALI-
FIED STAFF.

English
Operating instructions
9
THE ELECTRICAL SAFETYOF THISAUTOMATIC CREAM-WHIPPER IS
REACHED ONLY WHEN THE SAME IS CORRECTLY CONNECTED, BY
QUALIFIED AND CERTIFIED PERSONNEL, TO AN EFFICIENT EARTH-
ING SYSTEM, MADE AS PROVIDED FOR IN FORCE SAFETY REGULA-
TIONS.
The manufacturer must not be considered responsible for eventual damages
caused by an inadequate electric plant or earthing.
All the device’s electrical features required for the system’s proportioning are reported
on theTechnical Data Plate and on theTechnical Handbook.
FOR THE PREPARATION OF THE ELECTRICALPLANT WHICH SUPPLIES THE DEVICE, IT IS COMPUL-
SORY TO FOLLOW THE PRESCRIPTIVE STANDARDS IN FORCE. IN PARTICULAR:
- The electrical capacity of the plant must exactly match the supply’s voltage and frequency required by the device;
- the current capacity of the plant must be suitable for the device’s input;
- theplant must end withan accepted 5 pole (380V-415V-3~),or 4 pole (200V-220V-3~),or 3 pole (220V-1~), electrical
socket and with electrical and mechanical suitable characteristics. The electrical socket’s poles must be marked with
appropriate letters (phases R-S-T + neutral N + earth); the earth’s pole must be recognizable;
- Theelectrical socket must prevent, throughappropriate mechanical measures, the plug’swrong connection;
- theelectrical socketmust have, aboveor annexed, abreaker, conformed tothe inforce safety laws,with an associated
gearing positioned near the device, in a place easily reachable by the operator. It must also be protected by fuses,
above or annexed, with characteristics suited at the current absorbed by the device.
A WRONG CONNECTION ON THE EARTH TERMINALMAY CAUSE SERIOUS DANGER.
A 5 pole (380V-415V-3~), or 4 pole (200V-220V-3~), or 3 pole (220V-1~) plug, suit-
able with the current socket, must be installed at the end of the device's power supply
cable.
The device’s power supply cable is composed by 5 or 4 or 3 coloured wires, and
eventually marked with appropriate bands, which must be connected to the relevant
plug’sterminals, as shownin the followingtable.
A WRONG CONNECTION IN THE PLUG’S INSIDE MAY CAUSE SERI-
OUSDANGER. FOR THECONNECTION, ONLYADDRESSYOURSELVES
TO QUALIFIED AND AUTHORIZED TECHNICIANS.
Kind Wire Wire Code marked near
of supply colour marking band plug’s terminal
EARTH GREEN/YELLOW None PE or
PhaseR BLACK R or L1
Phase S BROWN S or L2
PhaseT BLACK T or L3
NEUTRAL BRIGHTor SKY BLUE N
Before using the device it is necessary to:
- connect it to the water network, if the device features a water condensator (Ref. Par. 5.4);
- carry out the initial functioning check (Ref. Par. 5.5).

English
Ice cream freezer
10
5.4 Connection to the water network (devices with water condensation)
If your device features water condensation, it is necessary to prepare tubes for the feeding and draining of the water.
Do not let water from a TOWER in, unless they have been specifically designed to utilize water from a
tower. Unless otherwise specified, the machine is designed to utilize water from a WELL.
Note: the correct water temperature to operate the machine is specified in the Technical Handbook, Par. “Technical
data”.
The use of below standard tubes and connections may cause water drops, with consequent inconven-
ience for Your laboratory and, if the drop is abundant with squirts, damage the device.
Uselinen-rubber tubesfor water connection,arranged for 15Bar pressures, interposinga valveor a faucet[17]ABOVEthe
delivery pipe; use a 3/4" rubber holder [18], well fixed with a proper band [19] to connect the tubes at the device’s union.
Note: Tubes for the water feeding of households are on the market (ex. dishwashers) which, in addition to being
cheap, feature the requested characteristics and are predisposed with a rubber holder.
The unions are placed on the back panel of the device, they are marked by a plate “H2O” [20] and are labelled with:
IN: INLET of fresh water in the device;
OUT: OUTLET of water used by the device.
Follow the following precautions to avoid damages at the device’s water circuit:
- do not invert the connection of tubes;
- if water in the area presents a high quantity of spur, install a suitable decalcification or filtration device above
the delivery pipe;
- if not otherwise mentioned in the Technical Handbook, the incoming water’s pressure must be compre-
hended between 1.5 and 6 Bar (ideal pressure: 3 Bar). If the pressure in the device is higher, it is necessary to
interpose a pressure limiting device, appropriately regulated, above the delivery pipe.
AVOID CONSTRICTION OR NARROW TURNS OF THE TUBES.
Note: The water outcoming the condensator, though being hot and not drinkable, is not polluted and can be reutilised.
Before storing the device in rooms with a temperature lower to 0°C it is INDISPENSABLE to get rid of the
water in the condensator and in the inlet and outlet pipes. Call the Assistance Service.
5.5 Initial functioning check
At the end of the installation, and before utilising the device, it is indispensable to let a qualified techni-
cian check the correct connection, by performing the following procedure.

English
Operating instructions
11
- Before starting, check that the socket's breaker is in the position “0”;
- Insert the plug in the socket, and put the general Breaker in position “1”;
- only the green indicator on the ON/OFF Pushbutton [Z1] on the control panel must turn on;
- close the cover and press the ON/OFF Pushbutton [K1]. The device predisposes itself for functioning and the display
showsthe total whipping timepreviously set (in primeminutes);
Remove the beater from the cylinder before carrying on the check, to avoid letting it function dry.
ATTENTION: Follow the directions reported on Par. 7.2 - Disassembly of parts.
- Open the lid, unscrew the fixing knob [7], pull out the beater [6] from the cylinder, then close the lid.
Note: The device will not operate when the lid is open.
- Press the BEATING Pushbutton [K2] and check that beater’s shaft turns CLOCKWISE (as shown in the picture). In
this case, the device is correctly connected and ready to be used;
Note: do not unnecessarily start the refrigerator.
- If the rotation is COUNTERCLOCKWISE, the connection to the three-phase electrical supply is wrong, and
must be changed proceeding as follows:
- Turn off the device by pressing the ON/OFF Pushbutton [K1];
TURN THE SOCKET'S BREAKER TO THE “0” POSITION, THEN UN-
PLUG MACHINE;
- Open the plug’s shell and invert TWO of the THREE conductors connected at the
phases (R-S, R-T or S-T);
- Close the plug’s shell, plug in the device and repeat the check.
6MACHINE’SOPERATION
6.1 Warnings
WHEN USING THE DEVICE, AS WITH ALL ELECTRICAL APPARATUS, ESSENTIAL RULES MUST BE
COMPLIED WITH, PARTICULARLY:
- never touch it if your feet or hands are wet;
- neveroperate it while barefoot;
- never pull the supply cable to disconnect it from the mains network;
- avoid liquids to penetrate in the device, for example during its cleaning;
- forbid children and unable people to operate it.

English
Ice cream freezer
12
In case of failure and/or malfunctioning of the device - and every time you notice damages, mainly at the supply cable or at
the safety devices - turn off the power supply. Contact qualified and certified personnel for assistance.
NEVER operate the machine in DRY conditions or with an amount of mixture other than the one recom-
mended.
NOT RESPECTING THESE RULES, IN ADDITION TO VOIDING ANY FORM OF WARRANTY, CAN SERI-
OUSLY COMPROMISE THE SAFETY, PERFORMANCESAND FUNCTIONING OF THE SAME DEVICE.
6.2 Commands and indicators
All controls and indicators for the use of the device are grouped in a
single control panel placed on the front panel. Its functioning is
low-voltageelectronicallymanaged.
I Inthis manual,thebuttons andindicators areidentified withthe relative
symbol, and/or with an imprint ([K…] for pushbuttons, [Z…] for
indicators).
The functioning of every command is described hereby: to obtain the
best results, an acknowledgment is suggested.
ON/OFF Pushbutton [K1]
When the electric supply is connected, the machine is ready to be turned on, the green indicator light [Z1] is on. By
pressing the button, the device turns on and the other buttons are enabled. The display shows the total whipping time
previously set (in prime minutes).
SETTING Pushbuttons [K3] - [K4]
By pressing these commands, the number of minutes visualised on the display will be increased or decreased (1…99).
Note: It is suggested to set the whipping time when the device is idle, generally between 8 and 12 minutes depending
on the kind and quantity of the mixture. It is possible to increase or decrease the timing even during the
whipping for particular needs.
In any case the timer will automatically memorise, as total time, the minutes VISUALISED ON THE DISPLAY
after having pressed one of the setting pushbuttons.
BEATING Pushbutton [K2]
By pressing the pushbutton, the rotation of the beater goes CLOCKWISE. Press again the pushbutton to stop the beater.
The relative lighted indicator [Z2], signals that the beater is rotating CLOCKWISE.
Note: Pressingthe BEATINGPushbutton whenthe REFRIGERATION/WHIPPING commandis activated([Z5] indicator
lighted) stops the refrigeration, and the timer is put in PAUSE. By pressing again the pushbutton to start the
beating,the refrigeration starts again.
REFRIGERATION/WHIPPING Pushbutton [K5]
Bypressing the pushbutton (afterhaving set the timer) whatfollows will be commanded:
- The start up of the refrigerating plant (the [Z5] indicator of this button lights up);
- Thebeating, automatically, clockwise (the BEATINGindicator [Z2] lights up)

English
Operating instructions
13
- The timer’s timing, signalled by the flashing spot visualised on the display, at the left of the residual whipping time.
The relative indicator [Z5], when lighted, indicates that the refrigerating plant is activated. It remains in function until:
- anew pressure ofthe REFRIGERATION/WHIPPING Pushbutton;
- atthe end of the pre-set time on the timer. Inthis case the timer remains in function to avoid theformation of ice on the
cylinders walls (the [Z2] indicator is still lighted).To stop it, press the BEATING Pushbutton [K2].
EXTRACTIONPushbutton[K7]
Pressthis button to letthe ice-cream get outof the extractiondoor.This happens byrapidly rotating thebeater COUNTER-
CLOCKWISE. The refrigerating plant is automatically shut down to avoid the formation of ice.
Note: It is always suggested to wait for the end of the cycle ([Z5] indicator off) or stop the whipping by hand using the
REFRIGERATION/WHIPPING Pushbutton [K5] before commanding the extraction.
To avoid excessive stress, before commanding the extraction, it is necessary to OPEN THE EXTRAC-
TION DOOR.
The [Z7] indicator signals that the beater is in functioning COUNTERCLOCKWISE.
Press this button once again to end the extraction.
BUZZER Pushbutton [K6]
Thedevice featuresa buzzer whichrings whenthe processing timehas come toan end.Tofunction it,press this button(the
[Z6] indicator lights up).
SETUP Pushbutton [K8]
By pressing the pushbutton, the Display shows the operative cycles’ main values. Should the need arise to modify them,
pressADJUSTMENT [K3]and [K4]. For moredetails see Par. 6.3 - “Production”.
Digitaldisplay
- When the device is not functioning, the display shows the total whipping time
previously set (in prime minutes);
- Whenthe device is in refrigeration/whipping, the display showsthe residual whip-
ping time and a flashing spot;
- when it shows “oo” (two small squares) it indicates a machine failure:
• the lid is not correctly closed;
• the chute with protection flap is not correctly installed;
• a safety device has come into operation. See Section 10 - Malfunctions.

English
Ice cream freezer
14
6.3 Production
In devices with water condensation, check that the condensation water’s faucet is open;
- check that the ON/OFF Pushbutton’s indicator [Z1] is lightened. If not, check that machine is plugged in and Main
Breaker is turned on (on “I”);
- Check the lid is closed and the chute with protection flap is in position, otherwise the device will not operate.
NO “oo” (two small squares) should show on the Display;
- pressthe ON/OFF Pushbutton[K1].
Do not press the BEATING [K6] or REFRIGERATION/WHIPPING [K5] Pushbuttons before having intro-
duced liquids in the cylinder. The beater must not function dry, otherwise it will be damaged.
- before beginning the production, wash, rinse and proceed at the hygienisation with a detergent and disinfecting
solution (see Section 7 - WASHING).
Note: If you plan to have more than one consecutive production cycles, you can
avoid the washing between a cycle and the other, making sure you begin
with the clearer mixtures.
Before operating beater, ALWAYS check that beater's fixing knob [7] is
FIRMLY TIGHTENED and the gasket is intact and clear of any fat. Should
the knob accidentally come loose and fall into the cylinder while
operating, this would cause serious damage to the machine.
MODELS: GEL 25 - GAMMA 250
- check that extraction door is firmly closed and pour mixture in the cylinder. Only use suitable perfectly preserved
ingredients, in the correct amount.The maximum and minimum amounts are indicated in theTechnical Handbook, in
the “Technical Data” section.
Unsuitable mixture or insufficient amount of it can cause the formation of ice, and cause damages or
irregular functioning at the cylinder and beater, while an excessive quantity of mixture can forbid the
correct whipping, in addition to causing an excessive stress at the motor and beater and overflows of
product.
- Close the lid of the whipper;
- regulate the whipping time following your experience, by pressing the SETTING Pushbuttons ([K3] and [K4]) and
reading the value (in minutes) on the display. Generally 8 to 12 minutes of whipping are necessary, in function of the
quality and quantity of the mixture;

English
Operating instructions
15
- press the BUZZER Pushbutton [K6] to activate the buzzer at the end of the whipping cycle (the relative indicator [Z6]
lightens);
- pressthe REFRIGERATION/WHIPPINGPushbutton [K5];
- waittheend ofthefunctioning,signalled bytheshutting downofthe REFRIGERATION/WHIPPINGindicator [Z5]andthe
eventualacoustic signal.
Note: if it is necessary to add some ingredients during the whipping cycle, to open the lid. In these conditions the timer
is PAUSED and the residual time memorised. To restart the whipping, to close the lid.
At the end of the whipping cycle, the ice-cream is ready to be extracted:
- position an idoneous basin on the support;
- opencompletely the extractiondoor and press theEXTRACTION Pushbutton [K7]facilitate with theappropriate blade
the settlement of the ice-cream in the basin;
- stopthe beater by pressingthe EXTRACTION Pushbutton[K7];
- openthe lid anddetach the ice-cream eventuallyleft on the beater’sblades (by usingthe featured blade lettingit settle
on the bottom of the cylinder.
- pressthe EXTRACTION Pushbutton [K7]to extract the leftover ice-cream;
- stopthe beater by pressing the EXTRACTION Pushbutton [K7] andclose the extraction door.
Carryout an accurate cleaning:
- simplewashing (par.7.1) if you soonproceed with the productionof other ice-cream;
- disassembling of parts (par. 7.2) and accurate washing (par. 7.3) if the production has come to an end.
MODELS: GEL 25 MONO (INVERTER) - GAMMA 250 MONO (INVERTER)
- check that extraction door is firmly closed and pour mixture in the cylinder. Only use suitable perfectly preserved
ingredients, in the correct amount.The maximum and minimum amounts are indicated in theTechnical Handbook, in
the“Technical Data” section.
Unsuitable mixture or insufficient amount of it can cause the formation of ice, and cause damages or
irregular functioning at the cylinder and beater, while an excessive quantity of mixture can forbid the
correct whipping, in addition to causing an excessive stress at the motor and beater and overflows of
product.
- Closethe lid of the whipper;
- press the SET UP Pushbutton [K8] the figure “P1” will appear flashing on the display, regulate the whipping time
followingyour experience bypressing the SETTINGPushbuttons ([K3] and[K4]) and readingthe value (in minutes) on
the display. Generally 8 to 12 minutes of whipping are necessary, in function of the quality and quantity of the mixture;
- press the SET UP Pushbutton [K8] the figure “P2” will appear flashing on the display and to program the time of the
BUZZER , the advised time (set in the factory) is 10 seconds. The adjustment field is 0...60 seconds;
- pressthe REFRIGERATION/WHIPPINGPushbutton [K5];

English
Ice cream freezer
16
- waittheend ofthefunctioning,signalled bytheshutting downofthe REFRIGERATION/WHIPPINGindicator [Z5]andthe
eventualacoustic signal.
Note: if it is necessary to add some ingredients during the whipping cycle, to open the lid. In these conditions the timer
is PAUSED and the residual time memorised. To restart the whipping, to close the lid.
At the end of the whipping cycle, the ice-cream is ready to be extracted:
- positionan idoneous basin on the support;
- opencompletely the extractiondoor and press theEXTRACTION Pushbutton [K7]facilitate with theappropriate blade
the settlement of the ice-cream in the basin;
- stopthe beater bypressing the EXTRACTIONPushbutton [K7];
- openthe lid anddetach the ice-cream eventuallyleft on the beater’sblades (by usingthe featured blade lettingit settle
on the bottom of the cylinder.
- pressthe EXTRACTION Pushbutton[K7] to extractthe left overice-cream;
- stopthe beater by pressingthe EXTRACTION Pushbutton [K7]and close the extractiondoor.
Carryout an accurate cleaning:
- simplewashing (par.7.1) if you soonproceed with the productionof other ice-cream;
- disassembling of parts (par. 7.2) and accurate washing (par. 7.3) if the production has come to an end.
7WASHING
THE FATS CONTAINED IN THE ICE-CREAM MIXTURESARE IDEALFOR THE GROWTH OF BACTERIA, WE
RECOMMEND TO WASHAND CLEANWITH THE MAXIMUM CARE EVERYPART INCONTACT WITH PROD-
UCT, WHEN THE USE OF THE DEVICE IS SUSPENDED.
7.1 Simple washing and hygienisation
Note: Duringthe washing, thedevice could become noisier.
- Pour cool water in the cylinder, detergent and disinfecting solutioncompatible with foods,up to 1/4 of its volume;
- Close the lid and press the BEATING Pushbutton [K2] letting the beater functioning for a brief time;
During the washing operations and in particular during the rinsing, it is useless to activate the beating
for long periods. The missing of lubrication could damage the beater or cylinder.
DO NOT function the beater by pressing the REFRIGERATION/WHIPPING Pushbutton [K5] to avoid a
useless activation of the refrigerating plant, which would freeze the water.
Do not function the EXTRACTION Pushbutton [K7] since it would cause a violent upwards leak of the
washing liquid.

English
Operating instructions
17
- Stopthebeater bypressing the relativebutton [K2],put abasin under theExtraction doorand openthe door eliminating
the solution from the cylinder;
- Close the Extraction door and rinse repeating the operation with fresh water.
7.2 Disassembling of the parts
To facilitate the maintenance all parts which come in contact with the product can be disassembled directly by the user, in
a fast and simple way, without using any tool.
CARRY OUT THESE OPERATIONS ONLY WITH THE SOCKET'S MAIN BREAKER ON “0”. THE [Z1] INDI-
CATOR OF THE IGNITION BUTTON MUST BE TURNED OFF.
- Carryout rinsing operations(ref. Par. 7.1) inorder to easilyreach machine's parts;
- extract the rod [25] from the lid’s hinge and remove the lid [5];
- Unscrew counterclockwise the fixing knob [7] and extract the beater [6];
RESIDUALHAZARD:BEATER'SBLADE ARE SHARP ALONG BOT-
TOMAND EXTERNALSIDEEDGES.ITISRECOMMENDED TOUSE SUIT-
ABLE PROTECTIVE GLOVES AND TO HANDLE THE BEATER ONLY BY
HOLDINGTHECENTRAL HUBAND NOTTHEBLADES.
- remove the basin support [10] by unscrewing the hand screws [16];
- unscrew the hand screw [16] to remove the chute [9];
- for a thorough wash, separate blades [36] (take care not to loose screws).
7.3 Accurate washing
THESEOPERATIONS MUSTBECARRIED OUT ONLYWITHTHE BEATER
AND THE LID REMOVED FROM THE DEVICE AND WITH THE SOCHET'S
MAIN BREAKER ON “0”.
TAKE CARE NOT TO ALLOW WATER ORANY LIQUID INSIDE THE MA-
CHINE.
Two or 3 times per week and in any case as provided by in force laws, we suggest to wash and clean with extreme care all
parts of the device in direct contact with the product, during which all components which can be disassembled must be
removed from the device (ref. Par. 7.2) and separately washed. Use cool water and a detergent integrated for foods; then
rinse with cool water.
Note: For a long life of the device we suggest not to use too hot water, solvents, abrasive detergents, or rough
sponges, in particular on the plastic parts.

English
Ice cream freezer
18
Before reassembling the components, accurately wash the fixed parts of the device:
- the extraction pipe and the safety grill, utilising the featured brush;
- the upper deck and the inside of the cylinder;
- the front panel, with particular attention for the extraction door, the relative frame and the basin support zone.
7.4 Reassembly
THESE OPERATIONS MUST BE CARRIED OUT ONLY AFTER DISCONNECTING MACHINE FROM
MAIN POWER!
- Assembleblades[31]on beater'ssupports[6]partially screwingscrews[36].Blades
willbe subsequently adjusted.
Carefully place beater into the cylinder, taking care to keep it
vertical without dropping it.
- The slot on the beater's hub [27] goes into the shaft clutch [28];
- FIRMLY tighten beater's fixing knob [7];
Before tightening knob [7], always check that the gasket [G] is
in perfect conditions and in place, an that is clear of any fat as
to prevent knob from accidentally coming loose. Should the
knob fall into the cylinder during production cycle, it would
cause serious damage to the machine.
Note: Gaskets must be periodically replaced (ref. Par. 8.1).
- put lid in place, insert pin [25];
- install the chute [9] beneath the extraction door [14], by screwing the knob [16];
- fix basin support [10] on the front panel with knobs [16];

English
Operating instructions
19
8MAINTENANCE
Themachine requires a verylimited maintenance. Periodically, wesuggest to:
- check the good conditions of the machine's parts (ref. Par. 7.3);
- check that electric power cable is not damaged;
- Try the efficiency of the safety devices (ref. Par. 8.2).
Itis thenuseful tomaintain theexternal panelsclean and thesurrounding area.Dust, paperfragments orother smallobjects
may penetrate in the machine through the ventilation loopholes (in particular if equipped with air condensation and rapidly
compromise its correct functioning.
The inside parts, to which the user MUSTNOT accede, must be checked by theAssistance Service (ref. Par. 8.3)
8.1 Maintenance during the components disassembling
093
G
G
Checkthe integrity ofgaskets (indicated with[G] in thefigure) and substitutethose that
aredeteriorated.
Use exclusively original, compatible with food, rubber gaskets. The spare bag
containsa complete series ofgaskets approved bythe manufacturer.
To correctly replace the gaskets it is necessary to:
- remove the old gaskets by using a sharp tool, possibly non-metallic, paying attention not to scratch the seating of the
gasketsthemselves;
- clean the seatings and the gaskets from any kind of grease before inserting the new gaskets.
A yearly preventive replacement of all wearing parts and all gaskets is recommended. We suggest you to always keep a
spare supply: to order it, reference to the Spares Section contained in theTechnical Handbook.
8.2 Check of safety devices
Every three months, check that all safety devices on your machine are in perfect working order:
- openthe lid andremove thebeater;
- check that the protection grill [3] is well fixed and not damaged;
- close lid and supply the machine;
- turnbeating on(beater's shaft will start). Thenopen thelid. Provided thatthe lid’smagnetic contactis correctly working,
the beater’s shaft will stop immediately and the Display will show “oo” (two small squares).
If the machine’s functioning is as described, the safety devices are efficient.
THE MACHINE MUST NOT BE USED IF ONE OR MORE OF THE SAFETY DEVICES SHOULD
RESULT DAMAGED OR MALFUNCTIONING!

English
Ice cream freezer
20
8.3 Yearly maintenance
Periodically (basing yourself on the environmental conditions in which the machine operates) and in any case once every
year, make sure to have a general checkup.
THE CHECK-UP MUST BE MADE BY THE AUTHORISED ASSISTANCE SERVICE, OR, IN ANY
CASE, BY TECHNICALLY AUTHORISED PERSONNEL WITH ADEQUATE TOOL. THE MAINTENANCE
OPERATIONS RESERVED TO THE SERVICE ASSISTANCE CAN BE DANGEROUS IF CARRIED
OUT BY NON-PROFESSIONALS, THEREFORE, FOR HIS OWN SAFETY, THE USER MUST NEVER
CARRY THEM OUT.
9PERIODS OF INACTIVITY
If long periods of inactivity are foreseen, proceed as follows:
- wash up completely the device (see Section 7);
- switch off the power breaker and unplug the device;
- devices with WATER condensation: close the water faucet and relieve pressure from inside the delivery pipe by
unscrewing one of the pipe fittings. Remove both delivery and drain pipes and let all water out. Before using the pipes
again, following a long period of inactivity, check for any damages or cracks and replace, if necessary, pipe fittings’
gaskets.
- if the device will be stored in a different place, group all the documentation, together with the present manual, and
enclose it at the device (i.e. in the cylinder).
Before storing the device (with WATER condensation) in rooms with a temperature lower to 0°C it is
INDISPENSABLE to get rid of the water in the condensator and in the inlet and outlet pipes. Call the
Assistance Service.
10 MALFUNCTIONS
WE RECOMMEND YOU TO CALL IMMEDIATELY THE ASSISTANCE SERVICE IF A MALFUNCTION DIF-
FERENT FROM THOSE HERE DESCRIBED IS FOUND.
Note: the following malfunctions do not refer to problems noticed in the installation phase, but ONLY on correctly
installed - and already functioning - devices.
THE DEVICE DOES NOT WORK OR STOPS WORKING.
With the Main Breaker on 1 the ON/OFF indicator light [Z1] DOES NOT TURN ON.
Cause: The plug is not correctly plugged.
The plug is defective. A qualified technician should substitute it.
Power in the socket is missing. Check that the breakers, the omnipolar switches and the
differentials (lifesavers) on the electric plant are closed. If they aren’t, before closing them,
make sure that no one is making electrical maintenance.
A protective fuse of the electric plant is cut down. Find and eliminate the eventual cause of
overcharge. Substitute cut down fuses with others of the same kind.
Thesupply cable is defective.BEFORE, cut down electricalfeeding at the socketby opening
the breaker above it, then disconnect the plug and call the Assistance Service.
DO NOT TOUCH THE DAMAGED ELECTRICALCABLES BEFORE HAVING CUT DOWN
THE ELECTRICAL SUPPLY!
With the Main Breaker on 1 the ON/OFF indicator light [Z1] TURNS ON, but the display shows 2 small
squares and the device does not work.
