Crosscraft MC 20 IX User manual

Read these instructions carefully before using your microwave oven,
and keep it carefully.
If you follow the instructions, your oven will provide you with many years
ofgood service
SAVE THESE INSTRUCTIONS CAREFULLY
Microwave Oven
INSTRUCTIONS MANUAL
MODEL: MC 20 IX

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave
energy. It is important not to break or tamper with the safety interlocks.
b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a
competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan
of the apparatus and lead to a dangerous situation.
Specifications
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including the following:
1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that
involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless
they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:”PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”.
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
Model: MC 20 IX
Rated Voltage: 230 V~50Hz
Rated Input Power
(Microwave): 1250W
Rated Output Power
(Microwave): 800W
Rated Input Power (grill): 1000W
Oven Capacity: 20 l
Turntable Diameter: Ø 245 mm
External Dimensions (WxDxH): 440 x 345 x 258mm
Net Weight: Approx. 10.5kg

13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode,
even after microwave heating has ended.
15. This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- by clients in hotels, motels and other residential type environments;
- farm houses;
- bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to
get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when
handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The appliances are not intended to be operated by means of an external timer or separate remote-control
system.
27. Accessible parts may become hot during use. Young children should be kept away.
28. Steam cleaner is not to be used.
29. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
30. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a
temperature-sensing probe.)
31. WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
33. Surface of a storage cabinet can get hot.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the interna components can cause serious personal injury or death. Do not disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly
installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt
exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire
extension cord.
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer
cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of
the appliance.
2) The extension cord must be a groundingtype 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled
on by children or tripped over unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl,
add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
UTENSILS
See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may
be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in
question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to microwave energy.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or
poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls.
The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least
3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to
break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or
chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not
heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates
and cups
Use for short–term cooking/warming only. Do not leave oven unattended while
cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-
term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled
“Microwave Safe”. Some plastic containers soften, as the food inside gets hot.
“Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as
directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.
Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or
metaltrimmed
utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Grill Rack (Only be used in grill function
and be placed on the glass tray)

Turntable Installation
Countertop Installation
Remove all packing material and accessories.
Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
Installation and connection
1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only.It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the
floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician.If the plug is no
longer to accessible following installation,an all-pole disconnecting device must be present on the installation side
with a contact gap of at lease 3mm.
8. Adapters,multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.
The accessible surface may be hot during operation.
a. Never place the glass tray upside down. The glass tray should
never be restricted.
b. Both glass tray and turntable ring assembly must always be
used during cooking.
c. All food and containers of food are always placed on the glass
tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks,
contact your nearest authorized service center.
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly

Installation Instructions
Please Read the Manual Carefully Before Installation
Please Note:
Electrical connection
The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with
the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a
qualified electrician.
If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installa-
tion side with a contact gap of at least 3mm.

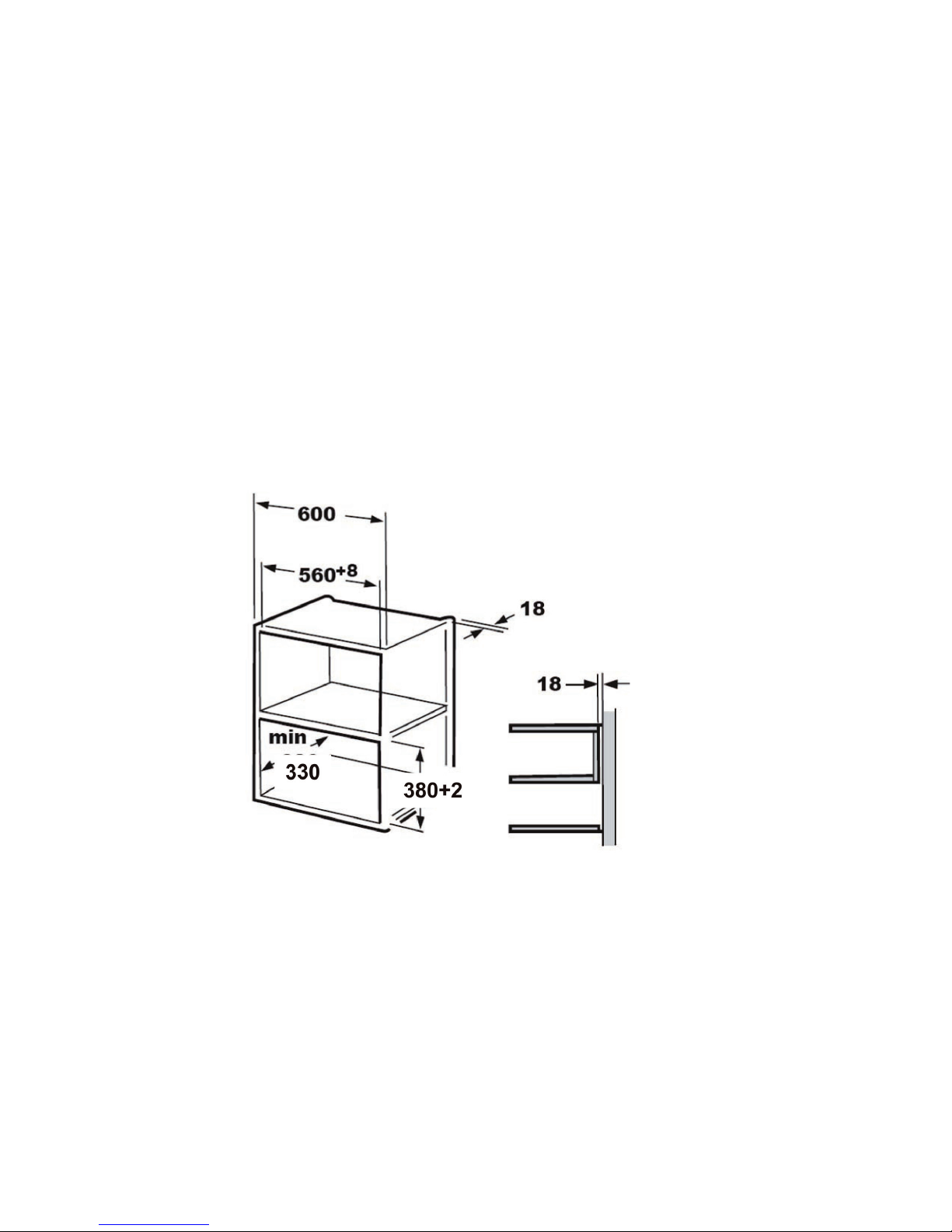

A. Built-in furniture
The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.
Do not cover ventilation slots and air intake points.

B. Install the Oven
1. • Do not trap or kink the power cord.
• Make sure that the oven is installed in the center of the cabinet.

2
3

4
5

OPERATION
Control Panel and Features
Operation Instructions
1. To set cooking power by turning the power knob to
desired level.
2. To set the time of cooking by turning the timer knob to
desired time per your food cooking guide.
3. The microwave oven will automatically start cooking
after power level and time are set.
4. After the cooking time is up, the unit will “Dong” to stop.
5. If the unit is not in use, always set time to “0”.
Function/Power Output Application
Low 17% micro. Soften ice cream
Med. Low (Defrost) 33% micro. Soup stew, soften butter or defrost
Med. 55% micro. Stew, fish
Med. High 77% micro. Rice, fish, chicken, ground meat
High 100% micro. Reheat, milk, boil water, vegetables, beverage
Function/Power Output Application
Combi. 1 80% grill 20% micro. Sausage, Lamb, Kabobs, Seafood, Steak
Combi. 2 70% grill 30% micro. Chicken pieces, Chicken breasts, Pork chops
Combi. 3 60% grill 40% micro. Whole chicken
Grill 100% grill Baken bread, Slice food
Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer
switch to 0 (zero).
Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage
to the magnetron.
Power
Timer

Trouble shooting
Normal
Microwave oven interfering TV reception
Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small
electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light
In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents
In cooking, steam may come out of food. Most will get out from vents. But so me may accumulate on ool place like
oven door. It is normal.
Oven started accidentally with no food in
It is forbidden to run the unit without any food inside. It is very dangerous.
Trouble Possible Cause Remedy
Oven can not be started. 1) Power cord not plugged Unplug. Then plug again
in tightly. after 10 seconds.
2) Fuse blowing or circuit Replace fuse or
breaker works. reset circuit breaker
(repaired by professional
personnel of our company)
3) Trouble with outlet. Test outlet with other
electrical appliances.
Oven doesnot heat. 4) Door not
closed well. Close door well.
Glass turntable makes 5) Dirtyroller rest and
noise when microwave oven bottom. Refer to “Maintenance of
oven operates Microwave ” to clean dirty parts.
According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE
should be separately collected and treated. If at any time in future you need to dispose
of this product please do NOT dis-pose of this product with household waste. Please
send this product to WEEE collecting points where available.
