FEATURES
smarter features for a better experience. that’s the CUB CADET ADVANTAGE.
4 x4 SERIES
Volunteer™ utility Vehicles
†
See specifications for warranty information.
††Includes operator, passenger and bed capacity
624cc V-TWIN ENGINE,
747cc V-TWIN EFI ENGINE
AND 854cc 3-CYLINDER
YANMAR® DIESEL
ENGINE WITH 2-YEAR
WARRANTY†
COLOR OPTIONS:
YELLOW, CAMO,
RED AND GREEN
32.6 FT.–LBS. OF TORQUE
@ 2,600 RPM TO 47.7
FT.–LBS. OF TORQUE @
2,400 RPM
TOP SPEED OF 30 MPH
TO 35 MPH
3" LADDER-STYLE
STEEL FRAME
1,400-LB. TOWING AND
PAYLOAD CAPACITY††
14.4 CUBIC FOOT
STEEL BED
ADJUSTABLE
COIL-OVER SHOCKS
DUAL A-ARM,
FULLY INDEPENDENT
SUSPENSION
4-WHEEL, 8" HYDRAULIC
DISC BRAKES
1-YEAR LIMITED
WARRANTY†
UNRIVALED VERSATILITY
With more than 40 available attachments, no task or adventure will hold
you back. It’s designed to do it all while letting you enjoy the outdoors.
READY FOR ANYTHING
With three engine choices, there’s a Volunteer 4x4 for any job. On campus,
at work, or in the yard, finish what needs to get done while having some
fun. And with a 2-year warranty† on the Kohler® and Yanmar® engines, do it
without worry.
HAUL THE HEAVIEST LOADS
With a 1,400-lb payload capacity,†† even large jobs are no match. The Volunteer
takes it with ease, meaning fewer trips for you to get the job done faster.
No matter what the job demands, the Volunteer series of 4x4 utility vehicles deliver. With its on-demand
4x4 system you get four-wheel drive performance at the flick of a switch. And with dual A-arm, independent
suspension and adjustable coil-over shocks, no matter where you’re headed, you’ll be traveling in comfort.
Smart thinking, only from Cub Cadet.
powerful utility. EXTREME VERSATILITY.
locate a Dealer at
CUBCADET.COM
innoVations no one else can DeliVer. an experience no one
else can match. proVe it to yourself with a test DriVe.

4x4
VOLUNTEER™ UTILITY VEHICLE
OPTIONAL EQUIPMENT FOR ALL VOLUNTEERTM UTILITY VEHICLES ENGINE 4x4 4x4 EFI 4x4D
Engine 20 HP* Kohler®
Command® V-Twin
31 HP* Kohler®
Aegis® V-Twin EFI
21.9 HP* Yanmar®
3-cylinder inline
Displacement 624cc 747cc 854cc
Fuel Gas Gas Diesel
Torque 32.6 ft.-lbs.
at 2,600 rpm
47.7 ft.-lbs.
at 2,400 rpm
36.9 ft.-lbs.
at 2,400 rpm
Ignition Transistor controlled Transistor controlled Compression
Lubrication Full pressure w/spin-on oil filter
Engine Cooling Air Liquid Liquid
Air Cleaner Dual element,
replaceable
Heavy-duty,
replaceable
Heavy-duty,
replaceable
SUSPENSION
Shocks Adjustable coil-over
Travel 8"
FRAME
Frame 3" ladder construction
Receiver 2" – class 1
Bumper Steel
TRANSMISSION
Drive Enclosed CVT
Front Differential Hilliard® front differential
Rear Differential Mechanical differential
Speed 0 – 30 mph 0 – 35 mph 0 – 30 mph
Transaxle Fully enclosed, oil bath
Selector Hurst® shifter (H-L-N-R)
Rear Axle Housing Cast-iron
ELECTRICAL SYSTEM
Battery 450 cold crank amp.
Alternator 12V – 15 amp. 12V – 65 amp. 12V – 65 amp.
Headlights Halogen 37.5 watts
Wiring Automotive fused
Power Port 12V in-dash
CONTROLS
Brakes 4-wheel, 8" hydraulic disc
Brake Lines Stainless steel braided
Parking Brake Mechanical
Steering Rack and pinion
Indicators Fuel, battery, oil, parking brake and hour meter
CAPACITY
Towing/Payload
1,400 lbs. (total payload includes operator, passenger and bed capacity)
Fuel Tank 7 gal.
Cargo Box Steel (1,000 lbs.) L/W/H: 51.6"/42"/11.5"
Storage Glove box, under-seat
SEATS
Seats
Professional high-back Sport Sport
TIRES
Tires Trail
Front Tire Size 25" x 9" – 12" 26" x 9" – 12" 25” x 10" – 12"
Rear Tire Size 25" x 11" – 12" 26" x 11" – 12" 25" x 11" – 12"
Rims 12" steel
DIMENSIONS
Length/Width/Height 119"/63.55"/ 73"
Tread Center F: 52"/R: 50"
Wheelbase 78"
Ground Clearance 11" (under foot platform)
Turning circle
(diameter) 22'
Weight 1,524 lbs. 1,650 lbs. 1,750 lbs.
WARRANTY†
1-year limited residential

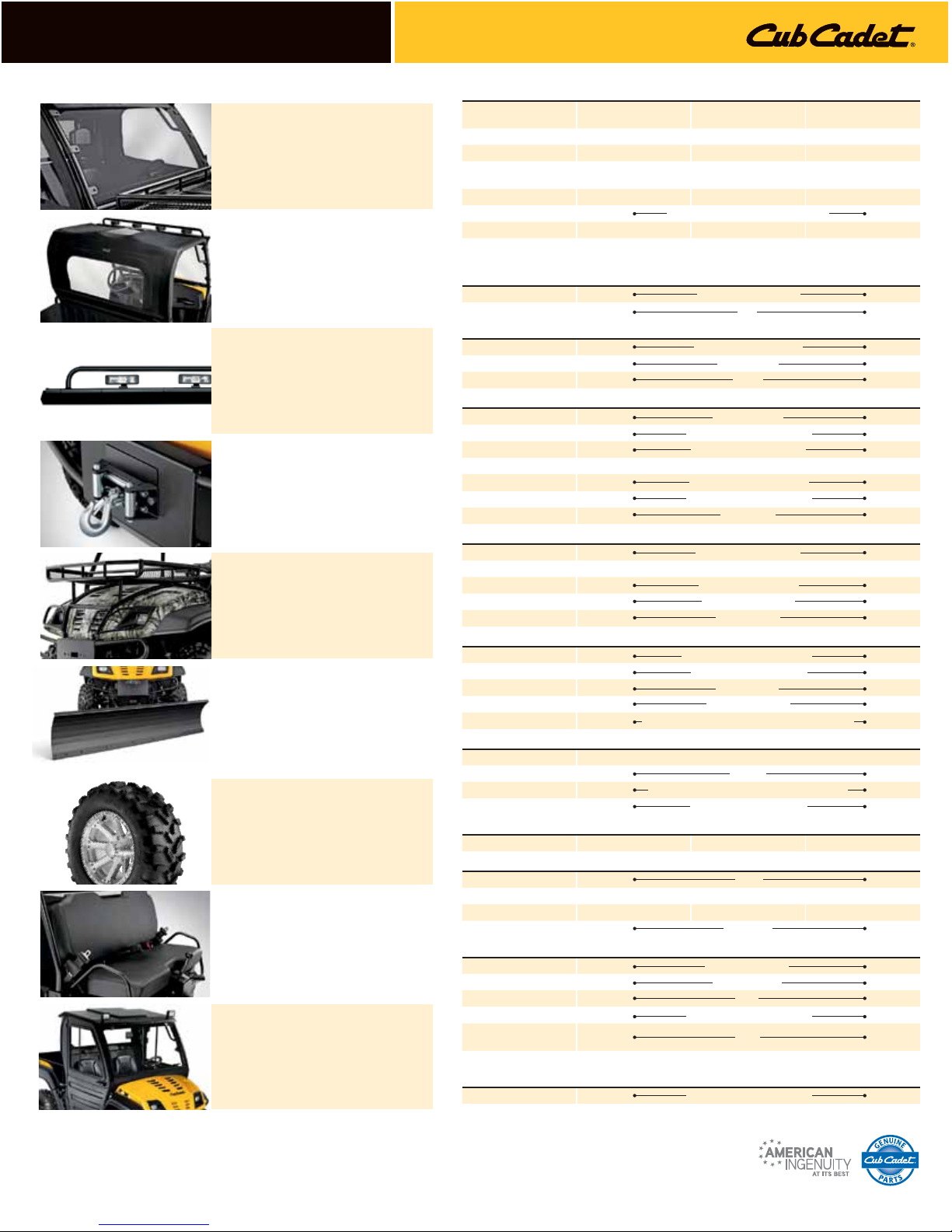

ACRYLIC WINDSHIELD (A200)
Mounts directly to OPS to protect operator
and passenger from the elements.
SOFT ROOF AND REAR WINDOW
(A201/B201)
The Cub Cadet soft roof is
made from
weather-resistant,
UV-coated nylon for
durable protection.
LIGHT BAR (A70022)
Low-profile light bar has four
35-watt adjustable driving lights
for added visibility.
WARN® 4,000-LB. WINCH
AND MOUNTING PLATES (A70015)
4,000-lb. winch with remote control and
steel cable.
HOOD RACK (A206)
Steel hood rack with headlight guards
provides extra storage.
14" ALUMINUM RIMS AND
26" OFF-ROAD TIRES (A235)
Set of four 14" aluminum rims and 26"
heavy-duty, radial Goodyear MTR tires.
72" SUPER-DUTY SNOW BLADE
WITH MANUAL ANGLE (A70024)
Angles up to 28 degrees with heavy-duty
skid shoes and four adjustable springs.
Not compatible with winches. Winch not required.
BENCH SEAT (A70003)
Comfortably fits two people
for maximum efficiency.
COMPLETE DELUXE CAB
(A70025–A70028)
The contoured design and thick poly
reduce noise levels and provide maximum
coverage for both the driver and passenger.
Cub Cadet Utility Vehicles are intended for off-road use by adults only. They are neither designed nor equipped to be registered as motor vehicles for use on public roadways. Always use extreme caution when
operating utility vehicles, and carefully follow all operating, maintenance and safety instructions and warnings. Please see the operator’s manual and the warning labels posted on the vehicle itself for more details.
This brochure is for advertisement purposes only. The product depictions are not meant to be used or relied upon as a substitute for the safety and use information that is published in the respective operator’s
manual. Before operating the machine, read, understand and follow all instructions in the manual and on the machine. Specifications and programs are subject to change without notice. Images may not
reflect dealer inventory and/or unit specifications.
*as rated by engine manufacturer † See your local Cub Cadet Independent Dealer for warranty details.
773-05155 Printed in U.S.A. X/12 © 2013 Cub Cadet
