Culina UBBU60RFA User manual
Built in Refrigerator
MODEL 8%BU60RFA
IM 8%BU60RFA_201
Contents
Cautions---------------------------------------------------------------------------------------1~2
Diagram----------------------------------------------------------------------------------------3
Preparation------------------------------------------------------------------------------------4~5
Operation--------------------------------------------------------------------------------------6
Instruction-------------------------------------------------------------------------------------7~10
Defrosting,cleaning and de-commissioning------------------------------------------11~12
Trouble shooting----------------------------------------------------------------------------13
Cautions
Disposal of the old appliance
Before disposing an old appliance, please make sure it’s inoperative and safe. Unplug
the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to
avoid the risk of child entrapment.
It must be noted that the refrigeration system contains insulating gases and refrigerants,
which require specialized waste disposal. The valuable materials contained in a refrig-
erator can be recycled. Contact your local waste disposal center for proper disposal of
an old appliance and contact your local authority or your dealer if you have any ques-
tion. Please ensure that the pipe work of your refrigerator dose not get damaged prior to
being picked up by the relevant waste disposal center, and contribute to environmental
awareness by insisting on an appropriate, any-pollution method of disposal.
Disposal of the packaging of your new appliance
All the packaging materials employed in the package of your new appliance may be
disposed without any danger to the environment.
The cardboard box may be broken or cut into smaller pieces and given to a waste paper
disposal service. The wrapping foil is made of polyethylene and the polyethylene pads
and stuffing contain no fluorochloric hydrocarbon.
All these valuable materials may be taken to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name and address of the waste materials collect-
ing centers and waste paper disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the appliance, read the information given in the User’s Guide carefully.
The User’s Guide contains very important observations relating to the assembly,
operation and maintenance of the appliance.
Keep the User’s Guide in a safe place and remember to hand it over to the subsequent
owner, if you ever sell the appliance.
The manufacturer does not accept responsibility for any damages that may arise due to
non-observation of the following instruction.
*Damaged appliances are not to be put into operation. In case of doubt ,consult your
supplier.
1
2

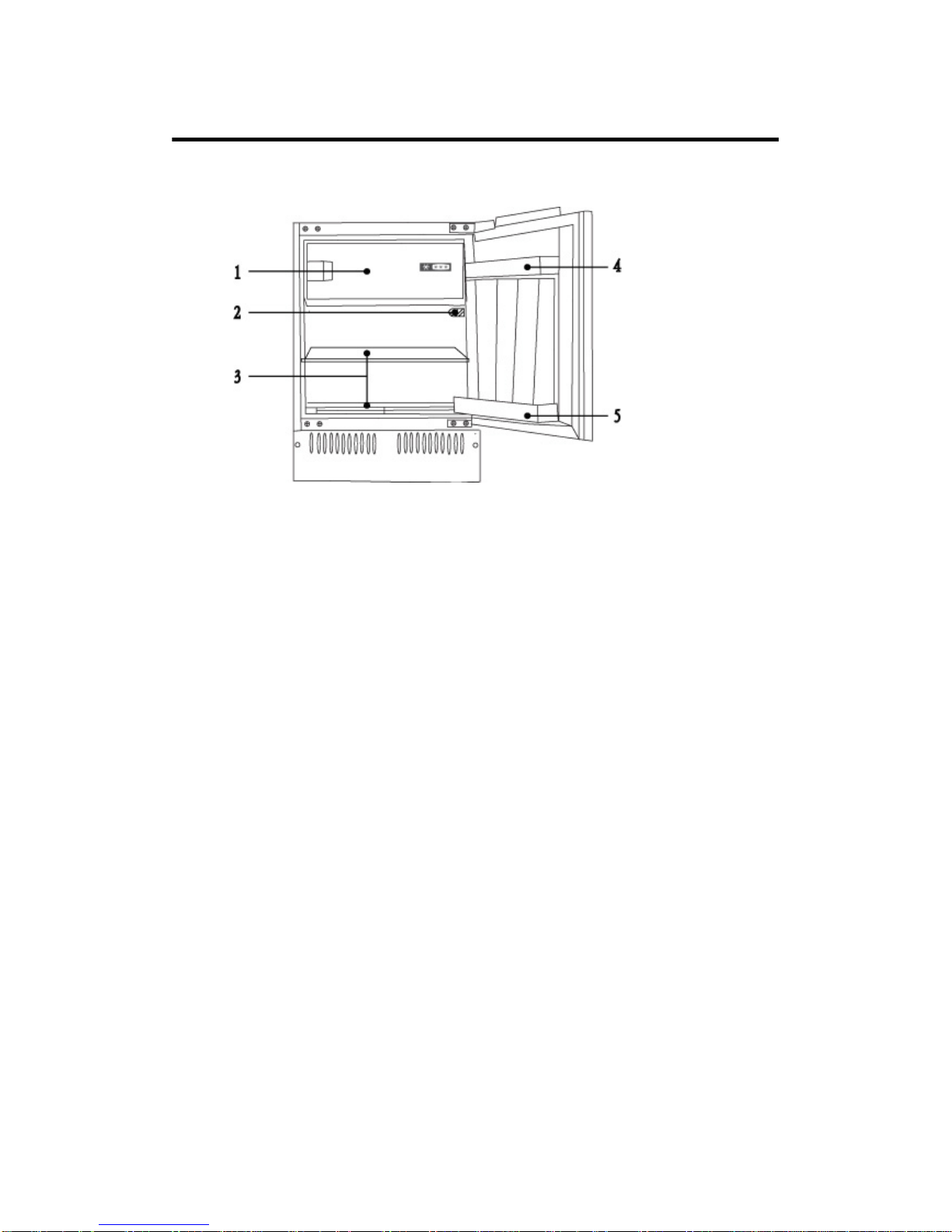

Refrigerator Diagram
1.Freezing compartment 2.T emperature Controller
3.Shelves 4. Egg tray
5. Bottle racks
This diagram may vary slightly with the layout of the refrigerator you
have
just purchased due to technical improvements.
3
Preparation
Unpacking
Remove all packing materials.
Check attachments and materials
Checking should be conducted with reference to the Packing List. Contact the local
distributor if discrepancies are found.
Ensure proper location of the refrigerator.
Clean the refrigerator before use.
(See the following section “Cleaning”)
Idle time
After the refrigerator has been sited and cleaned, let it stand for more than 30 minutes
before connecting the power source.

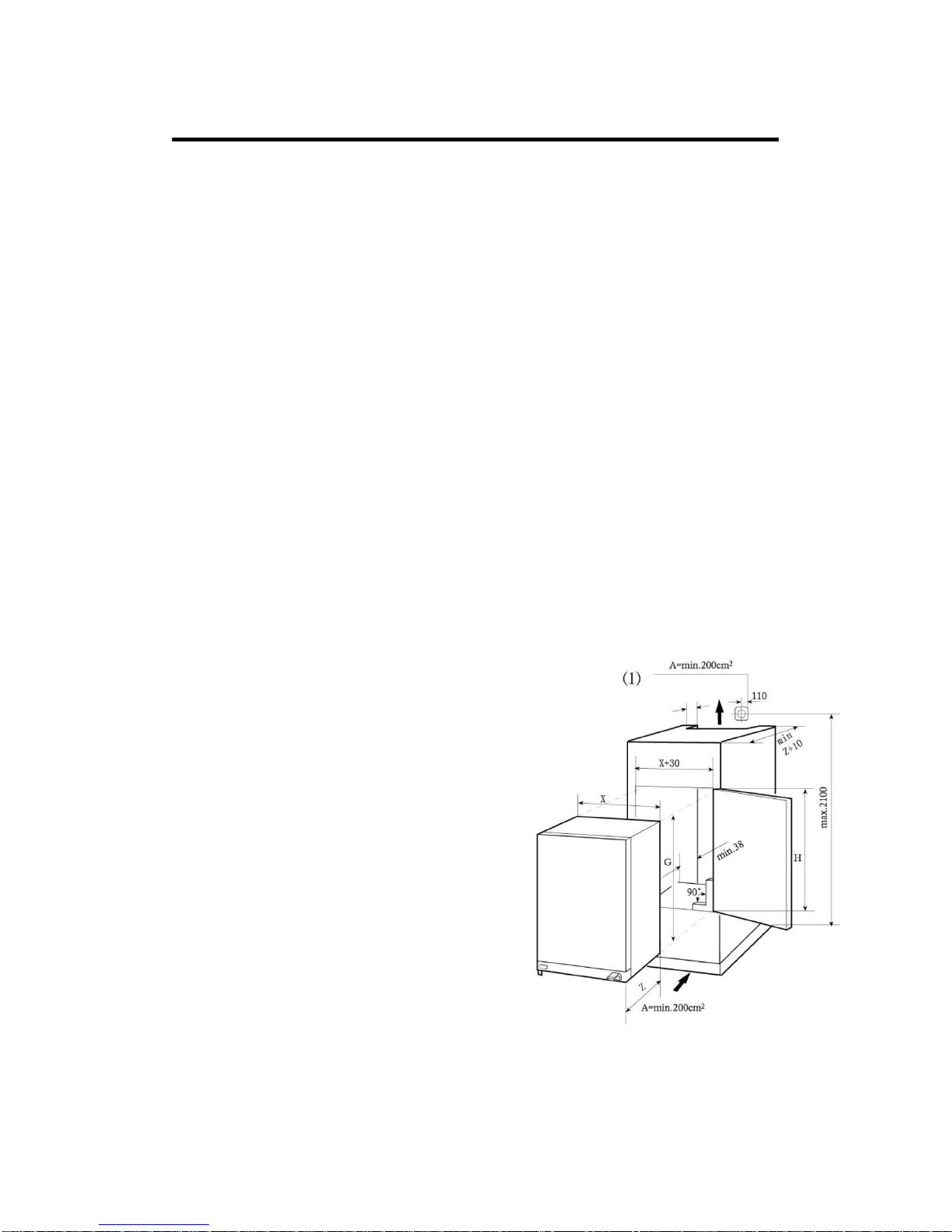

Ventilation（Figure 1）
4
*Level the kitchen cabinet unit with a spirit level and a
try square. Level the unit by placing packing material
underneath if required.
*A minimum gap of 38mm must be maintained at
the back of the appliance for ventilation.
*Air inlet A must be at least 200 cm square and
air must flow through the panel in the cabinet
plinth.
*Check that the position of the power socket (1)
is correct. AC voltage in the location at which
the appliance is to be used must comply with
that as shown on the data plate located on the
left inside wall of the appliance next to the
vegetable bins. The power supply must be
suitably earthed. （Fi
g
ure 1）
Preparation

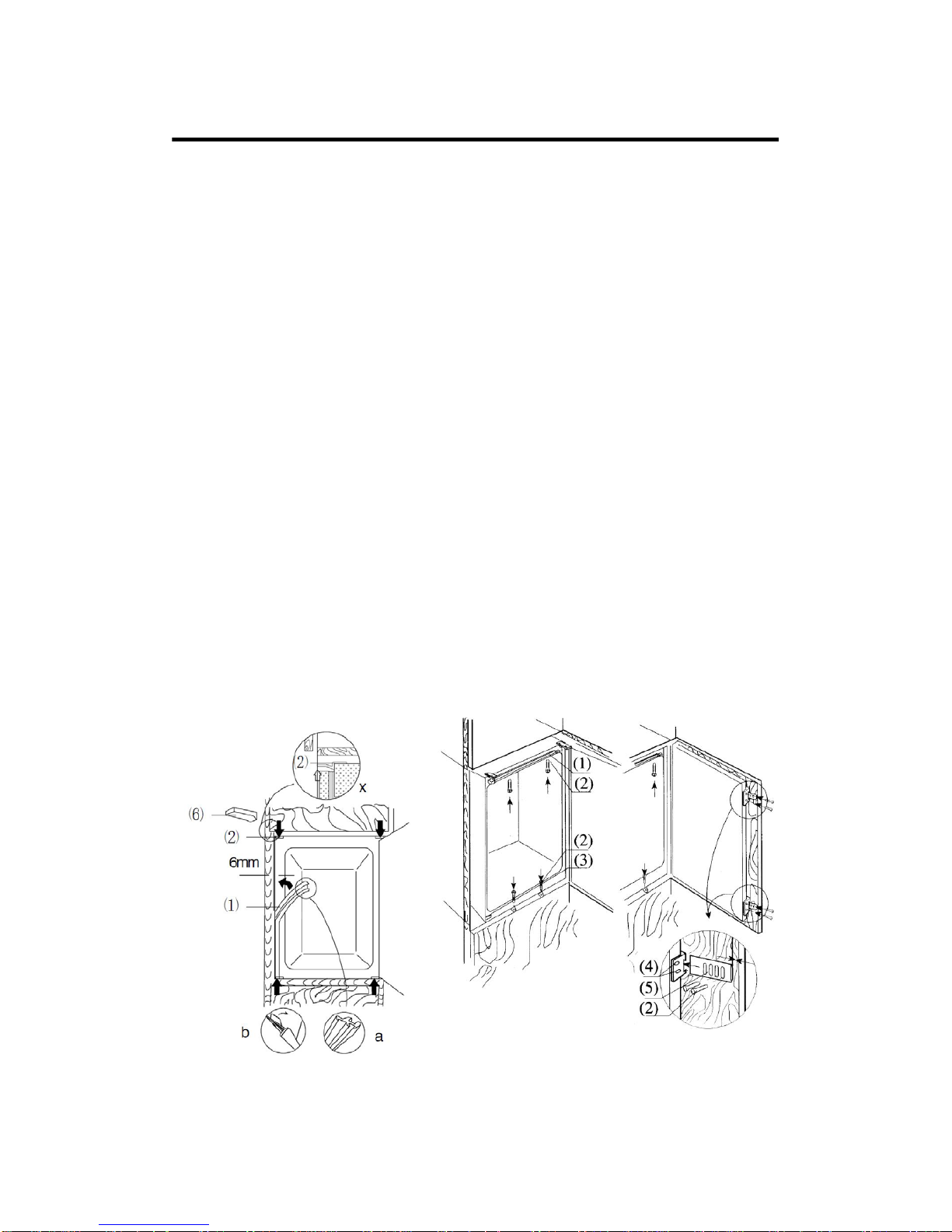

Installation（Figure 2）
1.Check that the kitchen unit door is in the correct operating position.
2.Run the mains cable through the unit such that it can be connected to the power supply
after installing the appliance. Remove the cover (6) only if space is restricted.
3.Place the refrigerator into the kitchen unit. Fix the mountings (1) with screws (2) onto the
upper frame when two third of the refrigerator has been pushed in. Then push the
refrigerator in completely, ensuring that the gib clamp of the mountings stuck on the
horizontal frame of the kitchen unit. Adjust the position of the refrigerator making a 6mm
space between inside wall of the kitchen unit and external sides of the refrigerators. Fix
the mountings to the horizontal frame of the kitchen unit with screws.
4.Insert the seal in the aperture (approx. 10mm) between the lower front frame and bottom
board of the kitchen. Fix lower mountings (3) to the lower front frame with screws (2). Fix
the lower mountings to the bottom board of the kitchen unit with screws (2).
5.Properly insert seals in the apertures on the left, upper and right sides of the refrigerator.
6.Fix the door to the holders (4) (each upper and lower position has one) with screws (2).
Press close the doors of the refrigerator and of the kitchen unit, and then completely
open the doors, and then place the connecting plate (5)to the corresponding holder and
fix it to the door of the kitchen unit (space between the connecting plate and the edge of
the kitchen unit "t" equals to the thickness of the external board of the kitchen unit, about
20mm).Adjust the connecting element so that the handle side of the kitchen unit door
does not make contact with the unit body when closed. (Approximately 1mm gap for
large appliances), mount the second door connecting element where appropriate.
7.Plug the open hole in the appliance door.
5
（Fi
g
ure 2）

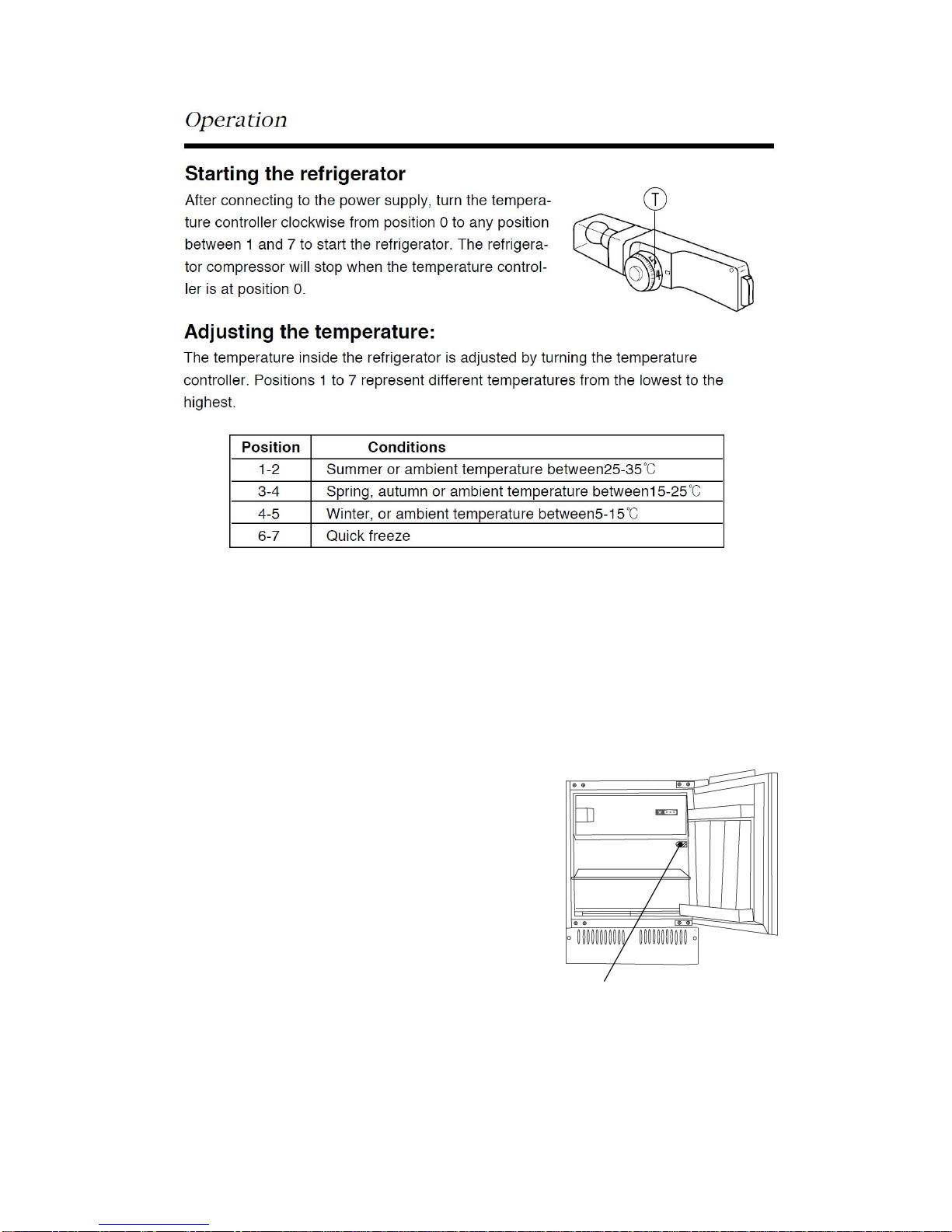

Caution: Some time will be required for the refrigerator to reach the set level when
temperature adjustments are made. The length of this period is determined by
difference in the existing and set temperatures, the ambient temperature, the
frequency with which the door is opened and closed and the amount of food in
storage.
Caution: If ambient temperature is below 16
℃
, please turn on the “Low-temp
Controller”.
6
Temperature Controllor
Loading the refrigerator with food
When the refrigerator is switched on, do not load
food until 1～2 hours have passed. Usually, food
for cold storage or deep freezing can be loaded
when the temperature inside the compartment
reaches the set point.
Instructions
7
Cold storage is for short-term food
Storage or for daily consumption.
Although the temperature in most parts of the cold
storage compartment can be regulated between 0
and 10 degrees Centigrade, extended periods of
food storage is not recommended. Cold storage
should only be used for short-term storage.

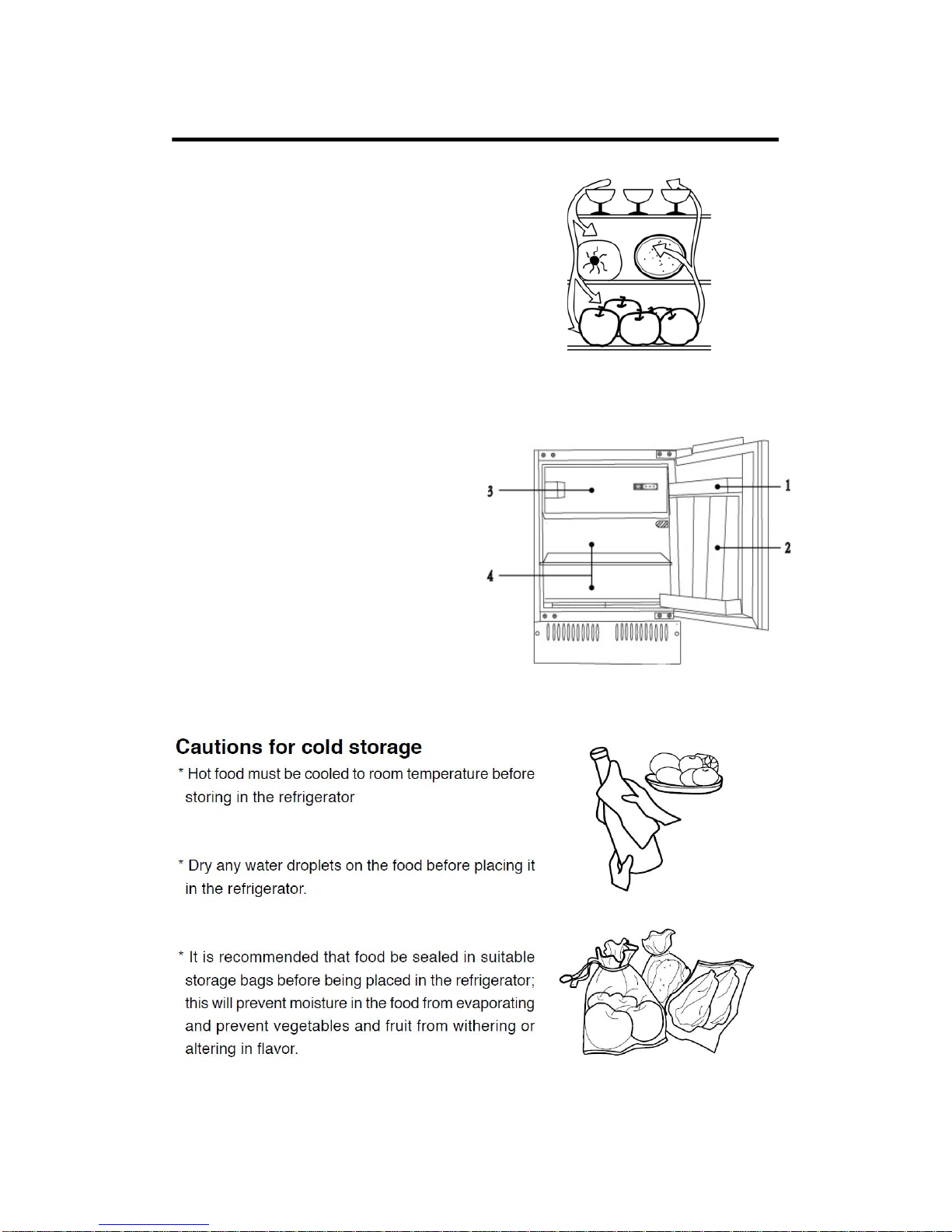

Cold storage compartment
1. Eggs and butter
2. Beverages and bottled food
3. Food to be frozen
4. Cookies, cooked food and milk
8
Lamp & Replacement:
Lamp: 240V, 10W
Lamp holder: E14 (lamps exceeding 15W
must not be used)
* For replacement, unplug to disconnect the
power
* Remove the lamp by turning anti-clockwise
9

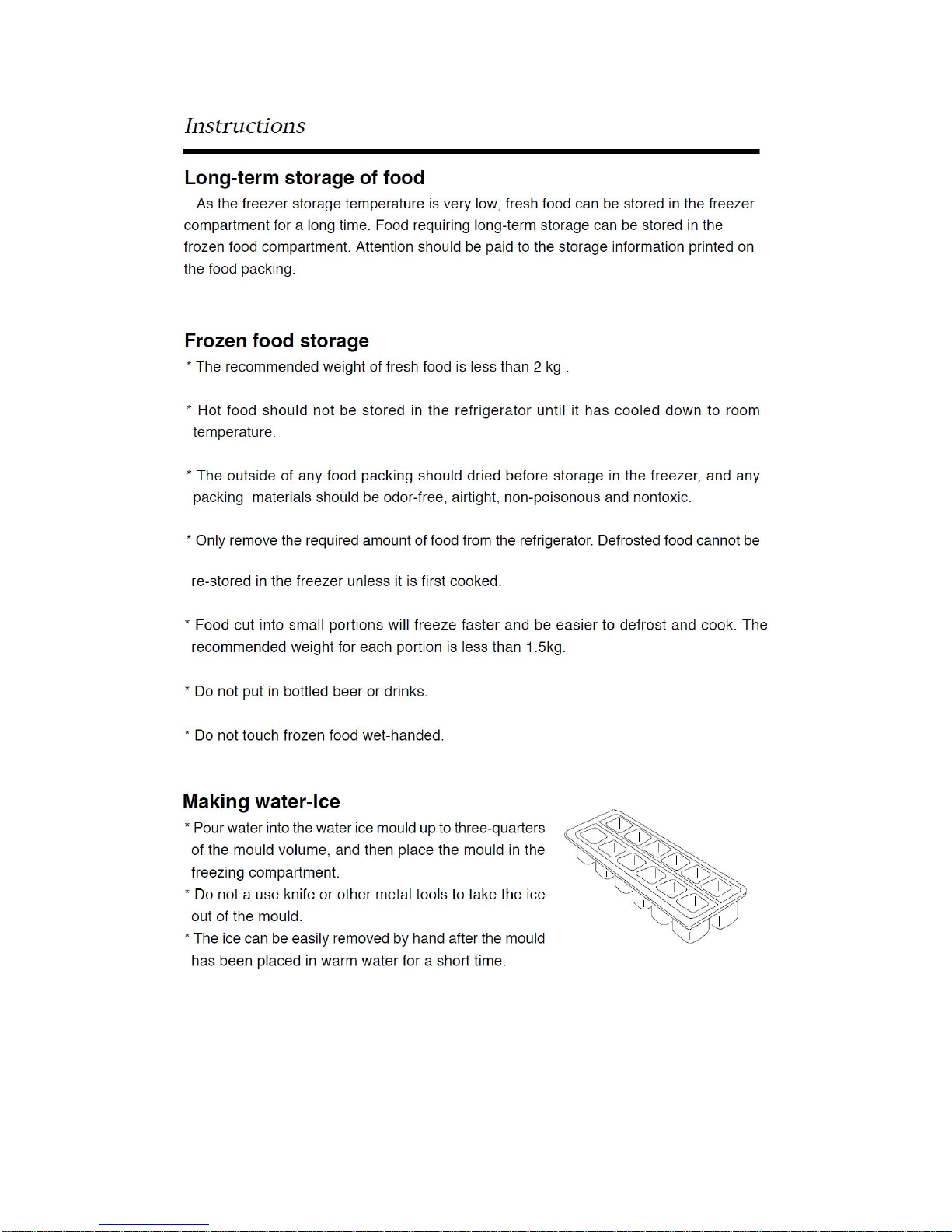

10

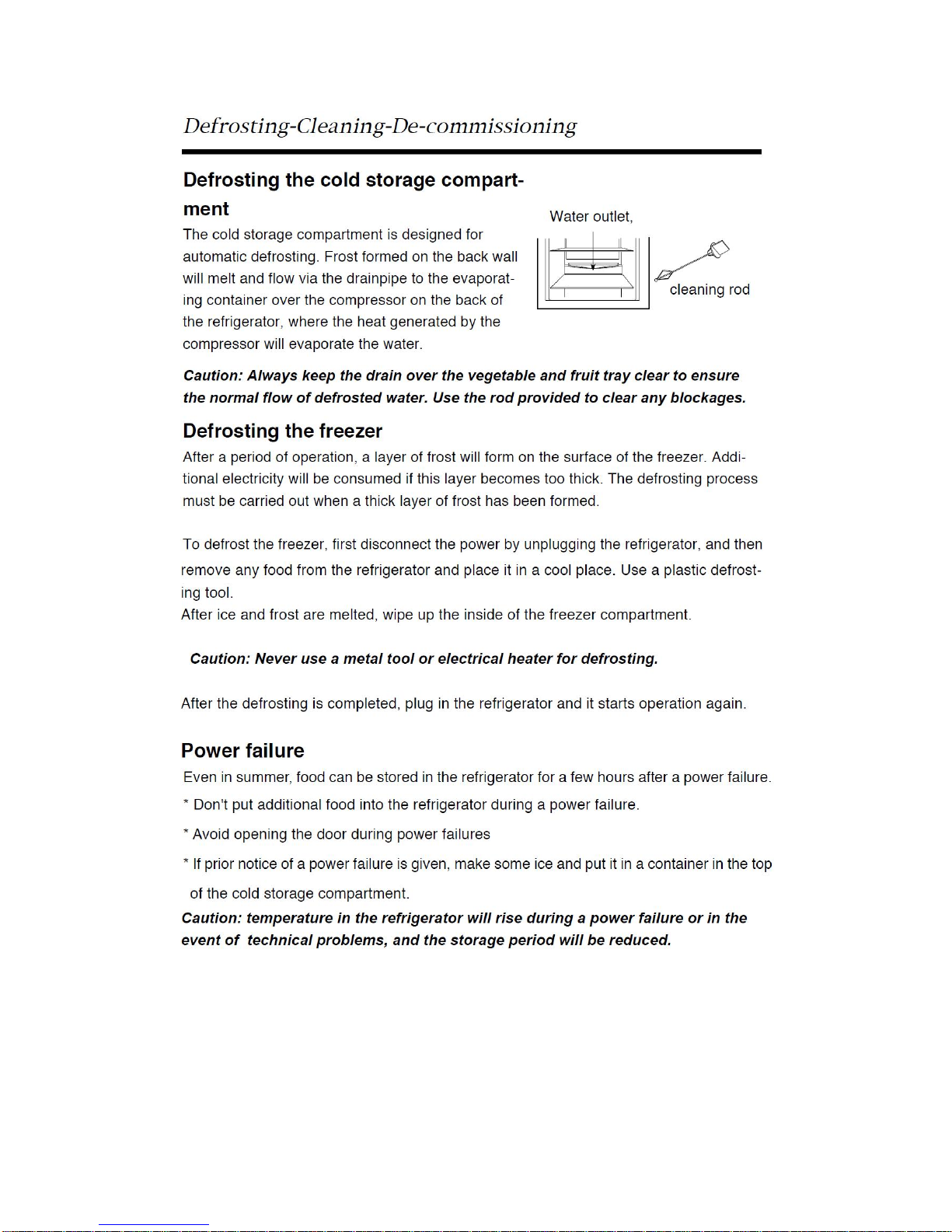

11

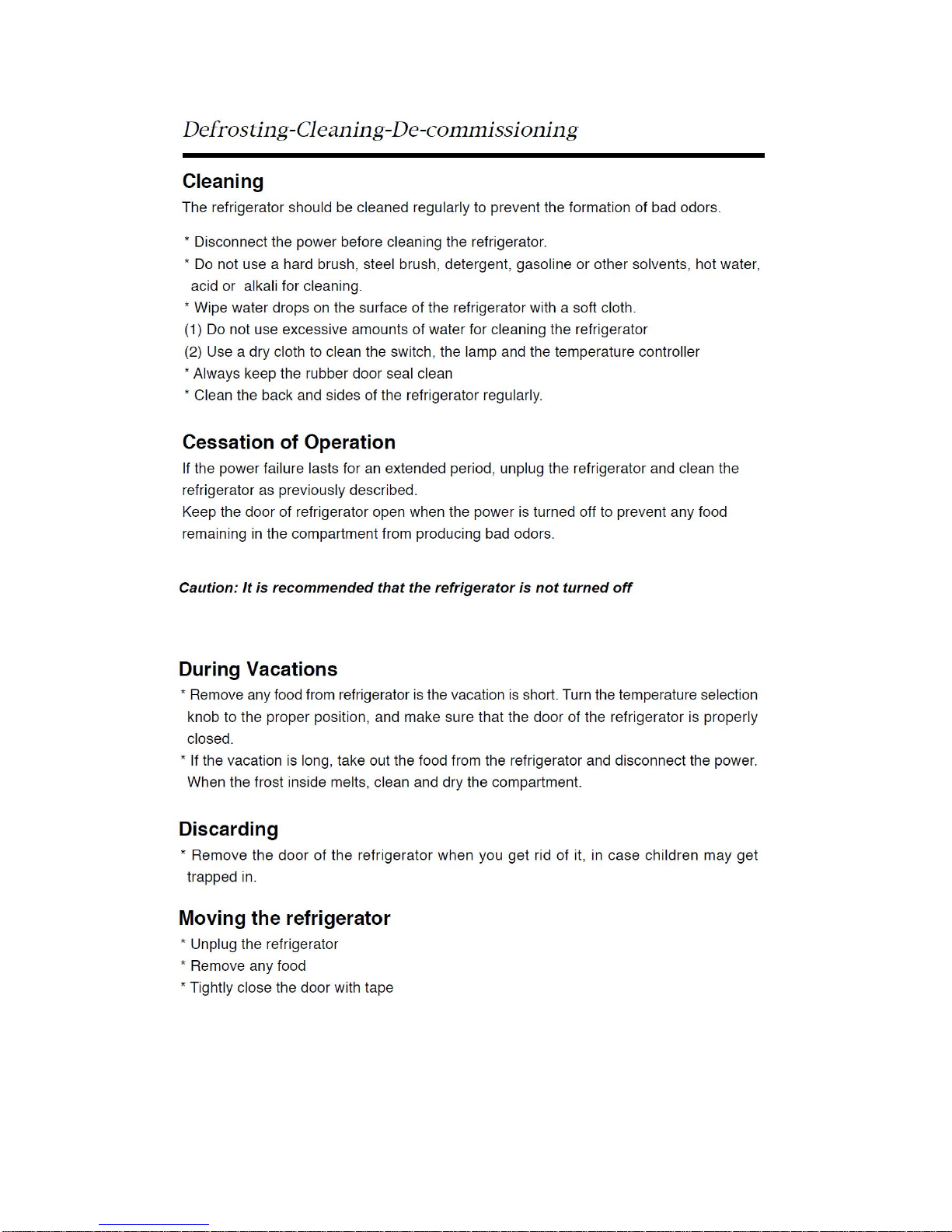

12
13
GUARANTEE
This appliance is covered by a full manufacturer’s 2 year
parts and 2 year labour guarantee and covers all parts and
labour costs associated with the repair of the appliance
in a domestic environment. We will repair any defect that
arises due to faulty materials or workmanship and use
genuine manufacturers parts.
All claims must be supported with the original receipt or
other reasonable proof of purchase.
If, during the guarantee period, the appliance becomes
irreparable as agreed by the engineer approved by
Apelson Appliances UK Ltd then we reserve the right, at
our discretion, to exchange the defective product with
a replacement appliance at Apelson Appliances UK Ltd
sole cost. If the same product is no longer available an
alternative will be offered with the same functions as the
faulty item.
After an appliance has been repaired or replaced any
remaining balance of the Apelson Appliances UK Ltd
guarantee will be valid and any further call outs during this
prescribed period will be covered by Apelson Appliances
UK Ltd on the replacement appliance.
Should any person other than an authorized engineer
modify or attempt to repair the appliance then the
warranty will be invalid.
The guarantee applies to the UK mainland, Scotland and
Ireland but is not transferable between EU countries.
This guarantee is non-transferable to any other person or
product.
The guarantee is covered by UK law and is in addition to
and does not diminish your legal rights.
EXTENDED PARTS ONLY WARRANTY
As testimony to our commitment to you as a valued
customer of Apelson Appliances UK Ltd, we will offer you
an additional 3 years parts warranty absolutely free.
If during the extended parts warranty period the
appliance fails and it is considered uneconomical to repair
our Customer Service Department will offer you the
opportunity to purchase the same or equivalent model at a
discounted price.
All parts supplied free of charge under the extended
EXCLUSIONS TO THE GUARANTEE
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a
result of failure to store, assemble, install, use or care
of the products in accordance with the manufacturer’s
instructions - Apelson Appliances UK Ltd will not accept
responsibility under this guarantee if a product is damaged
or becomes defective due to, misuse, neglect, wilful or
accidental damage or act of god.
Normal wear and tear.
Claims arising from non-domestic use or commercial
environment.
installer.
If no fault is found then Apelson Appliances UK Ltd
reserves the right to charge for the call out at the going
rate of £55.00 plus VAT.
In the course of the service work carried out it may be
position. If the appliance is glued, grouted or tiled in such
a manner that it cannot be removed, it is the responsibility
of the customer/installer to remove and reinstall the
appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by Apelson Appliances UK Ltd,
1 Express Way, Off California Drive, Castleford, WF10 5QJ
