Kenmore 2536072100B User manual

®
With Automatic Freeze Contro_
Use & Care Guide
con contro_ automatico de conge_aci6n
Gufa para su uso y cuidado
R6frig6rateur
regu_ateur de ge_ automatique
Guide d'utilisation et d'entretien
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
m
www.seats,com
216960900 (0403)

Record Serial/Model Numbers ............ 1
Safety .................................................. 1-2
Warranty .............................................. 2
Canada - Limited Warranty ................. 3
First Steps ........................................... 4-5
Energy Saving Tips ............................. 5
Setting the Temperature Control .......... 5
Refrigerator Features .......................... 5
Care and Cbaning .............................. 6

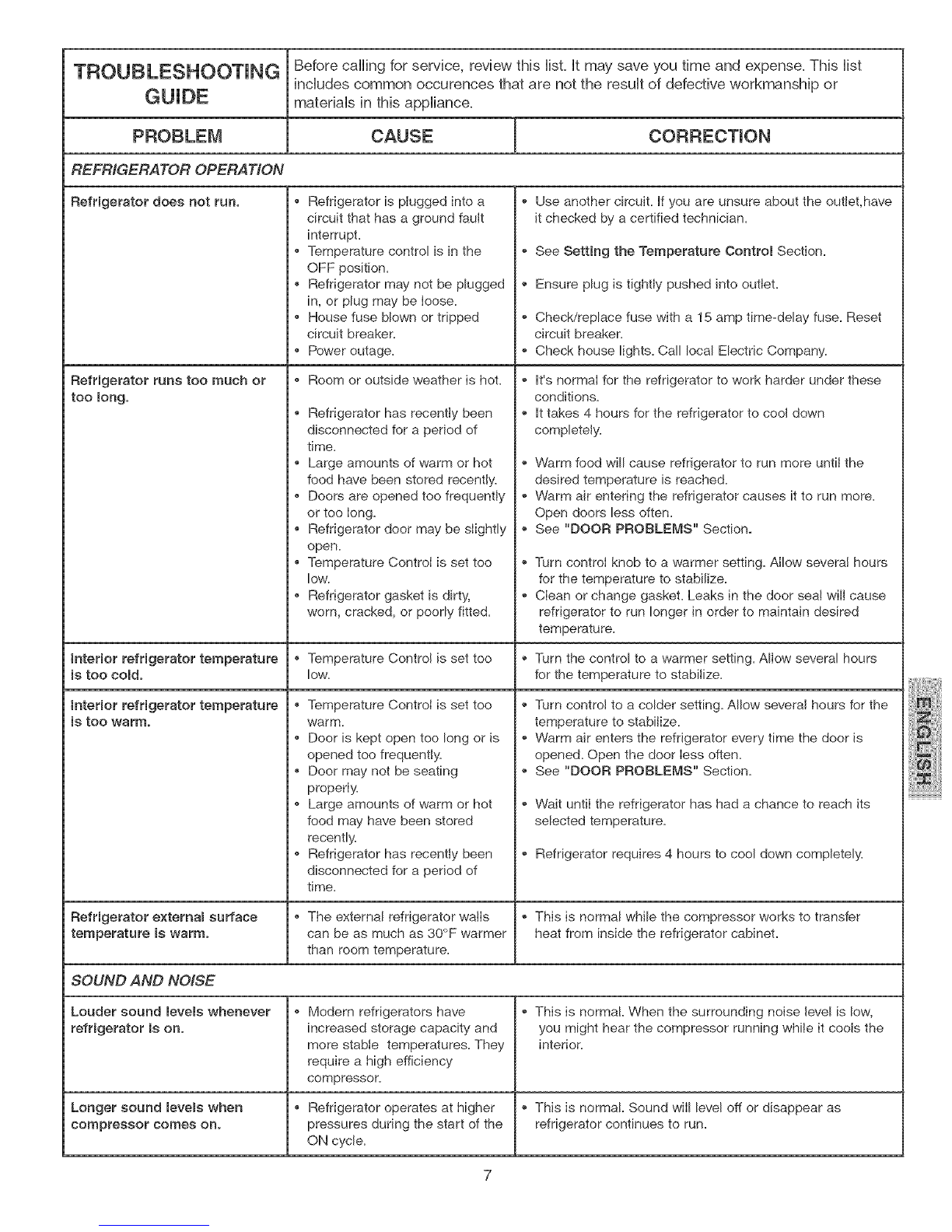

Troubleshooting Guide ......................... 7-8
Sears Service ..................................... 9
Sears Canada Customers .................. 9
READ AND SAVE THESE INSTRUCTmONS
This Owner's Guide provides specific operating instructions
for your model, Use your refrigerator only as instructed in
this guide, These instructions are not meant to cover every
possible condition and situation that may occur, Common
sense and caution must be practiced when installing,
operating, and maintaining any appliance,
Record Your Modet and SeriaJ Numbers
Record the model and serial numbers in the space provided
below, The serial plate is located on the upper left wall
inside the refrigerator,
Modet Number: 253.
or 970.
SeriaJ Number:
Purchase Date:
Model and Sedal
Number Plate
READ ALL INSTRUCTmONS BEFORE USING
THIS REFRmGERATOR°
r.,_w;_:t_,t_[_ FOR YOUR SAFETY
Do not store or use gasoline, or other flammable vapors and
liquids in the vicinity of this or any other appliance, Read
product labels for flammability and other warnings,
F,,,,,1-'_It_[_CHILD SAFETY
Destroycarton,plasticbags,and any exteriorwrapping
materialimmediatelyaftertherefrigeratorisunpacked,
Childrenshouldneveruse theseitemstoplay,Cartons
coveredwithrugs,bedspreads,plasticsheetsor
stretchwrap may become airtightchambers,and can
quicklycause suffocation,
oRemove allstaplesfromthecarton,Staplescan cause
severecuts,and destroyfinishesiftheycome in
contact with other appliances or furniture,
An empty, discarded ice box, refrigerator, or freezer is a
very dangerous attraction to children,
Remove and discard any spacers used to secure the
shelves during shipping, Small objects are a choke
hazard to children,
Remove the door(e) of any appliance that is not in use,
even if it is being discarded.
Proper DiepoeaJ of Your
RefrigeratodFreezer
F'v*'I-'_:i_iI_[_lRisk of child
entrapment, Child entrapment and
suffocation are not problems of the
past, Junked or abandoned
refrigerators or freezers are still
dangerous -- even if they will sit for
"just a few days," if you are getting
rid of your old refrigerator or freezer,
please follow the instructions below to
help prevent accidents,
BEFORE YOU THROW AWAY YOUR
OLD REFRIGERATOR/FREEZER:
o Remove
doors,
o Leave shelves in
place so children
may not easily
climb inside,

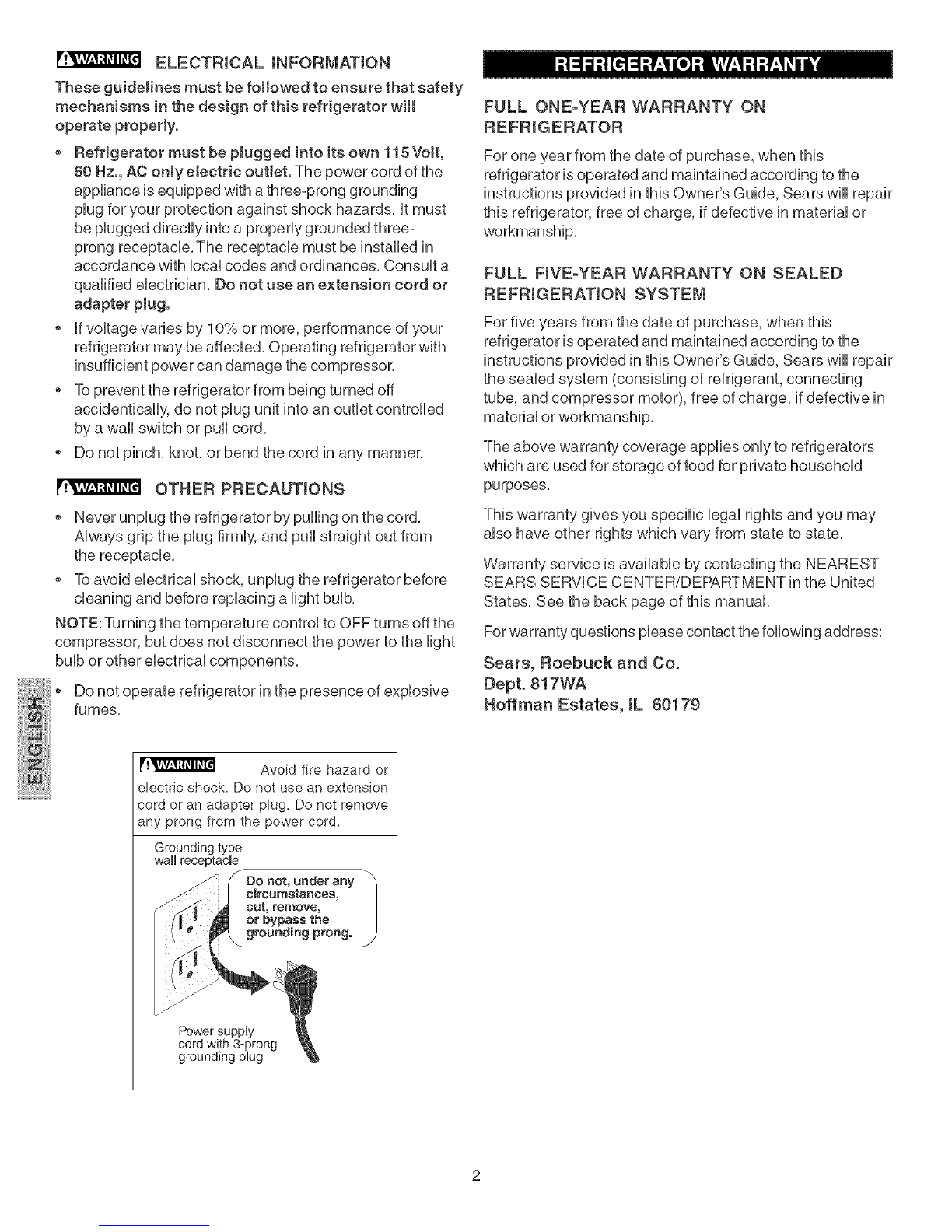

p.,,,v_,_:t,_ll,_t_ELECTRICALINFORMATION
These guideJines must be followed to ensure that safety
mechanisms in the design of this refrigerator wilt
operate property.
*Refrigerator must be plugged into its own 1!5 Volt,
60 Hz., AC onJy etectric outlet. The power cord of the
appliance is equipped with a three@rong grounding
plug for your protection against shock hazards, it must
be plugged directly into a properly grounded three-
prong receptacle, The receptacle must be installed in
accordance with local codes and ordinances, Consult a
qualified electrician, Do not use an extension cord or
adapter plug.
if voltage varies by 10% or more, performance of your
refrigerator may be affected, Operating refrigerator with
insufficient power can damage the compressor,
o To prevent the refrigerator from being turned off
accidentically, do not plug unit into an outlet controlled
by a wall switch or pull cord,
o Do not pinch, knot, or bend the cord in any manner,
r',v,v-,_._,i_,{_OTHER PRECAUTIONS
Never unplug the refrigerator by pulling on the cord,
Always grip the plug firmly, and pull straight out from
the receptacle,
Toavoid electrical shock, unplug the refrigerator before
cleaning and before replacing a light bulb,
NOTE: Turning the temperature control to OFF turns off the
compressor, but does not disconnect the power to the light
bulb or other electrical components,
iiiiiiiii! il:iiii,!iiii:iiiiiiii
Do not operate refrigerator in the presence of explosive
fumes,
r! VtV_q_|_ll_[€ Avoid fire hazard or
electric shock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from the power cord.
Grounding type
wall receptacle
Power supply
cord with 3-prong
grounding plug
FULL ONE-YEAR WARRANTY ON
REFRIGERATOR
For one year from the date of purchase, when this
refrigerator is operated and maintained according to the
instructions provided in this Owner's Guide, Sears will repair
this refrigerator, free of charge, if defective in material or
FULL FIVE-YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five years from the date of purchase, when this
refrigerator is operated and maintained according to the
instructions provided in this Owner's Guide, Sears will repair
the sealed system (consisting of refrigerant, connecting
tube, and compressor motor), free of charge, if defective in
material or workmanship,
The above warranty coverage applies only to refrigerators
which are used for storage of food for private household
purposes,
This warranty gives you specific legal rights and you may
also have other rights which vary from state to state,
Warranty service is available by contacting the NEAREST
SEARS SERVICE CENTER/DEPARTMENT in the United
States, See the back page of this manual,
For warranty questions please contact the following address:
Sears, Roebuck and Co.
Dept. 817WA
Hoffman Estates, IL 60179

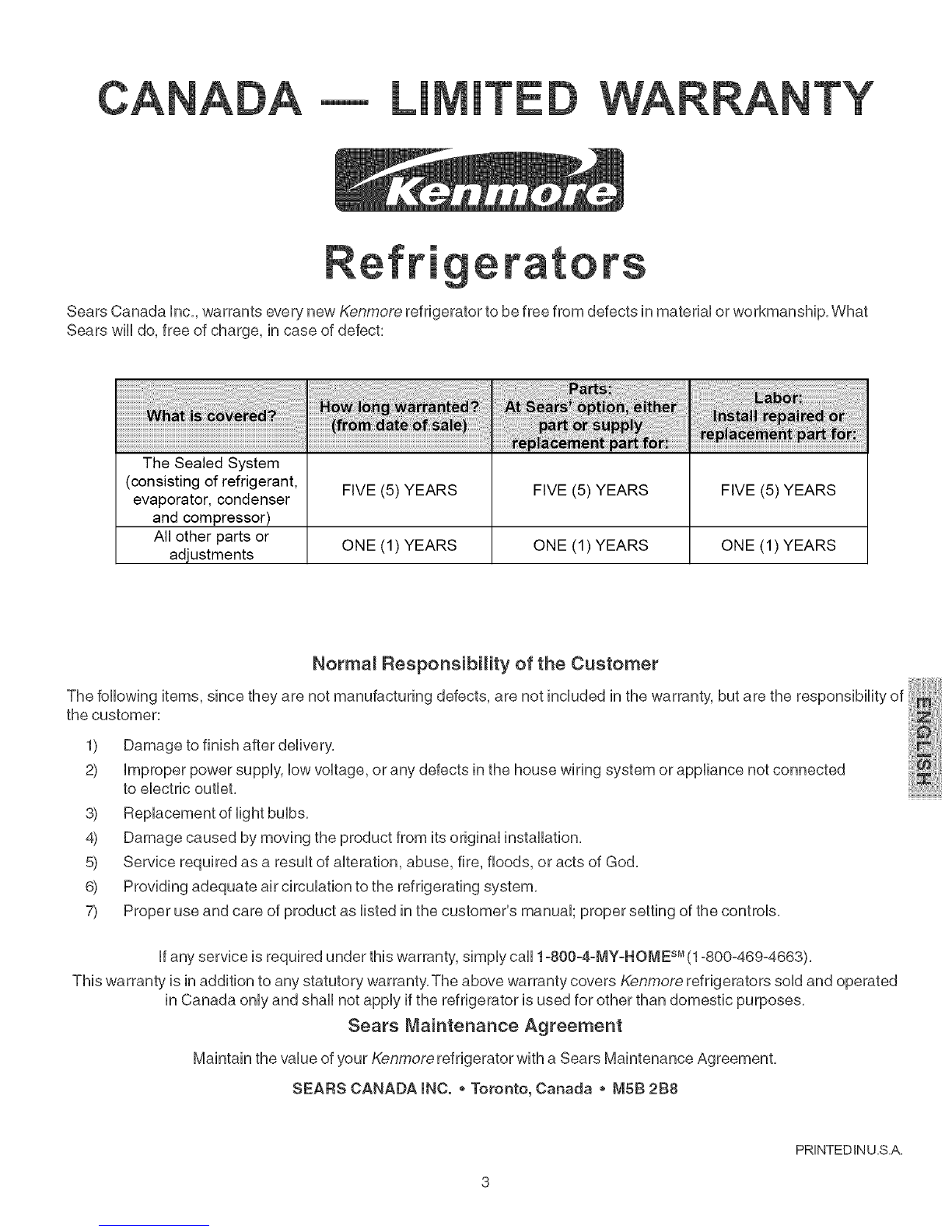

CA
era ors
Sears Canada Inc,, warrants every new Kenmore refrigerator to be free from defects in material or workmanship, What
Sears will do, free of charge, in case of defect:
The Sealed System
(consisting of refrigerant, FIVE (5) YEARS
evaporator, condenser
and compressor)
All other parts or
adjustments ONE (1) YEARS
FIVE (5) YEARS FIVE (5) YEARS
ONE (1) YEARS ONE (1) YEARS
Norma_ Responsibility of the Customer
The following items, since they are not manufacturing defects, are not included in the warranty, but are the responsibility of
the customer:
1) Damage to finish after delivery,
2) Improper power supply, low voltage, or any defects in the house wiring system or appliance not connected
to electric outlet,
3) Replacement of light bulbs,
4) Damage caused by moving the product from its original installation,
5) Service required as a result of alteration, abuse, fire, floods, or acts of God,
6) Providing adequate air circulation to the refrigerating system,
7) Proper use and care of product as listed in the customer's manual; proper setting of the controls,
if any service is required under this warranty, simply call 1-800-4-MY-HOME sM(1°800°469°4663),
This warranty is in addition to any statutory warranty, The above warranty covers Kenmore refrigerators sold and operated
in Canada only and shall not apply if the refrigerator is used for other than domestic purposes,
Sears Maintenance Agreement
Maintain the value of your Kenmore refrigerator with a Sears Maintenance Agreement,
SEARS CANADA INC. o Toronto, Canada o M5B 2B8
PRINTED INU,S,A,

7, To replace door, reverse above order,
This Owner's Guide provides specific operating instructions
for your model, Use the refrigerator only as instructed in this
Owner's Guide, Before starting the refrigerator, follow
these important first steps.
iNSTALLATiON
o Choose a place that is neara grounded electrical outlet,
Do Not use an extension cord or an adapter plug,
o For the most efficient operation, the refrigerator should
be located where surrounding temperatures will not drop
below 10° F(°12° C) or exceed 110° F (48 ° C),The
Freeze Control Feature is designed to automatically
maintain the selected interior refrigerator temperature
within these boundaries,
oA/fowspacearoundthe unitforgoodaircircuiation_
Leave a 3 inch (75 mm) space on all sides of the
refrigerator for adequate circulation,
liiiiiiiilL?_iiiiii/ii
Installation
NOTE: The exterior walls of the refrigerator may become
quite warm as the compressor works to transfer heat from
the inside, Temperatures as much as 30 ° F warmer than
room temperature can be expected, For this reason it is
particularly important in hotter climates to allow enough
space for air circulation around your refrigerator,
LEVELING
The refrigerator must have all bottom corners resting firmly
on a solid floor, The floor must be strong enough to support
a fully loaded refrigerator, NOTE: it is Very Important for
your refrigerator to be level in order to function properly, if
the refrigerator is not leveled during installation, the door
may be misaligned and not close or seal properly, causing
cooling, frost, or moisture problems,
To LeveJYour Refrigerator:
After discarding crating screws and wood base, use a
carpenter's level to level the refrigerator from front-to-back,
Adjust the plastic leveling feet in front, Y2bubble higher, so
that the door closes easily when left halfway open,
Plastic
Levelirlg Feet
Crating
Screw
And (2) Wood Bases
Unpacking and Leveling
CLEANING
Wash any removable parts of the refrigerator interior, and
exterior with mild detergent and vvarm water, Wipe dry,
Do not use harsh cJeaners on these surfaces.
Do not use razor blades or other sharp instruments,
which can scratch the appliance surface when removing
adhesive labels, Any glue left from the tape can be
removed with a mixture of warm water and mild deter-
gent, or touch the residue with the sticky side of tape
already removed, Do not remove the sedaJplate.
_To albw door to
close and seal properly, DO NOT let
food packages extend past the front
of shelves,
Sheff Front

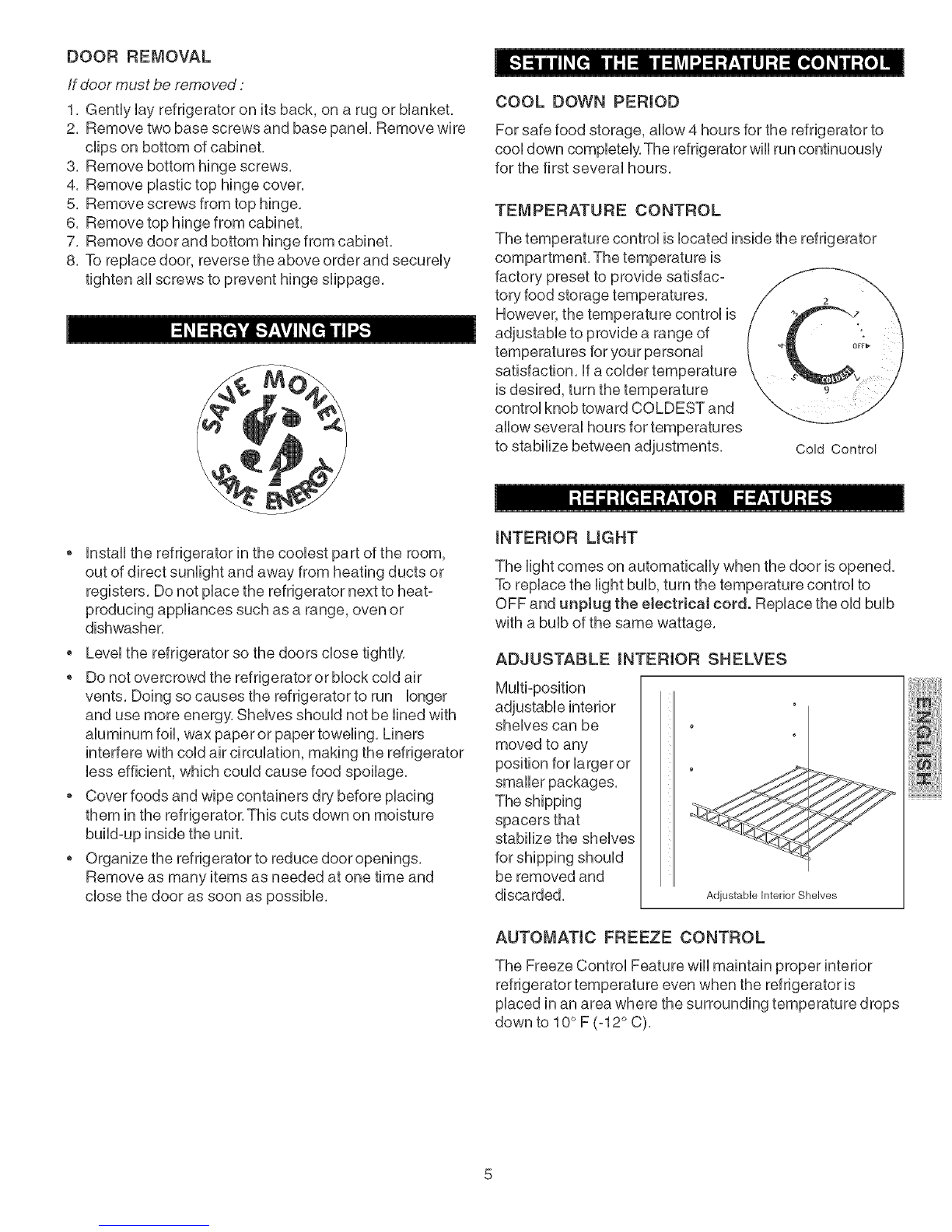

DOOR REMOVAL
If door must be removed :
1, Gentiy Hayrefrigerator on its back, on a rug or bianket,
2, Remove two base screws and base panel Remove wire
chips on bottom of cabinet,
3, Remove bottom hinge screws,
4, Remove pHastbtop hinge cover,
5, Remove screws from top hinge,
6, Remove top hinge from cabinet,
7, Remove doorand bottom hinge from cabinet,
8, To repiace door, reverse the above order and secureiy
tighten ali screws to prevent hinge slippage,
COOL DOWN PERIOD
For safe food storage, allow 4 hours for the refrigerator to
cooi down compieteiy, The refrigerator wHirun continuousiy
for the first severai hours,
TEMPERATURE CONTROL
The temperature controi is iocated inside the refrigerator
compartment, The temperature is
factory preset to provide satisfaco
tory food storage temperatures,
However, the temperature controi is
adjustabie to provide a range of
temperatures for your personai
satisfaction, if a coider temperature
is desired, turn the temperature
controi knob toward COLDEST and
allow severai hours for temperatures
to stabilize between adjustments, Cold Control
o Install the refrigerator inthe coolest part of the room,
out of direct sunlight and away from heating ducts or
registers, Do not place the refrigerator next to heat°
producing appliances such as a range, oven or
dishwasher,
o Level the refrigerator so the doors close tightly,
o Do not overcrowd the refrigerator or block cold air
vents, Doing so causes the refrigerator to run longer
and use more energy, Shelves should not be lined with
aluminum foil, wax paper or paper toweling, Liners
interfere with cold air circulation, making the refrigerator
less efficient, which could cause food spoilage,
o Cover foods and wipe containers dry before placing
them in the refrigerator, This cuts down on moisture
Organize the refrigerator to reduce door openings,
Remove as many items as needed at one time and
close the door as soon as possible,
INTERmOR MGHT
The light comes on automatically when the door is opened,
To replace the light bulb, turn the temperature control to
OFF and unptug the eteetrieaJ cord, Replace the old bulb
with a bulb of the same wattage,
ADJUSTABLE INTERmOR SHELVES
shelves can be
moved to any
position for larger or
smaller packages,
spacers that
stabilize the shelves
for shipping should
be removed and
discarded, Adjustable Interior Shelves
AUTOMATIC FREEZE CONTROL
The Freeze Control Feature wiii maintain proper interior
refrigerator temperature even when the refrigerator is
placed in an area where the surrounding temperature drops
down to 10° F (-12 ° C),

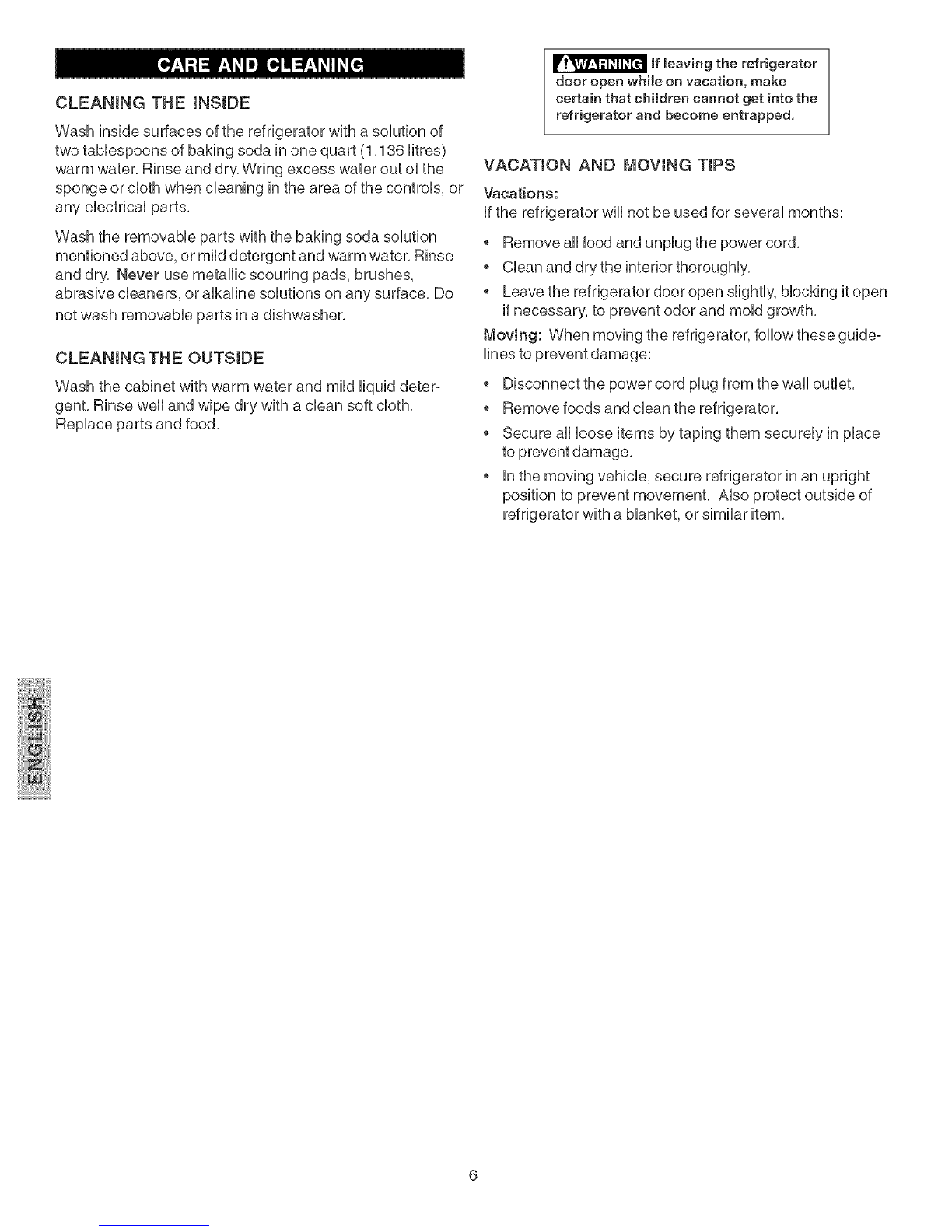

CLEANING THE iNSiDE
Wash inside surfaces of the refrigerator with a soUutionof
two tabbspoons of baking soda in one quart (1,136 Htres)
warm water, Rinse and dry, Wring excess water out of the
sponge or cbth when cbaning in the area of the controUs,or
any eUectficaUparts,
Wash the removable parts with the baking soda solution
mentioned above, or mild detergent and warm water, Rinse
and dry, Never use metallic scouring pads, brushes,
abrasive cleaners, or alkaline solutions on any surface, Do
not wash removable parts in a dishwasher,
CLEANING THE OUTSIDE
Wash the cabinet with warm water and mild liquid deter-
gent, Rinse well and wipe dry with a clean soft cloth,
Replace parts and food,
lr!_rAVl;_-'i_ll_[HIIf Beaving the refrigerator
door open while on vacation, make
certain that children cannot get into the
refrigerator and become entrapped,
VACATION AND MOVING TiPS
Vacations:
if the refrigerator wiii not be used for several months:
o Remove all food and unplug the power cord,
o Clean and drythe interior thoroughly,
o Leave the refrigerator door open slightly, blocking it open
if necessary, to prevent odor and mold growth,
Moving: When moving the refrigerator, follow these guide°
o Disconnect the power cord plug from the wall outlet,
Remove foods and clean the refrigerator,
Secure all loose items by taping them securely in place
to prevent damage,
o in the moving vehicle, secure refrigerator in an upright
position to prevent movement, Also protect outside of
refrigerator with a blanket, or similar item,
liiiiiiiilLiiJi_iiiiii/ii

TROUBLESHOOTING Before calling for service, review this list. it may save you time and expense. This list
includes common occurences that are not the result of defective workmanship or
materials in this appliance.
PROBLEM CAUSE CORRECTION
REFRIGERATOR OPERATION
Refrigerator does not run.
Refrigerator rune too mush or
too long.
Refrigerator is pIugged into a
circuit that has a ground fault
interrupt.
Temperature control is in the
OFF position.
Refrigerator may not be plugged
in, or plug may be loose.
House fuse blown or tripped
circuit breaker.
Power outage.
Room or outside weather is hot.
®
®
®
®
®
,, Refrigerator has recently been
disconnected for a period of
time.
,, Large amounts of warm or hot
food have been stored recently.
,, Doors are opened too frequently
or too Iong.
,, Refrigerator door may be sIightly
open.
,, Temperature Controi is set too
low.
,, Refrigerator gasket is dirty,
worn, cracked, or poorly fitted.
Use another circuit, if you are unsure about the outlet,have
it checked by a certified technician.
See Setting the Temperature Control Section.
Ensure plug is tightly pushed into outlet.
ChecWreplace fuse with a 15 amp time-delay fuse. Reset
circuit breaker.
Check house lights. Call local Electric Company.
, it's normaI for the refrigerator to work harder under these
conditions=
it takes 4 hours for the refrigerator to cool down
completely=
Warm food will cause refrigerator to run more until the
desired temperature is reached.
Warm air entering the refrigerator causes it to run more.
Open doors less often.
See "DOOR PROBLEMS" Section,
Turn controi knob to a warmer setting. AIIow several hours
for the temperature to stabilize.
Ciean or change gasket. Leaks in the door sea! will cause
refrigerator to run longer in order to maintain desired
temperature.
Interior refrigerator temperature ,, Temperature Control is set too _ Turn the control to a warmer setting= Allow several hours
is too cold. low. for the temperature to stabilize.
Interior refrigerator temperature
is too warm. ,, Temperature Control is set too
warm.
,, Door is kept open too long or is
opened too frequently.
,, Door may not be seating
properly.
,, Large amounts of warm or hot
food may have been stored
recently.
,, Refrigerator has recently been
disconnected for a period of
time.
Turn control to a colder setting. Allow several hours for the
temperature to stabilize.
Warm air enters the refrigerator every time the door is
opened. Open the door Iess often.
See "DOOR PROBLEMS" Section.
Wait until the refrigerator has had a chance to reach its
selected temperature.
Refrigerator requires 4 hours to cool down completely.
Refrigerator externam surface ,, The external refrigerator walls ,, This is normal while the compressor works to transfer
temperature is warm. can be as much as 30°F warmer heat from inside the refrigerator cabinet.
than room temperature.
SOUND AND NOISE
Louder sound levems whenever " Modern refrigerators have _ This is normal When the surrounding noise leve! is low,
refrigerator is on. increased storage capacity and you might hear the compressor running while it cools the
more stable temperatures. They interior.
require a high efficiency
compressor.
Longer sound levems when " Refrigerator operates at higher _ This is normal Sound wiil level off or disappear as
compressor comes on. pressures during the start of the refrigerator continues to run.
ON cycle.
7

[

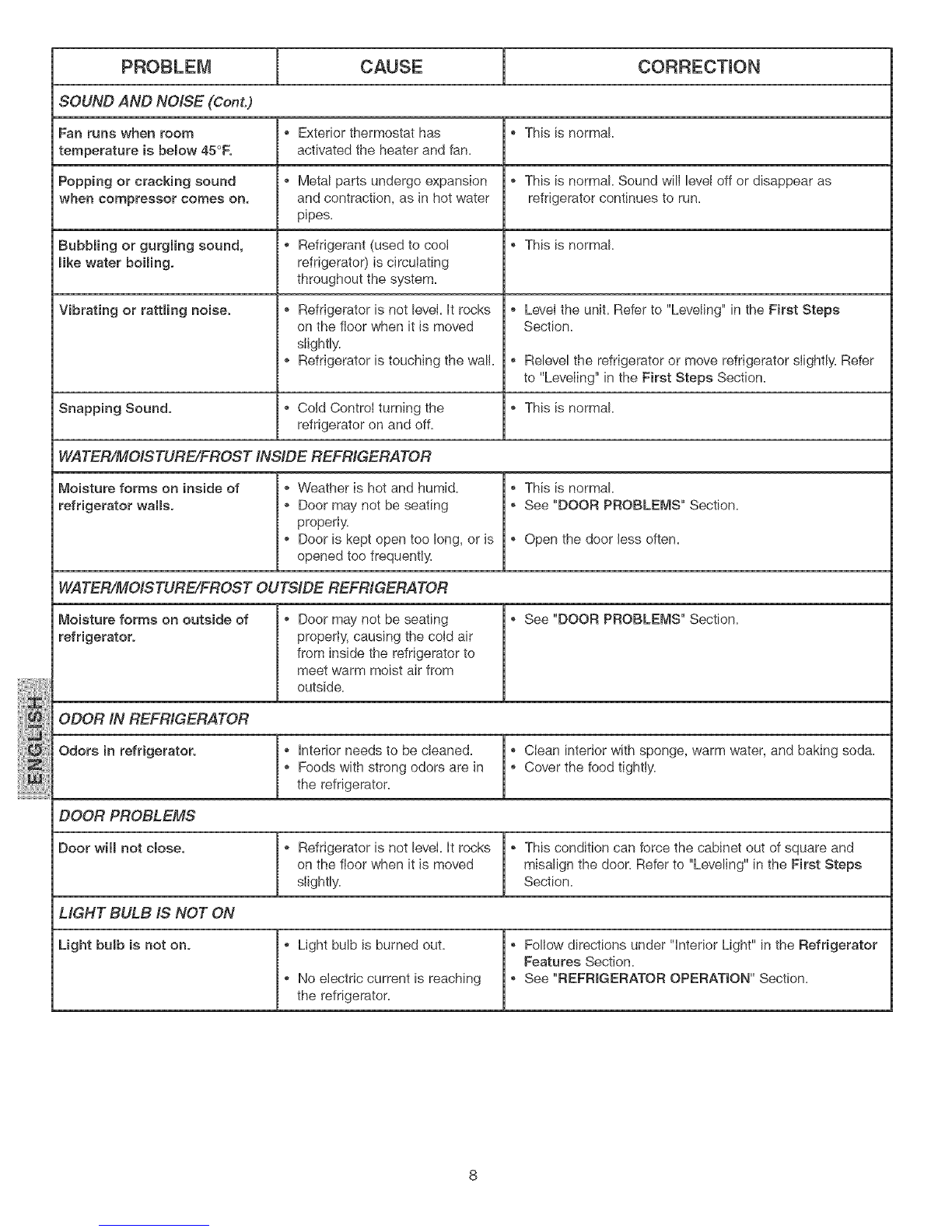

PROBLEM / CAUSE CORRECTmON
SOUND AND NOISE (Cont.)
Fan runs when room ,, Exterior thermostat has ,This is normal
temperature is below 45°R activated the heater and fan.
Popping or cracking sound ,, Metal parts undergo expansion , This is normal. Sound will level off or disappear as
when compressor comes on. and contraction, as in hot water refrigerator continues to run.
pipes.
Bubbming or gurgling sound, ,, Refrigerant (used to coot , This is normal.
like water boiling, refrigerator) is circulating
throughout the system=
Vibrating or rattling noise. ,, Refrigerator is not level=It rocks ,, Level the unit=Refer to "Leveling" in the First Steps
on the floor when it is moved Section=
slightly.
,, Refrigerator is touching the wall ,, Relevel the refrigerator or move refrigerator slightly= Refer
to "Leveling" in the First Steps Section=
Snapping Sound. ,, Cold Control turning the ,This is normal.
refrigerator on and off.
WATER/bIOISTURE/FROST iNSiDE REFRIGERATOR
Moisture forms on inside of ,, Weather is hot and humid. ,, This is normal.
refrigerator wallso ,, Door may not be seating ,, See "DOOR PROBLEMS" Section=
properly.
,, Door is kept open too long, or is ,, Open the door less often=
opened too frequently=
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture forms on outside of ,, Door may not be seating ,See "DOOR PROBLEMS" Section=
refrigerator, property, causing the cold air
from inside the refrigerator to
meet warm moist air from
outside=
ODOR iN REFRIGERATOR
Odors in refrigerator. ,, hterior needs to be cteaned_ ,Clean interior with sponge, warm water, and baking soda_
,, Foods with strong odors are in ,, Cover the food tightly=
the refrigerator.
DOOR PROBLEMS
Door win not dose. ,, Refrigerator is not level It rocks ,, This condition can force the cabinet out of square and
on the floor when it is moved misalign the door= Refer to "Leveling" in the First Steps
slightly= Section.
LIGHT BULB iS NOT ON
Light bulb is not on. * Light bulb is burned out. ,Follow directions under "Interior Light" in the Refrigerator
Features Section=
,, No electric current is reaching ,See "REFRIGERATOR OPERATSON" Section=
the refrigerator=

"We Service What We Sell" is our assurance you can
depend on Sears for service ,,,and Sears service is
nationwide,Your refrigerator has added vaUuewhen you
consider that Sears has service units nationwide, staffed
with professionaU technicians specifically trained on Sears
appliances and having parts, toob and equipment to
ensure that we meet our pbdge to you,,,"We Servbe What
We Sell,"
SEARS MAINTENANCE AGREEMENT
Maintain the value of your Kenmore@ refrigerator with a
Sears Maintenance Agreement, Sears refrigerators are
designed, manufactured, and tested for years of depend°
able operation,Yet, any modern appliance may require
service from time to time,
The Sears Maintenance Agreement
o Is your way to buy tomorrow's service at today's price,
o Eliminates repair bills resulting from normal use,
o Allows for as many service calls as required,
o Provides for service by professional Sears-trained
technicians,
o Offers an annual preventive maintenance check-up at
your request,
This maintenance agreement does not cover original
installation, reinstallation, or damage resulting from
external causes such as acts of God, abuse, theft, fire,
flood, wind, lightning, freezing, power failure, power
reduction, etc, Please ask a salesperson to see the
agreement for all of the terms and conditions,
Dear Customer:
in manufacturing this product, many steps have been taken
to provide you with the highest quality, Unfortunately, errors
or omissions occasionaly occur, in the event you find a
missing or defective part, please contact your nearest
Sears store, (See the back cover for phone numbers,)
if you have any suggestions that would help us to improve
our assembly/operation instructions or this prouct, please
write them down, including the information listed below and
mail to:
Sears Canada, inc. Attn: Buyer Dept. 646
222 Jarvis Street
Toronto, Ontario
M5B 2B8
Purchased by:
Name:
Address:
City:
Postal Code:
Model No,: 970,
Serial No,:
Date of Purchase /
Location of Purchase
Comments:
P roy '
Phone:

_iiiiil,_i/iii
10
