cycliq Fly12 CE122 User manual
2 of 31Fly12 CE122 User Guide |
We love being part of the global cycling community and hope to improve
the safety of everyone on the road. We’re active on social media and if you
use Strava, we welcome you to join the Cycliq Strava club and ride with our
members from around the world
https://upride.cc/
https://www.youtube.com/cycliq
https://instagram.com/cycliq/
https://www.facebook.com/cycliq/
https://twitter.com/cycliq
https://www.strava.com/clubs/115935
Subscribe to our newsletter at cycliq.com for all the latest product news.
Join the Cycliq
community
3 of 31Fly12 CE122 User Guide |
Contents
What’s in the box 4
Read this before using your Fly12 5
Your Fly12 6
Register your Fly12 6
Getting to know the Fly12 7
Setting up your Fly12 8
Charging your Fly12 battery 8
Battery level indicators 8
Inserting and removing the microSD card 9
Mounting your Fly12 to your bike 10
Attaching the safety tether to your Fly12 10
Changing your Fly12 settings 11
Using your Fly12 12
Before your first ride 12
Turning on your Fly12 12
Turning off your Fly12 12
Light modes 12
Visual and audio alerts 13
Features 14
Video resolution 14
High Dynamic Range (HDR) 15
Electronic Image Stabilisation 15
Looping function 16
Manual footage capture 17
Incident Protection Mode 17
Capturing still images 18
Cycliq Home Safe Mode 18
Bike alarm 18
Manual override of Bike alarm 18
Idle Mode 18
Cycliq Quick Release System 18
Dashcam Mode 19
Heat Protection 19
Audio settings 19
Volume levels 19
Audible alerts 19
Airplane mode 19
Master Reset 20
Video segment length 20
Incident Protection Activation 21
Incident Protection Function 21
Using your footage 22
Accessing your footage 22
Editing your footage 22
CycliqPlus mobile app 23
Updating your firmware 25
Troubleshooting your Fly12 26
Technical data 27
Compliance statements 28
Regulatory information 30
4 of 31Fly12 CE122 User Guide |

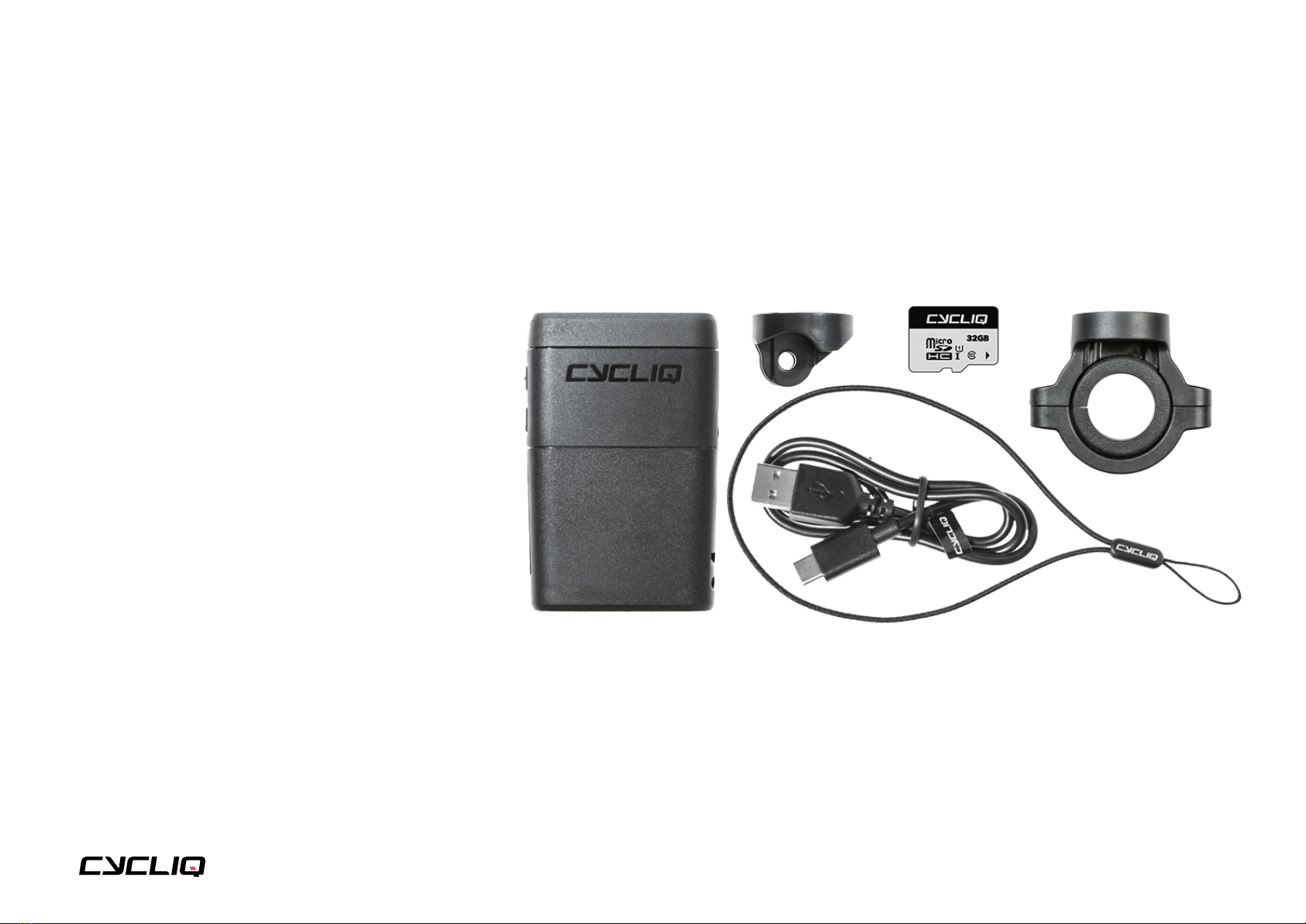

What’s in
the box
1 x Fly12 CE122
1 x Handlebar Mount including bolts
1 x 22.2mm Rubber Handlebar Adapter
1 x Universal Adapter
1 x M5 screw for Universal Adapter
1 x USB to USB-C cable
1 x Safety Tether
1 x MicroSD Card
1 x Safety information and warranty sheet (not pictured)
1 x Quick Start Guide (not pictured)
5 of 31Fly12 CE122 User Guide |
Read this before using your Fly12
Disclaimer
The Fly12 is designed specifically to be used as a ‘head light’ with video and
audio recording capabilities for bicycles. While every effort has been made
to ensure it will fit most bicycles on the market, it may not fit all bicycles,
depending on your bike set up.
Please note that Cycliq, its subsidiaries and affiliates, and its distributors are
not liable for any consequential damages arising from any malfunction of the
Fly12, including memory cards.
Warning against copyright infringement
The images recorded with this camera are intended for personal use. Do
not record images that may infringe upon copyright laws without the prior
permission of the copyright holder. Please be advised that in certain cases the
copying of images from performances, exhibitions, or commercial properties
by means of a camera or other device may contravene copyright or other
legal rights even if the image was shot for personal use.
Safety, operating and care information
The following is important information which relates to the safe operation and
care of the Fly12. For more information, please read your ‘Safety Information
& Limited Warranty Guide’ contained in your accessory box and visit
cycliq.com/qsg for more information.
Cautions
• Warning! No modification of this device is allowed. Opening the housing of
the Fly12 will damage the water-resistant seal and void your warranty.
• The Fly12 is not a toy: children should not play with the Fly12.
• Do not look directly at the LED lights when operating.
• Do not immerse the Fly12 in water or any other liquid.
• Avoid dropping or knocking the Fly12 in any way.
• Pay attention and care when closing the port cover. Please ensure it is
closed completely prior to operation.
• No liability can be accepted for any damage caused by non-compliance
with these instructions or any other improper use or mishandling.
• The Fly12 has a rechargeable non-replaceable lithium-ion battery. When
disposing of this, it should be done in compliance with the laws, rules, and
regulations of your relevant local authorities.
• The Fly12 is provided with a Mode that makes it safe for transport by air,
road, and sea. This is called Airplane Mode and must be enabled when
transporting or shipping your Fly12.
6 of 31Fly12 CE122 User Guide |
Your Fly12
Register your Fly12
We strongly advise that you register the Fly12 with Cycliq. Once registered,
you’ll receive notifications for new software and firmware updates, new
features, and user tips. Registration also speeds up the process should you
require assistance with technical support or warranty queries.
To register your Fly12, visit cycliq.com/register,
or use the CycliqPlus mobile app.
7 of 31Fly12 CE122 User Guide |
Getting to know your Fly12
Front
Back
Side (port door closed)
Side (port door open)
Buttons
1/8th Turn Mount
Camera
Speaker
Master Reset Button
Cycliq 1/8th Turn Mount
Charge indicator LED
Micro SD Slot Charge Port
Main LED
Port Door Latch
Q ButtonPort Door
Power Button
Status LED
Tether Slot
Microphone
8 of 31Fly12 CE122 User Guide |
Setting up your Fly12
Charging your Fly12 battery
Your Fly12 comes partially charged. Before using it
for the first time, please charge the Fly12 fully.
To charge:
1. Connect the Fly12 to a USB wall charger (not supplied)
using the supplied USB cable.
2. The charge indicator LED will illuminate red showing that
the Fly12 is charging.
3. The charge indicator LED will illuminate green when the
Fly12 is fully charged.
You can charge the Fly12 using the supplied USB cable and your computer,
however this will significantly reduce the rate of charge. For the quickest
charge, use a USB power adapter that supports USB fast charge (5V @ 2.1A).
Note
The Fly12 is ‘Fast Charge’ compatible and accepts up to 2.1amps. Accordingly,
the time to charge from flat to fully charged varies from 2.5 to 8 hours
depending on the method of charging, i.e. mains power USB at 2.1A (not
supplied) vs computer USB (at as little as 0.5A). Battery life will diminish over
time and charge cycles.
Battery level indicator
When turning on the Fly12, an audible battery alert will sound, alerting you to
the current battery level. This will indicate whether you have enough power
for your next ride. See below for audible notification guide:
4 rapid high pitched beeps = 75% to 100% charged
3 rapid high pitched beeps = 50% to <75% charged
2 rapid high pitched beeps = 25% to <50% charged
1 rapid high pitched beep = 12% to <25% charged
3 long high pitched beeps = Less than 12% charged
9 of 31Fly12 CE122 User Guide |
Inserting and removing the microSD card
• Your Fly12 comes with a 32GB microSD card pre-installed.
• Your Fly12 MUST have a microSD card installed to operate.
You can insert a microSD card into the microSD card slot of the Fly12 and press in
gently until locked in place.
Please ensure the notch on the microSD card is pointing upwards towards the
top of the Fly12, as illustrated here.
To remove the microSD card, gently press down on the SD card until it releases
from the microSD card slot.
Note
We highly recommend formatting the microSD card regularly. This will ensure the
Fly12 operates at peak performance and guarantee your ride is always recorded.
If you need support with formatting your microSD card, visit our
How to format your microSD card page on cycliq.com.
microSD card slot
microSD card
10 of 31Fly12 CE122 User Guide |
Mounting your Fly12 to your bike
The Fly12 comes with a Handlebar Mount and a Universal Adaptor
that feature the Cycliq 1/8th turn quick release system.
1. With the Fly12 facing forward, and
at a 45° angle, line up the quick
release male component on the
Fly12 with the female receptor on
the Handlebar Mount. Place the
Fly12 into the mount and make a
1/8th turn until the device clicks
into a forward-facing position. The
distinctive ‘click’ sound confirms
the unit has been locked in place.
2.
1. Place the Handlebar Mount above
or below the handlebar, depending
on available space. If mounting to a
22.2mm bar install the appropriate
rubber adapter then carefully
torque hex bolts to a max of 2Nm.
1.
Attaching the safety tether to your Fly12
1. On the back of the Fly12 there are two slots for the Safety Tether
to be attached through.
2. Thread the thinner part of the tether through the slots, then thread
the other end through the loop to secure the tether.
3. We recommend always using the Fly12 with the Safety Tether
attached and secured around the handlebar or stem.
Tether Slot
Note
If installing using the Universal Adaptor and a finned style mounting sytem,
the process of operating the 1/8th turn is the same as above.
The Fly12 auto locks its recording orientation in the first 10 seconds of
recording and will remain recording in that orinetation for the remainder
of the ride.
11 of 31Fly12 CE122 User Guide |
Changing your Fly12 settings
All primary functions of the Fly12 can be controlled using the Power
and Q buttons on the side of the Fly12.
On the Fly12
• All primary functions can be accessed using the
Power and Q buttons.
On the CycliqPlus mobile app
• There are other settings and features that are only accessible via
the CycliqPlus mobile app (iOS and Android). Please download
this from iTunes or the Google Play Store.
On the CycliqPlus desktop app
• This option offers similar functionality to the CycliqPlus mobile
app. It is accessible on your PC or Mac when you plug the Fly12
into your computer using the supplied USB cable. Alternatively
insert the microSD card into your computer’s microSD card
reader.
Q Button
Power Button
12 of 31Fly12 CE122 User Guide |
Using your Fly12
Before your first ride
Please follow all the below steps before going out
on your first ride with your Fly12.
1. Fully charge your Fly12 – see page 8
2. Ensure the microSD is inserted – see page 9
3. Ensure the Fly12 port door is securely closed.
4. Ensure the safety tether is correctly attached - see page 10
5. Ensure the date and time stamps are synced - see page 23
Turning on your Fly12
Press and hold the power button (for approximately 2 seconds) until
the power on chime is heard - then release.
Power level ‘beeps’ will sound, indicating the battery status - see section
on Battery Level Indicators on page 8.
Turning off your Fly12
Press and hold the power button (for approximately 2 seconds) until
the power off chime is heard - then release.
Power level ‘beeps’ will sound, indicating the battery status - see section
on Battery Level Indicators on page 8.
Light modes
You can cycle through the available light modes using
the power button as follows:
• Camera Only (Main led off)
• Constant Mode High (Main LED Solid with high intensity)
• Constant Mode Medium (Main LED Solid with medium intensity)
• Constant Mode Low (Main LED Solid with low intensity)
• Flash Mode High (Main LED flashing with high intensity)
• Flash Mode Medium (Main LED flashing with medium intensity)
• Flash Mode Low (Main LED flashing with low intensity)
• Pulse Mode High (Main LED pulsing with high intensity)
• Pulse Mode Medium (Main LED pulsing with medium intensity)
• Pulse Mode Low (Main LED pulsing with low intensity)
All light modes are available by default but can be customised via the
CycliqPlus app so that only the preferred modes are available.
Note
To maximise battery life, select a lower intensity light mode and turn off the
Fly12 when not in use. The light mode and intensity will be remembered when
you power off the Fly12. The next time you power on the Fly12 it will resume
with the previously used light mode and intensity. Consider bicycle light
regulations in your area when setting your light modes.
13 of 31Fly12 CE122 User Guide |
Visual and audio alerts
Mode Visual Alert Audible Alert
Recording (Full charge) Steady Flash: Green Power On/Off 4 Beeps
Recording (3/4 charge) Steady Flash: Green Power On/Off 3 Beeps
Recording (1/2 charge) Steady Flash: Orange Power On/Off 2 Beeps
Recording (1/4 charge) Steady Flash: Red Power On/Off 1 Beep
Power On (with SD card) (refer to charge level) Power On Chime + Beep(s)
Power Off (with SD card) (refer to charge level) Beep(s) + Power Off Chime
HomeSafe Mode Solid Red 3 long Beeps
Waterproof flap door open (refer to charge level) Error Beep until Fly12 CE is turned off
No SD card / SD card error Steady Flash: Red-Orange Error Beep until Fly12 CE is turned off
Incident Protection mode Rapid Flash: Red-Orange-Green 3 Rapid Beeps when triggered
USB Plug In Charge LED Solid Red – Charging -
USB Plug In Charge LED Solid Green – Battery Full -
Bike Alarm Rapid Flash: Red -
Steady Flash: Front White Light (HIGH) -Alarm Beep (continuous until turned off)
Optional Audible alerts for normal operation (refer to charge level) Audible sound: 3, 5 or 10 minute Beeps
To listen to tones described in the table above visit the Visual and Audio Alerts Guide for Fly12 CE on cycliq.com.
14 of 31Fly12 CE122 User Guide |
Video resolution
The Fly12 is equipped with a Full HD camera with a 135° viewing angle. There are four video resolutions to choose from,
including one resolution with High Dynamic Range (HDR). More battery power will be used with higher video resolution settings.
Video Frames per second Screen resolution
1080p Full HD 60 1920x1080 16:9
1080p Full HD 30 1920x1080 16:9
1080p Full HDR 30 1920x1080 16:9
720 HD 60 1280x720 16:9
Features
Note
The resolution of the recorded video can be adjusted via the CycliqPlus mobile app or via your PC or Mac.
15 of 31Fly12 CE122 User Guide |
High Dynamic Range (HDR)
The Fly12 has one video resolution setting with HDR, which optimises footage
when travelling through areas of light and dark.
Electronic Image Stabilisation
6-axis Electronic Image Stabilisation (EIS) provides enhanced image
smoothness regardless of the terrain or surface you’re riding on.
This allows the Fly12 to record smoother video in greater detail
(please note this feature is not available in HDR mode).
Note
Electronic Image Stabilisation can be toggled on/off via the
CycliqPlus mobile app or via your PC or Mac.
16 of 31Fly12 CE122 User Guide |
Looping function
The Fly12 is designed as a ‘set and forget’ cycling accessory, the footage is set
to record on a ‘continuous loop’, so you don’t have to worry about running
out of storage space on the microSD card. When there is no more free space
left the Fly12 will then start recording over the oldest footage first.
Any locked footage saved by the Fly12 Incident Protection Mode
(see page 17)or Manual Footage Capture (see page 17)will not be
overwritten by the looping function.
The looping function cannot be turned off. This ensures that you are always
recording your ride.
If you want to keep your ride footage, simply transfer it onto another
storage device.
The maximum duration of video footage that you can record is dependent
on the device resolution and framerate settings, as well as the size of your
microSD card.
Note
A compatible Class 10 microSD card is required for this device see
microSD Card Compatibility on cycliq.com.
17 of 31Fly12 CE122 User Guide |
Manual footage capture
If you witness an event that you want to capture and retain when riding,
simply press the Q button briefly (less than 1s). This will lock the current and
preceding video segments.
Incident Protection Mode
The Fly12 has been designed to save footage from major incidents without
being recorded over and without you having to do anything.
Incident Protection Mode is activated when the Fly12 is tilted more than 60°
from vertical (or 30° from the ground) for more than five seconds. If this
happens, the Fly12 will lock the current and immediately preceding video
segment and will then turn off after 30 minutes. This prevents the footage
from being overwritten by the video looping technology.
If the Fly12 tilts over 60 degrees for more than 5 seconds and you don’t want
Incident Protection Mode to remain activated and shut down the Fly12 after
30 minutes, you can:
• Turn off, then turn the Fly12 back on and use normally; or
• When the 3 long beeps sound (indicating the Fly12 is shutting down), wait
for it to turn off, then turn it back on and use normally.
Note
The Incident protection function can be turned off via the CycliqPlus mobile
app or via your PC or Mac, however this is not recommended.
18 of 31Fly12 CE122 User Guide |
Capturing still images
The Fly12 can take a still image while recording video. You can do this by
holding the Q and Power button together, indicated by a ‘snapshot’ sound.
This image will be saved as a JPEG and can be accessed with the rest of
your footage.
Cycliq Home Safe Function
Your safety is our number one priority. When the battery is running low, the
Fly12 will manage the available battery capacity by automatically dimming
the strength of the bike light and turning off the camera.
The Fly12 will monitor battery level while you are recording and activate when
the battery level has depleted to between 6% and 12% (depending on the
Fly12 settings). When Home Safe Mode is activated, you will hear three long
beeps, the camera will switch off and the light will dim, the Fly12 will then
beep every 60 seconds. In this mode the light will continue to function for 30
to 45 minutes (depending on the light mode).
Bike Alarm
The Fly12 Bike Alarm can be armed via the CycliqPlus mobile app. If your
Fly12 is moved (including if your bike is moved while the Fly12 is attached),
it will sound an alarm and the lights will begin to flash and the camera
will start recording. You will receive a notification on your smartphone via
Bluetooth (if you are in Bluetooth range and connected to the Fly12).
The Bike Alarm can be armed or disarmed via the CycliqPlus mobile app.
Manual override of Bike Alarm
If the alarm is active but cannot be stopped, press both the Power
button and Q button until the alarm stops. This normally takes around
eight seconds.
Idle Mode
Idle Mode is intended to assist with battery management. If Idle Mode is
active, the Fly12 turns off automatically after sensing no movement for 15
minutes. You can turn the Fly12 back on as you normally would when you
return to using it.
Idle mode can be enabled and disabled via the CycliqPlus app.
Caution
Cycliq recommends carefully familiarising yourself with this function before
using it as this function can prevent your ride from being recorded. Idle
Mode should only be used with audible alerts on, so you are aware if the
Fly12 is turned on.
Cycliq Quick Release System
The Fly12 can be easily and quickly mounted and removed from the
handlebar mount using a 1/8th turn.
To find compatible Cycliq mounting systems, see
Cycliq Accessories on cycliq.com.
19 of 31Fly12 CE122 User Guide |
Dashcam Mode
You can use the Fly12 as a dashcam in your car and can continue to charge
using the USB-C cable. Normally, when the port door on the Fly12 is left
open an alert will sound to remind you that it should be closed. When
using the Fly12 while plugged in via USB, ‘Dashcam Mode’ automatically
activated, and the port door open alert is disabled.
Heat Protection
The Fly12 is designed to be cooled down by wind as you ride. If the Fly12
reaches an abnormally hot temperature, the light will dim to cool the device
and ensure normal operation.
Audio settings
The Fly12 has a stereo microphone which records sound in high quality. It
also has a speaker which is used for audible alarms and alerts.
Volume levels
The volume of the speaker can be set from Off to Level 5.
Audible alerts
A recording alert notification can be set which provides a confirmation
chime at 3, 5, or 10-minute intervals to notify you that the Fly12 is still
recording video footage. This is useful when you can’t easily see the LED
operation indicators while riding.
The recording alert notification and volume of the audio can be set via the
CycliqPlus app.
Airplane mode
Airplane mode turns off all device signals rendering it compliant for
airline travel. To activate press and hold the power button and Q button
simultaneously until the power off chime is heard.
20 of 31Fly12 CE122 User Guide |
Master Reset
If a master reset is required, the reset button is located within the small cut-
out as illustrated. Carefully, and using a fine object, press the reset button to
perform the reset. You will know that this is done correctly as you will feel
the reset button being depressed.
Warning
DO NOT complete a Master Reset when the unit is in the process of
completing a firmware update as this may damage your Fly12.
Video segment length
Footage is saved in chronological order in 5, 10 or 15-minute segments in
MP4 format, with each segment creating a separate file. Smaller files can be
more convenient to move and edit however larger segments will increase
the duration of any locked footage in a single file.
The table below gives an indication of approximate file size per segment
length:
Segment Length Approx. File Size
5 minutes 850 MB
10 minutes 1.7 GB
15 minutes 2.55 GB
Video segment length can be changed via the CycliqPlus app.
Master Reset Button
Other manuals for Fly12 CE122
1
Table of contents
