D-Link DAP-3662 User manual

2D-Link DAP-3662 User Manual
Table of Contents
Table of Contents
Product Overview............................................................... 4
Package Contents............................................................................4
System Requirements....................................................................4
Introduction ......................................................................................5
Features and Benets.....................................................................6
Hardware Overview........................................................................7
Front ..............................................................................................7
Back ...............................................................................................8
Bottom..........................................................................................9
Wireless Basics ............................................................................... 10
Installation ........................................................................ 11
Installation Considerations ....................................................... 11
Four Operational Modes............................................................ 12
Connect to your Network.......................................................... 13
Conguration.................................................................... 15

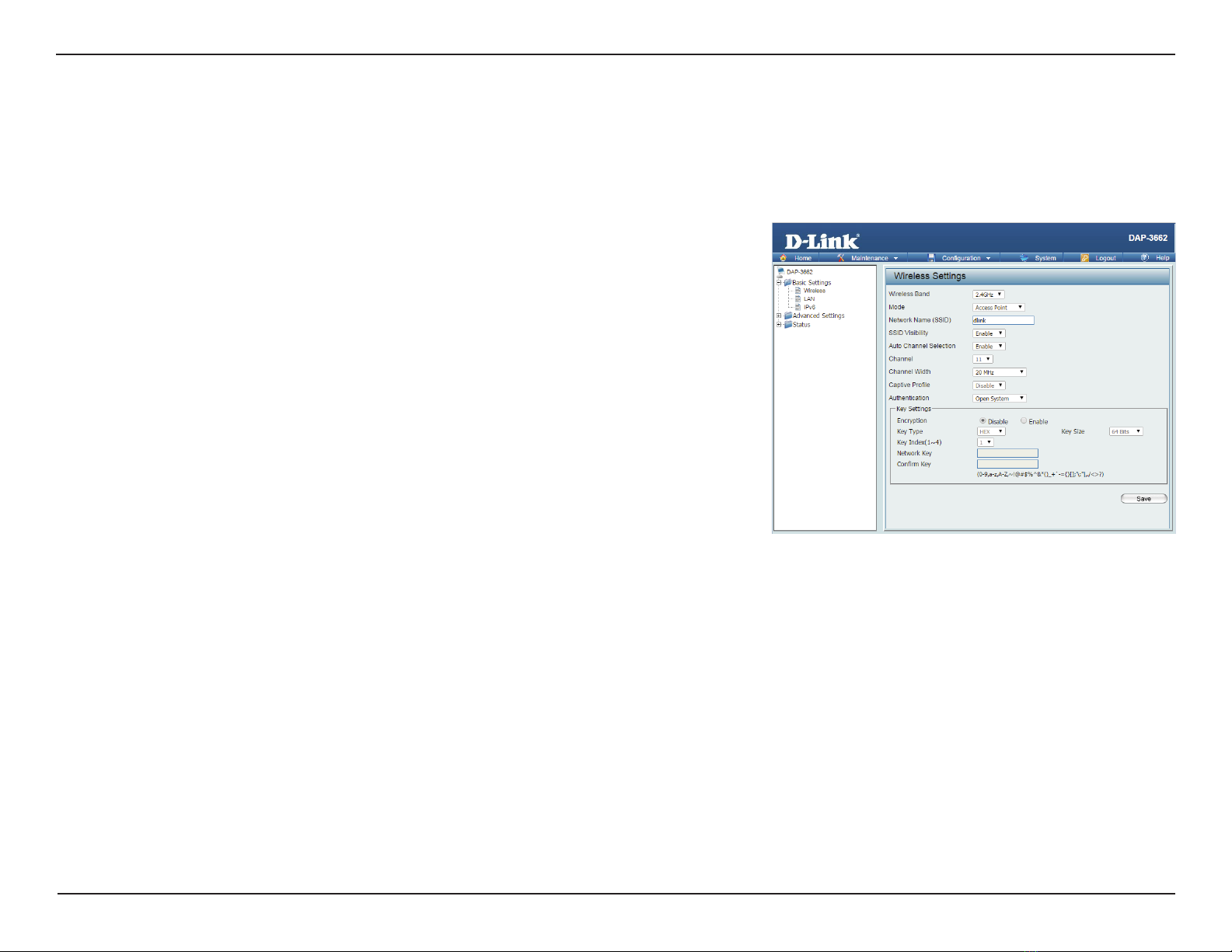

Wireless Settings........................................................................... 17
Access Point Mode ................................................................ 17

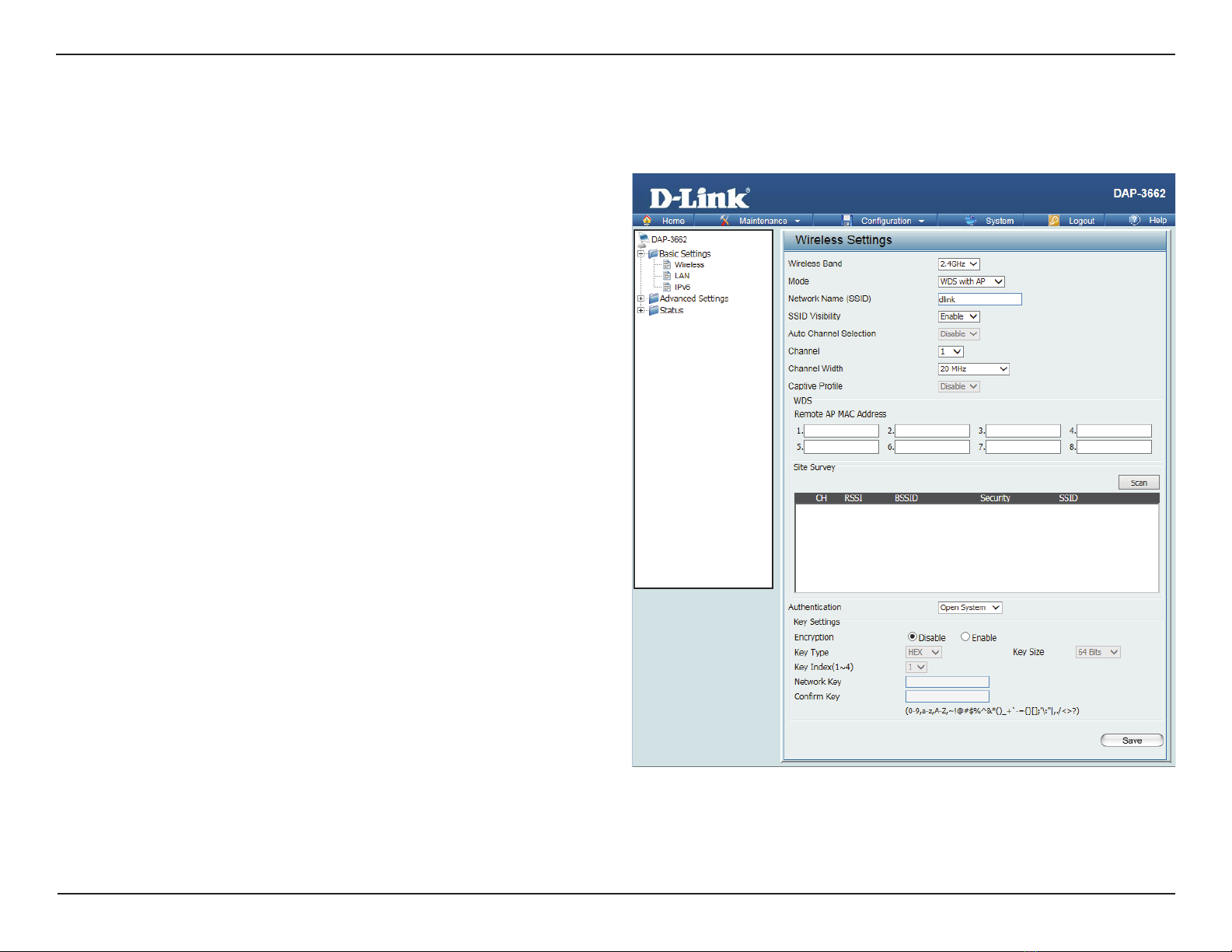

WDS with AP Mode .............................................................. 19
WDS Mode ............................................................................... 21
Wireless Client Mode............................................................ 23
WPA-Personal Authentication.................................... 25
WPA-Enterprise Authentication................................. 26
802.1X authentication................................................... 27
LAN ............................................................................................ 28
IPv6 ............................................................................................. 29
Advanced Settings....................................................................... 30
Performance............................................................................ 30
Wireless Resource Control......................................................... 32
Multi-SSID................................................................................. 34
VLAN Settings ......................................................................... 36
VLAN Port List................................................................... 37
VLAN Add/Edit................................................................. 38
PVID Setting...................................................................... 39
Intrusion.................................................................................... 40
Schedule ................................................................................... 41
Internal RADIUS Server ....................................................... 42
ARP Spoong Prevention ................................................... 43
Bandwidth Optimization .................................................... 44
AP Array..................................................................................... 46
AP Array Scan ................................................................... 46
Conguration Settings.................................................. 47
Auto-RF............................................................................... 51
Load Balance .................................................................... 52
Captive Portal.......................................................................... 53
Authentication Settings - Passcode ......................... 53
Authentication Settings - Username/Password... 54
Authentication Settings - Remote RADIUS............ 55
Authentication Settings - LDAP................................. 56
Authentication Settings - POP3................................. 57
Login Page Upload......................................................... 58
Web Redirection.............................................................. 59
MAC Bypass....................................................................... 60

3D-Link DAP-3662 User Manual
Table of Contents
DHCP Server ............................................................................ 61
Dynamic Pool Settings.................................................. 61
Static Pool Setting .......................................................... 63
Current IP Mapping List................................................ 64
Filters.......................................................................................... 65
Wireless MAC ACL........................................................... 65
WLAN Partition ................................................................ 66
Trac Control.......................................................................... 67
Uplink/Downlink Setting ............................................. 67
QoS....................................................................................... 68
Trac Manager................................................................ 69
Status ................................................................................................ 70
Device Information ............................................................... 70
Client Information ................................................................. 71
WDS Information ................................................................... 72
Channel Analyze .................................................................... 73
Stats ........................................................................................... 74
Ethernet.............................................................................. 74
Wireless Trac Stats....................................................... 75
Log .............................................................................................. 76
View Log............................................................................. 76
Log Settings...................................................................... 77
Maintenance .................................................................................. 78
Administrator Settings......................................................... 78
Limit Administrator........................................................ 78
System Name Settings.................................................. 78
Login Settings .................................................................. 79
Console Settings ............................................................. 79
SNMP Settings ................................................................. 80
Ping Control Setting ...................................................... 80
Central WiFiManager Settings.................................... 80
Firmware and SSL Certication Upload......................... 81
Conguration File.................................................................. 82
Time and Date......................................................................... 83
Conguration................................................................................. 84

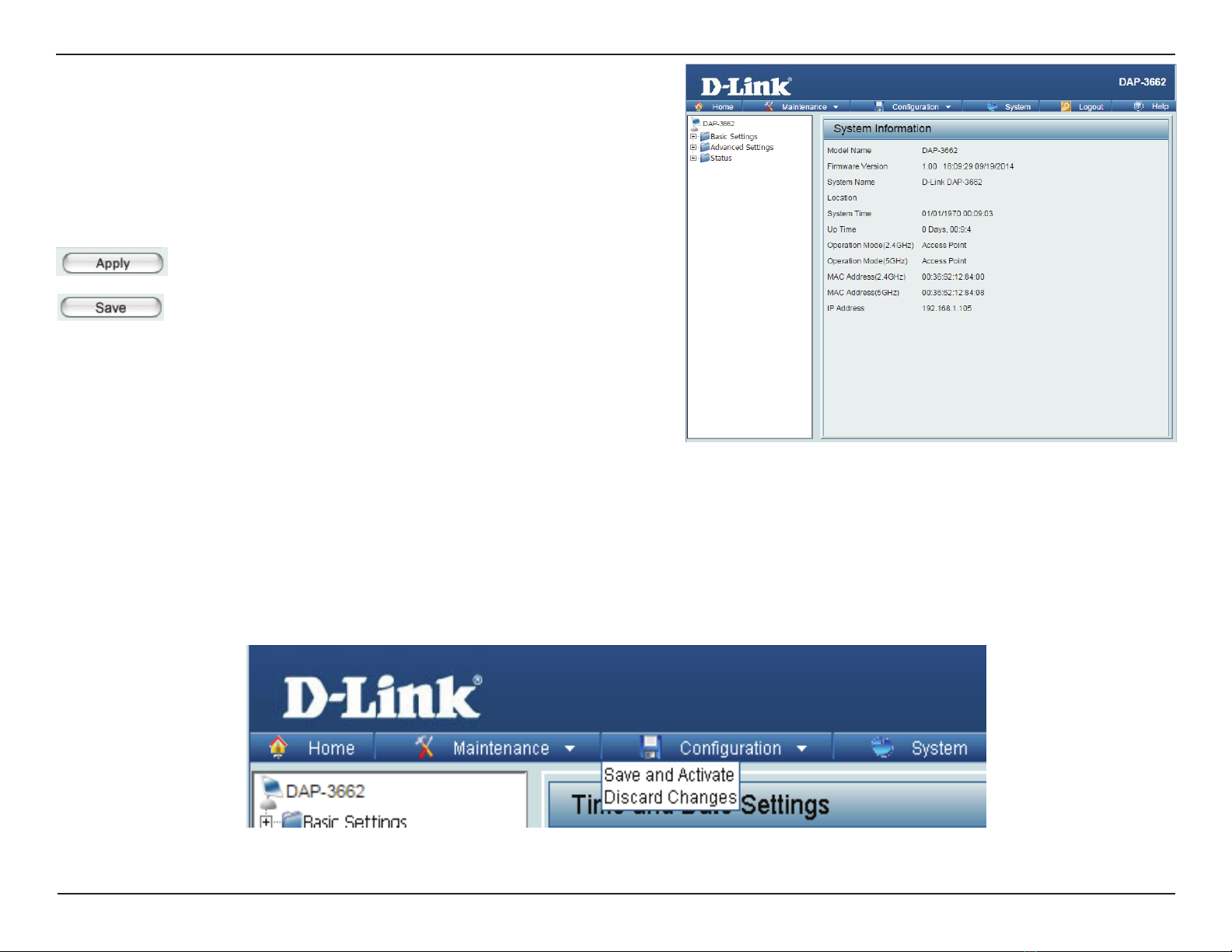

Save and Activate .................................................................. 84
Discard Changes .................................................................... 84
System .............................................................................................. 85
System Settings...................................................................... 85
Help ................................................................................................... 86
Troubleshooting ............................................................... 87
Antenna Pattern ............................................................... 90
Technical Specications ................................................... 91

4D-Link DAP-3662 User Manual
Section 1 - Product Overview
• DAP-3662 Wireless AC1200 Concurrent Dual Band Outdoor PoE Access Point
• Installation CD-ROM
• Installation Guide
• PoE Injector
• Power Adapter (48 V/ 0.5 A)
• Mounting kit (Wall/Pole Mount)
• Stainless steel mount base x 1
• Stainless tie back straps x 2
• Wall screw x 4
• Wall plug x 4
• Stainless mount screw (hexagonal hole)
• Hexagon Socket Spanner (Security screw)
• Two LAN Port Waterproof Enclosure
• Grounding Wire
Warning: Using a power adapter with dierent specications than the one included with the DAP-3662 will cause damage and void the warranty for this
product. If any of the above items are missing, please contact your reseller.
System Requirements
Product Overview
Package Contents
Network Requirements • IEEE 802.11n/g wireless clients (AP/bridge modes)
• IEEE 802.11n/g wireless router or access point (client mode)
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
Browser Requirements:
• Internet Explorer Version 7.0, Chrome 12, Safari 4, or Firefox 12 and
above (for web-based conguration)

5D-Link DAP-3662 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation draft
802.11n LANs. D-Link unveils its new Wireless AC1200 Concurrent Dual Band Outdoor PoE Access Point (DAP-3662), designed
specically for business-class environments such as large or enterprise corporations to provide secure and manageable dual-band
wireless LAN options for network administrators.
Versatile Access Point
The Wireless AC1200 Concurrent Dual Band Outdoor PoE Access Point allows network administrators to deploy a highly
manageable and extremely robust dual-band wireless network. All new embedded four dual-band antennas design can provide
optimal wireless coverage in either 2.4 GHz (802.11g and 802.11n) or 5 GHz (802.11a, 802.11n, and 802.11ac) bands. Enclosed in a
plenum-rated metal chassis, the DAP-3662 adheres to strict re codes for placement in air passageways. For advanced installations,
this new high-speed access point has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device
in areas where power outlets are not readily available.
Enhanced Performance
The DAP-3662 delivers reliable wireless performance with maximum wireless signal rates of up to 866 in 5 Ghz and 300 Mbps in
2.4 Ghz wireless band.This, coupled with support forWi-Fi Multimedia™ (WMM) Quality of Service features, makes it an ideal access
point for audio, video, and voice applications. Additionally, the DAP-3662 supports load balance features to ensure maximum
performance.
Security
To help maintain a secure wireless network, the DAP-3662 provides the latest in wireless security technologies by supporting
both Personal and Enterprise versions ofWPA andWPA2 (802.11i) with support for RADIUS server backend.To further protect your
wireless network, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless
Broadcast Scheduling are also included.
The Wireless AC1200 Concurrent Dual Band Outdoor PoE Access Point includes support for up to 16 VLANs for implementing
multiple SSIDs to further help segment users on the network. The DAP-3662 also includes a wireless client isolation mechanism,
which limits direct client-to-client communication.

6D-Link DAP-3662 User Manual
Section 1 - Product Overview
• Four dierent operation modes - Capable of operating in one of four dierent operation modes to meet your wireless networking needs:
Access Point(AP), WDS with AP, WDS, or Wireless Client.
• Faster wireless networking with the 802.11ac standard to provide a maximum wireless signal rate of up to 1200 Mbps*.
• Backward compatible with the 802.11a/b/g/n standard to maximum exibility when migrating your network.
• Better security with WPA - The DAP-3662 can securely connect wireless clients on the network using WPA (Wi-Fi Protected Access) to provide
a much higher level of security for your data and communications than its previous versions.
• Central WiFiManager management software - The real-time display of the network's topology and AP’s information makes network
conguration and management quick and simple.
• SNMP for management -The DAP-3662 is not just fast, but also supports SNMP v1 and v2c for better network management. Superior wireless
AP manager software is bundled with the DAP-3662 for network conguration and rmware upgrade. Systems administrators can also set
up the DAP-3662 easily with the Web-based conguration.
• Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
• Supports 802.3af Power over Ethernet.
• Includes two 10/100/1000 Ethernet port.
• Operates in the 2.4~2.5 GHz or 5.15~5.85 GHz** frequency ranges.
• Web-based interface for managing and conguring.
Features and Benets
*Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
**Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-3662 isn’t supported in the 5.25~5.35 GHz
and 5.47 ~ 5.725 GHz frequency ranges in some regions.

7D-Link DAP-3662 User Manual
Section 1 - Product Overview
Hardware Overview

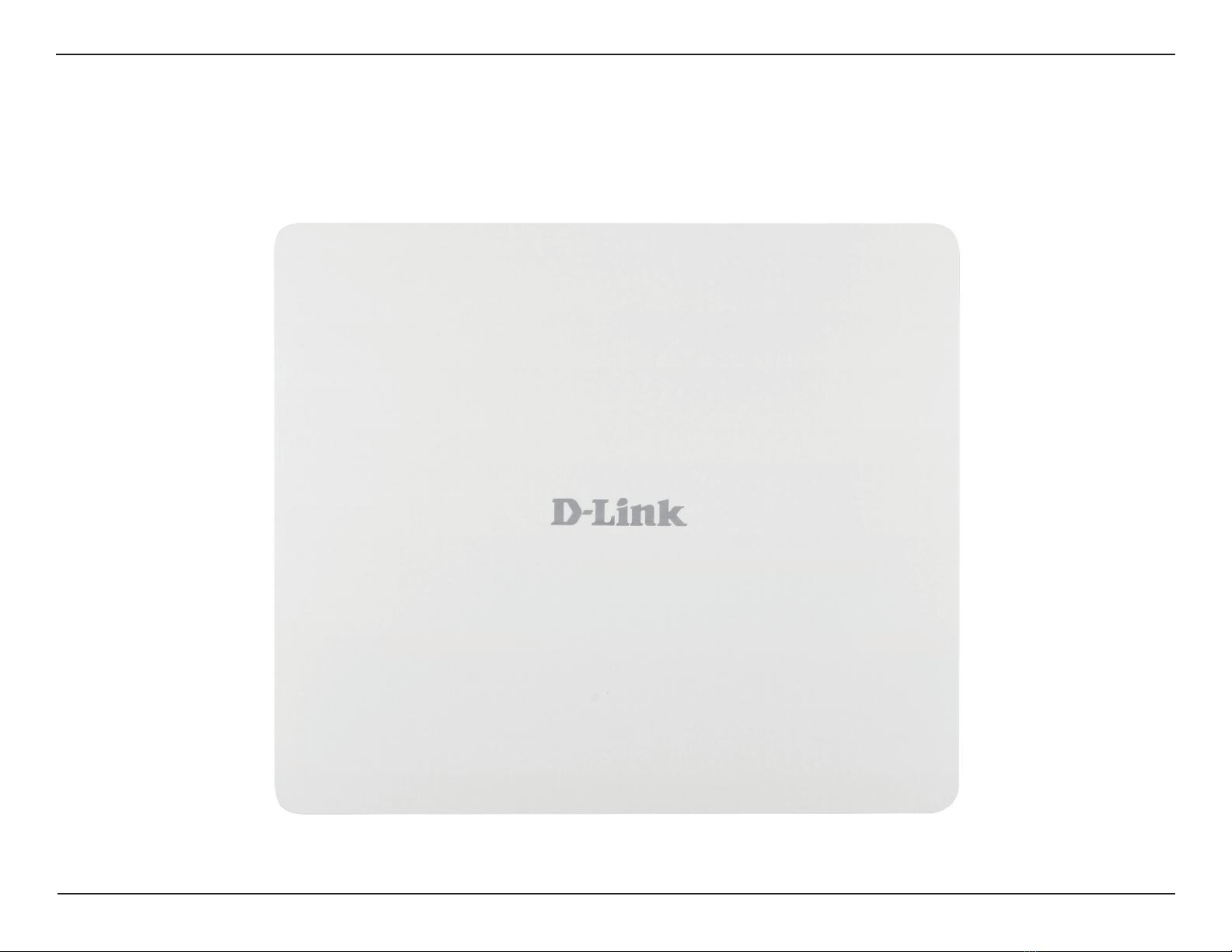

Front

8D-Link DAP-3662 User Manual
Section 1 - Product Overview
Back
Grounding Wire Connection Wall/Pole Mount

9D-Link DAP-3662 User Manual
Section 1 - Product Overview
Bottom
LAN portsReset
Power/StatusLED
Mounting Lock

10D-Link DAP-3662 User Manual
Section 1 - Product Overview
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within your home, business
or public access wireless networks. D-Link wireless products provides you with access to the data you want, whenever and wherever you want it.
Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and oce environments, but in public areas as well, such as airports, coee shops and universities.
Innovative ways to utilize WLAN technology are allowing people to work and communicate more eciently. Increased mobility and the absence
of cabling and other types of xed infrastructure have proven to be benecial to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards, allowing wireless users to use
the same applications as those used on a wired network.
People use WLAN technology for many dierent purposes:
Mobility - Productivity increases when people can have access to data in any location within the operating range of their WLAN. Management
decisions based on real-time information can signicantly improve the eciency of a worker.
Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benet from WLAN's
ease of implementation. WLANs can operate in locations where installation of wiring may be impractical.
Installation and network expansion - By avoiding the complications of troublesome cables, aWLAN system can be fast and easy during installation,
especially since it can eliminate the need to pull cable through walls and ceilings. Wireless technology provides more versatility by extending the
network beyond the home or oce.
Inexpensive solution - Wireless network devices are as competitively priced as conventional Ethernet network devices.The DAP-3662 saves money
by providing users with multi-functionality congurable in four dierent modes.
Scalability - Congurations can be easily changed and range from Peer-to-Peer networks, suitable for a small number of users to larger Infrastructure
networks to accommodate hundreds or thousands of users, depending on the number of wireless devices deployed.

11D-Link DAP-3662 User Manual
Section 2 - Installation
The D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone in not in use.
Installation Considerations
Installation

12D-Link DAP-3662 User Manual
Section 2 - Installation
Four Operational Modes
Wireless Client AP acts as a wireless network adapter for your
Ethernet enabled device
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still
functioning as a wireless AP
WDS Wirelessly connect multiple networks

13D-Link DAP-3662 User Manual
Section 2 - Installation
Connect to your Network

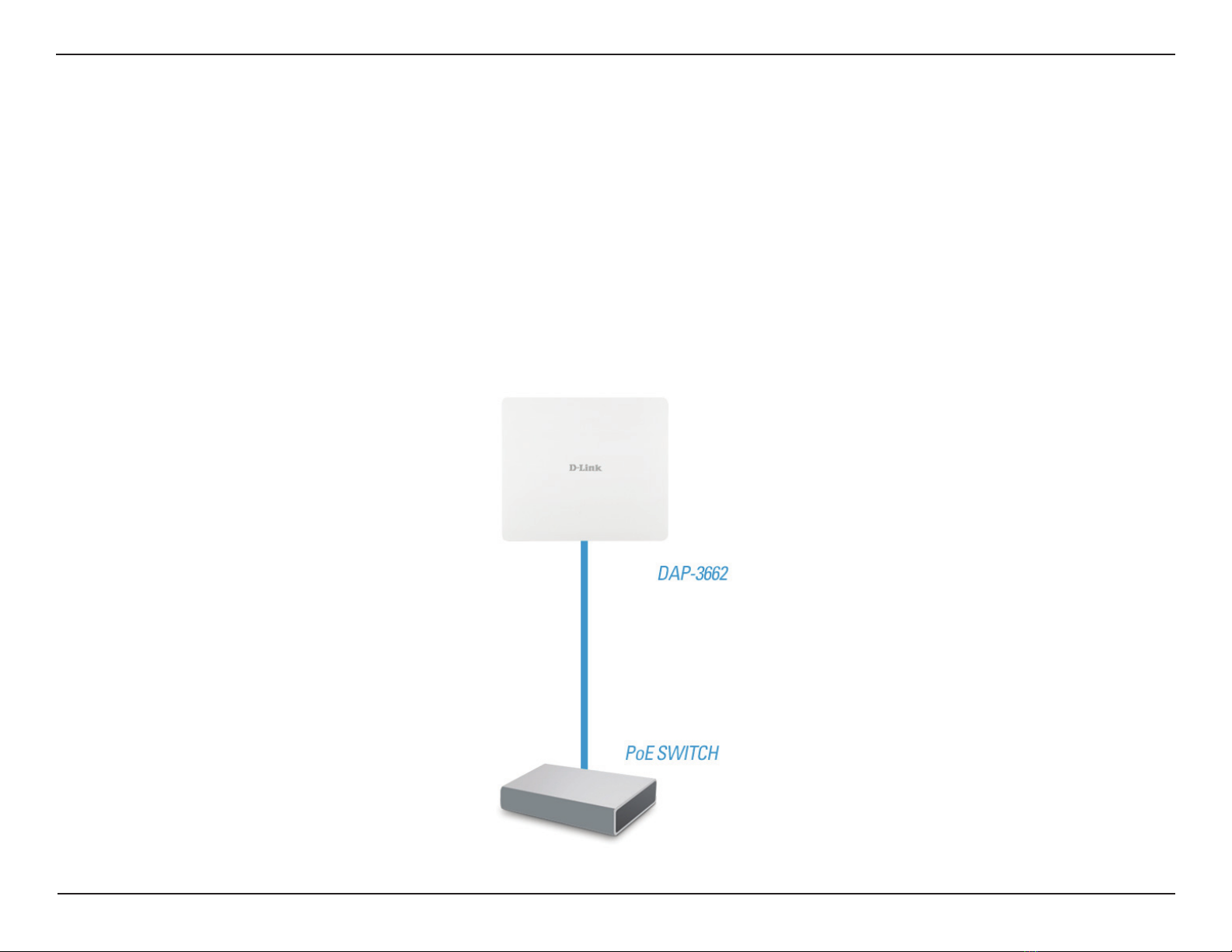

Method 1
1. Connect one end of your Ethernet cable into the LAN1 (PoE) port on the DAP-3662 and then connect the other end to your PoE switch.
To power the access point, you can use one of the following 3 methods:
Method 1 - Power on by PoE switch.
Method 2 - Power on by PoE kit.

14D-Link DAP-3662 User Manual
Section 2 - Installation
Method 2
1. Connect one end of an Ethernet cable into the Data In port on the PoE injector and the other end into one port on your switch, router, or
computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and the other end into the LAN1 (PoE) port on the DAP-3662
access point.
3. Use the supplied power adapter. Connect the power adapter to the Power In receptor on the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end into a power outlet.

15D-Link DAP-3662 User Manual
Section 3 - Conguration
Conguration
To congure the DAP-3662, use a computer that is connected to the DAP-3662 with an Ethernet cable.
Step 1 - Disable the Access the Internet using a proxy server function. To disable this function, go to Control Panel >Internet Options >
Connections >LAN Settings and uncheck the enable box.

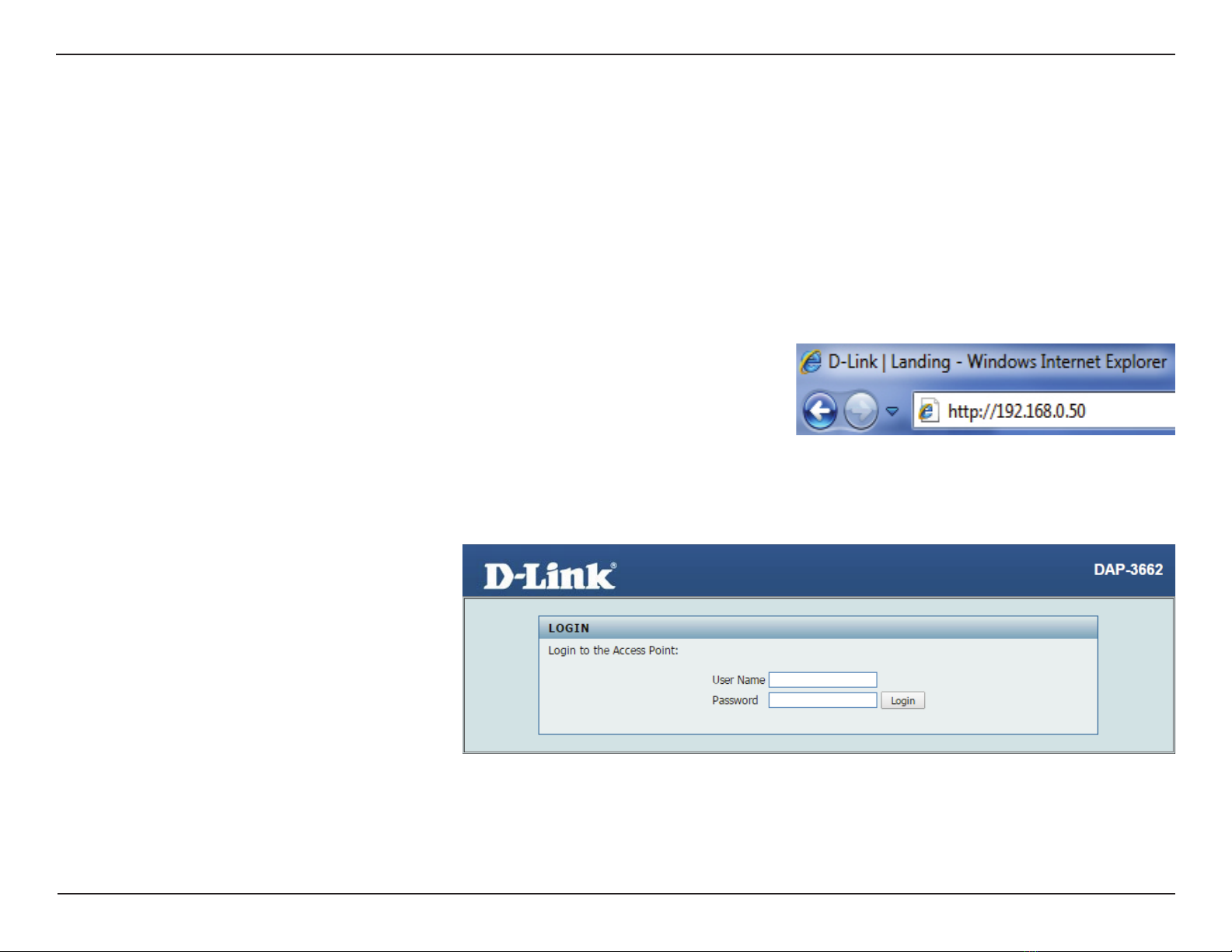

Step 2 - Open your web browser.
Step 3 - Type the IP address of the DAP-3662 in the address eld (http://192.168.0.50) and press Enter. Make sure that the IP addresses of the
DAP-3662 and your computer are in the same subnet.
Note: If you have changed the default IP address assigned to the DAP-3662, make sure to
enter the correct IP address.
Note: If you have changed the password, make
sure to enter the correct password.
Step 4 - Enter admin for the User Name and then click Login. By default the password is blank.

16D-Link DAP-3662 User Manual
Section 3 - Conguration
After successfully logging into the DAP-3662 the following window will appear:
When making changes on most of the conguration windows in this
section, use either the Apply button or the Save button to save your
conguration changes.
Click the Apply button to congure changes.
Alternatively, click the Save and Activate option on the Conguration drop-down menu at the top of each DAP-3662 window. This will cause the
DAP-3662 to save and reboot.
Click the Save button to congure changes.

17D-Link DAP-3662 User Manual
Section 3 - Conguration
Wireless Settings
Wireless Band:
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Captive Prole:
Select either 2.4 GHz or 5 GHz from the drop-down menu.
Select Access Point from the drop-down menu. The other three choices
are WDS with AP, WDS, and Wireless Client.
Service Set Identier (SSID) is the name designated for a specic wireless
local area network (WLAN). The SSID’s default setting is dlink. The SSID
can easily be changed to connect to an existing wireless network or to
establish a new wireless network. The SSID can be up to 32 characters
and is case-sensitive.
Enable or Disable SSID visibility. Enabling this feature broadcasts the SSID
across the network, thus making it visible to all network users.
Enabling this feature automatically selects the channel that provides the
best wireless performance. Enable is set by default.The channel selection
process only occurs when the AP is booting up.
All devices on the network must share the same channel. To change the
channel, rst toggle the Auto Channel Selection setting to Disable, and
then use the drop-down menu to make the desired selection.
Note: The wireless adapters will automatically scan and match the wireless
settings.
Allows selection of the channel width you would like to operate in. 20
MHz and Auto 20/40 MHz allow both 802.11n and non-802.11n wireless
devices on your network when the wireless mode is Mixed 802.11 b/g/n
in 2.4G and Mixed 802.11 a/n in 5G. When the channel width is set to
Auto 20/40 MHz, then 802.11n wireless devices are allowed to transmit
data using 40 MHz.
Enable or disable captive prole for user authentication.
In Access Point mode, the DAP-3662 functions as a wireless AP. After conguring the desired settings, click the Save button.
Access Point Mode

18D-Link DAP-3662 User Manual
Section 3 - Conguration
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled,
this option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
Select 802.1X if your network is using port-based Network Access Control.
For more information about the dierent types of Authentication oered on the DAP-3662 and the respective settings of each,
please go to the rst page of the “Authentication” explanations, which begins on page 23.
Authentication:

19D-Link DAP-3662 User Manual
Section 3 - Conguration
WDS with AP Mode
In WDS with AP mode, the DAP-3662 wirelessly connects multiple networks while still functioning as a wireless AP. After completing the desired
settings, click the Save button to let your changes take eect.
Wireless Band:
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Captive Prole:
Select either 2.4 GHz or 5 GHz from the drop-down menu.
Select WDS with AP mode from the drop-down menu.
Service Set Identier (SSID) is the name designated for a
specic wireless local area network (WLAN). The SSID’s
factory default setting is dlink. The SSID can easily be
changed to connect to an existing wireless network or to
establish a new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Enable or Disable SSID visibility. Enabling this feature
broadcasts the SSID across the network, thus making it
visible to all network users.
Enabling this feature automatically selects the channel that
provides the best wireless performance. Enable is set by
default. The channel selection process only occurs when
the AP is booting up.
All devices on the network must share the same channel. To
change the channel, rst toggle the Auto Channel Selection
setting to Disable, and then use the drop-down menu to
make the desired selection. Note: The wireless adapters will
automatically scan and match the wireless settings.
Allows selection of the channel width you would like to
operate in. 20 MHz and Auto 20/40 MHz allow both
802.11n and non-802.11n wireless devices on your network
when the wireless mode is Mixed 802.11 b/g/n in 2.4G and
Mixed 802.11 a/n in 5G. When the channel width is set to
Auto 20/40 MHz, then 802.11n wireless devices are allowed
to transmit data using 40 MHz.
Enable or disable captive prole for user authentication.

20D-Link DAP-3662 User Manual
Section 3 - Conguration
Allows selection of the channel width you would like to operate in. 20 MHz and Auto 20/40 MHz allow both 802.11n and non-802.11n
wireless devices on your network when the wireless mode is Mixed 802.11 b/g/n in 2.4G and Mixed 802.11 a/n in 5G. 802.11n wireless
devices are allowed to transmit data using 40 MHz when the channel width is Auto 20/40 MHz.
Manually enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks. You
may also click the Scan button to search for available wireless networks, then click on the available network that you want to connect to.
Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this option
is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
For more information about the dierent types of Authentication oered on the DAP-3662 and the respective settings of each, please
go to the rst page of the“Authentication”explanations, which begins on page 23.
Remote AP MAC
Address:
Site Survey:
Authentication:
