DAEWOO ELECTRONICS RNV132 Series User manual

Please check!
WHAT are in this appliance?
1. USER MANUAL
2. TOP HINGE and its COVER
It will start from
next page!
It is hidden surprise!
Do not throw away,
you might need this for
door reversal!
NEO-V 영국향 COMBI(영)_일반.indd 1 2016-07-28 오후 3:36:58

NEO-V 영국향 COMBI(영)_일반.indd 2 2016-07-28 오후 3:36:59

RNV132S
Operating
Instructions
Frost Free / Combi Fridge Freezer
Code : 000-00
Customer Helpline Number : 03330 144477
Spare Parts : 0844 557 0270 or www.4daewoo.co.uk
For further information, visit DAEWOO ELECTRONICS Website
www.daewooelectronics.co.uk
NEO-V 영국향 COMBI(영)_일반.indd 3 2016-07-28 오후 3:36:59

4
Disposal of Used Electrical &
Electronic Equipment
The meaning of the symbol on the product,
its accessory or packaging indicates that this
product shall not be treated as household
waste. Please, dispose of this equipment
at your applicable collection point for the
recycling of electrical & electronic equipments waste.
In the European Union and Other European countries
there are separate collection systems for used electrical
and electronic product. With the correct disposal of it,
you can protect environment and human health from
potential hazards arising out of unsuitable disposal.
The recycling of materials will help conserve natural
resources.
Please do not therefore dispose of your old electrical
and electronic equipment with your household waste.
For more detailed information about recycling of this

household waste disposal service or the shop where
you purchased the product.
Safety Warning
This appliance contains a certain
amount of isobutane refrigerant (R600a)
a natural gas with high environmental
compatibility that is, however, also
combustible.
when transporting and installing the appliance,
care should be taken to ensure that no parts of
the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite
or cause an eye injury. If a leak is detected,

ignition and air the room in which appliance is
standing for several minutes.

gas-air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which
the appliance may be sited depends on the
amount of refrigerant used. The room must be
1m³ in size for every 8g of R600a refrigerant
inside the appliance. The amount of refrigerant

appliance.

of damage. lf in doubt, consult your dealer.
RoHS (Directive 2011/65/EU) Compliant
This product is environmentally sound and
sustainable free from Pb, Cd, Cr+6, Hg, PBBs
and PBDEs restricted in accordance with the
Directive.
Observe Ambient Temperature
This refrigerator is designed to operate in the limited

marked on the rating label.
Climate Category Ambient temperature from... to
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
NOTE
Internal temperature may be affected by such factors
as the location of the refrigerator, ambient temperature
and frequency of the door opening.
Adjust the temperature as required to compensate for
these factors.
Contents
Installation Instructions, 3
Suitable Installation Place
Installation of the Appliance
Grounding
Correct usage of Refrigerator
Installation of height adjustment feet for leveling
General installation
Safety Instructions, 4-8
Trobleshooting Guide, 9

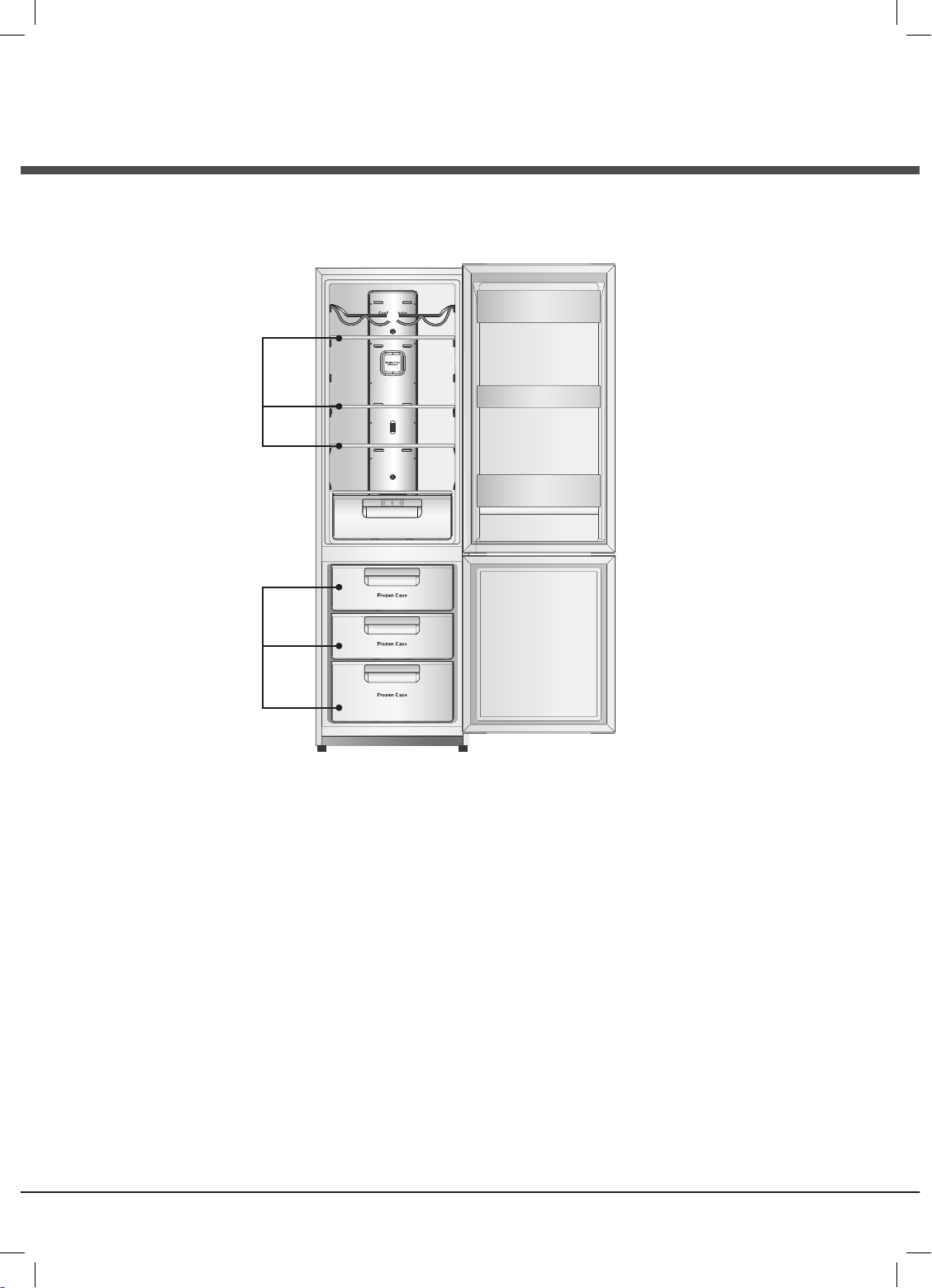

Description of the appliance, 10
Temperature Controls, 11-12
Care & Cleaning, 13

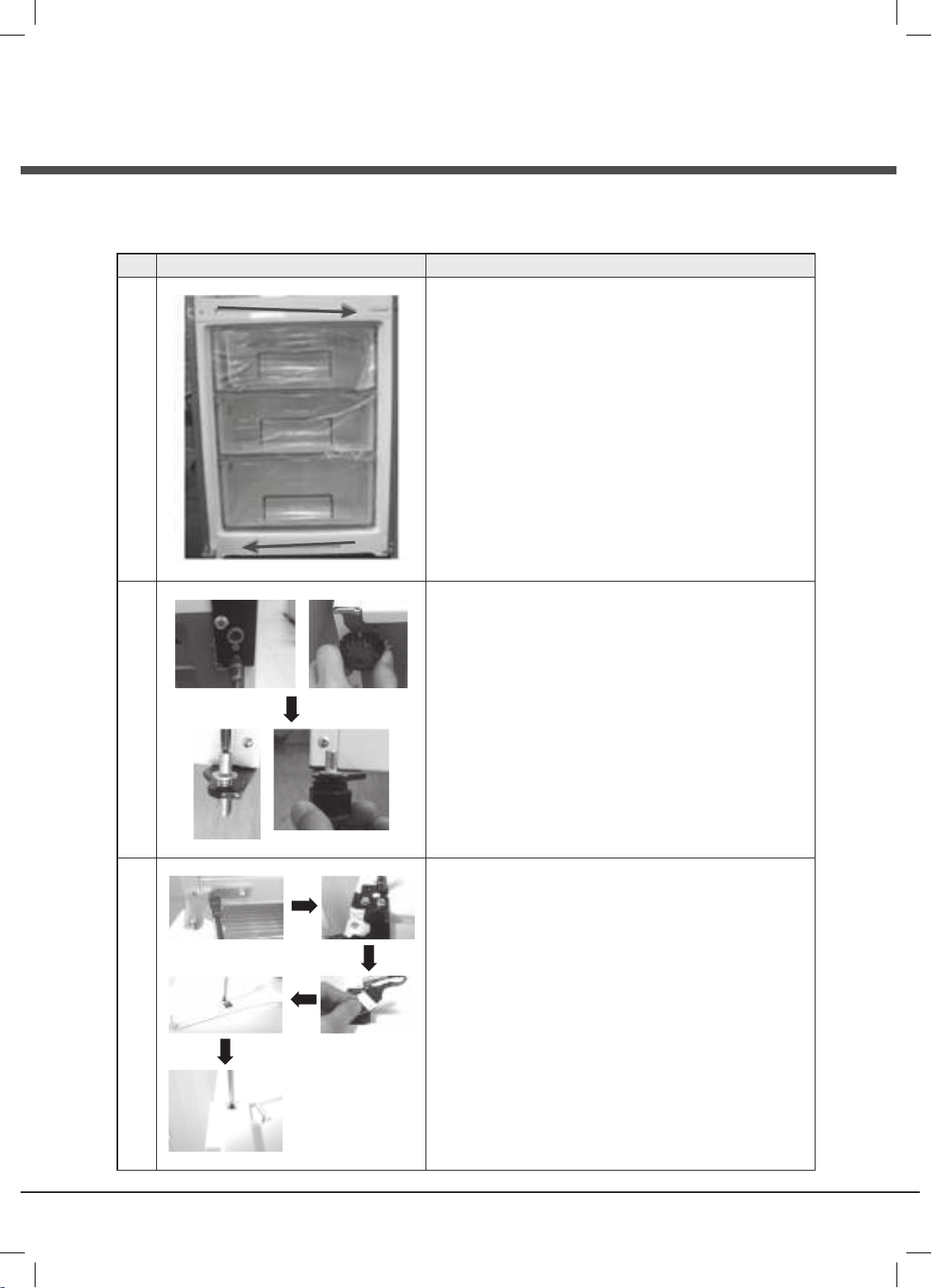

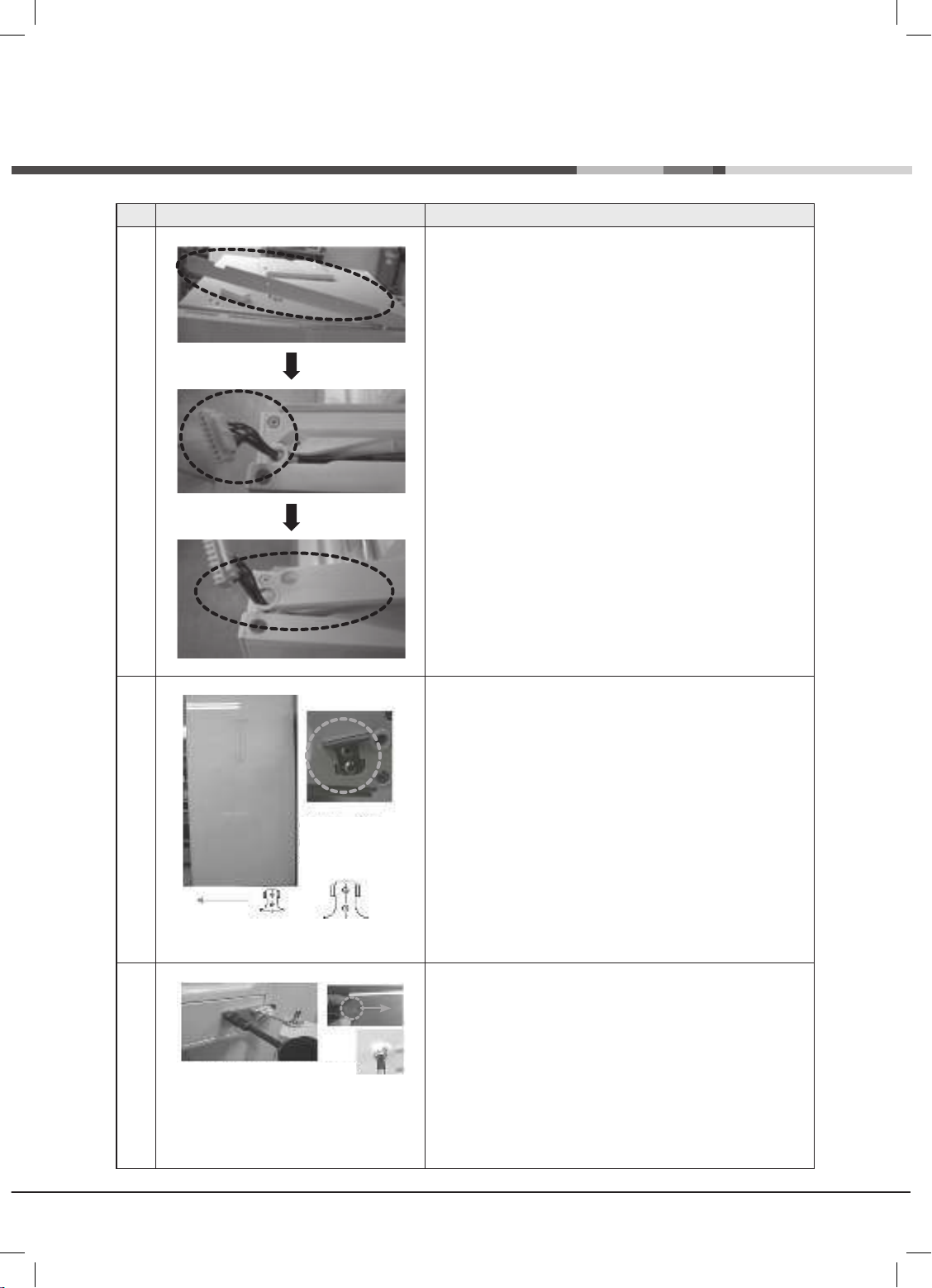

How to reverse the door, 14-17
NEO-V 영국향 COMBI(영)_일반.indd 4 2016-07-28 오후 3:37:00

5
Installation Instructions
This appliance was designed for domestic use only.
Where to install?


vibration from the appliance.

can appear uneven.
Cool and Dry place


gather as this can cause rust and corrosion.

problems.

sources as this will weaken the refrigeration power.

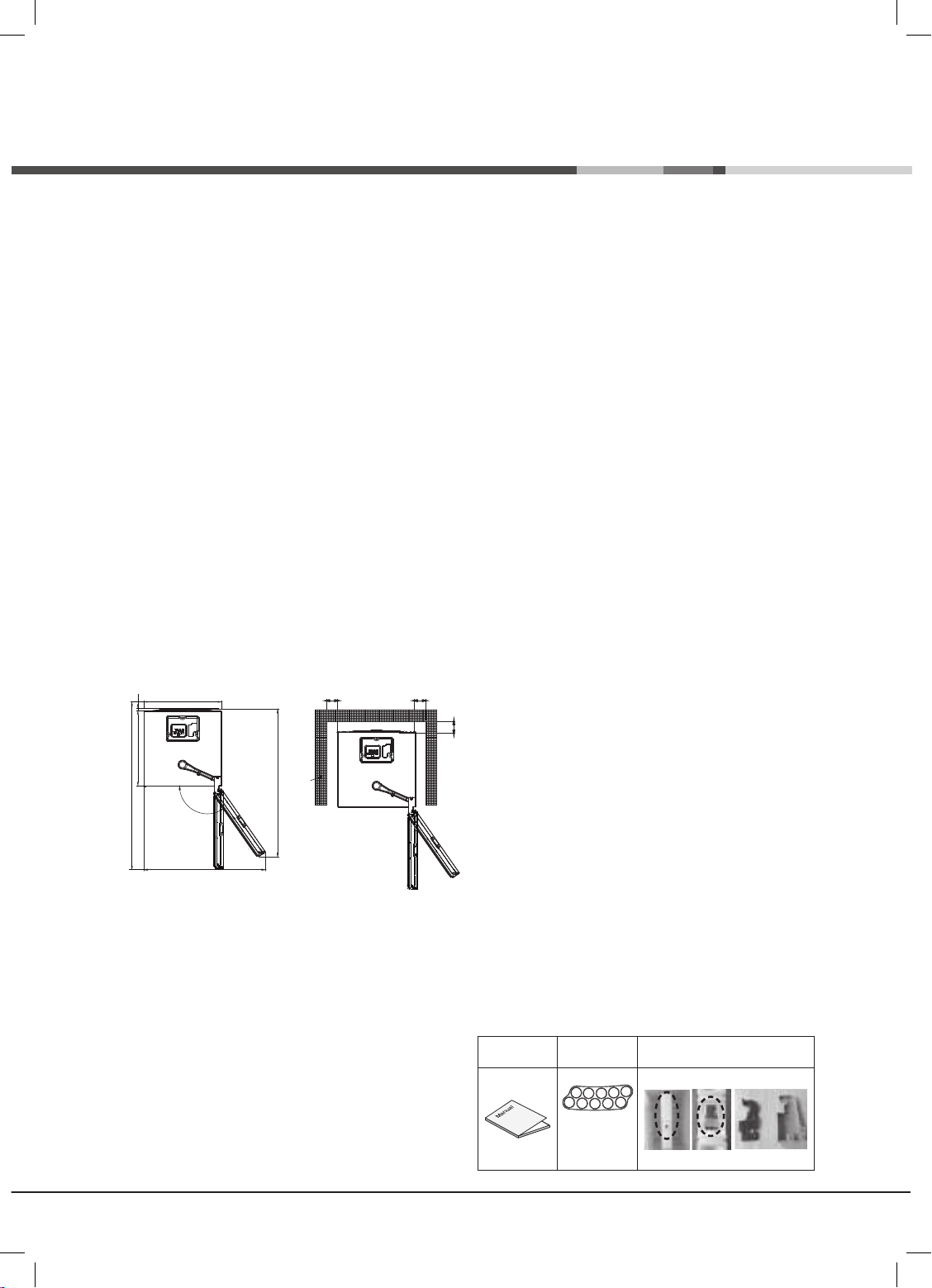

Ventilation
The space required for installing the appliance is
shown below.



vibration, weakening of refrigerating power and the
waste of electricity.
Grounding / Earthing
This appliance MUST BE PLUGGED in EARTHED
SOCKET. The power supply cable plug is provided
with a contact for this purpose.
Grounding terminal is the green one connected to the
power cord in the back of refrigerator.

electrician or service person if the grounding
instructions are not completely understood, or if you
have any doubts on whether the appliance is properly
grounded or not.
The incorrect grounding may cause breakdown and
electric shock.
You need to ensure to use grounded exclusive correct
voltage for Power cord input/output. If not, it may cause

Grounding is necessary at if appliance is installed in
the place where water splashes easily;
humid basement;
any wet or watery place.
Grounding is not necessary
in case of using side-grounded outlet.
Don’t connect the earth wire to
water pipe, gas pipe, telephone line or lightening-rod due

Installation of height adjustment feet for leveling

There are two leveling feets under each front corner
of refrigerator. Turn leveling feet clockwise to
raise the refrigerator and turn it counter-clockwise
to lower. Use cardboard support under the rear
corners if necessary.

smoothly and not to be open easily, adjust the front
feets so the refrigerator sits slightly higher at the front.
GENERAL INSTALLATION

switching on to allow the gases to settle.

Wait 2-3 hours until the inside gets cold enough after

can be some smell on initial operation of the refrigerator
after plugging in. The smell fades away as the
refrigerator works and doors are opened and closed.

setting.

days. This is normal and does not indicate a fault.
ACCESSORIES AND REQUIRED TOOLS
The following accessories are included with your
appliance.
921
Wall
100
(unit : mm)
100
100
125°
595
15.3
1218
1131
575
User manual Egg tray Top hinge and its cover for door
reversal
(**The image shown
may differ from yours.
The shape of egg tray is
on model dependent. )
NEO-V 영국향 COMBI(영)_일반.indd 5 2016-07-28 오후 3:37:03

Safety Instructions
6
DISCARDING
When discarding the refrigerator,
remove the door packing.

NO
Do not put heavy things or water
containing tanks on top of refrigerator.

falls down or short circuit occurs with
the leak or spill of water.
NEVER USE
If there is burning smell from refrigerator,
unplug it to stop running.

to run abnormally.
WARNING
WARNING
CAUTION
WARNING
Improper use can cause physical damage -
personal injury.
Improper use can cause injury or material
damage to the household.
If the power cord of refrigerator is
damaged, have it replaced at a repair
shop or the manufacturer, as special
tools are required. Allow 5 cm or more
clearance over wall, side and rear plate of
the refrigerator for good air circulation.
VENTILATION
In case of gas leakage, ventilate the
room instead of unplugging the
refrigerator.

ATTENTION
Do not eat any frozen food immediately
after taking out of freezer.

You may get cold burns if you have it.
CLEAN PLUG
Unplug and clean it with dry cloth if
dirty.

NO
Never install the refrigerator at humid
place or the place where water
splashes easily.

EXCLUSIVE POWER OUTLET
Use exclusive power outlet for the
refrigerator only.


extension cord.
BE SURE TO KEEP
DO NOT TOUCH
DO NOT DISASSEMBLE
GROUND
PROHIBITION
UNPLUG
NEO-V 영국향 COMBI(영)_일반.indd 6 2016-07-28 오후 3:37:04

7
NEVER USE
Never use any spray near the
refrigerator.

NEVER STORE
Store only food in the refrigerator.

things, study samples or etc…
NEVER TOUCH
Do not use any sharp tools when
cleaning the inside.

or there may be electric shock.
NO
Do not allow children to hang on the
doors.

to hurt children. Always keep children
well away from the appliance while it
is operating.
NEVER USE
Never use plug if it is loose.

short circuit.
NEVER EAT
Never eat the deteriorated food stored
in the refrigerator too long or in
malfunctioned refrigerator.

NEVER TOUCH
Do not plug in or out the cord with
wet hands.

if you do it.
UNPLUG

and/or cleaning the refrigerator.
UNPLUG
Grip the whole plug body when you
unplug.

electric spark or short circuit.
UNPLUG
When not using refrigerator for a long
time, unplug and take all the foods out.

decay and other accident (short

GROUNDING
Please ensure of the grounding.

service person if the grounding
instructions are not completely
understood, or if you have any doubts
on whether the appliance is properly
grounded or not.
The incorrect grounding may cause
breakdown and electric shock.

due to short circuit or mal-function.
WARNING
NEVER DISASSEMBLE
Do not repair the refrigerator on your
own.

bigger trouble.
NEO-V 영국향 COMBI(영)_일반.indd 7 2016-07-28 오후 3:37:04

Safety Instructions
8
MOVING / CARRYING
When you move the refrigerator, take
all foods out and empty water in ice
box and evaporation dish.

refrigerator and you can slip on watery

HEIGHT ADJUSTING FEET
When you adjust leveling feets, lift
the refrigerator a little bit.

in normal standing of refrigerator
without lifting it.
MOVING / CARRYING
Lift the refrigerator up enough not to



INSTALLATION


and doors.
HEIGHT ADJUSTING FEET
When moving and carrying the set,
turn the feet up.


WARNING WARNING
DOOR HANDLES
Opening and shutting doors, hold door
handles, not other parts.

between.
HAND OVER
Handing over this refrigerator, you’d
better give user’s guide together to
him/her.

use this refrigerator.
ATTENTION
Foods should not protrude from
shelves.

when opening the door.
DO NOT TOUCH
Do not directly touch the surface of
food or containers in the freezer
compartment.

surface and hurt especially in case of
wet or clammy hands.
FOOD STORAGE
When you store foods in the pockets,
push in deep down the pocket bottom.

pockets can be broken.
NEO-V 영국향 COMBI(영)_일반.indd 8 2016-07-28 오후 3:37:05

9
CAUTION
When purchasing deep-frozen food,
comply the following.


the sell-by date runs out.
CAUTION
Do not block air vents with food.
It can obstruct free air circulation
in the each compartment.
CAUTION
Opening the door of refrigerator
frequently or cleaning of refrigerator
(freezer) may result in reduced storage
life of food due to the increase of
temperature inside of appliance.
CAUTION
This appliance can be used by 1)
children aged 8 and over or 2) persons
with reduced physical/sensory/mental
capabilities or lack of knowledge/experience
if they were given the supervision or
instruction concerning the use of appliance
in a safe way and understand safety
hazard involved.

appliance.

shall not be made by children
without supervision.
CAUTION
Please check(observe) either the
maximum volume of storage or the
expiry date of frozen food. Do not
put new foods to be stored near
to existing frozen food in a freezer.
CAUTION

around refrigerator, wipe it out.

hurt.
FORBIDDEN
Do not store bottles, cans or canned
food in the freezer compartment.

it freezes.
DO NOT TOUCH
Do not reach out your hands or legs
under the refrigerator (when cleaning
under the refrigerator.

parts under the refrigerator.
NEO-V 영국향 COMBI(영)_일반.indd 9 2016-07-28 오후 3:37:05

Safety Instructions
10
CAUTION
When refrigerator is sited in the
circumstance below the minimum
degree of designated ambient
temperature for a long time, the
appliance might not operate
consistently and frozen foods/contents
can be defrosted due to the increase
of temperature accordingly.
CAUTION
R-600a or R-134a is used as a
refrigerant. Check the compressor
label or the rating label to see which
refrigerant is used for your refrigerator.

gas (R-600a or R-134a), please be
aware of following.

enclosure or built-in structure by
clearing of obstructions.

or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.

CAUTION
C-Pentane is used as an insulation
blowing gas.

gases require special disposal
procedure.
Please contact your local authorities
in regard to the environmentally safe
disposal of this product.
CAUTION
Do not store explosive
substances such as aerosol

propellant in this appliance.
NEO-V 영국향 COMBI(영)_일반.indd 10 2016-07-28 오후 3:37:05

11
Troubleshooting Guide
Before You Call for Service...
SPlease check the following troubleshooting tips
before you call for service!
Problem
It never gets cold inside.
Freezing & refrigerating is not
very good.
Checkup Point
❶Is the refrigerator unplugged?
❷Is the temperature set to [Low Mode]?
❸Is the refrigerator under direct sunlight or is a heat
appliance placed near it?
❹Is the space between the refrigerator back and the
wall too close?
❺Have you accidentally activated ‘ECO mode’?
Action
❶Plug in the refrigerator.
❷Set the temperature mode to Middle or High.
❸Move to a place where there is no direct sunlight,
no heat appliances around.
❹
refrigerator and the wall.
❺Press ‘ECO’ button again for general operation.
Problem
Foods in the refrigerator get
frozen.
Checkup Point
❶Is temperature set to [High]?
❷Is the room temperature too low?
❸Is food with moisture stored close to the cold
air spout ?
Action
❶Set the temperature to [Middle] or [Low].
❷Foods can be frozen if ambient temperature is below
5°C. Move to a place where the temperature is over
5°C.
❸Place foods with moisture on the shelves close to
the doors.
Problem
Strange sounds from the
refrigerator.
Checkup Point
❶
❷Is the space between the refrigerator back and the
wall too close?
❸Does any object touch the refrigerator?
Action
❶
❷
❸Remove any object which touches the refrigerator.
Problem
Odour or unpleasant smell
from the inside.
Checkup Point
❶Is the food stored uncovered or unwrapped?
❷Are the shelves and pockets stained with food stuff?
❸Is the food stored too long?
❹Has there been an unnoticed spillage?
Action
❶Be sure to cover and wrap the foods.
❷Clean them regularly. Once smell gets soaked into
those parts, it is not easy to remove.
❸Do not store foods for too long. A refrigerator is
neither a perfect nor a permanent food keeper.
❹heck and clean throughly.
Customer Helpline Number : 03330 144477
For further information,
visit DAEWOO ELECTRONICS Website
www.daewooelectronics.co.uk
NEO-V 영국향 COMBI(영)_일반.indd 11 2016-07-28 오후 3:37:06

12
Description of the
appliance ➡①Shelves (3 pcs)
 
②Vegetable case
 
③Case F
 
 
④Dairy Pocket
  ⑤Pocket
 
spice containers, etc.
⑥Pocket Jumbo
 
⑦Adjustable foot
⑧Wine rack
 
rack
Interior Features
( * The real features are model dependent! )
⑦②④⑤⑧⑥③①
NEO-V 영국향 COMBI(영)_일반.indd 12 2016-07-28 오후 3:37:08

13
Temperature control
1. Freezer compartment
NOTES ON FREEZING AND STORAGE
1. Follow storage times indicated by the frozen food
manufacturer. Make sure that the packaging is
undamaged.
2. Save energy : minimize opening of the door by
storing identical food items together.
3. Items suitable for freezing : meat, poultry, fresh

goods, pre-cooked meals.
4. Items not suitable for freezing : lettuces, radishes,
grapes, whole apples and pears, fatty meats.
5. When you freeze food yourself, pack it in appropriate
quantities. In order to freeze food right through do
not exceed the following quantities to best preserve
the quality:
- fruits and vegetables : up to 1kg,
- meat : up to 2.5kg.
6. Blanch vegetables after washing and cutting them.
(2-3 minutes in boiling water; then quickly cool them
down in cold water. When you use a steamer or
microwave oven, follow the operating instructions).
7. Keep packs dry in order to avoid them freezing
together.
8. Freeze fresh food separately form already frozen
foods.
9. Do not salt or season fresh food or blanched
vegetables before freezing. Other foods may be

some spices can change.
10. Use materials or containers specially suitable for
freezing in order to avoid loss of quality.
11. Write contents and date of freezing on the packs.
Do not exceed the storage time indicated in order
to preserve quality.
12. Do not freeze bottles or cans with carbonated
drinks, cause they might burst.
13. Take out as much food as is immediately required
for thawing. Prepare it as soon as possible after
thawing.
WHEN STORED READY FROZEN
MEAL/PACK
1. Please ensure that the packaging is undamaged
(damage may have caused the food to deteriorate).
Bulging packs or packs which are marked with liquid
stains could have been improperly stored and may
have been partially thawed.
2. Leave frozen food purchases until last and transport
the items in insulated bags.
3. Place the items in the freezer as soon as possible.
4. Do not refreeze partially thawed food. Consume it
within 24 hours.
5. Observe the date of consumption and storage
information.
The control has three setting from LOW to HIGH.
(FREEZER CONTROL KNOB)
For ordinary use (SET “MID”)
NEO-V 영국향 COMBI(영)_일반.indd 13 2016-07-28 오후 3:37:08

14
Temperature control
2-2. Temperature control (FCP)


Normal Max Min
①Temperature control button for refrigerator compartment
②Function button for switch ‘Super’, ‘Eco’ mode
③Temperature indicator of refrigerator
④‘Super’ mode indicator
⑤‘Eco’ mode indicator
①③②⑤④Caution
Foods in the refrigerator can be frozen if the ambient temperature of the refrigerator is below 5°C.
●In case either the freezer or refrigerator door is left open for more than 1 minute, door alarm rings for 5
times with 1minute interval.
●Display off function
- If no button is pressed or door is not operated for 1 minute, all LED lights on the display panel are
turned off automatically.
- When button is pressed, they are turned on again.
Note
4SUPER mode
Function for rapid cooling of meat, foods or drinks which are to be stored in the refrigerator compartment.
Each time the button is pressed, the function is activated or deactivated.
5ECO mode
The temperature will rise by 0~1 C in order to save energy.
Once Eco Mode is activated it will continue until the button is pressed again, or if the door is opened within
30 minutes of activation.
* We recommend you to use this function when you make the fridge empty for a long holiday due to the
changes of temperature.
Defrost Control


wrap the frozed food in several layers of paper such as newspaper.
2. Fridge compartment
2-1. Control panel (FCP)*
NEO-V 영국향 COMBI(영)_일반.indd 14 2016-07-28 오후 3:37:09

15
Care & Cleaning
Before Cleaning

unplug the main power plug.
Cleaning the Exterior/ Interior


mild detergent or warm water. Then, wipe it with dry
cloth.

accessories before you putting them back into the
place if you remove them for the cleaning.
After Cleaning

plug is not overheated, then you could plug back into
the power socket.
CAUTION
- Never use patrol, benzene, thinners, scouring
pads or harsh abrasives for they can damage
the surfaces.
- Do not use abrasive cleaners or scourers as
there can also damage the surfaces
NEO-V 영국향 COMBI(영)_일반.indd 15 2016-07-28 오후 3:37:09

16
How to reverse the door
NO Image Description
1For Removing the harness(long) cover on the top of your

Gently pry the top hinge cover on the left side with with
philips screwdriver and remove the hinge cover and harness
cover.
2Diconnect the wires by pulling them out in the middle.
3Unscrew the top hinge and lift it off, put these parts and
screws down somewhere safe so you don’t lose them.
4Remove the fridge door carefully by lifting it straight upwards
and place it to one side, ideally padded surface to avoid it
getting scrached.
PLEASE NOTE, Original top hinge and its cover you removed

and its cover for reversal are attached in the polystyrene pad

parts for reversal.
NEO-V 영국향 COMBI(영)_일반.indd 16 2016-07-28 오후 3:37:09

17
NO Image Description
5Unscrew the plastic cover on the top of the fridge door and
remove it.
Disconnected wire on the right hand side on the top of fridge

side to reattached it later.
Then,re-screw the plastic cover on the top of fridge door.
6There is door stopper on the right bottom of the fridge door.
It has to move to the left side.
7
hinge cap on the left side of freezer.
Then carefully lift it off the freezer door and place it to one
side.
Again, put these parts and screws down somewhere safe
so you don’t lose them.
NEO-V 영국향 COMBI(영)_일반.indd 17 2016-07-28 오후 3:37:10

18
How to reverse the door
NO Image Description
8
assemble the middle hinge on the left.

the hinge the other way around.)
9Remove the bracket cover from the front of the fridge
freezer and then, you can unscrew the under hinge.
Also you need to remove the adjustable foot from the
opposite side.
Assemble the under hinge on the left and you can screw
the adjustable foot on the right.
10 Attached the freezer door and assemble the middle hinge
on the left and the hinge cover on the right.
Slide the fridge door onto the middle hindge, then attach the
top hinge.
Then, Connect two wires again and cover them with harness
cover and hinge cover on the left side.

The extra top hinge and its cover for reversal are attached in the polystyrene pad in fridge.
NEO-V 영국향 COMBI(영)_일반.indd 18 2016-07-28 오후 3:37:10



How to reverse the doors

NEO-V 영국향 COMBI(영)_일반.indd 19 2016-07-28 오후 3:37:11

Customer Helpline Number : 03330 144477
Spare Parts : 0844 557 0270 or www.4daewoo.co.uk
For further information, visit DAEWOO ELECTRONICS Website
www.daewooelectronics.co.uk
Exporter :
Dongbu Daewoo Electronics Corp.
Dongbu Finance Centre, 432, Teheran-ro,
Gangnam-gu, Seoul, Korea
Importer :
DONGBU DAEWOO ELECTRONICS UK LTD
DAEWOO BUILDING WHARFEDALE ROAD
WINNERSH TRIANGLE WOKINGHAM BERKSHIRE RG41 5TP, U.K.
NEO-V 영국향 COMBI(영)_일반.indd 20 2016-07-28 오후 3:37:11
