INSTALLATION & OPERATION MANUAL
41078-0198 <90-00017>
41078
400-TYPE EQUIPMENT SHELF
About this Practice:
This practice has been reissued to:
• Replace Fig. 2.
Issue date: January 1998
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
UPDATED
Table of Contents
Ordering Information ........................................................................... 2
General Description.............................................................................. 2
Installation............................................................................................ 2
Technical Specifications ....................................................................... 4
Warranty ............................................................................................... 6

PAGE 2 41078-0198 <90-00017>
ORDERING INFORMATION
NOTE: This section lists the different options available for this product. To order any of the avail-
able options, contact Dantel Inside Sales through our toll-free number, 1-800-432-6835.
OPTION NUMBER FEATURES
A13-41078-00 400-Type Equipment Housing
GENERAL DESCRIPTION
The 41078 400-Type Equipment Shelf is a steel housing for two 400-type Dantel modules (or those manufactured by
other suppliers).
The 41078 shelf can be installed in 19-inch or 23-inch equipment
racks.
The shelf has plastic card guides. Ground lugs are provided for
each module.
Two 60-pin wire-wrap terminal blocks on the front of the shelf
allow front access for wiring in confined spaces where it is
difficult to reach the rear of the shelf. The front panel also has a
fuse and a red LED to indicate a blown fuse.
The rear of the shelf has a 10-point barrier strip. Depending on
the application, it may also have a 25-pin female EIA connector
and/or an RJ-11 phone jack.
INSTALLATION
The 41078 shelf is shown mechanically in Fig. 1.

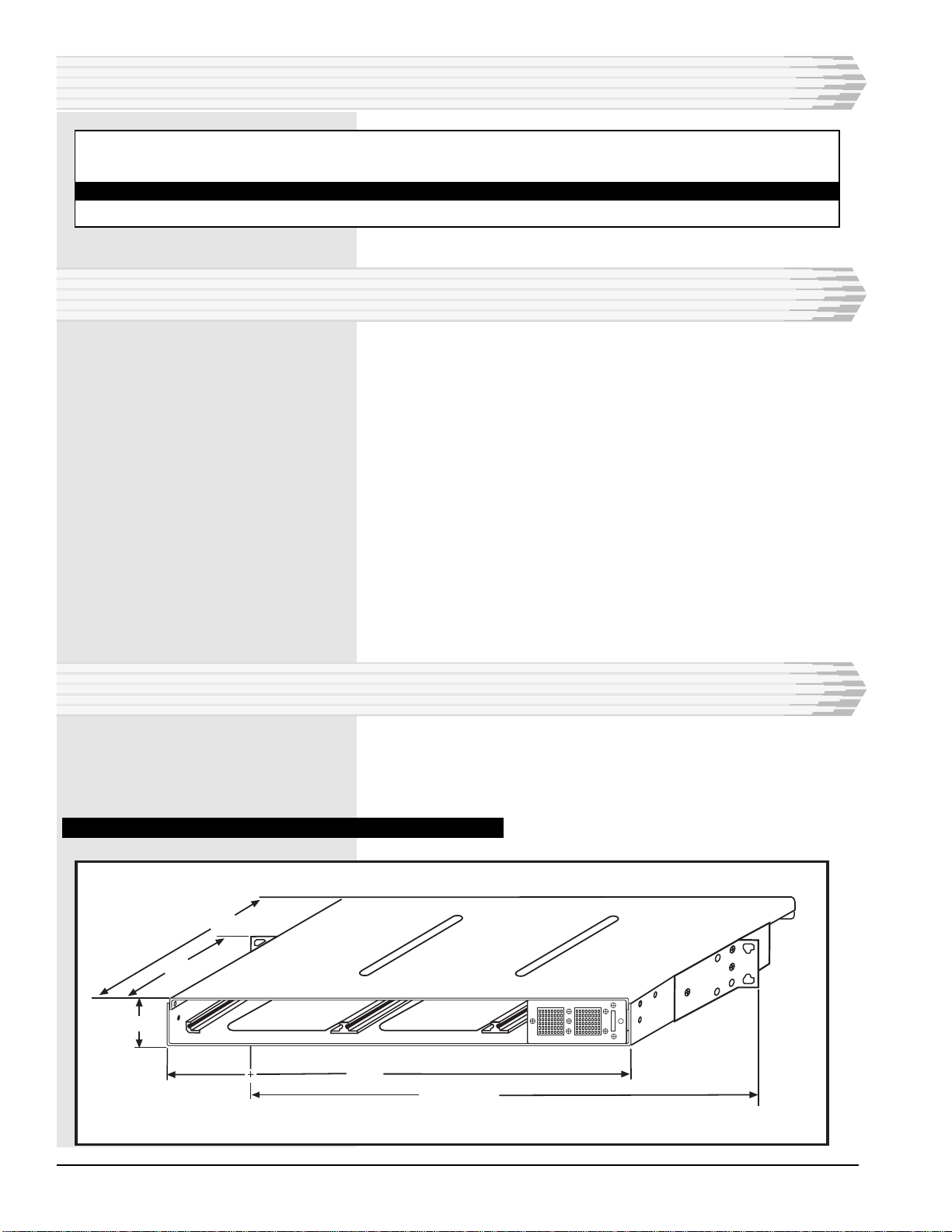

FIG. 1 - MECHANICAL DRAWING, 41078 400-TYPE EQUIPMENT SHELF
9.25
4.75
1.72
17.35
19.00 or 23.00

41078-0198 <90-00017> PAGE 3
Install the shelf as explained below. Tools Required:
♦Phillips screwdriver
♦3/8” hex nut driver
1. Check the mounting brackets.
The brackets are installed at the factory so the front of the shelf
extends forward from the equipment rack. You can remove the
brackets and reinstall them for flush mounting. To install the
shelf in a 23-inch rack, remove the brackets and install the
optional mounting brackets that are in a parts bag attached to
the unit.
2. Install the shelf.
Install the shelf in the equipment rack, using the hardware
supplied in the parts bag. Refer to Fig. 2 in conjunction with the
following steps.
1. Facing the frame rail, place the shelf in the rack. Secure the shelf
with three Phillips-head screws and lock washers - two on the right
side at the top and bottom, and one on the lower left side.
2. Install one ESD stud with lock washer in the upper left location.
3. Secure all fasteners tightly, ensuring proper grounding between
the ESD stud and the frame rail.
4. Place an ESD label next to the ESD stud.
5. From the rear of the bay, install the other ESD stud into the frame
rail next to the shelf. Secure tightly, ensuring proper grounding
between the ESD stud and the frame rail.
6. Place an ESD label next to the ESD stud.
FIG. 2 - MOUNTING DIAGRAM
INSTALLATION
UPDATED
ESD STUD
LOCKWASHER
ESD LABEL FRAME RAIL
ESD LABEL
ESD STUD
LOCKWASHER
STANDARD
SCREW
SHELF
SIDE VIEW
FRONT
REAR
SHELF
FRONT VIEW
STANDARD
SCREW
STANDARD
SCREW
STANDARD
SCREW
ESD STUD
ESD LABEL
113 14

PAGE 4 41078-0198 <90-00017>
3. Wire the connectors.
Refer to separate documentation for your system for wiring the
connectors.
For ease in connecting ground leads, a ground lug is provided at
each back panel card connector.
Remove the plastic cover to wire the wire-wrap pins on the front
panel, then re-install the plastic cover.
4. Install the modules.
Refer to separate documentation for your system for the proper
placement of modules.
INSTALLATION
TECHNICAL SPECIFICATIONS
DESCRIPTION
Physical Dimensions
19"
23"
Dimensions Between Rack Mounting Holes
19"
23"
Weight
Housing Material
PC Card Guide Material
Terminal Block Wire-wrap Pin Dimensions
Diameter
Length
DESCRIPTION
19" x 9.25" x 1.72"
23" x 9.25" x 1.72"
18.3" (on center)
22.3" (on center)
4.6 lbs.
Steel
Plastic
0.045"
0.75"

41078-0198 <90-00017> PAGE 5
NOTES

PAGE 6
6 PAGES 41078-0198 <90-00017>
