DeDietrich DTG X..N User manual

DTG X .. N
Low temperature gas furnace English
14/11/2005
Instructions for
use

Contents
DTG X .. N 14/11/2005 - 300006361-001-A
Important recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1 Aeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3 Adapting to another gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Commissionning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Stopping the boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Symbols used
Caution danger Risk of injury and damage to equipment. Attention must be paid to the
warnings on safety of persons and equipment
Specific information Information must be kept in mind to maintain comfort
ZReference Refer to another manual or other pages in this instruction manual

3
14/11/2005 - 300006361-001-A DTG X .. N
Congratulations on your choice of a high quality product. We strongly advise you to read the following instructions in order to
guarantee the optimal operation of your appliance. We are sure that it will be entirely to your satisfaction and will meet with all of
your expectations.
Important recommendations
For a proper operating of the boiler, follow carefully the
instructions.
Any intervention on the appliance and heating equipment
must be carried out by a qualified technician.
The manufacturer is not liable for any improper use of the
appliance or failure to maintain or install the unit correctly
(the user shall take care to ensure that the system is
installed by a qualified fitter).
Check the seal on the gas and water pipe connections.
Checkthat theequipment isproperlysetfor thetype ofgas
used.
Keep to the polarity shown on the terminals : phase (L),
neutral (N) and earth 4.
Check regularly that the installation contains water and is
pressurised.
Danger of burning in direct contact with the flame
detection cell.
1 Aeration
Do not obstruct the air inlets in the room (even partially).
France: the cross section of the aeration vent, which is compulsory
in the premises in which the boiler is installed, must comply with the
DTU 61.1 (P 45 204) standard and, in particular, with the instruction
on general improvement work (Book1764 April 1982).
Germany : the cross section of the ventiliation vents, which are
compulsory in the room in which the boiler is installed, must comply
with the VDI 2050 form 1 standard and with other prevailing
regulations
Other countries: the cross section of the aeration inlet, which is
compulsory in the premises in which the boiler is installed, must
comply with the standards in force in the country.
2 Maintenance
- The servicing and cleaning of the boiler and the sweeping of the
flue gas pipe and the bleed pot must be done at least once a year
by a qualified professional. We recommend taking out a
maintenance contract.
- Regularly check the level of water in the system and top up if
required,takingcare that cold water is notaddedsuddenlyintothe
boiler when it is hot. If this operation is repeated several times per
season, locate the leak and repair it.
Do not drain the installation, except in cases of absolute
necessity. For example: Several months' absence with the
risk of ice in the building.
3 Adapting to another gas
The operations required to switch from one gas to another must be
carried out by your fitter.

4DTG X .. N 14/11/2005 - 300006361-001-A

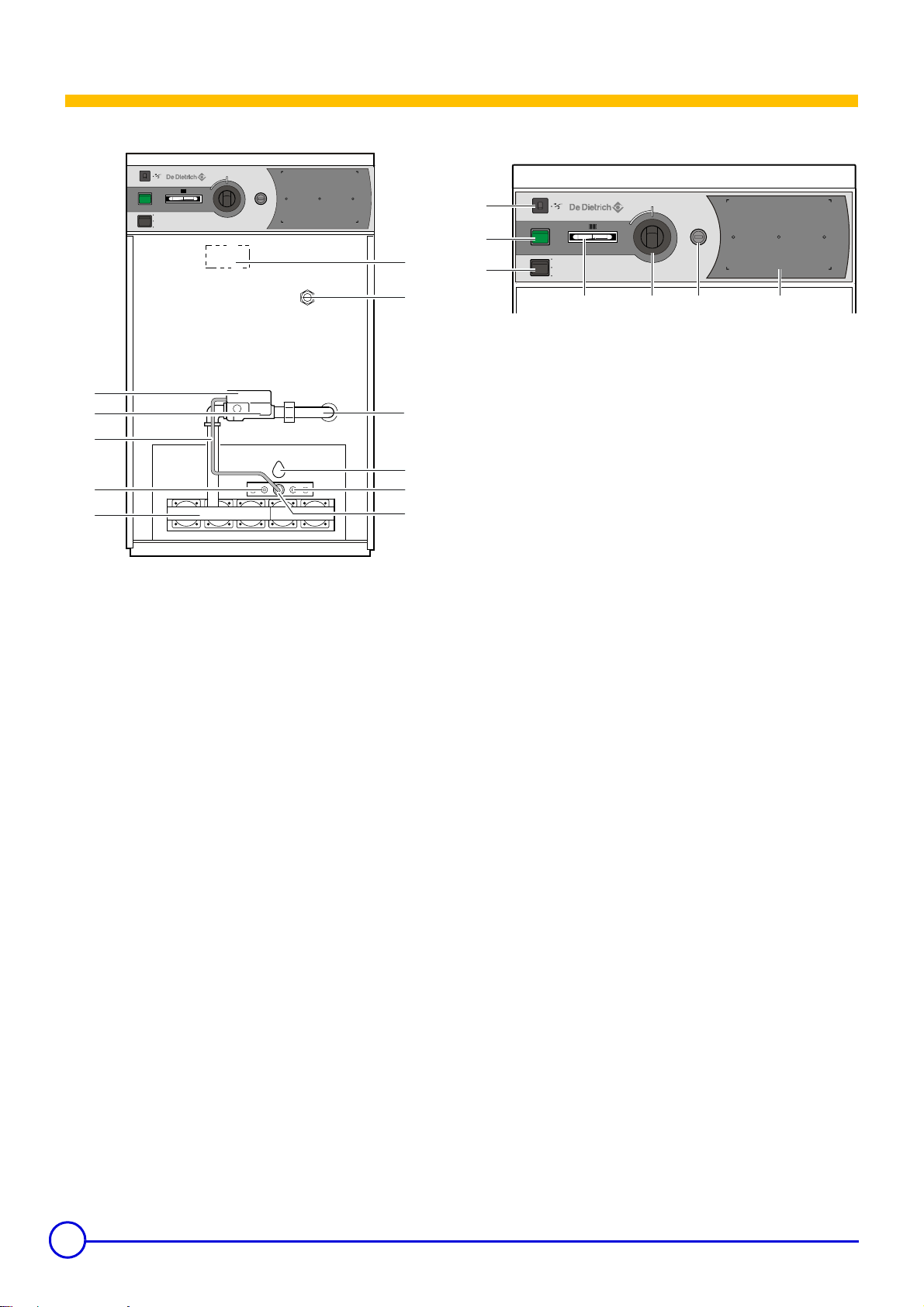

Description
1. Safety box
2. Gas regulation block
3. Ignition burner gas supply pipe
4. Ignition electrode
5. Burner
6. Anti-smoke release thermostat
7. Sensor tube
8. Gas inlet
9. Flame inspection window
10. Ionisation probe
11. Ignition burner
1. Timed circuit breaker (4 A)
2. General ON 1/ OFF 0switch
3. 3-positions switch:
Winter .- Summer %- STB TEST
4. Boiler thermometer
5. Boiler thermostat
6. Safety thermostat: set to 110 °C
7. Emplacement for MB2 module (optional)
6
7
8
9
3
4
5
STB
20 °C 40
4
0
I
w
x
TEST
STB
M000266
3
9
6
5
1
28
410
11
7
A
M
P
6
7
8
9
3
4
5
STB
20 °C 40
0
I
w
x
TEST
STB
1
M00026
5
2
3
4 5 67
4
A
M
P

5
14/11/2005 - 300006361-001-A DTG X .. N
Commissionning
Initial commissioning must be done by a qualified
professional.
1. Check the water pressure in the installation. Top up with more
water if necessary.
2. Open the gas valve.
3. Check that the safety thermostat has not triggered. Remove the
safety thermostat hood and press the reset button with a
screwdriver.
4. Set the On/Off switch to 1.
5. Set the Summer/Winter swtich to ..
6. Create a requirement for heat:Place the boiler thermostat in the
required position.
7. The safety box carries out its ignition cycle.
If the safety control box malfunctions, reset it by pressing the
reset button. Make a further attempt to light it.
Check that the heating pump is working (not gummed up).
Degum the pump if necessary.
Stopping the boiler
Set the On/Off switch to 0.
Precautions to take if there is a danger of frost
Heating circuit:
Use a correctly dosed antifreeze to prevent the heating water
freezing. If this cannot be done, drain the system completely. In all
cases, consult the fitter.
Domestic hot water circuit:
Drain the domestic water tank and pipes.
Precautionstotakeintheeventofprolongedshutdown(one
year or more)
- Close the gas valve
- The boiler and the chimney must be swept carefully.
- Closethedoorofthe boiler to prevent theinternalcirculationofair.
Troubleshooting
Checks to make before calling your fitter:
The burner is not working:
- Check the boiler thermostat settings.
- Shutdown by the safety thermostat due to accidental overheating.
Check that the safety thermostat has not triggered. To restart the
boiler, reset the safety thermostat. Remove the safety thermostat
hood and press the reset button with a screwdriver. Carry out the
start-up operations again. Call your fitter.
- Thesafetycontrol box ismalfunctioning.Pressthe reset button on
the safety control box. Call your fitter.
The burner is operating but the radiators are cold:
- Bleed the radiators.
- Top up the primary circuit with water.
- Check that the heating pump is operating correctly.
- If it is often necessary to top up the installation with water, contact
your fitter.
Beforeinformingthefitter ofafault,makeanoteofthefollowing
information:
- Product type
- Year of manufacture
- Serial number
- Type of gas used
This information can be found on the rating plate stuck to the front
plate of the boiler.

6DTG X .. N 14/11/2005 - 300006361-001-A
Warranty
You have just purchased a DE DIETRICH appliance and we
thank you for the trust you have placed in our products.
Please note that your appliance will provide good service for a
longer period of time if it is regularly checked and maintained.
Your fitter and the DE DIETRICH customer support network are
at your disposal at all times.
Warranty terms
Starting from the purchase date shown on the original fitter's
invoice, your appliance has a contractual guarantee against any
manufacturing defect.
The length of the guarantee is mentioned in the price catalogue.
The manufacturer is not liable for any improper use of the
appliance or failure to maintain or install the unit correctly (the
user shall take care to ensure that the system is installed by a
qualified fitter).
In particular, the manufacturer shall not be held responsible for
any damage, loss or injury caused by installations which do not
comply with the following:
- applicable local laws and regulations
- specific requirements relating to the installation, such as
national and/or local regulations
- the manufacturer's instructions, in particular those relating to
the regular maintenance of the unit
- the rules of the profession
Thewarrantyis limited to the exchange or repair ofsuchpartsas
have been recognised to be faulty by our technical department
and does not cover labour, travel and carriage costs.
Thewarrantyshall not apply to thereplacementorrepair ofparts
damaged by normal wear and tear, negligence, repairs by
unqualified parties, faulty or insufficient monitoring and
maintenance, faulty power supply or the use of unsuitable fuel.
Sub-assemblies such as motors, pumps, electric valves etc. are
guaranteed only if they have never been dismantled.
France
The preceding dispositions are not exclusive of benefits for the
purchaser of the legal guarantee as stated in Civil Code articles
1641 to 1648.
Belgium
The preceding dispositions about the contractual guarantee are
not exclusive of profit if the need arises for the purchaser in
Belgium of the applicable legal dispositions on hidden defects.
Switzerland
The application of the warranty is subject to the terms and
conditions of sale, delivery and warranty of the company
marketing DE DIETRICH products.
Other countries
The above provisions do not restrict the benefit of the legal laws
regarding hidden defects applicable in the buyer's country.

7
