dellonda DL13.v2 User manual
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DL13.v2, DL14.v2, DL15.v2 Issue:1 05/04/23
www.dellonda.co.uk
Dellonda 36/50/60L Portable Dual Zone
Compressor Car Camping Fridge/Freezer
12/24V
Model No’s. DL13.v2, DL14.v2, DL15.v2
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Safety Instructions
• Dellonda recommend that repairs are carried out by a qualied electrician.
• Modern vehicles contain extensive electronic systems. You are required to check with the vehicle manufacturer, for any specic instructions
regarding the use of this type of equipment on each vehicle. No liability will be accepted for damage/injury, where this product is not used in
accordance with all instructions.
GENERAL SAFETY
• DO NOT operate the appliance if it is visibly damaged.
• DO NOT block the gaps of the fridge with things like pin, wire, etc.
• DO NOT expose the appliance to rain or soak it in water.
• DO NOT place the appliance near naked ames or other heat sources (heaters, direct sunlight, gas ovens etc.)
• DO NOT store any explosive substances like spray cans with a ammable propellant in the product.
• Ensure the supply cord is dry and not trapped or damaged.
• Check the voltage specication on the type plate corresponds to that of the energy supply.
• The appliance is only to be used with the power supply unit provided with the appliance. Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level surface for more than 6 hours.
• Make sure that the appliance stays horizontal when it is running. The tilt angle must be less than 5° for normal use and be less than 45°
only for a short period of time.
• Keep the ventilation openings in the unit casing or in the built-in structure free of obstacles.
• Keep the appliance stable on the ground or in the car. DO NOT drain upside down.
• Repairs may only be carried out by qualied personnel.
• Only use the power leads supplied with the product.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they’ve been given supervision or instruction concerning use of the device in a safe way and understand the
hazards.
• Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that children may
not easily climb inside.
• Check if the cooling capacity of the appliance is suitable for storing the food or anything else placed in the product.
• Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the
appliance.
• The appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, oces and other working environments.
• Camping, Farm houses and by clients in hotels, motels and other residential environments; bed and breakfast type environments; catering and
similar non-retail applications.
• Please follow local regulations regarding disposal of the appliance for its refrigerant.
CONTENTS
• 1 x portable dual zone fridge/freezer
• 1 x 12/24V auxiliary power lead
SPECIFICATION
Refer to
instruction
manual
Keep unit dry
MODEL NO.:................................................DL14
Capacity.........................................................50L
Temperature range......................-20OC - +20OC
Power rating.................................................60W
Dimensions (w x d x h).......723 x 360 x 458mm
Internal (w x d x h)..............550 x 270 x 375mm
Refrigerant:.............................................R600a
MODEL NO.:.................................................DL15
Capacity.........................................................60L
Temperature range......................-20OC - +20OC
Power rating.................................................60W
Dimensions (w x d x h).......723 x 360 x 548mm
Internal (w x d x h)..............550 x 270 x 465mm
Refrigerant:.............................................R600a
MODEL NO.:................................................DL13
Capacity.........................................................36L
Temperature range............. .........-20OC - +20OC
Power rating.................................................60W
Dimensions (w x d x h).......723 x 360 x 368mm
Internal (w x d x h)..............550 x 270 x 285mm
Refrigerant:.............................................R600a
www.dellonda.co.uk
OPERATION
• POWER SUPPLY: connect to DC12V/24V power. 230V adapter is available separately giving you the option to use in your home as well as in your
vehicle, Model No. DL129.
• DISPLAY SCREEN INITIALIZATION: when connected to the power supply, the buzzer will make a long beep, and the display will be on for two
seconds then enter the standby mode.
• POWER ON/OFF: press On/Off to switch ON, long press On/Off for three seconds to switch OFF.
• TEMPERATURE CONTROL: press + or - for temperature setting.
• When the divider is inserted, long press+- on the upper screen at the same time for 3 seconds to switch on/off the left compartment.
• When the divider is removed, the lower screen will be switched off, and the temperature can only be adjusted through the upper screen.
• Note: when inserting the divider, the temperature of the left compartment cannot be lower than that of the right compartment and the right
compartment cannot be turned off separately. (The temperature displayed is the current temperature of the compartments. It will take a while to
reach the set temperature.)
• COOLING MODE: When the product is running, press to switch between MAX (fast cooling) and ECO (Energy saving Mode). (*Factory
setting is MAX.)
• BATTERY PROTECTION MODE: When the product is running, long press for three seconds until screen ashes, then press again to
select
• protection mode H (High), M (Medium) and L (Low).
• Voltage reference is as below.
• TEMPERATURE UNIT SETTING: switch off the fridge, long press for three seconds until E1 displays, then switch to E5 by pressing
again.
• Under E5 mode press + or - to select Celsius or Fahrenheit. * (Factory setting is °C.)
• RESET: switch off the fridge, long press for three seconds until E1 displays. Under E1 mode long press +- at the same time for 3 seconds to
reset.
MAINTENANCE
• CLEANING:
• WARNING: Switch off and unplug the device rst to avoid electric shock.
• Use wet cloth to clean the device and dry it.
• DO NOT soak the fridge in water and do not wash it directly.
• DO NOT use abrasive cleaning agents during cleaning as these can damage the device.
• STORAGE:
• If the device will not be in use for a long time, please follow the instruction:
• Switch off and unplug the device.
• Take out all the items stored in the device.
• Wipe off excess water with a soft rag.
• Put the fridge in a cool and dry place.
• Leave the lid slightly open to prevent odours from forming.
• Recommended storage environment: ambient temperature: 25°C, ambient humidity: equal to or less than 75%.
• DEFROSTING:
• Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in good
time to avoid this.
• Switch off and unplug the device rst to avoid electric shock.
• Take out all the items stored in the device.
www.dellonda.co.uk
• Keep the lid open.
• Wipe off the defrosted water.
• Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.
www.dellonda.co.uk

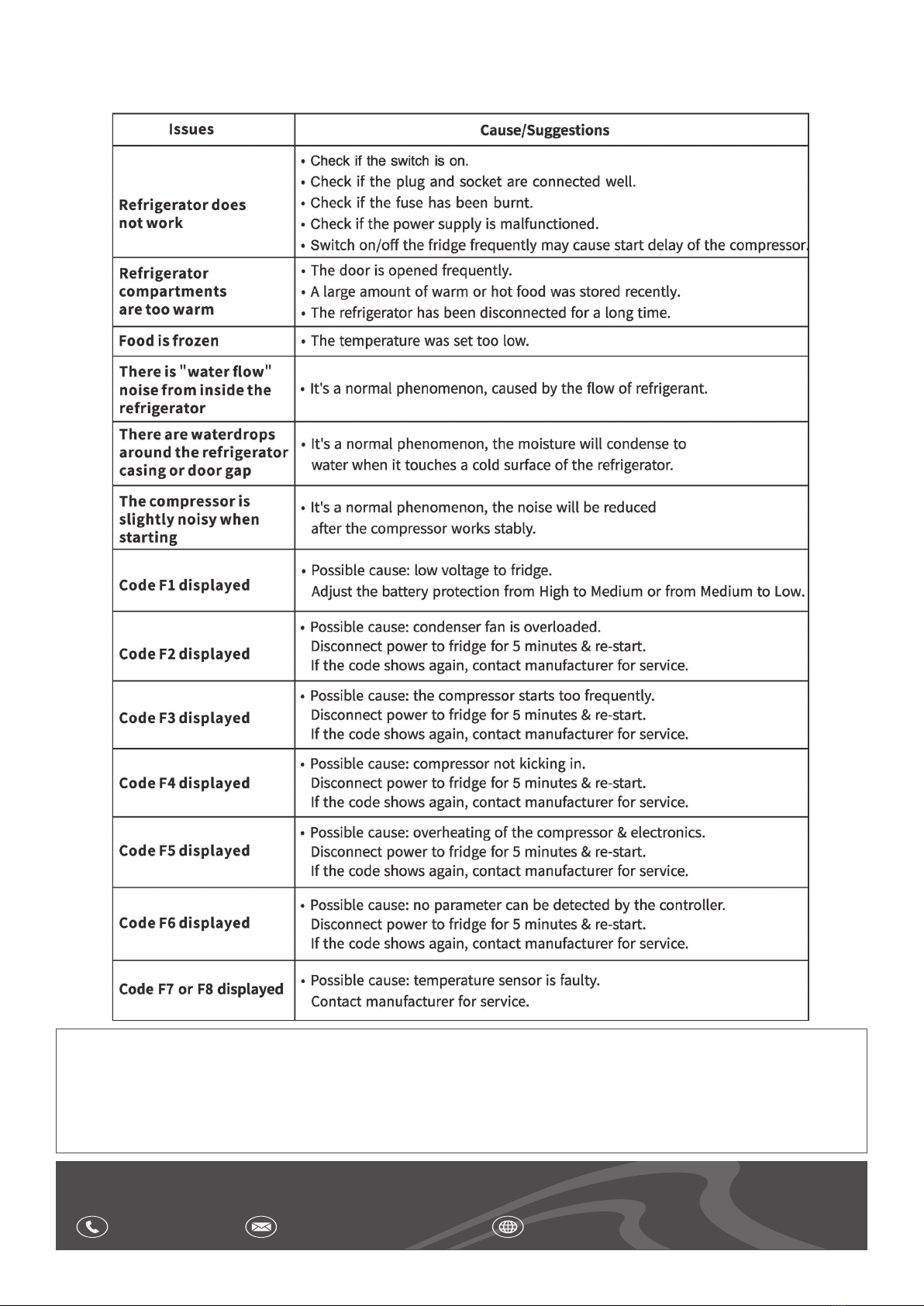

TROUBLESHOOTING
www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
