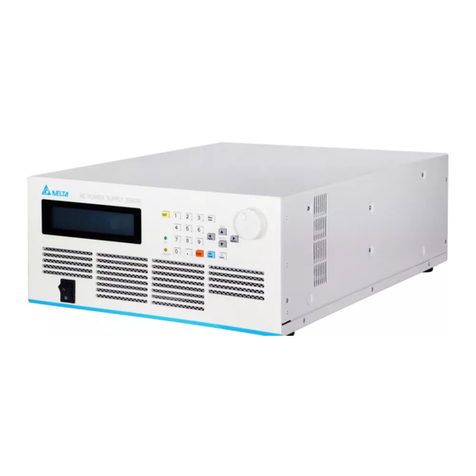

Delta A6000 User manual

A6000
AC Power Source
User Manual
www.deltaww.com

1 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
Warranty ............................................................................................................................................1
Warranty Coverage ...........................................................................................................................1
Safety Summary ................................................................................................................................2
Safety Symbols..................................................................................................................................3
Accessories .......................................................................................................................................4
Revision History.................................................................................................................................5
1. General Information ......................................................................................................................6
1.1 Introduction ...........................................................................................................................6
1.2 Key Features .........................................................................................................................6
1.3 Specifications ........................................................................................................................6
1.4 Name of Parts .......................................................................................................................8
1.4.1 The Front Panel .........................................................................................................8
1.4.2 The Rear Panel........................................................................................................10
2. Installation ...................................................................................................................................11
2.1 Inspection ............................................................................................................................11
2.2 Preparation for the Use ....................................................................................................... 11
2.3 Requirements of Input Power ..............................................................................................11
2.3.1 Ratings.....................................................................................................................11
2.3.2 Input Connection......................................................................................................11
2.4 Output Connection ..............................................................................................................13
2.4.1 Output connection....................................................................................................13
2.5 Remote Sense Connection .................................................................................................14
2.6 The Procedures to Power-on ..............................................................................................16
3. Local Operation ...........................................................................................................................17
3.1 Introduction .........................................................................................................................17
3.2 Operation through Keypad and Knob ..................................................................................18
3.3 Main Manual Setting ...........................................................................................................20
3.4 Set Voltage and Frequency .................................................................................................20
3.5 Series/parallel Output Setting .............................................................................................23
1. Voltage parallel Single phase output ...............................................................................23
2. Output in series mode: ....................................................................................................24
3.6 Advanced Parameter Setting Manual .................................................................................25
3.7 SETUP Manual ...................................................................................................................26
3.8 Voltage Limit ........................................................................................................................28
3.9 I Limit, OCP Delay ...............................................................................................................29
3.10 Voltage Level Setting ..........................................................................................................31
3.11 Voltage Sense .....................................................................................................................32
3.12 Degree On, Off ....................................................................................................................33
3.13 Is Start, Is Interval ...............................................................................................................35

USER MANUAL
A6000
AC POWER SOURCE
2 │ www.deltaww.com
3.14 Waveform Selection ............................................................................................................37
3.15 Buzzer .................................................................................................................................39
3.16 Disable (Lock) the Keys at Front Panel ...............................................................................40
3.16.1 Set Series / Parallel Output Mode ...........................................................................41
3.17 CONFIG Function ...............................................................................................................42
3.18 Waveform A, B Generator ...................................................................................................43
3.19 GPIB, RS232 Communication Setting ................................................................................47
3.20 Inhibit Output by Remote Control Signal (Remote Inhibit) ..................................................50
3.21 Power On State ...................................................................................................................52
3.22 Protection ............................................................................................................................54
4. Applications .................................................................................................................................56
4.1 Introduction .........................................................................................................................56
4.2 LIST Mode ...........................................................................................................................56
4.3 PULSE Mode ......................................................................................................................62
4.4 STEP Mode .........................................................................................................................65
4.5 SYNTHESIS Self-Defined Waveform Mode ........................................................................68
5. Save and Recall Functions .........................................................................................................72
5.1 System parameter Save and Recall ....................................................................................72
5.2 Save System Setting ...........................................................................................................72
5.3 Recall System Setting .........................................................................................................74
6. Remote operation ........................................................................................................................75
6.1 Introduction .........................................................................................................................75
6.2 Set GPIB address and RS-232 Parameters ........................................................................75
6.3 RS-232 pin definition ...........................................................................................................75
6.4 GPIB Interface .....................................................................................................................75
6.5 Programming .......................................................................................................................76
6.6 Conventions ........................................................................................................................76
6.7 Numerical Data Formats .....................................................................................................76
6.8 Format for Boolean Data .....................................................................................................76
6.9 Basic Definition for Command .............................................................................................77
6.10 Command for Remote Control ............................................................................................78
6.10.1 IEEE 488.2 Standard Command .............................................................................78
6.11 Instrument Commands ........................................................................................................79
6.11.1 FETCH and MEASURE Subsystem ........................................................................79
6.11.2 OUTPUT Subsystem ...............................................................................................83
6.11.3 SOURCE Subsystem...............................................................................................84
6.11.4 Other Commands ....................................................................................................94
6.11.5 Summary of Commands ..........................................................................................95
Appendix A TTL Pin Assignment......................................................................................................99
Appendix B Built In Waveforms .....................................................................................................100

1 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
Warranty
The Scope of Rights:
1. All Delta instruments are warranted against defects in material and workmanship for a
period of one year after date of shipment.
2. Please contact service center or Delta electronics immediately if malfunctions are
founded.
3. If malfunctioned products is not located at where it was purchased. You can contact
worldwide Delta electronics branches to get service.
Warranty Coverage
Within warranty limited and product need to replace components. Delta may claim charge or refuse
to repair under following conditions:
1. Products repaired or altered by persons not authorized by Delta, or not in accordance
with instructions provided by Delta.
2. Products failure caused by nature disaster or hazardous / dangerous environments:
earthquake, typhoon, thunder-strike, voltage abnormal, collusion chemical, oil, in the
presence of mice or bugs.
3. Out looking aged by normal operation.
4. Consumables parts and accessories.
Delta will not provide free service under following conditions:
1. Warranty expired.
2. Within warranty limited, customer did not adapt correct operation procedure after Delta
provide free training.
3. Product list in warranty book does not match with real product.

USER MANUAL
A6000
AC POWER SOURCE
2 │ www.deltaww.com
Safety Summary
The following general safety precautions must be observed during all phases of operation, service,
and repair of this instrument. Failure to comply with these precautions or specic WARNINGS given
elsewhere in this manual will violate safety standards of design, manufacture, and intended use of
the instrument.
Delta assumes no liability for the customer‘s failure to comply with these requirements.
BEFORE APPLYING POWER
Verify that the product is set to match with the line voltage.
PROTECTIVE GROUNDING
Make sure to connect the protective grounding to prevent an electric shock before turning on the
power.
NECESSITY OF PROTECTIVE GROUNDING
Never cut o󰀨 the internal or external protective grounding wire, or disconnect the wiring of protective
grounding terminal. Doing so will cause a potential shock hazard that may bring injury to a person.
FUSES
Only fuses with the required rated current, voltage, and specified type (normal blow, time delay,
etc.) can be used. Do not use di󰀨erent fuses or short-circuited fuse holders. To do so might cause a
shock or re hazard.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the instrument in the presence of ammable gases or fumes.
DO NOT REMOVE THE COVER OF THE INSTRUMENT
Operating personnel must not remove the cover of the instrument. Component replacement and
internal adjustment can be done by qualied service personnel only.
When install or take off external terminals with hazard voltage, AC input voltage must be cut
off or take action to make safety isolation.

3 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
Safety Symbols
!
!
WARNING
DANGER - High voltage.
Output of AC power source can provide peak voltage up to 426V, touched by
personnel may lead to death
!
!
WARNING
Attention: To avoid injury, death of personnel, or damage to the instrument, the
operator must refer to an explanation in the instruction manual.
!
!
WARNING
Protective grounding terminal: To protect against electrical shock in case
of a fault. This symbol indicates that the terminal must be connected to ground
before operation of equipment.
!
!
WARNING
A WARNING sign denotes a hazard. It calls attention to a procedure, practice,
condition or the like which may result in injury or death of personnel if it is not
rightly observed.
Acoustic noise information
This product has sound pressure release holes (which located at same side as operator) with
acoustic noise <65dBA

USER MANUAL
A6000
AC POWER SOURCE
4 │ www.deltaww.com
Accessories
Please check the following accessories are included and not damaged during shipment. If there are
damaged or shortage of the accessories, please contact Delta Electronics or sales agent for help.
P/N: XXXXXXXXXX QTY: X
P/N: XXXXXXXXXX QTY: X
IEEE-488GPIB
IEEE-488GPIB
P/N: XXXXXXXXXX QTY: X
P/N: XXXXXXXXXX QTY: X
P/N: XXXXXXXXXX QTY: X
IEEE-488GPIB
IEEE-488GPIB
P/N: XXXXXXXXXX QTY: X
P/N: XXXXXXXXXX QTY: X
P/N: XXXXXXXXXX QTY: X
IEEE-488GPIB
IEEE-488GPIB
P/N: XXXXXXXXXX QTY: X
 INPUT CABLE1
P/N: 364456180X (3.0m)
 OUTPUT CABLE1
P/N: 364456170X
(3.0 m*3 pcs)
 GPIB CABLE2
P/N: 308006110X (0.5m)
P/N: 308006150X (1.0m)
P/N: 308006140X (2.0m)
P/N: 308006130X (4.0m)
P/N: 308006120X (8.0m)
Note 1.  standard parts
Note 2.  options

5 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
Revision History
The following list indicates the additions, deletions and modifications in this manual at each
revision.
Version Date Revised section
00 June 20th, 2018 Issue

6 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
1. General Information
1.1 Introduction
This manual describes the specifications, installation and operation instructions of
Delta DME-A602ABS SERIES Programmable AC Power Source. In this manual the term,
AC Source, stands for Delta DME-A602ABS SERIES Programmable AC Source.
The series of AC source is a high e󰀩ciency programmable ac power source, which
provide low distortion sinusoid AC voltage output and measurement. Stable voltage and
frequency are obtained through accurate digital calculation provided by DSP IC. Remote
programming is accomplished either by the GPIB bus or by the RS-232C serial port.
1.2 Key Features
I. Conguration
•Local operation from the front panel keypad
•Protection against Over-power, Over-load, Over-temperature, and Fan-fail
•Fan speed controlled by output power
•Built-in isolation output relays
•Remote operation via GPIB or RS-232C interface
II. Input/output
• Selective output voltage ranges with full scale of 150V/32A and 300V/16A
• V, I, F, P, CF, PF, Ip, Is, VA, and VAR measurements
• Remote inhibited control
• AC ON/OFF, FAULT OUT TTL output signal.
1.3 Specications
The operation specifications of DME-A602ABS SERIES Programmable AC Power
Source are listed below. All specifications have been tested according to the standard
of Delta test procedures. All specications are based on resistor load with remote sense
connection, under 25±1ºC unless specied otherwise.
Model DME-A602ABS SERIES
Output Phase 1 (parallel or series)
Output Power
Power/phase 6000 VA
Voltage
Range/Phase 150V / 300V (parallel)
300V / 600V (series)
Accuracy 0.2%+0.2%F.S. (parallel)
0.4%+0.4%F.S. (series)

USER MANUAL
A6000
AC POWER SOURCE
7 │ www.deltaww.com
Resolution 0.1 V
Distortion 1% (30Hz~1kHz)
Line Regulation 0.1%
Load Regulation 0.2%
Temp. coe󰀩cient 0.02% per degree from 25°C
Current
Accuracy (rms) 0.4%+0.3%F.S.
Accuracy (peak) 0.4%+0.6%F.S.
Resolution 0.01 A
Max. current / phase
rms 60A / 30A / 15A (150V/300V/600V)
peak 180A / 90A / 45A (45Hz~100Hz)
150A / 75A / 38A (>100Hz~1kHz)
Frequency
Range 30~1kHz
Accuracy 0.1Hz
Resolution 0.3Hz
Input
Voltage Range 190~250VLL 3Φ 4 wires Δ connection (ABS A)/
329-433VLL 3Φ 5 wires Y connection (ABS B)
Frequency Range 47-63Hz
Current 35A Max. /Phase (ABS A); 25A Max. /Phase
(ABS B)
Protection
UVP, OCP, OPP, SCP, OTP, FAN FAIL
Temperature
Operating 0°C~40°C
Storage -40°C~85°C
Humidity 30%~90%
Other
Interface GPIB, RS-232
Safety CE (LVD&EMC EN61326)
Dimension (L×W×H) mm 700 × 546 × 844.5 mm
Weight 105kg

8 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
1.4 Name of Parts
1.4.1 The Front Panel

USER MANUAL
A6000
AC POWER SOURCE
9 │ www.deltaww.com
Front Panel Description
Item Symbol Description
1LCD panel, display setting and measurement results.
2
LED indicator:
• OUT (green) indicate AC source normal output
• TRIGGER (yellow) indicate LIST, PULSE, STEP output
3
Short press: Cursor move upward or downward.
Long press: long press at "main menu", "advanced parameters
setting manual" pages, will enter "save, restore" page
4Page switches, digital number selection
5Escape current page (ESC) or cancel current settings (Cancel)
6Conrm parameter setting
7Back to local control in remote mode
8Negative sign in panel control
9
At main manual page, press this key enter "advanced parameters
setting" page; when at other pages, press this key back to main
manual
10 Switch controls AC voltage output
11 Digital numerical keypad group: used for parameter input
12 Main switch: Open or close AC input

10 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
1.4.2 The Rear Panel
Rear Panel Description
Item Name Description
1TTL I/O The 9-pin, D-type female connector conveys TTL signals
(AC_ON, FAULT_OUT and REMOTE_INHIBIT).
2GPIB connector IEEE 488 standard connector, for remote control.
3RS-232 D type 9Pin female connector, for remote control.
4SYNC When output change according new parameter setting,
SYNC will output Synchronized signal.
5Output connector DME-A602ABS SERIES output connector. Outputs power
to the loading device.
6Power Line input
Connector
DME-A602ABS SERIES AC input connector. Please refer
to paragraph 2.3.2 for connection.

USER MANUAL
A6000
AC POWER SOURCE
11 │ www.deltaww.com
2. Installation
2.1 Inspection
First, inspect any damage that may have occurred during the shipment after
unpacking the instrument. Save all packing materials in case the instrument has to be
returned.
If any damage is found, please file a claim against the carrier immediately. Do not
return the instrument to the factory without obtaining the prior RMA acceptance from Delta.
2.2 Preparation for the Use
Before start using, the instrument must be connected with an appropriate AC line
input. As the instrument is cooled by fans, it must be installed in an area with sufficient
space for air circulation. It should be used in an area where the environment temperature
does not exceed 40°C.
2.3 Requirements of Input Power
2.3.1 Ratings
1. Input Voltage Range: 190-250 VLL, 3 phases 4 wires Δ (ABS A), or
329-433 VLL, 3 phases 5 wires Y (ABS B)
2. Input Frequency: 47-63Hz
3. Max. Current/Phase: 35 A / phase (ABS A) or 25A/phase (ABS B)
*** CAUTION ***
The AC source may be damaged if it is operated at an input voltage that is over
its congured input range.
2.3.2 Input Connection
The input terminal block is located on the instrument rear panel. The temperature
rating of the power cord must be at least 85°C; current rating must be greater than or equal
to the maximum current required for AC source under full load. Recommend to put a 40A
breaker (ABS A) (30A breaker (ABS B)) at AC input side.
There are two input voltage rating models, one is 380 VLL 3 phases 5 wires (Y
connection) used for (ABT B model), and the other is 220 VLL 3 phases 4 wires
(Δ connection) used for (ABT A model). Be careful to verify the model you have,
and make sure that the main voltage is suitable for the model! AC source may
not operate properly if one phase input voltage is missing, please recheck the
connection.

12 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
See Figure 2.3.2.1~2.3.2.4 and do the following steps one by one:
1. Remove the safety cover at the back side of AC source.
2. Connect the AC input cables to the terminal blocks of the AC source as Figure 2.3.2.1/
2.3.2.3 shows.
3. Put safety cover back and make sure it does fully cover the AC input terminal.
4. Turn off AC power supply to AC source or make safety isolation before installing or
taking o󰀨 external terminal with hazard voltages.
!
!
WARNING
*** CAUTION ***
To protect operators the wire connected to the GND terminal must be connected
to the ground. Under no circumstances shall this AC source be operated without
an adequate ground connection.
Installation of the AC input power cord must be done by a professional personnel in
accordance with local electrical codes.
Figure 2.3.2.1 220Vac 3 phase 4 wires Δ Input Connection (for DME-A602ABS A)
Figure 2.3.2.2 220V input terminal

USER MANUAL
A6000
AC POWER SOURCE
13 │ www.deltaww.com
Figure 2.3.2.3 380Vac 3 phase 5 wires Y Input Connection (for DME-A602ABS B)
Figure 2.3.2.4 380V Input terminal
2.4 Output Connection
2.4.1 Output connection
Output connection is di󰀨erent for series or parallel operation, choose the correct one
before connecting. Connect the load wire to "COM" and "Φ1/Φ2" terminal as Fig. 2.5.1, 2.5.2
show. To meet the safety requirements the wires to the load must use gauges large enough
to prevent from overheating while carrying the output current.

14 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
2.5 Remote Sense Connection
The AC source remote sense function monitors the load terminal voltage instead of
the AC source output terminal. It ensures the delivery of accurate voltage as programmed at
the load by compensating the output voltage drop over the connecting cable automatically.
You have to set Remote Sense ON so as to enable this function.
Connect the sensing wires from "Φ11/Φ22" and "COM" terminals to the load as
shown in Figure 2.5.1. As the sensing wires carry only a few milli- amperes, the wire
gauges are much smaller than the load cables. The sensing wires are part of the feedback
path of the AC source. They must be kept at a low resistance in order to maintain the best
performance. Connect the sensing wires carefully so that they will not be open-circuited.
If the sensing wires are left unconnected or become open-circuited during operation, the
AC source will disable the output. The sensing wires must be a twisted pair to minimize the
pickup of external noise. The sensing wires need to be connected as close to the load input
terminal as possible.
Figure 2.5.1 Series output and remote sense connection

USER MANUAL
A6000
AC POWER SOURCE
15 │ www.deltaww.com
Figure 2.5.2 parallel Output and remote sense connection
!
!
WARNING
*** CAUTION ***
Before turning on the instrument, all protective earth terminals, extension
cords, and devices connected to the instrument must be connected to a
protective ground. Any interruption of the protective grounding will cause a
potential shock hazard that might injure people.

16 │ www.deltaww.com
USER MANUAL
A6000
AC POWER SOURCE
2.6 The Procedures to Power-on
Connect the AC voltage, and turn on the power switch on the front panel. The AC
source will do a series of self-tests every time it is turned on. The LCD on the front panel
will light up and display as below under normal condition:
!
!
WARNING
*** CAUTION ***
1. Error messages will show on the LCD panel if error occurs during turn on
process. Please check section 3.7 for error code.
2. Digital circuit inside AC source may not operate properly if turn on AC source
immediately after turn off. Recommend to wait 10 seconds to turn on AC
source after it was turned o󰀨.

USER MANUAL
A6000
AC POWER SOURCE
17 │ www.deltaww.com
3. Local Operation
3.1 Introduction
The AC source can be congured to operate in local or remote mode. The operation
in remote mode through GPIB controller or RS-232C will be described in Chapter 6. This
chapter describes the operation in local mode through the keypad on the front panel for
data entry and test. If remote control cable are not connected, the AC source is congured
for local operation after AC switch is on.
LCD panel will show the self-test message as below after AC switch is on.
Then will enter main manual setting page as below. Default SET MODE is "Parallel"
means parallel output operation. Operator can set output voltage and frequency.
