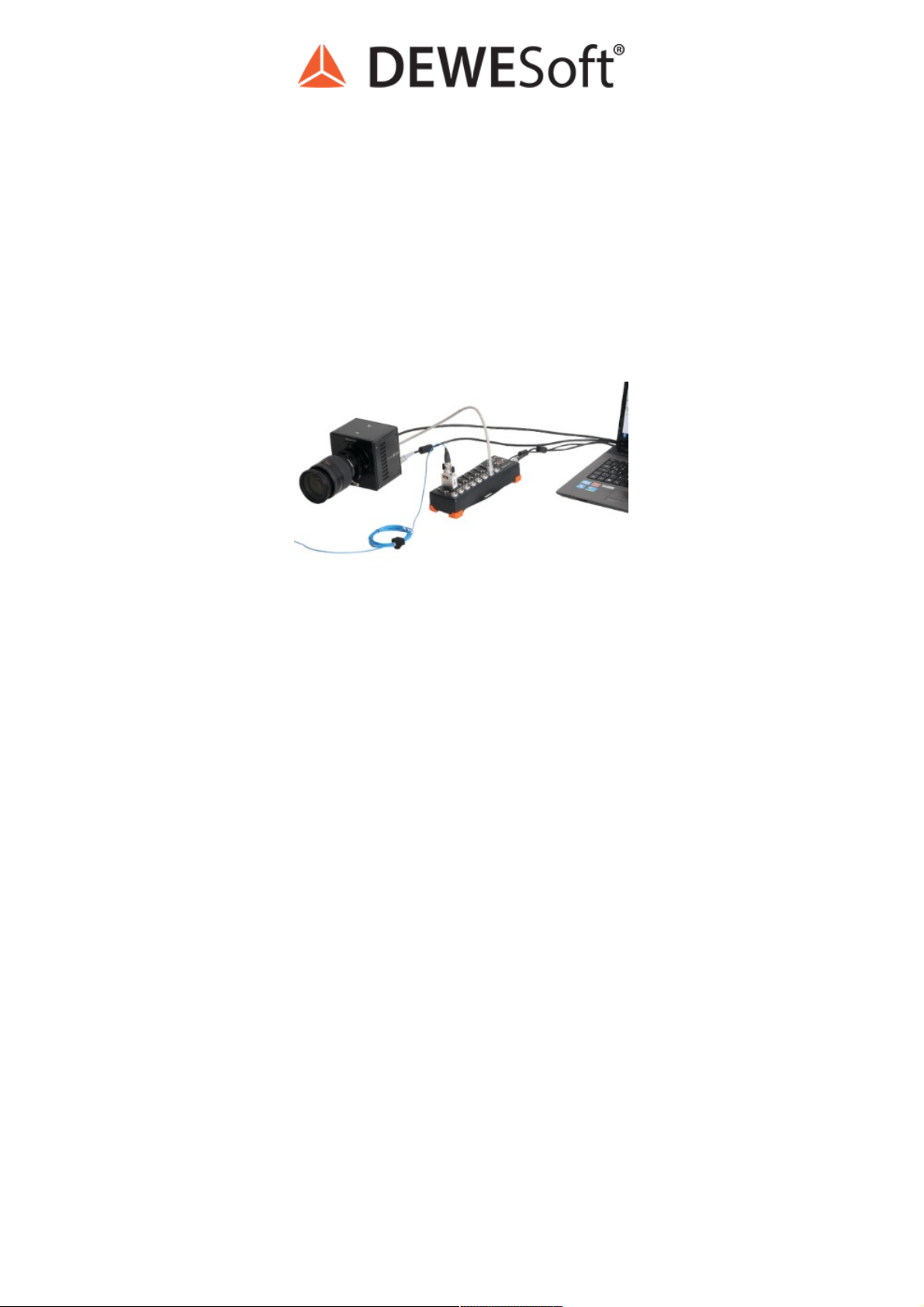

DEWESOFT DS-CAM-88c User manual

www.dewesoft.com - Copyright © 2000 - 2021 Dewesoft d.o.o., all rights reserved.
Dewesoft Video Acquisition

Video acquisition in Dewesoft X
Dewesoft X video acquisition module offers the possibility to acquire video signals together with other sources. A wide range of
cameras are supported:
Low-speed cameras (up to 30 FPS): any DirectX compatible camera
Medium speed cameras (up to 600 FPS VGA resolution): Dewesoft DS-CAM cameras
High-speed cameras (up to 20.000 FPS at VGA resolution): where we combine data and video in post-processing or directly
use the Photron driver inside Dewesoft X (please consult the user's manual for details)
Thermovision cameras: Optris thermovision cameras
Required hardware Sirius, Dewe-43, Webcam, DS-CAM
Required software Prof (for DS-CAM support)
Setup sample rate At least 1 kHz
[Video available in the online version]
1

Dewesoft cameras
For applications requiring video which is truly synchronized to the dynamic sample rate, there is support for DS cameras. A high-
quality image with the automatic shutter speed (selectable) is controlled directly by the A/D card, which generates a pulse to drive
the camera. The result is a stunning correlation between each frame and the data.
Thermo cameras are supported by Optris, and Ultra-High-Speed cameras from Photron can acquire more than 2 million frames per
second but in limited resolution.
[Video available in the online version]

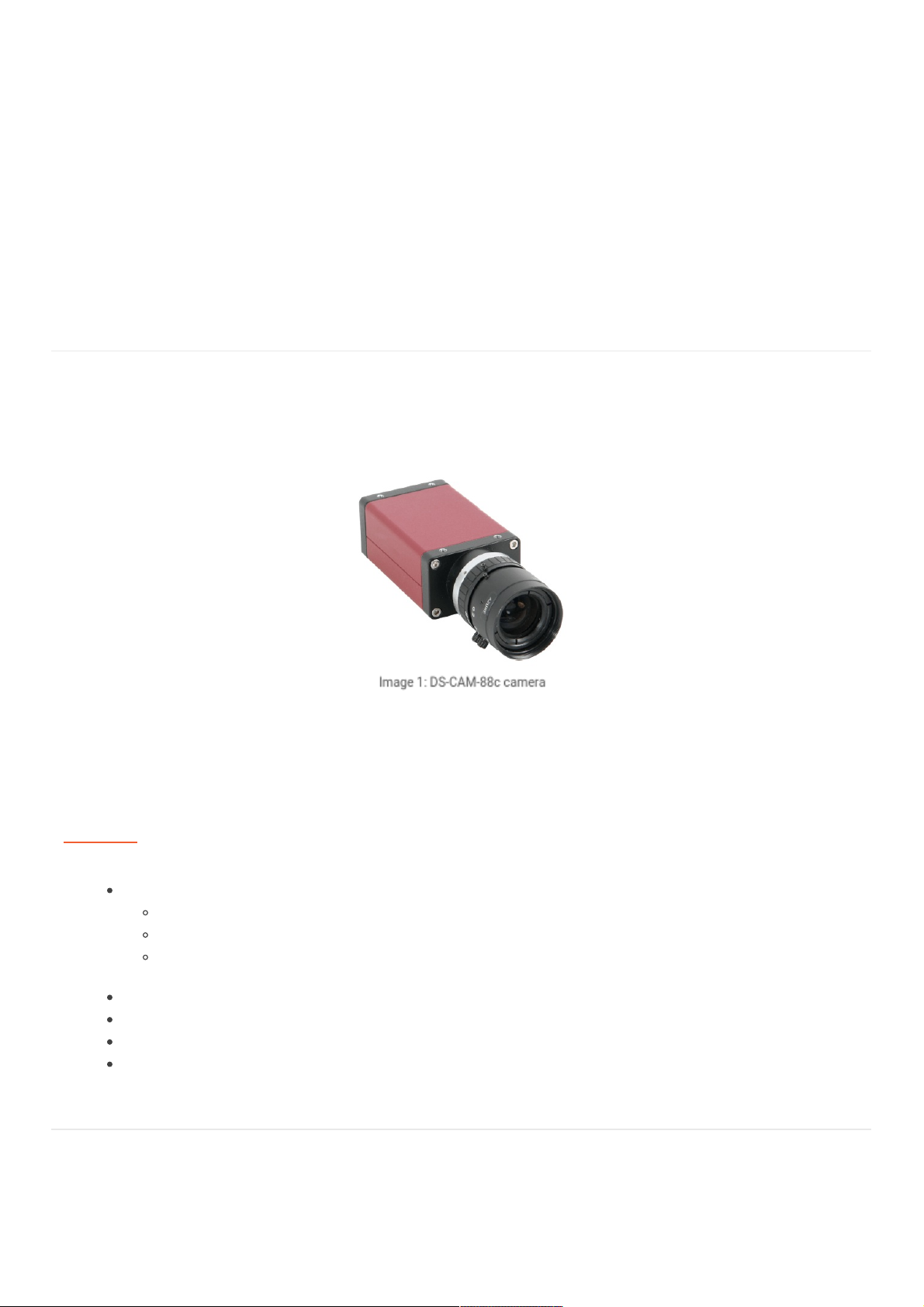

DS-CAM-88c, DS-CAM-120c (gigabit-ethernet camera)
A DS-CAM-88 has the following specifications:
resolution
640x480 at 88 fps
320x240 at 167 fps
160x120 at 289 fps
auto-shutter
auto-gain
auto white-balance
color

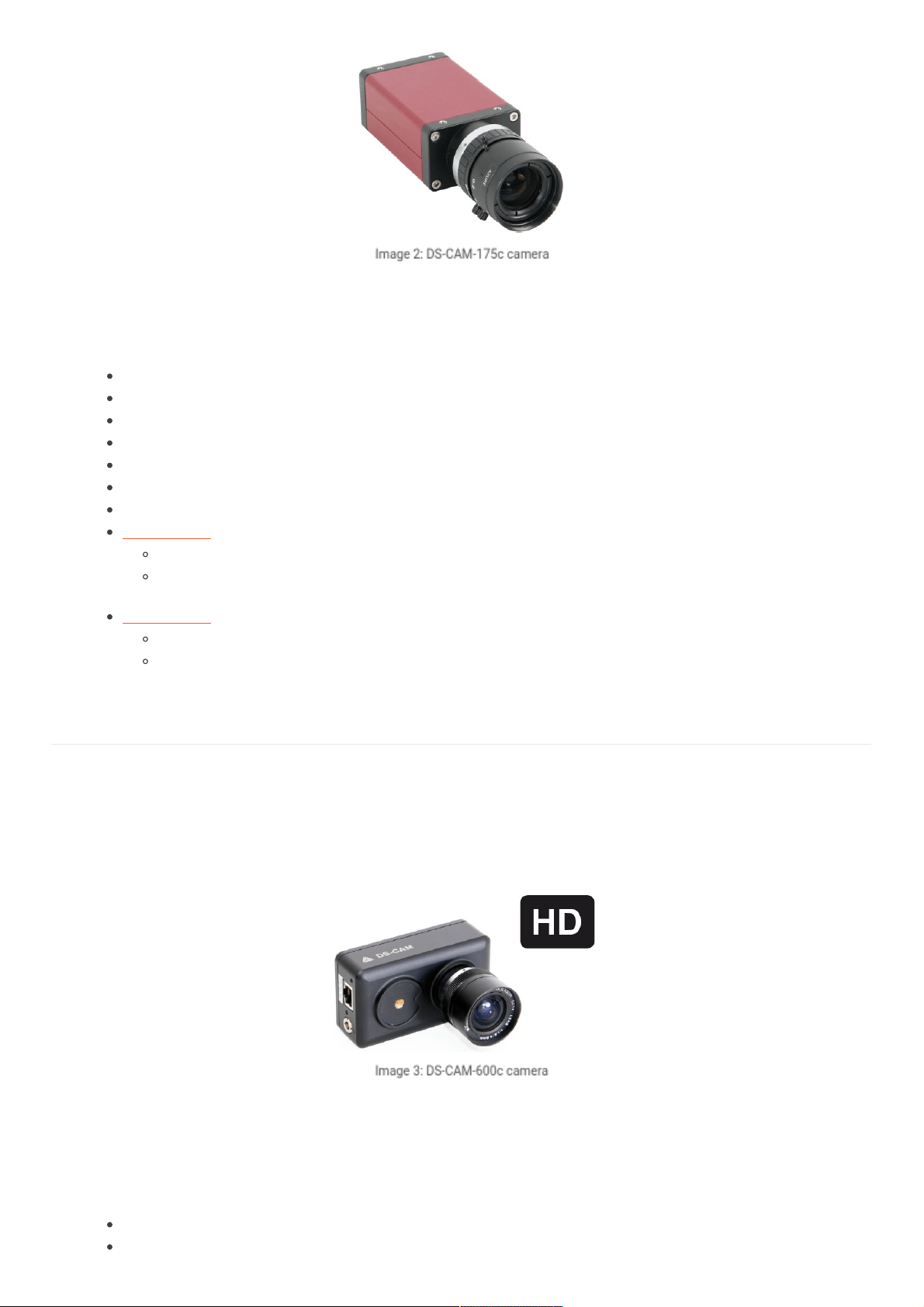

DS-CAM-175c, DS-CAM-320c (gigabit-ethernet camera)
2

Specifications:
power-over-ethernet option
the best performance with SIRIUS S-BOX
IP67 version available
auto-shutter
auto-gain
auto white-balance
color
DS-CAM-175chas the following specifications:
1456x1088 at 68 fps
640x480 (VGA) at 178 fps
DS-CAM-320chas the following specifications:
728x544 at 266 fps
640x480 (VGA) at 328 fps
DS-CAM-600m, DS-CAM-600c, DS-CAM-600cw (gigabit-
ethernet camera)
Specifications:
full HD resolution (1920x1080)
real-time onboard JPEG compression
3

power-over-ethernet option
the best performance with SIRIUS S-BOX
IP67 version available
color and monochrome
DS-CAM-600bw/chas the following specifications:
1920x1080 (HD) at 300 fps
640x480 (VGA) at 600 fps
Applications
All DS-CAM cameras were designed to be high-shock and vibration resistant.
The DS-CAM cameras can run in triggered (sync) and free-run mode. The video is captured by real-time data streaming, even at full
resolution! Therefore, a Gigabit-Ethernet port is required.
The system requirements for GigE cameras are:
Gigabit Ethernet LAN port
Dewesoft X
(Clock possibility)
Core2Duo CPU
The applications at which the cameras are used:
machine diagnostic
product quality check
non-destructive testing
research and development
automotive crash testing
impact tests
logistics and transportation
manufacturing
Specifications
If you have multiple DS-CAM cameras, we can provide adapters for syncing, powering, and connecting multiple cameras to
Dewesoft instruments.
CAM-BOX
Adapter box for connecting one DS-CAM-88/120 to the Dewesoft instrument. Combines Sync and Power to the camera connector.

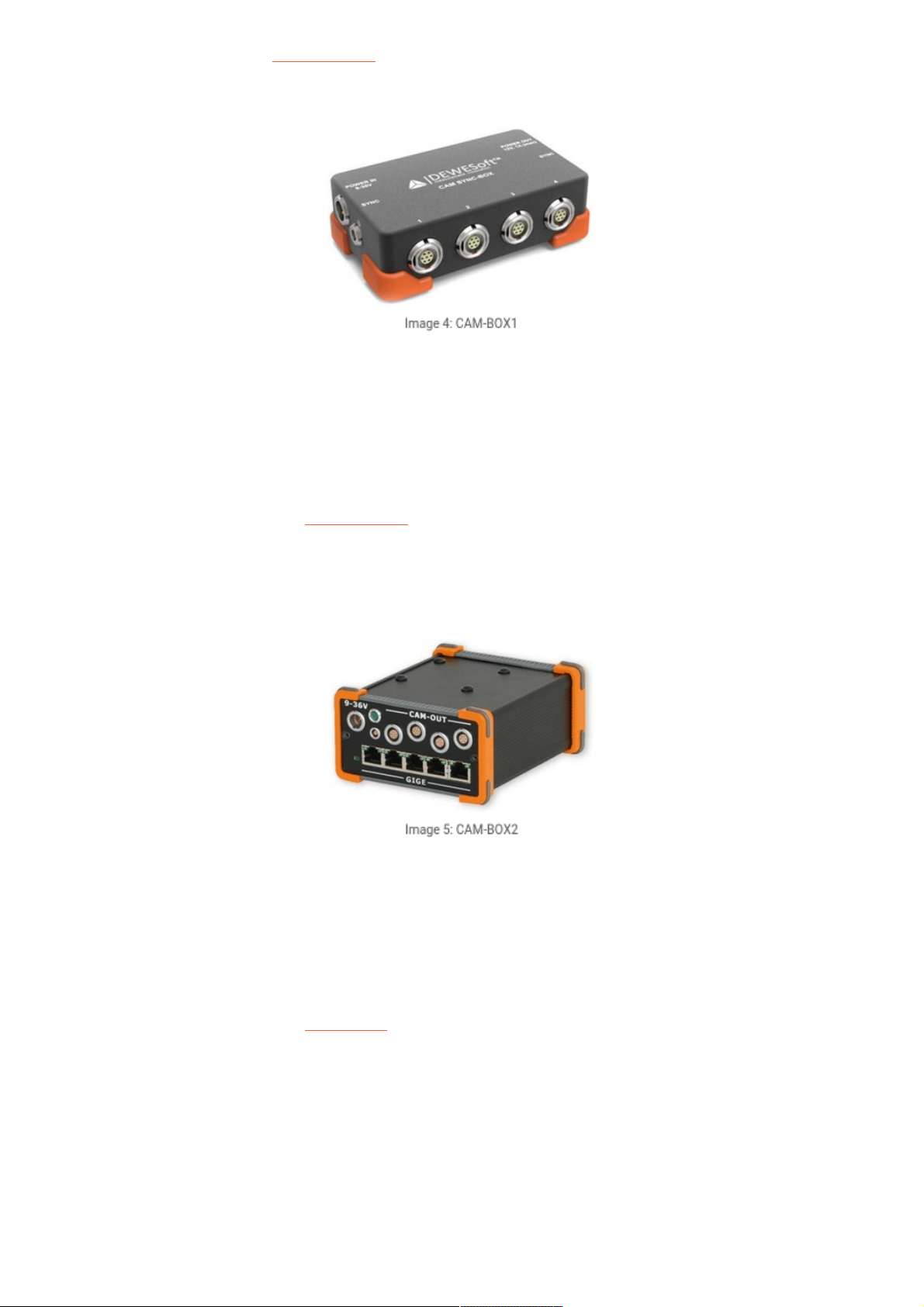

CAM-BOX1
4

Adapter box for connecting up to 4 DS-CAM-88/120 to the Dewesoft instrument. Combines Sync and Power to the camera
connector. External GigE switch required.
CAM-BOX2
Distribution box for connecting up to 4 x DS-CAM-88/120 to the Dewesoft instrument. Wide range power supply input (9-36 VDC),
integrated GigE switch.

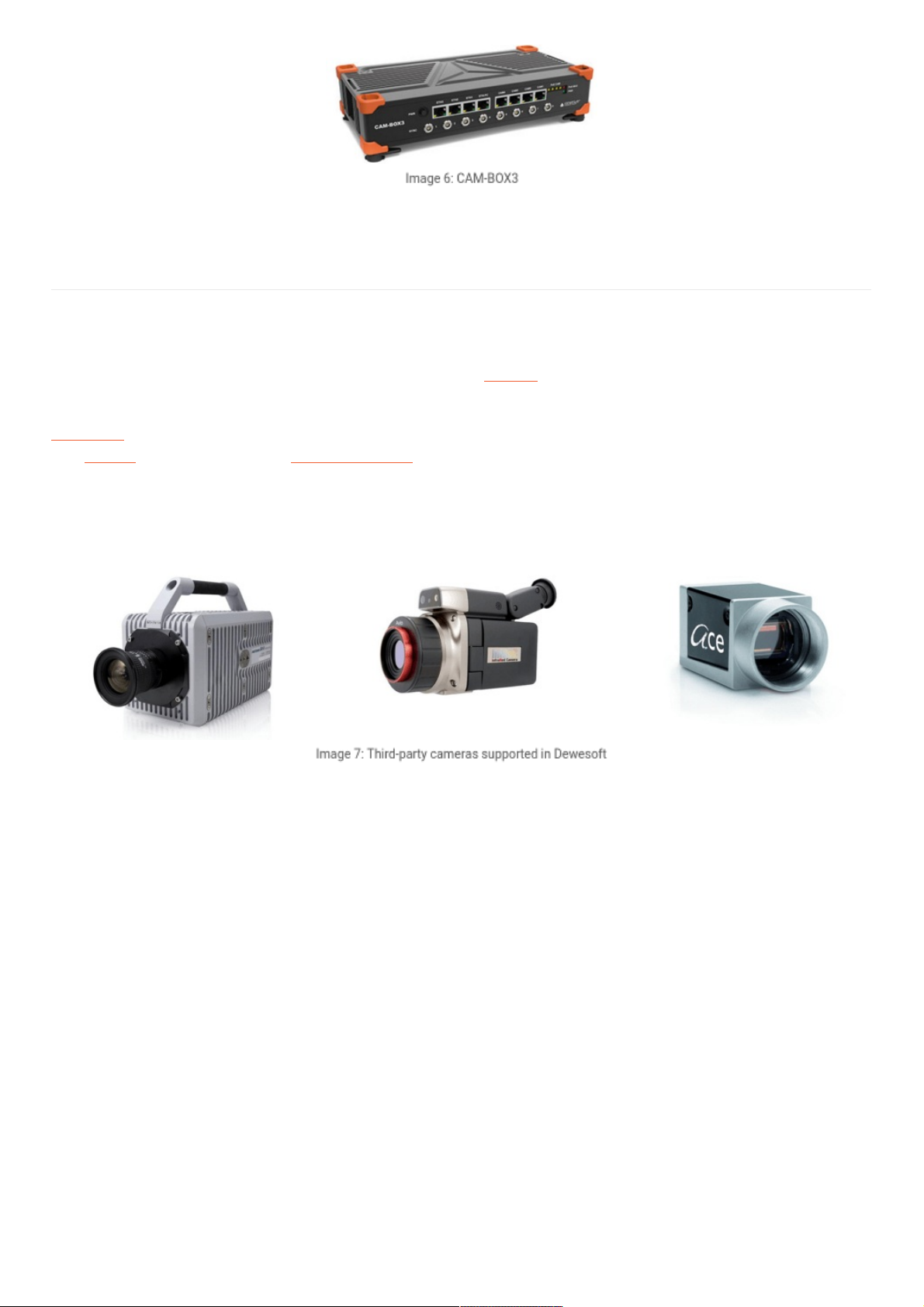

CAM-BOX3
Distribution box for connecting up to 4 x DS-CAM-600 to the Dewesoft instrument. Wide range power supply input (9-36 VDC),
integrated GigE switch with 4 x PoE; SIRIUS chassis with 1.5 U height.
5

3rd party camera support
If your application requires video you are not limited to using our own DS-CAM cameras.
Dewesoft X software supports all compatible Direct X cameras as well as 3rd party Optris thermal and Ultra-High-Speed cameras
from Photron. See the complete list of supported cameras. All camera sources are synchronized to analog data.
6

DS-CAM-88c, DS-CAM-120c
The DS-CAM-88c/DS-CAM-120c are high-speed Gigabit-Ethernet cameras with the following key data:
DS-CAM-120c: 120 fps @ VGA (640x480)
DS-CAM-88c: 88 fps @ VGA (640x480)
Color
Auto-gain
Auto-shutter (also fixed shutter possible)
Auto-white balance
Triggered and free-run mode
Standard C-Mount
Small compact form factor
Low power consumption
Ruggedized (high-shock and vibration resistant, aluminum housing)
Real-time data streaming with full resolution
The camera supports the high-performance industrial standard GigE Vision. The standard introduced in 2006 provides a framework
for transmitting high-speed video and related control over Ethernet networks.
The benefits are high-speed data transfer rates up to 1GBit/s (based on 1000Base-T) connectable to every standard GigE Ethernet
port and cable lengths up to 100m.
Dewesoft uses OptoStream SDK for GigE communication with cameras that support the GigE Vision standard.
Important: For best performance, we recommended using an SSD for storing data. A disk write rate of 100 MByte/s should be
established, especially if using more than 1 camera!
System requirements:
1 Gigabit-Ethernet port
Good PC performance (Core i5 CPU or better recommended, 4 GB RAM)
Dewesoft X
The latest OptoMotive OptoStreamSDK
The latest Dewesoft GigE driver (cdv)
7

Technical specifications
Optical
DS-CAM-88c DS-CAM-120c
Image sensor Sony IT ICX414AL/AQ with HAD microlens,
progressive scan
Sony IT ICX618AL/AQ with Exview HAD CCD II
microlens
Sensor type CCD CCD
Optical size 1/2 " 1/4 "
Effective chip size 6.5 x 4.9 mm 4.46 x 3.80 mm
Cell size 9.9 x 9.9 um 5.6 x 5.6 um
Picture size (max) 656 x 492 pixel 646 x 492 pixel
ADC 14 bit 14 bit
Gain control 0 - 35 dB; auto-gain 0 - 32 dB; auto-gain
Exposure time 26 us - 60 s; auto-shutter 58 us - 60 s; auto-shutter
Smart functions auto-white balance, color correction, edge filter
(sharpness), hue, sat.
auto-white balance, color correction, edge filter
(sharpness), hue, sat.
Max, frame rate (at full
resolution) 88 fps 120 fps
Power
Supply voltage 8 to 30 VDC 8 to 30 VDC
Power consumption <3,6 W (@ 12 VDC) <3,7 W (@ 12 VDC)
Power-over-
ethernet optional optional
Trigger input
Voltage level representing logical 0 0.0 ... 1.0 V DC
Undefined state between 0 and 1 1.0 ... 3.0 V DC
Voltage level representing logical 1 3.0 ... 24.0 V DC
Absolute maximum voltage (above →
damage!) 36 V (only with an external resistor of 3.3 kOhm in series)
Digital output
Maximum current source for
output 20 mA, open emitter
Mechanical
External housing (h x w x
l) 86.4 x 44.0 x 29.0 [mm]
8

Housing aluminum case
Weight < 200 g (without lens)
Storage temperature -10 °C .. +70 °C (14 °F .. +158 °F)
Operating temperature 5 °C .. +45 °C (+41 °F .. +113 °F)
Operating humidity 25% .. 80% (no condensation)
Storage humidity 25% .. 95% (no condensation)
Lens mount C-mount (CS-mount optional)
Connectors Screw mount Ethernet RJ45; EIAJ (Hirose) 12 pin (matching part: Hirose
HR10A-10P-12S(73))
Conformity CE, FCC Class B, RoHS, GigE Vision, GenICam
Connections
On the rear side of the camera, there are two connectors. The 12pin HIROSE connector (matching part: Hirose HR10A- 10P-12S(73))
contains the power, trigger, and other digital pins. Ethernet connector pinout according to the standard.
Power/trigger connector pinout
12pin Hirose connector (matching part: Hirose HR10A-10P-12S(73)) on camera rear side
PIN # SIGNAL
1 GND (for Power and RS232)
9

2 Power (+8...+30 V DC)
3 -
4 Camera In 1 (TRIGGER)
5 -
6 Camera Out 1 (open emiter, max. 20 mA)
7 Camera In GND
8 RxD (RS232)
9 TxD (RS232)
10 Camera Out Power (for digital outputs)
11 Camera In 2
12 Camera Out 2

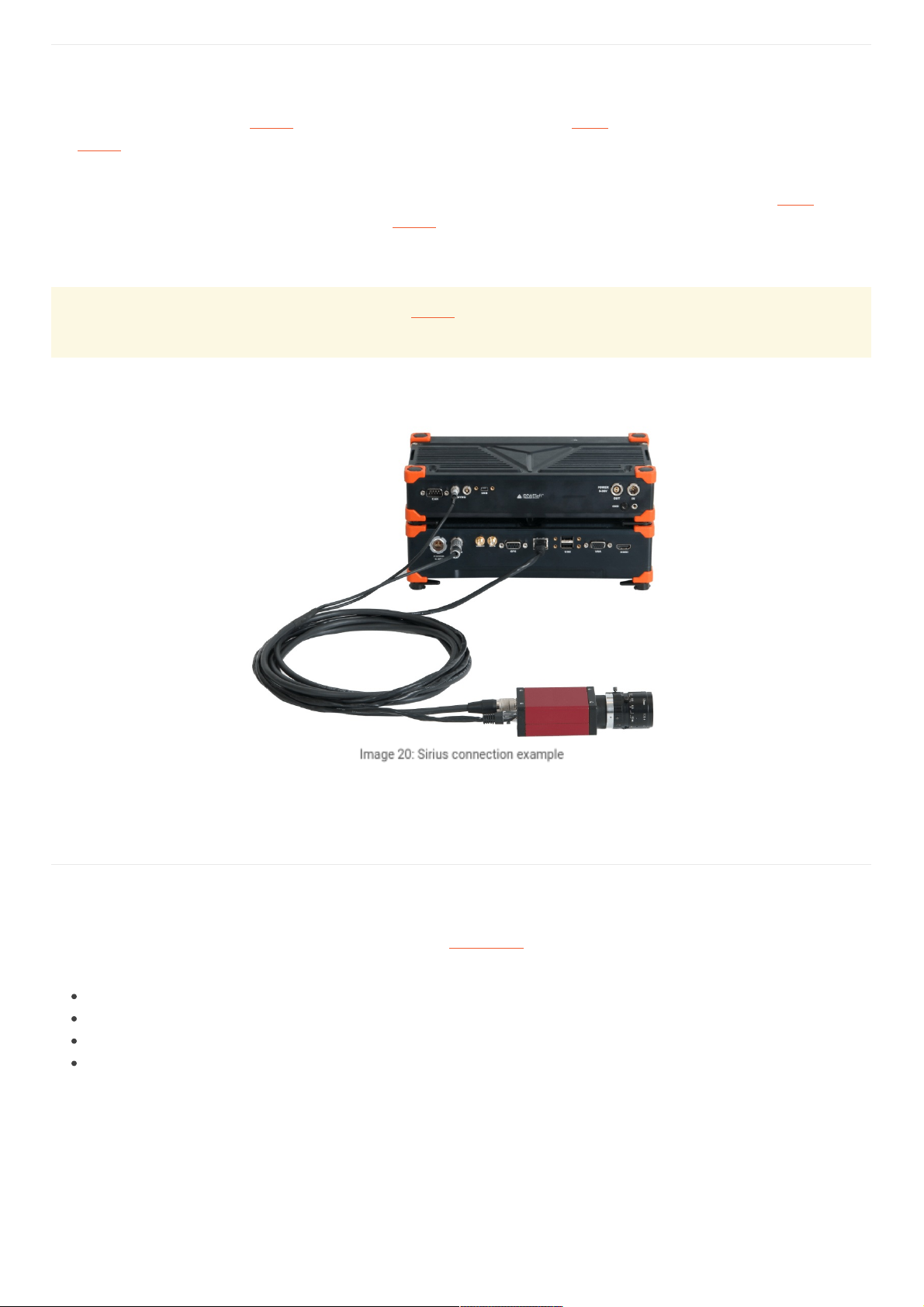

SIRIUS connection example
In image 11, you see a typical SIRIUS measurement instrument, consisting of one SBOX unit (integrated PC) on the bottom and one
SIRIUS slice on top (from the rear side).
The camera is directly connected to the Gigabit-LAN port. The second cable to the camera contains the power (from SBOX Power
out) and the trigger, connected to the SYNC port of the SIRIUS slice. The camera frames are now in perfect sync with the analog
data acquired by Dewesoft.
Note: Even if the camera is connected, syncing to other SIRIUS devices is still possible, because there are different pins used on
the SYNC port for triggering/synching.
10

Connecting multiple cameras
If you need to connect more than one camera, there is a special CAM-BOX2 available, which consists of:
wide-range voltage input (9-36V)
an industrial Gigabit-Ethernet-Switch (without Power-over-Ethernet! No supply for DS-CAM-600!)
Power and Sync distribution for up to 4 cameras.
Small dimensions: 115 x 62 mm (front) and 135 mm deep
Camerabox connector (mating cable connector: FGG.1B.307CLAD52)
Power supply (mating cable connector: FGJ.1B.302CLLD42Z)
11

Sync connector (mating cable connector: FGG.00.304CLAD27Z)

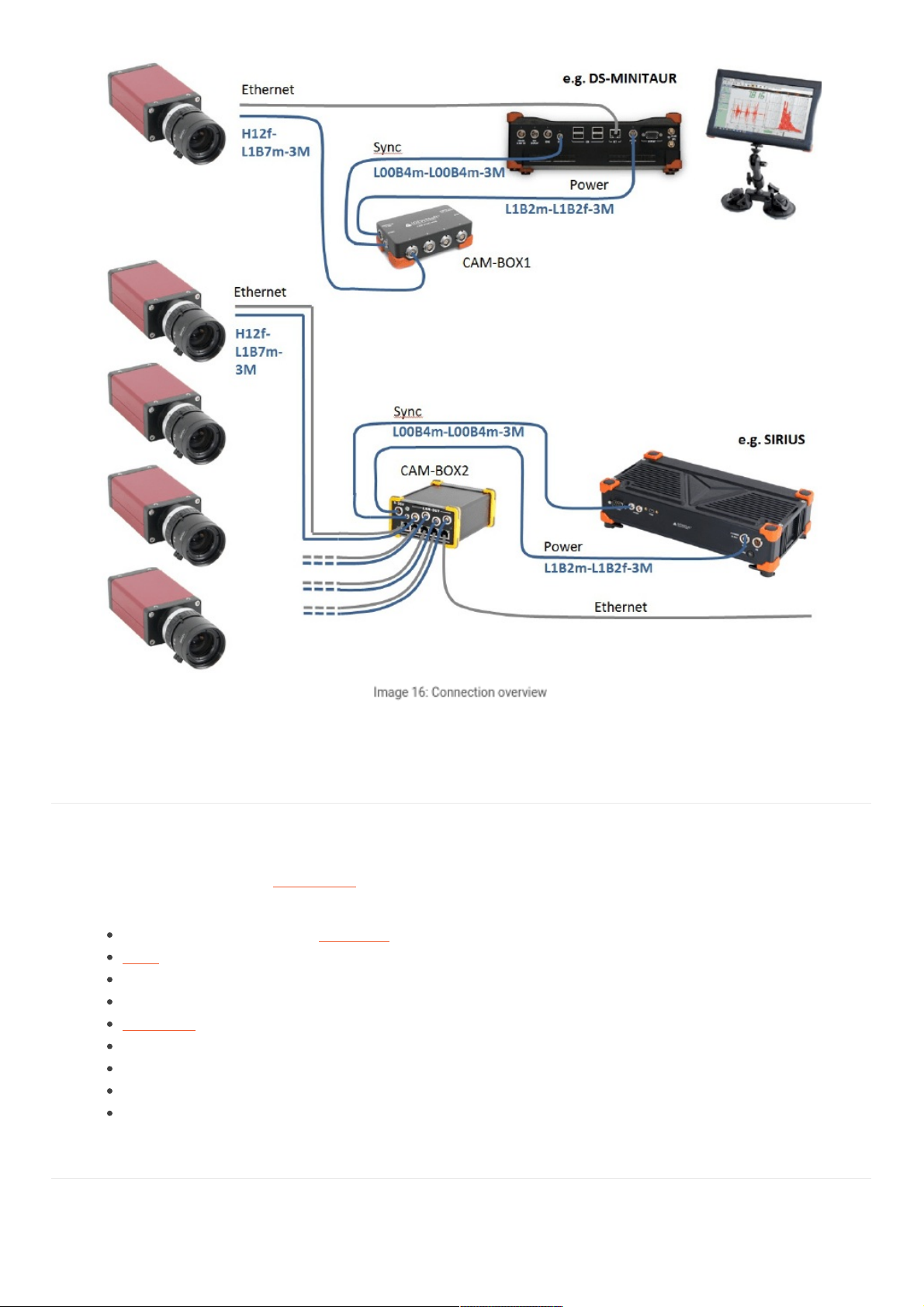

Connections overview
12

Benchmarks
The following tests were done with SIRIUS SBOX and 1 to 4 cameras connected to the CAM-BOX2. Setup:
1 to 4 cameras connected over CAM-BOX2
SBOX: 128GB SSD -> max 190 Mbyte/s write rate
CPU: Intel Core i7 QM57; 2.0GHz; 4GB RAM
camera(s) clocked by SIRIUS
Dewesoft X
OptoMotive OptoStreamSDK
GigE Camera driver (Plugin)
storing data to file, video buffer stable around 0.1%
with checked "optimize for switched network"
Achieved frame rates (fps)
13

Number of Cameras X res Y res DS-CAM 88c DS-CAM-120c
1
640 480 88 120
320 240 165 195
320 120 280 300
2
640 480 88 120
320 240 165 195
320 120 280 210
3
640 480 88 90
320 240 165 195
320 120 280 210
4
640 480 88 60
320 240 165 195
320 120 280 210
Results (FPS) should be considered only as approximate MAX values. Writing speed of disk may be limiting factor (we used
SSD). We recommend testing cameras with your setup at about 0.8*max FPS and higher to find where corrupted image, frame
lost or buffer overrun will occur.
14

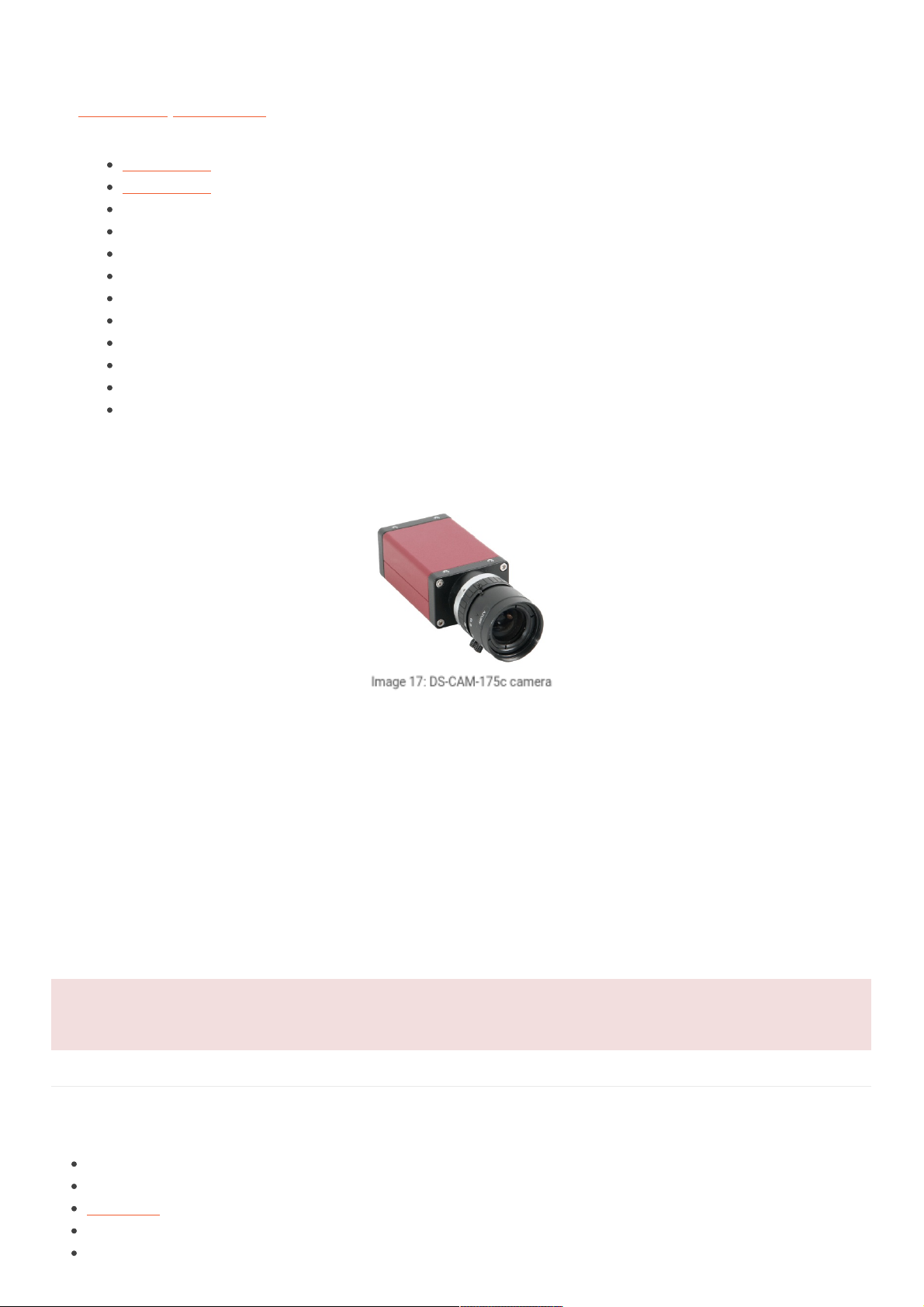

DS-CAM-175c, DS-CAM-320c
The DS-CAM-175c, DS-CAM-320c are high-speed Gigabit-Ethernet cameras with the following key data:
DS-CAM-175c: 178 fps @ VGA (640x480)
DS-CAM-320c: 328 fps @ VGA (640x480)
Color
Auto-gain
Auto-shutter (also fixed shutter possible)
Auto-white balance
Triggered and free-run mode
Standard C-Mount
Small compact form factor
Low power consumption
Ruggedized (high-shock and vibration resistant, aluminum housing)
Real-time data streaming with full resolution
The camera supports the high-performance industrial standard GigE Vision. The standard introduced in 2006 provides a framework
for transmitting high-speed video and related control over Ethernet networks.
The benefits are high-speed data transfer rates up to 1GBit/s (based on 1000Base-T) connectable to every standard GigE Ethernet
port and cable lengths up to 100m.
Dewesoft uses OptoStream GigE SDK for communication with cameras that support GigE Vision standard.
Important: For best performance, we recommended using an SSD for storing data. A disk write rate of 100 MByte/s should be
established, especially if using more than 1 camera!
System requirements:
1 Gigabit-Ethernet port
Good PC performance (Core i5 CPU or better recommended, 4 GB RAM)
Dewesoft X
The latest OptoMotive OptoStreamSDK
The latest Dewesoft GigE driver (cdv)
15

Technical specifications
Optical
DS-CAM-175c DS-CAM-320c
Image sensor Sony IMX273 Sony IMX287
Sensor Type CMOS CMOS
Max resolution 1456x1088 728x544
Optical size 1/2.9'' (6.3 mm diagonal) 1/2.9'' (6.3 mm diagonal)
Pixel size 3.45 x 3.45 um 3.45 x 3.45 um
FPS
68 FPS @ 1456x1088
116 FPS @ 1280x720
145 FPS @ 800x600
178 FPS @640x480
266 FPS @ 728x544
328 FPS @640x480
Dynamic range 71.6 dB autogain function 74.4 dB autogain function
Shutter Global Global
Shutter time Auto shutter function Auto shutter function
Color correction Auto white balance Auto white balance
Max, frame rate (at full resolution) 175 fps 320 fps
Power
DS-CAM-175c DS-CAM-320c
Supply voltage 8 to 30 VDC or 802.3af PoE 8 to 30 VDC or 802.3af PoE
Power consumption 2,79 W @ 12 VDC; 3,26 W PoE 2,77 W @ 12 VDC; 3,23W PoE
Trigger input
Voltage level representing logical 0 0.0 ... 1.0 V DC
Undefined state between 0 and 1 1.0 ... 3.0 V DC
Voltage level representing logical 1 3.0 ... 24.0 V DC
Absolute maximum voltage (above
→ damage!) 36 V (only with an external resistor of 3.3 kOhm in series)
Mechanical
External housing (h x w x l) 86.4 x 44.0 x 29.0 [mm]
Housing aluminum case
Weight < 200 g (without lens)
Operating temperature 5 °C .. +45 °C (+41 °F .. +113 °F)
Operating humidity 20% .. 80% (no condensation)
Lens mount C-mount
Connectors Screw mount RJ45 Ethernet connector, Hirose HR10-10R-12PA(73)
16

Connections
On the rear side of the camera, there are two connectors. The 12pin HIROSE connector (matching part: Hirose HR10A- 10P-12S(73))
contains the power, trigger, and other digital pins. Ethernet connector pinout according to the standard.
Power/trigger connector pinout
12pin Hirose connector (matching part: Hirose HR10A-10P-12S(73)) on camera rear side
PIN # SIGNAL
1GND (for Power and RS232)
2Power (+8...+30 V DC)
3-
4Camera In 1 (TRIGGER)
5-
6Camera Out 1 (open emitter, max. 20 mA)
7Camera In GND
8RxD (RS232)
9TxD (RS232)
10 Camera Out Power (for digital outputs)
11 Camera In 2
12 Camera Out 2
17

SIRIUS connection example
In this picture, you see a typical SIRIUS measurement instrument, consisting of one SBOX unit (integrated PC) on the bottom and
one SIRIUS slice on top (from the rear side).
The camera is directly connected to the Gigabit-LAN port. The second cable to the camera contains the power (from SBOX Power
out) and the trigger, connected to the SYNC port of the SIRIUS slice. The camera frames are now in perfect sync with the analog
data acquired by Dewesoft.
Note: Even if the camera is connected, syncing to other SIRIUS devices is still possible, because there are different pins used on
the SYNC port for triggering/synching.
Connecting multiple cameras
If you need to connect more than one camera, there is a special CAM-BOX2 available, which consists of:
wide-range voltage input (9-36V)
an industrial Gigabit-Ethernet-Switch (without Power-over-Ethernet! No supply for DS-CAM-600!)
Power and Sync distribution for up to 4 cameras.
Small dimensions: 115 x 62 mm (front) and 135 mm deep
18

Camerabox connector (mating cable connector: FGG.1B.307CLAD52)
Power supply (mating cable connector: FGJ.1B.302CLLD42Z)
Sync connector (mating cable connector: FGG.00.304CLAD27Z)
19
