Diamond Multimedia 1080 HD Game Capture User manual

GC1500 Quick Installation Guide
I. Package Contents
HD Gaming Capture Box
USB cable BM to AM
HDMI cable
Quick start guide
Installation Disk (Driver and Software)
II. System Requirements
Intel Core 2 Duo 2.4GHz or higher (recommended)
1024 MB RAM of system memory or above (recommended)
One available USB2.0 port
Graphics Card (Must support DirectX 9.0c)
Sound Card (AC97 compatible sound card)
1GB Free HD Space
DVD-ROM Drive (For software installation)
Microsoft Windows 7 / Windows 8 / Windows 8.1 operation system

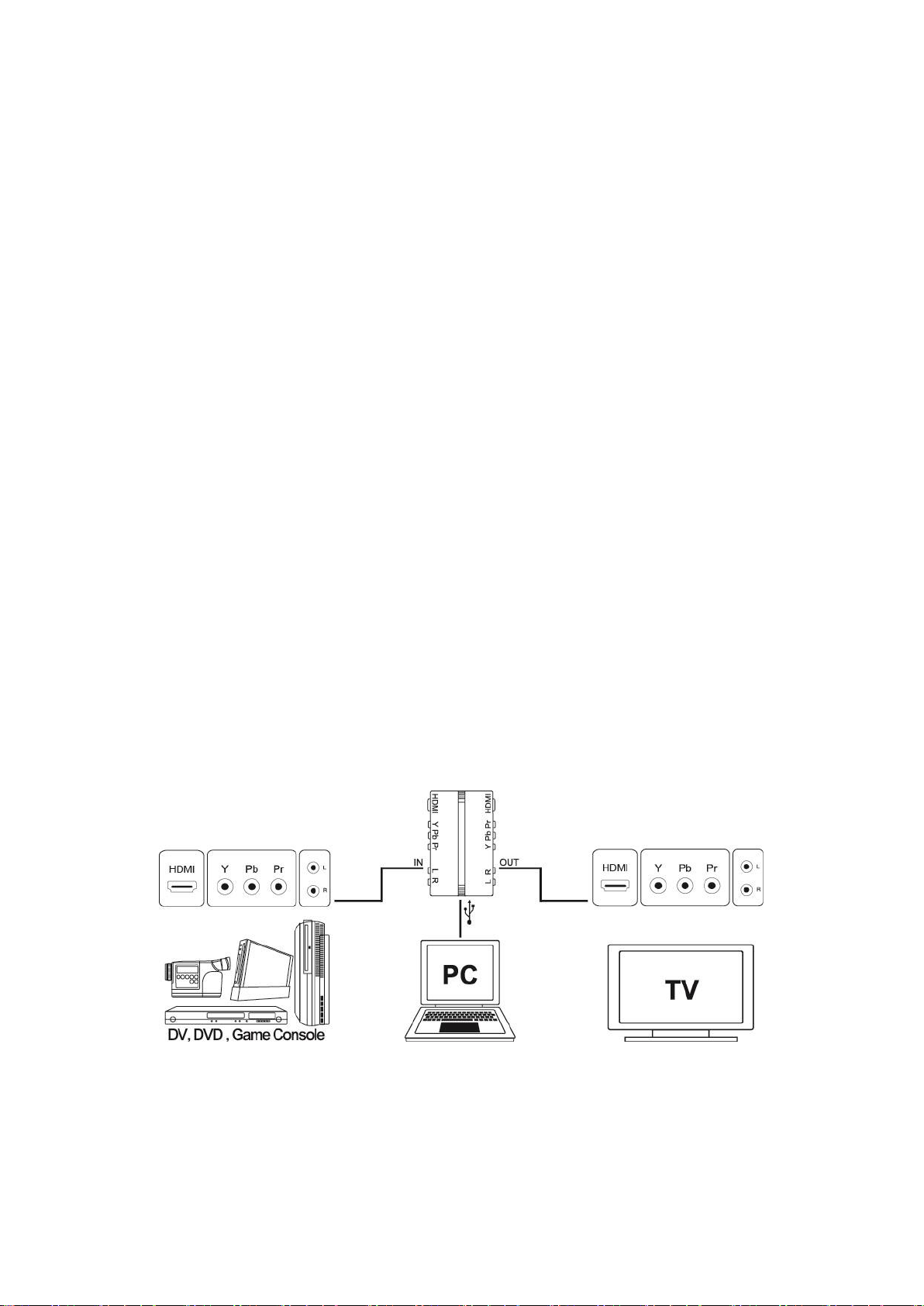

III. Hardware Installation
Connect the HDMI / YPbPr input into the input side connector.
Note: It is recommended to use the TV pass through configuration. Connect your console
to the input of the GC1500 and the output to your TV. This allows you to play your game
as usual on your TV. Attempting to play the game while viewing on the PC screen will
result in some lag or delays due to the PC processing the captured video.

Note:
If you are using the YpbPr (Component connectors) you will need to use the red and
whiteaudio inputs and outputs

Connect the HDMI / YPbPr output (Recommend) if you want to loop through the signal
back to the TV set or other display device.
Plug the GC1500 into the USB 2.0 port of your system.
IV. Software Installation
Please insert the software Package DVD into your DVD-ROM Drive.
If you do not have DVD/CD ROM drive please visit our website at
http://www.diamondmm.com/diamond-gc1500-video-capture-edit-stream.html
The auto installation wizard will launch.
Please click Quick Installation and follow the on screen instruction to complete the
installation procedure.
Support Options:
http://tickets.diamondmm.com/
http://www.diamondmm.com/diamond-gc1500-video-capture-edit-stream.html
