Dipl.-Ing. NOVAMATIC WA 6086 User manual

Product No. WA6086.0C
Instruction No. 534 270.AA
WA 6086
Operating Instructions for
washing machines in private homes
NOVAMATIC
by
®

Dear Customer
We are pleased that you have chosen a Novamatic
washing machine.
Your new washing machine is the result of many years of
development work. The highest quality requirements,
both in development and manufacture, guarantee a long
lifetime.
Its design meets all the current and future demands of
modern laundry care. It offers you a varied and
individual choice of programmes.
Sparing use of water, energy and detergent helps to ease
the burden on our environment and ensures that you can
use your washing machine as economically as possible.
Please read these instructions carefully to enable you to
use all the possibilities and advantages of your new
washing machine.
Please also note the safety notice on page 4 and the
enclosed guarantee and customer services booklet.
We hope you will be very happy with your new
Novamatic machine.
Yours,
Dipl. Ing. Fust AG

Contents
What you need to know
XWaste disposal advice 4
ZPackaging from your new machine 4
ZOld machine 4
XSafety advice and warnings 4
Your new washing machine
XEnvironment and economy advice 4
XMachine description 5
XThe detergent drawer 6
ZThe liquid containers 6
Advice on detergents and laundry preparation
XDetergents and conditioners 6/7
XWashing advice 8
ZSorting your laundry 8
ZTips for washing 8
ZStain removal 8
Start up XFirst wash cycle 8
Washing XStandard programmes 9
XSpecial programmes 9
XWashing 10
ZPreparation 10
ZOpening the door 10
ZSelecting the wash programme 10
ZSelecting additional programmes 10
ZSelecting additional functions 10
ZAdding the laundry 10
ZClosing the door 10
ZAdding detergent 11
Z
Starting the programme 11
ZProgramme time / programme status 11
ZChanging the programme before
Zstarting 11
ZInterrupting the programme 11
ZEnding the programme with rinse stop 11
ZProgramme end 11
ZRemoving the washing 11
ZSwitching off the machine 12
XSpecial programmes 12
ZSelecting special programmes 12
ZSelecting additional functions 12
ZAdding laundry / Closing the door 12
XSpecial programmes 12
ZHand wash 12
ZSilk 12
ZOuterwear 12
ZSportswear 12
ZImpregnation 13
ZNappies 13
ZCurtains 13
ZSpinning 13
XAdditional programmes 13
ZExpress programme 13
ZGentle programme 13
ZPrewash 13
ZIntensive 13
ZEasy Care 13
XAdditional functions 14
ZStart time preselect 14
ZTemperature reduction 14
ZSpin speed 14
ZRinse stop 14
ZFast forward 14
Maintenance, Care, Cleaning
XCleaning the machine 15
ZDescaling the machine 15
ZCleaning the drum 15
ZWater supply hose 15
ZFrost protection 15
ZEmptying the detergent pump 15
ZDraining the water supply hose 15
ZCleaning the detergent drawer 15
ZCleaning the liquid containers 16
ZEmergency emptying 16
XCleaning the filters in the water inlet 17
Settings XBasinc settings 17
ZExtra rinse 17
ZHigher water level when washing 17
ZHigher water level when rinsing 17
ZSpin speed reduction 17
ZSetting the time 18
ZLanguage 18
XExtended basic settings 18
ZSkincare function 18
ZChild lock 18
ZRinse stop 18
ZDirt sensing 18
ZMemory function 18
ZSoap wash programme 18
ZSoaking programme 18
ZCool down function 18
ZTumbling at end of programme 18
ZWash time reduction 18
ZLCD brightness / contrast settings 18
ZAlarm volume 19
ZStandby function 19
ZOptical interface 19
ZMains connection 19
ZAdvice for testing bodies and users 19
Problems XRectifying minor faults yourself 19
XError messages 21
Customer services
XProduct and serial numbers 21
Guarantee subscription 21
E NGLISH

Waste Disposal Advice
Packaging from your new machine
Dispose of all packaging materials properly.
Packaging materials are not toys.
Processing and reuse saves raw materials and reduces
waste volumes.
The packaging can be returned to the retailer or supplier.
All packaging materials used are environmentally friendly
and reusable. All card is made of 80 - 100 % recycled
paper.
Wood is not chemically treated. Films are made of poly-
ethylene (PE), banding is made of polypropylene (PP) and
the CFC-free padding is made of polystyrol (PS) foam.
These materials are pure hydrocarbon compounds and
are recyclable.
Old Machines
Worn out machines should be made unusable:
After unplugging the machine or after an electrician has
removed the connection, cut through and remove the
mains cable. Destroy or remove the door lock so that
playing children cannot become locked in and put their
lives at risk.
The old machine contains valuable materials which should
be sent for recycling. Ensure that your old machine is di-
sposed of properly.
Addresses of recycling or collection sites for the disposal
of old machines can be obtained from your local autho-
rity.
Please help to ensure environmentally friendly disposal
and recycling.
Safety Advice and Warnings
This machine meets the stringent safety regulations for
electronic devices.
Before using the machine:
Read the enclosed documents carefully before using your
washing machine.
They contain important information on the installation,
use and safety of the machine.
Repairs should only be carried out by trained specialists.
Incorrect repairs may cause considerable damage and
risks to the user.
Keep the documents safe for other users or subsequent
owners.
Install the machine according to the installation
instructions.
Remove the transport packaging and keep it safely.
Do not plug in a machine with visible damage. In case
of doubt, ask customer services or your retailer.
When washing laundry:
Do not leave children unattended with the machine.
Keep pets away from the machine.
Only use the machine in the home for washing machine-
washable fabrics in laundry detergent.
Do not touch the door window when washing at high
temperatures.
Check that the pump cover is in place and firmly screwed
down.
At the end of the programme:
Do not reach into the rotating drum.
Turn off the water supply.
If the power supply is switched off without turning off
the water supply, the built in overflow protection will no
longer work.
To protect your machine:
Do not climb on the machine.
Do not sit, lean or support yourself on the loading door
(it could tip!).
When transporting your machine:
Fit the transport packaging.
Take care when transporting the machine (risk of injury)!.
Do not lift the machine by the fittings on the front!
Environment and Economy Advice
Your laundry will be most environmentally friendly and
economical if you fill the machine with the maximum
laundry load. Do not exceed the maximum stated laun-
dry load. See standard programmes, page 9.
Save water, energy and detergent:
Do not use pre-wash for normally soiled laundry.
Save energy and time:
Press the «Express» button for lightly soiled laundry.
Save detergent:
Use the right amount of detergent for your local water
hardness, the level of soiling and the size of the load,
and follow the instructions on the detergent packet.
4

5

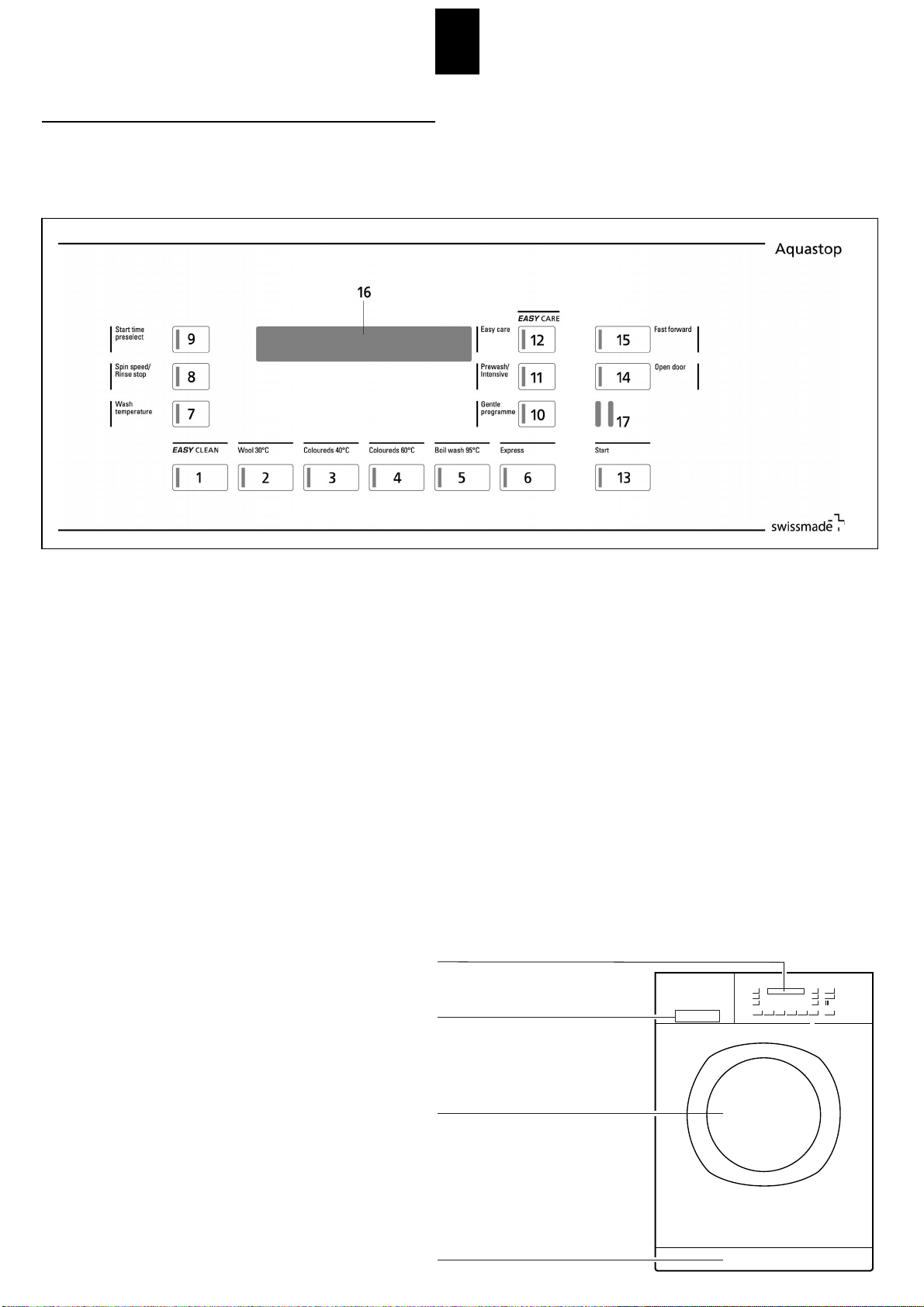

Machine description
Control and display area
Programmes
1 Special programme
2 Wool 30°C
3 Coloureds 40°C
4 Coloureds 60°C
5 Boil wash 95°C
Additional functions
6 Express programme
7 Wash temperature
8 Spin speed / rinse stop
9 Start time preselect
10 Gentle programme
11 Prewash / Intensive
12 Easy Care
13 Start button
14 Open door
15 Fast forward
Displays
16 Display
Interfaces
17 PC-Interface for customer service
Detergent drawer
Control and display area
Door
Maintenance flap for detergent
pump

Detergent Drawer

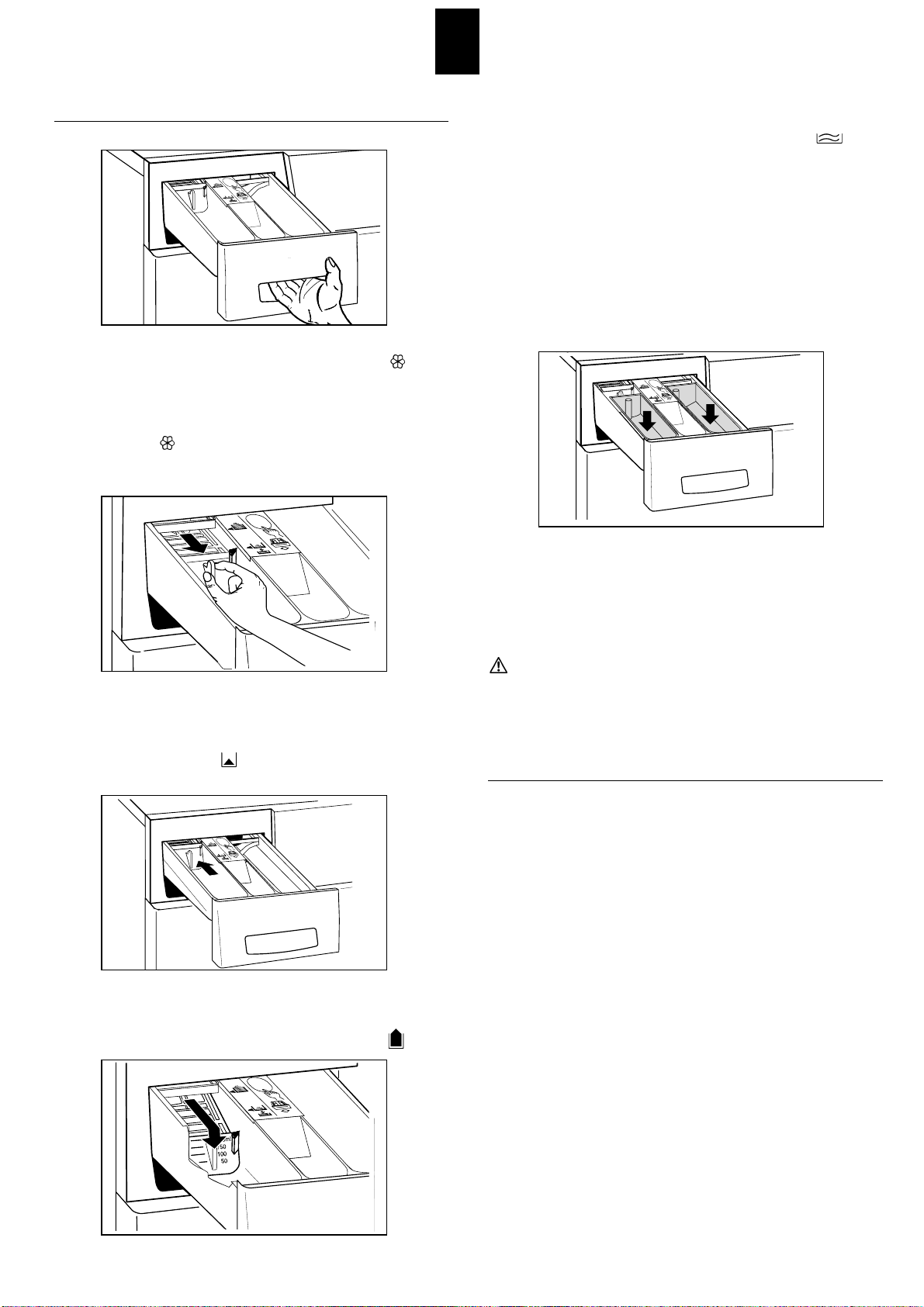

XPull out the detergent drawer until it reaches the stop.
Add detergent or conditioner to sections I, II or :
Section I: Detergent for prewash and soaking.
Section II: Detergent for the main wash, bleach, modu-
lar detergent, starch, water softener for soap programme.
Section : Conditioning additives for the last rinse,
e.g. fabric softener.
The divider in Section II can be moved for different types
and quantities of detergent. If you use small quantities of
washing powder, e.g. compact detergent:
XPull the divider forward. The arrow on the divider po-
ints to the symbol .
If you use large quantities of washing powder or tablets:
XPush the divider all the way back (supplied in this
position).
The arrow on the divider points to the symbol .
If you use liquid detergent:
XPull the divider forward to the stop and press it down.
The arrow on the divider points to the symbol .
The scale on the divider helps you to measure your liquid
detergent.
Note
Use a dosing ball for liquid detergents for washing pro-
grammes using the time preselect, placing it inside the
drum with the laundry (see page 7.)
Liquid Container (for impregnation)
Required for the special programme.
XPull out the detergent drawer until it reaches the stop.
Place the liquid container in sections Ior II:
Liquid container in Section I: spirit vinegar for
impregnation.
Liquid container in Section II: impregnating product,
liquid detergent for the special programme.
Do not use for tablets, concentrates and powder
detergents!
Detergents and Conditioners
You can use all powder, compact (concentrated), tablet and
liquid detergents commonly available for use in automatic
washing machines.
Use the right detergent for the type and colour of your
fabrics:
z Strong detergent for whites
z Coloured detergent for coloureds
z Gentle detergent for synthetics, viscose and microfibre
z Wool detergent for wool, silk and outerwear.
Use the divider for liquid detergent in the detergent dra-
wer or use dosing aids such as dosing balls or bags supp-
lied with the detergent.
6

Under no circumstances use cleaning products containing
solvents. There is a risk that parts of the machine could
be damaged and poisonous vapour released. There is
also a risk of fire and explosion.
Fabrics which have been treated with cleaning products
containing solvents must be rinsed well by hand in clear
water before washing.
Only use water softeners, dyes and dye removers and ot-
her additives which clearly state in their manufacturers'
instructions that they are suitable for use in automatic
washing machines. Follow the appropriate instructions
carefully.
Only add laundry starch in the final rinse (conditioner),
because there is a risk of explosion at other stages of the
wash.
Keep laundry detergents and additives out of the reach of
children.
Store laundry detergents, aids and other additives in a
dry, cool place, as clumpy detergent can lead to functio-
nal problems.
Detergent Dosing
Only the right dose leads to good washing results. Pay
attention to the dosage recommendations on the
detergent pack. Ensure that the quantities stated on the
pack are for full drum loads. Reduce the quantity for
smaller loads.
The amount of detergent required depends on:
zthe hardness of the water,
if you don't know, ask your local authority.
Use the right amount of detergent for your water
hardness.
zhow dirty the laundry is
zlight soiling;
no noticeable marks and stains, e.g. the clothes just smell
of body odour.
Reduce the amount of detergent according to the
recommended dose.
Wash these fabrics on the Express programme.
znormal soiling;
visible marks and a few light stains. Use the normal dose
according to the recommendations. Wash these fabrics
on the Standard programme.
zheavy soiling;
clearly noticeable marks and stains. Use a higher dose
according to the recommendations. Stains may need to
be pre-treated or soaked, fabrics may be prewashed or
washed on the Intensive programme.
zthe amount of washing,
reduce the amount of detergent by a third if the drum is
only half full.
Watch out:
zToo little detergent;
usually only noticeable after several washes with
insufficient detergent,
leaves the washing grey or not clean,
leaves the washing hard (stiff),
can leave grey-brown spotty stains (grease) on laundry,
can lead to scaled heating elements.
zToo much detergent leads to;
poor washing results,
excessive detergent foaming and problems,
high water consumption and costs,
extended washing programmes,
unnecessary pollution.
Soap-based detergents
Your washing machine has a special programme for was-
hing with soap-based detergents, which you can select in
the basic programme settings (see page 19).
Because soap does not contain anything to prevent lime-
scale, you should only use it with soft or medium-hard
water, together with a separate water softener.
Otherwise, limescale and soap residue can build up in the
machine, which will be deposited on laundry in the form
of grease spots or as limescale on the heating element.
Liquid detergent and start time preselection
(for start time preselection see page 14).
When using start time preselection, use a dosing ball for
liquid detergent or the additional liquid container for the
detergent drawer. If poured directly into the detergent
drawer, liquid detergent slowly runs out and thickens. If
this happens several times, it can lead to blockages due
to detergent deposits.
Remove the dosing ball at the end of the programme!
The additional liquid container is not suitable for particu-
larly thick detergents.
Water softeners
Special water softening products may be used for water
in the hardness range 2 - 4 (13-37° fH). Follow the
instructions on the packet!
In these cases, use the amount of detergent specified for
hardness level 1 (0-12° fH). Add the detergent and then
the water softener in the same section of the drawer to
ensure that the water softener is washed in properly.
Soaking
Add soaking detergent to section Iof the detergent dra-
wer. Select a soaking programme (See page 19).
Fabric conditioner, starch
Add to section . Do not fill beyond the «Max» mark,
because otherwise the conditioner will be rinsed in with
the detergent at the start of the programme and not du-
ring the rinse cycle. Thick conditioner should be diluted
with water and stirred until there are no lumps before
adding to the drawer, so that it does not block the over-
flow.
Bleach, stain remover
Powder bleach and stain removers can be added for fa-
brics with bleachable stains.
First add the detergent and then the bleach powder or
stain remover in section II of the drawer. This ensures
that the product is washed in better.
7

Spirit vinegar
Spirit vinegar is used to prepare laundry for impregnation.
Impregnation products
Clothing can be impregnated evenly and durably by using
impregnation products in the washing machine.
Breathable weather gear such as GoreTex or SympaTex
should only be treated with special impregnation
products designed for them. Otherwise, there is a dan-
ger that the breathable membrane will be blocked.
Washing Advice
Sorting your laundry
Do not exceed the maximum load,
because overfilling affects the washing result and can lead
to fabric damage. Pay attention to the care symbols on
your fabrics.
Laundry bearing the following care symbol should not be
washed in the machine:
zDo not wash
Sort your laundry according to fabric and level of soiling.
Sort your laundry by colour. Wash white and coloured
laundry separately, or white washing will turn grey.
Do not wash new coloured fabrics with other laundry.
There is a risk the dye could run!
Knitwear made of or containing wool should be identi-
fied with the words «no felting», «non-felting» or «ma-
chine washable». Otherwise there is a risk your wool
could turn to felt in the wash!
Tips for washing
XRemove foreign bodies, e.g. safety pins, paperclips, co-
ins, etc. from your washing.
XBrush sand out of pockets and cuffs.
XDo up all zips, hooks and eyes and Velcro fastenings.
XButton up duvet covers and pillowcases and tie fabric
belts or apron strings together.
XWash particularly delicate laundry, e.g. fine stockings
or curtains, or small items, e.g. socks or handkerchiefs, in
a laundry net or pillowcase.
XTurn trousers, knitwear or knitted textiles, e.g. jersey
underwear, t-shirts, sweatshirts, inside out.
XWhen washing bras, ensure that they are machine
washable.
Wash underwired bras in a fine laundry net, as the wires
may come loose during washing and can fall through the
holes in the drum and damage the machine.
Stain removal
Stains should be removed or at least pre-treated immedi-
ately if possible, or at least while they are still fresh.
Try first with soap and water. Do not rub the fabric, just
pat it.
Stubborn and dried in stains can sometimes only be re-
moved after washing several times or soaking.
Start-up
Install the machine according to the installation
instructions.
First wash cycle (without laundry)
Run the first wash cycle without laundry, to remove any
water remaining from testing during the manufacturing
process.
1. Check that the transport packaging on the rear of the
machine has been removed (see installation instructions).
2. Turn on the water supply.
3. Pull out the detergent drawer until it reaches its stop.
4. Add half a scoop of all purpose detergent to section II
(on the left).
Do not use gentle or wool detergent, because it will pro-
duce too much foam.
5. Select the «Coloureds 60°» button.
6. Press the start button. The programme should start.
7. After the end of the programme, the machine is ready
for use.
8

9

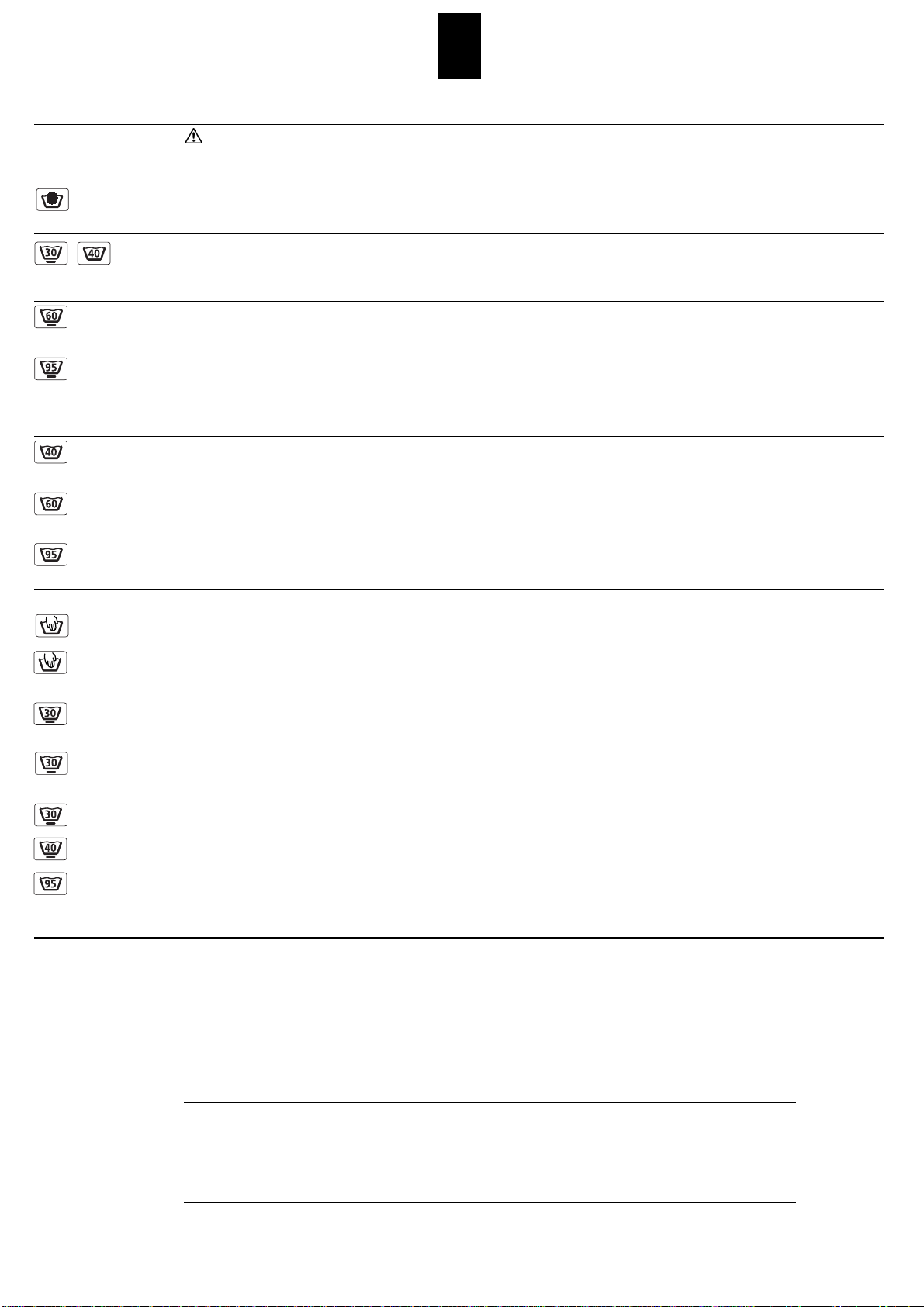

Standard programmes
Max. Approx. Approx. Approx.
Care washing Programme duration water power
symbol load Fabric / Wash type selection button minutes cons. lit. cons. kWh
1,6 kg Wool 30°C «Wool» 39 / 28* 52 0,3
XWool mark stating «non-felting» or «machine washable»
XMachine washable fabrics made of or containing wool
_2kgFine laundry 40°C «Coloureds 40°C» 59 / 39* 57 0,6
XParticularly sensitive fabrics made of cotton or mixed fibres, + «Gentle programme»
synthetics
XCurtains, dresses, blouses, skirts
2,5 kg Easy care laundry 60°C «Coloureds 60°C» 66 / 41* 59 1,1
XEasy care cotton or non-iron mixed fibres, shirts + «Gentle programme»
blouses
2,5 kg Easy care laundry 95°C «Boil wash 95°C» 79 / 54* 69 1,95
XCotton with boil wash finish + «Gentle programme»
XSensitive fabrics made of white or colourfast cotton,
non-iron
XShirts, nappies, bed linen, baby clothes
5 kg Coloureds 40°C «Coloureds 40°C» 59 / 25* 57 0,5
XColoured, non-colourfast dyed cotton
XSportswear, jeans, jumpers
5 kg Coloureds 60°C «Coloureds 60°C» 69 / 36* 57 1,1
XColoured cotton, linen
XBed linen, aprons, jeans, towels, shirts, underwear
5 kg Boil wash 95°C «Boil wash 95°C» 79 / 50* 57 2
XWhite and colourfast cotton and linen
XBed and table linen, towels, underwear
Special programmes
1,6 kg Hand wash 20°C «EASY CLEAN» 1x 42 52 0,1
XFabrics made of hand washable wool or wool mixture
1 kg Silk 30°C «EASY CLEAN» 2x 47 54 0,3
XHand washable outerwear in fabrics which
do not contain wool
1,5 kg Outerwear 30°C «EASY CLEAN» 3x 34 44 0,15
XWashable outerwear
XWoollen trousers, skirts, blouses, gilets, jackets
1,8 kg Sportswear 30°C «EASY CLEAN» 4x 49 69 0,3
XFabrics with high proportions of microfibre, GoreTex, SympaTex
XSports and leisure jackets, weather gear, ski wear
1,8 kg Impregnating 30°C «EASY CLEAN» 5x 68 32 0,4
XFabrics with high proportions of microfibre, GoreTex, SympaTex
2,5 kg Curtains 40°C «EASY CLEAN» 6x 68 118 0,9
XMixed fibre fabrics
5 kg Nappies 95°C «EASY CLEAN» 7x 113 89 2,9
XWithe and colourfast cotton
max. 5 kg Spin «EASY CLEAN» 8x 90,05
XSpin only
Special programme Separate rinse
XCotton, linen «Coloureds 40°C» + «Start» +«Fast forward» 32
XEasy care mixed fibres «Coloureds 60°C» + «Gentle programme» + «Start» +«Fast forward» 30
XFine laundry «Coloureds 40°C» + «Gentle programme» + «Start» +«Fast forward» 27
Separate conditioning, starching
XCotton, linen «Coloureds 40°C» + «Start» +2 x «Schnellgang» 18
XEasy care mixed fibres «Coloureds 60°C» + «Gentle programme» + «Start» +2 x «Fast forward» 17
XFine laundry «Coloureds 40°C» + «Gentle programme» + «Start» +2 x «Fast forward» 18
Always check the care symbols on the fabrics
* Express programme length: press the «Express» button after selecting the programme. Reduces wash time as well as electricity and water consumption.

Consumption values
The stated consumption values and programme times are
guidelines, determined under standard conditions.
Fluctuations of up to 10 % are possible.
Reduced mains power
For machines with reduced mains electrical power, the
programme times will be correspondingly longer.
Hot water connection
For washing machines with hot water connections, the
following should be noted:
The maximum permitted hot water temperature is 70° C.
zOnly cold water is used for the prewash and wool
wash programmes.
zFor temperatures above 30° C, the water is automati-
cally mixed to obtain the programmed wash temperature.
zA programme with prewash should be selected for
fabrics with blood or other protein stains, so that the
stains are washed out below 30° C and not fixed into the
fabric at higher temperatures in the main wash process.
Waschen
Preparation
Check whetether
Xthe pump cover is screwed on
(see Cleaning / Maintenance, page 15).
Xthe machine is plugged in or switched on at the wall.
Xthe water supply is turned on.
The machine is ready for use if all the control lights are flas-
hing or have gone out in sleep mode.
Opening the door
XPress the «Door» button.
zThe door pops open.
XCaution: the door only pops if the mains power is
switched on.
Selecting the wash programme
XPress the programme button
zThe control light for the selected programme lights up.
zThe display shows the wash temperature, the selected
programme and the wash time.
Selecting additional programmes
XPress the desired selection button
(see additionale programmes, page 13)
zThe text for the selected additional programme
appears on the display.
Select additional functions
After selecting the programme, the control light for the
additional functions that can be selected if required will
flash.
XPress desired function button(s).
(See Additional Functions page 14).
zThe control light(s) for the selected function(s) will
light up.
zThe new programme values such as time and spin
speed will be displayed.
Adding the laundry
Before adding laundry, ensure that there are no foreign
bodies or even trapped pets in the drum.
Allow laundry which has been pre-treated with flamma-
ble cleaning products, e.g. stain remover or white spirits
to air dry before washing. Risk of explosion!
Ensure that no foreign bodies (e.g. nails, coins, paper
clips) are washed. Foreign bodies or fabrics with metal
reinforcement can damage parts of the machine (e.g.
drum, detergent container). Damaged components can
in turn cause damage to laundry.
XPlace washing evenly in the drum, mixing large and
small items.
Closing the door
XClose the door by pushing it until the lock audibly
engages.
XEnsure that no items of laundry are trapped between
the door and the rubber seal.
If the door is not closed, a safety switch prevents the
machine from starting.
10

Adding detergent
See pages 6 to 8.
Ensure that there are no foreign bodies in the detergent
drawer.
Close the detergent drawer gently after filling, until you
feel that it is properly closed.
XRisk of water damage!
Starting the programme
XPress the start button
zThe control light comes on and the programme starts
automatically.
If the child lock is activated:
XHold the start button down and press the fast forward
button.
Programme time / programme status
During the wash programme, the individual programme
stages and the remaining time are shown on the display.
Changing the programme before starting
XPress the desired programme button again.
zSelect additional programmes.
XSelect any additional functions.
Interrupting the programme
The programme can be interrupted by pressing the fast
forward button repeatedly, until «Open the door» is
displayed.
If the child lock is activated:
XHold the start button down at the same time.
XSelect a new programme.
To start the programme again:
XAdd more detergent
Ending the programme with rinse stop
You have selected the additional rinse stop function.
The laundry will be held in the last rinse water.
The display will show «Rinse stop».
You have 2 options for ending the programme;
The laundry can be spun
XIf the spin speed was not changed when the
programme was selected, this can be done using the
«Spin speed» button.
XPress the start button.
z
The water will be pumped out and the laundry spun.
XBy pressing the «Fast forward» button, the spin can be
ended early to be kind to your laundry (e.g. curtains).
The laundry can be removed dripping wet
XPress the fast forward button twice.
zThe rinse water ist pumped out.
If the child lock ist activated:
XHold the start button down at the same time.
Programme end
The programme end is shown by the time 00:00 and the
words «Open the door».
Tumbling the washing
The tumbling phase at the end of the programme lasts 5
minutes (excl. wool wash programme) and prevents crea-
sing the laundry.
Removing the washing
zDuring the tumbling phase:
(Drum is still turning / Time indicator 00:00h)
Press the fast forward button once.
(Halt programme)
Press the door open button and
Xremove the laundry
zAfter the end of the tumbling phase
Press the door open button and
Xremove the laundry.
Remove any foreign objects (e.g. paperclips) from the
drum and rubber seal!
Otherwise there is a risk of rust!
Leave the door slightly open so that the machine can dry
out.
11

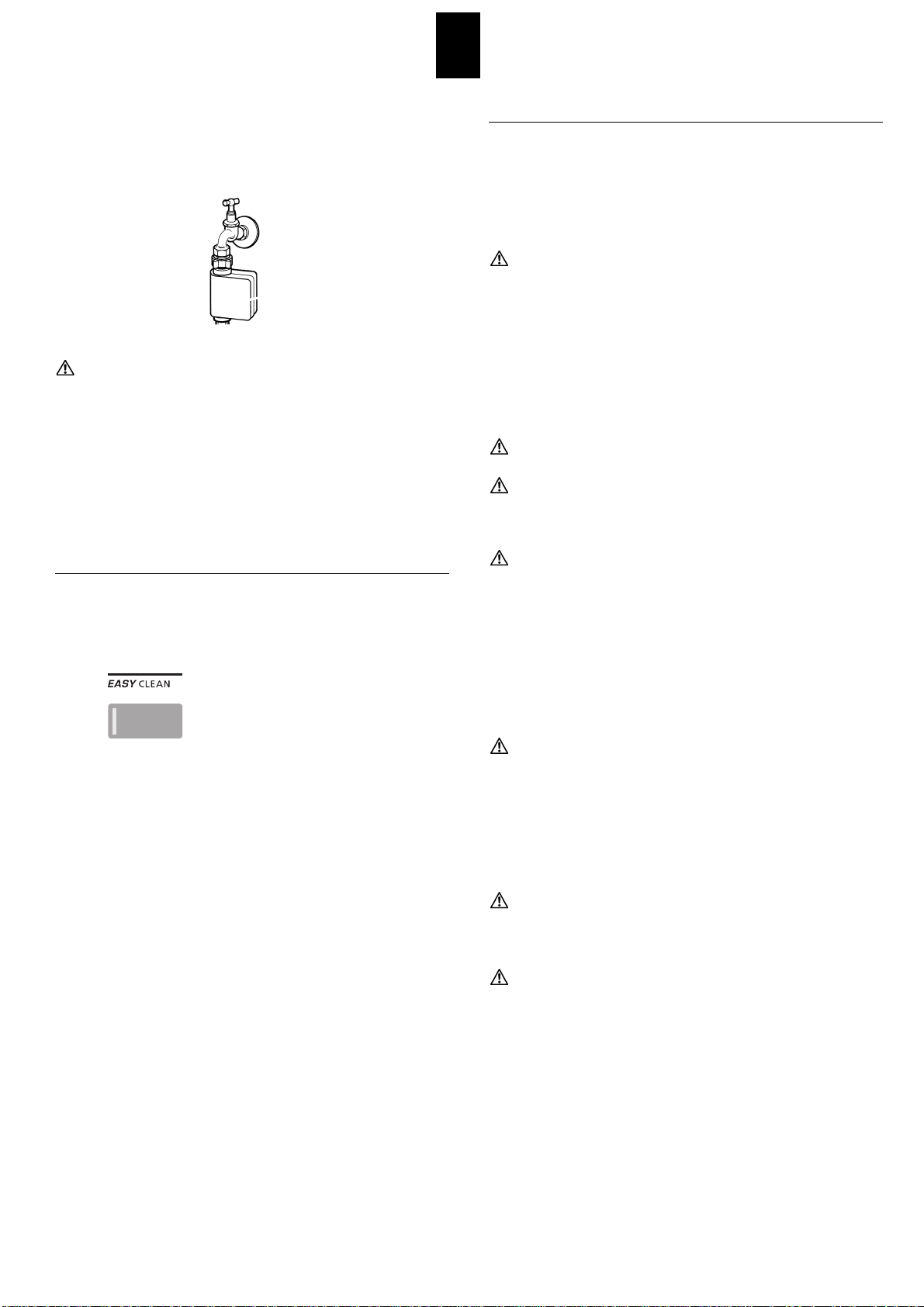

Switch off the machine
zTurn off the water supply.
z
This is not necessary for machines fitted with Aqua-
Stop, because this safety device automatically stops water
flow from the tap when the programme ends.
Aqua-Stop
zSwitch of the power at the wall.
The power should not be switched off for fully fitted ma-
chines, in order to guarantee the function of the overflow
safety device.
Special programmes
Your washing machine also offers you 8 special
programmes.
Selecting special programmes
XOne of the special programmes can be selected by
pressing this button on to eight times.
zThe control lights comes on.
zThe display shows the wash temperature, the special
program and the washing time.
Selecting additional functions
XSetting the additional functions temperature reduction,
spin speed reduction, start time preselect and rinse stop is
the same as for other programmes (see page 10)
Adding laundry / Closing the door
XThis function is the same as the standard programmes
(see page 10).
Special programmes
Hand wash 20°C
XFabrics made of hand washable wool or wool mixtures.
Silk 30° C
XHand-washable fabrics which do not contain wool.
Fine stockings and bras should be washed in a laundry bag.
Outerwear 30° C
This programme can be used to wash particularly
delicate washable clothing, e.g. woollen trousers, gabar-
dine, skirts, blouses, jackets. The creasing and wrinkling
is reduced by a special mechanism. The addition of a sui-
table finishing product, e.g. ironing aid during the condi-
tioning phase, makes further processing of the clothing
much easier.
Clothing with inserts, stuffing or padding should not be
washed - there is a risk of shrinkage.
Pre-treatment: heavy stains e.g. fat, sun cream, lipstick or
cosmetics, require suitable pre-treatment. The use of a
stain proofing spray bearing the wool mark is recommen-
ded for outerwear.
Mesh items must be washed on the wool programme.
XAdd wool detergent to the wash in the additional
liquid container in section II of the detergent drawer or in
a dosing ball.
Sportswear 30° C
This programme is also suitable for weather gear, sports
and leisure jackets as well as modern clothing made of
microfibre or with a high microfibre content, e.g. GoreTex
or SympaTex.
Pre-treatment: heavy stains e.g. fat, sun cream, lipstick or
cosmetics, require suitable pre-treatment.
For greasy stains, rub liquid gentle detergent directly into
the stain with your fingers.
Do not scrub - you could damage the fabric!
Leave to work for around 5 minutes and then wash the
items in the washing machine.
Only use a gentle detergent for GoreTex and SympaTex.
XWhen using a gentle detergent, place the additional
liquid container in section II of the detergent drawer or
use a dosing ball with the laundry.
Do not use fabric softener.
This can block the breathable membranes and prevent suc-
cessful subsequent impregnation.
12

Impregnation 30° C
This programme is suitable for the simple and efficient
impregnation of sports and leisure clothing, e.g. tracksu-
its, down jackets and winter clothing.
The special process ensures even and lasting
impregnation.
Microfibre fabrics, GoreTex and SympaTex
should only be treated with special impregnation
products designed for them. If ordinary impregnation
products are used, there is a risk that the breathable
membranes will be blocked.
Pre-treatment: the clothing to be impregnated must be
washed thoroughly first.
XPull out the detergent drawer until it reaches the stop.
Place the additional liquid containers in sections I and II
of the detergent drawer.
XAdd liquid detergent to section Iwith 160 ml spirit vi-
negar - the vinegar is used to prepare the laundry for im-
pregnation.
XFill the liquid container in section II of the drawer with
320 ml of the impregnation product, or according to the
product manufacturer's instructions.
XClose the detergent drawer carefully. If the drawer is
closed too quickly it is possible that the impregnation
product and the spirit vinegar will enter the washing
machine together. In this case, impregnation will be
impossible..
Curtains 40° C
XMixed fibre fabrics
Wash programme with high water level for wash and
rinse and low speed spin.
XWhen washing curtains, place metal rings or plastic
hooks in a laundry net or bag (cushion cover).
Older curtains are often very bleached by the sun and no
longer very resistant. Machine washing can therefore
cause slight damage.
To prevent creasing at the end of the programme, it is
advisable to use the rinse stop function (see page 14).
Nappies 95° C
XWhite and colourfast cotton.
zThis programme starts with a cold rinse, followed by a
prewash at 60° C. The main wash temperature is 95° C.
Spinning
XFor spinning fabrics (without rinsing).
XThe spin speed settings can be altered using the «spin
speed / rinse stop»button. (See page 14).
Please note the spin speed!
Additional programmes
X See page 10 for selecting additional programmes.
Alongside the various standard wash programmes, your
machine offers you the opportunity to design your own
programmes.
By selecting one or more additional functions, you can
tailor your wash programme to the specifics of your
laundry.
X
You also have the opportunity to tailor your machine to
your needs by changing the basic settings (see page 17).
Express programme
Express programme for lightly soiled fabrics. Reduces the
washing time.
For small loads of washing or light soiling, reduce the
amount of detergent used according to the recommended
dosage.
Gentle programme
For easy care and particularly sensitive fabrics made of
cotton, mixed fibres, synthetics.
Prewash
For particularly heavily soiled laundry, bad stains or occu-
pational laundry (e.g. blood or oil stains, nappies).
The wash temperature is 30°C.
Add ¼ of the detergent to section I.
Caution: There is no prewash on wool programmes to
protect the fibres.
Intensive
This programme is for heavily soiled fabrics, especially
those with bleachable stains (e.g. fruit, coffee, tea, red
wine).
The intensive programme can be used for boil or colou-
red washes as well as for easy care fabrics. The wash
time will be extended.
Note
zThe intensive, express and prewash programmes are
mutually exclusive, which is why only one of these addi-
tional programmes can be selected.
Easy Care
This programme reduces the formation of creases and
wrinkles by using a higher water level, slow cooling of
the detergent solution and gentle spinning. It can be
used with boil, coloured and fine washes, as well as with
programmes for easy care laundry.
1,6 dl3,2 dl
13

Additional functions
X See page 10 for selecting additional functions
Start time preselect
By pressing the «Start time preselect» button one or
more times, the programme start time can be delayed by
up to 23,5 hours.
This makes it possible to take advantage of cheaper
night-time electricity, for example. The start time and
consequently also the end time of a programme can be
tailored to your individual lifestyle.
The start time and the anticipated programme end time
are shown on the display.
The preselected time starts when the start button is
pressed.
When the start time is reached, the selected programme
starts automatically. The current programme duration will
be displayed.
Note
zThe start time preselect only works if no soaking pro-
gramme has been selected (see also page 17).
zIn the event of a power cut, the current time is saved.
The duration of the power cut is not taken into account.
zWhen using start time preselection, use a dosing ball
for liquid detergent. If poured directly into the detergent
drawer, liquid detergent slowly runs out and thickens. If
this happens several times, it can lead to blockages due
to detergent deposits.
Reducing the temperature
Pressing the «Wash Temperature» button several
times reduces the wash temperature in 10°C stages
(15°C stages above 80°C).
The new temperature will be displayed. It can also be
changed during the first two minutes of the programme.
The lower temperature is compensated by an extension
of the post-wash time, which achieves the same result for
less energy.
Spin speed
This function is used to select a lower spin speed or rinse
stop (see below) to be gentle to the laundry, e.g. for sen-
sitive fabrics. The normal spin speed will be used without
any spin speed reduction. See «Spin speed reduction» on
page 18. This depends on the programme chosen.
Pressing this button once shows the pre-programmed
spin speed on the digital display.
This can be reduced in 200 or 100 rpm increments by
pressing the button several times. The lowest possible
spin speed is 400 rpm. The spin speed can also be chan-
ged during a programme, although not during the spin
phase.
Increased spin speed
If the spin speed button is pressed again after «Rinse
stop», a higher spin speed (1800 rpm) can be chosen.
The washing will be spun harder.
Economy advice
If the washing is to be dried in a tumble drier, select a
high spin speed, as well spun washing takes significantly
less energy and time to dry in a tumble dryer.
Rinse stop
The «Rinse stop» function is used to avoid creasing of
sensitive fabrics. The laundry is held in the last rinse wa-
ter. Select rinse stop by reducing the spin speed until you
see «rinse stop» on the display.
You can end the programme by draining the laundry
without spinning or by spinning (see page 11).
Fast forward
The programme can be shortened or interrupted by
pressing the fast forward button.
X(See interrupting the programme on page 11).
This button can also be used to select special
programmes.
X(See special programmes, page 9)
14

Maintenance / Care / Cleaning
Cleaning the machine
Ensure that the power supply is switched off before any
cleaning, care or maintenance work.
Under no circumstances spray the machine with water.
Do not use solvents! These substances can damage parts
of the machine, produce poisonous vapour and carry the
risk of explosion.
Casings and control areas should only be cleaned with
soap or a commercially available, solvent-free, non-abra-
sive cleaning product.
The side walls of machines with a chrome steel finish
should not be cleaned with chrome steel cleaner under
any circumstances.
Descaling the machine
If the correct amounts of detergent are used, descaling is
no longer necessary in general.
Descalers contain acids, can attack parts of the machine
and cause discolouration of laundry. If you do, however,
wish to descale the machine, follow the manufacturer's
instructions on the packet.
Limescale formation depends largely on the hardness of
the water. To avoid water damage, we recommend ha-
ving this checked by a specialist after around 5 years of
fault-free operation.
Cleaning the drum
Rust marks caused by metal parts standing still for
lengthy periods can be removed with a chlorine-free
cleaning product (look at the description of the
ingredients on the pack).
Never use steel wool!
Water supply hose
Only for machines without Aquastop. To avoid water da-
mage, we recommend having this checked by a specialist
after around 5 years of fault-free operation.
Frost protection
If the machine is in a room susceptible to frost, all
residual water must be removed from the detergent
pump, water supply and drain hoses.
Emptying the detergent pump
See «Emergency emptying» page 16.
Emptying the water supply hose
zTurn off the water supply.
zUnscrew the hose from the tap, place it in a bowl,
select any wash programme and run it for around 40 se-
conds, before interrupting it with the fast forward button.
zScrew the hose back into the tap.

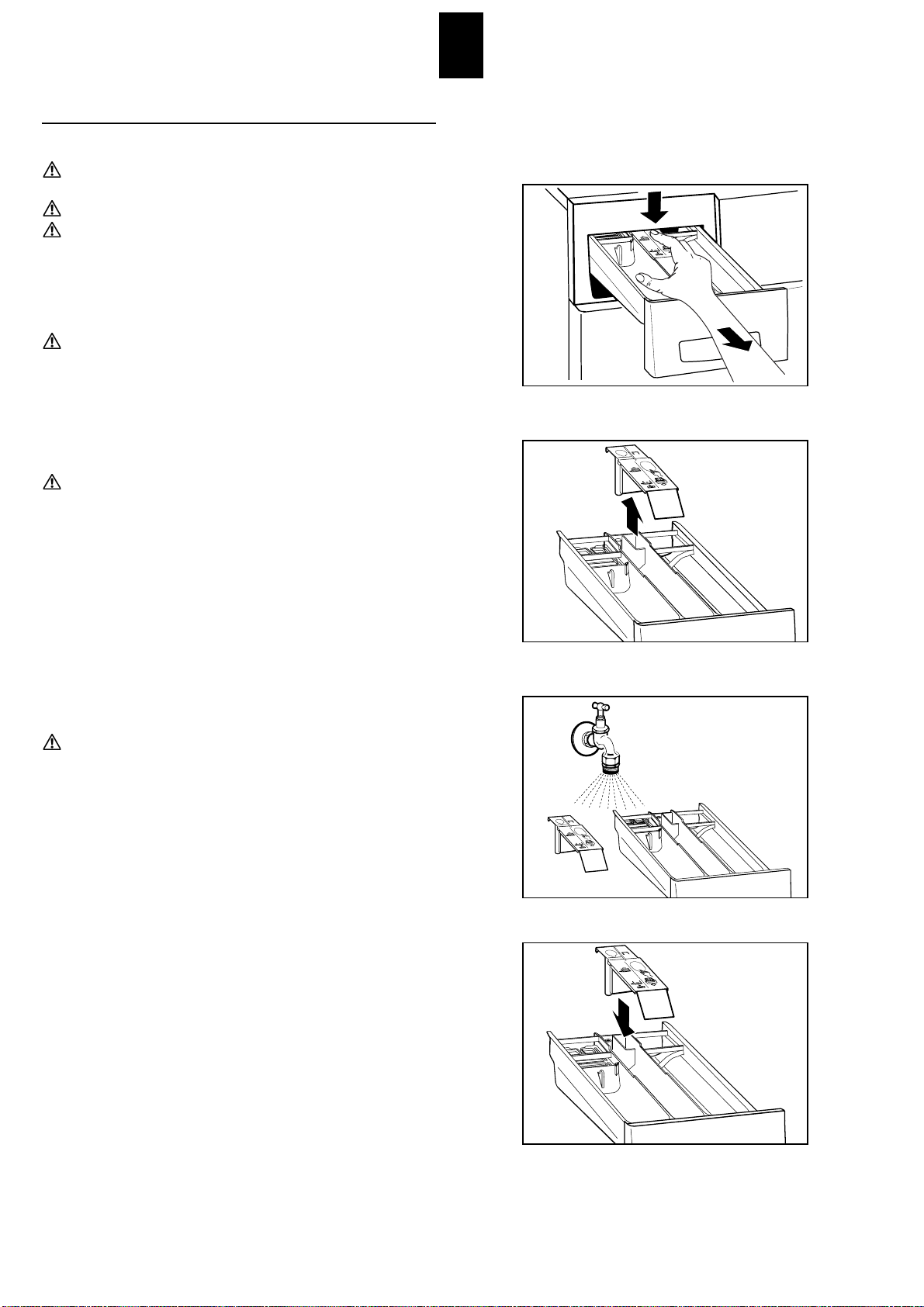

Cleaning the detergent drawer
1. Pull the detergent drawer out until it stops.
2. Press down in the middle of the softener section cover,
and pull the drawer all the way out.
3. Remove the divider.
4.
Clean the chambers and insert under running water.
5. Replace the divider in the detergent drawer.
15

6. Replace the drawer in the machine.
Cleaning the liquid containers
1. Pull the detergent drawer out until it stops
2. Remove the liquid container (B) from the detergent
drawer (C).
3. Pull the siphon (A) out of the liquid container.
4.
Clean the liquid container and siphon under running water.
5. Remove any dirt, e.g. detergent residue with a suitable
cleaning device, e.g. nylon brush.
6. Replace the siphon in the liquid container. If required,
replace it in the detergent drawer.
Notentleerung
Eine Notentleerung ist notwendig, wenn:
zDie Störungsmeldung «Wasserablauf prüfen und
starten» erscheint.
zDie Pumpe durch Fremdkörper (z.B. Knöpfe, Klammern,
Flusen) blockiert ist und das Wasser nicht abgepumpt wird.
zBei verstopfter Pumpe können bis zu 20 Liter Wasser
auslaufen. Stellen Sie einen Eimer bereit.
Verbrühungsgefahr! Heisse Waschlauge abkühlen lassen.
Emptying procedure
1.
Switch off the mains power supply

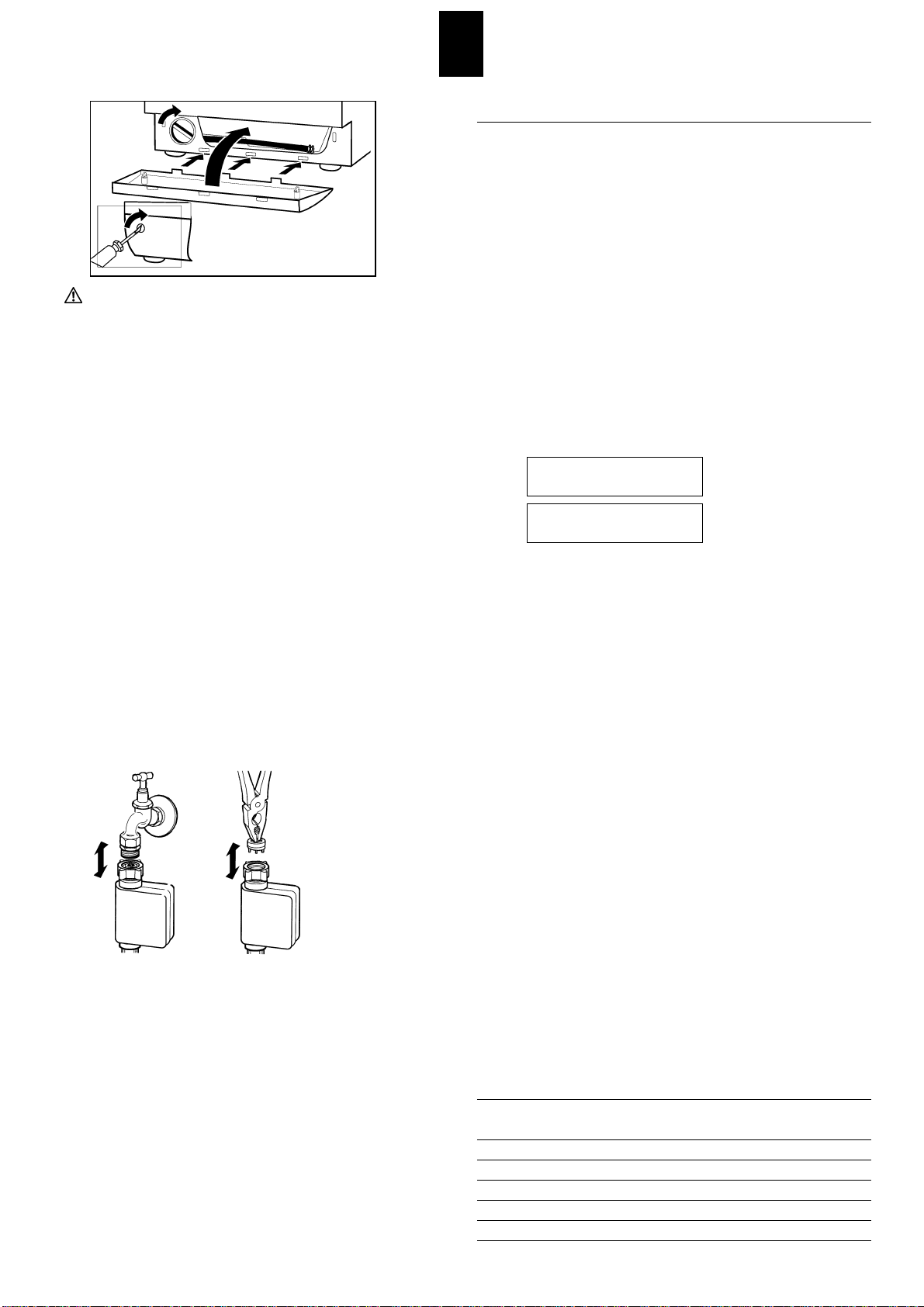

2. Remove the plinth cover on the front of the machine.
Turn the catches on the plinth cover using a coin or screw-
driver. The slots must be horizontal. Place your hands
under the centre of the plinth cover, press upwards slightly
and pull.
3. Pull out the drain hose, remove the stopper and run the
water into a container. Repeat the process several times if
necessary.
4. Replace the stopper in the drain hose and return it to its
clips.
5. Remove the pump cover.
6. Remove foreign bodies and fluff. Clean the inside of the
pump. The vanes of the pump must be able to turn.
7. Replace pump cover.
8. Replace the maintenance cover and turn the catches.
The slots must be vertical.
B
C
A
16

9. Switch the mains power back on.
10. Select a wash programme and, as soon as the machine
has finished filling, end the programme with the fast
forward button.
This ensures that detergent is not wasted by flowing
straight into the drain system on the next wash.
Cleaning the filters in the water inlet
The filters in the water inlet must be cleaned if no water
or insufficient water flows into the machine when the tap
is turned on. The error message «Check water inlet and
start» is displayed. The filters are located in the hose
fitment and on the back of the machine.
Cleaning procedure
1. Turn off the water supply.
2. Select a programme, start it, and after around 20
seconds, end the programme using the fast forward but-
ton. This reduces the water pressure in the inlet hose.
3. Only disconnect the hose from the tap.
4. Remove the filter with a pair of flat pliers, clean it and re-
place it.
5. Reconnect the hose.
6. Turn on the tap and ensure that there are no leaks.
Settings
Basic settings
The machine has basic settings from the factory. It can be
adapted to the user's individual needs either when first
used or later using the following functions.
The basic settings can only be changed if no wash
programme is running. To change a basic setting, it is first
necessary to hold the programme button pressed and then
press the fast forward button. The corresponding function is
shown on the digital display. The display changes when the
fast forward button is pressed repeatedly with the
programme button held down.
The basic settings on your machine may be blocked.
However, the time setting and language selection functions
are available.
Example:
Function switched off
Function switched on
Extra rinse (ex factory OFF)
Special programme «Easy Clean» + «Fast forward»
To improve the rinse results in soft water areas or for allergy
sufferers, switch on the extra rinse.
Higher water level when washing
(ex factory NORMAL)
«Wool» + «Fast forward»
The water level is increased during the wash.
Higher water level when rinsing
(ab Werk NORMAL)
«Coloureds 40°C» + «Fast forward»
The water level is increased during the rinse.
Spin speed reduction (ex factory OFF)
«Coloureds 60°C» + «Fast forward»
Wash programme Spin speed
in rpm
Off Level 1 Level 2
reduction reduction
Boil/Coloured wash 1800 1200 1000
Easy care wash 800 800 600
Fine wash 600 600 400
Wool 800 600 400
Special programme 600 600 400
ADDITIONAL RINSE
ON
ADDITIONAL RINSE
OFF
17

Setting the clock (the clock is not set ex factory)
«Boil wash 95°C» + «Fast forward»
The hours can be set using the «Coloureds 60°C» button
and the minutes using the «Boil wash 95°C» button.
Language (ex factory GERMAN)
«Express» + «Fast forward» ÷ «Fast forward»
The basic language is changed and is retained even after
switching the machine off or putting it in sleep mode.
Extended basic settings
«Coloureds 40°C» + «Coloureds 60°C» +
«Fast forward»
XBy pressing these three buttons at the same time, the
display shows the extended basic settings.
XRepeatedly pressing the «Coloureds 40°C» button
shows the possible settings.
XPressing the «Coloureds 60°C» button allows the set-
tings to be changed
XPressing the «Fast forward» button interrupts the di-
splay of the settings.
Skincare function (ex factory OFF)
Select «Extended basic settings»!
If the skincare function is switched on, two extra rinses
are added to each wash programme. These additional
rinses can prevent skin allergies.
Child lock (ex factory OFF)
Select «Extended basic settings»!
The child lock is to prevent accidental starting, changing or
deletion of a programme by small children.
Operating the machine with the child lock switched on:
«Start» + «Fast forward»
Halten Sie die Starttaste gedrückt und betätigen Sie die
Schnellgangtaste.
Rinse stop (ex factory INDIVIDUAL)
Select «Extended basic settings»!
If this function is switched on, all easy care or fine wash
programmes automatically add a rinse stop.
Dirt sensing (ex factory WASH AND RINSE)
Select «Extended basic settings»!
Dirt sensing while washing:
When dirt sensing while washing is switched on, the
wash time is automatically extended if there is heavy
soiling. Dirt sensing works with boil, coloured and easy
care washes.
If liquid detergent is used, dirt sensing while washing is
switched off.
Dirt sensing while rinsing:
If dirt sensing while rinsing is switched on, up to two
extra rinses will be added if there is heavy soiling in the
rinse water.
Memory function (ex factory OFF)
Select «Extended basic settings»!
If the memory function is switched on, the selected tem-
perature and spin additional functions are saved for each
programme. If the same programme is selected again,
the stored values are automatically used. The values can
then be altered.
Soap wash programme (ex factory OFF)
Select «Extended basic settings»!
An additional rinse is used when this function is
switched on.
Soaking programme (ex factory OFF)
Select «Extended basic settings»!
When this programme is switched off: normal time
preselection up to a maximum of 20 hours.
If the soaking programme is switched on:
XSelect additional functions after choosing your
programme.
zSet the desired soaking time by pressing the «Soak»
function one or more times.
XThe soaking time begins whe the start button is
pressed.
Note:
XAdd soaking detergent in section Iof the detergent
drawer and your usual detergent in section II.
XThe soaking programme must be reprogrammed for
each wash.
XSoaking can be interrupted and the wash programme
started by pressing the fast forward button.
XIn the event of a power cut, the current soaking time
is stored. The duration of the power cut is not taken into
account.
XOnce a wash programme is started, the soaking time
cannot be altered.
Cool down function (ex factory OFF)
Select «Extended basic settings»!
(Detergent solution cooling)
When the detergent solution cooling function is switched
on, boiling water is cooled with cold water at the end of
the washing process.
This helps to prevent damage to older drains.
This cooling always takes place in easy care and super fi-
nish programmes, irrespective of this setting. This helps to
prevent creases.
Tumbling at end of programme (ex factory ON)
Select «Extended basic settings»!
When this function is selected, the laundry is tumbled for
5 minutes at the end of the programme.
Wash time reduction (ex factory ON)
Select «Extended basic settings»!
When this function is switched off, the boil, coloured and
easy care programmes are longer.
18

LCD Brightness setting (ex factory 220)
Select «Extended basic settings»!
The «Coloureds 60°C» button can be used to alter the
brightness or text on the display.
LCD Contrast setting (ex factory 41)
Select «Extended basic settings»!
The «Coloureds 60°C» button can be used alter the
contrast on the display.
Alarm volume (ex factory Volume 2)
Select «Extended basic settings»!
With the Alarm setting switched ond, a signal sounds at
regular intervals at the end of the programme. The
volume can be adjusted in 3 levels using the «Coloureds
60°C» button.
Off
Volume 1
Volume 2
Volume 3
Standby function (ex factory ON)
Select «Extended basic settings»!
When the standby function is switched on, the controls
switch off when wash programme is running or laundry
weighing is carried out in energy saving mode.
All displays are dark.
Optical interface (ex factory OFF)
Select «Extended basic settings»!
If the optical interface (SCS) is switched on, customer ser-
vices can communicate with the machine by PC.
Reduced mains power (ex factory OFF)
Select «Extended basic settings»!
If the mains voltage is reduced, the programme times will
be extended accordingly.
Off = 400 V 2N ~ 4,2 kW / 10 AT
Off = 400 V 1N ~ 4,2 kW / 16 AT
On = 230 V 1N ~ 2,3 kW / 10 AT
Advice for testing bodies and users
In the goods declaration, this washing extractor was
awarded the top grade A in the washing effectiveness
category according to the Energy Label classification un-
der the EN 60456 standards programme. However, from
the factory, it is set up with standard wash programmes
developed especially to meet Swiss consumer needs,
although modern fabrics can be washed on shorter pro-
grammes thanks to today’s wearing and washing charac-
teristics. However, the standard programme times accor-
ding to the Energy Label can be set using the extended
basic settings by setting the wash time reduction
parameter to Off.
zThe machine is now basically set to the longer wash
times according to the Energy Label.
EN 60456 Standard programme
Cotton 60°C:
«Coloureds 60°C» 112 minutes / 42 litres / 0,95 kWh
Problems
Repairs, alterations or intervention on electronic
equipment should only be carried out by qualified specia-
lists. Inexpert repairs can cause considerable damage and
risk to the user.
Only original spare parts should be used for repairs.
Rectifying minor faults yourself
The machine does not start after pressing a
programme button:
XCheck whether the mains power is switched on at the
wall and the plug is in.
XCheck whether all the fuses are intact or the safety
switch has tripped.
The machine does not start:
XThe start button has not been pressed.
XStart time preselect has been set. Only starts at the
preselected start time.
Detergent residue in the detergent drawer:
XDamp or clumpy detergent.
Dry the detergent drawer before adding detergent (for
cleaning, see page 15). Use dosing aids for compact or
liquid detergents. Add the detergent to the dosing aid
and put it in the drum with the laundry.
XThe divider for liquid detergent has been pressed
down. Move the divider to the position for powder de-
tergent (see page 6).
Water not visible during wash:
XNot a fault! The water is below the visible level in the
machine.
Poor wash result:
XLevel of soiling was higher than usual.
XChange type and amount of detergent.
XSelect the maximum permitted temperature for the fabric.
XSelect a stronger wash programme.
Detergent residue on the washing:
XThis is not due to poor rinse performance of your was-
hing machine, but insoluble residues found in a few
phosphate-free detergents, which tend to be deposited
as pale specks on laundry.
XRemedy: dry and brush off or repeat the whole rinse
process immediately. Change detergent if necessary.
Grey residue on the washing:
XThe normal amount of detergent is not always
sufficient for soiling from ointments, fats or oils, increase
the amount for the next wash.
Remedy: select the maximum permitted temperature for
the fabrics.
Grey stains on the washing:
XThese stains may be caused by cosmetics or fabric sof-
tener and may have appeared on the laundry outside the
machine before washing.
Remedy: some stains can be washed out after soaking in
liquid detergent.
Foam is visible after the last rinse:
XSome detergents tend to produce more foam, which
does not affect the rinse results.
Pump noise:
XNot a fault! The noises from the pump when filling
and pumping out are normal.
Repeated spinning:
XThe imbalance control system detected an imbalance
and is rectifying the imbalance by spinning repeatedly.
19

Poor spin results:
XThe imbalance control system detected an imbalance
which could not be rectified. With small loads or critical
laundry such as bathroom textiles, the laundry is not suffi-
ciently distributed. The spin speed is reduced according
to the load and imbalance, to protect the machine from
overloading.
Vibrations when washing and spinning:
XThe transport packaging has not been removed.
Follow the advice in the installation instructions!
XThe machine's feet were not fixed during installation.
Reset the machine with a spirit level, secure the feet ac-
cording to the installation instructions.
The door cannot be opened:
XProgramme has not finished yet.
X«Rinse stop» was selected (see page 13).
The door can be opened as follows in the
event of a power cut or machine fault:
XTurn off the water supply!
XCarry out the emergency emptying procedure
(see page 16).
XPull the door opener.
zThe door opens.
Check that the drum has stopped moving before you
reach in!
Error messages
If the following error messages are displayed, the
programme can be restarted by pressing the start button
once the error has been rectified.
«Child lock active»
XHold the fast forward button down and press the start
button
«Check water supply»
XTurn on the tap and start again.
XFilter in water supply is blocked, see «Cleaning the
filter in the water supply» (page 15).
XInterruption in water supply.
«Check water drainage»
XCheck whether the drain hose is kinked or the building
drain is blocked.
XCarry out emergency emptying procedure (see page 14).
«Please close the door»
XPush the door closed until the lock catches properly.
The selected program starts automatically.
«Imbalance - no spin»
XLaundry not spun
XPress the Start button and then the Fast Forward but-
ton to end the wash program.
XOpen the door and redistribute the load.
XRepeat the spin cycle with the separate spin program.
General reference
XAvoid loading the drum with heavy single pieces of
laundry.
If the machine displays a function error
«F – – call service»:
XInterrupt the programme using the fast forward button
and select a new programme.
If error messages appear repeatedly:
XSwitch off the power for around 1 minute and switch
it back on again.
(Pull out the plug or switch off at the wall).
XThe machine is ready for use again when the
programme control lights flash.
XSelect a new programme.
If an error message appears again:
XMake a note of the error message.
XTurn off the water supply and unplug the machine or
switch it off at the wall.
XNotify customer services.
20
