DISH Tailgater VQ4400 User manual

User’s Guide
Models VQ4400 & VQ4410
To subscribe to programming or for assistance with using the DISH Tailgater,
visit www.mydish.com/tailgater or call 1-800-963-DISH (3474).
Designed and Manufactured by
Refer to www.mydish.com/tailgater for additional information regarding equipment used with this product.

Page 1
PRODUCT REGISTRATION
To provide ongoing technical support and to better
facilitate warranty processing, please register your product
at www.kingconnect.com/products/product-registration/.
TABLE OF CONTENTS
Introduction ..........................................................2
Important Safety Instructions ............................................2
DISH Tailgater Package Contents ........................................2
Apply Rubber Feet to Antenna Unit .......................................3
About Signal Loss .....................................................3
About Satellite TV Reception ............................................4
Connect Receiver to TV ................................................4
DISH Tailgater Setup ..................................................5
DISH Tailgater Operation ............................................ 6-12
First Time DISH Tailgater Operation with New Receiver ...........6-9
Standard DISH Tailgater Operation .........................10-12
Proper Care of Your Equipment .........................................14
Security ............................................................14
Accessories...................................................... 14-15
Roof Installation .................................................. 16-19
Troubleshooting ..................................................20-23
Manufacturer’s Limited Warranty ........................................24
FCC Guidelines......................................................25
HDMI is a registered trademark of HDMI Licensing L.L.C.
KING and Dome Magic are registered trademarks of Electronic Controlled Systems, Inc.
Wally is a trademark, and DISH, Tailgater and ViP are registered trademarks of DISH Network L.L.C.

Page 2
Thank you for choosing DISH and the DISH Tailgater Portable HDTV System!
You are about to experience the excitement of DISH satellite television programming and the
convenience of the DISH Tailgater portable antenna, which delivers the very best picture and sound
quality wherever you go.
The DISH Tailgater allows you to decide how and where you watch your DISH service. If you need to
activate service, call 1-800-963-DISH (3474) to speak with a mobile antenna expert.
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
1. Please read this User’s Guide thoroughly before using the DISH Tailgater.
2. Keep this User’s Guide and the included Quick Reference Guide in a safe place for future
reference.
3. Follow all instructions and warnings. Set up and operate the DISH Tailgater in accordance with
the instructions.
4. Do not power wash the DISH Tailgater. Do not submerge the DISH Tailgater or place in
standing water. Hand wash only with mild soap and water. See page 14 for additional care
instructions.
5. Do not operate near any indoor or outdoor heat source such as radiators, heat registers,
stoves, barbecues, campres, or other items that produce heat.
6. Servicing may be required if the unit has been dropped or damaged in any way or if the unit
does not operate normally. Call the KING Service Department at [phone].
7. Tighten all of the coax cable connections only by hand. If you use a wrench, you may
over tighten the connections and damage your equipment.
8. To avoid risk of electric shock, unplug your receiver before connecting the DISH Tailgater in
damp or wet conditions.
NOTE: The VQ4410 includes the receiver and cables.
DISH TAILGATER PACKAGE CONTENTS

Page 3
APPLY RUBBER FEET TO ANTENNA UNIT
ABOUT SIGNAL LOSS
Because of the small size of the highly portable DISH Tailgater, signal strength may not be as
strong as with a xed home antenna.
OBSTRUCTIONS
The DISH Tailgater requires an unobstructed view of the southern sky for the best signal reception.
Be sure to place the DISH Tailgater in a location free from obstructions such as people, trees,
buildings, vehicles, etc. This will allow for the strongest signal and will help prevent any interruption to
your programming. Point the handle approximately north to speed up search time.
RAIN AND SNOW FADE
Though rare, heavy rain, snow, or dense cloud cover can reduce the satellite signal, which may
interrupt your programming. Your programming should return as conditions improve.
DO NOT BLOCK THE DISH TAILGATER’S LINE OF SIGHT
TO THE SATELLITES IN THE SOUTHERN SKY AT ANY TIME!
IMPORTANT!
If you move the antenna unit any
time during or after a scan, you will
have to repeat the scan process.
IMPORTANT!
Do not apply rubber feet if roof mounting the antenna unit.

Page 4
CONNECT RECEIVER TO TV
1. Connect your DISH HD Solo Receiver (ViP211z, ViP211k, ViP211, 411 or Wally)1to your TV
using the best connection type supported by your TV. (See your TV owner’s manual for its
connection options. Connection type and location may vary by model.)2
DO NOT PLUG IN OR TURN ON RECEIVER AT THIS TIME.
1) Receiver models compatible with the DISH Tailgater may change. This list may not be complete.
Please visit www.kingconnect.com/dish-receivers for the most up to date receiver information.
2) Your receiver may also have standard denition “TV SET OUT” and “S-VIDEO” ports,
and high denition “COMPONENT” ports to view video. See your receiver owner’s manual for more information.
Images shown may vary by receiver model.
HDMI®Cable
(High Denition Connection)
OR
Composite Cables
(Standard Denition Connection)
Back of DISH ViP211z Receiver
Satellite television uses satellites in a geostationary orbit over the earth. This type of orbit enables
the satellites to stay aligned over one place on the surface of the earth and to transmit your television
programming to the DISH Tailgater when pointed at the appropriate satellite.
Your television programming is delivered from up to 3 satellites located at the 110°, 119°, and 129°
west longitudes. The DISH Tailgater will automatically nd and then switch between satellites as you
change channels to offer you the ideal viewing experience.
Due to the low look angle for the 129 satellite in the northeastern region of the United States, you may
experience difculty viewing programming from the 129 satellite while in this area. (Programming
from the 110 and 119 satellites should still be available.)
ABOUT SATELLITE TV RECEPTION

Page 5
The DISH Tailgater requires an unobstructed view of the southern sky for signal reception. Be sure
to place the DISH Tailgater in a location free from obstructions such as trees, buildings, etc. (See
page 3.) Point the handle approximately north to speed up search time.
1. Connect one end of the supplied RG-6 coax cable to the MAIN port on the DISH Tailgater and
place in position. It is recommended you use only the supplied RG-6 coax cable.
2. Connect the other end of the supplied coax cable to the SATELLITE IN port on your receiver.
3. Plug your receiver into a 110 volt AC power source.
The green power light on your receiver should illuminate or begin cycling on and off.
Wait for the green light to turn solid.
This may take up to two minutes.
If it does not turn solid, power on your receiver using
the front panel POWER button. (On “z” models,
this is located behind the door panel.)
4. Plug in and turn on your TV.
In your TV’s input selection menu, choose the input that matches the connection from your
receiver. (Example: If using an HDMI cable from your receiver, choose the HDMI input on your
TV.) See your TV owner’s manual for details.
DISH TAILGATER SETUP
• Do not put the DISH Tailgater where it can be bumped, knocked over or struck by a person or vehicle.
• Do not put the DISH Tailgater near any heat sources.
• Do not route the coax cable where it can be tripped on or run over by a vehicle.
• Do not over tighten the coax cable connections.
• Do not put sharp bends or kinks in the coax cable.
NOTE: Place the DISH Tailgater on a stable and reasonably level surface with a clear view of the southern sky.
When placing the DISH Tailgater in position, be sure surface is dry and free of loose dirt or sand.
Front of ViP®211z receiver with door open
HAND TIGHTEN COAX. OVER TIGHTENING CAN DAMAGE CONNECTIONS.

Page 6
1. Point your receiver’s remote at the front of
the receiver and press SAT.
Press RECORD.
When a number appears in the box,
verify “Continue” is highlighted.
Press SELECT on your remote.
The Portable Antenna Setup screen
will display.
IF YOU ARE USING A NEW RECEIVER WITH THE DISH TAILGATER, YOU MUST
FOLLOW THE FIRST TIME SETUP PROCEDURE STARTING BELOW.
AFTER THIS FIRST TIME PROCEDURE, YOU CAN USE “STANDARD DISH
TAILGATER OPERATION” STARTING ON PAGE 10.
DISH TAILGATER OPERATION
FIRST TIME DISH TAILGATER OPERATION WITH NEW RECEIVER
MAKE SURE TO INSTALL THE BATTERIES IN THE RECEIVER’S REMOTE
CONTROL (INCLUDED WITH REMOTE CONTROL).
Images shown may vary by receiver model.

Page 7
IN STEPS 2-6, DO NOT BLOCK THE DISH
TAILGATER’S LINE OF SIGHT TO THE SATELLITES
IN THE SOUTHERN SKY AT ANY TIME!
2. Use the arrow buttons on your remote to
highlight the letter group that includes the
rst letter of the state you are currently in.
Press SELECT.
3. Highlight the state you are currently in
from the state menu.
Press SELECT.
4. Verify “Scan” is highlighted.
Press SELECT.
The scan will begin and may take up to
several minutes to complete.
IMPORTANT!
If you move the antenna unit any
time during or after the scan,
you will have to repeat steps 2-6.

Page 8
The receiver will download software
for the DISH Tailgater. This step may take
20-25 minutes.
5. The receiver will reset and the Mobile
Antenna Setup Screen will appear.
Repeat steps 2-4 to start
a second scan.
The unit will scan a second time.

Page 9
When the scan is complete, the
Acquiring Signal message will display.
Acquiring the signal may take up to 5
minutes to complete.
6. After your receiver has acquired the signal,
it is ready to be activated. To activate
service call 1-800-963-DISH (3474).
After your receiver is activated,
the electronic program guide will download.
This may take up to 10 minutes to complete
(potentially longer if an external hard drive
is connected).
This completes the setup for new receivers. You may now use
STANDARD DISH TAILGATER OPERATION starting on the next page for subsequent use.

Page 10
1. Use the arrow buttons on your remote to
highlight the letter group that includes the
rst letter of the state you are currently in.
Press SELECT on your remote.
After connecting and turning on your equipment as instructed in DISH TAILGATER SETUP, the
Mobile Antenna Setup screen will display. (It may take up to two minutes to display.)
Note: If the Mobile Antenna Setup screen does not display, press MENU, 6, 1, 1 on your
remote. Highlight the “Check Switch” button then press SELECT on your remote.
STANDARD DISH TAILGATER OPERATION
IN STEPS 1-5, DO NOT BLOCK THE DISH
TAILGATER’S LINE OF SIGHT TO THE SATELLITES
IN THE SOUTHERN SKY AT ANY TIME!
IMPORTANT!
If you move the antenna unit any
time during or after the scan,
you will have to repeat steps 1-5.
IF YOUR RECEIVER IS NEW AND UNACTIVATED, YOU MUST COMPLETE
THE STEPS ON PAGES 6-9 FIRST!

Page 11
2. Highlight the state you are currently in
from the state menu.
Press SELECT.
3. Verify “Scan” is highlighted.
Press SELECT.
The scan will begin and may take up to
several minutes to complete.
This screen will display during the scan.
4. When the scan is complete, the
Acquiring Signal message will display.
Acquiring the signal may take up to 5
minutes to complete.

Page 12
OPERATING NOTES:
When in the northeastern United States, television programming from the 129 satellite may not be
available (see page 4).
If your system is inactive for an extended period of time, you may have to call DISH Customer Service
at 1-800-333-DISH (3474) to reauthorize your receiver.
5. After your receiver has acquired the signal,
the electronic program guide will download.
This may take up to 10 minutes to complete
(potentially longer if an external hard drive
is connected).
If your receiver has not been used for awhile the 013 error message may appear.
Call 1-800-333-DISH (3474) and follow the prompts to reauthorize your receiver.
Note that if channel 101 appears, scroll channel up or down to make sure 013
error message does not appear.
You can view your programming when your receiver has been authorized and the
guide has nished downloading.
IF YOU MOVE THE DISH TAILGATER, YOU WILL HAVE TO REPEAT STEPS 1-5
TO REACQUIRE THE SATELLITES AND RESTORE PROGRAMMING.

Page 13
This page intentionally left blank.

Page 14

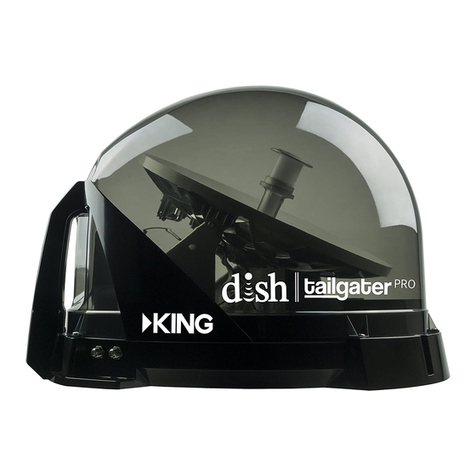

PROPER CARE OF YOUR EQUIPMENT
SECURITY
1. Always handle the DISH Tailgater product carefully. Do not drop the DISH Tailgater. Avoid excessive shock or
vibration to the DISH Tailgater.
2. Use caution when carrying the DISH Tailgater. Always carry the DISH Tailgater by the handle.
3. Do not remove the cover of the DISH Tailgater without authorization. Doing so will void the Limited Warranty.
4. Do not stack the DISH Tailgater on top of or below other electronic devices as this can cause heat build-up or
block the satellite signal from reaching the DISH Tailgater.
5. Never power wash the DISH Tailgater. Keep the enclosure clean from dirt, bugs, and other debris by hand
washing with mild soap and water.
6. Do not coat or paint the DISH Tailgater with any substance. (KING Dome Magic®may be applied to the DISH
Tailgater to help keep snow and rain from building up on the surface.)
The DISH Tailgater has been designed to be maintenance and trouble free. If not using the DISH Tailgater for long
periods of time, it is recommended that you set up the system on a quarterly basis (every three months) to keep all
moving parts of the DISH Tailgater in good working order.
If you have any comments or questions, please contact the KING Service Department at [phone], or by email
at [email protected].
The DISH Tailgater can be secured to an object by
looping a cable thru the handle.
NOTE: The optional KING AL1000 Alarm
is also available (see next page).
Cable sold separately.
Allows you to position
your DISH Tailgater
almost anywhere
for best line of sight
to satellite. Keeps
antenna up off the
ground away from
moisture.
DISH Tailgater ts
securely inside.
Features include
zippered cover, foam
padding, carry handles
and pockets for
cables, receiver and
remote.
TR1000
Tripod Mount
CB1000
Carry Bag
Dish Tailgater not included. Dish Tailgater not included.
ACCESSORIES (Sold separately - see www.kingconnect.com/products/accessories/)

Page 15
The DISH Tailgater is not compatible
with the MB100 Mounting Bracket.
Use of the MB100 will void warranty.
The use of any unauthorized
mounting bracket will void warranty.
The MB600 removable mounting
feet allow semi-permanent
mounting of your DISH Tailgater
on your vehicle roof.
MB150
Mounting Bracket
Allows hanging of antenna unit on vehicle
window or included hanger bracket.
For stationary use only.
Vehicle must not be in motion while antenna
unit is on window or hanger bracket.
The KING AL1000 Alarm goes in-line between
your powered receiver and the DISH Tailgater.
It will sound an audible security alarm if the coax
is disconnected from the DISH Tailgater.
MB500
Mounting Bracket
MB600
Removable Mounting Feet
AL1000
Alarm
Dish Tailgater not included.
Dish Tailgater not included.
Dish Tailgater not included.
Dish Tailgater not included.
ACCESSORIES (Sold separately - see www.kingconnect.com/products/accessories/)

Page 16
1. Make sure you have the following tools and materials before starting.
ANTENNA UNIT LOCATION (see illustration on next page)
2. Select an area on the roof for the antenna unit and the location where the wiring will enter the
vehicle through the roof to the satellite receiver inside using the following criteria:
• A shorter distance between the antenna unit and the satellite receiver is most desirable.
• Make sure you have enough room to mount the antenna unit.
• The antenna unit should be mounted on the center line of the vehicle, and not tilted more
than 2 degrees in any direction.
• There must be no “line of sight” obstructions. Air conditioning units, other antennas, and
storage areas that are too close to the antenna unit may prevent the satellite signal from
reaching the antenna unit.
• Mount the antenna unit with the handle to rear of the vehicle.
NOTE: Many RVs are prewired with RG-6 coax cable for satellite antennas. Contact the manufacturer of your RV or
your local dealer to verify where this cable is located.
If prewired, run the existing coax cable from the prewire location in the roof to the antenna unit. When
choosing the antenna unit location, make sure the prewiring will reach the antenna unit.
ROOF INSTALLATION
Optional MB600 Mounting Feet
The MB600 Mounting Feet allow
you to semi-permanently mount
the antenna unit (see page 15).

Page 17
HEIGHT OF
OBSTRUCTION
APPROXIMATE MINIMUM DISTANCE
TO EDGE OF ANTENNA UNIT
10” 8”
11” 10”
12” 12”
13” 14”
14” 16”
15” 18”
16” 20”
ANTENNA UNIT LOCATION

Page 18
3. If the rubber feet have been installed, lay the unit on a soft, non-scratching surface and remove
them from the bottom of the unit. DO NOT INSTALL UNIT ON ROOF WITH RUBBER FEET
IN PLACE.
4. Mount the antenna unit using the (4) mounting holes. Make sure to seal mounting holes with
roof compatible sealant. DO NOT BLOCK THE (5) DRAIN HOLES WITH SEALANT.
5. Connect one end of 35 foot coax cable to the MAIN port and tighten connection.
DO NOT OVER TIGHTEN.
The installer is responsible for determining the most appropriate fastener to secure the antenna unit to the roof.
Depending on the roof material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and T
anchors may be used, and should always be used in combination with a roof compatible sealant.
IMPORTANT! The installer is responsible for weatherproong all holes (except drain holes) with sealant.
IMPORTANT!
Coax connection should be snug.
DO NOT OVER TIGHTEN!
For roof mounting,
do not apply the rubber feet.
If present, remove rubber feet.
MOUNTING TO ROOF
WITH RUBBER FEET VOIDS
WARRANTY.
